A fresh new take on synthesis from the legendary Moog. The Labyrinth combines two generative sequencers with parallel analogue signal paths to create evolving sounds and patterns.

Supplier's Notes:
Labyrinth, a semi-modular instrument and idea machine, discovers patterns, layers, and textures both familiar and unheard. Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies. With parallel analogue signal paths, this unique instrument shines when adding colour to the static backdrop of a drum pattern or bassline. Fully capable of standing on its own, or adding depth to your existing rack, it's equally at home in a live set or at the centre of a humble bedroom studio. Labyrinth is the lightning in a bottle that drives a studio session deeper into undiscovered creative caverns.

The beating heart of Labyrinth is a robust dual sequencer, which uses chance operations to construct two unique eight-step paths which twist and curve around each other, forming a mesmerizing path of sound. With a comprehensive patch bay, Labyrinth can be synced via analogue clock or MIDI while processing, directing, and being influenced by other kit.

Tune your instruments together and let Labyrinth improvise alongside in key while you play Matriarch. Patch Labyrinth and Spectravox together for animated spectral movement. Combine Labyrinth with Mavis in a 104HP rack for expanded modularity.

These are just a handful of many playful setups where Labyrinth fits. Whichever path you choose, have Labyrinth guide you.

Dual generative sequencers create intertwining melodies that mutate over time. It's a fountain of inspiration that uncovers patterns you can capture, return to, and evolve.

A fresh approach to the signature sound of classic Moog synthesizers with a smooth West Coast-style voltage-controlled wavefolder. Two oscillators drive duophonic melodic counterpoints, metallic FM tones, and analogue synthetic drums.

State variable resonant voltage-controlled filters that morph between lowpass and bandpass responses let you experiment with smooth command over complex tonal shapes.

A parallel voice processing path with a voltage-controlled blending allows you to morph sounds over time.

A comprehensive patch bay for integration with a wide variety of other modules in your rack and studio.

In the box

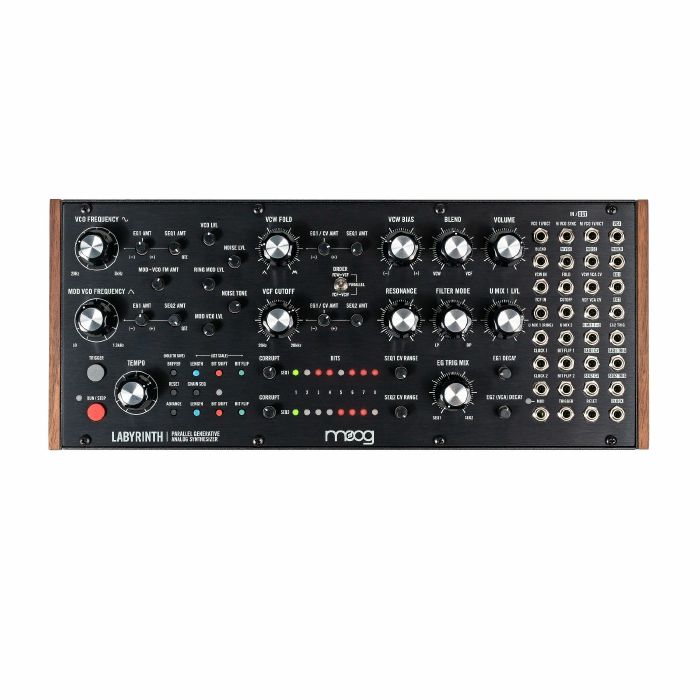

Labyrinth Semi-Modular Parallel Generative Analog Synthesizer

Power Supply
Patch Sheet Overlays
Patch Cables (5x 12")
Registration Card
Quickstart Guide
Cheat Codes
Safety & Warranty Manual

Weights & dimensions

Product only:

Weight: 3.1lbs / 1.5kg
Dimensions: 12.84" W 5.64" D 4.2" H / 32.61cm W 14.33cm D 10.67cm H

Product in box:

Weight : 5.29 lbs / 2.4 kg
Dimensions: 14.16" W 8.16" D 6.6" H / 35.97cm W 20.73cm D 16.76cm H

Analogue synthesis engine:

Sources: VCO, MOD VCO, RING MOD, NOISE Generator SIGNAL PROCESSORS: 1x Voltage-Controlled Wavefolder, 1x Voltage-Controlled State-Variable Filter, 2x Voltage-Controlled Amplifiers MODULATORS: 2x Decay-only envelope generators

Dual generative sequencer

2x 8-step Generative Digital Sequencers

Patch bay

Jacks: 32 x 3.5mm
Inputs: 20 Input Jacks
Outputs: 12 Output Jacks

Rear panel

Audio: 1 / 4" TRS Headphone or 1 / 4" TS Instrument
Power: Power Supply connection SECURITY: Kensington Lock slot

Power supply (included)

Style: Wall adapter; barrel connection; centre-pin positive INPUT: 100 - 240VAC; 50 Hz - 60 Hz OUTPUT: +12VDC; 1200mA

Power consumption
Typical: 4.0 W
