Back catalogue: All genres

Notes: Compact take on the Bitbox sampler, also offered as the larger Mk2 version. Touchscreen-based design allowing up to eight stereo samples, recording directly or loaded from SD card.

Supplier notes:
Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

Sample Playback

Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI and CV
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs
Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
Listen to all of the pad outputs combined on the master stereo output

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode - no need to look up CC numbers
Module Features
Use the 2? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Refine your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Inputs and outputs are DC coupled so you can record and play out CV signals

Notes: Second-generation version of 1010's outstanding Bitbox sampler module, featuring improved processing power, higher-quality touchscreen and new effects.

Supplier's Notes:
Next Generation Sampling Module for Eurorack

The bitbox mk2 is a follow up to 1010's successful bitbox module. Do more with bitbox mk2's more powerful processor and improved touch screen. This module has all of the features of the original bitbox and adds effects and mixing capabilities that take advantage of the faster and more powerful processor.

Sample Playback

Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Use MIDI for polyphonic playback of samples or slices
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer
Sample Modes

Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode
External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Trigger each pad independently through a dedicated gate input
Use MIDI to trigger pads via a note per pad
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode - no need to look up CC numbers
Module Features
Use the 3.5" diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Fill out your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would

When you purchase a bitbox mk2, you will receive:

a bitbox mk2 Eurorack module
a microSD card with with a bank of demo presets and samples loaded on it
a Eurorack power cable
a bitbox mk2 Quick Start guide
a MIDI Adapter

Technical Specs

Supports 1 and 2 channel WAV files with 16, 24 or 32-bit resolution at any sample rate (48kHz preferred)
26 HP
Module dimensions including knobs: 5.25" x 5"x 1.75"
Depth behind front panel with ribbon cable: 1.25"
+12V: 400mA
-12V: 0mA
5V: 0mA
24-bit ADC and DAC

Inputs and Outputs

Connect up to 8 CV modulators to control numerous sample parameters
Trigger each of the 16 pads with a dedicated gate input
Record through the dedicated stereo audio input pair
Use CV to keep time through the dedicated clock input
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
Inputs and outputs are DC coupled so you can record and play out CV signals

Notes: Updated version of the excellent Bitbox sampler module offers more powerful sound processing and an improved touch screen. Improved effects and mixing with all the same creative power of the original.

Supplier notes:
Bitbox mk2 delivers powerful sampling and mangling for Eurorack. With this module you can add recording, sample playback, clip launching, slicing, granular sounds and musically intelligent looping capabilities to your Eurorack rig. With a 3.5 inch touchscreen, bitbox mk2 makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Tweak your configurations to get them just right, then save them to multiple presets for future reuse. With the new bitbox mk2 hardware, you can now do more with the new more powerful processor.

Sample Playback
Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Use MIDI for polyphonic playback of samples or slices
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer
Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode
Inputs and Outputs
Connect up to 8 CV modulators to control numerous sample parameters
Trigger each of the 16 pads with a dedicated gate input
Record through the dedicated stereo audio input pair
Use CV to keep time through the dedicated clock input
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
Inputs and outputs are DC coupled so you can record and play out CV signals

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Trigger each pad independently through a dedicated gate input
Use MIDI to trigger pads via a note per pad
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode- no need to look up CC numbers
Module Features
Use the 3.5? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Fill out your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would

Notes: Eurorack version of 1010's superb Bluebox. Vast power in 30 HP, with the ability to mix, record and play back in mono and stereo, hook up to a computer over USB for stereo I/O and run effects, all with CV control.

Supplier's Notes:
The bluebox Eurorack edition is the new Eurorack mixer with effects and multichannel recording/playback based on the award-winning bluebox desktop mixer. With the Eurorack edition's USB-C EXT port, you can send 2 channels of audio to and from your computer. Plus, you can control up to 6 mix settings with the 6 CV inputs. Whether recording your Eurorack jams, using it to play stems as backing tracks, or a combination of both - bluebox Eurorack edition will rock your rack!

Connect your eurorack, sampler, drum machine, and synthesizer outputs to 12 mono, 3.5 mm inputs and map them to 12 mono tracks or 6 stereo tracks - all with independent control for recording and playback. Connect your computer to the USB C port to send and receive two channels of audio.

The bluebox Eurorack edition is the ultimate in compact mixing, effects, recording, and playback for Eurorack. Smack it in your rack and hit the road with a self-contained, electronic music powerhouse!

When you purchase a bluebox Eurorack edition, you will receive:

a bluebox Eurorack edition 30 HP Eurorack module
A microSD card with bluebox firmware and pre-loaded project files
two Eurorack power cables
a bluebox Eurorack edition Quick Start guide
two MIDI Adapters

Technical Specs

Dimensions & Power
30 HP
Module dimensions including knobs: 6" x 5"x 1.6"
Depth behind front panel with ribbon cable: 1.0"
Requires the +5V rail which may not be present
on some older racks.
Uses 500-850mA at +5V (depending
on screen brightness), 320 mA at +12V, and 82mA at -12V
Requires two power connections
Capabilities
12 mono tracks, 6 stereo tracks or something in between
Connect to TRS or USB C MIDI for beat syncing effects
Lots of headroom with support for Eurorack levels up to +/-5V inputs and outputs
3 effects: reverb, delay and compressor
Records and plays back 48k, 24-bit audio WAV files
4 band EQ per track
Durable aluminum faceplate
Stream 2 channels of audio in and out over USB C

Inputs and Outputs
12 mono 3.5 mm TS inputs
2 independently controlled 3.5 mm TS output pairs that can be used as 4 mono outputs
1 stereo 3.5 mm headphone output
6 CV Inputs
1 USB C MIDI Device port
1 TRS MIDI Input
1 TRS MIDI Output
1 USB C Ext jack for streaming audio
3.5" touch screen, 4 knobs, 8 navigation buttons and 3 transport buttons

Notes: ADSR is a four stage linear envelope with two expressive ranges. Each stage can be modified independently allowing for the creation of complex, multi-segment envelopes. Great for modulating filters, VCAs, and oscillators.

Notes: Arp is a gate-driven arpeggiator with a multitude of chord types and playback modes. Voltage control over both root note and chord type allow for sequencing any combination of chords in any key imaginable.

With the rate of the arpeggio and reset capability in your own hands, you're free to create dynamic rhythmic melodies from your favourite chords. Take your tonality for a ride with Arp.

Notes: Brst is a voltage controlled burst generator and trigger delay. Upon receipt of a gate signal, Brst will output a stream of triggers. Knobs and CV inputs give the user control over speed and the number of repetitions. Whether you're generating bouncing balls, crafting IDM drum beats, or humanizing a clock signal, Brst will prove an indispensable addition to your rack.

Notes: The 2hp Buff is a buffered multiple capable of splitting an input signal to multiple outputs. Due to its active architecture, inputs retain their full integrity as they are copied to multiple destinations. One input signal can be copied to six outputs, or two inputs can be copied to three outputs each. The Buff is especially great for splitting pitch or audio signals where signal integrity is critical. Keep your signals in shape with Buff.

Notes: Delay is a flexible, full-featured delay audio processor. CV over all parameters provides dynamic access to its nuanced controls. The feedback path ranges from slapback to infinity, allowing for wild permutations of the original signal.

With delay times from milliseconds to nearly two seconds, Delay is sure to find a use in every patching situation. Add subtle echo to a melodic line, or crank up the feedback and hear a bed of layered sounds to bury your listeners in.

Notes: Div is a 2 channel, voltage controlled clock divider and multiplier. Incoming clock signals can be multiplied or divided by a factor of 16 with a multitude of values in between.

CV inputs provide external control of the current clock rate, allowing for the creation of dynamic rhythms from a single clock signal.

Notes: Hat is a hi-hat cymbal with a wild side. Finding something unique is easy with a blend of sounds ranging from robotic to metallic. At its core are three unique sound sources made up of six oscillators, a noise generator, and a number of filters. Sizzle affects each source independently, adjusting oscillator and filter frequencies, allowing for a broad range of sounds. In addition, separate trigger inputs for open and closed allow for a complete hi-hat pattern on a single module. No matter what situation it's in, Hat provides shimmering, metallic timbres for any percussive purpose.

Notes: Emulate the nostalgic sounds of old audio equipment with the 2hp Lo-Fi. Finding inspiration in quirks and happy accidents found in audio devices of the past, Lo-Fi can take any sound and give it the magic of tasteful degradation.

Lo-Fi carries two degradation modes: Analog and Digital. In the analogue mode, control the amount of wow and flutter for anything from subtle to dynamic pitch fluctuations, tickle the sonic spectrum with ASMR hiss and crackles, and warm up the coldest sounds with tape compression and saturation. In digital mode, dial in BitCrush amount, sample-rate reduction, and the wildest distortion in 2hp to cover your sound in digital crunch, or emulate blown out speakers.

With CV control over each function, and an ultra-crisp audio pass through, take your patch from hi-fi to lo-fi at a moment's notice. Get reel with the 2hp Lo-Fi!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Emulate the nostalgic sounds of old audio equipment with the 2hp Lo-Fi. Finding inspiration in quirks and happy accidents found in audio devices of the past, Lo-Fi can take any sound and give it the magic of tasteful degradation.
Lo-Fi carries two degradation modes: Analog and Digital. In the analogue mode, control the amount of wow and flutter for anything from subtle to dynamic pitch fluctuations, tickle the sonic spectrum with ASMR hiss and crackles, and warm up the coldest sounds with tape compression and saturation. In digital mode, dial in BitCrush amount, sample-rate reduction, and the wildest distortion in 2hp to cover your sound in digital crunch, or emulate blown out speakers.

With CV control over each function, and an ultra-crisp audio pass through, take your patch from hi-fi to lo-fi at a moment's notice. Get reel with the 2hp Lo-Fi!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: MMF is an analogue, multimode filter with a 12dB per octave slope. Its sonic character swings all the way from classic low pass to squelchy acid lines. Simultaneous outputs of low pass, high pass, and band pass filter types are provided allowing for many variations of the input signal. Whether you're looking for smooth and creamy, or resonant and wild, MMF can go there.

Notes: Mult is a 2 input, 6 output signal splitter. Channel 1 is normalled to channel 2 when no cable is present, allowing the user to split an input signal six ways, or two input signals with three outputs each.

Notes: Mult is a 2 input, 6 output signal splitter. Channel 1 is normalled to channel 2 when no cable is present, allowing the user to split an input signal six ways, or two input signals with three outputs each.

Notes: Easily connect your modular system to the rest of your setup with Out, a compact 2HP stereo line output and headphone module. Despite its small size, it includes everything you need for clear, convenient listening.

The top section features stereo modular-level inputs with LED indicators for quick level monitoring. From there, the signal is routed to both a stereo line output and a dedicated headphone jack, each with independent volume control. Whether you're sending your modular through external effects, recording into an interface, or just monitoring with headphones, Out keeps things simple and efficient.

Notes: Play is a high-fidelity sample player with a full feature set.

Up to 32 samples can be loaded at a time and dynamically switched between using the file knob and associated CV input. Playback modes include one-shot, looping, or gated playback; all with extremely low latency. Transform your samples by pitching them up two octaves or down three octaves, all with a pitch knob that can be free running or quantized to semitones. The pitch CV input tracks volt per octave across its entire range and allows for musical sequencing of samples. Play ships with a pre-loaded SD card packed with loops, drum hits, and field recordings to get you up and running immediately.

Notes: Great for generating random voltages from white noise, arpeggios from sawtooth waves, and downsampling audio signals.

Notes: Get glitchy with it.

The 2hp Slice is a compact beat repeat/glitch engine built to add clickless stutters, digital glitches, and more to your patch. With an onboard Triplet button, seamlessly switch between straight beat repeats to offset triplets, perfect for those trap style fills you can't live without. With massive repeat range, and CV/Gate inputs for complex glitch sequencing, Slice is everything you need to get glitchy with it, all in 2HP.

Tech Specs

Width: 2HP
Depth: 45mm
Power Consumption: +12V=83mA, -12V=8mA, +5V=0mA

The 2hp Slice will be available in both Silver aluminium and Black PCB front panels.

The 2hp Slice ships with a 10-16 power cable and 2 Silver M3 mounting screws.

Notes: Swarm is a hyper-oscillator capable of an array of patch-filling sounds. Create super-saws, tonal noise hurricanes, and thick bass and lead lines.

Swarm is comprised of a large set of oscillators (up to 88 voices!). Control the number of available oscillators with the Voices control, and dial in the desired amount of pitch variance across the voices with detune. Take Swarm's oscillators from a rich thickening of sound to atonal chaos in the turn of a knob! Swarm also provides macro pitch control with the Freq knob, which also tracks 1v/oct through its CV input. A waveform toggle is also available for switching between sawtooth and pulse waveforms, expanding the timbral palette Swarm offers! Design pumping trance leads, minimoog style basslines, and more with Swarm!

Tech Specs:

Width: 2HP
Depth: 45mm
Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Swarm is a hyper-oscillator capable of an array of patch-filling sounds. Create super-saws, tonal noise hurricanes, and thick bass and lead lines.

Swarm is comprised of a large set of oscillators (up to 88 voices!). Control the number of available oscillators with the Voices control, and dial in the desired amount of pitch variance across the voices with detune. Take Swarm's oscillators from a rich thickening of sound to atonal chaos in the turn of a knob! Swarm also provides macro pitch control with the Freq knob, which also tracks 1v/oct through its CV input. A waveform toggle is also available for switching between sawtooth and pulse waveforms, expanding the timbral palette Swarm offers! Design pumping trance leads, minimoog style basslines, and more with Swarm!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Capture the iconic sound of tape sliding to a halt with Tape Stop, a clock syncable tape stop module that puts this classic effect at your fingertips. Originally an accidental artifact of analog tape, this effect has become a beloved tool in music genres from hip-hop to IDM. Now, it's fully controllable in your modular system.

Adjust the Lag to set the stop length, then tap Trig to activate. Hit it again to resume your audio seamlessly. With clock sync, your stops and starts stay perfectly in time, and a toggle lets you switch between momentary and latching Trig modes. Add a touch of tape magic to your modular system with Tape Stop!

Notes: Capture the iconic sound of tape sliding to a halt with Tape Stop, a clock syncable tape stop module that puts this classic effect at your fingertips. Originally an accidental artifact of analog tape, this effect has become a beloved tool in music genres from hip-hop to IDM. Now, it's fully controllable in your modular system.

Adjust the Lag to set the stop length, then tap Trig to activate. Hit it again to resume your audio seamlessly. With clock sync, your stops and starts stay perfectly in time, and a toggle lets you switch between momentary and latching Trig modes. Add a touch of tape magic to your modular system with Tape Stop!

Notes: Trim is a 2 channel passive attenuator. It features two individual channels of attenuation.

Notes: Tune is a multi-scale pitch quantizer. It features 11 scales ranging from chromatic to octatonic with everything in between. In addition, the bias control allows the user to transpose the melody to a different octave or starting note.

This functionality opens up every musical mode for each of its 11 scales and provides a performable control for transforming melodies on the fly.

Notes: The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: Vowel is a speech synthesis and formant oscillator. It synthesizes and approximates the human voice by generating vowel sounds. These can be manipulated to provide deep low baritones, or high pitched squeaks. Two unique algorithms provide separate takes on this exciting synthesis method and allow for a multitude of talking synth sounds.

Notes: The Buff Mult is a buffered multiple with LED indicators to show positive and negative voltages. Using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6 mult for audio, video, or CV signals.

Notes: Really smart integration of macro controls for Eurorack, based on the original design by Emblematic Systems. Assign settings to eight CV outputs then morph with the crossfader or record movements to manage presets or set up complex real-time modulation. Can also operate as Catalyst Sequencer.

Supplier's Notes:
The Catalyst Controller is a macro controller with eight precision CV outputs and a responsive crossfader to morph between scenes. A scene is a snapshot of up to eight CV outputs, like a modular preset. Traverse a "pathway" composed of multiple scenes using the crossfader or an external CV signal, or immediately jump using the scene buttons. Record CV and slider movements, and play recordings back via a button or external trigger.

Each output has sub-millivolt precision and a maximum range of -5V to +10V. Channels have an adjustable morphing curve, can be quantized to common scales, restricted to a particular voltage range, or set to output gates.

Whether used as a CV preset manager, seamless transition generator, chord sequencer, CV recorder, or experimental CV playground, the Catalyst Controller puts control of your modular at your fingertips.

The Catalyst Controller can also turn into a Catalyst Sequencer! Hold down a special button combination to change between controller and sequencer modes. If you end up liking the Sequencer more, you can even remove the double-sided faceplate, flip it over, and re-install with the Sequencer artwork visible.

Based on the original Catalyst module from Emblematic Systems.

Specifications:

Smooth, responsive crossfade morphs between scenes
Eight output channels, each can be CV or Gate
Arrange scenes into pathways of up to 64 scenes
Smooth, responsive crossfader morphs from scene to scene along the pathway
Set slew/lag to limit how fast scenes can change
Adjustable Morph time per output
Control crossfading with an external CV
Record and playback up to 20 seconds of CV and crossfader motion
CV outputs can be set to -5V to +10V maximum, or limited to +/-5V, +5V, +3V, or +1V
CV outputs can be unquantized (sub-1mV resolution), or Quantized to common scales
Randomization of channel values/gates
Copy/paste
Based on the original Catalyst from Emblematic Systems

Pairs with: 4ms Catalyst Sequencer

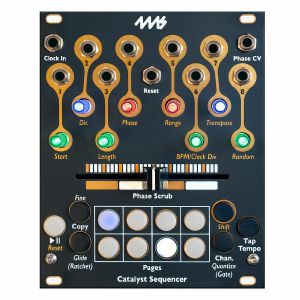

Notes: The Catalyst Sequencer combines a traditional clocked step-sequencer with an unconventional phase-based sequencer to produce a new paradigm in sequencing. Eight precision CV sequencer channels can be simultaneously driven by a clock, a phase CV, or scrubbed manually with the crossfader.

Each of the eight channels has its own sequence length, quantizer, transposition, clock divider, randomization, voltage range (max -5V to +10V), and selectable CV (precise 16-bit resolution) or Gate mode.

Phase-based sequencing is an advanced form of sequencing where each step is selected by CV. The Catalyst Sequencer has a smooth, responsive crossfader that scrubs the sequence, playing it forward or backwards to track your motions. Patching in a CV signal will do the same: a ramp-up CV plays the sequence forwards, a ramp-down plays it backwards, a triangle plays it ping-pong, and complex waveforms generate new interesting rhythmic and melodic patterns.

The Catalyst Sequencer can also turn into a Catalyst Controller! Hold down a special button combination to change between sequencer and macro controller modes. If you end up liking the Controller more, you can even remove the double-sided faceplate, flip it over, and re-install with the Controller artwork visible.

Based on the original Catalyst module from Emblematic Systems.

Pairs with: 4ms Catalyst Controller

Notes: Announcing the Dual Looping Delay from 4ms Company, designed by Gary Hall!

The 4ms Dual Looping Delay (or DLD) is an advanced audio processor for creative synthesis. Not a tape or analog emulation but a modern crystal-clear digital delay, the DLD combines features of delay, looping, and sample-tight synchronization for powerful and dynamic sound capture and modification. The DLD is designed to integrate seamlessly with modular time-base and sequencing devices such as the 4ms Quad Clock Distributor (QCD), etc.

What is a "Looping Delay"?
Modern looping devices grew directly from hardware digital delays of the late 70s and early 80s. A looping delay, modelled on units such as the classic Lexicon PCM42, has the very long storage times associated with dedicated looping, but without triggered record and playback functions.

By default, a looping delay records and plays continuously, though recording can be suspended at any time with Infinite Repeat. Sustain of delays and loops is mainly accomplished with regeneration, allowing an organic, evolving approach to sound creation as new material replaces old, more or less gradually. The 4ms Dual Looping Delay also provides advanced clock input and output facilities that allow for locking delayed and looped material with sequencers and rhythm devices of all descriptions.

The 4ms Dual Looping Delay is conceived and designed by Gary Hall. Implemented and manufactured by 4ms Company

Notes: The Dual EnvVCA is a two-channel analogue linear envelope generator with two fully independent low-noise exponential VCAs. With time ranges from 30 minutes to 8kHz, it can be used as an LFO, slew limiter, ASR/ADSR complex EG, audio-rate oscillator, stereo audio/CV VCA, envelope follower, sidechain processor, and general utility module. The outputs can be attenuated, inverted, and offset without disrupting the VCA, making it a versatile modulation source.

100% analogue

Dual EnvVCA

16HP Eurorack format module
0.95" (24mm) maximum depth (includes power cable)
10-pin Eurorack power header

Power consumption
+12V: 156mA
-12V: 131mA

Audio/VCA
100k input impedance, 1k output impedance, DC-coupled
VCA gain range: -90dB to +0.9dB
DC to 20kHz, +/-0.1dB
VCA response to CV: exponential

Envelope Times
Minimum rise or fall time: ~62us per segment (8kHz max frequency)
Maximum rise time: >10 minutes (typically > 13 minutes)
Maximum fall time: >20 minutes (typically > 40 minutes)

Jacks:
Env jack: Min = -10.2V, Max = +10.1V?, maximum amplitude 9.3Vpp
Trigger jack: rising edge threshold = 2.5V
Cycle jack: rising edge threshold = 2.5V
Follow jack: active range = 0V to +5V

EO* jacks:
EOR (channel A): <80mV low to >4.50V high gate output
EOF (channel B): <80mV low to >4.95V high gate output
Minimum stable pulse width: 1ms. Shorter than this may produce extra 50us pulses
Audio In/Out jacks: -10V to +10V maximum range without clipping

Notes: Seriously potent polyphonic voice built around 16 sine-based oscillators. Capable of a huge range of tones thanks to FM, phase distortion and wavefolding. Another cracker from a consistently reliable brand.

Supplier's notes:
The Ensemble Oscillator is a unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be "learned" and saved using a CV keyboard or by manually entering notes with the controls.

The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.

30 factory-programmed, user-writeable scales organized in three groups:
12TET: all notes quantized to equal temperament, repeating over octaves
Octave: unquantized notes, repeating over octaves
Free: unquantized notes, repeating over the interval between the lowest and highest note

16HP Eurorack format module
0.98" (25mm) maximum depth (including power cable)
10-pin to 16-pin Eurorack power header
Power consumption
+12V: 114mA maximum
-12V: 45mA maximum
+5V: 0mA (not used)
Audio outputs
Frequency range: 0Hz (DC) - 20kHz
Typical amplitude: 10Vpp
Maximum amplitude: 18.5Vpp
1V/oct inputs (Root and Pitch)
Voltage range: -2V to +6V (8 octave range)
Factory calibrated to 1.00V/oct
Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
CV inputs (other than 1V/oct)
Voltage range: -5V to +5V
Gate inputs
Trigger threshold: 2.5V
User memory (non-volatile)
Scale slots: 30
Shift feature settings
1V/oct calibration settings

Notes: The Ensemble Oscillator is a unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be "learned" and saved using a CV keyboard or by manually entering notes with the controls.

The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.

Electrical and Mechanical Specifications:

16HP Eurorack format module
0.98" (25mm) maximum depth (including power cable)
10-pin to 16-pin Eurorack power header

Power consumption:
+12V: 114mA maximum
-12V: 45mA maximum
+5V: 0mA (not used)

Audio outputs
Frequency range: 0Hz (DC) - 20kHz
Typical amplitude: 10Vpp
Maximum amplitude: 18.5Vpp
1V/oct inputs (Root and Pitch)
Voltage range: -2V to +6V (8 octave range)
Factory calibrated to 1.00V/oct
Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
CV inputs (other than 1V/oct)
Voltage range: -5V to +5V

Gate inputs:
Trigger threshold: 2.5V
User memory (non-volatile)
Scale slots: 30
Shift feature settings
1V/oct calibration settings

Notes: The Listen Four is a four channel stereo mixer with line, modular, and headphone outputs. Two mono channels with Pan knobs and two stereo channels with dual inputs provide optimal compatibility with both stereo and mono signals. The Listen Four can be daisy-chained to other Listen modules to create a larger mixer with sub-mix outputs.

Notes: The Listen Four Quarters is a four channel stereo mixer with 1/4" (6.35mm) TRS balanced outputs and 1/8" (3.5mm) headphones output. Two mono channels with Pan knobs and two stereo channels with dual inputs provide optimal compatibility with both stereo and mono signals. The Listen Four Quarters can be daisy-chained to other Listen modules to create a larger mixer with sub-mix outputs.

Notes: The Listen IO is a simple module which gets signals in and out of a Eurorack system by converting to and from normal modular levels. The top section converts any external signal to modular levels by providing up to 30x gain (+30dB), allowing you to use table-top synthesizers, keyboards, phones/tablets, computers, toys, microphones, etc. in your patches. The bottom section does the opposite: modular signals are converted to normal line level signals. The bottom two jacks can be used as line outs or as headphone jacks, so you and a friend can listen in stereo at the same time.

Each section has two inputs and outputs for use with a stereo signal or two mono signals. An LED bar graph for each output shows the signal level and clipping.

Notes: Crystal-clear clock-synced delay for loop up to 90 seconds, echoes, sound-on-sound, Karplus-Strong etc.

Features:
Loop or echo time is synchronized to a clock
87 seconds of delay/loop time maximum
48kHz/24-bit sampling rate, loop recorded at 16-bit (24-bit optional)
Extremely quiet, low noise and low jitter design
Tap tempo button and clock Ping input set the basis for one "beat"
Delay/loop time set as a number of musical beats (or fractions of beats) using the Time knob, switch, and CV jack
Sample-accurate clock output for perfect synchronization
Loop clock outputs for each channel
Time switches change range of Time knob from 1/8th notes up to 32 bars
Digital feedback, up to 110%
Delay Feed control, independent of dry/wet signal mix
Infinite Hold mode disables recording input and fixes regeneration at exactly 100%
Reverse mode plays memory contents backwards
With an infinite loop locked, knobs or CV can "window" around memory, by shifting the loop
Trigger inputs for toggling Infinite Hold and Reverse
Send and Return for applying effects to feedback with external modules
CV jacks to control Time, Level, Feedback and Dry/Wet Mix
16HP Eurorack module

Specs:
48kHz, 24-bit low-noise hi-fidelity
Up to 90 seconds of loop time
16HP
+12V: 110mA
-12V: 45mA

Included with the Looping Delay:
16-to-16 pin power cable
4 x M3 Knurlie screws

Notes: The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).

Notes: The hands-on control of hardware meets the versatility of software. Bridging the gap between Eurorack and VCV Rack, the MetaModule includes over 160 built-in modules plus access to over 200 third-party options.

Supplier's Notes:
The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.

The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments eurorack modules, fun physical modeling algorithms, and lots of handy utilities.

All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.

MetaModule Plugins

If the 160+ built-in module aren't enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. 4ms have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. 4ms' licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.

Mapping Knobs and Jacks

The MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.

Expanders

There are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.

Under the Hood

There are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.

The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.

Modules

160 built-in modules
Over 200 3rd-party module plugins available so far, and the ecosystem is growing
Create patches using VCV Rack or directly on MetaModule

Patches

Patches are loaded from microSD Card, USB drive, or via the Wifi expander
Patches can be optionally saved onto internal flash memory
Create patches using VCV Rack or directly on MetaModule
Patches can be given a name and description

Mappings

Map each physical knob to up to 8 virtual knobs
Set range and offset for each mapping, including inverted control
Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving
Map physical jacks to virtual jacks, seamlessly making splits/mults
Add or edit modules, cables, and mappings in real-time while the patch is playing
Create alias names for mappings like "Kick Drum Level"

Interface

Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture
Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time
Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set
Module View shows just one module and lists the names of each jack, knob, and control legibly
Mapping View lets you adjust details of a knob mapping
Adjust styles and visual preferences to your liking
Save, rename, duplicate, and delete patches
Firmware updater and plugin loader read from microSD Card or USB drive

Hardware

12 Knobs
8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled
6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled
2 Gate inputs
USB-C jack: MIDI Host or MSC (External drive) Host
microSD Card slot
Internal Flash RAM for additional patch storage
Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor
512MB DDR3 533MHz RAM
Bare-metal operation for fast startup and low latency

26hp

Notes: Four channel voltage controlled Clock Divider/Multiplier with master Tap Tempo. Each channel can be synced to the tap tempo, to the channel above, or to an external clock. Each channel also has a reset jack.

With a Tap Tempo button and five sync'ed clock outputs, the QCD is a versatile head-of-the-chain "Master" clock module, and/or a complex rhythmic pattern generator.

Notes: The Row Power 25 is a clean, regulated, and protected power supply module for Eurorack systems. It requires a barrel-style power brick (15V - 20V DC) and supplies power to modules via flying bus cables, direct connection, and/or bus boards.

The Row Power 25 provides 25W of power for any Eurorack modules (typically 4-10 modules*):

+12V @ 1.4A maximum, 1.0A recommended
-12V @ 0.8A maximum, 0.5A recommended
+5V @ 1.0A maximum, 0.8A recommended

*number of modules can vary depending on each module's power consumption.

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 25 can also be daisy-chained to Pods. Each Row Power and Pod will be independently regulated and protected for ultra-low cross-talk between rows.

Notes: Row Power is a clean, regulated, and protected power solution for eurorack systems. Row Power 35 provides 35W of power, suited for any typical eurorack row (84HP to 168HP):

+12V @ 1.4A
-12V @ 1.25A
+5V @ 1.0A

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Daisy-chain multiple Row Powers to use a single power brick for multiple rows (typically 3-5 rows per power brick). Each row will be independently regulated and protected for ultra-low cross-talk between rows. Rows can also be hot-swapped (plugged/unplugged without powering the whole system down).

Notes: Row Power is a clean, regulated, and protected power solution for Eurorack systems. Row Power 45 provides enough power for two to three typical Eurorack rows (typically up to about 312HP):
+12V @ 2.0A maximum, 1.5A recommended
-12V @ 1.4A maximum, 1.2A recommended
+5V @ 1.5A maximum, 1.2A recommended

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying bus cables or the Bus Stick. For custom power systems, the Row Power 45 has a set of easily soldered holes for using large gauge wire or MTA156 connectors to connect to distribution bus boards.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 45 can also be daisy-chained to 4ms Company's Pod enclosures. Each power supply is independently regulated and protected for ultra-low cross-talk between rows/pods.

The Row Power 45 is compatible with the 4ms Row Power Shield. This device (sold separately) attaches to the back of the Row Power 45 and monitors the amount of current being drawn, as well as the voltages of the power rails. The information is sent over Bluetooth to be displayed on a phone or tablet.

Electrical and Mechanical Specifications

Module Size:
4 HP Eurorack format module

Power Output:
Maximum average load under normal conditions: +12V @ 2.0A, -12V @ 1.4A, +5V @ 1.5A
Maximum average load under any condition: +12V @ 1.5A, -12V @ 1.2A, +5V @ 1.2A
Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.

Included with the Row Power 45:
16-to-16 pin power cable
2 M3 Knurlie screws

Notes: The SCM Plus is a clock multiplier with eight gate outputs and complex beat manipulation features. It combines the classic Shuffling Clock Multiplier (SCM) and SCM Breakout (SCMBO) into a single module using higher precision hardware than its predecessors.

Specs:

Electrical and Mechanical Specifications

12HP Eurorack format module
0.95" (24mm) maximum depth (includes power cable)
16-pin Eurorack power header

Power consumption
+12V: 52mA max
-12V: 15mA

Clock Input
2.5V threshold
40kHz maximum

Clock Outputs
12V gate outputs, rise/fall time approximately 1us
40kHz maximum
Jitter (x1 output): max 30us < 120BPM, max 5us >= 120BPM
Latency (clock in to x1 output): 8us worst-case, 3.5us typical

CV Inputs:
Rotate, Slip: Knob attenuates jack signal. Full range: 0V to +3.3V
Shuffle, Skip, PW: Knob offsets jack signal. Full range: -5V to +5V
Gate Inputs:
4x Fast, Mute: 2.5V threshold. Button toggles state.

Notes: The Spectral Multiband Resonator from 4ms Company is an innovative resonant filter which can process audio like a classic filter bank, ring like a marimba when plucked/struck, vocode, re-mix tracks, harmonize, output spectral data, quantize audio to scales, and much more...
A gorgeous ring of colored lights displays the frequency of each filter, as well as the levels and current scale selection(s).

At a glance, the SMR works like a normal six-band graphic EQ: six frequency band-pass filters are mixed together using sliders. Resonance/Q is variable, which changes the "ringy-ness" or width of the bands.

But here's where comparison stops. The frequency of each channel is treated like a note in a scale, and the six bands form a chord. Spin the Rotate knob and the "notes" circle around the scale, rotating back to the bottom once they've reached the top. Adjust Spread and the distance (interval) between each note changes. Triggers for up/down motion, CV inputs for sequencing and scale selection allow for flexible control with external modules. Morph, which automatically cross-fades between frequencies, together with variable Slew allows rhythmic clocks drive the SMR as a variable-speed evolving resonant filter.

At maximum Resonance/Q, the SMR can be struck like a gong or marimba by inputting clocks or triggers. The frequency of each channel is quantized to a scale: beautiful chords, ethereal tones and eerie ambiance flows easily. With lower resonance, the SMR can pull out particular frequency bands, and sweep these across the spectrum.

Two 1V/octave Frequency jacks allow for tracking even and/or odd bands and creating floating melodies over evolving chord bases, or complex percussive membrane sounds.

Save your settings into one of six storage banks, and recall on the fly. On startup, the SMR instantly jumps to the last saved settings. The color scheme of the lights can be adjusted, so if you prefer all white lights on your modular, you can have that (or all red, or rainbows, pastels, etc..)!

Advanced features:
- Program your own scale. The frequency of each of the 20 notes can be assigned by setting the octave, the semi-tone, and coarse and fine micro-tone. Up to 11 scales can be saved permanently in the user bank
- Adjust color scheme of the LEDs. Pick a pre-programmed color scheme or create your own using the sliders to set Red/Green/Blue values. Custom color schemes can be saved permanently
- Save your settings in one of six parameter banks. Note position, scale and bank selection, Q value, Lock settings and color scheme can be saved and recalled on the fly. On startup, the SMR loads settings from the last saved bank.
- Optional alternative filter type for a more exponential decay when plucked and different timbral qualities. Freq jacks no longer track 1V/oct in this mode.
- Slider LEDs can be assigned to display level for each channel (combination of slider position and CV on the jack), or clipping for each channel.

Notes: The Stereo Triggered Sampler can record high quality stereo files, while simultaneously playing two different stereo files. A maximum of 600 samples can be loaded from the removable/swappable microSD card, in a variety of formats up to 96kHz/32-bit/stereo WAV. All sample parameters (1V/oct pitch, sample file selection, length, and start position) are CV controllable.

600 Samples:
A maximum of 600 samples can be loaded at once, arranged into banks of 10 samples each. Samples and banks can be re-arranged on the fly using the simple on-board Edit features. Newly recorded samples can be instantly played back and re-pitched, reversed, chopped up, etc... the result of which can even be bounced down and re-recorded to as a new sample! Sample files are limited to 4GB each, which is over 6 hours at 44k/16b/stereo.

Two Stereo Playback Channels:
Each playback channel has a knob and CV jack for Sample File selection, as well as a Start Position knob and CV jack for controlling where in the sample playback will begin. The Length knob and CV jack determine how much of the sample is played back: from tiny grains, to percussive hits, to longer loops... or just the entire file. These are powerful tools for re-arranging a sample, joining multiple samples, and creating dynamically re-sized loops within a larger sample. Combined with the Play Trigger jack and the 1V/oct jack, the STS can be two complete multi-timbral pitch-tracked stereo voices!
There's also a Reverse button and jack for backwards playback, and an End Out jack for synchronizing loops, or cascading sample playback with other events.

Looping and Sync:
Looping is easy: just hold the PLAY button down for two seconds to toggle loop or one-shot. The loop timing clock will output from the End Out jack. Or, send a clock into the Play Trig jack to sync the loop to external timing.

Stereo Recording:
Whether you patched 47 modules to create the ultimate percussive blast, or you want to capture your four hour ambient performance, recording high-quality .wav files on the STS is simple. Just hit the REC button or fire a trigger and a new stereo .wav file will be created on the SD card. Do as many takes as you need: the STS never deletes your files. Re-ordering or re-arranging samples into banks is easy, even without a computer.
You can even fill a bank with 10 different variations and immediately use them for playback.
By default the STS records at 44.1kHz/16-bit, with an option for 24-bit (a future update may increase the sample rate to 96kHz)

Easy sample loading:
Using a computer is completely optional with the STS, since samples can be recorded directly to the module and placed into the bank of your choosing. But for users with large existing sample banks, the intuitive automatic bank loading features make dragging and dropping your entire sample library a snap. You never have to rename your files again!
