Notes: GOBLET is an analogue filter and distortion unit with some added quirks and extra controls.

Why:

To make stuff sound filthy.
To shape the output of an oscillator.
To live interact with the sound during a performance.
To soft sweep the cutoff thanks to the optocouplers logarithmic response.

With:

Simple waves - make them unrecognizable.
Complex waves - shape them into something new.
Percussions - crank the resonance and give an acid twist to a beat.
No input - play with the feedback and the touch controls.

Dimensions:

8 HP
18 mm deep

Current Draw:

45 mA +12V
25 mA -12V

Whichever power connector you use should work fine with the polarity.

Notes: GITGUD is a pack of 9 chained LFOs.

Why:

To move stuff all around.
To creatively trigger drums and voltage-controlled gates.
To change the whole vibe of a composition with just a slide on the skin-sensitive panel.
To create dependencies on a group of modulations and defuse them un-chaining the LFOs on the fly.

With:

Filters - create a relation between the cutoff and the resonance.
Drums - send a pulse to the trigger input and a ramp to modulate another parameter.
LPGs - squares to make them BONG and ramps for slow linear increments.
FM or any other CV inputs you want it to take care of.

Dimensions:

8 HP
18 mm deep

Current Draw:

135 mA +12V

Notes: GETREKT is a full analogue waveshaper - an aggressive one.

Why:

To add saturation and harmonics.
To disrupt - folding - and cut into pieces - clipping.
To generate square waves from other control voltage signals or audio sources.
To invert the polarity of a trigger or other kind of pulses.

With:

Sine waves - hear them scream.
Human voices - fracture them in pieces with clipping as a good ol' broken tape would do.
Complex audio sources - to control and flatten them.
Envelopes going to a drum module - rectify or fold that decay tail.

Dimensions:

4 HP
18 mm deep

Current Draw
35 mA +12V
30 mA -12V

Notes: ASCOLTA is a dual high fidelity input preamp with envelope follower and peak detector output for each channel.

Ascolta consist of two individual high quality preamp connected to an envelope follower and a peak detector output.

On the back of the module you can select the behaviour of its internal normalization when no cable is plugged into I2:

S: the first input I1 will accept stereo 3.5mm standard cables from any source and split L and R to output O1 and O2 respectively. This way you can directly amplify stereo signals without the need of external splitters and regulate the gain of each channel individually.

G: the second amplifier will double the amplification of the first totalling a gain range of 80dB - 10.000x.

Envelope E and peak P outputs are strictly related to the gain level of their corresponding amplifier and will follow the dynamic of any input plugged.

Features

Two high quality 40dB amplifiers.
Customizable internal normalization.
Envelope and Peak output following the input signal
Audio graded potentiometers.
"Whatever" power connector a.k.a. don't mind the polarity.

Technical Specs

Width: 4HP
Depth: 25mm
50mA +12V
30mA -12V

Notes: Simple but effective approach to signal routing here from Jolin Rosa. The Morpher is a four-in/four-out crossfader, scanner and switcher, allowing you to shape, route and manipulate any signal with ease.

Supplier's Notes:
ROSA is a multi-mode crossfader, scanner, and switcher that allows seamless morphing between up to four inputs and outputs. With its three operating modes (Scan, Wave, and Pass), you can easily shape and route signals to fit any patch.

A quick overview:

Scan Mode: Morph between up to four inputs with adjustable curves using the KNEE control.
Wave Mode: Independently control the four VCAs for complex dynamic changes.
Pass Mode: Route a single input (or mix multiple inputs) to up to four outputs, perfect for quadraphonic setups or parallel processing.
Infinite Analogue Potentiometer: For smooth, continuous transitions.
Global SHUT Control: CV-controlled mute for immediate silence.

Notes: The SetonixSynth SkyWave is an all-analogue voltage controlled oscillator capable of producing many different timbres and unique harmonic behaviours, thanks to an original step-based control scheme which allows the user to dial in completely different wave-shapes and levels for successive oscillator cycles.

This complex VCO uses an internal feedback loop with the clock output of the oscillator triggering a step sequencer which in turn cycles through settings at the frequency of the core oscillator, thus changing the shape and level of the waveform output on a per-cycle basis while also staying in tune and tracking pitch like a typical VCO.

Notes: SetonixSynth Sands Of Time 1U Filtered Noise Source Module

The SetonixSynth Sands of Time is a compact 1U noise source which contains two separate noise circuits: a transistor-based analog noise generator similar to those used in many classic modular synth systems of the '60s and '70s, and a CMOS logic-based fixed oscillator bank as found in some of the great drum machines of the '80s, particularly of the TR series.

Either or both of these noise sources may be routed to a sweepable active bandpass filter, perfect for shaping the noise into many different "flavors," from low-frequency rumble, to chest-thumping midrange snare source, to hissing raw hi-hat noise and everything in between.

In a very small package, the Sands of Time provides a full palette of audio frequencies and Noise-like sounds which are useful in many popular patching techniques, especially analog drum patches and "Noise Walls" along with the generation of pseudo-random voltages for use with Sample & Holds, slew generators, and more.

Though it demands just 10hp of 1U rack space, the Sands of Time is still a useful and diverse noise source with some "oomph," a crucial yet often overlooked addition to any setup or patch.

Width: 10 hp (Intellijel 1U format)
Depth: 35 mm
Peak Current Draw: 25 mA @ +12V, 25mA @ -12V

Notes: The SetonixSynth Marsupial is a new dual filter design based around the re-issued AS3350 filter IC, originally used in rare synths such as the Synton Syrinx, Crumar Spirit and Rhodes Chroma but never widely utilized. Normalization between the control inputs and a Series/Parallel switch makes it simple to dial in a huge variety of unique and musical filter sounds.

Current draw: 36mA @ +12V; 35mA @ -12V

Eurorack width/depth: 8hp; 25mm

Notes: The SetonixSynth/Tidbit Audio Psychedelic Voltage Processor, or PVP, is a four-channel chaos module. It uses colour-changing LEDs to produce fluctuating voltages in response to the Channel input, with each channel normalized in series to create increasingly chaotic "taps" that can be used one after another for different variations.

Any positive voltage input such as unipolar LFOs, envelopes, stepped voltages, or simply the onboard normalized voltage patched to a channel input is reproduced approximately on each channel output, with the PVP inducing unpredictable fluctuations due to the variable current consumed by an LED circuit with a mind of its own.

Dimensions
8 HP
25 mm deep

Current Draw
135 mA +12V
10 mA -12V
0 mA 5V

Notes: The Solar Gravity from SetonixSynth and Tidbit Audio is an analogue vactrol-based VCA designed to bring the lovely response of optocouplers into the realm of clean, performance-based Eurorack VCAs. Starting with this simple concept, the Solar Gravity utilizes some neat active circuitry to significantly reduce the bleed inherent in vactrol-based VCAs and to provide the user with lots of control over the level, direction, and response of incoming control voltage.

Though it's primarily designed for use with audio signals, the Solar Gravity can also be used to control the level of CV such as envelopes or stepped voltages with a unique vactrol response through its DC-coupled input.

Technical Specifications

Width: 4hp
Depth: 28mm
Peak Current Draw: 16mA @ +12V, 18mA @ -12V
Input Impedance (All Inputs): 100kO
Output Impedance: 1kO
AC Input Cutoff Frequency (-3dB High Pass): 5 Hz approx.

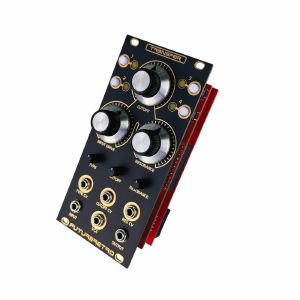

Notes: The Futureretro Transfer is a 12hp analogue filter featuring 16 different types of fully controllable filters with CV inputs, a voltage controlled amplifier, and an input overdrive. While the included 4 types of commonly used low pass filters, and the 12 specially crafted unique filters were specifically engineered to be the perfect sonic pairing with our Trax and Transient models, the Transfer also functions perfectly with any modular setup.

3 larger control pots give immediate and easy access to cutoff, input drive, and resonance control with the three smaller attenuators/attenuverters control input from the type CV, cutoff CV, and resonance CV input jacks. A VCA (voltage controlled amplifier) jack is conveniently placed at the bottom row along with standard input and output jacks.

Notes: Dizygote is an A-side/B-side digital oscillator with a built-in envelope generator. The A-side builds harmonies with a square waveform and frequency modulation. the b-side distorts a sine waveform with phase modulation.

Inputs:

Trig - button and gate in to trigger oscillator amplitude envelopes
Switch - button and gate in for toggling between the a and b sides
Length - knob and CV in for changing the envelope length
Mod - knob and CV in for changing the phase and fm modulation amounts
Mfreq - knob and CV in for changing the phase and fm modulation frequencies
Freq - knob for setting the oscillator frequency
V/oct - voltage per octave CV for modulating the oscillator frequency

Outputs:

Out L and out R - audio output
Env - CV envelope out

Notes: A deep, comprehensive digital LFO offering 16 waveforms, sync, built-in VCA and more. All made even more powerful by the fact you can control every parameter via dedicated CV inputs.

Supplier's Notes:
Fully voltage controllable Eurorack format, externally syncable, 16 waveform low frequency oscillator with built-in VCA and sample & hold.

Powered by a socketed VCLFO10 IC from Electric Druid.

The core idea behind this module is all about control voltage. Hence all features are individually broken out to CV inputs, making the most use possible of the benefits of the digital wavetable oscillator. This means that the design is geared towards allowing hands-off control of all aspects and some concessions have been made to that effect.

Initial setup basically consists of connecting the power cable to the module and your bus. The cable has a slotted socket for correct orientation, but mind that the red stripe faces the white line on the edge of the pcb. The included screws are nylon in order to minimise rack-rash.

Tuning the module is possible by adjusting the small smd trim potentiometer on the back. It adjusts the offset voltage that affects the center point of the lfo oscillations. It should be close to its three o'clock position, but you can adjust it by turning the module on, reducing the output level to almost zero and turning the trim potentiometer until you find the point where the gate output led just barely turns off.

The LFO sync type is hard sync, meaning that it resets the current cycle to the beginning of the waveform. It does not control the duration of the cycles. This allows you to further shape the output to, say, three quarters of a sinewave by using external sync and adjusting the HZ knob so the duration of a cycle is just a little longer than the time between incoming sync pulses.

Color coded nuts indicate the type of jack, with gold representing Gate/Trigger input, black is +-5v CV inputs and red jacks are outputs.

The CV inputs are scaled down to +-2.5v and added/subtracted with the knob setting, meaning that to sweep the full range of the parameter with CV, the knob should be in center position. The inputs are clipped to the allowed range after mixing, so you can apply any eurorack voltage here.

The module's core processor is socketed, so using a simple PIC programmer and some basic Assembly knowledge you can modify its functionality to suit your needs.

The code is written by Electric Druid who supplies the chips preprogrammed.

Height: 3U (128.5mm)
Width: 12hp (60.6mm)
Depth from panel: 31mm
Depth total: 51mm

+12v: 80mA
-12v: 60mA

Notes: Motomouth is an analogue 3-Band, Sedra + Espinoza Bandpass Filter (DABP) with resonant frequencies that are tuned to the same resonant frequencies found in the human mouth and nose cavities, and these can be varied, independently, to form different 'mouth shapes,' to emulate vowels such as A, E, I, O and U. Motomouth can emulate 16 vowels and 'morph' or 'glide' between each vowel using a single Control Voltage input (1V/Oct), and a Gate to 'snap' to each vowel when required.

Two of the bands (F1 and F2) are used to form the mouth cavity, and the third band (F3) is used to form the nasal cavity, which is reasonably static. Varying F3 makes little significant difference 'in the mix,' but having it is important.

The single Control Voltage is decoded to control F1 and F2 independently, because the frequency bands for each vowel are not proportional to each other over the vowel range. So Motomouth has learned how to 'speak,' so to speak, but it still needs to learn more, and that's where you come in.

Specifications:
Module width: 12HP
Module depth: 42mm
Power draw:
+12V: 80mA
-12V: 4mA

Notes: Add 3 more V/Oct and Gate inputs to your Vector Wave with the Expander

The Vector Wave Expander module from RYK Modular allows you to use CV and Gate to control the Vector Wave as a 4 Voice multi-timbral synth module.

And it looks nice.

Features:

3HP

Notes: A sequencer and a filter-bank got together...

...And a love child was born !

Introducing NIGHT RIDER, from RYK Modular

Four multi model filters with stereo capability, combined with a six-stage four-channel modulation sequencer.

Finally a filter bank that unifies the control of multiple parameters, enabling a spaghetti-free approach to formant animation fun.

NIGHT RIDER cleverly turns the dials to where you want them, when you want, via it's unique modulation sequencer

Create dreamy swooshing 70's phaser filter sweeps
Phenomenal for phoneme vocal formant rasps and wheezes
Plucking great for strumming Karplus Strong twangs, and pinging filter pings!
Or, turn your silk into shredded cabbage, with the built in bad-ass clipping-saturator

Technical specifications

Frequency range - from rumble to wispy
Resonance/Feedback range - from tame to insane
Individual Filter levels - silent to beyond 11, for serious saturation-clipped sonic destruction

Features:

Four filter blocks, with multiple models , including:
6db BPF [ pingable ]
12db BPF [ pingable ]
12db variable width BPF
Comb Filter for Karplus Strom [ pluckable & flanger vibes ]
All Pass filter [ crazy Phaser vibes ]

Dual Input and Stereo output, with Pan control for each filter in the stereo field. Input can
be Mono [ CH1 - 1,2,3,4 ] or Dual [ CH1-1,2 CH2 - 3,4 ]
Modulation Sequencer capable of being clocked, scanned, and interpolated
CV inputs for sequencer Interpolated scanning, 1V/Oct frequency offset, Slew amount,
Resonance amount, Clock or MIDI clock input for sequence animation, MIDI CC
Memory slots for storing and retrieving Filter and animation setups, and retrieving preset formant, and chord based Filter setups

Vital stats:

Width 16 HP
Depth 25mm

52mA +12V
9mA -12V
0mA 5V

Notes: Updated Eurorack version of one of the most interesting sequencers around, the original version being the inspiration for Intellijel's Metropolis and Metropolix, with multiple steps per stage and versatile gate options.

Supplier's Notes:
The M185 is the most intuitive and playable Eurorack sequencer.

It appeals as a hands-on performance orientated module for easy creation of complex melodic sequences.

It is the original multi-step-per-stage sequencer that inspired the Metropolis and Metropolix modules.

New for 2021: Now you can connect two M185s together to create powerful 16 stage sequences using the new expansion header.

Overview:
- 8 unique gate modes for creative rhythmic possibilities
- A/B split mode for two separate sequences, like having two sequencers in one box
- 2 channels of CV/GATE and MIDI I/O
- 15 Quantise scales [ NEW for 2021 ] OR pure analogue microtonal CV output

Inputs & outputs:
- 2 channels of CV and Gate outputs
- Expansion header to connect two M185s for 16 stage sequences [ NEW for 2021 ]
- Reset input [ shared with MIDI input ]
- Sync output [ shared with CH2 gate ]
- Bidirectional Clock I/O
- MIDI input for MIDI clock in, MIDI note transpose
- MIDI output for MIDI clock out, MIDI note output

Stage Details:
- 8 stages, each with individual 1-8 step repeats per stage
- 8 gate modes per stage [ Off, Once, All, 1/2, 1/3, 1/4, Probability or Programmable, and Long ]
- Programmable gate patterns for 'on the fly' X0X style programming of gate triggers [ NEW for 2021 ]

Even more details:
- AB serial split sequence mode with 1-8 sequence repeats for AAABAAAB sequence structures
- AB parallel split mode, for two separate simultaneous sequences that play at the same time
- Root note offset and reset trigger options from sequence B to A
- 2.5V / 5V voltage range selectable
- MIDI note output including programmable velocity
- MIDI to CV converter mode [wow]
- Programmable glide per stage
- Easy user upgradable firmware using MIDI sysex files.

Technical stuff:
- +12V = 75mA average, 110mA peak
- 12V = 10mA
- Width: 30 HP
- Depth: 25 mm
- Black anodised Aluminium panel, silkscreen in RAL 9002

110 mA +12V
10 mA -12V
0 mA 5V
25 mm deep

The assembled module comes complete with all the cables needed to get started:
1 x TRS MIDI adapter, 1 x TRS CH2 CV/GATE cable, 1 x Euro Power Cable

Notes: The core idea behind this module is all about control voltage. Hence all features are individually broken out to CV inputs, making the most use possible of the benefits of the digital wavetable oscillator. This means that the design is geared towards allowing hands-off control of all aspects and some concessions have been made to that effect.

Initial setup basically consists of connecting the power cable to the module and your bus. The cable has a slotted socket for correct orientation, but mind that the red stripe faces the white line on the edge of the PCB. The included screws are nylon in order to minimise rack-rash.

Tuning the module is possible by adjusting the small SMD trim potentiometer on the back. It adjusts the offset voltage that affects the centre point of the LFO oscillations. It should be close to its three o'clock position, but you can adjust it by turning the module on, reducing the output level to almost zero and turning the trim potentiometer until you find the point where the gate output led just barely turns off.

The LFO sync type is hard sync, meaning that it resets the current cycle to the beginning of the waveform. It does not control the duration of the cycles. This allows you to further shape the output to, say, three quarters of a sinewave by using external sync and adjusting the HZ knob so the duration of a cycle is just a little longer than the time between incoming sync pulses.

Colour coded nuts indicate the type of jack, with gold representing Gate/Trigger input, black is +-5v CV inputs and red jacks are outputs.

The CV inputs are scaled down to +-2.5v and added/subtracted with the knob setting, meaning that to sweep the full range of the parameter with CV, the knob should be in centre position. The inputs are clipped to the allowed range after mixing, so you can apply any eurorack voltage here.

The module's core processor is socketed, so using a simple PIC programmer and some basic Assembly knowledge you can modify its functionality to suit your needs.

The code is written by Electric Druid who supplies me the chips preprogrammed.

Fully voltage controllable Eurorack format, externally syncable, 16 waveform low frequency oscillator with built-in VCA and sample & hold.
Powered by a socketed VCLFO10 IC from Electric Druid.

Suitable for precision modulation, live performance as well as educational purposes.

Height: 3U (128.5mm)
Width: 12hp (60.6mm)
Depth from panel: 31mm
Depth total: 51mm
+12v: 80mA
-12v: 60mA

Notes: The core idea behind this module is all about control voltage. Hence all features are individually broken out to CV inputs, making the most use possible of the benefits of the digital wavetable oscillator. This means that the design is geared towards allowing hands-off control of all aspects and some concessions have been made to that effect.

Initial setup basically consists of connecting the power cable to the module and your bus. The cable has a slotted socket for correct orientation, but mind that the red stripe faces the white line on the edge of the PCB. The included screws are nylon in order to minimise rack-rash.

Tuning the module is possible by adjusting the small SMD trim potentiometer on the back. It adjusts the offset voltage that affects the centre point of the LFO oscillations. It should be close to its three o'clock position, but you can adjust it by turning the module on, reducing the output level to almost zero and turning the trim potentiometer until you find the point where the gate output led just barely turns off.

The LFO sync type is hard sync, meaning that it resets the current cycle to the beginning of the waveform. It does not control the duration of the cycles. This allows you to further shape the output to, say, three quarters of a sinewave by using external sync and adjusting the HZ knob so the duration of a cycle is just a little longer than the time between incoming sync pulses.

Colour coded nuts indicate the type of jack, with gold representing Gate/Trigger input, black is +-5v CV inputs and red jacks are outputs.

The CV inputs are scaled down to +-2.5v and added/subtracted with the knob setting, meaning that to sweep the full range of the parameter with CV, the knob should be in centre position. The inputs are clipped to the allowed range after mixing, so you can apply any eurorack voltage here.

The module's core processor is socketed, so using a simple PIC programmer and some basic Assembly knowledge you can modify its functionality to suit your needs.

The code is written by Electric Druid who supplies me the chips preprogrammed.

Fully voltage controllable Eurorack format, externally syncable, 16 waveform low frequency oscillator with built-in VCA and sample & hold.
Powered by a socketed VCLFO10 IC from Electric Druid.

Suitable for precision modulation, live performance as well as educational purposes.

Height: 3U (128.5mm)
Width: 12hp (60.6mm)
Depth from panel: 31mm
Depth total: 51mm
+12v: 80mA
-12v: 60mA

Notes: Designed with versatility in mind, MapVolt is a dual-channel Universal Voltage Processor built for flexibility in handling audio and CV signals.

With only 6hp, Mapvolt is a multipurpose tool for voltage-controlled scaling, inverting, offsetting, subtracting, and mixing functions.

Each channel of MapVolt can operate in either Polarizer or Attenuator mode, allowing manual control via knobs or CV signals. In Polarizer mode, it functions as a Voltage Controlled Attenuator-Inverter, granting control over signal level and polarity. Additionally, it can be used as a Four-Quadrant Multiplier or Ring Modulator for audio signals, with the processor input serving as the carrier signal and the polarizer's CV input acting as the modulator.

In Attenuator mode, MapVolt operates as a VCA, providing control over signal levels. Its VCA CV input range of +5/-5 makes it well-suited for amplitude modulation (AM) with other +/-5V waveforms.

MapVolt is equipped with dedicated Voltage Offset knobs for each channel, which can be controlled via CV. If no input is patched into the Processor input channel, the Voltage Offset knobs can be used as Offset Generators.

With its dedicated mixing stage, MapVolt enables the combination of both channels into a shared output. Furthermore, if one of the processor channels is inverted, it allows for the subtraction of one signal from the other.

Dimensions
6 HP
33 mm deep

Current Draw
65 mA +12V
65 mA -12V

Notes: This module is designed to generate a multitude of aggressive, punchy, violent and absolutely bonkers variations of the original unprocessed sound.



Transform any clean sound into a distorted monster, using 2x drive stages per channel with a wide range of distortion flavors ranging from subtle saturation to extreme fuzz.



Process two channels at the same time and create balanced and smooth or raw and rough transitions between them.



Allow the kick drum and bass line to coexist effectively in the mix, avoiding conflicts in the low-frequency range with env. follower and sidechain.

Shape any sound with 3 band adaptable EQ.

Function as a signal generator as well, this module can be pushed into self-oscillation at any frequency even with no input.

Add sub-octave tones to melodies and bass lines.



Preserve the dynamic range and clarity of the sound through parallel processing, ensuring that the original characteristics are not lost even when applying heavy distortion.



Add character, flexibility and madness to any source that sparks your imagination.

Notes: The LedPressor is a full stereo Diode-based compressor module.
Its unique core adds character and color to any signal passed through it.
The LedPressor can be used as a normal compressor with low input levels, but as the input volume increases and the "nuke" LED lights up, it enters a new territory that combines compressor and overdrive, creating a dynamic overdrive effect.

Get it pumping with the Side Chain
The module features an external sidechain input that accepts audio and CV signals. Only the sidechain signal passes through a high pass filter, which gives the user greater control over the sound shape. The audio signal itself is not affected by the filter.
Parallel compression
The module also includes a mix knob that can be controlled with a dedicated mix CV input, allowing for greater flexibility when blending dry and wet signals. Additionally, it features a momentary bypass button to easily adjust the levels of dry and wet signals.
Feed-Back Or Feed-Forward - it's your choice
The module can be configured with a feed-back or feed-forward topologies with a jumper in the back.
Reverse polarity protection
The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.
Dimensions
Width
: 12HP
Depth
: 34mm
Current Draw
+12V
: 20mA
-12V
: 15mA

Notes:
Q^Mix
4 channels CV/Audio polarising mixer
Q^Mix is a four-channel CV and audio mixer designed to take simple signals and combine them into something altogether new.
The four DC-coupled inputs feature a switch that selects between linear attenuation or bi-polar attenuversion.
Q^Mix can be used to sum simple signals to create much more complex results.
perfect for use as a final volume control when used as an audio mixer.

Technical Specifications
All inputs are DC-coupled.
Four-channel audio and CV mixer.
Logarithmic attenuation on the output stage.
Input impedance: 100k for all inputs.
Noise filtering and resettable fuses on the module's power input.
Reverse current protection.
Dimensions
Width
: 6HP
Depth
: 10mm
Current Draw
+12V
: 5mA
-12V
: 5mA

Notes: 2^VCA is a dual vca module in 1u Intellijel format.
Both of the VCA's are normlised so it can be used a stereo VCA, as a dual mono VCA , mono to stereo VCA and many more combinations.

Technical Specifications
1u Intellijel format
Noise filtering and resettable fuses on the module's power input.
Reverse current protection.
Dimensions
Width
: 12HP
Depth
: 20mm
Current Draw
+12V
: 10mA
-12V
: 10mA

Notes: S&M is a very useful utility module in 1u Intellijel format combining unity mixer and a precision active buffer.

CV and Audio Mixer
Audio grade dc-coupled unity mixer for mixing CV or Audio signals
Active Buffer/Splitter
Precision active buffer/splitter for splitting signals along your system without any signal loss (highly recommended for splitting Pitch CV).
Reverse polarity protection
The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.
Dimensions
Width
: 12HP
Depth
: 20mm
Current Draw
+12V
: 10mA
-12V
: 10mA

Notes: Reduxer is a stereo sample reducer effect module.

Depends on it's signal, It can produce dynamic range of sounds from knurly bitcrushing to formant/vowel style effects.

Extra resolution

Custom made Redux potentiometer with 300 degrees rotation for extra crashing resolution.

Double the power

Two proprietary sample reduction circuits with extra offset control on channel 2 via the "Spread", lets you create motion in the streo field for wider effect.

Stereo operation

Inputs are normelized - supporting mono to stereo configuration.

Reduction under control

Redux CV input with attenuator for external control of the bit reduction rate.

Reverse polarity protection

The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.

Dimensions

Width: 8HP
Depth: 20mm

Current draw

+12V: 25mA
-12V: 25mA

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***

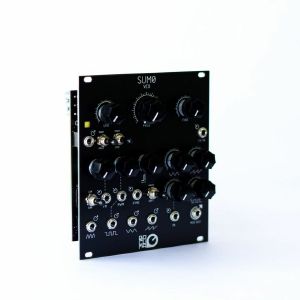

Introducing SUM0, a voltage-controlled oscillator with expanded harmonic possibilities, in a Eurorack format.

The 4 classic waveforms are generated by a meticulously designed oscillation engine.

You can modulate its frequency and its pulse width thanks to its integrated LFO, capable of reaching audible frequencies to achieve expressive modulations with the simple touch of a switch.

Expand the voice of your system by creating complex waveforms and high harmonic content thanks to its output mixer. This mixer also has an input to integrate an external signal to the mix output.

Of course, all its parameters (FM, PWM, SYNC, V/OCT) are at your fingertips through its patch points on the front panel.

And of course, assembled with a load of passion in Bocuma's studio-workshop in Guadalajara.

Nerdy-specs:

22HP
+12V > 12mA -12V > 12mA

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Dimensions is a true stereo chorus effect for the Eurorack modular system featuring two algorithms. The first is a direct port of our Fluid chorus plug-in, and the second is taken from the unit's namesake. With automatic routing based upon what you plug in the I/O, Dimensions can do mono->mono, mono->stereo, and true stereo chorus duties.

Dimensions' Mode A operation is a ludicrously thick chorus. Most chorus effects have either a single delay line or a pair. Dimensions has six of them, each with its own modulation scheme. The Mode B operation changes the routing to match the vintage rack unit, but keeps the controls available. This results in a subtly different, but equally thick and appealing, effect.

Notes: Sibilla is a DSP digital stereo oscillator that aims to translate into music the beauty and harshness of a semi-barren mountain. Its sound is sculpted by various saw and sine waves running through intricate delay networks, altered by LFOs, white noises and creating constructive and destructive interferences.

Both stereo channels are the output stages of two feedback audio loops.

Each loop is made up by a main sub sinusoidal wave oscillator and two saw and sine waves with frequencies affected by the generation of harmonics (right channel) and subharmonics (left channel). All waves have different phases whose offset is constantly affected by minor variations created by two pairs of grains randomly fluctuating within the waves amplitude spectrum and being sampled at a certain speed.

Waves then meet to each other to a common point, together with two white noise sources, creating constructive and destructive interferences constantly affected by two LFOs movements.

Interferences are then run into a resonant low pass filter and then distributed to four different delay lines from which they are fed back into the audio loops at different time intervals depending on the grain's movements.

Width: 10HP
Max depth: 29.6mm
Current draw: +12V: 125mA, -12V: 30mA, +5V: 0mA;
Material: 2mm anodised brushed aluminium

Notes: SWEnigiser Proto VCF/A

Enigiser multimode filter and VCA in 12hp. Circuit based on originalEnigiser prototype kindly loaned by Anthony Linell of Northern Electronics.

VCF
Unique configuration with 3 x 4 filter modes
2x audio input with drive
2x cutoff CV attenuverter inputs
1x cutoff CV input, tunable to 1v/oct

VCF output normalized to VCA input.

VCA
1x audio input with gritty drive, normalized from VCF output
2x CV input. CV1 knob adds offset for drone etc.
CLIP switch for old/new revision Enigiser diode setting adjusting drive character.
+12V 22mA
-12V 22mA
Skiff friendly
Includes power cable, 4 screws+ plastic washers

Available in sand blasted silver and black panel versions.

Notes: SWEnigiser Proto VCF/A

Enigiser multimode filter and VCA in 12hp. Circuit based on originalEnigiser prototype kindly loaned by Anthony Linell of Northern Electronics.

VCF
Unique configuration with 3 x 4 filter modes
2x audio input with drive
2x cutoff CV attenuverter inputs
1x cutoff CV input, tunable to 1v/oct

VCF output normalized to VCA input.

VCA
1x audio input with gritty drive, normalized from VCF output
2x CV input. CV1 knob adds offset for drone etc.
CLIP switch for old/new revision Enigiser diode setting adjusting drive character.
+12V 22mA
-12V 22mA
Skiff friendly
Includes power cable, 4 screws+ plastic washers

Available in sand blasted silver and black panel versions.

Notes: Introducing SUM0, a voltage-controlled oscillator with expanded harmonic possibilities, in a Eurorack format.

The 4 classic waveforms are generated by a meticulously designed oscillation engine.

You can modulate its frequency and its pulse width thanks to its integrated LFO, capable of reaching audible frequencies to achieve expressive modulations with the simple touch of a switch.

Expand the voice of your system by creating complex waveforms and high harmonic content thanks to its output mixer. This mixer also has an input to integrate an external signal to the mix output.

Of course, all its parameters (FM, PWM, SYNC, V/OCT) are at your fingertips through its patch points on the front panel.

And of course, assembled with a load of passion in Bocuma's studio-workshop in Guadalajara.

Nerdy-specs:

22HP
+12V > 12mA -12V > 12mA

Notes: Foxtrot is a quad, multimode virtual analogue filter with three different classic filter types.

Each of the four filter channels can be:

1) A ladder filter, based on the classic MOOG designs from the '60 and '70s
2) A Sallen-and-Key filter based on the Korg 35 module used in the MS-20
3) A State Variable filter as used in the Oberheim SEM

Each filter type produces Low Pass, Band Pass and High Pass responses which can be morphed between using the front panel control or CV.

In addition, any or all of the filter channels can be linked together internally producing a parallel filter bank controlled by a single cut-off control or CV. Check out some of the examples for how amazing this sounds.

The AUX CV input can be switched to allow CV control of the filter response, resonance or pan of each filter channel's dual outputs.

Finally, each filter can be overdriven to accentuate the unique sound of each filter type.

Specifications:
Width: 38HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 250mA
-12v: 100mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
Cut-off CV (Zero attenuation): 0-5v nominal
AUX CV (Zero attenuation): +/-5v nominal

Outputs:
Dual Outputs: +/-5v nominal, +/-10v max

Notes: Oscar DSF is a complex, stereo Voltage Controlled Oscillator, based on the mathematics of Discrete Summation Formulae.

The Discrete Summation Formula used in Oscar DSF produces sounds rich in harmonics (or 'partials') in a similar way to FM.

The mathematics of DSFs is more complex than FM, but the way that you, the user, get the sounds you want is usually simpler. The basic sound is controlled by just two, intuitive knobs (with CVs, of course).

Oscar DSF can sound like a traditional oscillator, and it can make the usual clangs and tings associated with FM oscillators. It can handle fat bass sounds, or evolving ambient drones.

Oscar DSF has two complete DSF based, complex oscillators, controlled by the same basic pitch CV, but with a pitch offset control which can detune one oscillator up to i1 octave.

The output of the each oscillator passes through another complex FM stage, which acts like a wave folder. Technically, it's actually an FM operator with the carrier frequency set to zero. It sounds great, whatever you call it.

The final piece of the signal chain is a simple VCA, allowing Oscar DSF to be used as a stand alone synth voice with the addition of an envelope generator, or some other source of modulation.

Specifications:

Width: 10HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 200mA
-12v: 50mA
+5v: 0mA

Inputs:

VPO (Zero attenuation): 1 volt per octave
PAR CV[Zero attenuation]: +/-5v nominal
FOLD CV [Zero attenuation]: +/-5v nominal
PAN CV [Zero attenuation]: +/-5v nominal

Outputs:
Dual/Stereo: +/-5v nominal, +/-11v max

Notes: Alpha Duo is a stereo precision VCA with ring modulation, overdrive and distortion.

Alpha Duo's VCAs have three modes:

1) Two quadrant, for classic VCA behaviour
2) Four quadrant, where the VCA responds to both positive and negative Gain CVs. This creates a classic ring modulator.
3) In four quadrant separate (4S) mode, each of the two VCA channels is controlled by separate gain CVs, turning Alpha Duo into two independent VCA/ring modulators.

Alpha Duo also features three drive modes.

1) In Drive Mode zero the overdrive circuit is not active, giving a clean signal.
2) Drive Mode One is a tube style soft overdrive. Like a tube, the positive and negative parts of the waveform are distorted differently, producing a pleasing, warm fuzz.
3) Drive Mode Two is a harder clip - more like a transistor amplifier - for a harder edged distortion.

Alpha Duo's signal path is DC coupled, so it's great for processing CVs as well as audio.

Specifications:
Width: 10HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 200mA
-12v: 50mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
GainCV [Zero attenuation]: +/-5v nominal
Pan CV [Zero attenuation]: +/-5v nominal

Outputs:
Dual/Stereo: +/-5v nominal, +/-11v max

Notes: At its heart, Alpha Pro is four identical VCAs, each with overdrive and stereo outputs. However, it's also possible to link any of the VCAs together to form a voltage controlled mixer. This flexibility allows Alpha Pro to replace a bank of VCAs, sub-mixers and even your output mixer.

Each VCA has two Signal inputs and a summing mixer with individual attenuators.

There are two mix buses, allowing each VCA to act stand-alone or as part of the mix. So you can configure two separate sub-mixes, with any of the VCAs contributing to the mix, or use all channels to make an 8 input, stereo output main mix.

The VCA gain is controlled by the Initial Gain knob, and two Gain CVs - again mixed together, each with an attenuator. Having two Gain CV inputs allows for more complex modulation possibilities without needing another CV sub-mixer.

Gain response can be set to exponential or linear.

The XING switch enables zero crossing detection to prevent clicks on very fast CV inputs.

Two drive modes are available, a soft clip and a harder fuzz, with the DRIVE control increasing the gain into the overdrive circuit to increase the effect.

The VCA output is stereo, with manual and CV control of pan - again, with an attenuator.

Alpha Pro is available now as a 'founders edition' which includes the Alpha Switch as standard.

Specifications:
Width: 38HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable

Power Requirements:
+12v: 250mA
-12v: 100mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
Gain CV (Zero attenuation): 0-5v nominal
Pan CV (Zero attenuation): +/-5v nominal

Outputs:
Stereo: +/-5v nominal, +/-10v max
With Drive Modes 1&2 outputs are normalised to around +/-5v max

Notes: Neat little interface module to help pad controllers play nicely with Eurorack. Hook up a device like a Launchpad or APC and jam out rhythms with retriggering options, dynamic control and MIDI sync.

Supplier's Notes:
Triggerpad is a dynamic trigger/gate sequencer in eurorack format on only 6hp. A USB MIDI controller with an 8×8 grid like Launchpad or APC is used to display and edit the patterns (see the list of compatible controllers). The user experience is tailored to live performance and detailed composition: dial in simple rhythms or complex polyrhythms, retrigger at audio rate, create dynamic percussions with velocity triggers or use longer pulses to create steppy modulations.

By using USB MIDI controllers that you might already have and maybe not use anymore, we avoid producing more plastic. Give your old gear a second life!

Dimensions & consumption

Width: 6hp
Depth: 39mm
+12V: 120mA (without USB MIDI controller connected)
-12V: 20mA
5V: 0mA
USB MIDI controllers consume up to 150mA on +12V

Connectivity

8 dynamic trigger/gate outputs (0-10V)
USB MIDI Host
Clock in
Clock out
Reset in
Reset out

Compatibility

Launchpad Pro Mk3
Launchpad X
Launchpad Mini Mk3
Launchpad Mini Mk2
Launchpad Pro
Launchpad Mk2
Launchpad S
APC Mini Mk1
APC Mini Mk2
