Notes: Blank panels for Intellijel 1U spaces. Made from high quality brushed aluminum that matches the 1U modules.

These can also be used for DIY purposes if you drill / mill them to fit your own custom circuits.

Notes: The new, 2nd generation Audio Jacks Board comes pre-installed in every Intellijel 7U case manufactured since early 2019. Because this board is more fully featured than the previous generation, it's available as a stand-alone component for anyone who wishes to update an older 7U case.

You can tell which board you have by looking at the connectors. The new Audio Jacks Board has a large shrouded header flanked by two smaller shrouded headers, flanked by two link connectors at either end. Older boards have only one connector along the bottom edge.

The board holds four Neutrik TRS jacks, each of which can be configured as either an input or an output depending on the modules you connect. This allows you maximum flexibility when configuring your case - whether you wish to use the audio jacks as outputs, inputs, sends & returns; or some combination of these.

The jacks carry different audio signals depending on what you connect to the Audio Jacks Board. Please refer to the manual for more details on the many options available.

Notes: Att 1U Passive Variable Signal Attenuator

This passive attenuator has a 100K linear potentiometer that is DC coupled. Perfect for adding attenuators to those 1U/3U modules without.

Width: 6HP
Depth: 18mm

Notes: Dual 1 x 4 buffered mult (one audio or cv signal in with multiple buffered outputs).

The output of the first mult is normalled to the input of the second mult to create a 1×8 buffered mult.

Notes: We created this new design in celebration of Intellijel’s 5th birthday. 5 cables for 5 years.

This is a four color screen print on American Apparel Jersey t-shirt (%100 cotton).

Notes: We created this new design in celebration of Intellijel’s 5th birthday. 5 cables for 5 years.

This is a four color screen print on American Apparel Jersey t-shirt (%100 cotton).

Notes: We created this new design in celebration of Intellijel’s 5th birthday. 5 cables for 5 years.

This is a four color screen print on American Apparel Jersey t-shirt (%100 cotton).

Notes: We created this new design in celebration of Intellijel’s 5th birthday. 5 cables for 5 years.

This is a four color screen print on American Apparel Jersey t-shirt (%100 cotton).

Notes: This module allows you to connect balanced line level audio (+4 dBu) into your Eurorack modular system. It is a compact and easy way to patch in a rack mount/desktop FX units, external line-level instruments like synths and drum machines, outputs from your DAW, or many other line level sources.

Notes: This module allows you to interface your Eurorack modular system to the pro balanced line level world (+4 dBu). You can send audio out to rack mount/desktop FX units, patch to external line-level instruments like synths and drum machines, interface to a DAW, and much more.

Features:

1 x Eurorack modular level signals to Balanced TRS 1/4? output path
Uses a high quality THATCorp balanced line driver IC
Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain.

Notes: Dual 1x5 Passive Multiple

Two rows of 1 x 5 Passive Multing

Notes: Dual 4-way passive mult (one audio or cv signal in with multiple unbuffered outputs)

On the back of the pcb is a pair of solder points marked as "link". You can connect these (with a solder blob or small jumper wire) to turn the mult into a single 8 channel Mult instead of 2 x 4 channel.

Notes: Tiny little low-pass gate in Intellijel's compact 1U format. Great value approach to this west coast classic module, based on a vactrol for that natural, organic sound.

Supplier's Notes:

Drop this module (or a few of them) into your 1U row, patch in some sound sources, and then ping them with gates and CV to get some instantly pleasing results. So simple and fun!

Natural dynamics with the magic of vactrols.

In general, low pass gates (LPGs) control the amplitude and timbre of a signal by opening and closing a low pass filter. When the gate is closed, no frequencies are allowed to pass through (and no output is heard). As the gate begins to open, the lowest frequencies pass through to the output. As the gate opens further, the output grows louder and its high frequency content increases.

Traditional Low Pass Gates use vactrols to control the opening and closing of the filter. Encased within a vactrol is both a light source and a light detector. Applying a control voltage to the vactrol lights its internal LED i the brightness of which is measured by its detector. What makes vactrols particularly unique (and well-suited to musical applications) is their non-linear response to voltage - in particular, the way in which the internal LED slowly dims (rather than shutting off instantly) when the control voltage is removed. This sonic coupling of timbre and volume, along with the circuit's natural decay, makes the low pass gate particularly adept at producing tones associated with struck objects, like hand drums or marimbas. Indeed, low pass gates are the main ingredient of the so-called Buchla Bongo sound.

The Intellijel Passive Low Pass Gate 1U is a simple, vactrol based, 1-pole, passive low pass gate, which is controlled by an external CV input. Without positive control voltage, the gate is completely closed and none of the LPG's input signal is passed through to the output. Increasing amounts of positive CV open the gate i making the output signal both louder and brighter. At +5V, the gate is fully open and the input signal is passed through to the output.
This makes LPGs sound very different (and more acoustic) than the traditional complement of envelopes, VCFs and VCAs that are employed in most subtractive synthesizers. Exciting the vactrol (via the CV input) with a trigger, noise blast, or short envelope will result in a very natural sounding filtered envelope that's reminiscent of the sonic characterics of struck objects, which are allowed to decay naturally.

In addition, because this is a passive circuit (no power is applied to it), its sonic characteristics are somewhat dependent upon the audio signal you feed into it, making it a very natural and organic way to shape a signal's volume and tone.

Pairs very well with the intellijel Shifty module to derive polyphony out of a only a few HP of modules.

Width: 6HP
Depth: 19mm

Notes: Dual-colour screen print

Bella+Canvas 3001CVC Super soft Airlume combed and ring-spun cotton, and poly blend.

Custom red intellijel woven clamp tag on the bottom left hem

"Made with love by robots in Canada."

Notes: Dual-colour screen print

Bella+Canvas 3001CVC Super soft Airlume combed and ring-spun cotton, and poly blend.

Custom red intellijel woven clamp tag on the bottom left hem

"Made with love by robots in Canada."

Notes: Our basic logo robot is finally back!

This is a two color screen print on American Apparel Jersey t-shirt (%100 cotton)

Notes: Our basic logo robot is finally back!

This is a two color screen print on American Apparel Jersey t-shirt (%100 cotton)

Notes: Our basic logo robot is finally back!

This is a two color screen print on American Apparel Jersey t-shirt (%100 cotton)

Notes: Five-panel Flexfit brand "camper" hat made from 100% cotton

Jockey cap with camper shape
Unstructured
Black clip closure
Matching undervisor, 8-row stitching on visor

Notes: 1/4" TRS Jack Panel For Stereo Line In 1U Module

If you don't own an Intellijel case with built-in compatible 14" jacks, then you need to purchase a Stereo Line In Jacks 1U module, which connects via ribbon cable to the Stereo Line In 1U module to provide 14" TRS input jacks for interfacing with other studio or stage gear.

Width: 8HP
Depth: 39mm

Notes: Another pair of jacks.

1/4" TRS jack panel in 1U for the Stereo Line Out 1U module.

If you don't own an Intellijel case with built-in compatible 14" jacks, then you need to purchase a Stereo Out Jacks 1U module, which connects via ribbon cable to the Stereo Line Out 1U module to provide 1/4" TRS output jacks for interfacing with other studio or stage gear.

Dimensions
8 HP
34 mm deep
Module is a 1U tile in Intellijel format

Current Draw
Module does not draw current

Notes: Switched mults come to Intellijel's space-saving 1U format, offering six jacks and two busses, routing signals between the two or muting them using three-position switches.

Supplier's Notes:
The Mult 1U takes one audio or CV signal input, and (mult)iplies to up to four outputs. Because the Mult is passive, it requires no power to operate. Multiply anything by four, twice.

A signal multiplier accepts an input signal and routes it to multiple outputs simultaneously. For example, you might want a sequencer's GATE to trigger two different envelopes - one to control volume and one to control filter frequency. In order to accomplish this, you need a signal multiplier.

In addition, each Switched Mult 1U features a pair of 3-pin Link connectors on the rear panel. These let you connect other 3-pin Link devices, such as an XY I/O 1U module, or even additional Switched Mult 1U modules (handy for distributing mults across the width of your case).

Width: 14HP
Depth: 18mm
Power: n/a (passive)

Notes: The USB ISP USB firmware uploader for use with the official Intellijel Firmware Updater app. It's required to update firmware on the following Intellijel products:

- Plog
- Metropolis
- Mutamix
- uScale
- uStep

The USB ISP includes a 6-pin ribbon cable for connecting to the programming header on the rear of the module. It connects to your Mac or PC using a standard USB A to USB Mini B cable.

Notes: Originally designed for the Metropolix 1.4 MIDI update, the USB Extender extends the USB Micro connector on the back of a module, bringing it to the front panel for easy connection to your USB Host.

The 3U panel, includes a dual passive mult, which is great for splitting output signals to other modules. You can swap the panel with a Phillips-head screwdriver. The 1U panel does not have mults.

Also included is a 60CM Right-Angle Micro USB to Micro USB cable for routing the connection beneath the modules.

This module comes with a custom USB cable that connects on the back of the module to the Metropolix. The product comes with both 3U and 1U faceplates so you have the option to use it in either space.

Width: 2HP 1U / 2HP 3U
Depth: 40mm (with cable connected on rear)
Power: Passive

Notes: USB socket for charging/powering peripheral devices.

This tiny but handy module connects the USB A connector to the +5V bus on the Intellijel TPS series powered busboards. Allowing 1A or more of current to be supplied to USB devices such as lamps, phone chargers, and usb powered musical devices.

It connects to the bus via supplied two-pin cable.

*Compatible with the TPS30 MAX and TPS80 busboards. TPS30MINI board requires an adapter.

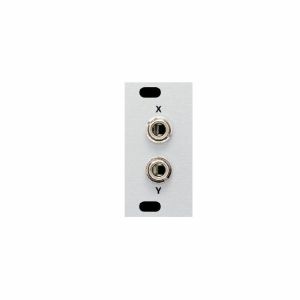

Notes: Convenient Connections

Use this module to tap into the 3-pin LINK connector used in several Intellijel products, including Mixup, Pedal I/O and the Palette and 2nd Generation Audio Jacks Board in a 7U case.

The XY I/O uses two 3.5mm TRS jacks, which accept insert cables to provide send/return capability to a pair of Pedal I/O's, or additional stereo inputs (or outputs) to a pair of Mixups, or one of each.

A third 3-pin Link connector on the back panel allows the X and Y jacks to access the L/R (or Send/Return) jacks on a single connected module or case without needing a stereo cable.

Width: 4HP
Depth: 24mm
