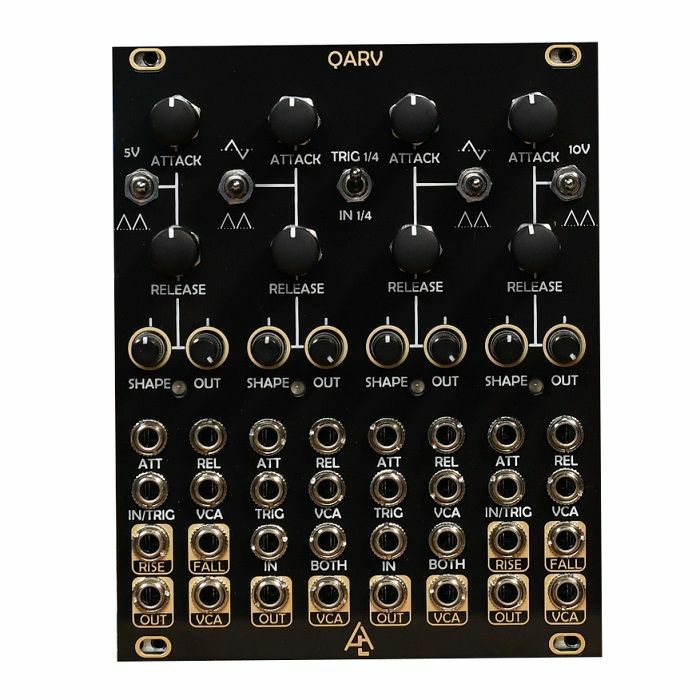

A clever hybrid of quad VCA, function generator and more in this chunky module. Four channels of oscillators, envelope generators and VCAs, plus slew, voltage sources and plenty of CV control.

Supplier's Notes:
Four channels of function generator, oscillator, slew limiter, envelope, and VCAs. This module brings the ultimate in flexibility as it can be used as a standalone synth voice, a massive amount of modulation, or a four channel envelope generator w / mixer. We believe this makes QARV a great first module and a great addition to the largest of systems.

All four channels have the following features:

Uni-polar oscillator mode
Attack and release time control via potentiometer and via input jack
Shape control that controls shape for both attack and release
Output attenuverter
VCAs that normal to each subsequent channel (CH1 -> CH2, etc.). So you can get a mix of all four channels out of the CH4 VCA output (unless you patch a VCA output from an earlier channel)
Channels 1 & 4

Voltage source (CH1 - 5V & CH4 - 10V)
CH1 & CH4 can be switched between IN (slew mode) and TRIG (envelope) mode
RISE and FALL gates. You can use our G&T module to turn these gates into triggers.
Channels 2 & 3:

Bi-polar oscillator mode
Dedicated IN and TRIG jacks (helpful for adding offset to a triggered ENV)
BOTH input jack to simplify patching both the attack and release (also inverts the input to give more standard pitch tracking of higher voltage equals higher pitch)
