***B-STOCK: Box opened, product in perfect working order***

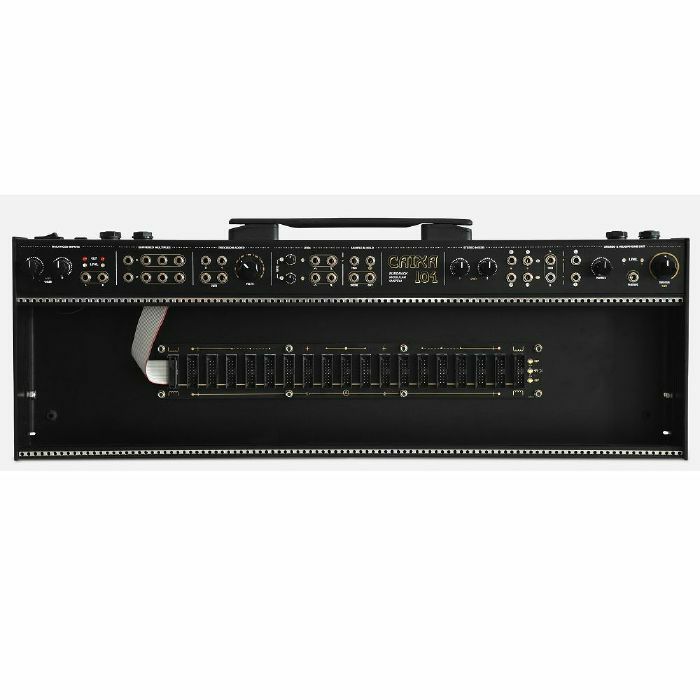

CAIXA 104 is an advanced fully portable 104HP Eurorack Modular Case, with a wide range of utilities fully integrated on it. Connect up to 19 modules and carry it anywhere you go thanks to its handle.

Nano Modules designed CAIXA 104 to provide a solid base for starting your modular journey and squeezing every centimetre of your system in case you're already an experienced Eurorack-head.

7 integrated modules

19-slot busboard with reversed protection headers

A selection of utilities that everyone usually needs to have in their modular synthesizer, just like the Buffered Multiples, the Stereo Mixer or its 2 LFOs.

Nano Modules have also focused on improving connectivity with the integrated inputs and outputs.

19-slot busboard with reversed protection headers

+30W power supply - An efficient and reliable supply which is more than enough to provide plenty of power for a 104HP system (and more).
+12V output at 1.25A
-12V output at 1.1A
+5V output at 0.5A

Deep enough.
The maximum module depth above the busboard connectors is 47mm, but you can place modules up to 60mm outside of the busboard space. That should be sufficient to fit the vast majority of modules out there.

Carry your synthesizer anywhere you go.

The lightweight aluminium, together with the handle, make it super easy to take your modules with you. Weighs only 1.7 Kg!

Utility Modules
Balanced Inputs
Buffered Multiples
Precision Adder
2 LFOs
Sample & Hold
Stereo Mixer
Stereo & Headphone Out

Power Specifications

30.7W Integrated switching power supply with Meanwell 60W power brick.

+12V output at 1.25A
-12V output at 1.1A
+5V output at 0.5A

Construction

Dimensions: 535 x 200 x 85 mm
Materials: Anodized aluminum
Aluminium extruded rails with steel threaded inserts
Rubber feet to protect your desktop.
Depth Maximum module depth -> 47 mm inside busboard space, 60mm outside.
