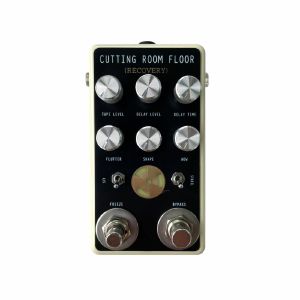

Notes: Cutting Room Floor V3 Pedal

(Vintage Reel-to-Reel Tape, Echo, and Stutter)

The Cutting Room Floor has been updated and now has separate controls over the saturation of the input signal and tape delay signal. With this change, it's possible to have any amount of emulated tape saturation on the input signal and an adjustable tape delay level.

Housed in a smaller, compact footprint, the Cutting Room Floor V3 provides beautifully marred saturated tape tone and ethereal repeats. Imagine an abandoned factory with a fluttering tape machine left on infinite replay.

The Cutting Room Floor was designed to emulate the sound and functionality of vintage reel-to-reel tape overdrive and echo. This pedal reaches into the 21st century with characteristics that traverse the world of modulation and delay. Other features include a freeze button that traps a tone while still playing, and expression/CV control for time.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

- 150ma current draw

New in V3:

- Independent control of the tape saturation and tape delay levels

- High-quality knobs with textured grip

- Tape reel design lights up when the pedal is on

- Better layout of the knob placement

- Smaller 125B enclosure (4.77" x 2.6" x 1.39")

Notes: Bad Comrade Pedal

(Glitch, Pitch, Slice, and Dice)

Is it a distortion pedal? Is it a ring modulator? Delay? Just call it the Bad Comrade, the world's first hand-wired glitch, pitch, slice, and dice pedal. For the adventurous guitarist (or anyone wielding a 1/4" jack) that craves unthinkable tones, the Bad Comrade lets you distort, modulate, glitch, and slice on the fly.

The Bad Comrade is hand-wired in Seattle, Washington. True bypass, chrome plated LED, lead-free solder. It operates on a standard Boss style 9vdc power supply, not included. Includes a limited lifetime warranty, if registered within 30 days of purchase.

Important: power up the Bad Comrade with Glitch and Time wide open.

Enclosure size: 4.67" x 3.654" x 1.547"

Notes: Now, the legendary analogue delay is back with a modern edge

Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm, "bucket brigade" analogue delay tone. Now, the DM is back! With the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today's music styles. Using 100-percent analogue circuitry, the DM-2W's Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analogue tone with over twice the available delay time.

Waza Craft : The Art of Superior Tone

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analogue circuits to high-tech DSP. Continuing this enthusiastic spirit, BOSS are pleased to introduce the new Waza Craft series. In Japan, "Waza" is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. Being made in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully-selected analogue components, refined circuitry, and meticulous attention to detail.

Specifications

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Delay Time: Standard Mode: 20 ms to 300 ms, Custom Mode: 40 ms to 800 ms
Controls: Pedal switch, REPEAT RATE knob, INTENSITY knob, ECHO knob, Mode switch
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DIRECT OUT jack: 1/4-inch phone type, RATE jack: 1/4-inch TRS phone type, DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22), AC adapter (PSA series: sold separately)
Current Draw: 35 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 15 hours, Carbon: Approx. 5 hours
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)
Options (sold separately): AC adapter: PSA series, Expression pedal: Roland EV-5

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight4: 60 g / 1 lb 1 oz

* 0 dBu = 0.775 Vrms

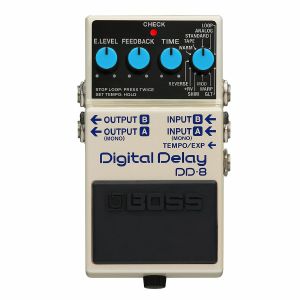

Notes: Introducing the DD-8, the most wide-ranging and feature-rich BOSS compact series delay ever. This loaded pedal delivers more of everything-more great sounds, more delay time, more control options, and more connectivity. And it does it all in a standard BOSS pedal that slides easily into any mono or stereo setup. Eleven modes provide delay colours from basic to exotic, plus a looper with unlimited overdub capability and external control support. For maximum versatility in a minimum amount of space, there's no better delay stomp than the DD-8.

Equipped with a diverse selection of delays, the DD-8 packs impressive sonic range into one small pedal. Clean digital delays, vintage analogue and tape types, and modulation echo are available, plus specialty delays like shimmer and reverse. There's a new Warm type for softer echo tones, and a +RV type that blends delay and reverb together. Warp is perfect for dynamic ambient textures, while the new GLT type is great for glitchy rhythmic effects.

Everything sounds bigger and better in stereo, and the DD-8 delivers with full stereo I/O support and your choice of three output modes. The default independent mode provides linked parallel delays on the left and right channels, allowing you to maintain the true balance of stereo input sources in the effect sound. There's also a panning mode for ping-pong delay effects, and a wide stereo mode for enhanced spatial depth.

The DD-8's extensive real-time delay options help bring your music to life. You can tap in tempos with the onboard pedal switch, and control the Warp and GLT modes for unique expressive effects. Adding one or two footswitches unlocks more creative possibilities, like on-demand tap tempo, extended looper control, and a cool Twist effect for soaring echo sounds. Alternately, an expression pedal can be used for continuous control of level, feedback, or delay time-or all of them at once.

Having a looper on your pedalboard is a handy thing-it's great for practice, checking sounds at gigs, and creating on-the-fly backing while performing. The DD-8's looper mode has you covered, so you don't have to take up precious space with a dedicated pedal. All looper functions can be controlled with the onboard switch, providing all-in-one operation. But if you prefer to work with extended controls, just connect one or two footswitches to operate the looper's stop and clear functions externally.

The DD-8's inputs and outputs have smart functionality, allowing you to set the pedal for any application simply by connecting cables in different ways. A variety of mono and stereo connections are supported, including discrete dry and effect outputs for wet/dry setups. It's even possible to defeat the dry signal entirely, perfect for delay-only blending in a parallel effects loop.

Analog-Classic analogue BBD delay sound.
Standard-Clear digital delay.
Tape-Vintage tape-based delay sound.
Warm-Digital delay with a softer sound.
Reverse-Backwards delay for cool psychedelic effects and other unique tones.
+RV-Digital delay with reverb added.
Shimmer-Pitch-shifted delay for lush, shimmering textures.
Mod-Digital delay with modulation added on the repeats.
Warp-Unique delay with expressive pedal control. Holding the pedal switch increases feedback and level, allowing you to create ambient swell effects.
GLT-Newly developed delay mode that creates glitchy machine-gun effects when the pedal switch is pressed. Adjust the Feedback and Time knobs for a wide variety of sounds.
Loop-Loop recorder with overdub capability and up to 40 seconds of recording time with mono input (20 seconds with stereo input).

Specifications

Nominal Input Level: -20 dBu
Input Impedance1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: MODE knob, TIME knob, FEEDBACK knob, E.LEVEL(Effect Level) knob, CARRYOVER switch
Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)

Connectors: INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type
OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type
TEMPO/EXP jack: TRS 1/4-inch phone type
DC IN jack

Power Supply:
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw: 100 mA

Expected battery life under continuous use
Alkaline: Approx. 3.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

Size & weight
Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 440 g / 1 lb

Notes: Based on the legendary Roland Space Echo, the RE-202 brings tape-style delay effects into the future. Classic vintage sound in a modern, user-friendly package.

Supplier's Notes:
A Masterpiece Returns in the Modern Era

Introduced in 1974, the Roland RE-201 Space Echo stands among the most legendary and sought-after effect units ever produced. This tape-based classic remained in production for over 14 straight years, and its distinctive rhythmic echo sounds, warm character, and highly playable sonic quirks still inspire musicians, producers, and audio mixers over four decades on.

Backed by intensive R&D and Boss' latest innovations, the RE-202 faithfully delivers the authentic sound and behaviour of the Space Echo like never before. Built by the company that designed the original, this advanced pedal captures the RE-201's magic in flawless detail, from the magnetic tape and motor properties to the vibrant spring reverb and colourful preamp circuit. And to take things even further, Boss have expanded the vintage Space Echo experience with lots of new features tuned for today's music.

Tape Echo Magic

Tape echo was the first delay effect and one of the first effect processors available for electronic musicians. In contrast with today's CPU-based digital units, a tape echo is a simple machine that uses a motor to pull magnetic tape across one or more record/playback heads. Warm, full, and dynamic, the tape echo sound is influenced by many factors. The ever-changing input level colours the sound with varying amounts of tape saturation and compression. In addition, motor speed fluctuations, friction, wow and flutter, and other elements introduce an appealing modulated character that's subtle and continually evolving.

RE-201 Space Echo: Simply Legendary

The RE-201 was a benchmark Roland product and one of the leading tape echo units of its era. It featured three evenly spaced heads that produced a wider range of echo effects than typical single-head designs, plus an innovative free-running tape system that provided superior performance with minimal tape wear. Grab-and-go controls enabled quick access to clean, single delays or various head combinations for dense, rhythmic echoes. A spring reverb tank was included too, making the RE-201 a one-stop shop for quality ambience effects. Last but not least, analogue preamp circuitry was another key ingredient in the Space Echo's rich sonic recipe.

A Masterpiece Reborn

Realized through the latest technologies and exhaustive analysis of several vintage RE-201s-including a pristine original unit from the BOSS and Roland factory archive-the RE-202 brings the complete Space Echo experience to life in a versatile modern pedal.

While previous BOSS designs captured the true sonic flavour and essential characteristics of the Space Echo, new advancements have allowed us to go much deeper than ever before. With the RE-202, Boss' engineers have fully reproduced all the complex, non-linear behaviours that contribute to the RE-201's immortal character. Everything that influences the sound was carefully examined and recreated with all-new algorithms, including the tape path, record/playback mechanism, motor variations, preamp coloration, tape age, spring reverb character, and more.

Retro Sound at Your Fingertips

The RE-202 delivers the full vintage vibe of the RE-201-without the need for regular tape replacement and hardware maintenance. All the core controls of the original are here, including the iconic 12-position mode selector. Every behaviour is replicated with complete accuracy, such as the gradual pitch change that occurs when the Repeat Rate knob is tweaked, or the cool runaway feedback that happens when the Intensity knob is maxed.

With selectable tape age and variable controls, you can dial in everything from a brand-new Space Echo to the worn character and quirks of a well-loved vintage piece. The Saturation control has been carefully calibrated based on the actual magnetic tape and preamp behaviours of the RE-201, with the sound becoming warmer and more compressed as you turn up the knob.

Sampling Frequency: 48 kHz

AD Conversion: 24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converter.

DA Conversion: 32 bits
Processing: 32-bit floating point
Modes: 12 modes
Memory127 + Manual
Nominal Input Level: INPUT A/MONO, INPUT B: -10 dBu
Maximum Input Level: INPUT A/MONO, INPUT B: +7 dBu
Input Impedance: INPUT A/MONO, INPUT B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, OUTPUT B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, OUTPUT B: +7 dBu
Output Impedance: OUTPUT A/MONO, OUTPUT B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: ON/OFF switch, MEMORY switch, TAP switch, SATURATION knob, WOW & FLUTTER knob, MODE SELECTOR knob, BASS knob, TREBLE knob, REVERB VOL knob, REPEAT RATE knob, INTENSITY knob, ECHO VOL knob, MEMORY button, INPUT button, TAPE button

Connectors: INPUT A/MONO jack, INTPUT B jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
Power Supply: AC adapter
Current Draw: 140 mA
Accessories: AC adapter, Owner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Rubber foot

Options (sold separately)
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 192 mm / 7-9/16 inches
Depth: 133 mm / 5-15/64 inches
Height: 52 mm / 2-3/64 inches
Height (including rubber foot): 53 mm / 2-3/32 inches
Weight: 860 g / 1 lb 15 oz

Notes: Timeless Inspiration
The SDE-3 fuses vintage digital character and wide-ranging versatility into one unique and inspiring BOSS compact pedal. Experience the genuine sound and core features of the Roland SDE-3000, an iconic '80s-era rackmount delay favoured by some of the most influential guitarists of all time. Flow into any creative setup with a slate of modern features. And twist the powerful Offset control to explore an array of colourful dual-delay textures.

Compact Legend
Introduced in 1983 by our parent company Roland, the SDE-3000 is revered for its beautifully rich sound and distinctive modulation. The coveted SDE tone was realized through a finely tuned digital engine and the non-linear behaviours of the supporting analogue circuitry, including magnetic saturation in the anti-alias filter, evolving modulation produced by the components of the time, and an altered triangle LFO shape. The SDE-3 brings the authentic vibe of this classic delay to a pedalboard-friendly BOSS compact, enhanced with innovative creative features for every musical style.

Vintage Colour and Character
Dripping with warmth and musicality, the SDE-3 elevates your tone with endlessly evocative delay sounds. The efficient panel provides the primary controls of its vintage benchmark-including delay time, feedback, and independent rate and depth knobs for the modulation-plus additional knobs that expand your sonic potential. Explore retro single delays and '80s-style mod/delay combos. Or tweak the mod and high-cut controls to conjure moody, atmospheric tonalities for ambient, chill, and lo-fi music.

Offset Magic
Along with reproducing the SDE-3000's famous mono sound, the SDE-3 includes a powerful Offset feature to create interesting tones with two simultaneous delays. With one simple control, you can instantly add a second delay to the primary delay for a wealth of mono and stereo colours.

Doubled Delays-Turning the Offset knob up to its centre position introduces a second delay that's 1-100ms longer than the primary delay. For example, if the primary delay is 400ms and the Offset is 10ms, the second delay's time is 410ms. Coupled with the SDE-3's time, feedback, and highly adjustable modulation controls, you can craft deep delay tones unavailable with typical delay pedals.

Timed Dual Delays-In the second half of its range, the Offset knob produces a shorter second delay that's based on the primary delay time. Use the pedal's tap tempo function to determine the quarter-note value for the primary delay. Next, turn the knob to sweep the second delay's time between eighth-note and dotted-eighth subdivisions. This lets you introduce a variety of rhythmic effects that sync with your music.

Multiple Output Modes
The versatile SDE-3 provides output configurations for any stage or studio scenario. Run it in mono for basic setups. Play in true stereo with discrete left/right delays or a panning mode for ultra-wide sounds that move across the stereo field. Send dry and direct feeds to two amps for wet/dry setups. Or mute the direct sound entirely for studio mixing and parallel effect rigs.

Modern Workflow
The SDE-3 offers numerous control options to enhance your performances. Press and hold the pedal switch to enable the tap tempo function. Or use the TRS MIDI input to receive clock sync signals from DAWs, pedals, and drum machines. Connect external footswitches for on-demand access to tap tempo and a hold function for on-the-fly looping. Alternately, an expression pedal can be used to control the Level, Feedback, and Time knobs for delay mix adjustment, wild pitch effects, and dramatic self-oscillation.

Notes: BOSS's iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we've updated the classic stomp with enhanced functionality while fully retaining the original's sound and control layout. It's now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.

In continuous production for over three decades, the DD-3 has been the go-to delay stomp for countless players. Based on the DD-2-the world's first digital delay pedal from 1983-the DD-3 is revered for its warm, round delay tone and simple controls that let you dial in sounds fast. The DD-3T's sound circuitry and controls are identical to the DD-3, delivering every drop of that classic vibe you know and love.

A key addition the DD-3T brings is tap tempo, an essential feature for creating the rhythmic delay effects at the heart of many guitar styles. In delay mode, hold the pedal switch for two seconds to toggle between bypass and tap operation. And for on-demand tap control, simply connect an external footswitch. When the DD-3T receives tap input, up to 800 ms of delay time is available, and the Mode knob sets the tap subdivision (quarter-note triplet, dotted-eighth note, or quarter note).

The DD-3T features a direct output jack like the DD-3, but it's been moved next to the main output jack to make connections easier. Plugging a cable into the direct out converts the main out to delay only, allowing you to send wet and dry signals to different amps for wide, immersive sounds. And if your amp or switcher has a parallel effects loop, just connect a dummy plug to the direct out to mute the dry sound for effect-only blending.

The original DD-3 (and DD-2 before) included a forward-thinking Hold function, which allowed you to capture a sound up to 800 ms long, play it continuously, and jam over the top. Many years later, BOSS further developed this creative concept with the successful Loop Station products, which helped spawn the new musical style of live looping. The DD-3T includes the same Hold function as the DD-3, but it's been renamed "Short Loop" to reflect today's common usage.

Specifications

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: MODE knob, TIME knob, FEEDBACK knob, E.LEVEL(Effect Level) knob, Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
TEMPO jack: 1/4-inch phone type
DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 70 mA

Expected battery life under continuous use: Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use.

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

Alkaline battery (9 V, 6LR61)

Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 420 g / 15 oz

Notes: Caroline have kept your original, dry signal path analogue and pure, then given you a +21db boost/overdrive preamp to smash a low fidelity digital delay chip designed for karaoke machines and kids' toys into smeared, repeated glory; going back in time; back to when they measured data in kilobytes.

This pedal is VERY capable of fun runaway oscillations, both by turning up the summation knob, or a controlled, high-pass filtered oscillation from the Havoc momentary foot switch. If you've ever struggled to make your delays come through prominently in the mix, or lost definition from your original signal, the attack and level controls can allow you to dial up everything from crisp, clean slapbacks to dirty, muted echoes and loud, powerful repeats. A beautiful, subtle modulation circuit courtesy of Jack DeVille also sweetens the repeats with just the right amount of movement.

Notes: Megabyte builds on the acclaimed Kilobyte legacy with two old school lo-fi digital chips for more delay time, tap tempo, trails or true bypass, and a nastier, dirtier runaway havoc. All with a straightforward and intuitive, immediately rewarding control setup.

Less time menu scrolling, more time rock and rolling. All this still fits on a card sized "manual."

Caroline added the most requested features from our customers' wish lists while making sure we kept the qualities that they loved. This includes a fun and functional tap-tempo with three subdivisions, double the delay time (up to 1200ms) for better noise handling and range, easily switchable trails or true bypass options, and a nastier *Havoc paired to the tap switch to go with the +21db drive preamp and modulation for the delay side. On the inside of the pedal are controls for a 100% dry-kill for production work and a maximum headroom option on the havoc/oscillation side.

Notes: A delay effect pedal for guitar or bass (or other instrument) with Time, Feedback and Level controls. A wide range of possible settings provide anything from quick doubling and slap-back effects to longer delay times for spacey echo overlays.

Adjustable Time, Feedback and Level control
9V battery or optional DC adaptor operation
Power supply: 9V battery (PP3 included) or optional DC adaptor
Construction: Aluminium housing with rubber base
Controls: Time, Feedback and Effect Level
Dimensions: 115 x 68 x 47mm
Weight: 271g

In the box

The box for this item contains :

DL50 delay effect pedal
PP3 battery

Notes: Sleepless nights closer than ever

The Nocturnal is the fruit of the collaboration between Noli and Collision Devices

This pedal was a custom order for him and Collision Devices decided to build it as a limited edition.

Artwork by Noli.

Pass from the Dusk, through the Night to the Dawn with the Nocturnal.

The Nocturnal has a lifetime warranty. Of course.

3 effects, one pedal

Dusk

Modulated Delay

Warmed and inspirational delay based on a tape delay circuit.

Settings:

Mix: Controls the mix between Full Dry or 50% Dry / 50% Wet

Time: Time between each repetition. From a few ms to 1 second. Signal quality turns to Lo-Fi when it's pushed to long repeats.

Feedback: Number of repetitions. Able to self oscillate very easily when the knob is around 7.5.

Modulation: Amount of modulation in the delay repetitions. Create a sort of old tape effect

Speed: Modulation's frequency from 0.1 to 20 Hz.

Night

Dynamic Tremolo

Turn a huge amount of shimmer and reverb into it to make it oscillate faster.

Settings:

Sens: Sensibility, turn it clockwise to make the tremolo more sensitive to your attack

Depth: Controls the tremolo's volume

Dawn

Shimmer

Create bright soundscapes and loose the notion of time until the sunrise.

Settings:

Blend: Controls the amount of Dry/Wet signal. You can have a full Wet reverb.

Reverb: Reverberation time. Max 15 sec.

Shimmer: Makes the reverb shimmer

Filter: Digital filter. Low pass. Lets you make the shimmer darker or more shiny

Colour: Bandpass active and analogue filter around 3.3 kHz. Controls the Q of the filter.

Specs

Maximum current draw: 250 mA
Input Impedance: 1 MOhm
Size: 119 x 116 x 56mm

The use of an isolated power supply is recommended for powering all Collision devices Pedals.

Power supply not included.

The pedal is true bypass

Voltage: +9V DC (negative centre)
Output Impedance: 1 0 KOhm
Weight: 700 grams

Notes: Reach Infinity

Let's dive into a Black Hole!

The Black Hole Symmetry is a Modulated Delay / Pitch shifted Reverb / Destruction Fuzz pedal.

Travel through the Ergosphere, the Event Horizon and the Singularity. The 3 parts of the pedal which can be played together or separetely.

Each pedal is designed, assembled, tested and numbered by hand in the Collision Devices workshop in France.

The B.H.S. has a lifetime warranty.

3 effects, one pedal

Singularity

Destruction Fuzz
The single setting "Disintegrate" allows you to raise your sound.
Forget the fact that your drummer plays loudly.
Settings :
Desintegrate : Volume setting with a huge fuzz.
Protect your ears please.

Event horizon
Pitch shifted Reverb
Long reverb based on the FV1 chip.
Harmonizes the reverb signal with a pitch shifter.

Settings:
Mix: Proportion of wet signal in the mix
Echo: Echo time (max 15s)
Radiancy: Proportion of pitch shifter in the echo signal
Pitch: Shifts the pitch of the note

Ergosphere
Modulated Delay
Based on the PT2399 chip to have a warm echo.
The echo signal is modulated by two oscillators.

Settings:
Mix: Proportion of wet signal in the mix
Time: Time between each repetition (From 0s to 1s)
Feedback: Number of repetitions
Modulation: Proportion of modulation in the delay signal
Speed: Speed of the main oscillator
Trimmer: Speed of the triangle oscillator

Specifications

Maximum current draw: 250 mA
Input Impedance: 1 MOhm
Size: 186 x 119 x 56mm

The use of an isolated power supply is recommended for powering all Collision devices Pedals.

Power supply not included.

The pedal is true bypass

Lifetime warranty

Voltage: +9V DC (negative center)
Output Impedance: 1 KOhm
Weight: 200 grams

Notes: Re-Built from the ground up - a complete redesign of the original Lo-Fi Delay.

Enter the realm of sonic exploration with Colortones LO-FI DELAY. Featuring three distinct delay voicings, the LO-FI DELAY is a grainy lo-fi, old-school analogue tape sounding dub style delay engine with momentary oscillation feedback and speed switching options.

At its core the LO-FI DELAY is a tempo synchronized dual channel delay with each channel having independent Regen and Time controls.

Controls include Delay Time, Regen, Feedback, Mix and a 'Splash' footswitch to momentarily send the delay into a predetermined amount of regenerative feedback and or Tempo Change.

The SPLASH footswitch also acts as a Tap Tempo control requiring at least 4 quick taps to calculate a new tempo.

Controls

Wet | Dry Switch

Wet Mode acts like a normal delay where the delayed repeats can be mixed against the Dry Signal with the decay time set by the Regen knob. When the SPLASH Footswitch is momentarily pressed the decay time switches to the Regen+ knob setting allowing for more or less regenerative delays while the footswitch is pressed.

Dry Mode is designed for running in a quite mode and only activating the delay while the SPLASH footswitch is held down. Great for adding dub style accents to certain stabs / phrases or adding splashes of ambient delay or moments of crazy feedback to an otherwise Dry signal.

Hi-Fi | Lo-Fi Switch

Hi-FI mode has a crisp hi-fidelity non-destructive repeated delay.

The centre and down positions are Lo-Fi modes where the resulting delay repeats are a little darker like a tape delay with a slight hint of mechanical tape warble. The Centre position uses a Lowpass filter in the delay feedback line where as the Down position uses a HighPass filter.

Division Knob

The Div knob sets the alternative delay speed when Splash is pressed while in Wet Mode. At 3 O'Clock Repeats are at Unity 1:1. Turning anticlockwise the repeats are Multiplied (Faster) in by either x2 or x3. Turning Clockwise from unity the repeats are divided (slower) by either 2 or 3.

Tech Specs:

True Bypass
Current Draw: 145mA
Input Voltage: 9V DC (center negative)
external power supply not included

Notes: Inspired by the first digital delay rack units introduced at the beginning of the "digital audio revolution" in the mid-late 70's. These units had lower bit resolution and bandwidth compared to today's digital delay standards.

TI:ME is not your typical sterile and ultra clean digital delay. With separate analogue and digital paths to get best of both worlds, this retro inspired echo effect will warm up your tone. An all analogue signal path featuring a high quality opamp is used for the best reproduction of your dry signal. Two digital recording devices, along with carefully tuned filtering, placed in parallel with the dry path give you the most ambient delay unit you have ever heard. Think of a Model 113 rack unit; the repeats are really musical, reminiscent of worn tape echoes.

Each TI:ME unit is hand lacquered in copper colour and one of a kind!

Notes: The perfect companion now comes in a smaller package - introducing Sidekick JR by Crazy Tube Circuits!

Drawing inspiration from the original Sidekick pedal released back in 2019, the aim was to create a compact pedal that combines the most widely used time-based effects, suitable for any gear setup seeking 80s tones and beyond.

From the jangly, ambient, and shimmering sounds of New Wave, Shoegaze, and Synth Pop to the wet tones of Hair / Glam Metal. Crazy Tube Circuits' Sidekick JR offers even more sounds / algorithm selections compared to the original unit.

The modulation effects / algorithms take inspiration from classic 80s stompboxes. The "Ensemble" algorithm replicates warm and mild modulated chorus sounds, while the "dimension" algorithm enhances the 3D image of your sound without the typical chorus warble. The "flanger" algorithm draws from a classic flanger pedal set up as a slow chorus with mild feedback added for a more metallic sound.

The Echo / delay section provides the sweet and vibrant sound of a tape echo with a freshly installed tape running through a colourful preamp, or the pristine repeats of an 80s digital delay rack unit.

The Reverb section in Sidekick JR is inspired by definitive examples of 80s reverb rack units and offers two algorithm banks. Bank A includes all-time classic reverb sounds like "plate," "spring," and "hall," while Bank B features signature 80s reverb sounds like "gated," "exciter" (Crazy Tube Circuits' trademark big-hall reverb algorithm with almost infinite reflections and decay), and octave-up "shimmer."

To provide full flexibility in the smallest enclosure possible, Crazy Tube Circuits has devised a smart switching setup. The delay and reverb effect sections of Sidekick JR operate independently from each other, and the modulation is assignable to any of these sections as standard. With the addition of the XT footswitch (available separately), the modulation section becomes entirely independent and can be switched on/off (true bypass) on its own.
Crazy Tube Circuits' Sidekick JR also features a power-up bypass/engage pre-set function for the onboard footswitches. This feature allows users to select the state the pedal will go to when the power supply is plugged in. It's particularly useful for individuals who use remote pedal switchers /loopers, as they can set the power-up state of the pedal once and then operate it from the controller.

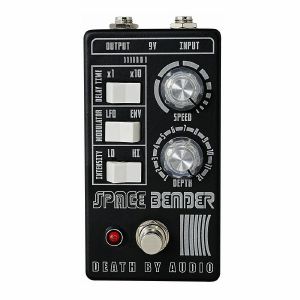

Notes: Space Bender

Chorus Modulator

LFO in the UFO

The Space Bender chorus modulator replicates and warps your signal into beautiful and organic transmissions from a dimension somewhere beyond linear time.

Under the hood lies an array of dynamically modulated delay lines allowing you to craft subtle vintage sci-fi sounds, bending sonic bedlam, and pulsing atmospheres. Never again will you say this chorus pedal just isn't intense enough! These in combination with the rocker switch settings let you move smoothly through a wide range of effect types allowing for new ways of thinking and experimenting with modulated delay, chorus, and flanger.

Stretch and pull your sound waves to craft glassy bell resonances, massive reverse dive bombs, and seasick demon drones with a simple (but deep) interface. The spectrum of living, breathing sound manipulations stowed within the Space Bender serves as an interstellar gateway for the next wave of musicians to create a universe of haunting and unexplored soundscapes.

See you on the other side!

Specifications

Dimensions: 5" x 2.63" x 2.45" (including hardware)
Weight: 9.3 oz.
Power: 9V DC (runs on standard 2.1mm negative center 9V DC adapter).
Current Draw: 65 mA.

Notes: Psychdelic Vocal Trip

Designed for vocals, the Echo Master is a lo-fi, analogue tape-style delay unit that can transform your voice into a chaotic realm of noise and feedback. The effects loop allows additional effects to be placed in the signal chain, making it easy to use with any of your favourite effects pedals on your vocal sound without any adapters.

The Echo Master is not just a delay unit, however. It utilizes matched Bourns transformers on the input to create a vibrant-sounding and feedback-minimizing preamp to bring you phenomenal vocal quality before you even hit the PA. Your sound engineer will hate you because you'll sound better than ever without their help. Top it off with high-quality Neutrik XLR jacks and the Echo Master is the ultimate tool for taking total control of the sound of your voice.

Controls

Time: Controls the delay time, with numbers labelled in milliseconds. In the Red Zone, the delay chip is pushed to the extreme. The signal decreases in fidelity as the time increases.

F-Back: Controls the number of repeats in the delay circuit, anywhere from one to an infinite to a wall of oscillation.

Mix: Controls the level of the delayed channel in comparison to the dry signal, from fully dry to an equal mix.

Send/Receive: Plug out of the Send jack into any additional effects, then back into the Return jack to introduce new sounds into your vocals. This loop is before the delay line, allowing you to affect your dry vocals as well as the delay generated by the Echo Master.

*Alternate Backplate: Back in stock baby! The Echo Master can also be purchased with a backplate that mounts to your mic stand. Puts the pedal within hands reach to maximize live performance tweak-ability. This recently upgraded V3, comes with a handgrip screw for more torque (although it resembles the V1, this is a much sturdier model). **Please note- cords, microphone, and stand are not included.

Specifications

Dimensions: 6.09" x 3.45" x 2.75" (including hardware).
Weight: 16oz. (w/ Alternate Back Plate 30oz.)
Power: 9V (runs on standard 2.1mm negative center 9V adapter).
Current Draw: 25 mA.

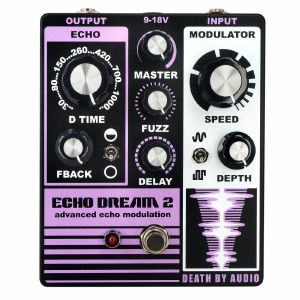

Notes: An 'otherworldly' take on the classic delay pedal from Death By Audio, with the addition of a fuzz circuit allowing you to dial in grit and texture as well as ethereal atmospheres with shimmering feedback.

Supplier notes:
Lush Modulating Echo

A powerful, ethereal, and nuanced delay pedal with otherworldly controls. Push the feedback for vast worlds of colourful sound. Introduce a bit of warble with the modulator for ghastly chorus tones, or a ton of it to absolutely warp the delayed signal. Once your delay is thoroughly contorted, turn up the fuzz and pulverize it into repeating, shattered pieces. This is the preferred echo for recording engineers and touring pros around the world because, simply put, it just sounds that good. From delicate, beautiful sounds to yawning voids of fuzz and feedback, the Echo Dream II is ready to transform anything you throw at it.

Controls

Master: Sets the overall volume.
Fuzz: Sets the amount of gain, from clean to fuzzed-out bliss.
Delay: Sets the volume of the delayed signal.
D Time: Controls the delay time (numbers shown in milliseconds) between 20 ms and 1 second. Long delay times can create flutter, noise, and distortion.
FBack: Controls the feedback of the delays, from slapback to wild runaway oscillation.
Left Toggle: Up for clean blend, down to kill the dry signal and hear only the repeats.
Speed: Controls how fast the modulator runs.
Depth: Sets how far the modulator will swing the delay time. At high intervals, the pitch of the repeats will shift several semitones!
Right Toggle: Up for a smoother modulator waveform, down for a sharp, square-shaped wave.

Specifications

Dimensions: 5.87" x 4.72" x 2.35" (including hardware).
Weight: 21 oz.
Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery).
Current Draw: 40 mA.

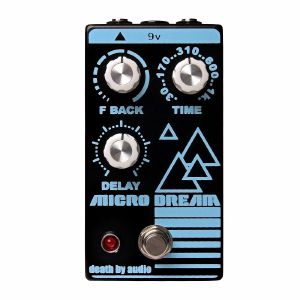

Notes: Beautiful lo-fi delay

Similar to the thick and gooey sound of the Echo Dream 2, the MICRO DREAM is a streamlined and compact version that still retains the beautiful, decayed delay sound. that made the Echo Dream famous. Push the delay past its limits by increasing the delay time to a full second, introducing lofi chirps and noise as the circuit protests. Additionally, a gain stage on the delay line makes the Micro Dream perfect for pseudo looping or just an incredible slapback. Set the internal trimpot to adjust the feedback point so that it can stay mellow or scream into self-oscillation. The Micro Dream is a simple yet incredible-sounding delay - all the time.

Controls

F Back: Controls the feedback of the delays, from slapback to wild runaway oscillation.
Time: Controls the delay time (Numbers shown in milliseconds).
Delay: Sets the volume of the delayed signal.
Internal Trimpot: Sets the point at which the Fback knob will cause the delay to oscillate.

Specifications

Dimensions: 4.95" x 2.61" x 2.34" (including hardware).
Weight: 11 oz.
Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery).
Current Draw: 28 mA.

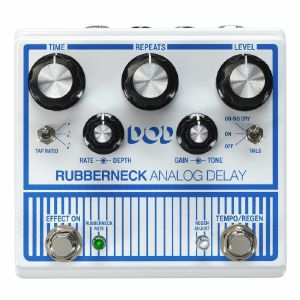

Notes: The new DOD Rubberneck Analog Delay has double the features with the cool new double-wide chassis. The Rubberneck boasts over a second of warm and musical 100% analog repeats you crave, along with tap-tempo, subdivisions, and tails. Double concentric knobs give you independent control of the Modulation Rate and Depth as well as Gain and Tone of the delay. Double footswitches allow for unique extended features like user customizable momentary control of oscillation and momentary control of the dizzying pitch sweep of "Rubbernecking." These extended features are controlled by individual clear mini knobs that double as multi-color LED status indicators. Feedback loop send/return, remote footswitch control, true bypass, and rugged metal construction, make the Rubberneck Analog Delay the must have delay of the year. The Rubberneck also has jacks to allow FS3X 3-button remote foot switching, and a send and return so you can add external effects to the delay path. The DOD Rubberneck uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsTime, Repeats, Level, Speed, Depth, Tone, Gain, Tap Ratio, Tails On/Off, Effect On/Off / Rubbernecking, Rubberneck Rate, Regen Adjust, Tempo/Regen
Input(1) 1/4" Instrument
Send / Return(1) 1/4" TRS Send (Tip) / Return (Ring)
Output(1) 1/4" Instrument
External 3-Button Footswitch Input(1) 1/4" TRS Instrument
ChassisAll Metal
Power Supply9V DC Optional Power Supply
Dimensions
Length5.0"
Width4.68"
Height2.17"
Weight1.12 lbs.

Notes: Another banger from Dreadbox's excellent effects series. Stereo echo effects based around multiple hybrid delay stages, giving bags of character for reverb, modulation effects and classic delays.

Supplier's Notes:
Dreadbox Raindrops is a Hybrid Delay/Pitch Shifter/Reverb pedal that takes the concept of short echoes to a different level.

It is equipped with multiple delay stages and different chips and you can choose between 3 different play modes, where in each one you can have a whole new experience and alternative soundscapes. You can achieve from simple short echoes, to long, dirty and lo-fi delays and from simple pitch shifting bursts to extensively lasting reverbs.

Specifications

Circuit: Analogue Dry signal / Hybrid Delay / Digital Reverb
Bypass: Buffered OpAmp
Audio: True Stereo IN/OUT
Inputs / Outputs: TS Unbalanced 6.4mm jack
Power Supply: 9VDC BOSS style center pin negative 2.1mm (NOT INCLUDED)
Dimensions (cm): 14 x 10 x 5.6
Current Draw: 220mA

Notes: The Dispatch Master is a hi-fi digital Delay & Reverb Device that combines independent delay and reverb effects into one space-saving enclosure, so you can keep deep ambient echoes (or just a quick slapback) on speed-dial.

The best-selling EarthQuaker Devices pedal just got better with new Flexi-Switchr Technology. Want to dip into ambient delay and reverb sounds for just one note? Press and hold the footswitch for as long as you use the effect, release it when you're finished, and resume your regularly scheduled dry sound. To use the Dispatch Master as a normal effects pedal, press the switch once to activate and again to bypass.

To Use Both Effects at the Same Time, Simply Adjust all Controls to Taste:

The Mix (1) control is a wet/dry blend that adjusts the overall level of the affected signal.

Time (2) sets the delay time from 0ms to 1500ms (1.5 seconds).

Reverb (3) controls the amount of reverb. Counterclockwise is less reverb, clockwise is more reverb.

Repeats (4) controls the regeneration of the delay signal. When the Repeats control is set to maximum, you'll get infinite repeats without runaway self-oscillation, which makes it great for creating drones, dialing in the ultimate post-rock guitar sound without feedback, or just having fun.

To Use the Dispatch Master as a Delay Only:

Turn the Reverb control all the way down.

Adjust the Time, Repeats, and Mix controls to taste:

To Use the Dispatch Master as a Reverb Only:

Turn the Time and Repeats controls all the way down

Adjust the Reverb and Mix controls to taste

THIS IS IMPORTANT! In Reverb-only mode, the Repeats control has a secondary function. It can be used to adjust the decay, depth, and tonal quality of the reverb! Turn it up for more dynamics and a thicker tone.

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. Do not run at higher voltages!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 78 mA
Input Impedance: 1 MO
Output Impedance: <1 kO

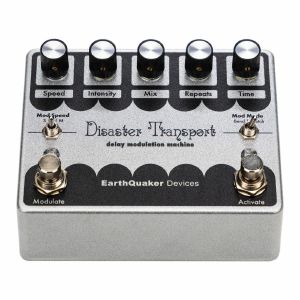

Notes: Limited-edition reissue of EarthQuaker's excellent Disaster Transport, lightly updated for 2023. Modulated delay now with reduced noise floor, analogue-style filtering and switchable modulation modes.

Supplier's Notes:
Disaster Transport

Legacy Reissue

The Original Delay Modulation Machine

Limited to 3,500 units worldwide. Behold! The newest incarnation of one of Earthquaker Devices' most beloved pedals ever, the Disaster Transport. For those of you well versed in the pedal's celebrated history, you might notice some differences on this beautifully sparkly box. A new Mod Mode switch allows you to bend or stretch the modulation wave. The new Mod Speed switch offers three rates of modulation, from bizarrely animated gradual climbs and steep drop offs to rapid chorus and intense vibrato.

The delay line has been redesigned to reduce the noise floor and improve the quality of the delay. Plus, it's now filtered to sound more like an analogue delay than any of the previous versions. With knobs to control the Speed, Intensity, Mix, Repeats, and Time; this analogue-voiced digital delay sits perfectly in the background with an evolved ambiance, but can also be dialled in for the dramatic effect of your choosing.

EQD initially set out to recreate the original Disaster Transport pedal in its earliest form, but the OG of EQD, Jamie Stillman, couldn't resist tinkering and improving the whole thing, so you just got upgraded, my friend. In doing so, EQD redesigned the delay line to reduce the noise floor and improve the quality of the delay. The output was boosted with a cleaner mixing section; it's now filtered to sound more like an analogue delay than any of the previous versions.

EQD added a Mod Mode switch that allows you to choose between bending and stretching the modulation wave. The Bend setting offers a subtler vibe closer to a traditional chorus sound, while the new Stretch option gives you loads of pitch-stretching modulation to run wild with.

The other difference you probably spotted with your eagle eye is the Mod Speed three-position toggle switch. The Slow setting is excruciatingly slow and can produce bizarrely animated gradual climbs and steep drop offs. The Fast setting can go from a rapid chorus to an intense vibrato, while the Medium setting is the most traditional rate similar to the classic Memory Man circuit with a nice range to it.

The newly designed enclosure features knobs to control the Speed, Intensity, Mix, Repeats, and Time, with Modulate and Activate switches, making this a highly customizable pedal to get the delay sound of your dreams. Thanks to the ramp modulation circuitry, you can turn the delay time down and start to use feedback and modulation at a higher setting to harness a bizarre modulator and achieve subtle to wild chorus-type effects. Or set your delay time how you want to set it and use your modulation rates to set your tempo, so you can strum or pluck to the climbs and drop offs to match your riffs. The possibilities are endless.

Controls

1. Speed: Controls the speed of the modulation. The Speed operates in three ranges (Slow/Fast/Medium) selected by the Mod Speed toggle switch. The Disaster Transport uses a Ramp wave for the modulation. You'll find this to be much more intense than most modulated delays. Think of it as a traditional Triangle wave that falls off a cliff in mid-cycle, creating a drastic pitch bend in its wake. Or don't and just think about whatever you want.

2. Intensity: Controls how much the LFO modulates the delay time. More subtle chorus type effects are achieved with less intensity and more intensity will yield wild pitch stretching and bending. The overall modulation style can be made more or less subtle by using the Mod Mode toggle switch to select Bend or Stretch.

3. Mix: Sets the volume level for the delay signal. Hear more of what you just played 30-600ms ago by turning this up.

4. Repeats: Controls the intensity of delay feedback from no repeats at zero to self-oscillation at max. Let the past pile up on you until it implodes.

5. Time: Sets the delay time from around 30ms at zero to 600ms at max. Everyone needs more time; you are offered about 600ms worth.

6. Mod Speed: Three position toggle switch that sets the range in which the Speed operates.

7. Mod Mode: Two position toggle switch to choose the modulation style. Bend is more of a traditional chorus type modulation and Stretch is a wilder pitch stretching modulation.

8. Modulate: This foot-operated switch features Flexi-Switchr Technology and turns the modulation on and off.

9. Activate: This foot-operated switch features Flexi-Switchr Technology and turns the effect on and off.

Tech Specs

Dimensions: 3.65 x 4.65 x 2.25 in. (93 x 118 x 57 mm) with knobs
Current Draw: 35 mA
Input Impedance: 1 MO
Output Impedance: 1 kO

Flexi-Switch Technology

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative centre barrel. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.

*** Do not run at higher voltages! ***

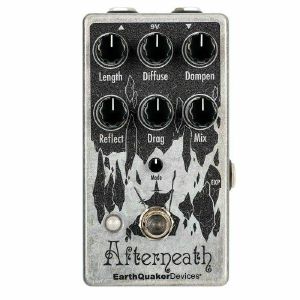

Notes: To celebrate the release of EarthQuaker Devices upcoming Afterneath Retrospective, they have created an extra special custom colour Afterneath v3 pedal and Afterneath Eurorack Module available for a limited time only. The Afterneath Retrospective marks the fourth chapter in EQD's pedal documentary series, taking a deep and often hilarious dive into how some of their top-selling pedals came into existence.

EarthQuaker Devices has taken everything that was great about the original Afterneath and made it even better: 9 new Modes, CV/expression pedal control over the Drag parameter, Trails/No Trails Switching, helping to push the already unflappable Afterneath into a whole new realm.

The Afterneath V3 sounds a lot like it looks - a wizard bursting forth from ethereal cave and ready for the ambient battle. You are the wizard (or sorceress, if you prefer) and the cave is your instrument's signal, vast, expansive and magical. Do you go inside? Roll a D20 to proceed!

Once inside, a reflection of light from an unknown source catches your eye, and you notice a bizarre sheen on the walls of the cave. You timidly inch closer to the walls of the cave. Placing your hand gently on the cavern wall, you feel the rock move. The cave is alive! Alarmed, you emit a loud gasp, which reverberates throughout the subterranean landscape. Upon further listening, it appears as though the reverberations of your voice are in fact a swarm of short digital delays which may be used to create wild and cavernous reverbs, or scattered, short, rhythmic delays with bizarre characteristics.

Take a moment to consider your Intelligence and Wisdom scores, as well as your spell inventory before proceeding further. You have seven spells at your disposal... Will you cast "Length," which controls the decay length of the reverb? What about "Diffuse," which adjusts the spread of the reverb? With your wand (or just the knob) turned counter-clockwise, the reverb is sharper with more attack, resulting in a stuttering sputter of individual early reflections. Clockwise casts a washy, more ambient-sounding hex.

Overwhelmed by fear, you hastily cast "Dampen!" As you shout the incantation, you notice that a counter-clockwise variation of this spell results in brighter tones, while as you rotate your wand clockwise; you hear darker tones with a mellower top-end. It's almost as if your magic changes the hardness of the cavern walls, and thus the tonal characteristics of the reverb!

Elsewhere in your book of magic is "Drag," which separates the individual digital delay lines, literally dragging them through the very fabric of time and space towards an unknown event horizon from which they may never return. Clockwise "Drag" positions will gather the delay lines close together for a more reverb-like effect. Turn the "Drag" counter-clockwise and the delay lines will begin to pull apart for a scattered ping-pong delay effect.

The Drag can be put under voltage or expression control using the "EXP" jack located on the side and operates in 9 different modes which are selected by the small "Mode" control. These modes are: Unquantized, Unquantized with slew, Unquantized volt/octave, Chromatic scale, Major scale, Minor scale, Pentatonic scale, Octaves & fifths and Octaves. These modes drastically change the way the Drag control functions, especially while using an expression control or CV.

The "Reflect" alters the depth of the cave, and with it the regeneration of the reverb. This acts as a feedback control and will self-oscillate if cast by a high-level user. Turn clockwise for more wash and echoes, counter-clockwise for less. Finally, the "Mix" alters the alchemical balance between the input signal and the effect.

The Afterneath V3 does not go fully wet but does lower the level of the input signal as you raise this control to create the appearance of a fully wet reverb.

The Afterneath V3 features a completely analog dry signal path, totally digital delay path, buffered bypass with Flexi Switch Technology and a tails/no tails option on bypass. Each and every Afterneath V3 is built by a mix of robots and human beans in the torch-lit cave community of Akron, Ohio.

Tech Specs

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 100 mA
Input Impedance: 1 MO
Output Impedance: 500O
Power: 9 volt DC power supply with a 2.1mm negative centre barrel

Notes: Disaster Transport™
Legacy Reissue
The Original Delay Modulation Machine
Limited to 3,500 units worldwide. Behold! The newest incarnation of one of our most beloved pedals ever, the Disaster Transport. For those of you well versed in the pedal's celebrated history, you might notice some differences on this beautifully sparkly box. A new Mod Mode switch allows you to bend or stretch the modulation wave. The new Mod Speed switch offers three rates of modulation, from bizarrely animated gradual climbs and steep drop offs to rapid chorus and intense vibrato.

The delay line has been redesigned to reduce the noise floor and improve the quality of the delay. Plus, it's now filtered to sound more like an analog delay than any of the previous versions. With knobs to control the Speed, Intensity, Mix, Repeats, and Time; this analog-voiced digital delay sits perfectly in the background with an evolved ambiance, but can also be dialed in for the dramatic effect of your choosing.

We initially set out to recreate the original Disaster Transport pedal in its earliest form, but the OG of EQD, Jamie Stillman, couldn't resist tinkering and improving the whole thing, so you just got upgraded, my friend. In doing so, we redesigned the delay line to reduce the noise floor and improve the quality of the delay. We boosted the output with a cleaner mixing section; it's now filtered to sound more like an analog delay than any of the previous versions.

We've added a Mod Mode switch that allows you to choose between bending and stretching the modulation wave. The Bend setting offers a subtler vibe closer to a traditional chorus sound, while the new Stretch option gives you loads of pitch-stretching modulation to run wild with.

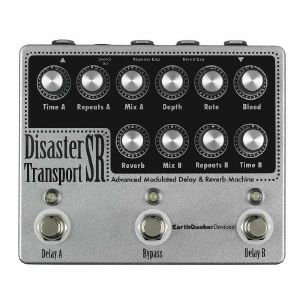

The other difference you probably spotted with your eagle eye is the Mod Speed three-position toggle switch. The Slow setting is excruciatingly slow and can produce bizarrely animated gradual climbs and steep drop offs. The Fast setting can go from a rapid chorus to an intense vibrato, while the Medium setting is the most traditional rate similar to the classic Memory Man circuit with a nice range to it.

The newly designed enclosure features knobs to control the Speed, Intensity, Mix, Repeats, and Time, with Modulate and Activate switches, making this a highly customizable pedal to get the delay sound of your dreams. Thanks to the ramp modulation circuitry, you can turn the delay time down and start to use feedback and modulation at a higher setting to harness a bizarre modulator and achieve subtle to wild chorus-type effects. Or set your delay time how you want to set it and use your modulation rates to set your tempo, so you can strum or pluck to the climbs and drop offs to match your riffs. The possibilities are endless.

Controls

1. Speed: Controls the speed of the modulation. The Speed operates in three ranges (Slow/Fast/Medium) selected by the Mod Speed toggle switch. The Disaster Transport uses a Ramp wave for the modulation. You'll find this to be much more intense than most modulated delays. Think of it as a traditional Triangle wave that falls off a cliff in mid-cycle, creating a drastic pitch bend in its wake. Or don't and just think about whatever you want.

2. Intensity: Controls how much the LFO modulates the delay time. More subtle chorus type effects are achieved with less intensity and more intensity will yield wild pitch stretching and bending. The overall modulation style can be made more or less subtle by using the Mod Mode toggle switch to select Bend or Stretch.

3. Mix: Sets the volume level for the delay signal. Hear more of what you just played 30-600ms ago by turning this up.

4. Repeats: Controls the intensity of delay feedback from no repeats at zero to self-oscillation at max. Let the past pile up on you until it implodes.

5. Time: Sets the delay time from around 30ms at zero to 600ms* at max. Everyone needs more time; all we can offer you is about 600ms worth.

6. Mod Speed: Three position toggle switch that sets the range in which the Speed operates.

7. Mod Mode: Two position toggle switch to choose the modulation style. Bend is more of a traditional chorus type modulation and Stretch is a wilder pitch stretching modulation.

8. Modulate: This foot-operated switch features Flexi-Switchr Technology and turns the modulation on and off.

9. Activate: This foot-operated switch features Flexi-Switchr Technology and turns the effect on and off.

*The delay time for the Disaster Transport Legacy Reissue can vary based on different settings and individual units.

The actual delay time is influenced by several factors, with one of the most significant being the Modulation setting. If the Modulation is active, the delay time will automatically be shorter due to the parameters that determine the delay. The specified approximate delay time of 600 ms is based on the Modulation being set to off.

Other factors affecting the delay time include the Intensity setting and the IC (Integrated Circuit) itself that controls it. The pt2399 is an older and unique IC, which can have variable tolerances. As a result, some units may produce longer delay times compared to others.

Tech Specs

Dimensions: 3.65 x 4.65 x 2.25 in. (93 x 118 x 57 mm) with knobs
Current Draw: 35 mA
Input Impedance: 1 MO
Output Impedance: 1 kO
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Notes: Compact all-analogue multi-effect pedal featuring the Metal Muff, Neo Clone chorus and Memory Toy delay!

The EHX Tone Tattoo is our first fully-interactive, analog multi-effects pedal. Satisfy your tone jones with a chain that features the Metal Muff Distortion, Neo Clone Chorus and Memory Toy Analog Delay.

Delivers crushing Lead & Rhythm tones. Features full tone sculpting, including two levels of scoop. New Noise Gate for minimal noise. With three critically acclaimed effects, it's like a talisman for great guitar.

Specifications:

Circuit: Analogue
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 75mA
Year Released: 2012

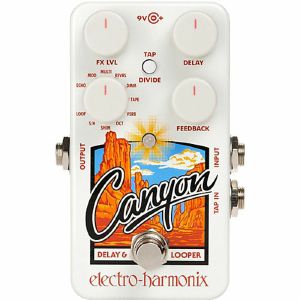

Notes: Packed with more power than pedals taking up more real estate, the compact EHX Canyon Delay & Loopers features a collection of awe-inspiring effects. From pristine digital delay to warm and warbly tape echo, reverse and modulated delays, cascading octave delay and shimmer... even an exquisite Deluxe Memory Man emulation. There are ten different effects in all plus a fully featured looper. Internal or external Tap Tempo with tap divide and a chasm full of intuitive secondary knob controls deliver a truly grand experience.

Features 11 modes:
1. ECHO: digital delay
2. MOD: modulated delay
3. MULTI: multi-tap delay
4. REVRS: reverse delay
5. DMM: Deluxe Memory Man
6. TAPE: tape delay
7. VERB: reverb plus delay
8. OCT: octave delay
9. SHIM: shimmer
10. S/H: sample and hold
11. LOOP: looper mode w/max loop length of 62 seconds

Delay time of 5 milliseconds to 3 seconds
Tap Tempo with tap divide using the built-in footswitch or an external footswitch
Tails switch allows you to choose whether echoes repeat or stop immediately when the pedal is switched to bypass
Easy access to hidden parameters thru Secondary Knob Mode
Power adapter included

Specifications:
Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 150mA
Year Released: 2017

Notes: Flexible digital delay in the world's smallest Canyon!

The EHX Pico Canyon Echo takes the digital delay from the award-winning Canyon Delay and Looper and plates it up as a single serving echo unit. Starting with a crystal clean delay, the Canyon Echo is a sweetly simple delay with 3 seconds of delay time. Don't let the size fool you, this canyon is deep! Add filtering, tap tempo, and a feedback knob capable of infinite repeats and this little echo is up to most time bending tasks.

The Canyon Echo features a BLEND knob to get the perfect wet/dry mix. The DELAY knob sets the delay time from 8ms to 3s. FEEDBACK is adjustable from 1 repeat to infinite repeats for endless delay washes and pads. Turn the FILTER knob past noon and it's a High Pass Filter while below noon it is a Low Pass Filter.

Tap Tempo is simple and easy to use. Just press and release the footswitch at least two times to set the tempo and the LED will blink to confirm your tap tempo. The tempo can then be subdivided from a quarter note to a dotted eight note to an eighth note with the TAP DIV button. Additionally, the Canyon Echo also features selectable Tails bypass so echoes continue after putting the pedal into bypass.

The Canyon Echo also features a new style of Infinite Repeats where a single delay is repeated and the input is taken out of the delay path. This makes the pedal function like a micro tape looper that can be played over without new delays being created. The micro loop can also be manipulated into warped sound effects by adjusting the DELAY knob.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 100mA
Year Released: 2023

Notes: Compact version of the classic Deluxe Memory Man featuring gorgeous bucket-brigade delay and modulation.

No one does analog delay and modulation like Electro-Harmonix and the Nano Deluxe Memory Man delivers the unmistakably lush delay, chorus and vibrato of the benchmark large-format Deluxe Memory Man in a compact, pedalboard ready chassis.

The Nano Deluxe Memory Man delivers EHX's signature analog delay, chorus and vibrato plus some updates we've added including both Rate and Depth knobs for enhanced modulation control. It features a maximum delay time of 550mS, an internal user-accessible switch to turn delay tails on or off, true bypass switching when the tails feature is off and it comes equipped with a standard 9Volt power supply. For over 44 years the Deluxe Memory Man has been the gold standard for analog delay and modulation. Now it's available in an ultra-compact package!

The Nano Deluxe Memory Man provides the following controls and features:

Adjustable delay times from 30mS up to 550mS set by the Delay control
Full control over the number of echo repeats right up to runaway oscillation with the Feedback knob
Adjustable input gain via the Level knob
An overload LED which lights when the signal going into the analog delay block is too hot
Wet/Dry mix control over the dry and delayed signals via the Blend knob
Depth knob which sets the amount of modulation that's added to the delay to produce vibrato and chorus type effects
Rate controls the modulation speed
Tails Switch that sets whether the echoes decay naturally when the pedal is switched to bypass or if they are instantly muted
Pedalboard friendly, compact, rugged enclosure
Comes equipped with an Electro-Harmonix 9Volt power supply

Specifications:
Circuit: Analogue
Bypass: Selectable True Bypass
Audio: Mono
Power Supply:9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 150mA
Year Released: 2021

Notes: Advanced Multifunction Delay & Looper with 12 delay types, tap tempo, and extended control!

The EHX Grand Canyon is Electro-Harmonix's most advanced multifunction delay and looper pedal. It's equipped with 12 effect types plus a fully featured looper capable of recording and overdubbing the Grand Canyon's effects.

The pedal provides superior sound quality, up to three seconds of delay time, tap tempo and nine tap divide settings, stereo output, 13 presets, programmable EXP pedal settings, high quality analog bypass with soft switching and more. The Grand Canyon's 13 modes are:

1. ECHO - pristine 24-bit digital delay with available bit crush/sample rate reduction and low/high pass filtering
2. MOD - Modulated delay, yields rich flanger, chorus, vibrato, warble and more
3. MULTI - Multi-tap delay, set the exact number of echo repeats up to 31. Includes adjustable swell or decay volume envelopes on repeats.
4. REVERSE - Reverse delay, an easy-to-use reverse delay with an intelligent pick detection algorithm for great sounding reverse echoes
5. DMM - Deluxe Memory Man, re-creates the luscious tone of EHX 's legendary bucket-brigade delay pedal
6. TAPE - Tape Delay, simulates the organic sound of an analog tape, echo machine including tape distortion, wow and flutter
7. REVERB - Plate reverb plus echo. A reverberant echo where each repeat is followed by a wash of gorgeous plate reverb. Can also be used as a pure reverb without the delay
8. PITCH - EHX's critically acclaimed polyphonic pitch shifting plus digital delay provides pitch-shifted echoes and cascading echo repeats
9.SHIM - Shimmer generates a rich octave-shifted wash of shimmering soundscapes
10. SAMPLE/HOLD - Sample and hold, senses a note being played and produces echoes indefinitely until another note is detected
11. DRUM - Magnetic drum echo that faithfully emulates a classic Binson Echorecr style delay. Features an assortment of playback head configurations that let you create musical, rhythmic, echo patterns
12. DOUBLE - Thickens up a mono signal or creates a stereo spread. Includes detune and delay time offset of the left and right outputs
13. LOOPER - Looper with up to 16 minutes of recording time. Includes unlimited overdubs, undo/redo, dedicated stop button, loop fade-out, reverse and speed adjust.

Advanced multifunction delay and looper with up to three seconds of delay time
12 effect types that cover a ton of tonal real estate to fuel your creativity: ECHO, MOD, MULTI, REVERSE, DMM, TAPE, REVERB, PITCH, SHIM, SAMPLE/HOLD, DRUM, DOUBLER
Tails feature. Select whether the echoes fade out naturally or stops immediately when the pedal is switched to bypass mode
Tap tempo with nine tap divide subdivisons
Up to 16 minutes of recording time on the fully featured looper
Loop audio remains in the Grand Canyon until you erase it, even after removing power
13 presets can be saved or recalled
3-button footswitch connector for remote operation
Power adapter included

SPECIFICATIONS
Circuit
Digital
Bypass
Buffered Bypass
Audio
Stereo
Power Supply
9.6VDC-200mA power adapter included
Dimensions (in)
4.75 x 3.9 x 2.5
Current Draw
150mA
Year Released
2018

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


The legendary Memory Man legacy continues with this compact take on the Deluxe model. Classic bucket brigade delay sounds with new modulation controls including rate and depth.

Supplier's Notes:
No one does analogue delay and modulation like Electro-Harmonix and the Nano Deluxe Memory Man delivers the unmistakably lush delay, chorus and vibrato of the benchmark large-format Deluxe Memory Man in a compact, pedalboard ready chassis.

The Nano Deluxe Memory Man delivers EHX's signature analog delay, chorus and vibrato plus some updates we've added including both Rate and Depth knobs for enhanced modulation control. It features a maximum delay time of 550mS, an internal user-accessible switch to turn delay tails on or off, true bypass switching when the tails feature is off and it comes equipped with a standard 9Volt power supply. For over 44 years the Deluxe Memory Man has been the gold standard for analog delay and modulation. Now it's available in an ultra-compact package!

Specifications:

Circuit: Analog
Bypass: Selectable True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 150mA
Year Released: 2021

Notes: 1978 rarity reissued with modern updates and a tiny pico footprint!

The late 1970s rarity Electro-Harmonix Slap-Back Echo pedal is reissued with modern updates and a Pico footprint!

The 50s era gave birth to an iconic sound in which a single, short delay was utilized to add depth and rhythmic effect on countless recordings. The newly reissued all-analog design of the EHX Slap-Back Echo delivers this beloved classic sound and more in a Pico-sized pedalboard-friendly package. With three delay time settings and up to +20dB of boost, the Slap-Back Echo can achieve subtle doubling effects to intense bathroom reflections all with the distinct flavor of bucket-brigade (BBD) circuitry.

Housed in EHX's Pico-sized chassis, the Slap-Back Echo features Gain and Blend knobs as well as a Time switch. The Gain knob controls the input signal before the echo circuit and also adjusts the overall volume at the output with a boost of up to +20dB. The Blend knob mixes the dry signal and the echo signal from 100% dry to 100% echo. The Time switch selects between three different delay times: 45ms, 65ms, and 100ms.

Independent gain and blend knobs
Time switch with 45ms, 65ms, and 100ms delay times
Up to 20dB of boost
True-Bypass
Small, pico-sized chassis
9V power supply included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 15mA
Year Released: 2023

Notes: Vintage tape-style delay smaller than a cassette player!

Tape delay is loved for its warmth and charming imperfections compared to pristine digital delays. Their preamps could be pushed to saturation and, over time, the tape in vintage delay units would degrade causing a signature warble loved by many. These signature elements are captured and packed into Electro-Harmonix's Pico Rerun tape delay. Based off the tape delay algorithm found in the Canyon Delay & Looper, the Rerun gives vintage vibes with modern features.

The Rerun features a simple control set and tap tempo for ease of use in any situation. BLEND sets the wet/dry blend. DELAY adjusts the delay time from 8ms to 3s. SAT adds tape saturation and distortion for added crunch to only the wet signal, keeping your dry signal unaffected by the added distortion. FDBK sets the level of repeats from 1 to infinite for runaway oscillation. You can also press and hold the footswitch to engage infinite repeats in an instant. The FLUTTER mode switch toggles between low, medium, and heavy modulation effects ranging from slight chorusing to seasick thickness.

Tap Tempo is simple and easy to use. Just press and release the footswitch at least two times to set the tempo and the LED will blink to confirm your tap tempo. Additionally, the Rerun also features selectable Tails bypass allowing echoes to continue after putting the pedal into bypass.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 100mA
Year Released: 2023

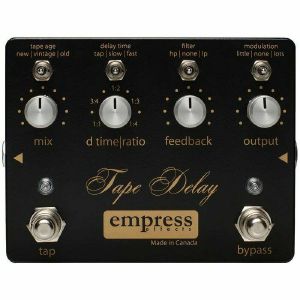

Notes: Rich, lush tape delay in an incredibly small box. 3 flavors of tape age let you choose how dark and gritty the repeats will get while filter and modulation controls allow for even more fine tuning. Tap tempos with ratio multiplier mean rhythms like dotted eights are all at your fingertips.

Now with an analog dry path, the Tape Delay is packed with features, all accessible from the advanced configuration mode. Presets can store all your settings and be recalled at the touch of a button, making switching live fast and easy.

Notes: Spanning the gamut of known delay possibilities and beyond, the Echosystem could be the ultimate delay-crafting tool. Faithful emulations of classics like digital, tape and analog delays are numerous, as well as Empress' own take on each of these delay styles. Moving beyond the traditional, the vast amount of sonic ground the Echosystem can cover becomes apparent. Check out the ambient modes when you're feeling chilled out, or perhaps a visit to the multi tap modes for a taste of inspiration.

The Dual Engine functionality allows any 2 of these delays to be used together, routed in either parallel, series, or left/right configurations.

In addition to delays, there's the super-useful reverb combos, which will elevate any guitar part. Oh, and don't forget Whisky mode, best accompanied by a dram of whatever you've got!

The pedal has 12 algorithm types, all with multiple variations. For example, there are 4 different tape delays on tap.

Emulations of classic tape and analog units are available, as well as our take on these types of delay.

All the algorithm controls are sitting on a knob in front of you, no fiddling through laborious menus.

Global tap tempo as well as local tempo with lots of subdivisions are available on all modes, in addition to being able to set the delay time directly with the knob.

Features a signal to noise ratio of >104dB and maintains an analog dry path.

2 delays can be used at the same time, each with its own full set of controls and routed in serial, parallel or left/right.

Settings can be saved to 35 presets. With three stomp switches, accessing the presets is easy.

Bank style or scrolling style preset modes.

It can be configured to run with true bypass or buffered bypass if you want to hear trails.

Cabinet Simulator - 3 variations to choose from, perfect for recording, practicing or for gigs without an amp.

Get hum-free operation when operating in stereo with two amps. Output 2 is isolated with a transformer to eliminate nasty ground loops.

48kHz sampling, with 24 bit conversion and 32 bit internal processing.

Dry signal is left untouched, and blended with the wet signal using VCA. (no zipper noise, hooray!)

The Universal Control Port allows you to connect an expression pedal, external tap switch, control voltage, external audio input and MIDI - all using a standard 1/4" jack!

The Advanced configuration menu lets you configure how your delay works. Select from true or buffered bypass, 0-35 presets, MIDI configuration, Control Port(expression pedal, external tap, control voltage and MIDI) as well as which style of preset system to use, input signal pad, output transformer enable and more!

The enclosure measures approximately 5.7" by 3.75" by 1.75", which is delightfully small when considering all the features packed into this unit.

Notes: Multi-tap delays go next-level with Eventide's incredible heritage distilled into this compact pedal format. Line level options allow you to process synths, drums, guitars and just about any other signal.

Supplier's Notes:
A Multiverse of Tone UltraTap is a unique multi-tap effect pedal capable of rhythmic delays, glitchy reverbs, huge pad-like volume swells, and extraordinary modulation.

It's the perfect tool for staccato leads, swelling chords, and other evolving effects - everything from reversed reverbs to the sound of ripping it up in the Grand Canyon!

Think of UltraTap as the mother of all Echoplexes and you won't be too far off.

That's basically how it operates but with the flexibility to add as many 'tape heads' as you want and expressively control their positions and levels.

UltraTap's controls make possible new and unexpected effects. The controls that you would expect in a multi-tap delay pedaliNumber of Taps, Delay and Feedback- are just the basics.

Controls for Spread, Slurm, and Chop open up a new world of possibilities.

Effect Features:

"Slurm" An exclusive and innovative control that smears/slurs taps together to create truly unique reverbs and choruses.

"Chop" and "Spd/Rise/Rel" combine to allow unusual and expressive modulation of the taps based on LFO shapes or the audio's envelope.

"Feedback" unlocks further tone shaping capability.

"Taps" selects up to 64 taps to create simple repeats or morph delays into chorus and reverb.

"Spread" controls the 'distance' between' taps. With the knob centered, the taps are equally spaced, turn clockwise and the later taps are bunched together, counterclockwise and the early taps are bunched together. Use this control to dial in the perfect rhythmic space between taps.

Onboard LFOs and envelopes to chop the sound source into stuttered rhythms.

"Tap Footswitch" allows you to set the tempo of the taps.

Connectors:

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB: Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Analog I/O:

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Specifications:

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

Notes: Eventide's legendary MicroPitch effect, as found in the H910 and H949 Harmonizers, packaged into a compact pedal format, suitable for guitar, bass, synth and other line level signals.

Supplier's Notes:
Savor the secret sauce simmered into countless hit records with the MicroPitch Delay Pedal. By utilizing subtle pitch shifts to create a rich stereo spread, MicroPitch Delay makes anything you cook up sonically delectable. This pedal is the key ingredient for serving up flavorful tone: Instantly harness soaring leads that jump out of the mix, add distinct lushness to a compelling clean passage and get your fill of vibey modulation that's sure to sweeten any pot with the push of a button.

Sample a bite of the newly baked up Positive and Negative Envelope modulation sources and you'll be sure to come back for seconds; and major and minor thirds. MicroPitch Delay adds unparalleled dimension to any source; it's not just a guitar pedal.

Use it to thicken vocals, keyboards, drums, strings, brass, winds and more.

What's the recipe for the MicroPitch Delay pedal? It's a unique flavor profile of dual pitch-shifters with fine-resolution de-tuning and modulation combined with delay in a delicious red package. The pedal is the latest incarnation of a legendary effect that originated in the H910 and H949 Harmonizers, and later popularized with the H3000. It can be utilized for chorusing and savoury repeating delays. It's a creative sonic design tool. It's effective whether used subtlety as a thickening tone-enhancer or dialed to the extremes for special effects. The simplicity of the pedal's ability to make things sound bigger is what makes it so tasty! With the MicroPitch Delay pedal, you can easily harness the power of this iconic Eventide effect that helped shape musical history.

The MicroPitch Delay algorithm has been a mainstay of audio production and musical performance since it was first introduced within the legendary H910 and H949 effects processors. Its subsequent appearance in the H3000 Harmonizerr further popularized the effect and cemented its place in musical history as a quintessential studio tool. Now players can harness the power of this iconic Eventide effect with the MicroPitch Delay pedal, which offers a unique combination of dual pitch-shifters with fine-resolution de-tuning, delay and modulation - including new positive envelope and negative envelope modulation sources. Its distinctive architecture yields a wide breadth of sonic applications ranging from subtle tone thickening to creating a rich stereo spread to a host of creative sound design special effects. The rugged, gig-ready red MicroPitch Delay pedal is not just for guitars the pedal brings unparalleled dimension to any source from vocals to keyboards to drums, strings, brass and winds.

Users can choose from dozens of Eventide presets to load via MIDI, which are also accessible in the preset list on the Eventide Device Manager (EDM - a Windows or Mac OS X application for software updates, system settings and creating/saving presets).

The pedal can store up to 127 presets in memory, with five presets loaded at a player's feet for access from a latching/momentary dual-action Active Footswitch with a Catch-up mode to help players dial in their sound when toggling between presets/parameters. A single Aux switch can be deployed to Tap Tempo, or a triple Aux switch can be used for easy preset changing (up/down/load). The MicroPitch Delay Pedal offers multiple Bypass options: Buffered, Relay, DSP+FX or Kill dry. MIDI capability is available over TRS (for use with a MIDI to TRS cable or converter box) or USB. The rear-panel Guitar/Line Level switch allows level-matching with guitars, synths, FX loops or DAW interfaces. Any combination of MicroPitch Delay parameters can be mapped to an Expression pedal.

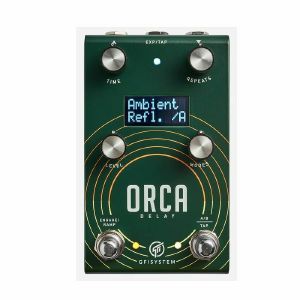

Notes: Orca packs four quintessential GFI System's delay algorithms into a compact pedal that is straightforward and easy to use. Intuitive user interface coupled with an LCD screen makes it a breeze to navigate through Orca's vast sonic pallete and features.

Input/Output

Orca supports both mono and stereo input/output. Mono connection is made using standard TS patch cables while stereo connections is made via TRS patch cables (a splitter-Y cable may be needed).

External control

A multi-purpose jack provides connection to an expression pedal or tap-tempo pedal.

Expression pedal input enables expressive control over the delays' parameters, and the external tap-tempo can be used for remote tempo control.

Algorithms

Digital (max delay time : 1 second)

Tape (max delay time : 1 second)

Diffuse (max delay time : 1 second)

Ambiental (max delay time : 840 milisecond)

Specification

Input impedance : 1 MOhm.

Output impedance : 1K Ohm.

DAC / ADC resolution : 24 bits.

Current consumption : ~110 mA.

Weight : 0.6 Kg (1.6 lbs).

Dimension : 12 (L) x 7.2 (W) x 5.5 (H) cm

Power source : 9VDC (negative center).

Notes: The Aether is a modulating delay pedal.

The initial vision for the design of The Aether came shortly after the release of the Wardenclyffe Deluxe. The intention was to take design the philosophies and incorporate tonal characteristics that made the Wardenclyffe so special, but this time as a delay pedal.

At the heart of The Aether is a PT2399, tap tempo delay. It has the standard Echo, Feedback, and Time controls you would expect on any delay, but what makes it special is the Color, Saturation, and Degrade Controls. The Color toggle completely changes the character of the Aether and has two voices: Warm Analog and Bright Tape. The Saturation knob is a gain adjustment that overdrives the delay chip. The Degrade toggle adds lofi textures and artifacts to the delay line. The Degrade toggle removes a very vital section of the delay circuitry that keeps the delay stable with longer delay times. As you increase the delay time, the artifacts become more present and lofi.

The Aether uses a simple, but versatile modulation LFO core inspired by the Wardenclyffe, but with more features. The LFO cores sets it apart from other modulated delays out there. The speed of the modulation core can be set 3 different ways: Rate knob, tap tempo tact switch, and Sync toggle. When the Sync toggle is set to its middle position, the LFO can run at whatever speed you want. When the Sync toggle is in the up position it is synced to the delay time. When the Sync toggle is in the down position, it is synced to delay time, but in half-time for slower evolving moduation. The Shift knob determines the depth of the modulation; this has plenty of range in case you want to get really obscene. The Stray toggle changes the LFO from a typical Sine wave to a Slewed Random waveform. Creative exploration of the modulation section of The Aether is strongly encouraged. The way the delay rate and LFO rate interact with each other can yield very creative results.

Notes: It's time to break free

Bring your perfect studio guitar sound onstage with the new AmpliTube X-TIME delay pedal. This boutique pedal features 16 all-new delay effects leveraging IK's latest AmpliTube technologies, accompanied by an exclusive virtual X-GEAR version of the exact same effects. Use the virtual version with AmpliTube 5 (SE version included) to record and tweak settings and save as presets on your X-TIME pedal for world-class tone anywhere.

Best-in-show DSP

AmpliTube X-TIME leverages IK's latest technologies for hyper-realistic emulations of real-world gear. The state-of-the-art DSP onboard offers 16 high-end algorithms, while a special X-MODE opens additional infinite-feedback effects. All combined, X-TIME delivers amazing clarity to the stage with the realism and response that users love about AmpliTube 5.

Hardware that stands out

For AmpliTube X-TIME, great effort was made to guarantee your tone stays as pure and pristine as possible, no matter how simple or sophisticated your signal chain becomes.

Industry-leading integration

AmpliTube X-TIME includes a matching virtual version for Mac/PC and a copy of AmpliTube 5 SE. Open any version of AmpliTube 5 and you'll find your virtual X-TIME pedal available as a stomp for use within the program. Adjust any of your pedal settings with the convenience of AmpliTube's award-winning workflow and save them as presets. The X-GEAR Librarian lets you move presets between X-GEAR pedals and AmpliTube and easily reorganize them on the hardware pedal. You can store up to 300 presets per pedal.

All-in-one recording

With AmpliTube X-TIME there's no need for any other gear when it comes to recording guitar. The X-TIME features an USB audio interface and some must-have recording features right onboard.

5Hz to 24kHz frequency response to record the full range of your guitar or bass
Versatile routing options let you send the wet or dry signal to your DAW
Stereo out for monitoring sound between the X-TIME pedal and your computer
Full MIDI implementation to map control

From soundcheck to final encore

When it's time to play out, AmpliTube X-TIME holds everything you need to perform at your best. In fact, you can even leave your amp and cab at home, if you want to.

Fast, intuitive interface and control knobs to tweak your sound on the fly
High-contrast LED display keeps you informed on everything, indoors and out
Expression pedal input adds additional control over any parameter you choose
Full MIDI implementation is built-in for even the most complex setups
5 cabinet impulse responses let you connect directly to a powered cab or PA

With great tone comes great portability

With its open architecture for future updates, AmpliTube X-TIME will empower you no matter where you are and for years to come. Experience the freedom of moving between the studio and stage seamlessly, confident that you and the audience hear your sound exactly as you created it to be.

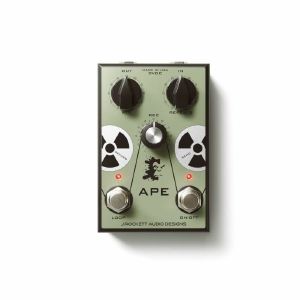

Notes: The APE is a unique design and an accurate re-creation of a famous vintage tape delay's analogue section. This is not just a preamp but rather the entire analogue circuit from input to output including the sonic influence of the tape heads. It runs at 22.5v just like the original. For convenience it uses a DC to DC converter allowing you to power it with a simple standard 2.1/5.5mm 9v power supply just like most of the pedals on the market.

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by us JHS using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

After being discharged from the army in 1946, Ray and Marv Lubow formed Tel-Ray Electronics, specializing in Television and Radio repair. As the company grew, Ray also began dabbling in audio inventions specifically, delay. Les Paul had already pioneered an effect called tape echo, but folks were trying to figure out how to make a smaller, more practical version of this oversized effect. Inspired to do just that, on June 30, 1959, Ray submitted the patent for an electro-static delay apparatus known today as the oil can delay.

These delay units contained oil in a tuna-can shaped drum that was moved by a belt mechanism that turned the drum while a special disk apparatus on which the audio signal charge was written and read through rubber wiper heads. The playback speed was directly related to the drum's rotation speed. The oil acted as a protective layer to keep the audio signal "charge" electrons in place, creating a truly unique echo effect with elements of vibrato and slapback delay. Ray Lubow began licensing the oil can delay technology to amplifier companies, including Fender, Gibson, and Rickenbacker. In the late 1960s, Ray and Marv decided they wanted to start selling their devices under their own brand name and launched the now legendary effects company, Morley. Ray chose the name as a none-to-subtle jab at their competitor Leslie: Why settle for less with a Leslie when you can get more with Morley? Morley manufactured oil can delays up until 1989.

At Wilco's Solid Sound Festival in 2022, JHS founder Josh Scott found himself in a discussion with legendary guitarist Nels Cline. Nels brought up the subject of weird delays, leading to an in-depth discussion of the strangest pedals they'd ever played. Josh received a message from Nels a few days later asking if JHS made an oil can style delay and began explaining the particular sound he wanted from this type of echo. Though JHS didn't have one in the official lineup, Josh and team developed a one-off oil can delay pedal. When they presented it to Nels as a gift, he liked it so much that he used it through the recording and touring process for Wilco's Cruel Country and now their latest release, Cousin.

Though the JHS Oil Can Delay isn't a signature artist pedal, we're still grateful to Nels Cline for inspiring it. We're proud to offer you this unique pedal for your own collection.

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by JHS using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

The JHS Pedals 3 Series Delay lets you choose between rich and warm or clear and pristine echoes. The straightforward design is simple and easy to use while offering a huge range of options. The Delay gives you 80ms to 800ms of delay time, for everything from slapback to long ambient washes of pad-like echo. The Type toggle allows you to select between a clearer digital-voiced delay and darker analog-voiced delay. The Delay will give you classic bucket brigade runaway when you max out the Repeats knob when in the analog-voiced delay mode. The JHS Pedals 3 Series Delay runs on 9V DC Negative Center power and consumes 71mA.

Notes: The JHS Pedals Flight Delay was made with one goal in mind: to be everything you need in a delay and nothing you don't. In a world full of complex effects pedals, we worked hard to bring you the opposite - a beautifully simple stompbox that combines the most essential delay types with the features that matter. With three modes (Analog, Reverse, and Digital) inspired by some all-time favorite delays - EHX Memory Man, Boss DD-5, and Line 6 DL4 "Reverse Mode" - the Flight Delay is familiar, inspiring, and versatile enough for players in any genre. If you are tired of delay pedals that require frustrating menu diving to find the sound you want, endless scrolling on option screens, and complicated user interfaces, look no further!

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by JHS using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

Tape delay was invented in the late 40s when Les Paul strung two Ampex Model 200A reel-to-reel tape recorders together. A little later, in 1953, Ray Butts invented the Echosonic, the first actual tape delay unit. This would be followed up by the Echoplex EP-1 in 1961 from Mike Battle and the Space Echo from Roland in 1974. The JHS Pedals 3 Series Tape Delay is a simplified and faithful throwback to these classic units. The Mix control lets you control how much clean signal is blended in with the wet (delayed) signal (on the original unit, this was called Echo Volume). Tape Speed acts as a simulation of the RE-201's tape motor speeding up and slowing down and determines how short or long the delay effect is. The Repeats control goes from a single repeat to many, reminiscent of a sound being written onto the tape loop with loss of fidelity each time. Finally, when the Flutter toggle is turned on (up position), it replicates the wear & tear to the mechanical parts of a tape machine that happens over time. This causes mild modulation, warble, and flutter sounds in the echo path of the delay that so many players desire.

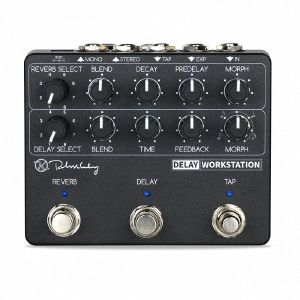

Notes: Ultra-tweakable delay and reverb designer based on powerful DSP chips. Dial in everything from vintage tape delays to plate reverbs, modulated stereo echo effects and more.

Supplier's Notes:

The Keeley Delay Workstation is a powerful, dual DSP processor delay and reverb machine. Combining Keeley's unique delay and reverb patches in an incredibly small package, the Delay Workstation is an extremely creative tool.

With the Delay Workstation you can combine vintage slapback and multi-head tape echoes with Spring or plate reverbs to create some instantly classic sound spaces. You can set the Delay Workstation for warm sounding analog delays and then use the chamber or hall reverbs to create a huge warm and endless space. Need rhythmic delays with some shimmer? It's here. Always wanted to have the perfect ducking delay? One that backs out of the way until your done with your notes, then the echoes fill in. "Ducking" is a very intelligent way for clearing the clutter in a sound that would normally be overrun with delays and echoes. Wanna get twisted? Try the Pitch delay into the Flanged Reverb.

The Reverb side of the Delay Workstation contains all of the most common reverbs and some delays. The Morph control allows users to put creative twists on the reverb patches like spring tension, shimmer, and random flanging. There are two delays included in the reverb bank. You can use these to setup very cool ping-pong delays and many other creative rhythmic patterns.

Two banks of eight legendary effects. Super Fidelity. Super Compact.

The Delay Workstation has on-board tap tempo on the Delay side and external expression control on the Reverb side.

Effects Include:

Slapback w/reverb

Tape Delay w/tone control

Multi-Head Echo w/3 head control

Analog Delay w/dynamic modulation

Digital Delay w/inverse dynamic modulation

Subdivided Delay w/dotted eighth, eighth, triplet, sixteenth

Ducking w/compression ratio

Pitch Shifting delay with w/octave up/down control

Spring Reverb w/tension control

Chamber Reverb w/filter control

Hall Reverb w/tone control

Plate Reverb w/tone control

Shimmer w/octave up control

Flanged Reverb w/vibrato or random modulation

Notes: All the reverb and analogue-style delay you could wish for in a single pedal thanks to this killer all-rounder. Separate foot switches for reverb and delay on/off, with optional true bypass or 'trails' setting.

Supplier notes:
The Caverns Delay Reverb V2 dual-effect pedal combines delay and reverb for the perfect end to any pedal board. It features Keeley's analog-style tape delay with modulation options. The 650ms of warm delay combine with Spring, Shimmer or Modulated Reverb. Caverns now comes with a True-Bypass or Trails option. Because of its small and compact design, the New Caverns is a perfect fit for any fly-rig or small board where you have tight space requirements. The New V2 features Keeley's most popular time-based effects, blended perfectly via a design fine-tuned for over 2 years. Simply put, it will be an amazing addition to any board.

The Reverb side of the pedal features 3 cavernous sounds:

Spring Mode - Blackface Amp style spring reverb with F Style Tremolo
Modulation Mode - Choral modulation to the reverb for a huge, cavernous space
Shimmer Mode - Reverb with emphasis on octave-up voices in the reverb trails

The Delay side of the pedal incorporates Keeley's popular Magnetic Echo circuit, which is designed to emulate analog tape delay lines. Three way switchable modulation gives you options for adding Wow and Flutter to the repeats. Perfectly voiced echoes sit well in the mix, either clean or with distortion.

The New Caverns Delay Reverb V2 builds on the old Caverns pedal by giving players a more open and logical control layout with more space between the foot switches.

Top-Mounted Jacks allow for a compact pedalboard layout.

True-Bypass or Trails option gives you the freedom to create huge caverns of sounds and lets them ring out even after you turn the pedal off. Our buffers are engineered to retain your tone and to feed your amplifier a full-strength signal.

The New Caverns Delay Reverb V2 is entirely built in the US. Keeley's veteran crew builds the most reliable and road-worthy gear.

Use 2 TRS Breakout cables for effects patching or to use the Caverns with a pro switching system.

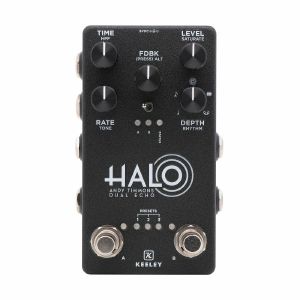

Notes: Bags of character courtesy of 'tone wizard' Andy Timmons (Danger Danger). Dual delay lines work in tandem, creating stereo effects from vintage tape delay to infinite hold.

Supplier's Notes:
Andy Timmons' mysterious sounding "Halo" effect is a modulated dual echo sound that has long been kept a secret by the tone wizard himself. Andy spent decades combining and crafting the sounds you can now get from the HALO. Notes from the HALO dance rhythmically, almost creating a reverb diffusion. Those notes are held together with tape-style effects like modulation, saturation and compression. The results are stunning!

The pedal comes loaded with his signature delay tone and you can program your own sounds and save them as presets. Easily bounce between Side A and B on the fly, essentially giving you two delay pedals in one. In addition to Andy's signature "Halo" sound, there are numerous other rhythmic delays including: quarter note, dotted 8th, stereo rack mount analogue delay, and a vintage multi-head tape echo. Stunning stereo and pristine sound quality are further enhanced with controls for saturation, tone, and shelving filters that give you the ultimate delay pedal.

Think of HALO as two delay pedals that work in tandem, letting you switch between your main delay (side A) and an alternative (side B). With up to 1500 ms of available delay, set sides A and B for different delay times, then simply foot switch between the two. Keeley's Smart Stomp System allows you to press and hold either stomp switch to engage tap tempo mode. Press and hold the alternate stomp switch for infinite repeat/hold.

Each Preset bank gives you 2 delays settings for a total of 8 user-storable effects. Use the Rhythm control to select between different echoes like HALO, Analog, Tape, Quarter and Dotted Eighth. HALO's Saturate control adds tape compression texture to your tone. The Tone and High Pass Filter controls your overall delay shape and mix. The Rhythm Mode selector delivers 5 delay types, including Andy's unique "Halo" sound. Set the Time and Feedback controls low, and you can open up a world of ambient chorus and flanger effects.

Run the HALO in stereo for incredible true-stereo imaging or save your favourite combination of settings as a preset and the HALO becomes an incredibly compact multi-effect workstation!

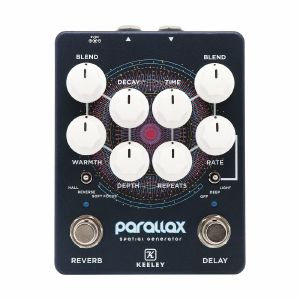

Notes: The Parallax offers the delay side of the legendary Caverns paired with unique Shoegaze inspired reverbs of the Realizer in one pedalboard friendly enclosure. On one side of the Parallax, analogue-style modulated delays create a soft bed of warm repeats, while the other side builds Reverse setting-vibrato swirls (great for those who don't have a vibrato arm on their guitar) to ambient modulations to form perfect pools of reverb reflection. When both sides are paired together, the Parallax offers the perfect end-of pedalboard solution for Shoegaze, Ambient, and Experimental tone seekers.

Three finely-tuned reverb effects for shoegaze and ambient guitarists who have already found their perfect drive or fuzz tone. Grab your favourite offset guitar, pick your favourite reverb mode, and take a slow dive into the hazy, atmospheric sounds that you've always dreamed of.

Parallax Reverb Modes:

Soft Focus - A lush, surreal recreation of the popular Soft Focus patch from the Yamaha FX500 multi effects processor, a late 80's rack unit that was used to achieve many signature delay and modulation effects used in the early 90's. Adjusting the DECAY control changes both decay time of the reverb and feedback for the dual delay. DEPTH controls depth of all 4 chorus voices.

Reverse (Reverse Reverb) - Inspired by the two most popular rack mount reverb effects of the 80's and 90's, the Yamaga SPX90 and the Alesis Midiverb II. DECAY switches between 8 different fixed delay times from a quick 150ms all the way up to a half second. No tremolo bar, no problem! Reverse mode also features an envelope triggered vibrato that emulates the pitch bend from a Jazzmaster tremolo bar. Change the DEPTH control will set how deep the 'term bar' is pushed. The WARMTH control in this mode is designed to work like the Jazzmaster rhythm pickup tone control.

Hall (Hall Reverb with Ascending Shimmer) - Hall reverb with an octave up. The output of the reverb is fed into an octave up which then feeds back into the input of the reverb, creating an infinitely ascending octave feedback loop. The DEPTH control will change how noticeable this pitch effect is.

The Delay side of the Parallax offers three way switchable modulation that gives you access to even more analogue textures. These carefully voiced echoes sit well in the mix whether clean or paired with your favourite drive or fuzz.

Parallax Delay Modulation Modes:

Off - No modulation, classic analogue-style warm delay.
Deep - Heavy, swirling modulation added to the delay trail.
Light - Softer, gentle modulation added to the delay trail.
Use the Rate, Blend, and Repeats knobs in conjunction with the mode switch to unlock the full palette of Delay sounds in the Parallax.
