Notes: Eurorack modular synthesizer case designed to meet the demanding requirements of project and professional studio environments. The Structure EP-420 provides massive amounts of clean, quiet power housed in beautiful, angled hardwood enclosures, full of classic synthesizer styling.

Uncompromising power and craftsmanship combine to create this stunning studio case. The Structure EP-420 offers a massive 420HP of space split into three rows paired with a combined 17 amps of industry leading power

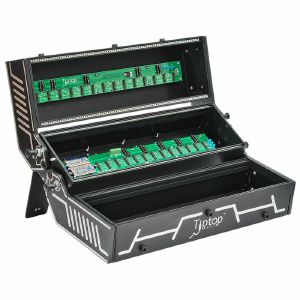

Notes: Station 252 is a portable Eurorack system that transforms your collection of modules into a distinctive-looking musical instrument that is great for the studio, easy to travel with, and powerful on stage. In the studio, Station 252's ergonomic design provides a natural interface that allows you to work comfortably with your knobs, cables, and tactile elements.

Traveling is a breeze; it folds down and is ready to go in less than a minute and it's easy to carry in one hand, even when completely filled with modules. It was made to fit in an airplane overhead bin and provides the convenience of a universal power supply wherever you go. Under the spotlight, Station 252's clean, professional design enhances your system's appearance and seamlessly integrates with your electronic music performance.

Design:

Station 252 is the product of careful electromechanical engineering. The result is a rack system made of three rows of 84HP for a total module space of 252HP that converts into four different positions. Constructed from carefully selected lightweight materials, this entire Eurorack weighs only 13lbs/5.9kg when empty and is built to last.

Station 252 comes equipped with a complete hardwired ZEUS Studio Bus power supply system, the world's only high-power system that can guarantee low noise with minimal bleed-through between modules for a clear sounding synth. This monster power system has proven record of reliability, safety, and performance all around the world. Included are three Zeus Studio Bus boards supplying up to 7200mA of audio grade power to your modules, that is twice more than previous version of Zeus. ZEUS keeps your modules in a coot space, optimizing their performance and extending their lifecycles. The Station 252 can take power anywhere in the world from 100-240VAC.

Notes: Make Noise's 208hp 7U 4 Zone CV Bus Case arrives ready to use. Just add modules, patch cables and inspiration. The powder coated metal construction offers excellent mechanical durability. The lid is removable and can be closed with the system fully patched. The sleek matte black finish was selected to match Make Noise's line of Black & Gold modules, and it looks great with just about any module installed. This finish will show the story of your modular synth's travels over the years.

The Make Noise 4 Zone Power Bus Board is a new approach to accommodating the ever-growing universe of Eurorack modules. The multi-zone solution is like having 4 independent bus boards in a convenient single bus board package. Each Zone features isolated +12 VDC and -12VDC supplies and a dedicated ground return path. The +5VDC supply is shared amongst all 4 zones.

The multiple section of the CV Bus was originally designed in 2013 for Alessandro Cortini's personal Make Noise system. It provides visual indication of level, rate and polarity for up to 4 control signals that will be shared throughout a patch. These 4 control signals are colour coded and distributed across the centre of the system allowing for quick, clean and intuitive patching. The distribution method is unlike the typical multiple since the control signals will appear beneath their possible destinations allowing for the use of shorter patch cables. The colour coding and visual indication makes navigating complex patches easier and more intuitive. Typically, the CV Bus would be used to share the most important control signals in a patch such as your Master Clock.

This new version of the CV Bus also includes useful modular utilities:

The Voltage Math is found at the left end of the CV Bus. Like the similar circuit on the 0-Coast, it is a small collection of universally useful modular utilities. The two inputs are summed at the output, one at unity and one adjusted by the input attenuverter. The attenuverted input is also normalled to a DC offset, for purposes of level shifting, voltage mirroring etc. The output strength and polarity is indicated by the Green and Red output LEDs.

A high quality Stereo Line Driver converts powerful modular synthesizer signal levels to the commonly used Line Level. There are mini-jack inputs for Left or Mono, and Right for Stereo sound, a single master volume control, as well as a stereo line output pair, and finally a TRS line/headphone out on a single jack. This output is capable of driving a long cable out to a PA System or a set of Headphones. It is AC coupled with a built-in limiting circuit (with visual indication) that prevents damage to ears and PA system when the patching gets experimental.

Includes

Two 104 hp 3U rows for Eurorack modules, One 104hp 1U row fitted w/ CV Bus
Hybrid switched/linear power solution for low noise and excellent load regulation
Multi-Zone, allowing isolation of noise-prone modules from noise-sensitive ones
Black powder coated metal w/ embossed logo on lid
Sealed to keep dust out during travel or storage
Lid offers space to close w/ your system patched
Recessed side mounted on/off switch and power inlet for safe travel
Locking power connector helps prevent on-stage power loss accidents
Solid carrying handle and rubber feet so the case travels w/ ease
Meets carry-on luggage size requirements for most airlines
Universal AC power adapter works world wide (Need IEC Cable for non-US outlets)
Blued Steel Stand sold separately

Specifications

Size: 7U
Total HP: 208 @ 3U, 104 @ 1U
Outer Dimensions:
22.25" x 14" x 7.25" w/ lid
Max Module Depth: 2.5"
Weight: 12.75 lbs. (w/ powered bus board, CV Bus installed)
Power: +12VDC @ 4A, -12VDC @ 2.4A and +5VDC @ 1A
Connectors: 32
Includes: CV Bus, Powered Bus Board, 120 Sliding M2.5 nuts w/ Black screws, AC Adapter

Notes: ***POWER SET FOR EU AND AUSTRALIA 220-230V:
The Pittsburgh Modular Structure 208 and Structure 360 eurorack enclosures use a switching power supply that needs manually set to the correct AC input voltage. The internal switch has already be properly set for 220-230 VAC. This setting works for the EU and Australia or other countries that use 220-230 VAC power.
For use in countries that use 100-120 VAC power, such as North America and Japan, the switch inside the case on the AC/DC regulator needs to be switched to the left. The switch is marked with a Yellow sticker printed with "AC input voltage can be selected by switch. Check input voltage avoiding damage before power on." The switch is located on the side of the enclosure below the arrow.
Please contact Pittsburgh Modular with any questions. [email protected]***

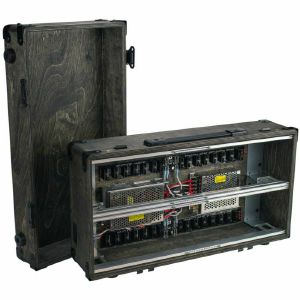

Structure EP-360 Eurorack Enclosure

Maximum Power for a New Generation -

Beautifully stained hardwood triple row, 360hp powered eurorack travel case with lid. A huge case to house a monster synth. Features include a professional, heavy duty, internal power supply designed to exceed the needs of the most demanding analog and digital eurorack systems.




Everything is New:
With years of research and two case lines under our belt, we decided to start over and produce a line of cases for the next generation of eurorack synthesizers. The eurorack modular ecosystem is expanding faster than ever and manufacturers are constantly pushing eurorack cases and power supplies to the limits. What started as a power supply designed to drive primarily analog synthesizers has transformed into a supply that needs to simultaneously meet the unique demands of sensitive analog circuitry, power hungry digital processors, and ground sensitive user interface modules.

We started with what matters most. Clean power. A lot of it. Up to 3x the amount of clean power available in cases from other brands. Next we turned our focus to the enclosure itself and there was only one goal. Make the case stronger. Our engineers tested countless combinations utilizing different types of wood, joints, adhesives, assembly techniques, and hardware to ensure that Structure cases are as durable as they are beautiful.

With a clean and gorgeous design that promotes creative exploration, the Structure enclosures are our most robust and refined case line yet. With massive amounts of both room and clean power, you can reach completely new heights in your creative performances.






Includes:
Structure EP-360

Power
:
6 Amps of Clean +12v Power

6 Amps of Clean -12v Power

5 Amps of Clean +5v Power

Custom Powered Bus Board with 15 Keyed Eurorack Power Headers Per Row, 45 Power Headers Total

External On-off Rocker Power Switch with LED

Universal IEC Power Connector Works Anywhere

Structure EP-360 Enclosure
:
Hardwood and Steel Construction (No cheap plastic here)

Triple 120hp Rows

Removable Lid

Lid Fits Over Fully Patched System (No need to remove patch cables)

Edge to Edge Rail Design Reduces Gaps Between Modules and the Side of the Case

24 Smooth Sliding Square Nuts Per Rail (Holds up to 72 modules)

Beautifully Hand-Stained Hardwood

Matching Black Steel Hardware Set




Structure EP-360 Dimensions
:
External Depth with lid:9 1/4"
External Depth without Lid: 5 1/2"
External Height: 17"
External Width: 25 1/2"
Internal Depth Above Power Supply: 2 3/4"
Internal Depth Above Bus Board: 3 3/4"
Internal Depth Above Nothing: 4 1/4"

Notes: ***B-STOCK: Box opened, product in perfect working order***


Make Noise's 208hp 7U 4 Zone CV Bus Case arrives ready to use. Just add modules, patch cables and inspiration. The powder coated metal construction offers excellent mechanical durability. The lid is removable and can be closed with the system fully patched. The sleek matte black finish was selected to match Make Noise's line of Black & Gold modules, and it looks great with just about any module installed. This finish will show the story of your modular synth's travels over the years.

The Make Noise 4 Zone Power Bus Board is a new approach to accommodating the ever-growing universe of Eurorack modules. The multi-zone solution is like having 4 independent bus boards in a convenient single bus board package. Each Zone features isolated +12 VDC and -12VDC supplies and a dedicated ground return path. The +5VDC supply is shared amongst all 4 zones.

The multiple section of the CV Bus was originally designed in 2013 for Alessandro Cortini's personal Make Noise system. It provides visual indication of level, rate and polarity for up to 4 control signals that will be shared throughout a patch. These 4 control signals are colour coded and distributed across the centre of the system allowing for quick, clean and intuitive patching. The distribution method is unlike the typical multiple since the control signals will appear beneath their possible destinations allowing for the use of shorter patch cables. The colour coding and visual indication makes navigating complex patches easier and more intuitive. Typically, the CV Bus would be used to share the most important control signals in a patch such as your Master Clock.

This new version of the CV Bus also includes useful modular utilities:

The Voltage Math is found at the left end of the CV Bus. Like the similar circuit on the 0-Coast, it is a small collection of universally useful modular utilities. The two inputs are summed at the output, one at unity and one adjusted by the input attenuverter. The attenuverted input is also normalled to a DC offset, for purposes of level shifting, voltage mirroring etc. The output strength and polarity is indicated by the Green and Red output LEDs.

A high quality Stereo Line Driver converts powerful modular synthesizer signal levels to the commonly used Line Level. There are mini-jack inputs for Left or Mono, and Right for Stereo sound, a single master volume control, as well as a stereo line output pair, and finally a TRS line/headphone out on a single jack. This output is capable of driving a long cable out to a PA System or a set of Headphones. It is AC coupled with a built-in limiting circuit (with visual indication) that prevents damage to ears and PA system when the patching gets experimental.

Includes

Two 104 hp 3U rows for Eurorack modules, One 104hp 1U row fitted w/ CV Bus
Hybrid switched/linear power solution for low noise and excellent load regulation
Multi-Zone, allowing isolation of noise-prone modules from noise-sensitive ones
Black powder coated metal w/ embossed logo on lid
Sealed to keep dust out during travel or storage
Lid offers space to close w/ your system patched
Recessed side mounted on/off switch and power inlet for safe travel
Locking power connector helps prevent on-stage power loss accidents
Solid carrying handle and rubber feet so the case travels w/ ease
Meets carry-on luggage size requirements for most airlines
Universal AC power adapter works world wide (Need IEC Cable for non-US outlets)
Blued Steel Stand sold separately

Specifications

Size: 7U
Total HP: 208 @ 3U, 104 @ 1U
Outer Dimensions:
22.25" x 14" x 7.25" w/ lid
Max Module Depth: 2.5"
Weight: 12.75 lbs. (w/ powered bus board, CV Bus installed)
Power: +12VDC @ 4A, -12VDC @ 2.4A and +5VDC @ 1A
Connectors: 32
Includes: CV Bus, Powered Bus Board, 120 Sliding M2.5 nuts w/ Black screws, AC Adapter

Notes: Eurorack modular synthesizer case designed to meet the demanding requirements of project and professional studio environments. The Structure EP-270 provides massive amounts of clean, quiet power housed in beautiful, angled hardwood enclosures, full of classic synthesizer styling.

Uncompromising power and craftsmanship combine to create this stunning studio case. The Structure EP-270 offers 270HP of module space with a combined 9 amps of robust power.

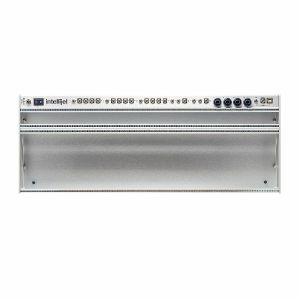

Notes: 104hp wide with two 3U rows and a 1U row.
Powder coated aluminum construction
VESA mount compatible (100mm x 100mm)
Plastic handle for easy mobility
Metal feet can be installed to support multiple angles of jamming.
Secure latching lid with enough depth to keep your patches patched

Expandable

Lid - when you're ready to add more space, the lid can be expanded to be another 104hp x 7U. You can add another set of rails, power supply and power jack and double your available space. (Kit available)
Metal feet - The metal feet can have a pair of rails and rack mounted power added to support another 3U row of 104hp. (Kit available in future)

Connectivity

Audio jacks - set of four jacks for stereo in and stereo out.
MIDI jacks - DIN jacks to support IN, OUT, and THRU MIDI.
USB power - can be used for a lamp to light your case or to charge your phone while recording your set.

Dimensions
557mm x 334mm x 169mm
74mm depth for 1U and bottom 3U row
52mm depth for middle 3U row

Power
+12V - 3A (with plenty of allowance for in-rush current)
-12V - 3A
+5V - 3A (shared with USB power)
36 shrouded power headers

In The Box
Main case
Lid
Metal feet
Power adapter 20V at 6A

Notes: ***B-STOCK: Box damaged, product in perfect working order***


***POWER SET FOR EU AND AUSTRALIA 220-230V:
The Pittsburgh Modular Structure 208 and Structure 360 eurorack enclosures use a switching power supply that needs manually set to the correct AC input voltage. The internal switch has already be properly set for 220-230 VAC. This setting works for the EU and Australia or other countries that use 220-230 VAC power.
For use in countries that use 100-120 VAC power, such as North America and Japan, the switch inside the case on the AC/DC regulator needs to be switched to the left. The switch is marked with a Yellow sticker printed with "AC input voltage can be selected by switch. Check input voltage avoiding damage before power on." The switch is located on the side of the enclosure below the arrow.
Please contact Pittsburgh Modular with any questions. [email protected]***

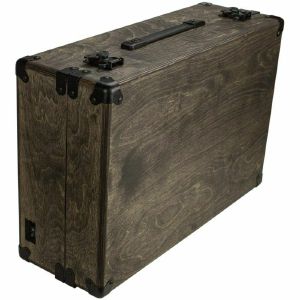

Structure EP-208 Eurorack Enclosure -

Maximum Power for a New Generation



Beautifully stained hardwood double row, 208hp powered eurorack travel case with lid. Includes professional, heavy duty, internal power supply designed to exceed the needs of the most demanding analog and digital eurorack systems.




Everything is New:

With years of research and two case lines under our belt, we decided to start over and produce a line of cases for the next generation of eurorack synthesizers. The eurorack modular ecosystem is expanding faster than ever and manufacturers are constantly pushing eurorack cases and power supplies to the limits. What started as a power supply designed to drive primarily analog synthesizers has transformed into a supply that needs to simultaneously meet the unique demands of sensitive analog circuitry, power hungry digital processors, and ground sensitive user interface modules.

We started with what matters most. Clean power. A lot of it. Up to 3x the amount of clean power available in cases from other brands. Next we turned our focus to the enclosure itself and there was only one goal. Make the case stronger. Our engineers tested countless combinations utilizing different types of wood, joints, adhesives, assembly techniques, and hardware to ensure that Structure cases are as durable as they are beautiful.

With a clean and gorgeous design that promotes creative exploration, the Structure enclosures are our most robust and refined case line yet. With massive amounts of both room and clean power, you can reach completely new heights in your creative performances.




Features:

Structure EP-208 Power:
4 Amps of Clean +12v Power

3 Amps of Clean -12v Power

2 Amps of Clean +5v Power

Custom Powered Bus Board with 15 Keyed Eurorack Power Headers Per Row, 30 Power Headers Total

External On-off Rocker Power Switch with LED

Universal IEC Power Connector Works Anywhere



Structure EP-208 Enclosure
:
Hardwood and Steel Construction (No cheap plastic here)

Dual 104hp Rows

Removable Lid

Lid Fits Over Fully Patched System (No need to remove patch cables)

Edge to Edge Rail Design Reduces Gaps Between Modules and the Side of the Case

20 Smooth Sliding Square Nuts Per Rail (Holds up to 40 modules)

Beautifully Hand-Stained Hardwood

Matching Black Steel Hardware Set


Structure EP-208

Dimensions
:
External Depth with lid:9 1/4"
External Depth without Lid: 5 1/2"
External Height: 12 1/4"
External Width: 22"
Internal Depth Above Power Supply: 2 3/4"
Internal Depth Above Bus Board: 3 3/4"
Internal Depth Above Nothing: 4 1/4"

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Eurorack modular synthesizer case designed to meet the demanding requirements of project and professional studio environments. The Structure EP-270 provides massive amounts of clean, quiet power housed in beautiful, angled hardwood enclosures, full of classic synthesizer styling.

Uncompromising power and craftsmanship combine to create this stunning studio case. The Structure EP-270 offers 270HP of module space with a combined 9 amps of robust power.

Notes: ***POWER SET FOR EU AND AUSTRALIA 220-230V:
The Pittsburgh Modular Structure 208 and Structure 360 eurorack enclosures use a switching power supply that needs manually set to the correct AC input voltage. The internal switch has already be properly set for 220-230 VAC. This setting works for the EU and Australia or other countries that use 220-230 VAC power.
For use in countries that use 100-120 VAC power, such as North America and Japan, the switch inside the case on the AC/DC regulator needs to be switched to the left. The switch is marked with a Yellow sticker printed with "AC input voltage can be selected by switch. Check input voltage avoiding damage before power on." The switch is located on the side of the enclosure below the arrow.
Please contact Pittsburgh Modular with any questions. [email protected]***

Structure EP-208 Eurorack Enclosure -

Maximum Power for a New Generation



Beautifully stained hardwood double row, 208hp powered eurorack travel case with lid. Includes professional, heavy duty, internal power supply designed to exceed the needs of the most demanding analog and digital eurorack systems.




Everything is New:

With years of research and two case lines under our belt, we decided to start over and produce a line of cases for the next generation of eurorack synthesizers. The eurorack modular ecosystem is expanding faster than ever and manufacturers are constantly pushing eurorack cases and power supplies to the limits. What started as a power supply designed to drive primarily analog synthesizers has transformed into a supply that needs to simultaneously meet the unique demands of sensitive analog circuitry, power hungry digital processors, and ground sensitive user interface modules.

We started with what matters most. Clean power. A lot of it. Up to 3x the amount of clean power available in cases from other brands. Next we turned our focus to the enclosure itself and there was only one goal. Make the case stronger. Our engineers tested countless combinations utilizing different types of wood, joints, adhesives, assembly techniques, and hardware to ensure that Structure cases are as durable as they are beautiful.

With a clean and gorgeous design that promotes creative exploration, the Structure enclosures are our most robust and refined case line yet. With massive amounts of both room and clean power, you can reach completely new heights in your creative performances.




Features:

Structure EP-208 Power:
4 Amps of Clean +12v Power

3 Amps of Clean -12v Power

2 Amps of Clean +5v Power

Custom Powered Bus Board with 15 Keyed Eurorack Power Headers Per Row, 30 Power Headers Total

External On-off Rocker Power Switch with LED

Universal IEC Power Connector Works Anywhere



Structure EP-208 Enclosure
:
Hardwood and Steel Construction (No cheap plastic here)

Dual 104hp Rows

Removable Lid

Lid Fits Over Fully Patched System (No need to remove patch cables)

Edge to Edge Rail Design Reduces Gaps Between Modules and the Side of the Case

20 Smooth Sliding Square Nuts Per Rail (Holds up to 40 modules)

Beautifully Hand-Stained Hardwood

Matching Black Steel Hardware Set


Structure EP-208

Dimensions
:
External Depth with lid:9 1/4"
External Depth without Lid: 5 1/2"
External Height: 12 1/4"
External Width: 22"
Internal Depth Above Power Supply: 2 3/4"
Internal Depth Above Bus Board: 3 3/4"
Internal Depth Above Nothing: 4 1/4"

Notes: The ultimate Eurorack case.

At home, stage or into the studio, the Befaco 7U Case brings your system to the next level.

Power to the people

Equipped with Befaco's latest and most sophisticated power supply (Trolley Bus), the Befaco 7U Case supplies up to 5000mA of power. Ready to feed the most modern and power-hungry modules.

Connected to the world

The Befaco 7U Case rear panel count with a vast array of connections to pair your system with external devices. Each connector follows the Intellijel format, making them fully compatible with Intellijel's 1U modules.

Build to last

Designed with a high-quality Unibody Black Anodised Aluminum frame, the Befaco 7U Case is a slim and sturdy solution to travel with. The included PET-G clear cover keeps your modules safe even patched.

Designed to fit any situation, the Befaco 7U Case metal frame is a lightweight and strong device by itself. With a maximum depth of 53mm (power supply side) and 70mm (rest of the case), it can house the vast majority of modules out there. Equipped with a high-quality anti-vandalic power button and a Kensington lock connector, the Befaco 7U Case is also a safe device to travel with.

Because power is important for us, this new Trolley Bus systems drop up to 5000mA on the +12V rail, 2500mA on -12V, and 4000mA on +5V with high voltage stability under load and low noise. The case drives up to 36 modules over its 208HP (3U) and 104HP (1U) rows (Intellijel format).

6x 6,3" Jacks I/Os with Balanced and Unbalanced configuration, MIDI In/Out/Thru ports, USB Device Type B, and Apple compatible USB-A charging ports. The Befaco 7U Case offers a huge amount of connections fully accessible from its internal I/O Board.

Created with compatibility in mind, the rear panel ports are fully compatible with Intellijel 1U modules. The 1U row can be easily customized to be at the centre of the case with just two screws.

To keep your modules safe and dust free, a custom PET-G clear cover is included with the case. The cover has been designed to close patched, and a custom velcro belt is included to keep it safely closed.

To save space in your studio desk, the Befaco 7U Case is also Vesa mount fully compatible. It counts with Vesa threads at the bottom to easily attach it to desktop or wall Vesa stands.

Technical Specifications

External Dimensions (without cover): 53.5cms x 31cms x 8cms
External Dimensions (with cover): 53.5cms x 31cms x 14cms
Internal Row Dimensions: 2x 3U 104HP and 1x 1U 104HP (Intellijel format)
Power supply Specifications: +12V: 5000mA, -12V: 2500mA, 5V: 4000mA
Module Depth: 53mm (power supply side), 70mm (rest of the case)
Module Slots: 36
Weight (without cover): 2.6kg
Weight (with cover): 3.4kg
Rear connectors: 6x 6'3" Jack I/O (Balanced or Unbalanced), MIDI DIN In/Out/Thru, USB Device Type B, Apple compatible USB-A charging ports.
Power brick: 120W 2.5mm Barrel connector centre positive (included)
Cover: PET-G Clear cover (included)
Finish: Black Anodised Aluminum
Vesa 100 format threads. Recommended Vesa stand: >12kg
Kensington Lock

Notes: CAIXA 104 is an advanced fully portable 104HP Eurorack Modular Case, with a wide range of utilities fully integrated on it. Connect up to 19 modules and carry it anywhere you go thanks to its handle.

Nano Modules designed CAIXA 104 to provide a solid base for starting your modular journey and squeezing every centimetre of your system in case you're already an experienced Eurorack-head.

7 integrated modules

19-slot busboard with reversed protection headers

A selection of utilities that everyone usually needs to have in their modular synthesizer, just like the Buffered Multiples, the Stereo Mixer or its 2 LFOs.

Nano Modules have also focused on improving connectivity with the integrated inputs and outputs.

19-slot busboard with reversed protection headers

+30W power supply - An efficient and reliable supply which is more than enough to provide plenty of power for a 104HP system (and more).
+12V output at 1.25A
-12V output at 1.1A
+5V output at 0.5A

Deep enough.
The maximum module depth above the busboard connectors is 47mm, but you can place modules up to 60mm outside of the busboard space. That should be sufficient to fit the vast majority of modules out there.

Carry your synthesizer anywhere you go.

The lightweight aluminium, together with the handle, make it super easy to take your modules with you. Weighs only 1.7 Kg!

Utility Modules
Balanced Inputs
Buffered Multiples
Precision Adder
2 LFOs
Sample & Hold
Stereo Mixer
Stereo & Headphone Out

Power Specifications

30.7W Integrated switching power supply with Meanwell 60W power brick.

+12V output at 1.25A
-12V output at 1.1A
+5V output at 0.5A

Construction

Dimensions: 535 x 200 x 85 mm
Materials: Anodized aluminum
Aluminium extruded rails with steel threaded inserts
Rubber feet to protect your desktop.
Depth Maximum module depth -> 47 mm inside busboard space, 60mm outside.

Notes: ***B-STOCK: Box opened, product in perfect working order***

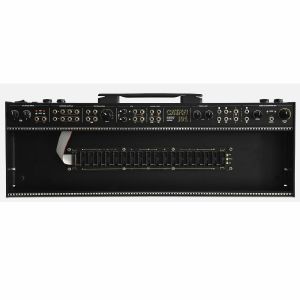

CAIXA 104 is an advanced fully portable 104HP Eurorack Modular Case, with a wide range of utilities fully integrated on it. Connect up to 19 modules and carry it anywhere you go thanks to its handle.

Nano Modules designed CAIXA 104 to provide a solid base for starting your modular journey and squeezing every centimetre of your system in case you're already an experienced Eurorack-head.

7 integrated modules

19-slot busboard with reversed protection headers

A selection of utilities that everyone usually needs to have in their modular synthesizer, just like the Buffered Multiples, the Stereo Mixer or its 2 LFOs.

Nano Modules have also focused on improving connectivity with the integrated inputs and outputs.

19-slot busboard with reversed protection headers

+30W power supply - An efficient and reliable supply which is more than enough to provide plenty of power for a 104HP system (and more).
+12V output at 1.25A
-12V output at 1.1A
+5V output at 0.5A

Deep enough.
The maximum module depth above the busboard connectors is 47mm, but you can place modules up to 60mm outside of the busboard space. That should be sufficient to fit the vast majority of modules out there.

Carry your synthesizer anywhere you go.

The lightweight aluminium, together with the handle, make it super easy to take your modules with you. Weighs only 1.7 Kg!

Utility Modules
Balanced Inputs
Buffered Multiples
Precision Adder
2 LFOs
Sample & Hold
Stereo Mixer
Stereo & Headphone Out

Power Specifications

30.7W Integrated switching power supply with Meanwell 60W power brick.

+12V output at 1.25A
-12V output at 1.1A
+5V output at 0.5A

Construction

Dimensions: 535 x 200 x 85 mm
Materials: Anodized aluminum
Aluminium extruded rails with steel threaded inserts
Rubber feet to protect your desktop.
Depth Maximum module depth -> 47 mm inside busboard space, 60mm outside.

Notes: ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 9U 84HP / 3U 52HP / 6U 52HP sizes. They all offer at least 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

Common Features

Self assembled aluminium lightweight cases with integrated switched power busses.
At least 1Amp per -/+ 12V rail per row with quoted 100mV ripple noise at max load. No 5V rail.
Overload & Short Circuit protection.
Support modules up to 42mm depth (approx 2 stacked pcbs). All ALM modules fit.
M3 threaded fixed mounting strips (no sliding nuts!).
Module mounting screws and Allen key included.
Includes 12v external DC/DC power 'brick' with center positive 2.1mm barrel and at least 2 or 4 Amp rating (depending on model).

9U / 84 HP


Provides up to 2.5 Amp power on each -12V & +12V rails.
Connections for up to 32 modules.
Includes 5 Amp power 'brick'
External dimensions: 440x396x66 mm
No Decksaver currently available.

Notes: ***B-STOCK: Box opened, product in perfect working order***


ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 9U 84HP / 3U 52HP / 6U 52HP sizes. They all offer at least 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

Common Features

Self assembled aluminium lightweight cases with integrated switched power busses.
At least 1Amp per -/+ 12V rail per row with quoted 100mV ripple noise at max load. No 5V rail.
Overload & Short Circuit protection.
Support modules up to 42mm depth (approx 2 stacked pcbs). All ALM modules fit.
M3 threaded fixed mounting strips (no sliding nuts!).
Module mounting screws and Allen key included.
Includes 12v external DC/DC power 'brick' with center positive 2.1mm barrel and at least 2 or 4 Amp rating (depending on model).

9U / 84 HP


Provides up to 2.5 Amp power on each -12V & +12V rails.
Connections for up to 32 modules.
Includes 5 Amp power 'brick'
External dimensions: 440x396x66 mm
No Decksaver currently available.

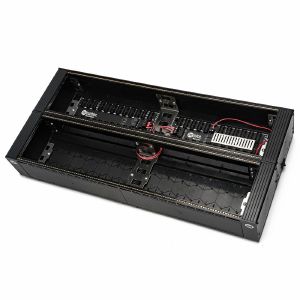

Notes: The Four Pack is Sinusoda's 6U 104 hp case that comes with Juice Powerboard, Bubbles expander, Straw power inlet and 96W power brick. Comes assembled & ready to play. Additional vertical and horizontal connectors of the casing system included. It's a standard eurorack sized case which you can expand indefinitely.

You can connect any amount of Sinusoda's Empty Cans or Slim Cans to add more HP to this case.

Juice Powerboard is Sinusoda's Ultra Low Noise power supply solution offering up to +12v: 3A / -12v: 1.5A / +5v: 2A of clean power for your synths. Several Juices can be connected together in series for more power.

Bubbles powerboard expander will add more headers to your Juice Powerboard with the same Ultra Low Noise filtering technology we've used in Juice.

Straw power inlet has a USB charging port for your mobile devices, midi devices or lamps.

Side blinds can be cut into blank panels revealing more space - additional 4 hp from the top on both sides, and up to 14 hp from the sideway mount.

For more information on the Sinusoda modular casing system visit https://sinusoda.com

Box dimensions:
695x380x200mm


Box weight:
4,3 kg

Case dimensions:
600x272x85mm

Case depth:
70mm without Powerboard, and 56mm with Powerboard

Case weight:
3 kg (power brick included)

Notes: The Four Pack is Sinusoda's 6U 104 hp case that comes with Juice Powerboard, Bubbles expander, Straw power inlet and 96W power brick. Comes assembled & ready to play. Additional vertical and horizontal connectors of the casing system included. It's a standard eurorack sized case which you can expand indefinitely.

You can connect any amount of Sinusoda's Empty Cans or Slim Cans to add more HP to this case.

Juice Powerboard is Sinusoda's Ultra Low Noise power supply solution offering up to +12v: 3A / -12v: 1.5A / +5v: 2A of clean power for your synths. Several Juices can be connected together in series for more power.

Bubbles powerboard expander will add more headers to your Juice Powerboard with the same Ultra Low Noise filtering technology we've used in Juice.

Straw power inlet has a USB charging port for your mobile devices, midi devices or lamps.

Side blinds can be cut into blank panels revealing more space - additional 4 hp from the top on both sides, and up to 14 hp from the sideway mount.

For more information on the Sinusoda modular casing system visit https://sinusoda.com

Box dimensions:
695x380x200mm


Box weight:
4,3 kg

Case dimensions:
600x272x85mm

Case depth:
70mm without Powerboard, and 56mm with Powerboard

Case weight:
3 kg (power brick included)

Notes: Supplied with an incorporated power supply fixed on the left side of the box.

Two foldable steps and 3 bus boards inside the case.

The sides are made of 5mm thick Plexiglas.

The frame is made of aluminium with a sanded black finish for less scratches.

Rails are black.

It has two rows 3U 104 HP and one row 1U 104 HP.

Intellijel format.

- 104HP
- Depth of the box: 6cm
- Depth of the box along the 5HP of the power supply: 4cm
- Power consumption: +12V : 1.5A ; -12V : 1A ; +5V : 0.5A

Notes: ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 3U 52HP / 6U 52HP sizes. They all offer 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

6U / 84HP

Provides up to 2 Amp power total on each -12V & +12V rails (1 Amp total per row)
Connections for up to 32 modules.
Includes 5 Amp power 'brick'

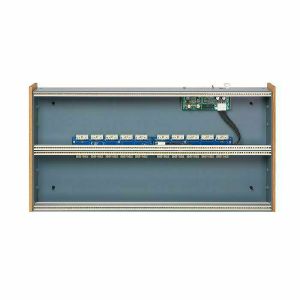

Notes: Expand your modular setup or start constructing your first Eurorack system with this easy-to-use, plug-and-play Moog Powered Eurorack Case.

The Moog Powered Eurorack Case features 10 Eurorack-compatible 16-pin power connectors and is designed for low-noise performance, high efficiency, and convenient input voltage compatibility. To ensure the cleanest power for your favourite modules, the Moog Powered Eurorack Case's power supply circuit is designed with an additional layer of high-frequency noise filtering at each individually isolated power connector. Electrostatic discharge and overloading protection on the power input and power output sections keep your gear even further safeguarded.

To make connecting your modules even easier, the Moog Powered Eurorack Case features multiple power indicator LEDs to alert you if any of your power cables are not properly connected and need re-orienting, ensuring your system is fully operational before finally screwing in all of your modules.

Mount your modules perfectly every time with the included sliding nuts and mounting screws. Once assembled, all modules can be turned on or off as a system using the rear-mounted power on/off button.

Featuring a durable aluminium case with wood sides, the Moog Powered Eurorack Case offers a versatile solution for expanding your setup of Moog's semi-modular family of synthesizers (Mother-32, DFAM, Subharmonicon, Mavis), and the case's angled extrusion mounts into Moog 2-Tier, 3-Tier, and 4-Tier Rack Kits.

Just add your favourite modules to get started on your first (or next) modular system!

Specs

Type: Powered Eurorack Case
HP Size: 104HP
Module Depth: 48mm along the mounting rails, 44mm over the connectors
Materials: Aluminum case with wood end caps
Power Supply: Yes. 10 Power Connectors, LED Power indicators, protections for ESD, overload, and noise leakage. External On/Off switch.
Power Output: +12V/1000mA, -12V/1000mA, +5V/1000mA

In the box

Powered Eurorack Case 104HP
7 inch 10-to-16 Pin Ribbon Power Cable
30 Module Mounting Screws
Power Supply
IEC Cable
Powered Eurorack Case Manual
Product Catalogue
Registration Postcard

Weights & dimensions

Product only

Weight (lbs) 3.40 lbs
Weight (kg) 1.54 kg
Imperial (in) 3.86" H x 21.5" W x 5"D
Metric (cm) 9.84 cm H x 54.61 cm W x 12.7 cm D

Product in box:

Weight (lbs) 6.28 lbs
Weight (kg) 2.85kg
Imperial (in) 6.75" H x 28.25" W x 8.25"D
Metric (cm) 17.14cm H x 73.03cm W x 20.95cm D

Notes: Your Palette case is the ideal solution for your space conscious and/or portable needs. It fits comfortably on your desktop; at your favourite coffee shop; in your jam space; or pretty much anywhere else you might desire to play. Your imagination is the only limit. With either 62hp or 104hp of rack space, you can piece together powerful but focused mini systems and control surfaces. Intellijel's 1U row and built-in i/o ports add a ton of extra utility to bring the most out of your eurorack modules. Truly a palette for the sonic artist.

High spec 60 Watt power supply capable of powering up to 24 modules with +12 V output at 1500 mA, -12 V output at 1500 mA and +5 V output at 500 mA.

In the Box
1 x Meanwell AC/DC adapter with right angled connector (40W for 62HP, 60W for 104HP)
1 x 3FT North American IEC power cable
1 x 1/8" (6.35mm) TRS to 5-Pin DIN MIDI Adaptor

Notes: Your Palette case is the ideal solution for your space conscious and/or portable needs. It fits comfortably on your desktop; at your favourite coffee shop; in your jam space; or pretty much anywhere else you might desire to play. Your imagination is the only limit. With either 62hp or 104hp of rack space, you can piece together powerful but focused mini systems and control surfaces. Intellijel's 1U row and built-in i/o ports add a ton of extra utility to bring the most out of your eurorack modules. Truly a palette for the sonic artist.

High spec 60 Watt power supply capable of powering up to 24 modules with +12 V output at 1500 mA, -12 V output at 1500 mA and +5 V output at 500 mA.

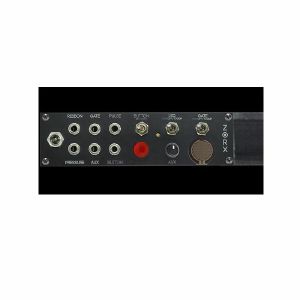

Notes: The ZORX ribbon controller is an all analogue, made in the USA synth controlling labor of love. Hand built from high quality components it measures 22" X 1.5" X 1" and features a 400mm touch sensitive ribbon that controls pitch, filter, etc., a pressure sensor, a N/O or N/C gate function with a momentary push button, and an ancillary knob for volume, filter, or whatever you'd like.

Measures 22" X 1.5" X 1"

3 LED colors to choose from (other colors may be available, message us)

12v Ribbon for pitch, etc., w/range adjustment

Gate Out - On/Off/Touch Activated

Pulse Out

Pressure Sensor

N/O or N/C Gate/Function Mom. push button

Auxiliary knob for LFO rate, VCA, whatever

LED On/Off/Touch Activated

Textured opaque sidewalls, top, and base

Teflon tape for long lasting durability and smoothness.

3.5mm TS mono jack outputs

No computer/module/breakout box needed

Switching DC power adapter included. EU plug adapter included if needed.

Durable, custom made by hand, built to last

Made in the USA

Notes: The ZORX ribbon controller is an all analogue, made in the USA synth controlling labor of love. Hand built from high quality components it measures 22" X 1.5" X 1" and features a 400mm touch sensitive ribbon that controls pitch, filter, etc., a pressure sensor, a N/O or N/C gate function with a momentary push button, and an ancillary knob for volume, filter, or whatever you'd like.

Measures 22" X 1.5" X 1"

3 LED colors to choose from (other colors may be available, message us)

12v Ribbon for pitch, etc., w/range adjustment

Gate Out - On/Off/Touch Activated

Pulse Out

Pressure Sensor

N/O or N/C Gate/Function Mom. push button

Auxiliary knob for LFO rate, VCA, whatever

LED On/Off/Touch Activated

Textured opaque sidewalls, top, and base

Teflon tape for long lasting durability and smoothness.

3.5mm TS mono jack outputs

No computer/module/breakout box needed

Switching DC power adapter included. EU plug adapter included if needed.

Durable, custom made by hand, built to last

Made in the USA

Notes: The ZORX ribbon controller is an all analogue, made in the USA synth controlling labor of love. Hand built from high quality components it measures 22" X 1.5" X 1" and features a 400mm touch sensitive ribbon that controls pitch, filter, etc., a pressure sensor, a N/O or N/C gate function with a momentary push button, and an ancillary knob for volume, filter, or whatever you'd like.

Measures 22" X 1.5" X 1"

3 LED colors to choose from (other colors may be available, message us)

12v Ribbon for pitch, etc., w/range adjustment

Gate Out - On/Off/Touch Activated

Pulse Out

Pressure Sensor

N/O or N/C Gate/Function Mom. push button

Auxiliary knob for LFO rate, VCA, whatever

LED On/Off/Touch Activated

Textured opaque sidewalls, top, and base

Teflon tape for long lasting durability and smoothness.

3.5mm TS mono jack outputs

No computer/module/breakout box needed

Switching DC power adapter included. EU plug adapter included if needed.

Durable, custom made by hand, built to last

Made in the USA

Notes: It is made of metal and gets a noble vintage look thanks to beautiful wooden side parts. This 6U case is flat and offers two rows of 104 HP for the installation of modules.

The integrated 4 HP wide KAZU II power solution with switching PSU and EVE1 busboard works extremely accurately and delivers very clean power. A total of up to 20 modules can be connected.

The KAZU II PSU solution is of high quality and delivers a constant current without getting hot.

Switching power supply, developed especially for modular systems.

Minimal voltage peaks and interferences. The result: An extremely low noise floor and very honest sound.

+12 V - Regulated, filtered, less than 2 mV fluctuations and noise at full capacity, typically 1,5 mV.

-12 V - Regulated, filtered, less than 2 mV fluctuations and noise at full capacity, typically 1,5 mV.

Very little heating, even at high loads

Overvoltage and short-circuit protection

Primary voltage: 100 - 240 V

Maximum continuous power:
1500 mA at +12 V
1500 mA at -12 V

An external power supply (15 V DC) is included in delivery.

Notes: Expand your modular setup or start constructing your first Eurorack system with this easy-to-use, plug-and-play Moog Powered Eurorack Case.

The Moog Powered Eurorack Case features 10 Eurorack-compatible 16-pin power connectors and is designed for low-noise performance, high efficiency, and convenient input voltage compatibility. To ensure the cleanest power for your favourite modules, the Moog Powered Eurorack Case's power supply circuit is designed with an additional layer of high-frequency noise filtering at each individually isolated power connector. Electrostatic discharge and overloading protection on the power input and power output sections keep your gear even further safeguarded.

To make connecting your modules even easier, the Moog Powered Eurorack Case features multiple power indicator LEDs to alert you if any of your power cables are not properly connected and need re-orienting, ensuring your system is fully operational before finally screwing in all of your modules.

Mount your modules perfectly every time with the included sliding nuts and mounting screws. Once assembled, all modules can be turned on or off as a system using the rear-mounted power on/off button.

Featuring a durable aluminium case with wood sides, the Moog Powered Eurorack Case offers a versatile solution for expanding your setup of Moog's semi-modular family of synthesizers (Mother-32, DFAM, Subharmonicon, Mavis), and the case's angled extrusion mounts into Moog 2-Tier, 3-Tier, and 4-Tier Rack Kits.

Just add your favourite modules to get started on your first (or next) modular system!

Specs

Type: Powered Eurorack Case
HP Size: 60HP
Module Depth: 48mm along the mounting rails, 44mm over the connectors
Materials: Aluminium case with wood end caps
Power Supply: Yes. 10 Power Connectors, LED Power indicators, protections for ESD, overload, and noise leakage. External On/Off switch.
Power Output: +12V/1000mA, -12V/1000mA, +5V/1000mA

In the box

Powered Eurorack Case 60HP
7 inch 10-to-16 Pin Ribbon Power Cable
30 Module Mounting Screws
Power Supply
IEC Cable
Powered Eurorack Case Manual
Product Catalogue
Registration Postcard
Moog Sticker

Weights & dimensions

Product only:

Weight (lbs) 2.22 lbs
Weight (kg) 1.00 kg
Imperial (in) 3.86" H x 12.5" W x 5"D
Metric (cm) 9.84 cm x 31.75 cm W x 12.7 cm D

Product in box:

Weight (lbs) 4.87 lbs
Weight (kg) 2.20 kg
Imperial (in) 6.75" H x 20.5" W x 8.25"D
Metric (cm) 17.14cm H x 52.07cm W x 20.95 cm D

Notes: ***B-STOCK: Box damaged, product in perfect working order***


ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 3U 52HP / 6U 52HP sizes. They all offer 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

6U / 84HP

Provides up to 2 Amp power total on each -12V & +12V rails (1 Amp total per row)
Connections for up to 32 modules.
Includes 5 Amp power 'brick'

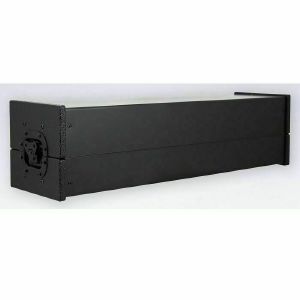

Notes: Full-aluminum, 104HP, 57mm-deep 1-row eurorack skiff enclosure + lid with aluminum rails of unique design.

This case has integrated Erica Synths PSU capable of [email protected] and [email protected] (2.5A total), [email protected]. 12V 3.34A 100-240VAC desktop PSU included.

The case also comes with one distribution board with 30 connector sockets and lid- you also have the option of the Rack Ears available.

Technical specifications:

Dimensions: 520mm x 150mm x 150mm

Depth: 57mm

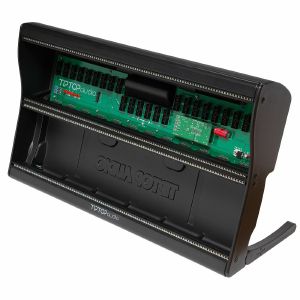

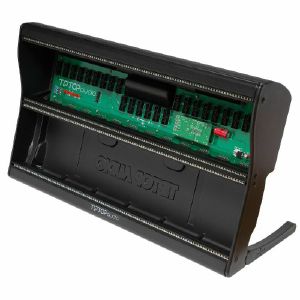

Notes: With Mantis, Tiptop took their years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis is beautiful and the color contrast between legs and body gives it its identity. Legs are offered in 4 different colors so anyone can find the right look.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

***UPDATE - MAY 2021 ***
As of May 2021, all Mantis cases shipped have a small update to the design. The connector for SyncBus is no longer included. This connector was never used as Tiptop didn't develop the cable for it, and the connector is no longer in production by the manufacturer so it was removed. The Mantis still has the same power supply and functions as before.

Notes: Full aluminium 2x84HP 57mm deep skiff eurorack enclosure with aluminium rails of unique design.

This case has integrated Erica Synths PSU capable of 1.25A per rail (2.5A total).

As standard 65mm deep enclosures come with black horizontal or vertical side panels and two power distribution rails with 9 connector sockets each.

Skiff case can be used with modules up to 45mm deep - most of skiff modules available from leading producers will fit there.

Technical specifications:

Dimensions with wooden sides: 461mmx270mmx120mm (case depth is 57mm, but side panels make it under the angle)

Notes: ACL - EVZ1-84 Eurorack Case 6U 84HP with Kazu 2

It is made of metal and gets a noble vintage look thanks to beautiful wooden side parts. This 6U case is flat and offers two rows of 84 HP for the installation of modules.

The integrated 4 HP wide KAZU II power solution with switching PSU and EVE1 busboard works extremely accurately and delivers very clean power. A total of up to 20 modules can be connected.

The KAZU II PSU solution is of high quality and delivers a constant current without getting hot.

Switching power supply, developed especially for modular systems.

Minimal voltage peaks and interferences. The result: An extremely low noise floor and very honest sound.

+12 V - Regulated, filtered, less than 2 mV fluctuations and noise at full capacity, typically 1,5 mV.

-12 V - Regulated, filtered, less than 2 mV fluctuations and noise at full capacity, typically 1,5 mV.

Very little heating, even at high loads

Overvoltage and short-circuit protection

Primary voltage: 100 - 240 V

Maximum continuous power:
1500 mA at +12 V
1500 mA at -12 V

An external power supply (15 V DC) is included in delivery.

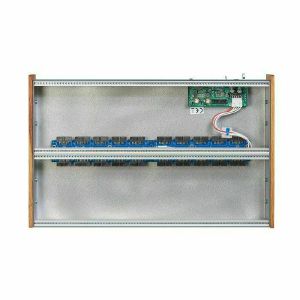

Notes: Full aluminium 2x84HP 57mm deep skiff eurorack enclosure with aluminium rails of unique design.

This case has integrated Erica Synths PSU capable of 1.25A per rail (2.5A total).

As standard 65mm deep enclosures come with black horizontal or vertical side panels and two power distribution rails with 9 connector sockets each.

Skiff case can be used with modules up to 45mm deep - most of skiff modules available from leading producers will fit there.

Technical specifications:

Dimensions with wooden sides: 461mmx270mmx120mm (case depth is 57mm, but side panels make it under the angle)

Notes: ***B-STOCK: Box opened, product in perfect working order***

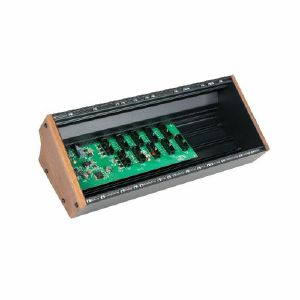

Expand your modular setup or start constructing your first Eurorack system with this easy-to-use, plug-and-play Moog Powered Eurorack Case.

The Moog Powered Eurorack Case features 10 Eurorack-compatible 16-pin power connectors and is designed for low-noise performance, high efficiency, and convenient input voltage compatibility. To ensure the cleanest power for your favourite modules, the Moog Powered Eurorack Case's power supply circuit is designed with an additional layer of high-frequency noise filtering at each individually isolated power connector. Electrostatic discharge and overloading protection on the power input and power output sections keep your gear even further safeguarded.

To make connecting your modules even easier, the Moog Powered Eurorack Case features multiple power indicator LEDs to alert you if any of your power cables are not properly connected and need re-orienting, ensuring your system is fully operational before finally screwing in all of your modules.

Mount your modules perfectly every time with the included sliding nuts and mounting screws. Once assembled, all modules can be turned on or off as a system using the rear-mounted power on/off button.

Featuring a durable aluminium case with wood sides, the Moog Powered Eurorack Case offers a versatile solution for expanding your setup of Moog's semi-modular family of synthesizers (Mother-32, DFAM, Subharmonicon, Mavis), and the case's angled extrusion mounts into Moog 2-Tier, 3-Tier, and 4-Tier Rack Kits.

Just add your favourite modules to get started on your first (or next) modular system!

Specs

Type: Powered Eurorack Case
HP Size: 60HP
Module Depth: 48mm along the mounting rails, 44mm over the connectors
Materials: Aluminium case with wood end caps
Power Supply: Yes. 10 Power Connectors, LED Power indicators, protections for ESD, overload, and noise leakage. External On/Off switch.
Power Output: +12V/1000mA, -12V/1000mA, +5V/1000mA

In the box

Powered Eurorack Case 60HP
7 inch 10-to-16 Pin Ribbon Power Cable
30 Module Mounting Screws
Power Supply
IEC Cable
Powered Eurorack Case Manual
Product Catalogue
Registration Postcard
Moog Sticker

Weights & dimensions

Product only:

Weight (lbs) 2.22 lbs
Weight (kg) 1.00 kg
Imperial (in) 3.86" H x 12.5" W x 5"D
Metric (cm) 9.84 cm x 31.75 cm W x 12.7 cm D

Product in box:

Weight (lbs) 4.87 lbs
Weight (kg) 2.20 kg
Imperial (in) 6.75" H x 20.5" W x 8.25"D
Metric (cm) 17.14cm H x 52.07cm W x 20.95 cm D

Notes: ***B-STOCK: Box opened, product in perfect working order***


ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 3U 52HP / 6U 52HP sizes. They all offer 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

6U / 84HP

Provides up to 2 Amp power total on each -12V & +12V rails (1 Amp total per row)
Connections for up to 32 modules.
Includes 5 Amp power 'brick'

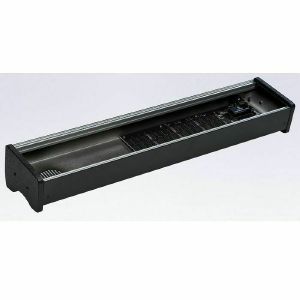

Notes: Full aluminium 126HP 57mm deep 1 row eurorack skiff enclosure with aluminium rails of a unique design.

This case has integrated Erica Synths PSU capable of [email protected] and [email protected] (2.5A total), [email protected]. 12V 3.34A 100-240VAC desktop PSU included.

As standard 57mm deep enclosures comes with horizontal wooden side panels and one distribution board with 30 connector sockets.

Technical specifications:

Dimensions with wooden sides: 630mmx150mmx110mm (case depth is 57mm, but wooden side panels make it under the angle).

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Full aluminium 2x84HP 57mm deep skiff eurorack enclosure with aluminium rails of unique design.

This case has integrated Erica Synths PSU capable of 1.25A per rail (2.5A total).

As standard 65mm deep enclosures come with black horizontal or vertical side panels and two power distribution rails with 9 connector sockets each.

Skiff case can be used with modules up to 45mm deep - most of skiff modules available from leading producers will fit there.

Technical specifications:

Dimensions with wooden sides: 461mmx270mmx120mm (case depth is 57mm, but side panels make it under the angle)

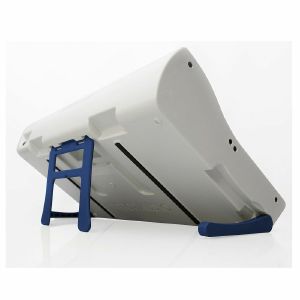

Notes: Mantis have taken years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis deep black coloru gives you another option to customize your Eurorack look and matches perfectly with black Tiptop Audio modules.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

Dual Mantis Studio Brackets

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Mantis have taken years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis deep black coloru gives you another option to customize your Eurorack look and matches perfectly with black Tiptop Audio modules.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

Dual Mantis Studio Brackets

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow.

Notes: With Mantis, Tiptop took their years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis is beautiful and the color contrast between legs and body gives it its identity. Legs are offered in 4 different colors so anyone can find the right look.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

***UPDATE - MAY 2021 ***
As of May 2021, all Mantis cases shipped have a small update to the design. The connector for SyncBus is no longer included. This connector was never used as Tiptop didn't develop the cable for it, and the connector is no longer in production by the manufacturer so it was removed. The Mantis still has the same power supply and functions as before.

Notes: With Mantis, Tiptop took their years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis is beautiful and the color contrast between legs and body gives it its identity. Legs are offered in 4 different colors so anyone can find the right look.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

***UPDATE - MAY 2021 ***
As of May 2021, all Mantis cases shipped have a small update to the design. The connector for SyncBus is no longer included. This connector was never used as Tiptop didn't develop the cable for it, and the connector is no longer in production by the manufacturer so it was removed. The Mantis still has the same power supply and functions as before.

Notes: With Mantis, Tiptop took their years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis is beautiful and the color contrast between legs and body gives it its identity. Legs are offered in 4 different colors so anyone can find the right look.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

***UPDATE - MAY 2021 ***
As of May 2021, all Mantis cases shipped have a small update to the design. The connector for SyncBus is no longer included. This connector was never used as Tiptop didn't develop the cable for it, and the connector is no longer in production by the manufacturer so it was removed. The Mantis still has the same power supply and functions as before.

Notes: ***B-STOCK: Box damaged, product in perfect working order***


RackBrute 6U

Armoured Eurorack carrier

RackBrute 6U is an all-inclusive Eurorack case ensuring the total security of your modules and maximum practicality in all conditions of use. Its multi-position configuration and included dependable power supply make it the true specialist solution.

Artists may have a bodyguard; modules deserve armour-plating.

RackBrute 6U provides you with 176HP to store and secure your enviable collection of Eurorack modules in an everlasting yet lightweight aluminium chassis flanked by two wood panels. Once you're locked and loaded, your modular setup will look and feel like a monolith, yet more flexible than ever thanks the Link fastening system and the paired handle. When on the move, it will make the transport of your modular equipment a walk in the park. When in position, it will let you organize your command centre the way you want it. Modules don't live on love alone, and RackBrute 6U keeps everything alive with its +12V / -12V / +5V power supply.

When you have to hold your position for hours, it's better to be well set up and to have a clear view of the surroundings. For this reason, we developed the Link system, a convenient and simple-to-use fastening system that allows you to orientate the dedicated handle so that you can give your modular the most tactically advantageous position. Whether prone, crouching, or standing to attention, RackBrute 6U will always be on the lookout, ready for orders.

Troops are nothing if they are not properly fed. No problem, RackBrute 6U is not just a box. It includes a formidable +12V / -12V / +5V power supply ensuring your firepower up to 1600mA. This is coupled with a military-grade power rail with 32 available slots, including advanced noise filtering technology that guarantees optimum conditions.

With RackBrute 6U, even the most headstrong modules fall into line.

Uniting your forces under the same banner
May all modular units meet at the rallying point and be ready for further orders!

The RackBrute 6U fully takes advantage of the Link System, and it's not alone. You'll also find the Arturia Link on the more compact RackBrute 3U, as well as the self-contained MiniBrute 2 and MiniBrute 2S synthesizers. What solution will you go for? Will your field of operations be fully based on Eurorack, or the powerful force of analogue monosynth flagship supported by a fleet of complementary modules?

This technology is the brainchild of our secret research department, but we wanted it to be patent-free so that all our allies could adopt and benefit from it. The modular music battleground is likely to get crowded with an ever-growing variety of Link-enhanced system.

You are not alone on this mission. You have your trustworthy equipment to keep you company.

Equipment checking!

All present and correct, ready for inspection. We trust you'll find everything to your liking.

Go, go, go!

Don't worry, RackBrute 6U will keep mishaps at bay.

The success of your operation depends on your sensitive material arriving in perfect working order. RackBrute 6U is up to the challenge. The handle, the chassis, the threaded nut strips, each of its strategic components is made aluminium or steel. RackBrute will carry your setup no matter the context, not matter the weight, the distance and the destination. The built-in spacers will also make sure that no collisions occur when transporting two RackBrute units or a RackBrute and MiniBrute 2. Maybe you also want to keep your modular away from prying eyes. Then, trust the optional RackBrute Travel Case for more covert missions.

RackBrute 6U is the complete transport solution for when you need to take your show on the road.

What's in the box:

Box content
RackBrute 6U unit
Power cord

Instrument dimensions
Size : 19 x 13.2 x 3.3 inches (484 x 300 x 83mm)
Weight: 8.3 lbs. (3.76 Kg)

Main Features

Eurorack format, 176 HP
Aluminium Chassis
Provided with a 5 HP power module
Up to 1600mA on +12V and 1600mA on -12V (4 separate circuits of 800mA)
Up to 900mA on 5V
Power rail with
Noise filtering
32 standard power slots
20-slot zone with up to 800mA on +12V and -12V
12-slot zone with up to 800mA on +12V and -12V
Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
Built-in Spacers for the highest protection in transport configuration

Notes: Supplied with an incorporated power supply fixed on the left side of the box.

Sides are made of 5mm thick Plexiglas.

The frame is made of aluminium with a sanded black finish for less scratches.

Rails are black.

- 104HP
- Depth of the box: 6cm
- Depth of the box along the 5HP of the power supply: 4cm
- Power consumption: +12V : 1.5A ; -12V : 1A ; +5V : 0.5A

Notes: RackBrute 6U is an all-inclusive Eurorack case ensuring the total security of your modules and maximum practicality in all conditions of use. Its multi-position configuration and included dependable power supply make it the true specialist solution.

RackBrute 6U provides you with 176HP to store and secure your enviable collection of Eurorack modules in an everlasting yet lightweight aluminium chassis flanked by two wood panels. Once you're locked and loaded, your modular setup will look and feel like a monolith, yet more flexible than ever thanks the Link fastening system and the paired handle. When on the move, it will make the transport of your modular equipment a walk in the park. When in position, it will let you organize your command centre the way you want it. Modules don't live on love alone, and RackBrute 6U keeps everything alive with its +12V / -12V / +5V power supply.

When you have to hold your position for hours, it's better to be well set up and to have a clear view of the surroundings. For this reason, Arturia developed the Link system, a convenient and simple-to-use fastening system that allows you to orientate the dedicated handle so that you can give your modular the most tactically advantageous position. Whether prone, crouching, or standing to attention, RackBrute 6U will always be on the lookout, ready for orders.

Troops are nothing if they are not properly fed. No problem, RackBrute 6U is not just a box. It includes a formidable +12V / -12V / +5V power supply ensuring your firepower up to 1600mA. This is coupled with a military-grade power rail with 32 available slots, including advanced noise filtering technology that guarantees optimum conditions.

With RackBrute 6U, even the most headstrong modules fall into line.

The RackBrute 6U fully takes advantage of the Link System, and it's not alone. You'll also find the Arturia Link on the more compact RackBrute 3U, as well as the self-contained MiniBrute 2 and MiniBrute 2S synthesizers. What solution will you go for? Will your field of operations be fully based on Eurorack, or the powerful force of analog monosynth flagship supported by a fleet of complementary modules?

Notes: ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 3U 52HP / 6U 52HP sizes. They all offer 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

6U / 52 HP

Provides up to 1 Amp power on each -12V & +12V rails.
Connections for up to 9 modules on busboard, with additional 'flying bus board' included that adds up to 12 connectors.
Includes 2 Amp power 'brick'

Notes: RackBrute 6U

Armoured Eurorack carrier

RackBrute 6U is an all-inclusive Eurorack case ensuring the total security of your modules and maximum practicality in all conditions of use. Its multi-position configuration and included dependable power supply make it the true specialist solution.

Artists may have a bodyguard; modules deserve armour-plating.

RackBrute 6U provides you with 176HP to store and secure your enviable collection of Eurorack modules in an everlasting yet lightweight aluminium chassis flanked by two wood panels. Once you're locked and loaded, your modular setup will look and feel like a monolith, yet more flexible than ever thanks the Link fastening system and the paired handle. When on the move, it will make the transport of your modular equipment a walk in the park. When in position, it will let you organize your command centre the way you want it. Modules don't live on love alone, and RackBrute 6U keeps everything alive with its +12V / -12V / +5V power supply.

When you have to hold your position for hours, it's better to be well set up and to have a clear view of the surroundings. For this reason, we developed the Link system, a convenient and simple-to-use fastening system that allows you to orientate the dedicated handle so that you can give your modular the most tactically advantageous position. Whether prone, crouching, or standing to attention, RackBrute 6U will always be on the lookout, ready for orders.

Troops are nothing if they are not properly fed. No problem, RackBrute 6U is not just a box. It includes a formidable +12V / -12V / +5V power supply ensuring your firepower up to 1600mA. This is coupled with a military-grade power rail with 32 available slots, including advanced noise filtering technology that guarantees optimum conditions.

With RackBrute 6U, even the most headstrong modules fall into line.

Uniting your forces under the same banner
May all modular units meet at the rallying point and be ready for further orders!

The RackBrute 6U fully takes advantage of the Link System, and it's not alone. You'll also find the Arturia Link on the more compact RackBrute 3U, as well as the self-contained MiniBrute 2 and MiniBrute 2S synthesizers. What solution will you go for? Will your field of operations be fully based on Eurorack, or the powerful force of analogue monosynth flagship supported by a fleet of complementary modules?

This technology is the brainchild of our secret research department, but we wanted it to be patent-free so that all our allies could adopt and benefit from it. The modular music battleground is likely to get crowded with an ever-growing variety of Link-enhanced system.

You are not alone on this mission. You have your trustworthy equipment to keep you company.

Equipment checking!

All present and correct, ready for inspection. We trust you'll find everything to your liking.

Go, go, go!

Don't worry, RackBrute 6U will keep mishaps at bay.

The success of your operation depends on your sensitive material arriving in perfect working order. RackBrute 6U is up to the challenge. The handle, the chassis, the threaded nut strips, each of its strategic components is made aluminium or steel. RackBrute will carry your setup no matter the context, not matter the weight, the distance and the destination. The built-in spacers will also make sure that no collisions occur when transporting two RackBrute units or a RackBrute and MiniBrute 2. Maybe you also want to keep your modular away from prying eyes. Then, trust the optional RackBrute Travel Case for more covert missions.

RackBrute 6U is the complete transport solution for when you need to take your show on the road.

What's in the box:

Box content
RackBrute 6U unit
Power cord

Instrument dimensions
Size : 19 x 13.2 x 3.3 inches (484 x 300 x 83mm)
Weight: 8.3 lbs. (3.76 Kg)

Main Features

Eurorack format, 176 HP
Aluminium Chassis
Provided with a 5 HP power module
Up to 1600mA on +12V and 1600mA on -12V (4 separate circuits of 800mA)
Up to 900mA on 5V
Power rail with
Noise filtering
32 standard power slots
20-slot zone with up to 800mA on +12V and -12V
12-slot zone with up to 800mA on +12V and -12V
Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
Built-in Spacers for the highest protection in transport configuration

Notes: ***B-STOCK: Box damaged, product in perfect working order***


RackBrute 6U

Armoured Eurorack carrier

RackBrute 6U is an all-inclusive Eurorack case ensuring the total security of your modules and maximum practicality in all conditions of use. Its multi-position configuration and included dependable power supply make it the true specialist solution.

Artists may have a bodyguard; modules deserve armour-plating.

RackBrute 6U provides you with 176HP to store and secure your enviable collection of Eurorack modules in an everlasting yet lightweight aluminium chassis flanked by two wood panels. Once you're locked and loaded, your modular setup will look and feel like a monolith, yet more flexible than ever thanks the Link fastening system and the paired handle. When on the move, it will make the transport of your modular equipment a walk in the park. When in position, it will let you organize your command centre the way you want it. Modules don't live on love alone, and RackBrute 6U keeps everything alive with its +12V / -12V / +5V power supply.

When you have to hold your position for hours, it's better to be well set up and to have a clear view of the surroundings. For this reason, we developed the Link system, a convenient and simple-to-use fastening system that allows you to orientate the dedicated handle so that you can give your modular the most tactically advantageous position. Whether prone, crouching, or standing to attention, RackBrute 6U will always be on the lookout, ready for orders.

Troops are nothing if they are not properly fed. No problem, RackBrute 6U is not just a box. It includes a formidable +12V / -12V / +5V power supply ensuring your firepower up to 1600mA. This is coupled with a military-grade power rail with 32 available slots, including advanced noise filtering technology that guarantees optimum conditions.

With RackBrute 6U, even the most headstrong modules fall into line.

Uniting your forces under the same banner
May all modular units meet at the rallying point and be ready for further orders!

The RackBrute 6U fully takes advantage of the Link System, and it's not alone. You'll also find the Arturia Link on the more compact RackBrute 3U, as well as the self-contained MiniBrute 2 and MiniBrute 2S synthesizers. What solution will you go for? Will your field of operations be fully based on Eurorack, or the powerful force of analogue monosynth flagship supported by a fleet of complementary modules?

This technology is the brainchild of our secret research department, but we wanted it to be patent-free so that all our allies could adopt and benefit from it. The modular music battleground is likely to get crowded with an ever-growing variety of Link-enhanced system.

You are not alone on this mission. You have your trustworthy equipment to keep you company.

Equipment checking!

All present and correct, ready for inspection. We trust you'll find everything to your liking.

Go, go, go!

Don't worry, RackBrute 6U will keep mishaps at bay.

The success of your operation depends on your sensitive material arriving in perfect working order. RackBrute 6U is up to the challenge. The handle, the chassis, the threaded nut strips, each of its strategic components is made aluminium or steel. RackBrute will carry your setup no matter the context, not matter the weight, the distance and the destination. The built-in spacers will also make sure that no collisions occur when transporting two RackBrute units or a RackBrute and MiniBrute 2. Maybe you also want to keep your modular away from prying eyes. Then, trust the optional RackBrute Travel Case for more covert missions.

RackBrute 6U is the complete transport solution for when you need to take your show on the road.

What's in the box:

Box content
RackBrute 6U unit
Power cord

Instrument dimensions
Size : 19 x 13.2 x 3.3 inches (484 x 300 x 83mm)
Weight: 8.3 lbs. (3.76 Kg)

Main Features

Eurorack format, 176 HP
Aluminium Chassis
Provided with a 5 HP power module
Up to 1600mA on +12V and 1600mA on -12V (4 separate circuits of 800mA)
Up to 900mA on 5V
Power rail with
Noise filtering
32 standard power slots
20-slot zone with up to 800mA on +12V and -12V
12-slot zone with up to 800mA on +12V and -12V
Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
Built-in Spacers for the highest protection in transport configuration

Notes: ***B-STOCK: Dent on the side, product in perfect working order***


ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 3U 52HP / 6U 52HP sizes. They all offer 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

6U / 52 HP

Provides up to 1 Amp power on each -12V & +12V rails.
Connections for up to 9 modules on busboard, with additional 'flying bus board' included that adds up to 12 connectors.
Includes 2 Amp power 'brick'

Notes: Your Palette case is the ideal solution for your space conscious and portable needs. At about the same size as a small laptop, your Palette fits comfortably on your desktop; in your backpack; at your favourite coffee shop; in your jam space; or pretty much anywhere else you might desire to play. Your imagination is the only limit. With 62hp of rack space, you can piece together powerful but focused mini systems and control surfaces. Intellijel's 1U row and built-in i/o ports add a ton of extra utility to bring the most out of your Eurorack modules. Truly a palette for the sonic artist.

Utilities panel:

- Dual 1:4 buffered multiple
- Two 1/4" balanced audio jacks that can be connected to the Stereo Line Out 1U, Pedal I/O 1U or Mixup
- 1/8" (6.35mm) MIDI Input that can be connected to uMIDI 1U
- USB port that connects to the uMIDI 1U and other future modules
- Rocker switch and barrel plug for power entry

Construction:

- Anodized aluminium
- Aluminium extruded rails with steel threaded inserts
- Rubber feet to protect your desktop
- Rear mounted power supply for maximum module depth

Includes:

- 40W Meanwell AC/DC adapter with right angled connector
- 3FT North American IEC power cable
- 1/8" (6.35mm) TRS to 5-Pin Din MIDI adapter
