Notes: Part of Sonicware's brilliant Liven series of affordable, creative groove boxes, the Ambient O packs in layers of drone, textures and noise sources to create engrossing soundscapes. Creative, experimental fun.

*** Firmware version 1.5 update- March 2025 ***

Temperament Settings for Each Track

In addition to the standard 12-tone equal temperament, you can now set 7 different temperaments per pattern, including Pure intonation, Pythagorean tuning, and Solfeggio frequencies.

64 Sound Pattern Palettes

Featuring 32 newly added sounds & patterns, along with 16 Sound Healing Vibes sounds.

Relaxation Playback Mode

Arrange your favourite patterns, set repeats and fade-outs, then let it gently fill your space with ambient sound. (Seamless pattern changes improved: if sound settings remain the same, transitions will now be smooth without audio interruptions.)

Master Tune Now Adjustable in Hz?Master tuning, previously adjustable in cents, can now also be set in Hz increments (410 - 470 Hz).

Line In Selectable on NOISE Layer

The NOISE layer can now be selected to Line In, allowing the application of Filter, LFOs, and other track-level controls to the input signal.

New LFO Waveforms & Assignment

Added three slow LFO waveforms (L.SIN, L.TRI, L.S.RN). Additionally, oscillator level can now be assigned as an LFO destination.

Pitch Bend Range Setting

You can now configure the pitch bend range in the system settings.

Changes in Oscillator Usage

Due to specification changes, the NOISE layer now consumes only one oscillator, while the ATMO 2 structure now consumes three oscillators.

Bug Fixes & Improvements

Fixed MIDI CC issues and addressed other minor bugs.


Supplier's Notes:
Your Personal Soundscape:

Conversations between Oscillating Tones and Your Mind

Immersive Ambient Generator

4 layers of tone and texture-Drone, Pad, Atmos, and Noise-merge to generate deep resonance and continuous transformation.

Ambient O (zero) is incredibly easy to use. Start by playing a tone from one layer using the note hold function. While listening closely, simply tweak the knobs to modify the tone and add other layers to shape a pleasing sound.

Blendwave Modulation Synthesis

Sonicware conducted extensive research into creating undulating and fluctuating tones for Ambient O, resulting in the development of a new wavetable-based synthesis.

Blendwave Modulation Synthesis combines 6 unique structures with 32 WAVEs featuring complex harmonic transitions, making it easy to create powerful low drones, lush pads, and transparent pizzicatos, perfect for Ambient Music.

4 knobs/8 parameters offer a wide range of tone creation.

A WAVE contains 128 harmonic tables, allowing for diverse tonal changes such as moving from basic waveforms to complex harmonics. The WAVE is represented by a yin-yang icon, with the yin representing moves in the reverse direction through the tables during modulation.

6 Structures - Each structure has a different number of oscillators and modulation circuits. ATMOS 1 applies ring modulation, while ATMOS 2 applies FM modulation.

Noise and Space

The Noise layer includes 8 specially selected nature sounds, offering noise blending, pitch adjustment and modulation to infuse unique spatial characteristics.

Additionally, it allows for up to 8 seconds of stereo sampling from the line input, letting you create personalized textures.

Extensive Effects Section

Ambient O is equipped with 9 types of lush reverb, each offering unique spatial dimensions and brightness settings. You can individually adjust the reverb send and shimmer send (for layering octaves) for each layer.

In addition to the reverb, the Ambient O offers an effect unit with Tape Delay, Reverse Delay, and 4 master effects; Overdrive, Bit/Rate Crush, Tilt EQ, and Stereo Chorus.

Sequence up to 64 steps per pattern.
Random playback of sequence phrases.
Probability of notes sounding can be set from 25 - 100%.
Program notes step by step or record them in real time. Additionally, you can also input notes to specific steps while the sequencer is playing to add variation.
Overwrite notes in real-time with one touch while playing back sequence phrases.
The Parameter Lock function allows you to record knob changes into your patterns. This can be recorded live, or programmed in step by step.

Specifications

[Synthesiser]

- Note Hold function
- 128 Sound Pattern Palettes (incl. 16 types of preset palettes)
- Mixing including level/pan for each layer
- Layer (Sound) copy and paste function
- Tune All function changes the pitch of all layers (i1 octave in 20-cent steps, adjustable in 1-cent step)
- Standard polyphony: 10 voices (depending the structure's oscillators x simultaneous voices)

4 Layer Construction
Drone, Pad, Atmos Layers
- New Blendwave Modulation Synthesis for creating undulating and fluctuating tones
- 6 Structures, 32 Waves
Drone 1: 2 oscillators, modulates Detune
Drone 2: 2 oscillators, modulates Harmonics
Pad 1: 3 oscillators, modulates Harmonics
Pad 2: 3 oscillators, modulates Harmonics
Atmos 1: 1 oscillator, ring modulation on output
Atmos 2: 2 oscillators (frequency modulation), modulates Pitch

- Polyphonic mode
- Mono mode (adjustable glide time)
- Legato mode (adjustable glide time)
- Unison mode (adjustable detune)
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

Noise Layer
- 1 Structure, 8 Waves
Noise: 1 oscillator, modulates Pitch
- Loop or One-shot playback, White noise mixing
- 16bit - 32kHz Linear PCM sampling (stereo)
- Up to 8 seconds of sampling per sample (crossfade settings from 1 to 4 seconds)
- Auto start sampling function with the input level (input level can be set)
- Import and export of a slot of samples (via MIDI)
*Import of audio files from PC/Mac is not supported.

- Polyphonic mode
- Mono mode (adjustable glide time)
- Legato mode (adjustable glide time)
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)
Each layer has its own envelope, filter and 2LFOs.

- Attack
- Release

- Low Pass Filter
- High Pass Filter
- Band Pass Filter

- 2 LFOs assignable to various parameters (individually adjustable)
- Adjustable LFO Shapes and trigger count

[Effects]
9 types of high-quality reverb (Send amount to reverb and shimmer adjustable per layer)
- Small.L
- Small.M
- Small.H
- Large.L
- Large.M
- Large.H
- Infinity.L
- Infinity.M
- Infinity.H
6 types of diverse master effects
- Tape Delay
- Reverse Delay
- Overdrive
- Bit/Rate Crush
- Tilt EQ
- Stereo Chorus
The above reverb and master effects can also be applied to external sources from the LINE IN.

[Sequencer]
- 4 tracks (1 track on each layer)
- Up to 64 steps per pattern
- Step length can be set from 1/1 to 1/32 or 2/1(Breve) to 8/1(Maxima)
- Real-time recording
- Overwrite REC function for real-time sequence replacement
- Directly enter notes for each step when playback is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Step copy and paste function
- Track copy and paste function
- Duplicate to extend a sequence
- Transpose function
- Pattern BPM / Global BPM can be set
- Pattern chain function (Loop playback possible)
- Track level and pan can be set independently
- Parameter Lock function to record parameter settings for each step
- Sound Lock function to record sound settings for each step
- Note playback probability can be set from 25 to 100% for each step
- RANDOM function to play back steps in random order

[MIDI]
- Notes, control changes, clock input/output
- Import and export user data
- Firmware update via Sysex

[Unit]

27 keys (with a hold function)


- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: Part of Teenage Engineering's high-end Field series, the OP-XY is best seen as a pro groovebox, combining polyphonic synthesis, sampling and sequencing. More music-focussed than its OP-Z predecessor, the OP-XY represents a new flagship for TE.

Supplier's Notes:
No-compromise, dual-CPU boosted and fully rebuilt sequencer, sampler, and performance instrument, based on the much-loved workflow of the OP-Z. Now including built-in cv, effect sends, and a best-in-class DAC. with 8 individual instrument tracks and 8 auxiliary tracks for controlling any external synthesizer, modular or otherwise, and adding effects. It's probably the most complete, portable sequencer ever built. It's here. It's real. it's black.

And it's got so much more than you've wished for.

The exterior is all black, and matches the exact dimensions of OP-1 field. A distinct grayscale gradient is at its centre, making it clear that OP-XY is all about serious sequencing. Hands-on graphics on the high-resolution display are all grayscale, with a bright red to indicate recording and parameter locks. all vital keys have LEDs to stay in full control.

Experience the ultra fast sequencing workflow. Punch-in FX lets you add quick, rapid-firing, unique, live variations and adding individual step components creates an extra dimension and deep rhythmic patterns. randomize note timing, velocity and pitch, or use live automation to alter filters. Use brain to create chord progressions, generating tracks that reinvent themselves. Literally.

Run every track, independently, at different speeds and lengths to form powerful polyrhythms. create new sequences every time with step components, variations that can be added to any step on the sequencer, controlling everything from altering pitch to bending, skipping or even multiplying steps.

Main audio-out

Multi-out, featuring:
MIDI
CV/gate
Sync
Aux audio
MIDI IN
AUDIO IN
USB-C

The 2 Vrms main output drives any sound system, real loud. Keep everything locked in sync and sequenced with the multi-out and take control with MID IN. process and sample external audio with the audio-in. control, record and charge with the audio/midi host over USB-C, plus a complete wireless experience with midi over Bluetooth LE -keine bedingungen [no strings attached].

Compose your album, head off to the gig, plug and play immediately, then keep everything locked-in with all the I/O you could ask for. 16-hour, battery-powered freedom lets you perform for hours on-end. create, produce and perform anywhere. Mit allen bedingungen [all strings attached]

The bottom left side features a pressure sensitive pitchbend

Instrument tracks:

8 individually sequenceable instrument tracks
8 unique synth engines
3 samplers
independent send levels per track

Step components
14 unique step components for advanced step sequencing
Apply up to all 14 to every step screen
480 x 222px IPS TFT display

Patterns
9 patterns per track
up to 64 bars per pattern
spread across 4 pages
presets per pattern

Effects: reverb, delay, chorus, distortion, lo-fi, phaser

Hardware
Dual blackfin processing cores
Dual DDR memory
Triple-core dsp co-processor
2x controller MCU's for wireless & low power IO domain

Sensors: 6-axis IMU accelerometer

Microphone: immediate, high quality sampling with the built-in microphone.

Connectors: 3.5 mm stereo line-out with headset mic support
3.5 mm multi-out
3.5 mm midi in
3.5 mm stereo line-in

Tactile input
2 octave musical keyboard
68 ultra low profile mechanical buttons
Pressure sensitive pitch bend
4 x multi purpose grayscale encoders

USB
USB type C connector
USB MIDI host & device
USB audio host & device

Notes: A fresh new take on synthesis from the legendary Moog. The Labyrinth combines two generative sequencers with parallel analogue signal paths to create evolving sounds and patterns.

Supplier's Notes:
Labyrinth, a semi-modular instrument and idea machine, discovers patterns, layers, and textures both familiar and unheard. Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies. With parallel analogue signal paths, this unique instrument shines when adding colour to the static backdrop of a drum pattern or bassline. Fully capable of standing on its own, or adding depth to your existing rack, it's equally at home in a live set or at the centre of a humble bedroom studio. Labyrinth is the lightning in a bottle that drives a studio session deeper into undiscovered creative caverns.

The beating heart of Labyrinth is a robust dual sequencer, which uses chance operations to construct two unique eight-step paths which twist and curve around each other, forming a mesmerizing path of sound. With a comprehensive patch bay, Labyrinth can be synced via analogue clock or MIDI while processing, directing, and being influenced by other kit.

Tune your instruments together and let Labyrinth improvise alongside in key while you play Matriarch. Patch Labyrinth and Spectravox together for animated spectral movement. Combine Labyrinth with Mavis in a 104HP rack for expanded modularity.

These are just a handful of many playful setups where Labyrinth fits. Whichever path you choose, have Labyrinth guide you.

Dual generative sequencers create intertwining melodies that mutate over time. It's a fountain of inspiration that uncovers patterns you can capture, return to, and evolve.

A fresh approach to the signature sound of classic Moog synthesizers with a smooth West Coast-style voltage-controlled wavefolder. Two oscillators drive duophonic melodic counterpoints, metallic FM tones, and analogue synthetic drums.

State variable resonant voltage-controlled filters that morph between lowpass and bandpass responses let you experiment with smooth command over complex tonal shapes.

A parallel voice processing path with a voltage-controlled blending allows you to morph sounds over time.

A comprehensive patch bay for integration with a wide variety of other modules in your rack and studio.

In the box

Labyrinth Semi-Modular Parallel Generative Analog Synthesizer

Power Supply
Patch Sheet Overlays
Patch Cables (5x 12")
Registration Card
Quickstart Guide
Cheat Codes
Safety & Warranty Manual

Weights & dimensions

Product only:

Weight: 3.1lbs/1.5kg
Dimensions: 12.84" W 5.64" D 4.2" H/32.61cm W 14.33cm D 10.67cm H

Product in box:

Weight : 5.29 lbs / 2.4 kg
Dimensions: 14.16" W 8.16" D 6.6" H / 35.97cm W 20.73cm D 16.76cm H

Analogue synthesis engine:

Sources: VCO, MOD VCO, RING MOD, NOISE Generator SIGNAL PROCESSORS: 1x Voltage-Controlled Wavefolder, 1x Voltage-Controlled State-Variable Filter, 2x Voltage-Controlled Amplifiers MODULATORS: 2x Decay-only envelope generators

Dual generative sequencer

2x 8-step Generative Digital Sequencers

Patch bay

Jacks: 32 x 3.5mm
Inputs: 20 Input Jacks
Outputs: 12 Output Jacks

Rear panel

Audio: 1/4" TRS Headphone or 1/4" TS Instrument
Power: Power Supply connection SECURITY: Kensington Lock slot

Power supply (included)

Style: Wall adapter; barrel connection; centre-pin positive INPUT: 100 - 240VAC; 50 Hz - 60 Hz OUTPUT: +12VDC; 1200mA

Power consumption
Typical: 4.0 W

Notes: Second generation version of Korg's customisable synth and effects unit. New 18-key multitouch keyboard, upgraded processor, new oscillator types and new effects. Create your own personalised instrument.

Supplier's Notes:
Build it, tweak it, connect it; a world of synthesis at your fingertips!

The compact and incredibly powerful NTS-1 is back with an array of new features, a refreshed interface and more customization options than ever before.

Boasting a new keyboard, built-in sequencer, fresh sounds, and expanded MIDI capabilities, the NTS-1 mkII packs a gigantic set of features in the palm of your hand.

Powered by an even more powerful processor than its predecessor, the NTS-1 mkII unlocks its full potential and welcomes a new wave of custom content through its upgraded logueSDK.

This DIY synth and effects unit is not just powerful but also versatile, a must-have tool for both studio and stage.

New Multitouch keyboard

The NTS-1 mkII boasts a new 18-key multitouch keyboard, substituting the ribbon controller of the first generation, for precise playing and sequencing. This upgrade unlocks the ability to send MIDI note messages polyphonically, opening the doors to custom oscillators and effects leveraging the paraphonic potential of the NTS-1.

The centre of your performance

In addition to a powerful arpeggiator, the new 8-step sequencer opens a whole new world of musical possibilities. With live and step recording modes (with per-note gate length and velocity settings) available in combination with its new keyboard and easy octave switch, the NTS-1 mkII provides an intuitive and seamless performance experience.

The NTS-1 mkII takes the sting out of forgetting your creative sparks. A new autosave function recalls all the parameters used in your last performance, including the step sequencer data, so you can pick up right where you left off. No more struggling to remember knob tweaks and pattern edits!

But that's not all! NTS-1 mkII has a MIDI OUT output so you can use its internal sequencer to control other gear in your setup.

Powerful new engine, sounds and effects
NTS-1 mkII is an extremely powerful, flexible and fun-to-explore synth. While retaining the versatile features of its predecessor, this new iteration adds an array of new sounds, including new oscillator types and modulation possibilities, using its Audio IN signal as a modulation source to create FM, AM or RING sounds.

The NTS-1 mkII is also an incredibly capable and expandable FX unit. In the mkII, we added many new Modulation (distortion, fuzz...), Delay (tape delay, BPM synced delays...) and Reverb effects, as well as handy oscillator OFF and Filter THRU functions, making it a uniquely versatile piece of gear that will cover all your needs at home or on stage.

Expanded connectivity

Integrating the NTS-1 mkII is now easier than ever. In addition to the SYNC IN/OUT and MIDI IN, we've added a new MIDI OUT output for seamless connection and expanded performance possibilities with other gear. On top of that, most parameters on NTS-1 mkII have been made MIDI CC compatible for deeper control.

It is also now powered through a new USB-C bus.

Even more DIY fun

The new NTS-1 mkII retains the DIY kit format from the original, and offers new customization options with reversible anodized silver and metallic black side panels. And don't worry, we've kept the same form factor and dimensions as its predecessor meaning custom sides, stands and other custom parts will still fit!

A new and more powerful logueSDK

Powered by a new chip, the NTS-1 mkII has expanded processing power, making complex effects and oscillators more possible than ever before. A new development API is available for developers on Github.

Customization and 3D data

Thanks to its DIY nature and open design, the NTS-1 mkII is a highly customizable synthesizer that you can modify in several ways. In addition to the open source logueSDK that allows users to build their own custom oscillators and effects, the hardware of the NTS-1 mkII can also be physically modified cosmetically and functionally. To help you get started with physical customization, we are providing the necessary schematics and instructions to personalize your NTS-1 mkII in many different ways!

Free bundle of music software

The NTS-1 mkII comes with a diverse variety of music software from Izotope including "Ozone Elements" which lets you not only create songs but also master them using AI, "Skoove" which will help you improve your keyboard playing skills, "Reason Lite" DAW software, as well as software synths from KORG and other brands.

In other words, the moment you get your hands on this synthesizer you'll have a variety of tools to help you take your music to the next level.

Specifications

Keyboard: Multitouch keyboard
Sound generator system: 1 VCO, 1 Multimode filter, 1 EG, 3 LFO
Effects: MOD (CHORUS, ENSEMBLE, PHASER, FLANGER, SOFT CLIP, HARD CLIP, SINE FOLD, FUZZ), REVERB, DELAY
Input/output jacks: Headphone / AUDIO OUT jack (3.5 mm stereo mini-phone jack), AUDIO IN jack (3.5 mm stereo mini-phone jack), SYNC OUT jack (3.5 mm TRS mini-phone jack, 3.3V output level), SYNC IN jack (3.5 mm TRS mini-phone jack, 20V maximum input level), MIDI OUT jack (3.5 mm TRS mini-phone jack), MIDI IN jack (3.5 mm TRS mini-phone jack), USB port (Type-C)
Power supply: USB bus powered
Current consumption: 500 mA or less
Dimensions (W × D × H): 129 × 78 × 39 mm /5.08"×3.07"×1.54"
Weight: 122 g/4.30 oz
Included items: USB cable, Assembly Instructions

Notes: Limited edition Stellar version of the excellent MiniFreak, Arturia's hybrid digital/analogue six-voice polysynth. Versatile and distinctive thanks to a wide range of digital oscillator engines.

Supplier's Notes:
Dark sky synthesis

MiniFreak Stellar is a special edition of the mighty polyphonic hybrid keyboard. The same dual digital sound engines, gnarly analogue filters, advanced modulation, sequencing and stereo effects, but with a dark intergalactic edge that will take your sound into deep space and beyond.

T Minus

2 Engines, 6 voices

The same powerful hybrid instrument loved the world over, redesigned to take your studio beyond convention and your sound, beyond the stratosphere.

Space age look

Discover a synth with a striking all-black exterior, decorated with stylish and characterful graphics that reflect the controls.

Hybrid polysynth power

With 2 engines, 6 voices and 23 oscillator modes, MiniFreak stellar is a compact synth powerhouse that just keeps getting better with ongoing free firmware updates.

Mirrored in software

Enjoy the same wild hybrid sound in your DAW of choice, complete with modelled analogue filters, with MiniFreak V, a like-for-like VST. Use the same presets physically or virtually, and tweak the VST with MiniFreak Stellar's controls for a seamless creative flow.

Outer space free bank

MiniFreak Stellar comes with a free sound bank designed for outer space sonic exploration.

Featuring a range of synths, leads, sequences and SFX - travel beyond the event horizon and discover an otherworldly realm of ambient and atmospheric sounds.

Dark Sky style

From the resonance UFO to the ADSR rocket launch - take command of your sound with an out-of-this-world attitude.

It's not just the sleek all-black keys that stand out. MiniFreak Stellar is adorned with playful graphics that bring the signal chain to life and symbolize the unique effect of each control.

Extraterrestrial Sound

MiniFreak Stellar comprises a vast constellation of sounds that unite, merge and mutate for totally playful and daring results.

From ethereal wavetable sweeps to gritty noise-driven textures, 8-bit superwave basslines to crisp Karplus-Strong plucked strings, combine MiniFreak Stellar's arsenal of 23 distinct engines in any way you see fit, for an impressive array of synthesis.


Between the proprietary algorithms and exclusive oscillator modes crafted by module-masters Noise Engineering and Mutable Instruments, a plethora of impactful and inspiring sounds await your discovery.

More than meets the eye

MiniFreak Stellar packs a punch with a range of scintillating digital and wavetable oscillators, cutting-edge FX and a simple-yet-powerful modulation matrix. But that's not all.

Inject movement and momentum into your sound design with advanced sequencing and arpeggiation, and seamlessly integrate with any DAW using MiniFreak's VST-twin.

Melodic propulsion

Effortlessly take your sound in a new direction.

MiniFreak Stellar's sequencer and arpeggiator allows you to lock variety into your patterns, introduce dramatic octave jumps, and drop-in repeats and mutations on the fly.

A sequence that never fully repeats, thanks to MiniFreak's Spice & Dice randomization and one-touch mutations.

Virtual Doppelganger

Explore the power of MiniFreak Stellar in your favorite DAW with mirrored sound and architecture.

MiniFreak V is a comprehensive standalone instrument, perfect for taking your Freak-infused production on-the-go, as well as offering seamless integration between hardware and software for a workflow that can suit your every need. Simply click Link to MiniFreak, and you're all set!

Platform Specifications

Windows
Win 10+ (64bit)
2.5 GHz CPU
4 GB RAM
2GB free hard disk space
OpenGL 2.0 compatible GPU
ARM processors not supported on Windows

Work with ASC
An elegant and simple solution to help you install, activate, and update your Arturia software instruments

Required configuration
VST, AAX, Audio Unit

What's in the box

Box content
MiniFreak Unit
Universal PSU - 12V 1A
USB A to USB 2.0
Registration card

Instrument dimensions

Size: 22.75 x 9.09 x 1.57 inches (578 x 231 x 55mm)
Weight: 6.48 lbs. (2.94 Kg)

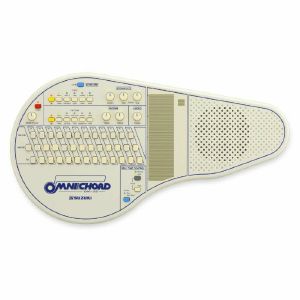

Notes: Suzuki's iconic Omnichord returns with the OM-108, a modern update of the classic formula featuring new digital synth sounds alongside the original omni1 and omni2 analogue synth circuits.

Supplier's notes:
Released in 1981, the Omnichord is an electronic musical instrument with an automatic accompaniment function (auto bass/chord) and equipped with a harp sensor. By pressing a chord button and sliding your finger on the harp sensor (strumplate), an arpeggio corresponding to the chord is heard, allowing anyone to easily accompany a song. Omnichord does not require any previous musical experience with an instrument, or even knowledge of staff notation. All that is needed are the chord names required to play a song which is a method commonly known as 'tab'. Combined with its portability, Omnichord became extremely popular, especially in Europe and America as a new musical instrument that anyone can enjoy - anywhere. In addition, due to the unique electronic sounds that are reminiscent of the 80's, and the tactile way musical expressions are achieved, Omnichord has developed cult status around the world. It not only appears in recorded music, but also publicity photos, and has featured in the titles of songs and albums. The Omnichord name was discontinued after the OM-300 (released in 1996), but its popularity as a unique musical instrument has endured the test of time, and now, over 40 years later the Omnichord returns with the OM-108.

Simply press a chord button and slide your finger on the strumplate. In this way, you can play accompaniment to almost any song on the very same day you first try the Omnichord!

Suzuki put a great deal of effort into the design of the Omnichord so that it accurately reproduces the sound of the OM-84, a model that is hailed as a masterpiece for its tone and versatility. To achieve this in the OM-108, Suzuki decided to apply the same method for sound creation as the OM84, incorporating real analogue circuitry into the new model. In total, the OM-108 is equipped with 10 types of strumplate tones, whilst "omni1" and "omni2" reproduce the classic sound of the OM-84, revived for future generations to enjoy.

The OM-108 includes a selection of timeless instrument tones that are both retro and current. The "celeste", "harp", and "piano" featured in previous models. The "FM piano" tone is new, this is an electric piano sound that helped define 1980s music. The OM-108 is equipped with. "omni1" and "omni2" which use real analogue circuitry. Other tones are reproduced using PCM sound generation.

There are 10 tones...omni1/omni2/harp/celeste/A.piano/guitar/FMpiano/organ /vibes/banjo(omni1 and omni2 have the same Main Voice but different Sub Voices).

The model OM-84 was equipped with two electronic harp tones, allowing the tones to be layered and played. OM-108 reproduces this function. A tone that sounds beautiful when layered with the Main Voice has been assigned as a Sub Voice. To control each layer, simply turn the appropriate Volume knob. This enables real time control changes adding expression to your sound.

Even though many rhythms included in the OM-108 share the same names as previous models, they have been updated to incorporate rhythm patterns that are current. Also, for the first time on Omnichord, a trap beat (Hip Hop) has been included. Suzuki have selected "usable" rhythms that will allow you to play a wider variety of songs.

There are 10 kinds of rhythm...rock1/rock2/slow rock/country/swing/disco/hip hop/funk/bossanova/waltz

The "sus4"' and "add9" chords, often used in popular music, have been added. It is now possible to play a total of 108 chord types, hence the model number 'OM-108'. The Omnichord has developed into an instrument that can be played more intuitively without having to substitute other chords.

Equipped with a wide type strumplate similar to models OM-100 onwards. Every corner of the plate responds sensitively to light touch, so you can concentrate on playing without stress.

In addition to the melody keyboard, the OM-108 is equipped with drum pad mode for the first time as a function (when the "KEYBOARD" button is pressed). Owners of the OM-108 will be pleased to note the drum pad is assigned not only to the chord button, but also to the strumplate. This allows for the creation of interesting beats using the OM-108 retro drum kits.

The OM-108 not only sends chords and strumplate data, but also drum performance information from MIDI OUT. Strumplate information can be sent on two MIDI channels, allowing you to layer tones with external MIDI sound sources, or to layer the OM-108 internal sounds with external sound sources. The OM-108 has evolved into an instrument that invites you to explore more creative sounds using MIDI.

The OM-108 includes rhythm voicing from the OM-84, which is extremely popular for its early 1980s retro sound. You can switch the rhythm tones between OM-108 and OM-84 by using a special 'power-on' operation.

Although it has a built-in speaker, the Omnichord is small, lightweight, and battery-powered*, making it easy to carry and play. Connect an external amplifier and headphones, and you can perform anywhere, such as in the studio, performing at a live venue, or just playing in your bedroom! *Powered by 8, AA batteries or dedicated AC adapter (both sold separately).

Using "REAL TIME CONTROL", the OM-108 integrates multiple functions for switching the way chords and rhythms are played. Whether you want to play at free tempo (without rhythm), add bass accompaniment, or start with a drum prelude, you can easily switch in real time even during a performance.

When connecting to an external speaker etc., you can turn on/off the sound produced by the speaker of the instrument. This is useful when you want to monitor your own sound during live performances. This is a new feature included on the OM-108 in direct response to user's requests.

Specifications

Chord buttons: 38
Chords: major, minor, 7th, major7th, minor7th, augmented, diminished, suspended4th, add9th
Voices: 10 tones (main, sub tones) / 4 octaves
Rhythm Pattern: 10 patterns
Control: Master Volume, Chord Volume, Main Voice Volume, Sub Voice Volume, Sustain, Rhythm Volume, Tempo
Button Controls: Power, Chord, KEYBOARD ON/OFF, Voice Select, Rhythm Select, Chord-Manual/Auto, Chord Hold, Rhythm-Start / Sync Start
Other Functions: Instant OFF, Transpose, Octave Shift, ON/OFF SPEAKER, Master Tuning
Speaker: 10cm
Amplifier output: 4.3W
Jack: DC inlet, LINE OUT (monaural standard), headphone output (Stereo mini), MIDI OUT
Power Supply: AC adapter, 8 AA alkaline or Ni-MH batteries (all sold separately)
Power consumption: 3.7W
Continuous battery operation time: Approximately 8 hours
Measurement: W45.7 x D25.0 x H5.18cm(17.99 x 9.84 x 2.04 in.)
Weight: 1.2kg(2.65lb)
Accessories: Melody keyboard overlayer

Accessories (sold separately, not included)

AC adapter 100-240V
AD1-1210A(100-120V)
AD3-1210A(220-240V)
Strap pin OSB-108
Gig Bag OGB-108

Notes: A clever take on generative sound, the Crum Hum is a three-voice soundscaping instrument, capable of creating unique melodic and harmonic tones based on 12 different sound engines.

Supplier's Notes:
Crum Hum is a 3-voice experimental and expressive soundscaping instrument with generative, ever evolving melodic and harmonic creation.

3 melodic voices with expressive touch control

12 different Sound engines

Generative & randomized melodic and chord generation

12 different Scales

Delay, Reverb, Overdrive, LFO

3.5mm CV output

3.5mm Clock input

Send and receive Midi sequencing and Midi CC.

Notes: No oscillators, 8 voice polyphony.

The Steampipe is a true physical modelling synthesizer developed in close collaboration with Dutch company 112.dB.

The Steampipe has no conventional oscillators. Instead, it mimics the way sound is created in wind instruments and it is fine-tuned to create a wide range of sounds - everything from wind instruments to strings, pipe organs, crazy effects and beyond. The Steampipe has three major sections - STEAM, PIPE and REVERBERATOR.

The STEAM section can be compared to the lungs and mouth of a musician. The generator creates the flow of air or "steam", the envelope in this section determines the force with which it is blown out. DC/noise is the noise you get when blowing out. DC/Noise on the Steampipe can also be replaced with an external audio source.

The PIPE section can be compared to a flute. In the pipe, the tune is formed. Push (in feedback) bounces the steam like it does in a flute and generates the tone. The delay box subsection changes the flute's tuning and shape.

The REVERBERATOR adds space and ambience to the sound.

The Steampipe is optimized for performance with wind MIDI controllers and it works great with any MIDI keyboard. The overtones the Steampipe produces are very organic and rich and it comes with great-sounding presets. The Steampipe is rather versatile and allows for nuanced sonic exploration, conjuring sonic imagery ranging from from wisps of cloud to fairground band organs, then to industrial horns of the railroad and finally, to massive, otherworldly ambiences.

Notes: Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications:

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY : unipolar, range of 0 to +5 volt
CV DELAY connector: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg

Notes: White fog version of Intellijel's brilliant Cascadia, one of our favourite synths of recent years. A huge range of semi-modular circuits combine to create a hands-on instrument with its own distinctive character.

Supplier's Notes:
A massive semi-modular system in a small case with the footprint of a laptop. Cascadia has MIDI in/out/thru/USB, Eurorack compatible signal levels and pro-level audio I/O to interface with the rest of your studio or get your studio started.

Modern Analogue Architecture

Cascadia is packed with a mix of classic East and West Coast synthesizer blocks. Normalized connections let you get straight to the sounds inside. Or, let your imagination run wild and patch any of the modules together however you choose. Make small tweaks to the architecture, or re-route the entire synth to your liking- the choice is yours!

Two Precision Analogue VCOs
VCO A is Thru-zero FM-ready with a dedicated Index VCA, Sub Oscillator, PWM and Soft/hard sync.
VCO B is a combo VCO/LFO with 4 simultaneous outputs
Six Channel Waveform Mixer
Two patchable (normalled) inputs
Noise generator with multiple algorithms.
Optional asymmetric soft clipping on the mix output.
Liquid-Sounding, Cascaded 4-Pole Multimode Filter
Eight Modes: LP1, LP2, LP4, BP2, BP4, HP4, NT2, Phazor.
Additional dedicated outputs for LP4 and HP4.
Input Level Knob for fine control of filter input and resonance balance and added drive.
Multiple FM inputs and a QM input, all with attenuators.

Wavefolder Circuit

West Coast-style parallel wavefolder.

Normalled into the auxiliary input on the VCA in parallel with the filter.

Dual Digital Envelopes

ENV A is a versatile east coast style ADSR / AHDSR envelope generator with a hold function and dynamic level/time control. Normalled to the VCA to instantly shape your sound.

ENV B is a complex, multimode function generator with a West Coast style AR/ASR/Cycling AR, a beat syncable LFO, Burst generator modes, and the Entropic Sequence Generator (added in 1.3). Normalled to the filter for instant FM without patching.

VCA A and Output Path

VCA A is a linear VCA with auxiliary input.
Global Output Mixer with overdrive circuit and bypassable asymmetric soft clipping.

Expansive Utilities Sections
Cascadia also features a whole host of utilities for getting the most out of your patches.

The Utility Row
Sample and hold circuit with white noise normalled to the input.

Slew/Envelope follower.
Attenuverter/Mixer with multiple outputs.

Triple triangle LFO with rate control, rate input and divided outputs.
Triple buffered multiple.

Precision adder.

Signal inverter.

Bi-polar > Unity level shifter.
Expression level control for modulation the TRS expression input on an FX pedal.

Ring Modulator.
VCA B / LPF (LPG) - Auxiliary VCA and 4-Pole Diode Ladder VCF combination for additional dynamics.

The Top Row
Easy to access Pitch, Gate, and Velocity CV inputs.
Pedal Send and Return FX loop with Wet/Dry control, phase inverter and Line/Pedal level switches.

Output Mixer with Overdrive.
Eurorack Level Main output with level control for interfacing with other modular gear.

The Outside world i MIDI, Pedal and Audio I/O
Cascadia is equipped with a ton of I/O to get it connected to the rest of your gear.

Rear Panel

1/4" Stereo Headphone jack.
1/4" Balanced Output Jack.
1/4" Balanced Input routed to a slider and output on the main panel for patching anywhere into Cascadia.
1/4" TS Pedal FX Send Return and 14" TRS Expression Out.
MIDI DIN In/Out/Thru and USB-MIDI all routed to the MIDI > CV Interface on the top panel.
MIDI > CV Interface
Deeper MIDI configuration is available with the Intelljel Config App. MPE Support has been added in v1.4 and supports the Ableton Live 12 Tuning systems. Dual Mono mode (added in 1.3) allows an additional channel to send it's own Pitch/Gate signal on the CC/MOD outputs. All modes support MIDI Portamento.

MIDI Pitch / Velocity Outputs and Learn Button
MIDI Gate / Trig Outputs
MIDI CC / Mod - Learnable and assignable to any CC or Channel Pressure
MIDI LFO - Multimode LFO synced with MIDI or Tap Clock
MIDI CLK - Dividable MIDI clock with alternate Tap Clock functionality.
Cascadia comes ready to play.
The normalization behind the panel allows for a ton of exploration without ever adding a patch cable; there is years of material to explore in Cascadia and years more when you start patching. Everything you need to get started is included: 14 assorted patch cables, USB-A to USB-C cable, and an international power supply.

Expand and Customize
In addition to additional patch cables, there are great additional options for swapping the wooden cheeks for metal side cheeks or a rackmount kit with a storage tray- great for an effects pedal or patch cables.

Specs

In the Box: Cascadia Semi-modular Synthesizer
14 Patch cables - 4×10cm, 4×15cm, 4×30cm, 2×45cm
USB-C to A cable
Intellijel cable tie
15V/1.2A AC Adaptor (Euro/American prongs included)

Height: 66mm (from rubber foot to top of knobs)
Width: 348mm (including wood end cheeks)
Depth: 246mm (front to rear jacks).
Power: 15V DC/1.0 A (minimum), centre-pin-positive.

Notes: All the power of the Opsix MkII in a convenient desktop/rack format. The Opsix's intuitive approach brings FM synthesis crashing into the 21st century, including full support for MIDI 2.0 property exchange and poly aftertouch.

Supplier's Notes:
A new modular model that revolutionizes the music production environment.

Opsix Module is a digital synth like no other. The Opsix Operator Mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.

Now, Korg has created a new form of Opsix, the module. This model supports MIDI 2.0 property exchange and poly aftertouch, and is an excellent companion to Keystage. It's also fully compatible with the sounds of the original Opsix, Opsix mk II, Opsix SE, and Opsix native software, as well as numerous excellent third-party libraries, keeping the updated sounds and software fresh. The new 19" rack-mountable enclosure has the same controls as the keyed models, yet is easily transportable and fits neatly into any studio or desktop production system.

MIDI 2.0 Property Exchange and Polyphonic Aftertouch support

With the latest software updates, all models of Opsix, hardware and software, now support MIDI 2.0 Property Exchange. Hundreds of the original factory sounds have been updated to include Polyphonic Aftertouch modulation (Channel Aftertouch is supported as well). All of this makes the Opsix module an excellent companion to KORG's Keystage controller.

Rack-Mount and Desktop

The Opsix module is cleverly designed for both desktop and rack-mount use. The panel is redesigned to fit into a standard 19" width, and the rear jack panel is recessed to allow easy access to cables even with gear mounted directly above. With desktop setups, brackets offer a choice of panel angles: flatter for performing standing up, or more upright for working while seated in your studio.

Many musicians have requested a module version of the Opsix. Now that components are once again available after a long period of supply-chain disruption, KORG is pleased to make that request a reality.

Main Specifications
Maximum Polyphony: 80 voices
Dimensions (W x D x H): 482 x 172 x 104 mm / 19.02 x 6.77 x 4.09 inch
Weight: 1.7 kg / 3.75 lbs.
Accessories: AC adapter

Sound generating system: Altered FM sound generator
Structure: 6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
Algorithm: 40 presets + user algorithm (unique to each program)
Operator: 6 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder, Effect)
Oscillator waveform: 23 waveforms (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White, Noise Pink, Noise Blue)
Filter: 11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)
EG: ADSR
LFO: 23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
V.Patch: 12 routings
Effect: 30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
Sequencer: Step Sequencer (up to 16 steps, up to 6 notes per step)
Motion Sequencer (up to 6 lanes)
Arpeggiator: 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)
Number of programs: 500 (350 preset programs and 150 user programs as the factory-set default)
Favourite: 64 (16 Slots × 4 Banks)
Controllers: MODULATION wheel, PITCH wheel, RATIO OP 1-6 knobs, LEVEL OP 1-6 sliders, DATA ENTRY A-F knobs

Inputs/outputs:
Headphone (6.3 mm stereo phone jack)
OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks)
DAMPER (6.3 mm phone jack, half-damper not supported)
MIDI IN and OUT connectors
USB B port

Notes: One of the best synths money can buy. Hugely expressive PolyBrute engine expands to 12 voices with the same beguiling combination of FullTouch keyboard, Morphee control and ribbon strip. Immense

Supplier's Notes:
Unleashing the full power of PolyBrute

Continuing the legacy of its predecessor as one of the most powerful and expressive analogue synths ever made, PolyBrute 12 goes a step further.

A multi-faceted tool for musical expression, PolyBrute 12 lets you seamlessly evolve and control any parameters while playing. The input-perfect sensitivity of the keyboard, the bi-timbral morphing presets, the multi-axis Morphee controller, the Ribbon controller - all work in perfect harmony so you can breathe vitality and intricate dynamics into your sound.

PolyBrute's in-the-moment sonic display would not be possible without the raw energy of its Brute oscillators and dual enhanced classic filters. This, combined with its intuitive interface, elegant modulation Matrix and advanced software companion make PolyBrute 12 a synth for the ages - a matrimony of Brute force and human touch.

Full touch, full control

Discover a next-generation keybed and new aftertouch modes that bring you into a direct and tactile connection with your sound.

PolyBrute's patented FullTouch keyboard provides the exact position of every key across the entire range of movement. This not only allows for precise and dynamic aftertouch expression but it also puts versatility at PolyBrute's core - allowing you to go from regular playing modes to exceptional aftertouch and envelope control at the touch of a button.

You can also use PolyBrute 12 to control any MPE-compatible VST. If you don't have a MPE compatible DAW, you can still record expressively using MIDI 1.0, although at a lower resolution.

Mono Aftertouch

In this mode, the note is triggered by regular keyboard velocity and the classic aftertouch area corresponds to an assignable aftertouch signal, where all the voices receive the same level and amount of expression. Great for applying a unified modulation effect to a chord or phrase.

Morph between sonic worlds

Seamlessly blend from one patch to another and find that perfect middle ground

Each preset is made up of two sonic states, A & B. A dedicated Morph knob lets you seamlessly explore a continuum of sound between them. This, combined with the Morphee controller and PolyBrute's keyboard, paves the way for endless patch evolution and expressivity.

Analogue heart, seismic sound

PolyBrute's sound begins with two analogue VCOs sharing much of the same sonic architecture that has made the Brute family renowned.

Each oscillator generates sawtooth, triangle and square waves simultaneously, and you can mix between them to shape just the right signal source and timbre.

Dial in VCO 1's Metalizer wavefolding to escalate from pure to punchy. Bring in VCO 2's sub-oscillator to add an extra lower octave and some added rumble.

Dial in edgy FM effects by modulating VCO 1's frequency with VCO 2, or subtly alter a continuous range of harmonics with soft or hard sync.

1 VCF 1 Steiner

A 2-pole 12db/octave Steiner filter design with continuous sweepable slope types, as seen across the Brute range. The addition of the proprietary Brute Factor feedback control lets you add anything from subtle warmth to a electrified growl.

2 VCF 1 Ladder

Inspired by Dr. Bob Moog's legendary 4-pole 24db/octave ladder design. A low-pass classic, with added gain compensation and asymmetrical distortion to add upfront grit to your polyphonic patches.

Modern modulation sources

Modulation has always been essential in animating synth sounds.

PolyBrute weaves a web of envelopes and LFOs that's intricate and unpredictable in equal measure - a dynamic display of sonic motion.

Three Envelope Generators

PolyBrute's VCF and VCA have velocity-sensitive ADSR envelopes hardwired outside the Matrix for instant gratification. The third Envelope Generator features a delay stage (DADSR) and can be assigned to sculpt any Matrix modulation targets. Use the various repeat and loop modes to add complex movement to your patches.

Three Envelope Generators

PolyBrute's VCF and VCA have velocity-sensitive ADSR envelopes hardwired outside the Matrix for instant gratification. The third Envelope Generator features a delay stage (DADSR) and can be assigned to sculpt any Matrix modulation targets. Use the various repeat and loop modes to add complex movement to your patches.

Three LFOs

PolyBrute's three syncable LFOs span an extremely wide range - facilitating anything from beautiful evolving soundscapes to clangorous audio-range modulation. Options for waveshaping, polarity and retriggering let you take your sound way outside the box. Experiment with Matrix routing and tempo/MIDI sync for hyper-rhythmic effects.

Enter the matrix

The flexibility of modular patching combined with digital precision and analogue richness makes for a transcendent polysynth experience.

32 target parameters, 64 connections in total. Rearrange PolyBrute's signal chain with the touch of a single button. Dial in positive or negative amounts, intuitively assign one or more destinations via any relevant controls, instantly route PolyBrute's array of performance controllers and advanced modulation sources to influence just about anything in the instrument's chain - all without a convoluted array of wires.

But the Matrix doesn't just take care of PolyBrute's all-encompassing modulation routing - it's the centrepiece of every aspect of its architecture. In Presets mode, use the Matrix to select any of the 768 patch memory locations. Morph mode accesses advanced morph state editing. Sequencer mode transforms the Matrix into an intuitive visual pattern editor.

Main Features

61-keys with FullTouchr MPE Technology keyboard
Pitch Bend, Mod Wheel, Ribbon controllers
Morphee touch and pressure sensitive 3D controller
Osc and Noise Mixer with Filter routing
12dB/Oct Steiner Parker Filter

Continuous LP>Notch>HP>BP morphing
Cutoff, Resonance, Brute Factor

24dB/Oct Ladder Filter with Distortion
Three Envelopes
Looping capability
Two ADSR
One DADSR
Three stereo digital effects
Modulation FX : Chorus, Phaser, Flanger, Ring Modulation
Delay : 9 algorithms including BBD, Digital delay
Reverb : 9 algorithms including Hall, Plate, Spring, Shimmer
Distortions : Subtle Tape, Classic Distortion, Soft Clip, Worn Out Tape, Germanium, BitCrusher, DownSampler
Arpeggiator, Matrix Arpeggiator, Sequencer
Stereo audio output
2 expression and 1 sustain pedal inputs
Two Analogue VCO's
Saw
Triangle + Metalizer
Square + Pulse Width
Sub
Linear FM
Hard Sync
Noise Generator
Continuous tone from rumble noise to white noise
Three LFOs
LFO1 and LFO2 with waveform selection
LFO3 with waveform shaping using Shape and Symmetry
Rate control & Tempo Sync
Various retrig options
480 presets and 768 preset slots
12x32 Modulation Matrix
Notes, Accent, Slide per step
3 tracks of automation
MIDI and USB I/O + analogue clock I/O

Platform specifications

Windows
Win 10+ (64bit)
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost)
3GB free hard disk space
OpenGL 2.0 compatible GPU
ARM processors not supported on Windows

Apple
Mac OS 11+
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost) or M1 CPU
3GB free hard disk space
OpenGL 2.0 compatible GPU

Required configuration
Works in Standalone, VST, AAX, Audio Unit.

Work with ASC
An elegant and simple solution to help you install, activate, and update your Arturia software instruments.

What's in the box

Box content

PolyBrute 12 Unit
Power Cord
User Manual
Registration Card

Instrument dimensions
Size : 38.3 x 17.1 x 6.1 inches (972 x 435 x 156mm)
Weight : 50.7lbs (23kg)

Notes: SOLAR 42F is a unique experimental electro-music instrument, an analogue microtonal ambient drone machine. It will inspire you to find a new and spontaneous approach to composing music. It gives you the ability to create a multi-layered, massive sound. The instrument is oriented for live performances, creating film soundtracks, theatre soundtracks, atmospheric sounds, microtonal and background music.

It is an improved version of the older SOLAR 50 model. The instrument was inspired by early electronic musical instruments of the 1920s and 1950s, notably Leo Theremin's "Harmonium" instrument, as well as science fiction film soundtracks.

The new version of the Solar 42F has added a LIN/EXP CV switch, sub oscillators in volt octave voices and a band pass and stereo distortion mode to the filter. Other quality of life improvements include modified graphics - inputs have been labeled in black and outputs in red for convenience - bypasses for each channel of the effector and a LED indication in the joystick unit.

Notes: Pink version of Soma's excellent Lyra-8. Brilliantly unusual synth based on eight analogue tone generators, functioning more like an electric organ or FM synth than a conventional subtractive architecture. Unique sound.

Supplier's Notes:
Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Notes: Building on Supercritical's back catalogue, the Redshift provides a range of characters, based around the Demon Core Oscillator and Neutron Flux Filter. Six-voice analogue design with multitimbral options, MPE control and DSP effects.

Supplier's Notes:
Supercritical Synthesizers introduces their first desktop instrument, Redshift 6 - six voice analogue Variable Character Synthesizer

Supermassively dense analogue oscillator combined with a chameleon analogue filter with versatile gain staging. Now sixfold.

Redshift 6 combines technology from the company's previous products, the Demon Core Oscillator and the Neutron Flux Filter. Each of the six voices features a DCO with analogue waveforms generated under digital control. The filter core is an analogue 4-pole state variable filter also digitally controlled to act like almost any classic vintage synthesizer filter and more. In addition to the oscillators and filters, Redshift 6 has all the features expected of a modern synth - plenty of modulators, flexible voice routing, multitimbrality, MPE, and DSP effects.

Redshift 6's idea is something that is wrapped in the moniker "Variable Character Synthesizer". Each voice's analogue path regarding tuning, gain staging, filter, and more is under strict digital control. Redshift 6 has as lush and warm sweet spot inspired by the analogue polysynth tradition, but it can also cover the full range from almost digitally sterile and clean to distorted misbehaviour and beyond. No modelling here - it's all analogue until the bypassable stereo DSP effects processor.

The oscillator, already road-tested in the Demon Core Oscillator eurorack module, is featured in each of the six voices. The oscillator has multiple tricks up its sleeve, each one wrapped as an Engine for the user to choose between. Traditional twin oscillator engines, supersaw engines, flanging phase sync engines, and transistor organ engines are all powerful modes in user-friendly ways that are easily controllable and modulatable.

Redshift 6's six voices can be configured in plenty of ways. Choose between true six-voice polyphony, classic vintage poly dual layer mode with 3+3 voices, six individual voices each with their own patch and physical output, or any combination of the above. Each of the six voices can also operate as a paraphonic voice with up to 16 note paraphony. Additionally, multiple filters can be chained by routing audio from one voice to another.

The form factor of Redshift 6 is a modern, compact desktop device with a 2.7-inch colour screen. Menu diving is reduced to a minimum, with quick navigation via the shortcut button grid. A selection of familiar synth controls are featured on the front panel. A macro mode is included with six user-assignable controls. The back panel features main audio outputs with a DSP effects processor and four auxiliary voice outputs.

One of the major design principles of Redshift 6 is to have a versatile and capable analogue platform and a flexible UI for new Engines, easily updateable via software updates.

Supercritical Redshift 6 Desktop synthesizer module

Technical specifications

Six voices each featuring:
Full analogue signal chain
Digitally controlled analogue Supercritical Demon Core Oscillator
Analog four pole Variable Character Filter
Flexible gain staging with an analogue boost circuit
Physical audio output per voice (2 main outputs and 4 aux outputs)
Optional voice chaining
Bypassable digital effects in main outputs 1-2
2.7" TFT IPS colour screen with a bank of 8 endless clickable potentiometers and quick navigation via button grid
Quick powerful controls for oscillators and filters.
Six user-assignable macro controls
Six parts multitimbral
Modern MIDI implementation with USB-B connection and DIN IN/OUT
MPE
12V power supply
Physical dimensions: 378 mm x 254 mm x 63 mm

Notes: Typically creative stuff from Pittsburgh Modular, the updated Voltage Lab is the pinnacle of the brand's synth output. Dual oscillator design with a 16-note touch controller, built-in sequencer and MIDI control.

Supplier's Notes:
The Pittsburgh Modular Voltage Lab 2 is a cutting edge synthesis laboratory that offers a new palette of analogue textures and waveforms to sonic researchers. Newly developed wave shaping capabilities paired with powerful synthesis tools, and a deep, performance oriented controller join together to create a complete sound design laboratory. This instrument has a very physical sound. The tones it creates feel natural and alive, with traditional waveforms becoming the seeds of unique new shapes and sounds that shift between analogue physical modeling and more unfamiliar, abstract timbres.

Laboratory Oscillator 1

Voltage Lab 2 includes a pair of Laboratory Oscillators. Each with a unique set of newly invented waveshaping tools designed to expand the sonic potential of analogue synthesis. Laboratory Oscillator 1 introduces Center Clipping to analogue synthesis. Center clipping unlocks independent control over the top and bottom of the waveform, allowing for detailed manipulation of harmonics and timbre without affecting pitch. It does this by processing waveforms from the center out as opposed to traditional methods which work from the peaks inwards.

Laboratory Oscillator 2

Laboratory Oscillator 2 introduces a host of new sonic possibilities with two new waveshapers. Pulse Symmetry and Reflection. Pulse Symmetry creates a new species of pulse wave that adds a step between the top and bottom of the waveform. The resulting wave looks like a set of stairs where the depth of the center step can be adjusted in addition to the pulse width. Wave Reflection takes the bottom half of the waveform and reflects it onto the top half. Each waveshape responds to this differently. For example, a saw wave morphs into a triangle while triangle and sine waves lose their fundamental harmonic and jump up an octave.

Pittsburgh Dynamics Controllers

The new Dynamics technology imparts Voltage Lab 2 with a uniquely organic depth and presence. By simultaneously managing both amplitude and harmonic content, the Pittsburgh Dynamics Controller expands beyond the one dimensional VCA found in other synthesizers. It does this by utilizing new advancements from traditional low pass gates to add additional definition and dimension to the voices of the Voltage Lab 2.

When used in low pass gate mode, sounds shed harmonic content and become warmer as they decrease in volume. This mimics how sound waves react to their environment. Because of this connection, the Voltage Lab 2 sounds more natural or complex compared to other instruments.

Touch Controller 2

The Touch Controller 2 enables artists to blend traditional pitched performances with the freedom to openly experiment, creating a flexible playground for music creation. Two independent channels offer a combination of real time, expressive playing and in-depth sequencing. Assignable scales, step conditions, jumps, chance effects, generative sequencing, and a host of other tools, come together allowing musicians to both create and interact with complex systems.

A Florist and Echos

The Voltage Lab 2 includes a set of analogue time based effects, Florist and Echos. The Florist is a flanger/chorus hybrid that focuses on brighter, short time shifts with highly controlled feedback allowing for maximum ringing before self oscillation. Echos is a more traditional, darker analogue BBD delay that also utilizes highly controlled feedback to provide a larger number of repeats before falling into self oscillation. Both effects are perfect for traditional workflows and unconventional experimentation.

Complete Set of Modular Tools

The Voltage Lab 2 includes a host of fully modular, analogue and digital synthesis tools to support and enhance it's core functionality. Analog tools include flexible mixers, a pair of complex function generators, noise, sample and hold, and an LFO. Digital tools cover external MIDI, arpeggiator, and a robust chance sequencer. The Voltage Lab 2 toolset is deep enough for all types of sonic experiments.

Notes: The excellent Wavestate MkII gets a desktop/rack module spin-off. Exceptional value from this 96-voice Wave Sequencing synth, excelling at everything from glossy, modulated pads through to organic, evolving baselines.

Supplier's Notes:
A new modular model that makes a big difference in the music production environment.

Introducing the Wavestate module - all of the features of the Wavestate mkII in a compact 19" desktop/rackmount package.

In 2020, the acclaimed Wavestate brought KORG's Wave Sequencing to the next level. Featuring the radically re-imagined Wave Sequencing 2.0, the Wavestate delivers astonishing, ever-changing sounds with extensive hands-on control. Far from a nostalgic reissue, the Wavestate was designed from the ground up for a new generation of musicians, producers, and composers, taking cues from sources as diverse as modular synths, groove boxes, and algorithmic composition.

120 voices of polyphony, updated LFOs, and more

Taking full advantage of both a new enclosure design and new processing hardware, the Wavestate module provides an impressive 120 stereo voices of polyphony. The new 4U rack-mount enclosure has the same controls as the keyboard models, yet is easily transportable and fits neatly into any studio or desktop production system.

Responding to user requests, we've also updated all LFOs with options for free running, delayed start, and retriggering, added new modulation sources, and more. A software update will also be available for the original Wavestate.

The Wavestate module is fully compatible with the sounds and samples of the original Wavestate, Wavestate mk II, Wavestate SE, and Wavestate native software, as well as many excellent third-party libraries.

MIDI 2.0 Property Exchange and Polyphonic Aftertouch support

With the latest software updates, all models of Wavestate, hardware and software, now support MIDI 2.0 Property Exchange. Hundreds of the original factory sounds have been updated to include Polyphonic Aftertouch modulation (Channel Aftertouch is supported as well). All of this makes the Wavestate module an excellent companion to KORG's Keystage controller.

Rack-Mount and Desktop

The Wavestate module is cleverly designed for both desktop and rack-mount use. The panel is redesigned to fit into a standard 19" width, and the rear jack panel is recessed to allow easy access to cables even with gear mounted directly above. With desktop setups, brackets offer a choice of panel angles: flatter for performing standing up, or more upright for working while seated in your studio.

Many musicians have requested a module version of the wavestate. Now that components are once again available after a long period of supply-chain disruption, KORG is pleased to make that request a reality.

Main Specifications

Maximum Polyphony: 120 stereo voices
Dimensions (W x D x H): 483 x 172 x 113 mm / 19.02 x 6.77 x 4.45 inch
Weight: 1.7 kg / 3.75 lbs.
Accessories: AC adapter
Sound generating system: Wave Sequencing 2.0
Maximum Polyphony: 96 stereo voices
Sounds: Ships with 261 Performances, 799 Programs, and 1,042 Wave Sequences
Storage for tens of thousands of user Performances Structure

Performance

4 Layers, Reverb, EQ; all edits are stored in the Performance, DAW-style (saving as separate Programs, Wave Sequences etc. is supported but not required)
Layer: Program, Arpeggiator, Key and Velocity Zones
Program: Wave Sequence, Filter, Amp, Pre FX, Mod FX, Delay
Filters: 2-pole LPF, 2-pole HPF, 2-pole BPF, 2-pole Band Reject, 4-pole LPF, 4-pole HPF, 4-pole BPF, 4-pole Band Reject, Multi Filter, MS-20 LPF, MS-20 HPF, Polysix
Modulation: Controllers
Mod Wheel, Pitch Wheel, Vector Joystick X/Y, 8x Program/Performance Mod Knobs
Other Sources: 3x Envelopes, Vector Envelope, 3x LFOs, 2x Mod Processors, 2x Key Track, Step Sequencer Lane, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate/Gate+Damper, Note-On Trigger/Note-On Trigger+Damper, Note Number, Aftertouch/Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +
Destinations: Most parameters can be modulated, including parameters of individual Wave Sequence Steps. Depending on Wave Sequence length, there can be more than 1,000 potential modulation targets per Program.

Effects

Pre FX: Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper
Mod FX: Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah
Delay: L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo
Reverb: Early Reflections, Overb
Performance EQ: 4-band parametric EQ

Inputs/outputs: Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack), MIDI IN and OUT connectors, USB B port
Power supply: AC adapter (DC12V, 2500mA)
Power consumption: 5 W
Dimensions (W x D x H): 565 x 338 x 92 mm/22.24" x 13.31" x 3.62"
Weight: 2.9 kg/6.93 lb.

Included items

AC adapter
Accessories (sold separately)
DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch

Notes: Limited-edition orange version of the superb Hydrasynth Explorer. A smaller, more affordable version of the Hydrasynth Keyboard. Advanced wavetable synthesis with 8-voice polyphony, hands-on control and an excellent keybed with polyphonic aftertouch.

Supplier's Notes:
The HYDRASYNTH EXPLORER is the ultimate in power and portability, combining the powerful Hydrasynth sound engine with battery-powered operation and the new, mid-sized Polytouch polyphonic aftertouch keybed. The user interface is designed with the utmost attention to detail, making sound creation a breeze. This is the ultimate, portable companion for any setup, and anywhere else a smaller footprint is needed.

With an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutants, and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.

As for the performance capabilities, the Hydrasynth Explorer has the proprietary 37-note mid-sized Polytouch keybed with polyphonic aftertouch. This provides a level of expressive, per-note control found only in certain vintage synths.

Polytouch Keybed

The perennial pursuit of musical instrument manufacturers is to find better ways for musicians to express themselves. Options have been limited for keyboard players; ASM had to settle for a velocity-only approach to emphasize one note over another. Pressure-sensitive keyboards could only change all of the notes at the same time. Not anymore!

Enter ASM, with patented Polytouch technology. The semi-weighted keybed on the Hydrasynth Explorer provides fully polyphonic aftertouch, as well as Note On / Note Off velocity sensitivity and the monophonic aftertouch found on other keybeds. Finally, variations in key pressure can affect notes individually. It feels great, too: the 37-note Polytouch keybed on the Explorer features high quality, mid-sized keys, and you will feel right at home, right away. The revolutionary Hydrasynth Explorer Polytouch keyboard helps you be more in touch with the music you are making. Now every note you play can ebb and flow like the tide.

Battery-powered operation

The Hydrasynth Explorer is highly portable! In addition to its compact size, it can be powered by 8 AA batteries for hours of music-making anywhere you want to go.

Oscillators
The tone generation capability is the heart of any synthesizer, and the 3 Hydrasynth oscillators are alive with potential. Each of the oscillators lets you choose from a selection of 219 single-cycle waveforms. And on top of that, two of the oscillators have powerful wavemorphing capabilities. Wavemorphing is a feature usually found on synths with preset wavetables. But creating user wavetables on those products is arduous or downright impossible. Unlike most wavetable synths, the oscillators 1 & 2 have an easy-to-use WAVELIST mode. This mode lets you select any 8 waves from the diverse collection of 219 waves, arrange them in the order you want, and then morph from one wave to another. This can be done automatically with any modulation source, such as an LFO or an envelope, or manually with a physical control such as polyphonic aftertouch or a Macro. And now in version 2.0 you can choose the bit depth of each oscillator, which puts those sought-after vintage or grungy sounds at your fingertips.

Mutants
Oscillators 1 & 2 are routed into ASM's MUTANTS. The Mutants allow you to modulate, bend and sculpt the sound in new (and old) ways.

Each Mutant lets you choose from the following processes:
FM-Linear: This is for making classic FM sounds. Choose multiple FM sources, including external inputs.
WavStack™: Creates 5 copies of the input source and allows you to set a detune amount.
Osc Sync: This gives you those classic hard sync sounds. Try hard-syncing a morphing wavetable for some fun.
Pulse Width Modulation (PW-Orig): Performs the classic pulse width modulation on any waveform.
PW-Squeeze: Compresses the centre section of the waveform, for a unique type of PWM.
PW-ASM: Divides the incoming wave into 8 slices and lets you set the amount of FM that is applied to each segment. This is FM unleashed.
Harmonic Sweep: This will sweep the harmonics of the input source.
PhazDiff: Generates the difference of the incoming wave and a version that is inverted and phase-shifted.

The Mutants can also generate their own waveforms in both FM and Sync modes, so you don't have use another oscillator. Of course, the routing is flexible so you can choose the other oscillators as mod sources if you like.

Mixer / Filter Routing
The 3 Oscillators are fed into a mixer along with the Noise generator and Ring Modulator. The mixer gives you independent control over the levels and stereo positions of those 5 sources. After this you are able to choose how much signal from each source is routed to filters 1 and 2. The filters can be routed in parallel or series for ultimate flexibility. Who knew that a simple mixer could be so powerful?

Filters
If oscillators and tone generators are the heart of a synthesizer, the filters are the soul. The soul of a Hydrasynth is a complex thing; it can claw or caress, scream or soothe, mangle or melt. It has been known to speak. The multi-faceted Hydrasynth filters are right in the thick of it. Filter 1 has 16 different models ranging from 1 to 8 poles, many with high-, band-, and low pass options. There is also a flexible vocal filter with formant control. Even if Filter 1 were the only filter the Hydrasynth had, it would take a lifetime to exhaust the possibilities. But it is not alone. Filter 2 is a 12dB per octave state-variable filter, which means it can sweep continuously from either low pass > bandpass > high pass or low pass > notch > high pass. It is similar to the classic SEM filter in many ways.
These two formidable filters can be configured in series or parallel. This means the one can feed and be sculpted by the other (series), or they can complement one another (parallel). With careful use of source panning in the Mixer module, the left and right outputs can be completely different or rich in unified complexity.

LFO's
5 Low-Frequency Oscillators
Much like ASM's sound engine, the LFOs are not ordinary by any means.
The Hydrasynth LFOs feature a STEP mode that lets you create patterns with up to 64 steps. Having 5 mini step sequencers gives you an amazing number of possibilities for further shaping your sound.
Of course, there are also 10 standard waveforms available, including Sample and Hold, Noise, and Random.
Each LFO has delay, fade in, 3 triggering modes, smoothing, start phase, BPM sync, and a One-Shot mode so that they can act as envelopes.
The version 2.0 LFOs have some exciting new features, including a Step option for the One-Shot mode that allows the Step wave to advance by one step per trigger.
And LFOs now can be quantized to create stepped values. It's like bit reduction for your LFOs.
Wait...LFOs can be envelopes?! Can envelopes be LFOs? Glad you asked...

Envelopes
5 DAHDSR Envelopes
An advanced sound engine needs plenty of modulation sources. The 6-stage envelopes feature Delay, Attack, Hold, Decay, Sustain, and Release stages.
The durations of the ADR stages can be set to seconds or subdivisions of the tempo, giving you envelopes that play in sync to your song.
In fact, you can also loop the envelopes, which turns them into LFOs that can be shaped by any source in the modulation matrix.
Each envelope can be triggered by up to four different sources, and there's a Tap Trigger option too.
And now the envelopes can be quantized to different step levels as of version 2.0. Bit reduction strikes again!

Modulation Matrix
The modulation capabilities on the Hydrasynth are endless. With 32 user-definable Modulation matrix slots, there are plenty of ways to use the 35 modulation sources and 191 modulation destinations. Almost everything in the synth engine can be a modulation destination, including the effects and arpeggiator. The modulation routes themselves can also become modulation destinations, and can be targeted by the Macros too. Modulation sources & destinations include the CV Mod Out jacks as well as all 128 MIDI CCs. There are some hard-wired modulation routes located in other modules too. This means you don't have to burn up one of the 32 mod routes in the Modulation matrix to do certain basic functions.

Arpeggiator
The arpeggiator has all the standard arpeggio directions plus a few twists (up, down, and/or sideways, sort of). There's also a built-in phrase mode, and version 2.0 adds new features like Step Offset and increases the range to 6 octaves. Parameters like RATCHET and CHANCE will generate other semi-random rhythmic patterns to add life and spontaneity to your performance.
You can also modulate most of the parameters in the arpeggiator. Imagine using LFOs, Envelopes, Polyphonic Aftertouch or the Ribbon controller to modify your arpeggios in real time! It boggles the mind.

Notes: A creative approach to video synthesis courtesy of Critter & Guitari, the Eyesy generates real-time visuals to accompany a musical sound source. Deeper programming options allow you to control the graphics, trigger changes via MIDI or even code your own patterns.

Supplier's Notes:
Welcome to the world of the EYESY - Critter & Guitari's video synthesizer! The EYESY reacts to your music to create endlessly mesmerizing visuals. Simply plug it in and start creating. But don't be fooled by the simplicity of the EYESY, there are many features and goodies hidden inside. Whether you are creating live visuals, working on a music video, or want to program your own graphics, the EYESY will become an indispensable tool.

Modes

The EYESY comes with numerous pattern generators called modes.

Navigate the modes using buttons, and then tweak their visual appearance using five knobs. The modes respond to audio input in various ways; from smooth undulating patterns to rapid fire animations. The controls allow you to effect various elements of the patterns and colours. There is also a setting that allows the graphics to pile up in vibrant collages.

Save and Load

Store your current settings and screen grabs.

When you happen upon a setting that you like, press the scene save button to save it. This scene can now be recalled at a future time.

You can press the screen grab button to take a picture of the current frame, providing a quick way to generate interesting still images from your moving videos. Access all of your screen grabs from the browser-based interface.

MIDI Input

The EYESY's USB-MIDI & TRS-MIDI inputs offer a wide range of controllability.

Incoming MIDI Notes and Clock can change a mode's behaviour. The knobs can automated by sending MIDI controller messages from a sequencer or your favourite performance software. Program Change messages may also be sent to select your saved scenes.

Customise

Curate your EYESY for you.

You can add and remove the pattern generating modes to make the device as simple or complex as you like. The saved scenes are stored in a single file that can be saved and edited. All of the resources are managed through a simple-to-use web browser-based interface.

Coding

If you really want to go deep, you can also program your own modes for the EYESY.

Edit and create your own modes! The modes are all open source and based on an open platform. You can make changes to the modes and create new modes using the browser-based editor. Modes are written in the Python programming language.

Included items:

Power Supply:
Input: 100-240VAC @ 50/60Hz. Output: 9VDC, 1.3A, Center-positive polarity.
USB-WiFi Adapter (Ralink 5370 Chipset, 2.4GHz)

Included storage:
A microSD card holds the operating system and modes. There is ~4GB for available for mode storage.

Notes: Drawing on the iconic Mono/Poly synth from 1981, the Multi/Poly reimagines Korg's heritage for the 21st century. Super versatile analogue modelling engine allows you to create unique synth voicings.

Supplier's Notes:
Explore breathtaking analogue-inspired sound with the limitless power of digital technology. The multi/poly is the first synthesizer to use Korg's next-generation analogue modelling technology, building on the distinctive combination of big, bold sounds and modular-derived experimental features that made the Mono/Poly legendary. It's like having a polyphonic modular system in a compact, hands-on package, offering limitless possibilities for sound designers and synth enthusiasts alike.

Create hardware mashups with East-coast, West-coast, and wavetable oscillators alongside a wide selection of newly modelled filters. Bring these sounds to life with models of different envelopes, VCAs, and portamento circuits, while virtual voice cards add organic timbral variation. The Layer Rotate feature triggers new Programs with each key press, while Kaoss Physics, Motion Sequencing 2.0, massive modulation capabilities, and more allow for deep sound exploration.

Next-Level Analogue Modelling

multi/poly features redesigned, incredibly detailed filters and oscillators, and advances in analogue modelling that take this technology to a new level. Each voice contains a Virtual Voice Card, where oscillators, filters, envelopes, LFOs, and portamento circuits are modelled to reflect analogue hardware component variations. As a result, each voice can have its own slightly different character, creating rich and naturally evolving timbres. Just like in an analogue synthesizer, voice cards continue to play even if you're not hearing them. Envelopes evolve naturally, meaning if you play a long pad with an extended-release time, newly played notes "catch" the envelope at its current state rather than restarting from zero. Oscillators and LFOs maintain phase, while resonance continues to ring out. Pitch drift mimics the subtle instabilities of true analogue hardware.

multi/poly also includes envelope curvature presets inspired by classic synths like the Mono/Poly, MS-20, ARP Odyssey, and Prophet 5. Additionally, analogue VCAs behave differently depending on voltage, with varying thresholds for turning on and off, which has a strong impact on the Amp Envelope's character. multi/poly models VCA responses from the Mono/Poly, MS-20, Prophet 5, Mini, Odyssey, and more, alongside a linear option.

Four Oscillators Per Program for Complex Tones

multi/poly offers four oscillators per Program, providing thick, multi-layered tones. You can choose from three types of oscillators:

Classic oscillators:

These faithfully model traditional analogue waveforms with stunning accuracy. The 11 options include both single and dual waveforms, giving you rich, thick sounds. Front-panel knobs offer control over pulse width, triangle "lean," dual-waveform blending, and more.

Digital oscillators

Play wavetables with up to 64 steps, like vintage hybrid synths or modern Eurorack modules. Start with over 200 factory wavetables or import your own using the Editor/Librarian software for macOS and Windows. You can even import Modwave wavetables or convert wavetables from popular software formats. The 30+ Modifiers allow you to reshape wavetables, while 8 Morph Types (Stretch, Flip, Mirror, etc.) process them in real time.

Waveshaper oscillators

Inspired by West-Coast synthesis, these oscillators take simple waveforms (sine or triangle) and process them through a shaper table, producing dynamic harmonics. Use the Berkeley shaper for traditional wavefolding timbres, or choose from over 90 shaper types for a vast array of tones. The multi/poly also supports modulatable pulse width, adding richness and motion to your sound.

Additionally, the multi/poly includes a noise generator with dedicated filtering and saturation, and a ring modulator with inputs from the oscillators. You can create powerful sounds by leveraging the enhanced sync and x-mod capabilities, which expand on the Mono/Poly's original design. Create unique tones by syncing oscillators 2, 3, and 4 to oscillator 1, or split sync and x-mod into pairs for independent control.

Dual Modelled Filters for Maximum Flexibility

multi/poly's filters are newly redesigned to offer a range of classic and modern options. The multi/poly also includes the MS-20 LP and HP 12dB/octave Korg 35 filters, recreating the aggressive, distinctive sound of the MS-20. For gentler tones, use the SE M/P 2-pole filter, which offers continuous control for sweeping between lowpass, band-reject, and highpass, with a separate bandpass mode. multi/poly's filters support audio-rate modulation, allowing you to modulate filters using any oscillator or the ring modulator for bright, fizzy, and bubbling effects.

M/Poly: A 4-pole self-resonating filter, modelled on the Mono/Poly.
Mini: A ladder filter from a famous American mono-synth, with reduced resonance at low frequencies-perfect for bass.
Pro: From the first programmable polyphonic synthesizer, offering strong resonant sweeps.
Ladder HP/BP: 4-pole self-resonating highpass and bandpass filters.
Use the Drive circuit to add weight or distortion, ranging from subtle thickening to extreme saturation. You can use two filters at once in series or parallel, with each source (oscillators, noise, and ring mod) having its own balance control to crossfade between filters. Modulate the A/B balance for even more creative sound shaping.

The Power of Four

multi/poly's structure allows you to build four Layers, each containing a separate Program. This adds an entirely new dimension of sonic complexity, as you can layer up to four Programs simultaneously in a Performance. These can be used to create massive, multi-layered sounds or creative splits and velocity-triggered variations. Each Program features its own set of oscillators, filters, envelopes, LFOs, and effects, allowing you to craft detailed, evolving performances that change with every key press.
Each Program starts with four oscillators, a noise generator, and both sync and x-mod capabilities. These are processed through two independent filters, providing massive tonal flexibility. For modulation, multi/poly includes four loopable DAHDSR envelopes, five LFOs, and six Mod Processors, allowing you to create detailed and evolving sounds.

Layer Rotate for Evolving Performances

The Layer Rotate feature allows you to cycle through these four Programs with each key press, ensuring dynamic, ever-changing performances. Inspired by the original Mono/Poly's paraphonic mode, Layer Rotate offers endless creative possibilities. You can set the Layers to trigger in random or repeating order and use them in combination with the arpeggiator for complex, mind-bending patterns.

Production-ready Effects

The multi/poly's effects ensure your sounds are polished and ready for the stage or studio. Each layer features three dedicated effects, along with a send to the Performance's master reverb and a master parametric EQ. In addition to standard effects like compressors, EQs, choruses, flangers, phasers, and stereo delays, you'll have access to unique sound-shaping processors such as the Wave Shaper, Talking Modulator, Reverse Delay, and Multiband Mod Delay, as well as the famous Overb from the OASYS and Kronos. multi/poly also includes modelled effects like Vox guitar amps, Vox wah, Vintage Distortion, CX-3 Rotary Speaker and Vibrato/Chorus, multi-head tape echo, and a collection of classic guitar pedals, giving you endless possibilities to shape your sound.

Built to Perform

An instrument that sounds this great deserves to look and feel fantastic, too. The new semi-weighted keybed is smooth and expressive, providing a responsive playing experience, while the knobs offer just the right amount of resistance, perfect for fine-tuning your sounds. The solid aluminium front panel ensures durability, making it road-ready for live performances, while the wooden side-panels and blue-on-black colour scheme are a stylish nod to the original Mono/Poly design. Plus, the multi/poly comes with a custom-made soft case, making it easy to transport and protect your instrument wherever you go.

Notes: Part of Sonicware's excellent Liven series of compact groove boxes, the Mega Synthesis draws on the unique sound of the Sega Mega Drive/Genesis games console to create characterful 80s/90s synths.

Supplier's Notes:
Revive the SONIC sensation of the golden era!

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

You too must have fallen under the spell of the extraordinary visuals and sounds of the groundbreaking 16-bit video game console that once dominated the world! It was powered by the iconic "YM2612" sound chip, a legacy that endures even today.

The MEGA SYNTHESIS has resurrected the sound engine of this chip. Sonicware have faithfully recreated the 4-operator FM sound module, the 8-bit PCM sound module, and the "SN76489" PSG (Programmable Sound Generator) sound module used by the original console.

4-operator & 8-algorithm FM sound module with precise sound editing in Edit Mode - Including extra features like fine-tuning operator ratios, which was impossible at the time.

PSG (Programmable Sound Generator) sound module - Synthesize basic waveforms and white noise to recreate iconic retro-game-sounds.

And the 8-bit PCM sound part of YM2612 - Recreate the sound of PCM playback controlled by the Z80 microprocessor used at the time.

Sampling capabilities (8-bit - 12kHz: up to 8 seconds / 24kHz: 4 seconds / 48kHz: 2 seconds, 96 stored samples)

Legacy Mode to faithfully replicate the sound of the era

This feature simulates the characteristically grungy sounding quirks of the YM2612 sound and can be turned on/off for each track.

In the FM tracks, you can separately configure FILTER [frequency response simulation] and LADDER [replication of the unique 9-bit DAC]. And the PCM track can also be played back in 4BIT, allowing you to create the sound to your preferences.

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

Creating game music is a breeze with this intuitive sequencer, featuring a straightforward 6-track layout comprising 3 FM synthesis tracks, 2 PSG synthesis tracks, and 1 PCM sample track. woo
Specifications

Synthesiser


FM sound module [Tracks 1, 2, 3]
- 4 operators - 8 algorithms
- Maximum polyphony: 6 voices
- Sound editing in FM Edit mode

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PSG sound module [Tracks 4, 5]

- 11 types
Square wave
Noise (Low/Mid/High) -> Square wave
Pulse Wave
Noise (Low/Mid/High) -> Pulse Wave
Noise (Low/Mid/High)
- Maximum polyphony: 4 voices

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PCM sound module [Track 6]

- 8bit - 12/24/48kHz (switchable) linear PCM sampling (mono)
- Up to 8 seconds of sampling per sample (12kHz), 4 seconds (24kHz) or 2 seconds (48kHz)
- Auto start sampling function with the input level (input level can be set)
- Auto-slice function (equal division by number of slices or length of one slice)
- Maximum polyphony: 3 voices (1 voice in One-shot mode)?- 96 sample memory slots (16 x 6 banks)
- Import and export of a slot or banks of samples (via MIDI)
*Import of audio files from PC/Mac is not supported.

- Drum mode (Drum kit performance)
- One-shot mode (Sample playback or chromatic performance)

- Sweep with adjustable speed, range, and curve
- Switchable between sweep envelope and LFO

[Effects]

Effect send amount can be set independently for each track

- Send Delay
- Insert Delay
- Reverb
- Crusher
- Distortion
- Compressor
- Low pass filter
- High pass filter
- Isolator
- Remix Performance effect

[Sequencer]

- 6 tracks
- Up to 128 steps per pattern
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Real-time recording
- Directly enter notes for each step when playback is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Step copy and paste function
- Track copy and paste function
- Duplicate to extend a sequence
- Transpose function
- Swing function
- Pattern BPM / Global BPM can be set
- Pattern chain function (Loop playback possible)
- Track level and pan can be set independently
- Parameter Lock function to record parameter settings for each step
- Sound Lock function to record sound settings for each step
- Note playback probability can be set from 25 to 100% for each step
- RANDOM function to play back steps in random order
- STUTTER function to play back only the step being pressed

[MIDI]

- Notes, control changes, clock input/output
- Import and export user data
- Firmware update via Sysex

[Unit]


27 keys (with a hold function)

- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: Super affordable but fun analogue synth, the LORE does two-oscillator FM synthesis to create experimental tones, drones and textures. Power via USB-C, output over 3.5mm jack socket.

Supplier's notes:
Lore takes two of the lush all-analogue oscillators from OVUM, and adds frequency modulation to unlock a wild new range of sounds. It's designed for exploring tones, drones, and frequency modulated textures. Each voice is made of an independently controlled triangle-core oscillators, with separate control for volume, pitch, and can be crossfaded between a bright square wave and a crisp triangle wave.

Lore is frequency modulation. The left oscillator can be sent to the audio output, where it will create harmony or dissonance with the right oscillator, or it can be switched to modulate the frequency of the right oscillator. This is a simplified and analog version of the kind of FM synthesis you'll find in digital synthesizers like the DX7 and it's descendants. It's hand-built from 100% analog circuitry, with no digital components, screens, quantization, or key-combinations to memorize - everything is immediate and at your fingertips.

Lore is enclosed in a sturdy transparent-green petroleum-free bioplastic case. It has a USB-C port for power, and a single 3.5mm audio output jack for headphones or line-out to connect to an amplifier, audio interface, or effects.

To reduce waste, by default Lore comes with just the instrument and a USB to USB-C power cable. If you don't have a spare USB power supply, they can be added to your purchase at checkout. Lore is portable, but does not contain a battery. It can be powered by any USB powerbank.

Notes: SOLAR 42F is a unique experimental electro-music instrument, an analogue microtonal ambient drone machine. It will inspire you to find a new and spontaneous approach to composing music. It gives you the ability to create a multi-layered, massive sound. The instrument is oriented for live performances, creating film soundtracks, theatre soundtracks, atmospheric sounds, microtonal and background music.

It is an improved version of the older SOLAR 50 model. The instrument was inspired by early electronic musical instruments of the 1920s and 1950s, notably Leo Theremin's "Harmonium" instrument, as well as science fiction film soundtracks.

The new version of the Solar 42F has added a LIN/EXP CV switch, sub oscillators in volt octave voices and a band pass and stereo distortion mode to the filter. Other quality of life improvements include modified graphics - inputs have been labeled in black and outputs in red for convenience - bypasses for each channel of the effector and a LED indication in the joystick unit.

Notes: SOLAR 42F is a unique experimental electro-music instrument, an analogue microtonal ambient drone machine. It will inspire you to find a new and spontaneous approach to composing music. It gives you the ability to create a multi-layered, massive sound. The instrument is oriented for live performances, creating film soundtracks, theatre soundtracks, atmospheric sounds, microtonal and background music.

It is an improved version of the older SOLAR 50 model. The instrument was inspired by early electronic musical instruments of the 1920s and 1950s, notably Leo Theremin's "Harmonium" instrument, as well as science fiction film soundtracks.

The new version of the Solar 42F has added a LIN/EXP CV switch, sub oscillators in volt octave voices and a band pass and stereo distortion mode to the filter. Other quality of life improvements include modified graphics - inputs have been labeled in black and outputs in red for convenience - bypasses for each channel of the effector and a LED indication in the joystick unit.

Notes: Module version of Korg's superb Modwave MkII features the same powerful wavetable synth engine in a compact package. Stereo 60-voice polyphony, deep programming options and excellent hands-on control.

Supplier's Notes:
All the features of the Modwave MkII in a compact 4U 19" desktop/rackmount package. Modwave builds on the legacy of Korg's DW-8000 and transforms it into a modern monster synth, featuring incredibly deep wavetable oscillators, gorgeous filters, wildly flexible modulation, unmatched polyphony, comprehensive pattern sequencing, and immediately satisfying hands-on control to deliver unique, powerful, and easily customizable sounds and phrases.

Like Modwave MkII, the Modwave Module provides an astonishing 60 stereo voices of polyphony - almost double the original Modwave's 32, and an unprecedented number for a wavetable synth at any price. The new 4U rack-mount enclosure has the same controls as the keyboard models, yet is easily transportable and fits neatly into any studio or desktop production system.

Responding to user requests, Korg have updated all LFOs with options for free running, delayed start, and retriggering. Korg have also added a pre/post switch for reverb sends, new modulation sources, and more.

The Modwave Module is fully compatible with the sounds and samples of the original Modwave, Modwave Mk II, and Modwave Native software, as well as many third-party libraries. MIDI 2.0 Property Exchange and Polyphonic Aftertouch Support

With the latest software updates, all models of Modwave, hardware and software, now support MIDI 2.0 Property Exchange and easy access to Polyphonic Aftertouch - making them excellent companions to the Korg Keystage controller.

Rack-Mount and Desktop

The Modwave Module is cleverly designed for both desktop and rack-mount use. The panel is redesigned to fit into a standard 19" width, and the rear jack panel is recessed to allow easy access to cables even with gear mounted directly above. With desktop setups, brackets offer a choice of panel angles: flatter for performing standing up, or more upright for working while seated in your studio.

Specifications

Maximum Polyphony: 60 stereo voices
Dimensions (W x D x H): 483 x 172 x 107 mm / 19.02 x 6.77 x 4.21 inch
Weight: 1.7 kg / 3.75 lbs.
Accessories: AC adapter
Sound generating system: modwave synthesis engine

Modulation

Controllers: Mod Wheel, Pitch Wheel, Kaoss Physics, 4x Mod Knobs

Other Sources

4x Envelopes, 5x LFOs, 2x Mod Processors, 2x Key Track, Seq Lanes A-D, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate, Gate+Damper, Note-On Trigger, Note-On Trigger+Damper, Note Number, Aftertouch and Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +

Destinations: Most parameters can be modulated, including parameters of individual Motion Sequence Steps: Depending on Motion Sequence length, there can be more than 1,000 potential modulation targets per Program.

Effects

Pre FX: Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper

Mod FX: Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah

Delay: L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo

Master Reverb: Early Reflections, Overb

Master EQ: 4-band parametric EQ

General

Inputs/outputs: Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port
Power supply: AC adapter (DC12V, 2500mA)
Power consumption: 5 W

Notes: Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Notes: A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: Moog enter a fresh chapter with a huge new synth. Full-on eight-voice bi-timbral analogue goodness, featuring selected highlights of Moog's iconic synth circuits from over the decades. Classic Moog sound, updated and bigger than ever.

Supplier's Notes:
Meet Muse, an eight-voice analogue bi-timbral polyphonic synthesiser - the culmination of over 5 years of dreams, design, and passion. Muse is an intuitive and powerful instrument built on the rich history of Moog that simultaneously gazes boldly into the future. This studio or performance centrepiece is driven by eight analogue voices, each with two VCOs, modulation VCO, dual VCFs, and a stereo VCA - all with that recognizable, kinetic analogue quality.

Muse represents a melting pot of classic Moog designs paired with forward-thinking controls in one complete instrument. Moog have selected the very best of vintage Moog circuits to create Muse - inspired by Moog Voyager oscillators, MF-102 Ring Modulator, CP3 Mixer, 902 VCA module, and a 904a Filter.

With 16 banks of 16 patches, you'll encounter beautiful pads, organic FM plucks, attention-grabbing leads, subterranean basses, stage-oriented key splits, as well as 2 banks reserved for your own sonic discoveries. Explore and express yourself endlessly with cutting-edge digital controls for powerful modulation capabilities, dedicated macro control, customizable envelopes, and multiple flexible LFOs. Shaping sound with Muse is a pleasure - the synthesizer and synthesist grow as one as the adventure continues for years to come.

Muse was created for, and by, modern musicians, producers, and sound designers who appreciate performance-oriented controls, intuitive knob per function layout, and "More" menus for every module. Built for stage and studio with a 61-key Fatar keyboard with velocity and channel aftertouch, a left-hand controller with pitch and mod wheels, and a programmable Macro knob makes the experience of interacting with Muse inspiring, intriguing, and innately playable.

A hypnotic stereo Diffusion Delay processor was inspired by golden era vintage digital rack delays with a unique and powerful set of diffusion, multi-tap, and filter behaviours. Craft complex echoes and diffused tonal smears that add dimension and depth to any patch.

In addition to Muse's creative immediacy, the powerful arpeggiator invites you to generate melodic ideas with compelling patterns and rhythms. With Muse's deep sequencer, you'll unravel unique patterns and gestures - further develop these discoveries with parameter recording, generative/probabilistic functions, and detailed editing of every note in the sequence - Moog Muse is a limitless canvas of musical exploration.

Moog Muse Specs:
Synthesiser type - Polyphonic, Bi-timbral Analog Synthesizer
Sound engine - Analogue
Polyphony - 8 Voices
Keybed - 61 full-size semi-weighted Fatar keybed with Velocity and channel Aftertouch
Controllers - Pitch Wheel, Modulation Wheel, Macro Knob, Keyboard Octave switch, Hold switch, Sustain Pedal input, Expression Pedal input - all pedal functions are assignable
Panel controls - 44 knobs, 16 sliders, 129 buttons - OLED screen
Analogue voltage-controlled oscillators - (x2) Selectable Triangle/Sawtooth mix, variable width Pulse wave, Octave (16', 8', 4', 2'), Frequency (+/- 7 Semitones), Wave Mix (blends Triangle/Sawtooth with variable Pulse wave), FM routing and amount, Hard sync
Analogue ring modulator - Ring modulation between Oscillators 1 and 2
Analogue voltage-controlled modulation oscillator - Selectable waveform (Sine, Sawtooth, Reverse Sawtooth, Square, Noise), Audio range toggle switch, Keyboard tracking, Keyboard reset, Unipolar switch, Pitch Modulation routing and amount, Filter Modulation routing and amount, Pulse Width Modulation routing and amount, VCA Modulation amount, Panning switch
Analogue noise generator - White noise
Analogue voltage-controlled mixer - Independent level control for OSC 1, OSC 2, RING, MOD OSC, and NOISE. Overall OVERLOAD control
Analogue voltage-controlled filters - (x2) Moog transistor ladder filters (1 with highpass/lowpass modes), Cutoff Frequency, Resonance, KB Tracking Amount, Envelope Amount, Linked Operation, Routing (Series, Parallel, Stereo)
Envelopes - (x2) Attack, Decay, Sustain, Release, variable curves per stage, Multi-trig, Loop, Velocity
Analogue voltage-controlled amplifier - Volume per Timbre, Pan position per Timbre, Pan Spread per timbre
Diffusion Delay™ - Configurable stereo signal processor, Delay Time Left, Delay Time Right, Feedback, Character, Mix, analogue bypass switches (to maintain 100% analogue signal path)
Output section - Master Volume, Headphones Volume, Low Cut EQ
LFO - (x2) Rate, Amplitude, Waveform selection (Triangle, Sawtooth, Square, Sample-and-Hold, User customizable), Keyboard Reset
Pitch LFO - Rate, Ramp Down through Triangle to Ramp Up Shape control, One-Shot Envelope toggle, Keyboard Reset, Pitch Modulation routing and amount
Glide - Selectable glide type (LCR, LCT, EXP), Glide amount
Clock - Clock rate, Tap Tempo
Arpeggiator - Per-timbre with Clock Division, Octave range, Pattern, Direction, Gate time, Rhythmic programming, etc.
Sequencer - 64-step sequencer with Clock Division, Transport controls, Sequence chaining, Step editing, Modulation capabilities, and memory capacity of 16 banks of 16 sequences
Programmer - Browser via OLED screen with 16 banks of 16 patches, Mod Map, Arpeggiator settings, Sequencer with per-step settings, Global settings, etc.
Voice control - Mono or poly voice count per timbre, Unison/Mono, Detune, Timbre editing, Voice stealing configuration
Chord memory - Chord memory with per-key functionality
MOD MAP - 16 modulation slots per timbre per patch with controllers and mathematical transform functions

Rear panel

Audio outputs - Main Left, Main Right (14" TRS)
Headphones - Stereo 1/4" (located on the front edge of the Left Hand Controller)
Pedal inputs - Sustain, Expression (1/4" TRS; Configurable through Mod Map or for use as 1/4" TS CV inputs)
Control voltage inputs - CV IN 1, CV IN 2 (1/8" TS)
Control voltage outputs - CV OUT 1, CV OUT 2 (1/8" TS)
Analogue clock input - CLOCK IN (1/8" TS)
Analogue clock output - CLOCK OUT (1/8" TS)
MIDI - 5 Pin DIN MIDI IN, OUT, THRU; MIDI over USB
USB B - USB-B connector for interfacing with a computer or other host MIDI device
USB A (HOST) - USB-A connector for connecting to other instruments with Muse as the MIDI host

Power
Style IEC Cable
Input: 100 - 240VAC; 50 Hz - 60 Hz

In the box

Moog Muse 8-Voice Polyphonic Analog Synthesizer
IEC Cable
Quick Start Guide
Registration Card
Safety & Warranty Manual

Weights & dimensions

Product Only
Weight: 14.55 (kg), 32 (lbs)
Dimensions (W x D x H): 99 x 42 x 11 (cm), 39 x 17 x 4.5 (inches)
Product In Box
Weight 18.92 (kg), 43.92 (lbs)
Dimensions (W x D x H): 116.7 x 55.2 x 24.7 (cm), 45.96 x 21.72 x 9.72 (inches)

Notes: Introducing the revived version of LYRA-4 organismic synthesiser, the younger sister of the famous LYRA-8. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation. It's smaller and weighs less but is equally rugged in design, and still packs a lot of punch. This makes it easy to fit in a backpack and perfect for taking the LYRA sound on the road. And playing two LYRA-4s can actually sound very different than just one LYRA-8.

LYRA-4 is based on four generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into two pairs (12, 34), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-4 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of delay with feedback. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS jack
Output resistance: 10 KOhm
CV DELAY: unipolar, range of 0 to +5 volt
CV DELAY: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 1.2 watt
Headphones resistance: 6-64 Ohm
Power supply: stabilised, +12 V, 0.2 A, centre positive
Dimensions: 241 x 203 x 62 mm
Weight (without power supply and packaging): 1.2 kg

What's included:

LYRA-4 - 1 pc
Power supply - 1 pc

Notes: Sampling meets the internet in the intriguing WoFi, a WiFi-enabled polyphonic instrument based around samples, granular synthesis and the online mywo.fi community platform.

Supplier's Notes:
WoFI is a portable Sampler keyboard that connects to the internet via WiFi, and features an innovative effect module called Texturer that combines elements of shimmer and granular synthesis to create unique and fascinating sounds. Its compact size and intuitive interface make it an ideal tool for musicians and producers who are always on the move. In addition, WoFI comes with a rechargeable battery, allowing you to create music anywhere you go without worrying about power. You can also share your patches and access sound banks from other sound designers through the mywo.fi community platform. Whether you're a beginner or a seasoned professional, WoFI offers endless possibilities for exploring new sonic territories and creating unique sounds.

Features

Player

The Player let you colour your sound with our emulations of classic samplers and their different sample player modes. Make it clean, dirty or anywhere in between.

Enveloppe

Sculpt your sound with the Enveloppe that can be assigned to WoFi's amp, filter or even both.

Manager

With the Manager and its display, get a visual feedback on all your tweakings, manage your sample library, access to mywo.fi content through WiFi and play with the touch strip. Oh, and there is no subscription needed for mywo.fi. Having WoFi gives you free access to community.

Filter

The Filter let you play the WoFi like classic subtractive synthesizers. It's a digital low-pass filter with two different slopes (12dB and 24dB) and a tasty resonance.

Texturer

The Texturer is here to bring you to unexplored sonic territories. Elevate your sound with this effect halfway between a shimmer FX and granular synthesis.

LFO

The LFO let you modulate your creation. With three different wave shapes, assign it to any parameter of the front panel and give motion to the sound.

Sequencer

The Sequencer let you build melodic patterns with the 16 polyphonic steps. It can be used as an arpeggiator. You can have your two hands free to play along the sequence and tweak your sound while it is looping. Oh, and you can also step sequence parameters, which makes it another modulation source in addition of the LFO and the Enveloppe.

Recorder

The Recorder let you either capture a sample from the line in or directly from the built-in microphone. It's easy as pie, pick your audio source with the switch, click on record and voila. Just like with the iconic first keyboard samplers.

Master

The Wofi is made to be played in many contexts, from your couch to the studio, so it has a full connectivity and two stereo audio outputs: one for your headphones and one for a master line-out and the WoFi internal speaker. Set your volumes easily.

Technical details

Player
- 48kHz 16 bits
- Direct streaming from flash, no preloading
- Polyphony 10 voices

Recorder
- 48kHz 16 bits mono
- Line / dynamic microphone / integrated microphone
- Gain adjust -6dB + 22dB
- Eurorack level compliant

Memory
- Flash embedded memory : 100 Mbytes, Flash cartridge memory : 100 Mbytes, Up to 200 User Patches + 50 Presets

100 MB allows storing 18 minutes of audio

Sequencer
- 16 steps track for notes
- 16 keys track for parameters sequencing


DSP
- Real time processing (No Preprocessing)
- Interpolation modes: sample & hold, linear, whittaker-shannon
- Pitch shift
- Time stretch
- Bit crusher
- Texturer
- Machine rendering emulation
- Resonant state variable filter (12dB/o-24dB/o)
- Parameter modulation from different sources : enveloppe, LFO, sequencer automations, external modulation (CV/MIDI), after touch, touch strip
- Texturer: self mixing renderer based on granular sampling - 8 grains - multi tap harmonizer

File servicing
- Direct file system management through USB
- Embedded sample editor

Network
- WIFI connectivity, up to 16 key pass
- Cloud access: Patch / Sample upload and download, sharing or backup.

Connectivity
- Sync clock + start/stop
- CV input, Gate input
- CV output, modulation output, gate output
- MIDI in, out, through DIN+USB
- Line In, Line out, Headphones


Miscellaneous
- USB powered
- Embedded battery - roughly 4h autonomy
- Integrated Microphone
- Integrated Speaker
- Full backup to Cartridge or mywo.fi
- User friendly workflow


- Aluminium / wood body
- Dimensions: 52cm x 23cm x 7cm

Notes: The legendary MicroKorg gets a major overhaul, bringing this iconic instrument right up to date. Eight voices of powerful, punchy and inspiring virtual analogue sound. A superb all-rounder, suitable for all styles of music.

Supplier's Notes:
A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: Based on the iconic Mono/Poly analogue synth of the early 1980s, the Multi/Poly draws on decades of tech innovation to offer something fresh and exciting. Super versatile analogue modelling engine allows you to create unique synth voicings.

Supplier's Notes:
Multi/poly module

Breath-taking analogue-inspired sound with the limitless power of digital technology.

Summary

The multi/poly module takes analogue modelling to new heights, offering musicians and sound designers an incredible fusion of classic analogue warmth and cutting-edge digital power in a compact, rack-mountable module form. Inspired by the legendary Mono/Poly, this revolutionary synthesizer features four oscillators per program, advanced modulation capabilities, and a wealth of hands-on controls, allowing you to craft everything from rich, layered textures to futuristic, experimental tones. The new 19" rack-mountable enclosure has the same controls as the keyed model yet boasts an easily transportable form factor that fits neatly into any studio or desktop production system.

Overview

Inspired by the legendary Korg Mono/Poly, the new multi/poly analogue modelling synthesizer delivers breathtaking analogue sounds combined with extraordinary digital power and flexibility.

Korg is now pleased to introduce the multi/poly module: all of the multi/poly's incredible features and sounds in a compact 19" desktop/rackmount package. With support for MIDI 2.0 property exchange and poly aftertouch, the module is an excellent companion to Korg's Keystage controller. It's also fully compatible with programs from the multi/poly native software, as well as an increasing number of excellent third-party libraries, keeping the updated sounds and software fresh. The new 19" rack-mountable enclosure has the same controls as the keyed model, yet is easily transportable and fits neatly into any studio or desktop production system.

Next-level analogue modelling

multi/poly features redesigned, incredibly detailed filters and oscillators, and advances in analogue modelling that take this technology to a new level. Each voice contains a Virtual Voice Card, where oscillators, filters, envelopes, LFOs, and portamento circuits are modelled to reflect analogue hardware component variations. As a result, each voice can have its own slightly di6erent character, creating rich and naturally evolving timbres

Just like in an analogue synthesiser, voice cards continue to play even if you're not hearing them. Envelopes evolve naturally, meaning if you play a long pad with an extended release time, newly played notes "catch" the envelope at its current state rather than restarting from zero Oscillators and LFOs maintain phase, while resonance continues to ring out. Pitch drift mimics the subtle instabilities of true analogue hardware.

The multi/poly also includes envelope curvature presets inspired by classic synths like the Mono/Poly, MS-20, ARP Odyssey, and Prophet 5. Additionally, analogue VCAs behave di6erently depending on voltage, with varying thresholds for turning on and o6, which has a strong impact on the Amp Envelope's character. multi/poly models VCA responses from the Mono/Poly, MS-20, Prophet 5, Mini, Odyssey, and more, alongside a linear option.

MIDI 2.0 property exchange and polyphonic aftertouch support

All models of multi/poly, hardware and software, support MIDI 2.0 Property Exchange and easy access to Polyphonic Aftertouch - making them excellent companions to Korg's Keystage controller.

Rack-mount and desktop compatible

The multi/poly module is cleverly designed for both desktop and rack-mount use. The front panel is redesigned to fit into a standard 19" width, and the rear jack panel is recessed to allow easy access to cables even with gear mounted directly above. With desktop setups, brackets over a choice of panel angles: flatter for performing standing up, or more upright for working while seated in your studio

Specifications

Maximum Polyphony: 60 voices (varies depending on settings)
Dimensions (W× D × H) 483 x 172 x 107 mm / 19.02" x 6.77" x 4.21"
Weight: 1.7 kg / 3.75lb
Included items: AC adapter
Other specifications are the same as for multi/poly.

Notes: Co-developed by the late Chris Huggett, the Mantis is PWM's flagship synth, a duophonic hybrid design with high-performance digital oscillators and state-variable analogue filters. A fitting tribute to a legendary synth designer.

Supplier's Notes:
Mantis is a unique, duophonic hybrid synthesizer that was co-developed by the late Chris Huggett (of EDP Wasp, OScar & more fame) and is dubbed as a spiritual successor to the OSCar, sporting precision digital oscillators, dual state variable filters and more.

Mantis is a premium synthesizer, sporting a high quality 37-note velocity and pressure sensitive keybed, SSI2164 IC's for the VCF's and VCA's, custom high performance processors for the oscillators coupled with a pristine analogue signal path, which features a twice amplified gain structure for maximum clipping capabilities plus lush stereo digital FX.

The modulation capabilities are vast with:
Two unique ADSR's that feature "sustain fall" that allows you to create a drop before release...even while a key is held for greater sound design possibilities. The envelopes can also be set to cycle.
Two tempo-syncable LFO's with four waves, fade in and fade out parameters and a seriously wide operating range.
Ring modulation available at the mixer
And a unique modulation routing controller with 6 choices of modulation parameters, 6 choices of modulation sources and scale control, which used to scale the effect of the modulation.

In development over the last period of his life Chris threw everything into Mantis. Although incomplete when he sadly passed away in 2020, he handed the project over to Paul of PWM to carry on and continue the project.

PWM, with the support of Chris' estate, think this synthesiser deserves to be born into the world for everyone to enjoy!

PWM MANTIS Key Features:
Hybrid-Analogue Synthesiser, powerful digital oscillators with dual analogue filters
With Mathematically Generated Oscillators with a Pure Analogue Signal Path
A Modernised Design Architecture based on the WASP with an OSCar style filter designed by the late, great Chris Huggett
Duophonic - Two Fully Independent Voices each with 2 Oscillators plus Sub-Oscillator per voice
Dual Filters - Multi-Mode State Variable VCF's with Overdrive per voice that can be combined in Series or Parallel with Width Control
Keyboard - 37-Note Full-Size Semi-Weighted Keybed with Aftertouch plus Joystick
Fully featured Keyboard, Joystick and USB-MIDI Control for Easy Integration with any Studio or Live Environment

Specifications

200 Patches
All patches in RAM so can be overwritten
Bank A: 100 Factory presets
Bank B: 100 User presets (all set to initial patch)
Compare function
Initialise patch function

Duophonic with 2 analogue signal paths
Mathematically generated oscillators designed by Chris Huggett
Analogue signal path designed by Chris Huggett

2 Oscillators plus sub-oscillator per voice
Sine / Triangle / Saw / Pulse plus additional wave types
Shape control and shape modulation input
Will create pulse width modulation on the pulse waveform with perfect square at the centre
Pitch modulation control
Octave selects per oscillator
OSC 1 SUB follows oscillator 1 parameters

Oscillator Drift
Creates random pitch variations between oscillators

Multi-mode state variable VCA filters with overdrive
2 Analogue filters - 1 per signal path
Low Pass / Band Pass / High Pass in 12dB and 24dB configurations
Additional WBAND (series) and WSTOP (parallel) types
Filter Cutoff
Filter Cutoff Modulation
Filter Resonance
Filter Width
Filter Width Modulation
Filter Keytrack

LFO (Low Frequency Oscillator)
2 LFOs
4 waveshapes per oscillator
Fade In / Fade Out parameter
SYNCable
Rate control

Envelopes
2 Independent envelopes
ENV 1 normalised to amplitude
ADSR
+ Sustain Fall parameter for shaping during key-down
+ Repeat which can be used to create looping envelopes
Velocity positive and negative control

Ring modulation

Mixer
First mix: OSC1 and OSC2
Second mix: OSCillators and noise
Third mix: OSCillators + noise and Ring modulator

VCA (Voltage Controlled Amplifier)
All amplification is done in the analogue domain in multi-stage VCAs

Modulation Routes
Control - 6 choices of modulation parameters
Source - 6 choices of effectors from envelopes and LFOs
Scale - choices of controls used to scale the effect of the modulation

Glide
Glide amount
Auto-glide mode

Indicator LEDs
Two LEDs for Voice
LED for Keyboard activity

Master tune

Master volume

Triggering
ENV 1 Legato
ENV 2 Legato
LFO Keytrig
LFO Keytrig

Connections
Master power switch
DC 9V input
USBC
MIDI IN / OUT / THRU
Sustain pedal input (switch)
Pedal input (continuous)
Stereo 1/4" line Outs: L/Mono and R
Stereo 1/4" headphone out

Multi-function Joystick control
Left / right for pitch bend
Performable vibrato
Latching hold mode

Arpeggiator
6 arpeggiator types
- Up, Down, Up/Down 1, Up/Down 2, Played & Random
Sync rates control from 2nds to 32nds
Tap tempo button
Swing including positive and negative swing
Auto clock sync
- Detects MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
Latch via joystick HOLD
6 Octave range

Dedicated tempo control

Duophonic mode control
Duo mode
Duo mode with simple filter
Pan control for duophonic voicing

Digital Effects
Reverb time
Reverb level
Reverb High Pass Filter
Reverb Low Pass Filter
Chorus level
Chorus type

Keyboard Control
37 Full-size semi-weighted velocity-sensitive keys
Channel aftertouch
Octave shift

Weights and Dimensions (product unboxed)
620 x 320 x 110 mm
5.3 kg

Includes:
Power Supply (9V 600mA)
USB C lead
Getting Started Guide

Notes: A lovely creative approach to generative synthesis. Dual voices with triangle/square wave oscillators, shift register and envelopes can be patched via banana cables to create unique grooves and drones.

Supplier's Notes:
Double Knot v3

The Double Knot v3 is a small generative synthesizer with two voices and corresponding sequencers. This instrument has a simple architecture which is capable of a wide variety of sounds, including rhythms and drum patterns or textural and grating noise sounds. The interface is made up of knobs, switches, and banana plugs for patching. The two voices of this device each consist of a triangle/square wave oscillator, a shift register sequencer, an enveloper, and a voltage controlled amplifier. A clock sets the tempo of the shift registers.

The voices of the Double Knot are pre-wired, in a linear chain of functional blocks. The patch points are available to route modulations, influencing the simple linear voices. The game of this device is to investigate the relationships between the elements of the synth using the knobs, switches and patch-points.

FAQ

How many banana cables do I need? and what length?

8 or 10 cables around 12" long is a great start.

Can I patch this with my other synth?

Only what is safe for this synth. The banana ports of this device can handle max +/- 8V at all inputs and outputs assuming at least a 1k output impedance in the other device. The response range of the voltage inputs is ~1.2v - 8V (range of a TL07x powered by 9V).

Is this synth good by itself, or does it rely on other devices to be useful?

Some good sounds can be had using this device and a handful of banana cables.

Notes: *** As of November 2024, Firmware 1.1 has been installed, including effects such as 4-Pole Filter, Trim Filter, Ambient Hall, Ambient Infinity and Ambient Room ***

17 Distinctive Synth Engines-Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.

LOW-BIT OSC: 2 ~ 8 bit variable low-bit oscillator. Sine, square, triangle and sawtooth waves.
STANDARD OSC: 32-bit floating-point processing high resolution oscillator. Sine, square, triangle and sawtooth waves.
CUSTOM OSC: Choose 2 waveforms / period of cycles.
DNA EXPLORER: Extract and generate waveform DNA from audio.
SiGRINDER: Granular synthesizer engine.
MASKED NOISE: Noise oscillator.
SAND FLUTE: Extract and generate tone from noise.
8BIT WAVE MEMORY: Editing your own waveform.
8BIT WAV MEM (MORPH): Morphing 3 waveforms.
8BIT WAV MEM (FM MODE): 2 operators, 8bit FM mode.
8BIT WAV MEM (WARP): Generates an intermediate waveform by crossfading two waveforms.
8BIT WAV MEM (ADSAR): Waveforms change according to envelope.
8BIT WAV MEM (TIME): 3 waveforms change in the orders.
FM SYNTH: 4 operators with 31 algorithms, 32-bit floating point processing.
ZTRINGS: Physical Modelling Strings engine.
SUPER OSC: Super synth engine with 5 detunable sub-oscillators.
STK DRUMMER: Drum machine engine equipped with 5 types of drum kits. (SmplTrek .stk file compatible)

28 Effects to Elevate Your Sound-From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 18 types and 1 master effect from 10 types, including Shimmer Reverb.
Insert effects: overdrive, distortion, fuzz, crusher, chorus, stereo chorus, flanger, phaser, tremolo, vibrato, ring modulator, auto wah, delay, reverse delay, ping pong delay, auto pan, tape echo & reverb, 4 pole filter, trim filter.

Master effects: hall, room, plate, arena, tunnel, infinity, custom reverb, crusher, ambient room, ambient hall, ambient inf, vinyl simulator & cassette tape simulator.

Flexible 4-Track Looper-Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.

Instrument Redefined - Velocity-enabled keyboard, Built-in Stereo Speakers and More:
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.

Notes: Derived from the excellent Lyra-8, the Lyra-4 features a similar 'organismic' approach to synthesis. Four-voice non-linear architecture offers unique tones in a compact, portable format.

Supplier's Notes:
Introducing the revived version of LYRA-4 organismic synthesiser, the younger sister of the famous LYRA-8. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation. It's smaller and weighs less but is equally rugged in design, and still packs a lot of punch. This makes it easy to fit in a backpack and perfect for taking the LYRA sound on the road. And playing two LYRA-4s can actually sound very different than just one LYRA-8.

LYRA-4 is based on four generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into two pairs (12, 34), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-4 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of delay with feedback. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS jack
Output resistance: 10 KOhm
CV DELAY: unipolar, range of 0 to +5 volt
CV DELAY: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 1.2 watt
Headphones resistance: 6-64 Ohm
Power supply stabilised, +12 V, 0.2 A, centre positive
Dimensions: 241 x 203 x 62 mm
Weight (without power supply and packaging): 1.2 kg

What's included:

LYRA-4 - 1 pc
Power supply - 1 pc

Notes: High-end digital synthesis from this boutique German brand. The Manatee combines distinctive spectral synthesis with virtual analogue and FM methods, creating multi-layered polyphonic sound with MPE control.

Supplier's Notes:
Manatee is the most advanced multitimbral synthesizer from Fred's Lab.

This project has been a labour of love, with 3 years of meticulous engineering work put into every aspect of its creation.

Powered by 2x dual-core DSPs and high-fidelity DACs, Manatee offers a minimum of 16 voices of pure digital sound shared between 4 parts. Coupled with a hands-on user interface putting all important synthesis parameters at fingertips reach, Manatee is a joy to explore and play with.

Fred's Lab new Spectral Engine, bolstered by a selection of modern VA Algorithms, delivers a beautifully unpolished raw sound, calling to be refined with the smooth multimode filter.

Manatee offers numerous per-voice and per-part complex modulation sources and wiring, including 'Meta Envelopes' and 'Custom LFOs'. MIDI expression controllers, such as polyphonic aftertouch, can shape modulation amounts at will. The additional 3-slot modulation matrix offers extra flexibility to the default routing options.

The multi-part architecture includes a dedicated stereo delay module and 2x equalizer sections for each part, providing up to 8 seconds of delay and various equalizer shapes like low cut, low shelf, high cut ... Additionally, a global insert reverb with various algorithms is there to add spaciousness to the entire mix.

Finally, the sturdy, powder-coated steel chassis of Manatee is full of robust parts, including metal potentiometers screwed to the panel, high-endurance switches, and high-reliability audio connectors. Built to withstand the rigors of touring and endless hours of use, Manatee is a durable choice for musicians and sound designers.

Connectivity

1x Line Level Main Bus - 6.35mm TR jacks
1x Line Level Aux Bus - 6.35mm TRS jacks (with return path)
1x Headphones Output - 3.5mm TRS jack
1x MIDI DIN5 Trio (IN, OUT, THRU)
1x Clock input - 3.5mm TRS jack (with start / stop)

Mechanics

Powder coated steel chassis
23x Metallic Potentiometers (panel screwed)
18x Illuminated Switches
8x Tactile Switches
Dimensions: 265 x 140 x 50 mm
Weight: 1.60kg

The Spectrum Generator

The Spectrum Generator uses pre-defined reference spectra and various harmonic manipulation tools to provide precise control and alteration of the timbre. Adjust formant, rotation of bins, the waveform used for signal reconstruction and more to craft the raw character. These parameters can be modulated for some complex soundscape creation.

The Sub-Oscillator

The Sub-Oscillator is designed to complement the Spectrum Generator, providing a wide range of sonic material to choose from. It features modern Virtual Analog Algorithms for classic waveform generation and super-saw and super-square waveforms. Additionally, it can play user-imported short waveforms for even greater versatility in sound creation.

The Noise Module

The Noise Module is an advanced source including a built-in continuous low-pass to high-pass filter for precise control over the noise spectral content. The noise sample rate can be programmed to generate crackles, glitches, or pure white noise, depending on the needs.

The Ring Modulator

The Ring Modulator is an iconic tool that multiplies the outputs of the two oscillators, making it perfect for generating inharmonic tones, special effects, and percussive sounds.

The Multimode Filter

The Multimode Filter uses hand-written assembly algorithms based on latest research on analogue modeling technology. It offers classic shapes in 12 and 24dB/octave, with filter tracking and self-resonance capabilities. The built-in saturations add subtle warmth and colour to the sound. The filter has a very smooth & natural ground character and react very fast to cutoff changes handling filter FM and fast envelopes with style.

The Overdrive

The Overdrive is a post-filter effect with a range of models, from gentle saturation and tube overdrive to more aggressive signal destruction through bitcrushing and clipping. It adds grit, warmth, and distortion to the sound for a dynamic and expressive performance. Algorithms are very natural sounding, analogue-like.

Meta-Envelopes
The Meta-Envelopes share their Attack, Sustain, and Release parameters, while each Decay stage is independent. Envelope stages can be switched on or off, allowing for a variety of shapes from a full ADSR to a simple gate. MIDI Velocity can be set to influence the Attack and Decay times, and envelope amplitude can be scaled with aftertouch. Envelopes can be looped and reset on triggering or set to keep its previous value.

Custom-LFOs

The Custom-LFOs provide an eclectic set of more than 16 waveforms, including noises and other algorithms, waveforms which can be chained together to create complex modulation sequences. Each LFO has its own AR envelope with Rise and Fall controls, and can be MIDI clocked and restarted for precise synchronization. Additionally, some MIDI parameters can influence the LFO amplitude.

The Modulation Matrix

The Modulation Matrix consists of 3x slots for each voice, providing extensive routing options to enhance the hardwired connections. The matrix offers a large selection of sources and destinations that cover almost all sound parameters. The modulation amount can be scaled by common MIDI parameters such as Aftertouch, Velocity, and more, allowing for expressive playing styles.

The Delay Module

The Delay Module offers Mono, Stereo, and Ping-Pong modes, with MIDI clock synchronization and adjustable feedback, mix, and colour controls. It supports a range of delay lengths, from very short - resonator-like - to free delay length up to 8 seconds. Each part has its own independent delay module.

The Equalizer Section

The Equalizer Section features two independent equalizers for each part, offering cut, boost, or shelf modes and adjustable corner frequencies. This is a powerful tool for blending the sounds of the different parts.

The Part Mixer

The Part Mixer provides flexible routing (audio buses), volume and panning controls for each part. It also defines the amount of signal sent to the master Reverb.

The Master Reverb

The Master Reverb is a high-quality algorithmic reverberation unit with a pleasant not bright but clean sound. It offers multiple programs with rooms and halls. This reverb is a handy mixing tool, making the overall sound more cohesive and polished.

Electronics

Manatee is powered by 2x 200MHz dual-core DSPs, offering advanced audio synthesis capabilities and an impressive dynamic range. Included too are 128 MBit of SRAM, 512 kBit of EEPROM, 4x 24-bit Burr Brown DACs, and transparent line and headphone drivers.

User Interface

The interface offers hands-on controls over all major synthesis parameters for all sound modules. The strong torque potentiometers feature Nylon knobs that provide a satisfying haptic feel. The high contrast 16x2 LCD screen clearly displays feedback through both text and small graphics.

Notes: Two VCOs (oscillators) are input to the VCF (filter) and output through DELAY (can be turned off).

The VCO can be a 4LFO module, which is a mix of 4 LFOs, a noisegenerator, an LFO, and a SUB OSCILLATOR, and the VCF can be an LFO.

With a variety of tones, you can create various sounds even with a subtle knob position.

It can be used with a single 9V battery or a 9V DC center negative adapter.

CV IN can be used with CV input to the filter. (VCO1.2,VCF)

INPUT is capable of audio input. The input sound goes to the filter- delay (can be turned on and off) in parallel with the built-in VCO.

CV IN can be input from +8 volts to -8 volts.

This analogue synth runs on DC9V negativecenter or a 9V battery. 2 VCOs go to VCF and Delay. VCO receives 4 modulations inside. NOISE GENERATOR,4 mixed LFO and SUB OSC. VCF receives CV of LFO.It becomes the wave filter with it. ? Delay section has the on/bypass switch. INPUT goes to VCF and DELAY with internal VCOs.

Notes: Arturia's 25 years of experience shine through in this beautifully crafted studio and stage instrument, packing 10 of the brand's famously precise sound engines into a user-friendly, ultra-playable package.

Supplier's Notes:
AstroLab is the culmination of 25 years of passion, innovation, and commitment to the pursuit of unhindered musical exploration. From must-have performance instruments that respond to every keystroke just like the originals do, to iconic keyboards and futuristic synth textures - instantly find that perfect sound, stay in the zone and set your creative flow on a flight path beyond space and time.

For many musicians and producers who utilize a plethora of tools, instruments and custom sounds in their home or studio setup, recreating this for a live performance is not always straightforward. This is where AstroLab comes in, offering both a robust, minimalist design and workflow-focused technology that lets you integrate all your sounds effortlessly.

A universe of iconic sounds?

AstroLab comes with over 1300 onboard presets brought to life with 10 in-built sound engines, from Virtual Analog to Wavetable and Granular. Instantly access an unparalleled library of sounds as well as the ability to integrate your own - expandable through the Sound Store and companion software.

A performance keyboard you can trust

AstroLab lets you travel from the stage, to the studio, and back, without ever needing to compromise on sound quality and playability. Every aspect of AstroLab has been designed with the live musician in mind.

Produce, rehearse, perform

Focus on performance with AstroLab's simple yet powerful controls. Featuring quick sound selection, 4 multi-purpose macros, customisable FX knobs and innovative play modes to help you stay in key and inspire new ideas.

On-the-go control

Customize and organize sounds on-the-go via AstroLab's mobile app which brings the convenience of mobile technology to your performance workflow. Edit your playlists and explore new sounds with the sound store, all completely independent from your DAW or computer.

Professional software included

Fine-tune, record and curate custom sounds for AstroLab using its counterpart software, Analog Lab Pro, extending the sonic range and power of AstroLab to suit your every need.

Features

61-note semi-weighted keyboard
10 sound engines
Virtual Analog
Samples
Wavetable
FM
Granular
Physical modelling
Vector Synthesis
Harmonic
Phase distortion
Vocoder
Piano-size keys
Over 1300 in-built sounds from Arturia instruments
Up to 10.000 sounds via Arturia software
Navigation wheel & screen for easy browsing
10 Preset Buttons for quick sound access
4 macro controls for quick editing
17 insert FX & dedicated Delay/Reverb
4 dedicated knobs to control FX
Multis/Keyboard Split
MIDI i/o, audio input, and control pedal I/o
USB-C connection and USB-A host
Bluetooth audio and WiFi for wireless control
Arpeggiator, Looper, Chord & Scale modes

I/O on offer:

Stereo Audio input
Four control inputs
Stereo audio outputs
Dedicated headphone out
USB MIDI Host
USB C Connection to host computer
Locking DC power input

Included software

Make use of AstroLab's software ecosystem which enhances ease-of-use when on the road and offers greater control, customisation and an even greater range sounds:

AstroLab Connect (iOS + Android)
Analog Lab Pro
Compatible with V Collection and Pigments (not included)

Box Content

Quickstart
Registration card
USB Cable (C/A)
User Manual
Power Supply

Notes: A complete system which really showcases Make Nose's experimental approach, the Resynthesizer features Make Noise classics like the Spectraphon and Morphagene and hands-on control via the PrssPnt, alll housed in a 4 Zone CV Bus Case.

Supplier's Notes:
The ReSynthesizer can trace its origins to Spring 2023, with Walker and Rodent putting together a collection of modules to announce and demonstrate the Soundhack Spectraphon at Superbooth '23. These modules would need to complement Spectraphon in a way that would show its true capabilities. As such, this specialized layout comprised a single-system overview of the last 8 years of Make Noise module designs.

After Superbooth, Walker and Peter continued to use a similar system configuration in videos for Make Noise's Youtube and Instagram Channels, prompting some folks to speculate if it was to be Make Noise's new 7U system. At that time there were no plans for a new system; in fact, this layout had been intended as temporary all along, but it was made a useful layout in almost all cases. (The layout even gained the popular unofficial moniker "System X" thanks to the speculative work of Cinematic Laboratory and others.) Choices like the unusual placement of the Morphagene, adjacent to Spectraphon, which was initially assumed would be mainly for a very specific use-case, quickly became second nature to patch. The Spectraphon and Morphagene work together to ReSynthesize raw materials into lush soundscapes, microsound manipulations, or wherever the path leads.

In early 2024, Make Noise announced DXG for the easy mixdown of mono or stereo signals, and PrssPnt to add physical touch interaction. With these pieces in place, the ReSynthesizer is born. Pairing the Spectraphon with the Morphagene and the core Make Noise CV generation suite, and housed in the powerful and portable 4 Zone CV Bus Case, the ReSynthesizer is an open design blackboard ready for experimentation and discovery.

Make Noise put this collection through its paces and have found it to hold up to any test thrown at it!

Specifications

Size: 7U
Total HP: 208 @ 3U, 104 @ 1U
Dimensions: 22.25" x 14" x 7.25" w/ lid

Notes: Vintage FM synthesis meets analogue character in the TWISTfm. Eight-voice polyphonic sound engine with superb versatility thanks to 15 filter modes including Heat saturation and adjustable resonance.

Supplier's Notes:
Unleash the full potential of FM synthesis with TWISTfm, a cutting-edge polyphonic synthesiser that blends vintage FM synthesis with advanced analogue filtering and modern control. Designed to offer a rich, dynamic sound palette, TWISTfm is the perfect tool for musicians and sound designers looking to push the boundaries of sonic creativity.

At the core of TWISTfm are two legendary Yamaha OPL-3 YMF262 FM chips paired with dual YAC512 stereo DACs, providing 8 discrete voices. Each voice is equipped with its own analog multimode filter for an unparalleled range of sound design possibilities.

With HEAT and Dual Resonance Modes: Featuring 8 individual analogue filters, inspired by the iconic designs of Mutable Instruments, TWISTfm gives you precise control over sound shaping with 15 filter modes, including low-pass, high-pass, band-pass, phaser, notch, and more. The HEAT parameter adds anything from warm, subtle saturation to harsh analog distortion, allowing you to push the filters to their limit. Additionally, you can switch between two resonance flavors-LIQUID, for smooth and subtle resonance, and MS20, for more aggressive, cutting tones. With digital control over resonance and cutoff, the filters offer flexible modulation and the ability to store settings with presets.

TWISTfm's MPE mode fully supports three dimensions of control-pitch (X), timbre (Y via CC74), and pressure (Z)-offering precise per-note modulation for unparalleled expressiveness and depth in your sound.

Whether you're composing in the studio or performing live, TWISTfm's robust feature set and intuitive design make it a powerful addition to any setup. Its combination of vintage FM tones and modern control capabilities offers a unique, versatile sound engine capable of producing everything from smooth ambient pads to aggressive basses and leads.

Notes: Process and generate synth sounds with the unique Magnetar distortion synth, based around distortion and fuzz circuits in series. Adjustable feedback and LFO modulation give super distinctive tones.

Supplier's Notes:
Magnetar is a dual distortion synthesizer featuring distortion, fuzz (connected in series), equalization/feedback, delay, and LFO. However, the capabilities of this synth go far beyond a simple sound processor. It can generate incredible sounds without any input, simply by tweaking the controls to create unpredictable sounds, perfect for drone, ambient, noise, and more. You can see it in action in the video. It's highly recommended to read the manual carefully, as the synth is very sensitive to input level changes. The level pots not only control the levels but also produce unique textures and intriguing sound variations.

Signal Chain: IN + DISTORTION + FUZZ + DELAY + OUT EQ + FB LFO MAGNETAR

Controls:

Distortion Module: (From left to right and top to bottom) In
Input level to the distortion Dist 1
Distortion level Hue
Distortion tone (the associated switch changes the tone) Tone
Equalisation In
Input jack Mod
LFO frequency (modulates GIG) Level
LFO level (modulates GIG) Takes DC 28V Feedback
From the distortion module Out - Output NXPTD
Feedback delay D/W
Delay effect level On/Off switch BP
Unit bypass

Fuzz Module: Level
Input level (linked to the distortion input) Gain
Gain Dist 2
Fuzz distortion level Fog
Changes the fuzz tone

Notes: Built on the AE modular system from Tangible Waves, the VSYSTEM-2 is a tiny, fully featured synth voice with patchable functions including wavetable oscillator, Polivoks filter and digital effects.

Supplier's Notes:
The VSYSTEM-2 is a complete synth in a case of exactly the size of the Korg Volca synths. It contains the following AE modules:

WAVETABLES (digital wavetable oscillator):

The WAVETABLES module is a digital oscillator that is based of wavetables, a technique that become popular first with the famous PPG synthesizer. Here, a huge number of digital waveforms can be "scanned", resulting in a morphing between a variety of interesting spectral structures.
The module offers seven different table sets, in each of them an interesting spectral move happens via the WAVE knob. Of course, this can be modulated by an external CV too.
To "fatten" the sound, the DETUNE/SPREAD knob adds a second oscillator with a variable detune up to one octave.
Pitch and wave modulation have an attenuator knob to set the amount of modulation, plus a switch to choose between unipolar (modulation CV is added to the current value) or bipolar (modulation swings above and below the current value).
The table position of the currently played waveform has a visual representation by an LED that changes its colour in the rainbow spectrum.
WAVETABLES is based on a quite powerful processor, the output is 16-bit audio, resulting in a high-quality sound.
This module was developed by Paula Maddox from DOVE audio; known by the excellent synthesizers MODAL 002, MODAL 008 and we are proud and happy that Paula offered to contribute this excellent work for the AE modular product line.

GRUNGE FILTER (Polivoks style filter):

The GRUNGE FILTER is the AE version of the filter that gave the famous Polivoks synth his unique, rough sound. The Polivoks was a Russian synth that was produced between 1982 and 1990.
Beyond the basic design, this filter offers some additional features:
two different resonance characteristics, hard and soft
an FM function, that adds the input signal to the modulation of the filter
an optional overdrive for the output, making the sound even more rough and untamed.

MODULATORS (containing LFO, envelope, random voltage, VCA):

MODULATORS is a multifunctional module offering different kinds of modulation sources in a 1U module. It is designed especially with very small AE systems in mind.

You get:
An AD envelope generator
an LFO with adjustable rate, square wave and triangle/sawtooth output, pulse width knob and CV control
a random CV source working in different modes (stepped, smoothed, quantized)
and a VCA

2ENV (dual CV controlled envelope generator):

ENV is a dual attack - decay envelope; it can be switched between full sustain (the output remains at full level as long as the GATE input is on) and zero sustain (for percussive envelopes). Another switch (SLOW/FAST) allows selecting the time range

For manual triggering there is a button for each envelope.

CV control: Both attack and decay time can be CV controlled; the CV "multiplies" the time by 1...approx. 8 times.

MULTIFX (digital stereo FX processor with reverbs, delays and other FX):

The MULTIFX module offers 15 different stereo audio FX programs, a wide variety from common FX like reverb and delay to unique effects like Ring Crusher or Glitch delay. Also a nice shimmer effect is onboard.

Each program has 3 parameters that can be adjusted and additionally be CV-controlled.

With a switch the sample rate can be reduced to half the normal rate, resulting in doubling the effect times (with reverb, delay...) and introducing a nice portion of aliasing.

It is based on the FV-1 DSP chip that is well-known from other FX-modules in the eurorack world; the MULTIFX module offers the 7 factory programs of the chip plus 8 new and unique ones created by tangiblewaves.

Stereo Headphone amplifier, 2 IN/OUT sockets via a stereo minijack

It is delivered completely with power wall adapter and patchwires; everything needed to get the modular system started!

This is a REAL modular synth system; all modules can be rearranged and swapped as you like.

Notes: A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


Suzuki's iconic Omnichord returns with the OM-108, a modern update of the classic formula featuring new digital synth sounds alongside the original omni1 and omni2 analogue synth circuits.

Supplier's notes:
Released in 1981, the Omnichord is an electronic musical instrument with an automatic accompaniment function (auto bass/chord) and equipped with a harp sensor. By pressing a chord button and sliding your finger on the harp sensor (strumplate), an arpeggio corresponding to the chord is heard, allowing anyone to easily accompany a song. Omnichord does not require any previous musical experience with an instrument, or even knowledge of staff notation. All that is needed are the chord names required to play a song which is a method commonly known as 'tab'. Combined with its portability, Omnichord became extremely popular, especially in Europe and America as a new musical instrument that anyone can enjoy - anywhere. In addition, due to the unique electronic sounds that are reminiscent of the 80's, and the tactile way musical expressions are achieved, Omnichord has developed cult status around the world. It not only appears in recorded music, but also publicity photos, and has featured in the titles of songs and albums. The Omnichord name was discontinued after the OM-300 (released in 1996), but its popularity as a unique musical instrument has endured the test of time, and now, over 40 years later the Omnichord returns with the OM-108.

Simply press a chord button and slide your finger on the strumplate. In this way, you can play accompaniment to almost any song on the very same day you first try the Omnichord!

Suzuki put a great deal of effort into the design of the Omnichord so that it accurately reproduces the sound of the OM-84, a model that is hailed as a masterpiece for its tone and versatility. To achieve this in the OM-108, Suzuki decided to apply the same method for sound creation as the OM84, incorporating real analogue circuitry into the new model. In total, the OM-108 is equipped with 10 types of strumplate tones, whilst "omni1" and "omni2" reproduce the classic sound of the OM-84, revived for future generations to enjoy.

The OM-108 includes a selection of timeless instrument tones that are both retro and current. The "celeste", "harp", and "piano" featured in previous models. The "FM piano" tone is new, this is an electric piano sound that helped define 1980s music. The OM-108 is equipped with. "omni1" and "omni2" which use real analogue circuitry. Other tones are reproduced using PCM sound generation.

There are 10 tones...omni1/omni2/harp/celeste/A.piano/guitar/FMpiano/organ /vibes/banjo(omni1 and omni2 have the same Main Voice but different Sub Voices).

The model OM-84 was equipped with two electronic harp tones, allowing the tones to be layered and played. OM-108 reproduces this function. A tone that sounds beautiful when layered with the Main Voice has been assigned as a Sub Voice. To control each layer, simply turn the appropriate Volume knob. This enables real time control changes adding expression to your sound.

Even though many rhythms included in the OM-108 share the same names as previous models, they have been updated to incorporate rhythm patterns that are current. Also, for the first time on Omnichord, a trap beat (Hip Hop) has been included. Suzuki have selected "usable" rhythms that will allow you to play a wider variety of songs.

There are 10 kinds of rhythm...rock1/rock2/slow rock/country/swing/disco/hip hop/funk/bossanova/waltz

The "sus4"' and "add9" chords, often used in popular music, have been added. It is now possible to play a total of 108 chord types, hence the model number 'OM-108'. The Omnichord has developed into an instrument that can be played more intuitively without having to substitute other chords.

Equipped with a wide type strumplate similar to models OM-100 onwards. Every corner of the plate responds sensitively to light touch, so you can concentrate on playing without stress.

In addition to the melody keyboard, the OM-108 is equipped with drum pad mode for the first time as a function (when the "KEYBOARD" button is pressed). Owners of the OM-108 will be pleased to note the drum pad is assigned not only to the chord button, but also to the strumplate. This allows for the creation of interesting beats using the OM-108 retro drum kits.

The OM-108 not only sends chords and strumplate data, but also drum performance information from MIDI OUT. Strumplate information can be sent on two MIDI channels, allowing you to layer tones with external MIDI sound sources, or to layer the OM-108 internal sounds with external sound sources. The OM-108 has evolved into an instrument that invites you to explore more creative sounds using MIDI.

The OM-108 includes rhythm voicing from the OM-84, which is extremely popular for its early 1980s retro sound. You can switch the rhythm tones between OM-108 and OM-84 by using a special 'power-on' operation.

Although it has a built-in speaker, the Omnichord is small, lightweight, and battery-powered*, making it easy to carry and play. Connect an external amplifier and headphones, and you can perform anywhere, such as in the studio, performing at a live venue, or just playing in your bedroom! *Powered by 8, AA batteries or dedicated AC adapter (both sold separately).

Using "REAL TIME CONTROL", the OM-108 integrates multiple functions for switching the way chords and rhythms are played. Whether you want to play at free tempo (without rhythm), add bass accompaniment, or start with a drum prelude, you can easily switch in real time even during a performance.

When connecting to an external speaker etc., you can turn on/off the sound produced by the speaker of the instrument. This is useful when you want to monitor your own sound during live performances. This is a new feature included on the OM-108 in direct response to user's requests.

Specifications

Chord buttons: 38
Chords: major, minor, 7th, major7th, minor7th, augmented, diminished, suspended4th, add9th
Voices: 10 tones (main, sub tones) / 4 octaves
Rhythm Pattern: 10 patterns
Control: Master Volume, Chord Volume, Main Voice Volume, Sub Voice Volume, Sustain, Rhythm Volume, Tempo
Button Controls: Power, Chord, KEYBOARD ON/OFF, Voice Select, Rhythm Select, Chord-Manual/Auto, Chord Hold, Rhythm-Start / Sync Start
Other Functions: Instant OFF, Transpose, Octave Shift, ON/OFF SPEAKER, Master Tuning
Speaker: 10cm
Amplifier output: 4.3W
Jack: DC inlet, LINE OUT (monaural standard), headphone output (Stereo mini), MIDI OUT
Power Supply: AC adapter, 8 AA alkaline or Ni-MH batteries (all sold separately)
Power consumption: 3.7W
Continuous battery operation time: Approximately 8 hours
Measurement: W45.7 x D25.0 x H5.18cm(17.99 x 9.84 x 2.04 in.)
Weight: 1.2kg(2.65lb)
Accessories: Melody keyboard overlayer

Accessories (sold separately, not included)

AC adapter 100-240V
AD1-1210A(100-120V)
AD3-1210A(220-240V)
Strap pin OSB-108
Gig Bag OGB-108

Notes: Reinventing the virtual analogue synth for the 21st century, the Vibes is a digital demon. True stereo signal path, resonant oscillators, Serum-compatible wavetables and heaps of creative potential.

Supplier's Notes:
Small form, big heart

True Stereophonic Digital Synthesiser with 24 Stereo Voices

With its 24 stereo voices, powerful XVA Engine, full Audio Mixer, improved Clip Launcher, comprehensive Drum Engine and the new Resonator Oscillator, Vibes becomes a new class of synthesizer, that helps you to reach your full creative potential.

True stereo

The true stereo signal path allows for sounds, that have never been possible before.

Oscillators that resonate

The new Resonator Oscillator together with the existing Wavetable Oscillator open up a new world of sonic potential.

Sketching, writing performing

The only synthesiser you need for writing and performing your compositions.

Mix it all together!

Mix internal sounds and stereo input with the Digital Audio Mixer integrated into the Vibes!

One preset, eight different flavours

Store your ideas and recall them in an instant with Variants

Engine specs

Based on Mayer EMI's powerful XVA Audio Engine the Vibes is preset compatible with the MD900 and comes with the following feature set:

24 shared Stereo Voices
4 Synth-Parts + 14 Drum Instruments

Stereo structure per voice

2x Oscillator with 3 different models

Algorithm Oscillator

8 different Waveforms (PD_SIN, VA_SWEEP, and more)
Morphing and Modulation capabilities

Wavetable Oscillator

More than 50 preset wavetables
Wavetables consisting of up to 256 single-cycle waveforms with 2048 samples per cycle (Serum format compatible)
Spectral effects (spectral morph, harmonic shift, ... and more)
Up to 4x stereo unison

Resonator (physical modelling)

64 bands
Attack/Decay based exciter
Different Algorithms to define Band Profile

1x Sample / Noise Oscillator
Configurable loop modes and loop points
Single- or Multi-Samples

2x Stereo Multimode Filter with more than 10 different Models
4x ADSR Envelopes
3x LFOs (MIDI synchronized, standard & user defined shapes)
1x Waveform Shaper with different Algorithms
Modulation Matrix with 24 slots (25 source and 40 destination options)
Oscillator Mix and Filter Routing

ARPEGGIATOR and STEP SEQUENCER per Synth Part

Clip launcher

7 tracks (4 Synth-Parts, Drum Track, 2 Midi Tracks for external Instruments) with up to 8 clips per track
Polyphonic MIDI Sequencer with recording and quantization capabilities
Drum Pattern and Sequence Editor
Support of external Performance Controllers (e.g. Launchpad, APKmini) via USB

Synth and live effect stacks

4x Stereo Multi Effect Stack (1x for each Synth Part)
2x Stereo Live Multi Effect Stack in the Audio Mixer
Reverb, Stereo Delay (midi synchronized), Compressor, JChorus6, ... and more)

Digital audio mixer

19 Stereo Input Channels, 2 Stereo Output Channels
Bus, Headphone and Effect Send
Balance, Pan, Limiter functionality

MIDI connectivity

MIDI Control, Note On-Off, Pitchwheel, Polyphonic Aftertouch
Transport Send/Receive
Clock Send/Receive

Webinterface

Up-/ Download of user defined Presets, Performances, Wavetables, Samples, Sequences
Accessible via Wi-Fi or Ethernet

Others

14 GB internal Memory available for Presets, Wavetables, Samples, Performances and MIDI Sequences

Hardware specs

Control elements

5" Colour capacitive Touch-Screen (Resolution 800×480 pixel)
4 display related and 1 Main Encoder
20 Navigation and Menu Buttons
One Knob Section (morphing of multiple parameters together)
3 Synth-Part related Macro Encoder (Multicolour LED Rings)
3 Filter related Encoder (Multicolour LED Rings for Filter CutOff, Resonance and Amount)

Housing

Size (W x D x H): 322mm x 174mm x 76mm
Weight: 2kg
Metal Housing with walnut wood front and back
75mm x 75mm VESA Mount

Inputs/outputs

Power Switch
Power In 12VDC, 2.5A
3x USB-A Port (max. 500mA)
Ethernet (100Mbit)
Sustain Pedal-In: 6,3 mm TR Jack
Expression Pedal In: 6,3 mm TR Jack
DIN MIDI In / Through / Out
Stereo Line-In: 6,3 mm TRS Jack (24bit, 48Khz)
Stereo Line-Out: 6,3mm TRS Jack (24bit, 48Khz)
Stereo Headphone Out: 6,3 mm TRS Jack (16bit, 48Khz)
2,4/5GHz Wifi

Package contents

Vibes MD850
Power Supply 12VDC (including Plugs for EU, UK, US, AUS)
Quick Start Manual

Notes: ***B-STOCK: Box opened, product in perfect working order***


Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: ALM's latest complete modular system, the Turismo combines classics like the Squid Salmple sampler and ASQ-1 sequencer to create a cohesive, engaging synth. The ultimate Eurorack starting point?

Supplier's Notes:
The Turismo is our fully modern Eurorack modular workstation, blending a curated mix of our
flagship analog and digital modules for a versatile and creative patching experience. It offers
a distinctive ALM character, designed for both precision and fun.
The workstation delivers everything from analog bass, bleeps and leads, lush chords, filtering,
extensive sampling, and DSP effects combined with various sequencing styles and numerous
modulation options plus full MIDI integration. It's an all-in-one creative hub that's endlessly
explorable.
Designed also with live performance in mind, the travel-sized 84hp system fits in a rucksack
and comes with a Decksaver cover for added protection. With MIDI, stereo line-level input,
and headphone output, it's perfect for live sets, DAWless jamming, and seamless studio integration. The system features a custom design with unique coloured controls and neodyme
bronze anodized side panels.
The Turismo is a perfect starting point for Eurorack beginners, offering a seamless pain-free
entry into modern modular synthesis that's immediately playable. For seasoned users, it's a
ready-to-use and well balanced cutting edge system designed for effortless creative exploration.

Feature List:

Numerous analog and digital sound sources including oscillators, chords, samples, noise
and more.
Sample recording and eight channel sample playback.
Five analog VCAs and numerous patch-able digital level controls.
Two fully analog multimode resonant filters.
Three inbuilt Sequencing options to run numerous synced melody and rythmic patterns.
Numerous modulation sources including LFOs, Envelopes, randomisation, quantisation,
syncing etc.
Stereo FX Processing with 18 different programs including reverbs, delays, granular processing and more.
Various utilites - S&H, mults, mixers, slew limiter, etc.
Stereo line level in and headphones out.
Three channel MIDI pitch, trigger and clock synchronisation.
Custom look modules and neodyme coloured case only available as part of the Turismo.
Includes international power, deck saver and patch cables.

Tech Specs:
Dimensions: 440 x 264 x 120mm
Weight: 3.24kg
Size: 6u / 84HP
Power: 12V 4A (approx)
Connectivity: TRS MIDI IN, Stereo Line level In, Stereo Line/Headphone out, USB-C ports
for firmware upgrade.

What's Included:

Turismo System & Modules
ALM023 / mmMidi & mmT expander
ALM022 / SQUID SALMPLE
ALM020 / QUAID MEGASLOPE
ALM026 / MULT
ALM036 / TAZM-O
ALM042 / CIZZLE
ALM032 / MFX
ALM037 / MEGA MILTON
ALM035 / ASQ-1
ALM034 / Pamela's PRO Workout
ALM028 / Pip Slope (mk II)
ALM030 / MCFx2
ALM033 / MEGA-TANG
ALM019 / HPO

Included patch cables:

15cm (x10)
30cm (x10)
60cm (x10)
90cm (x3)
120cm (x2)
MIDI DIN to TRS adapter cable
Squid Salmple USB stick with full sample banks
Universal 12V 5A power supply
Decksaver
Printed Manual

Notes: Colours flipped in classic Korg style for this limited-edition take on the excellent Minilogue XD. Unique looks, and the perfect combination of analogue and digital synth circuits adding up to a versatile instrument.

Supplier's Notes:
Flip your sound with the new Minilogue XD Inverted

The minilogue xd analog synthesizer, with its true analogue circuitry, digital multi-engine and effects combine to help create an extraordinary range of sound, and is now available in a new, limited-edition model with inverted keyboard colours.

Get inspired by its unique colouring, and create your own new soundscapes. The Minilogue XD inverted is a stylish and unique addition to any live or studio setup and the limited edition colors will be yours to be proud of for years to come!

*All other specifications are the same as the minilogue xd regular model except for the keyboard colour.

Korg Minilogue XD 4-Voice Polyphonic Analogue Keyboard Synthesiser

One of our favourite synths of 2019 and still amazing value. Analogue meets digital, offering hugely versatile sound in the same compact, user-friendly format as the original Minilogue.

Supplier's notes:
An evolved next-generation analogue synthesizer with huge potential for sound design and performance. We wanted to deliver a next-generation analogue synthesizer for a new generation of musicians new to analogue synthesis. That dream was realized in the development of the minilogue, which instantly made the analogue synthesizer approachable.

In addition to emphasizing the same real analogue sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential. Minilogue xd is a fitting addition to the original groundbreaking minilogue.

Four-voice polyphonic analogue synthesis. The analogue synthesizer circuit of the minilogue, whose genuine analogue sound had a huge impact on the synth world, has been further developed for the minilogue xd.

Voice structure of minilogue xd is 2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. In addition to the distinctive circuits found in the series, such as wave shaping to shape the overtones of the oscillator and a sync / ring switch, there's also cross modulation, a sharp two-pole filter, and a drive switch that adds thickness and drives signal into minilogue xd's filter. Every parameter has been tuned in detail based on what musicians want out of their synth. The sounds range from the warm pads typical of analogue to fat basses and crisp lead sounds, covering every situation.

Of course, programs that you create can also be saved in the unit. Out of the box, minilogue xd comes loaded with 200 presets, and a total of 500 programs can be saved.

Equipped with a digital multi-engine:

The additional sound design possibilities of digital sound are delivered by the multi-engine that's provided as a third oscillator in addition to the two analogue VCOs. This engine, which is equipped with three different types of sound generator (noise, VPM, and user slot) lets you take advantage of a sonic character that's different than analogue, and use it at the same time as the analogue engine, infinitely expanding the potential of hybrid sound design.
Noise generator

The noise generator provides four types of noise that are indispensable for percussive sounds or for sound effects. You can use the digital filter to directly change the colour of the noise.

High-quality digital effects:

minilogue xd's high-quality digital effects use 32-bit floating point DSP processing, adding a finishing touch to its deep sound design platform. The three types (modulation effects, reverb, and delay) can be used simultaneously, letting you choose from a wide range of variations including chorus, ensemble, warm tape delay, and a diverse variety of reverb. The user effect slots allow you to load your own effect programs that you've created.

User customization brings out infinite potential:

The minilogue xd features a customizable open environment. The unit comes with 16 user oscillator slots and 16 user effect slots that you can customize. Oscillators and user programs that you've created with the SDK (Software Development Kit) can be loaded into the minilogue xd via the dedicated librarian software.

Polyphonic step sequencer controlled by 16 buttons:

The step sequencer provides 16 steps, and supports both realtime recording and step recording. You can use the 16 step buttons to select a step directly, allowing quick editing to replace the pitch of a step or to mute it, or even improvisatory performances. Motion sequence lets you record the movements of up to four knobs, adding time-varying change to the sound, and you can record not only smooth changes in value but also values that change precisely at each step. You can use this to design the sound differently at each step; for example, you might create a drum pattern or sound effect from just a single program. This allows countless ideas to be unleashed.

Specifications

Keyboard: 37-keys (Slim-key, velocity sensitive)
Sound Generation: Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
Maximum Polyphony: 4 voices

Programs: 500 voices (more than 200 preload, 300 user programs).
Each program provides a program sort function that includes voice mode settings.
Favourite function built in.

Voice Mode: 4 (POLY, UNISON, CHORD, ARP / LATCH).
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.

Sequencer: 16-step polyphonic sequencer, motion sequence can be used on up to four parameters

Main Synthesis Parameters:

VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
MODULATION: SYNC, RING, CROSS MOD DEPTH
MULTI ENGINE: NOISE/VPM/USER, TYPE?SHAPE
MIXER: VCO1, VCO2, MULTI
VCF: CUTOFF, RESONANCE, DRIVE, KEYTRACK
AMP EG: ATTACK, DECAY, SUSTAIN, RELEASE
EG: ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE(BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)

Main effect Parameters
EFFECT: TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH

MULTI ENGINE

Noise Generator: 4 types
VPM oscillator: 16 types
User oscillator: 16 slots

MOD EFFECTS
CHORUS: 8 types
ENSEMBLE: 3 types
PHASER: 8 types
FLANGER: 8 types
USER: 8 types

DELAY
DELAY: 12 types
USER: 8 slots

REVERB
REVERB: 10 types
USER: 8 slots

Controls: Joy stick that can modify different parameters for each program, PORTAMENTO knob

Display
Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
MULTI ENGINE: section7 segments x 6 digit LED display

Input/Output connectors
Headphone jack (Stereo phone jack)
OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V - +5 V (Modulation mode), -3V - +5 V (CV/Gate mode)
SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
MIDI IN jack
MIDI OUT jack
USB B jack
DAMPER jack (half damper is not supported)

Power Supply: AC adapter (DC9 V)Power Consumption8 W
Dimensions: (W x D x H)500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
Weight: 2.8 kg / 6.17 lbs.
Included Items: AC adapter
Accessories (sold separetely): SC-MINILOGUE Soft shall case, SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK, SQ-CABLE-6 Sync cable, DS-1H Damper pedal, PS-1 Pedal switch, PS-3 Pedal switch
