Notes: In early 2023, Jamie Stillman was invited by legendary guitarist and producer Dave Catching to record at Rancho De La Luna for an album celebrating the studio's 30th anniversary. Dave- founding member of earthlings? and Eagles Of Death Metal and Queens Of The Stone Age- has been a longtime supporter of Earthquaker Devices. Jamie eagerly joined the session, using the Dirt Transmitter on many tracks to great response from the crew.

Following the session, plans emerged to reissue the Dirt Transmitter in conjunction with the album. Dave suggested Ohio-based artist Mike Egan for special Rancho-themed artwork- an ideal match, as Mike lives near EQD's headquarters. The collaboration came together naturally.

The Dirt Transmitter, one of EQD's earliest circuits, debuted in 2008. Fuzz Face-inspired and built around rare low-gain silicon transistors, it blends germanium warmth with silicon's gritty top-end. Originally released with Fuzz, Tone and Level controls, it alter added am externa. Bias control to starve voltage and create a gated, sputtery velctro fuzz. Discontinued in 2017, it returns now for a special release.

The Dirt Transmitter- Rancho De La Luna Limited Edition.

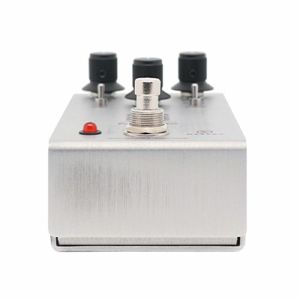

Notes: COSMOS is a drifting memory station designed to work with meditative states through music. The design of the controls, functions and generated soundscapes are intended to evoke, in both performer and listener, states and experiences inherent in meditation, such as limitless space, fluidity, spontaneous development, presence, the ability to hear, tranquility, the experience of subtle harmony and happiness enveloping the whole world.

From a functional point of view, COSMOS is a large array of sound memory, in which recorded sounds undergo constant recombinations, spontaneously generating an ever-changing soundscape. This is achieved in three ways - by a mathematical shift based on the relationships between large prime numbers (the size of all delay lines are different primes), an asynchronous operation of the LFO, and modulation with a slowly changing chaotic signal. As a result, it allows the endless layering and processing of various sounds, as in a looper, but without an intrusive, repetitive loop.

COSMOS generates rich, fluid and evolving soundscapes perfect for ambient music. Using COSMOS, you can play an entire meditative solo concert while being in a spontaneous flow and without using studio-prepared sequences, backing tracks and other things that can't be a reflection of the "here and now".

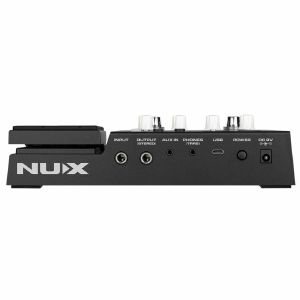

Notes: MG-300 mkII builds on the huge success of the original MG-300 compact multi-effects pedal, with a larger display and upgraded sections for Drive, Amp Simulation, I.R cabinet simulation, Modulation, Delays & Reverbs.

Audio modelling uses the new TSAC-HD algorithm, bringing pro-level amp emulations to this minimalist format. An expression pedal now has a physical toe switch and is self-calibrating, whilst the order of processing blocks are also now switchable, expanding the effects possibilities even further.

All settings can be edited onboard or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations, with a new feature of 3 Pro Scenes within each preset. For live or rehearsal backing, the built-in Jam function has a fully featured drum machine and phrase looper.

To integrate with a DAW studio suite, the USB-C connection also functions as a high quality audio interface, completing the studio-ready guitar rig. The main output has options for guitar amplifiers, D.I. to mixer or headphones or with loopback for interactive online streaming.

Keeping all the elements that made MG-300 so popular, the mkII includes new features and high-end processing that are now accessible in a compact all-in-one unit.

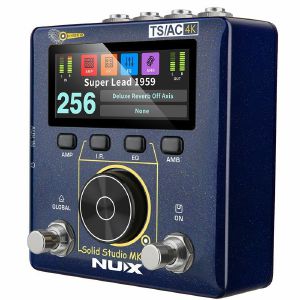

Notes: Solid Studio mkII is a completely redesigned version of the original Solid Studio amp & speaker emulation pedal. Now with a large full colour display and data entry dial, this new concept is hugely flexible with menu-driven editing and deep parameter control.

Connect a guitar directly to the input to take advantage of the inbuilt amp models or alternatively, the Solid Studio mkII can be set to connect between a guitar amplifier and speaker, using the natural tone of your own amp into any of the speaker emulations before sending to the PA or FRFR speaker. Four main blocks deal with Amplifier, dual independent Speaker emulation, EQ and Ambience. Solid Studio mkII employs the proprietary TSAC-4K high-definition algorithm for true-to-life models of classic amplifiers, cabinets and microphones from the built-in and imported user I.R. profiles.

The EQ section provides powerful global tone sculpting whilst the Ambience section provides time-based spatial effects, necessary for adding breadth and dimension to the emulated tones. In addition to onboard editing, the Solid Studio mkII may be connected to a PC via USB-C and programmed using the free-to-download Solid Studio mkII software or mobile application. Mix and match preamp and power amp types with 2 sets of speaker and mic combinations saved to internal memory and recall them at the click of a footswitch. A unique and comprehensive tool for live and recording duties.

Notes: Since its release in 2019, OBNE's Signal Blender has become an indispensable tool for musicians looking to
create parallel signal chains, or otherwise split or combine multiple signals. Now, in collaboration with 29 Pedals, the new Signal Blender Stereo boasts many worthwhile and useful upgrades from the original version.

When 29 Pedals approached OBNE about improving the signal headroom and phase response of the original version for use in their own studio, a collaboration was born. Not content with only signal improvements, the team approached the whole new design in stereo, added trails switching and also added MIDI switching for integration into more complex rigs.


Signal Blender Stereo is a comprehensive mono or stereo parallel effects chain creator. From the input, your signal forks out into multiple paths, allowing parallel blending of two effects loops (A and B) and the original input (Clean) at the output. Experience the joys of parallel routing, or expand to other use cases, like splitting a signal to three separate outputs, or combining three unique signals into one output.

The simple, yet fully featured control set allows for grab-and-go utilitarianism.

The A and B switches engage their relevant effects loop. Tap it to latch the on/off state, or hold it for momentary action. Signal is sent at full strength through the Send jack and the volume knob determines the amount of signal coming back into Signal Blender Stereo via the Return jack. The phase invert toggle allows phase inversion on the return when the toggle is in the up position, accounting for pedals that flip the phase. The trails toggle in the up position prevents the Return from switching off, allowing time-based effects to trail after the footswitch is switched off.

In the down position, the send and return are switched on and off together.

The Clean footswitch determines whether the original clean input signal is sent to the main output and the Clean volume knob determines the volume of that signal when engaged.

By default, Signal Blender is designed to be stereo through the use of TRS cables, or mono through the use of TS cables, without the need to change any settings at all on the device. However, if mono input to stereo output is desired, just use the internal dipswitch to assign mono-in-stereo-out ("MISO"), then use a TS cable at the input and TRS cables everywhere else.

Notes: MESS is a pedal that opens up a new world of possibilities. MESS blends traditional sound shaping with generative and performance power with four independent effect tracks can befreely assigned to over 120 studio-quality effects, all with sequenceable control over multiple parameters. Start a sequence and create entirely new textures that evolve in time - from lush ambient washes to glitchy chaos. Or switch off the sequencer and use MESS as a powerful, traditional multi-effects pedal.

Mess features 120 high-quality, stereo effects, ranging from traditional to the experimental. Choose from analog-style modulation and time-based staples or innovative spectralizers andnew ways to use granular engines.

MESS's 16-step grid pad is a real time sequencer and editor - with intuitive hands-on control that rewards experimentation without an advanced degree in sound design required. Sequence effect parameters, start or stop sequences without cutting out the effects, or build complex
polyrhythmic patterns that evolve as you play.

Each track runs independently, with detailed control over parameters, time divisions and length .Create slow spectral sweeps by slowing a sequencer down to 1/16th of the chosen tempo while increasing the speed of a microlooper for chaotic glitchy stutters all in the same patch. MESS has the tools to build-up textures or tear them apart.

MESS turns effects into an instrument. Unlike conventional multi-effects units that rely on staticpresets, MESS offers dynamic, programmable, and performative sound design. This effectspowerhouse is equally at home on pedalboards, in modular synth setups, or integrated intoDAW-less setups making it ideal for guitarists, synthesists, drum machine enthusiasts, and sound designers.

Notes: With the introduction of the Manis Overdrive, Keeley pens the next chapter in the legend of the mythical Klone. The essential germanium diodes at the heart of the myth faithfully deliver the iconic tones that are as expected, but that's far from where this story ends. With additional options for switching between both clipping and bass boost modes, Manis is sure to conjure up a suitable saturation for any situation

Keeley recognises that not every guitarist relates to the sound of the original horse related pedal, so while the Manis totally nails the sound of the fabled original, it also delivers a worthwhile evolution of this renowned circuit. By using GE Transistors as opposed to the fabled GE diodes, the result is representative of the same well-known flavour, but due to the different cutoff voltage there is increased saturation, compression and sustain.

The additional "tube like" second order harmonics and extra gain on tap are like a miracle cure for anyone with the "Klone blues".

Toggle the clipping switch to swap in cold-war era GE transistors for more sustain, saturation, and tube-like response that you can really feel under your fingertips. Or leave the pedal in Diode mode for that authentic Klone experience. Control the character and punch of your sound by dialing down the upper-mid honk with the Tone knob.



Need more low-end? A dedicated bass boost switch lowers the cutoff an octave and adds 3dB of gain, ideal for single coil low-end recovery.

Manis is built tough and uniquely capable of running on 18V for more headroom, a true first of its kind. Being a modernised voltage-double hard clipping boost, Manis is a one stop solution for clean boost amp saturation, sure to please Klone purists, newcomers or converts alike.

Notes: Meet "The Botanist" - the definitive modulation pedal for musicians of all kinds. This compact and multifaceted pedal delivers a powerful impact with its trio of distinct algorithms: Phaser, Chorus, and Harmonic Tremolo, opening up a realm of limitless creative opportunities for shaping your sonic landscape.

Easily tailor your sound using the three intuitive knobs: Mix, Rate, and Depth. Employ the Mix knob to smoothly blend your wet signal, fine-tune the Rate knob to govern the effect's tempo, and adjust the Depth knob to modulate the effect's intensity to your liking.

"The Botanist" is equipped with MIDI capabilities, granting you remote control over bypass, presets, algorithms, and features. Engage the 'Hold' function by holding down the "Bypass/Hold" switch, which instantly maxes out the Depth control and seamlessly restores it to its previous setting upon release.

With six presets at your fingertips, "The Botanist" simplifies switching between your preferred sounds, and its compact design ensures it's the ideal companion for gigging musicians. Whether you find yourself in an intimate club or a sprawling stadium, count on "The Botanist" to consistently deliver your ideal tone.

For musicians seeking a compact, versatile, and top-tier effect, "The Botanist" stands as the quintessential guitar pedal. Featuring three distinct algorithms, MIDI functionality, a convenient Hold function, and an array of six preset slots, "The Botanist" becomes your ultimate musical companion, opening doors to uncharted sonic horizons.

Highlights

The futurist can send any kind of MIDI message allowing you control of anything that has MIDI!

16 messages per preset

Send a total of 16 MIDI messages per preset on any MIDI channel!

Plenty of presets!

The Futurist has 210 total presets organized into 30 banks of 7 !

Programable footswitches

Program each footswitch to be a preset, tap, bank up, bank down, preset up, and preset down. Customize your Futurist to meet your needs!

MIDI Clock

The Futurist can generate its own MIDI clock or pass along MIDI clock from an outside source!

Message triggers

The Futurist supports Press, Release, Long Press, Long Release, Toggle On and Toggle Off as message triggers

Unique features

Midi communication over USB, manage presets and update firmware (with Matthews Effects Editor), and power The Futurist.

3.5MM TRS MIDI IN/OUT

connect directly to devices that use a TRS connection for MIDI and can be used with adapters to connect to 14 inch MIDI connections.

5-pin MIDI IN

Connect to devices that use the traditional 5 pin midi connector.

Utility jack

Configurable to send analogue tap tempo signals or as a latching or momentary switch.

Control jack

Plug in an expression pedal to dynamically send Control Change messages over MIDI or configure the jack to accept 3 additional switches to expand the functionality of the futurist.

Technical

High-grade components selected for their superior quality
3.5mm, traditional 5 pin and USB MIDI connections
Utility jack lets you send analogue tap or switch signals
Control jack lets you use expression or add 3 additional switches
Foot-switches designed to last against the abuse of the road
9V 50MA

Computer Editor

The Matthews Effects Editor allows you to manage presets, update firmware and improve the control ability of your Matthews Effects products from the ease of your Mac or PC!

Notes: Introducing "The Traveler" - the ultimate reverb pedal for any musician. This compact and versatile pedal packs a punch with its three unique algorithms: Mod, Shimmer, and Vintage, giving you endless creative possibilities for your sound.

The three knobs, Mix, M, and Feedback, allow you to customize your tone with ease. Use the Mix knob to blend your wet signal in, adjust the M knob to control a different unique feature on each algorithm, and the Feedback knob to control how long the reverb is. With "The Traveler", you can create anything from subtle reverb textures to full-blown sonic landscapes.

"The Traveler" also features MIDI capabilities, allowing you to control your presets, algorithms and features remotely. By holding the "Bypass/Hold" switch you activate the 'Hold" function which instantly jumps the feedback control to its max setting and then returns it to its previous place once the switch is released.

The six preset slots make it easy to switch between your favourite sounds, while the compact size makes it the perfect companion for gigging musicians. Whether you're playing in a small club or a large stadium, "The Traveler" will deliver the perfect tone every time.

"The Traveler" is the ideal guitar pedal for any musician looking for a compact, versatile, and high-quality effect. With its three unique algorithms, MIDI capabilities, Hold function, and six preset slots, you will explore new sonic landscapes with 'The Traveler' - your ultimate musical companion.

Notes: LAPS: A Multitrack Sound Design Tool

LAPS is a compact multitrack machine designed for layering soundscapes, crafting tape-style overdubs, and creating intricate sonic collages. Ideal for everything from glitchy loops to expansive, multi-layered recordings, LAPS offers a trove of creative possibilities.

Features at a Glance:

3 tracks (Laps) with up to 20 seconds of stereo recording each at 24-bit/48kHz.

Two modes: Replica (mirrored layers for melodic shifts) and Multiply (endless layering without erasing).

Stepped pitch shifting, band-pass filters, granular effects, and a tape-style "Age" effect.

Stereo in/out with on-board panning, true bypass, and high-quality A/D/A converters.

Designed for Sound Explorers

LAPS draws inspiration from Puremagnetik's Small Winters - a plugin built in collaboration with sound artist and 12k label manager Taylor Deupree. LAPS takes the concept beyond the digital realm with enhanced features and physical functionality. Whether you're sketching loops or building spacious compositions, LAPS transforms into a powerful, hands-on sound design tool.

Notes: The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by us in Kansas City, MO, using high-quality parts, quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point.

In 1960, Leo Fender introduced a circuit in his Bandmaster and Vibrasonic amps called the Harmonic Tremolo. Essentially, the amp's signal was split into high frequency and low frequency components, with the output switching back and forth between the two, resulting in a dreamy effect similar to the Uni-Vibe. The 3 Series Harmonic Trem allows you to utilize Leo Fender's revolutionary effect in a package much easier to tote than a vintage amplifier. Toggle up is a great sounding amp trem, while toggle down is our take on harmonic trem effect.

Notes: Instant ambient bliss coupled with the powerful ambience processing is a brand-new Ensemble engine, capable of creating pads and soundscapes that follow your playing organically - so if you change pickups or play in a different place on the neck you get different results. It's unlike anything you've ever heard or played before, all wrapped in a smaller form factor that still manages to house full stereo I/O, TRS MIDI and USB-C connectors on the back panel. Prepare to be inspired!

Cloudburst's Ensemble switch reveals a whole new world of captivating sounds never previously heard from a reverb pedal. Use it subtly to add harmonically rich and otherworldly dimensions to your ambient reverb soundscapes, or use it liberally to hear a lush synthesized string section swell under your guitar playing. Ensemble reacts to your entire guitar signal in an organic and musical way, delivering a richly responsive and uniquely inspiring playing experience.

Cloudburst gives you multiple reverb experiences, with beautifully-tuned and natural small spaces at one end of the Decay knob and vast, expansive atmospheres at the other. As you turn the Decay control numerous internal parameters are automatically adjusted, allowing this ambient reverb pedal to produce outstanding studio-quality spaces of any size at the turn of a single knob.

All of the premium components, sound quality and road-worthiness you expect from a Strymon reverb pedal are here in Cloudburst's new compact format. Featuring unbeatable ease of use and some of the finest reverb sounds we've ever created, Cloudburst could easily be the only reverb pedal you need on your pedalboard.

Notes: Limited black edition of the excellent stereo Dark Star pedal, offering premium reverb with beautifully creative pitch shifting, filtering and bit crushing options. Superb value for money.

Supplier's Notes:
Dark Star Stereo Flagship Reverb Pedal

The continued pull, the drift unabated, the controlled wash of gravity and the chaotic meander of its combined uncertainties. In fact, the original and highly loved Dark Star is a pedal that historically was OBNE's most popular reverb. People bonded with its warmth and aliasing, its long trails and the way it encouraged you to turn the mix fully up. Now, it's in with the new. Dark Star Stereo expands on the promise of ambient reverb and is a pitch shifting, bit crushing, filtered reverb pedal with just about every feature you could ask for. One massive stereo voice, with a wide suite of controls that likes to go anywhere in your signal chain - all that's left is for you to decide just how dark you must go.

Reviving the magic of the long-trail lo-fi reverb algorithm that made Dark Star a breakout hit years ago, Old Blood Noise Endeavors announces a new Dark Star for a new era, with a drastically expanded feature set and improved signal quality that is sure to draw in old fans and new. New features like Stereo Input and Output, on-board Presets, Trails, Expression control over all parameters and MIDI control, of both Parameters and Presets, all help to give more versatility to this device than ever before. Beyond that, the new Dark Star does away with the three-mode toggle, instead creating a single mode combining all the Pitch-Shifting, Bit-Crushing, delayed goodness of the original. Access your favourite sounds as well as new combinations, with new shapers like Filter, Multiply, Volume and Stereo-Spread.

Notes: Little box, big reverb. Specially designed for huge, cavernous echo effects and ideal for infinite tails and frozen sounds, the Blackhole is an exceptionally high quality pedal at a very reasonable price.

Supplier's Notes:
Create haunting echoes, ethereal landscapes and otherworldly ambience with Blackhole, a reverb pedal as big and as mysterious as the cosmos. Blackhole takes you there - beyond the ambience of mere earthly Halls, Rooms, Plates or Springs. Blackhole will take you on a journey from cathedral-type spaces to a universe of out-of-this-world soundscapes.

It includes onboard tone controls, modulation, and infinite reverb settings with mono or stereo operation, MIDI control, preset storing, and most importantly a new compact, easy-to-use interface.

Blackhole features two types of infinite reverb. Infinity mode continuously layers new sound on top of a suspended reverb. Freeze mode holds the effect allowing you to play over the reverb tail. The Freeze Footswitch allows instant access to this feature.

Unlike other reverbs which may offer pre or post modulation, Blackhole features modulation built into the reverb structure itself. It's essentially a big multi-voice chorus, with unique tone-shaping ability. You can utilize extreme settings to smooth out the edges.

Like all Eventide pedals, Blackhole allows you to fine tune every aspect of the effect. With a new, user-friendly, intuitive interface, just about anyone can shoot for the moon and land beyond the stars.

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

Notes: Add warm dimensionality and luscious tape saturation to your signal. Teleport the tones of yesteryear to your board. Effortlessly create a huge range of beautiful, distinctive, and enveloping vintage sounds. From the inherent warmth and luscious tape saturation to the forgotten art of how these machines were manipulated, Deco brings this original inspiration back, giving you these vintage tape effects from the earliest recording studios, right on your pedalboard.

Deco's Tape Saturation smooths out your sound with familiar and delicious tape compression and saturation, while fattening your tone with subtle tape-driven transparent overdrive.The Doubletracker provides the power to shift your sound in many ways, easily allowing you to achieve syrupy slapback tape echoes, psychedelic tape flanging, and gorgeous tape chorusing sounds.
Our second generation Deco gives you the same gorgeous reel-to-reel tape sounds from our original, while adding several significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio.

Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via Deco's EXP/MIDI jack or USB-C connection. Lag Deck delay time can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

Deco now comes with an all-new cassette tape voicing that employs an auto level control (ALC) process common to many high-end cassette tape recorders, resulting in a compressed, fat tone. In addition, a new dedicated Tone knob lets you adjust the tone of the Tape Saturation exactly to your liking, from dark to bright.

A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

Features

High impedance ultra low-noise discrete Class A JFET TRS stereo input.

Low impedance independent TS stereo outputs.

Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection.

USB jack for controlling via MIDI from a computer or for performing firmware updates.

Dedicated tap tempo & On/Off footswitches

Premium JFET analog front end

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality

520MHz ARM Superscalar processor

32-bit floating point processing

20Hz to 20kHz frequency response

Audio Input Impedance: 1M Ohm

Audio Output Impedance: 100 Ohm

Strong and lightweight anodized dark gray aluminum chassis

9V DC power supply included

Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current

Dimensions: 4.5" deep x 4" wide x 1.75" tall (11.4 cm deep x 10.2 cm wide x 4.4 cm tall)

Designed and built in the USA

Notes: An original creative take on delays, looping, reverb and modulation, the Technician combines various digital programs to create a hugely versatile all-round audio tweaking toolbox.

Supplier's Notes:
Delay modes

Digital

Starting as a crisp digital delay, this mode, when paired with the tap footswitch, covers a lot of ground for your delay needs. The "Red" modulator lets you adjust the dampening of the delay, making the repeats either brighter (emulating towards a tape or HIFI sound) or darker

Reverse

Instead of reading the delay buffer in a forward direction like the "Digital" delay we read the buffer backwards creating unique sound possibilities. You can further modify this sound with the "Red" modulator to adjust the dampening of the repeats to grow brighter or darker.

Granular

Takes the delay buffer and chops it up into "Grains" and then plays those grains back. The size of the grains, direction (forward/reverse), the speed (pitch) and location in the buffer is all randomized so every time you experience this mode it will be a unique exploration into granular synthesis. The "Red" modulator allows you to adjust the max size of the randomized "size" of the grains and the amount of grains from 1-5.

Re-sample

What if you want a more complex soundscape like other instruments are playing with you? Re-sample accomplishes this by playing the delay buffer at different speeds which changes the pitch and timing of the delayed phrases creating a more complex musical expression of what you are playing. "Red" lets you adjust the mix of the octave down and the octave up.

Reverb modes

Hall

The least diffused of the reverb modes "Hall" allows you hear the reflective nature of the hallway your sound is in.

Plate

Emulating a classic plate reverb sound that is diffuse and reflective.

Chasm

An exploration into reverb design feedback networks that can allow for unnaturally large decay lengths.

Grim

Takes the "Chasm" mode and splits the output to a parallel octave down so you get the normal output + the octave down for a deep rich soundscape.

Looper modes

Gives you latching control over the rec/dub of your looper.

Momentary

Only rec/dub while holding the rec/dub switch.

Quantise

Works like the latching but will trim your loop to a division of the existing delay time.

MOD ONE and MOD TWO allow you adjust the following modulators

Modulators

Delay

Vibrato - an asymmetrical modulation of the reverbs pre-delay to create sonically pleasing movement in your reverb.
Auto-Filter - takes control of the "Filter" DSP block and modulates it with an LFO. Adjust the "Resonance" of the "Filter" block to get a more dramatic effect.
Shimmer - Adds an octave feedback path in each reverb mode and can be octave down or octave up.
Dampening - adjust the LPF and HPF of the reverb feedback path drastically changing the tone and how the reverb reacts to input.

Reverb

Vibrato - an asymmetrical modulation of the reverbs pre-delay to create sonically pleasing movement in your reverb.
Auto-Filter - takes control of the "Filter" DSP block and modulates it with an LFO. Adjust the "Resonance" of the "Filter" block to get a more dramatic effect.
Shimmer - Adds an octave feedback path in each reverb mode and can be octave down or octave up.
Dampening - adjust the LPF and HPF of the reverb feedback path drastically changing the tone and how the reverb reacts to input.

Looper

Clock: fine detail adjustment of the speed and direction of the clock.
Quantized Clock: Quantized adjustment of the speed and direction of the clock locked to octave intervals.
Loop Start: Adjust the starting point of the loop.
Loop End: Adjust where the loop will end.

MIDI: 3.5MM IN/OUT
USB: USB-C
Expression: TRS input

Controls

MIX (mod one)- The mix of the Reverb DSP block
DECAY (mod two)- The time it takes for your instruments reverberations to fade away, or die.
FEEDBACK (mod two)- How many repeats the delay will have
MIX (mod one)- The mix of the Delay DSP block
CLOCK (pre-delay)- Adjusts the "size" of the reverb DSP block
MIX (mod one)- The mix of the Looper DSP block
FREQUENCY (resonance)- Adjusts the Frequency of the Filter DSP block
TIME (dry mix)- Set the time of the Delay DSP block up to 2 sec

Modifiers

Reverb Mode (modulators)- Sets what Reverb Algorithm is active
Looper Mode (modulators)- Sets how you control the Looper DSP block
Tap Division (effect order)- Sets which tap division is active for the Delay DSP block. 1/2: Half note, 1/4: Quarter note, .1/8th: Dotted eighth note, 1/8th: Eighth note
Delay Mode (modulators)- Sets which Delay Algorithm is active

Input/Output: Stereo / mono - stereo / stereo - mono / parallel mono
Bypass: True Bypass / Tails
Power: 9v 400MA
Dimensions: 4.8 x 5.5
MIDI: Yes. 3.5mm Jack
USB: Yes
Jacks: Top Mounted Input And Output Jacks

Notes: Raise the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more!

Building on the synthesis platform of the award-winning Superego, the EHX Superego+ Synth Engine raises the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more. Plus, we've added a complete effects section featuring 11 effects types, an EXP input for effect parameter control/preset recall and an EXT jack for a 3-button controller.

The Superego+ is equipped with the following effects:
DETUNE: pitch detune, EXP pedal controls pitch
DELAY: warm, analog sounding delay, feedback is preset, EXP controls delay time up to 2 seconds
ECHO: pristine digital delay, feedback is preset, EXP pedal controls delay time up to 2 seconds
FLANGE: Electric Mistress style w/filter matrix, rate and feedback. EXP pedal controls rate
PHASE: Small Stone style phase shifting with rate and depth control. EXP controls rate
MOD: pitch-based vibrato or chorus. EXP controls rate
ROTARY: rotary speaker style sound. Depth controls tweeter/horn balance. EXP pedal controls rate
TREM 1: sine wave tremolo. EXP controls rate
TREM 2: square wave tremolo. EXP controls rate
PITCH: pitch shifting effect over a +/- one octave range. EXP controls whammy
FILTER: resonant low-pass filter. EXP pedal controls frequency

The pedal provides enough sound shaping control to please the most sonically adventurous player and is equipped with Dry, Effect, Attack, Decay, Threshold, Layer and Gliss knobs, plus Rate and Depth knobs for the Effects Section. Four foot-switchable Freeze modes: Moment, Sustain, Auto and Latch, plus a Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled, are included.

The polyphonic Superego+ works with guitar as well as other instruments including bass, keyboards, vocals, drums, etc. and comes equipped with an EHX 9.6DC-200 AC Adaptor.

Creates synth effects, sound layers, glissandos, infinite sustain and more
Four Freeze modes
Built-in effects section with 11 effect types
EXP input for effect parameter control
EXP Presets sweep between snapshots of 7 knob parameters; create and save one set of snapshots for each FX type
Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled
EXT jack for a 3-button controller
Power adapter included

Specifications
Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 140mA
Year Released: 2017

Notes: Simply sophisticated

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

The DD-200 Digital Delay brings together sounds and features inherited from the flagship DD-500 into an even smaller footprint. Twelve different modes offer an inspiring variety of delay colours from modern digital to classic analogue, letting you dial up everything from basic echoes to rich ambient pads and everything in-between. There's also a looper that's always ready to use, plus a selectable carryover function for seamless transitions between memories.

Version 1.1 Update: User Memory Expansion

The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.

For optimal performance, stay up to date with the current DD-200 system software

Twelve Modes, Unlimited Sounds

With 12 different modes to choose from, the DD-200 provides nearly any flavour of delay in an amazingly compact size. At your command are super-clean digital delays, gritty analogue echoes, and spot-on retro sounds from the Roland RE-201 Space Echo and Binson Echorec 2. There's also a variety of options for creating reverse effects, lo-fi tones, and pulsing rhythmic sounds with layered delays. And with the Tera Echo, Shimmer, and Pad Echo modes, immersive ambient colours are just a knob twist away.

Dial in Sounds Fast

The DD-200 features a no-nonsense interface, making it easy to craft inspiring sounds in the heat of the moment. Essential delay parameters are provided on dedicated controls for direct, hands-on access. And in each mode, the function of the PARAM knob changes to parameters tailored for the selected type, delivering extended control with no need to menu dive.

Save and Recall Your Favourite Setups

The DD-200 features 127 user memories plus a real-time panel setting, giving you 128 total setups to choose from. Any range of consecutive memories and the panel setting can be assigned for scrolling access from a footswitch. It's also possible to limit the scrolling range or assign memories directly for even faster recall. If you crave deeper control, setups can be directly recalled via program change messages from an external MIDI device. And by enabling the carryover function, delay repeats will keep sounding as you change memories for smooth, free-flowing transitions.

Deep Real-Time Control

By default, the DD-200's multi-function footswitches provide access to basic functions like bypass, memory scrolling, tap tempo, and looper control. But you can easily reassign them to hold, warp, and many other functions. External control is also possible via footswitches or an expression pedal, and MIDI I/O is even provided on space-saving mini TRS jacks. Via MIDI, you're able to chain multiple 200 series pedals and select memories on all of them at once, and also control a wide range of functions from MIDI devices like the ES-8 and ES-5 effects switchers.

Ready-to-Go Looper

Any time you're ready, pressing the DD-200's two footswitches together puts you into looper mode. Up to 60 seconds of mono recording time is available, and operation is simple and direct with the onboard switches. And since the looper engine functions independently, you're able to develop expressive loops with any of the DD-200's rich delay sounds.

DD-200 Delay Modes

Standard-Clear digital delay. PARAM adjusts the delay attack.
Analog-Emulates classic analogue "BBD" delays like the BOSS DM series. PARAM controls character and distortion amount.
Tape-Emulates the warm tape-based sound of the legendary Roland RE-201 Space Echo. PARAM selects different combinations of three playback heads, and also adjusts the amount of distortion in the delay sound.
Drum-Models the drum-based Binson Echorec 2. PARAM selects different combinations of four playback heads, and also adjusts the amount of distortion in the delay sound.
Shimmer-Pitch-shifted delay for lush, heavenly textures. PARAM adjusts the delay brightness.
Tera Echo-Spacious, animated ambience effect derived from the BOSS TE-2 pedal. PARAM adjusts the sound character.
Pad Echo-Newly developed delay sound for creating drifting ambient textures. PARAM adjusts the delay attack.
Pattern-Rhythmic sounds with 16 delay lines layered together. PARAM selects different pattern variations.
Lo-Fi-Delay sound with fat, distorted character. PARAM adjusts the distortion effect.
Dual-Two different delay lines connected in series. PARAM adjusts the time of the second delay.
Reverse-Backwards delay for cool psychedelic effects and other unique tones. PARAM adjusts the delay attack.
Ducking-Delay with a built-in ducking effect. PARAM adjusts the input sensitivity.

*The product names mentioned on this page are registered trademarks or trademarks of their respective owners. These names are used because it is the most practical way of describing the sounds that are simulated.

Specifications

Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point

Modes: 12 modes
STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSE

Memory127 + Manual
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +7 dBu
Input Impedance: INPUT A/MONO, B: 2 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass

Controls:
ON/OFF switch, MEMORY/TAP switch
MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob
TAP DIVISION button, MEMORY button

Display: 7 segments, 3 characters (LED)
Indicator: TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators

Connectors:
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)

Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw: 225 mA

Expected Battery Life Under Continuous Use
Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.

Accessories: Leaflet "USING THE UNIT SAFELY", Leaflet "To obtain the Owner's Manual", Alkaline battery (AA, LR6) x 3, Rubber foot x 4

Options (sold separately):
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 101 mm / 4 inches
Depth: 138 mm / 5-7/16 inches
Height: 63 mm / 2-1/2 inches
Height (including rubber foot): 65 mm / 2-9/16 inches
Weight: 610 g / 1 lb 6 oz
Weight (including battery): 680 g / 1 lb 8 oz

0 dBu = 0.775 Vrms

Notes: Over the last few years, MOOER has released several Prime multi-effects devices, including the Prime P1, P2, S1, and most recently in 2024, the Prime Minimax M1. Excitingly, the company is kicking off 2025 with a brand new addition to the Prime family-the Prime Minimax M2 Intelligent Pedal.

Within this small multi-effects device, a whole lot of functionality is packed in, including an impressive 194 effects models, including overdrive, preamp simulators, cabinet models, delays, reverbs, modulation effects etc., and more. In typical MOOER style, though, the company took things a step further by offering limitless flexibility through the support of its in-house MNRS sample files, as well as third-party IR sample files. Essentially, this means that users can download additional tonal emulations and effects from the MOOER Cloud and third-party sources to the device, which they can then save across 80 preset slots.

As with some past models in the Prime series, the M2 sports a convenient touchscreen design, facilitating easy browsing through the device's banks of presets. However, guitarists are not limited to interfacing with the pedal in this way, as it also features two footswitches, both of which can be used to switch between presets in each bank. There is even a MIDI jack built into the device, enabling users to connect their MIDI controllers to extend the control functions, and the MOOER F4 wireless footswitch support is also supported. Essentially, these augmentation options facilitate additional footswitches to ensure switching preset tones is always as quick and seamless as possible within any workflow.

While the Prime M2 Intelligent Pedal is primarily designed for effects and tonal simulations, it also comes packed with an array of other useful features. For example, it contains a looping module with a hefty 80-minute capacity, in addition to 10 recording save slots to ensure that any looping creations can be kept for future use in performances. Similar to past looper modules in MOOER's products, users are also free to overdub their recordings and even undo or redo their overdubs, offering a lot of real-time flexibility for creating loop-based musical structures.

As if the addition of a looper wasn't enough, this feature is also synchronizable with an internal drum machine and metronome, a combination that includes 56 drum grooves and 4 metronome varieties. Ultimately, it's a reminder that MOOER clearly recognizes and wishes to solve the struggles that musicians have when attempting to produce precise loops while staying in time. Upon commencing recording, the drum machine can produce four initial beats to serve as a count-in cue, and of course, this can be combined with the device's tap-tempo control for dynamic use. Best of all, this feature can also be applied to modulation and delay effects, ensuring that they work perfectly in time with any performance.

Extra features are included to complete this all-in-one pedal, including a high-precision tuner with fully customizable frequency ranges. Guitarists can even leverage the M2's built-in Bluetooth input support, allowing them to practice, jam, and even produce looped musical structures over their favorite backing tracks, band prototypes, and musical pieces.

Perhaps unsurprisingly for existing MOOER product users, the Prime M2 also boasts an impressive variety of audio routing systems. As was previously mentioned, that includes Bluetooth input, as well as industry standards such as dual-channel stereo output, perfect for stereo delay and modulation effects. It also supports headphone output for those who wish to practice in silence, and even OTG recording, which means that guitarists can record their creations directly to their smartphone whilst on the go.

Speaking of on-the-go, MOOER is continuing its recent portable-play focus with the Prime M2 Intelligent Pedal, as it is fitted with a built-in rechargeable lithium battery with a battery life of up to 6 hours. Ultimately, this means that even a lack of local power sources won't get in the way of rehearsals and live performances. Combined with the pedal's lightweight and small build, it truly is an ideal addition to the pedalboard of any traveling musician.

Overall, the Prime M2 Intelligent Pedal is set to be an impressive new addition to the Prime series. It features augmented functionality when compared to past models, yet still in a minimalist and easy-to-use package, keeping the size small and light yet still packing in footswitches, a touch screen, and other flexible control systems.

Notes: When Empress released the original Compressor back in 2011, it quickly became a favourite among guitar and bass players alike who were searching for something more than the typical oversimplified controls found on most compressor pedals. Although our original Compressor sounded great on bass (and still does!) we set out to do even better.

On top of the full range of features and controls normally only seen in high end studio equipment, such as input and gain reduction metering, independent attack and release controls, a mix knob for parallel compression, and an external sidechain insert, we've now added a fully variable sidechain high pass filter, and a two position 'tone + colour' circuit which adds gentle tone sculpting and harmonic distortion, giving your bass some delicious character.

Specifications:
Input Impedance 1M
Output Impedance 2.2k
Frequency Response (-3dB) 10Hz - 20kHz
Distortion less than 0.1%
Noise -101dB
Power Input Voltage 9 - 18 V DC (Negative tip)
Power Input Connector 2.1mm barrel connector (Negative tip)
Power Consumption ~ 100mA
Enclosure Material Die Cast Aluminum
Input connector 1/4" Jack
Output connector 1/4" Jack
Height (Enclosure only) 1.5"
Height (including controls) 2.5"

Notes: Five decades of sound processing expertise distilled into a compact multi-effects pedal. Huge processing power derived from the H9000 Harmonizer, featuring classic algorithms and new effects.

*** New vocal algorithms added- updated April 2025 ***

Harmonizerr+ is Eventide's groundbreaking suite of vocal effects derived from the iconic Harmonizer platform.

Engineered with cutting-edge tech for shaping and transforming vocals in any setting-live or in the studio.

The H90 goes far beyond a standard effects pedal, now expanding its capabilities with two new studio-grade vocal algorithms: VocalTune and VocalShift.

VocalTune

From subtle pitch correction to bold experimental textures, VocalTune is the ultimate tool for vocal enhancement:
Precise scale quantization delivers flawless pitch control
Shape your voice with pitch and formant shifting
Gate and compression controls allow you to sculpt your voice with ease.

VocalShift

Transform your voice into a lush, vibrant choir with VocalShift. Create anything from subtle doublings to expansive vocal ensembles.

Three distinct voices, with pitch and formant per voice
Pitch-perfect harmonies with intelligent scale recognition
Perform features include voice soloing, pitch glides and pitch holds

H90 Control Software Update

The latest H90 Control software for Mac, PC, and iPad, has received some important quality-of-life updates:

Intuitive parameter grouping puts all related settings at your fingertips
Streamlined workflow with a redesigned algorithm and preset selection
Enhanced zooming and resizing


Supplier's Notes:
Beyond the Effect Horizon

The H90 Harmonizer is Eventide's next-generation multi-effects pedal. Whether you want high-quality bread and butter effects or experimental sounds unheard, the H90 has everything you need to inspire your creativity with an intuitive UI designed with players in mind. Discover why top artists and producers have chosen Eventide through the years with 62 effect algorithms and hundreds of Program combinations curated for a variety of instruments and genres. With its comprehensive I/O and flexible routing options, the H90 is designed to be the heart of your rig.

New Technology, New Effects

H90 Harmonizer features modern ARM-based architecture derived from the world's most powerful effects processor, Eventide's flagship H9000 Harmonizer. This paves the way for the ongoing creation of more advanced effects processing techniques. As a result, the pedal not only offers the iconic reverbs, delays, modulation, and pitch shifting effects of the H9 Max but goes far beyond with 10 new powerful algorithms including state-of-the-art, fast-tracking, and warble-free Polyphonic Pitch Shifting. Eventide's proprietary SIFT (Spectral Instantaneous Frequency Tracking) technology clears the road ahead for next-gen effects both long imagined and unimaginable.

Live Performance Machine

The H90 Harmonizer is a live performance powerhouse! The front panel has been reimagined with five push knobs, seven LED buttons, and a hi-res OLED display for greater hands-on control and parameter feedback. Two large push knobs allow you to switch between SELECT, BANK, and PERFORM modes with ease. In PERFORM mode, you get six programmable footswitches. Map functions like tap tempo, preset, insert bypass or momentary states; use them to engage options like reverb freeze, pitch flex, or delay repeat; make multiple instantaneous parameter changes with three Hot Switches .The comprehensive UI allows you to control any parameter with ease. Adjust expression mappings by hand with the PERFORM HotKnob and engage up to six individual assignable parameters with the three push-button Quick Knobs. Get even more control with two inputs for expression pedals or auxiliary switches with up to three buttons. If that wasn't enough, take advantage of the pedal's extensive MIDI control. The H90 comes with hundreds of factory Programs which can be loaded using either SELECT or BANK mode. In SELECT mode, you can navigate your Playlist sequentially without ever missing a detail thanks to the OLED display. In BANK mode, you can quickly load from a bank of 3 Programs, perfect for cueing up a range of sounds for a song. Organizing your favourite sounds has never been easier, simply load a new Playlist and you're ready for the next gig!

Specifications

Inputs 1 - 4: 14 inch TS mono jack
Outputs 1-4: 14 inch TS mono jack
Exp/Ctl 1-2: 14 inch TRS / Expression pedal or Aux Switch
USB Type-C: Use USB 2.0 for control, updates, and MIDI
MIDI In: Five-pin DIN (Female)
MIDI Out/Thru: Five-pin DIN (Female)
DC Input Jack: 5.5/2.5mm plug / Center Positive (+)
Input Impedance (Inst. Level: >600k ohms
Input Impedance (Line Level): >80k ohms
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms
Maximum Input Level (Inst): +4dBu
Maximum Input Level (Line): +14dBu

Power
12V DC @ 1A / Center Positive (+), 5.5/2.5mm jack

Dimensions (Product)
English: 6.5" (W) x 5.25" (D) x 2.5" (H)
Metric: 170 (W) x 136 (D) x 68 (H) mm

Dimensions (Package)
English: 10.5" (W) x 7" (D) x 3" (H)
Metric: 265 (W) x 180 (D) x 75 (H) mm
Weight (Product): 1.85 lbs / 0.84 kg
Weight (Package): 3 lbs / 1.36 kg
Shipping Contents: H90, Eventide Sticker, 4x Rubber feet, Guitar pick, Universal power supply with plugs (US, UK, EU, AUS), USB A to Type-C cable, Quick Reference Guide

Notes: EarthQuaker Devices Special Cranker

An Overdrive you can trust

The Special Cranker is an all-discrete analogue distortion enhancement device designed to give your signal some extra grit and boost without drastically altering your tone and retaining all of the natural nuances and character of your amp. Think of it as sticking an extra preamp tube in your amplifier for more saturation. Single notes will blossom and bloom with rich harmonics and singing sustain with responsive, tube-like sag. Power chords will sound thicker and crunchier, a little more ragged around the edges. Complex chords will remain distinct and complex, as the Special Cranker is designed to preserve your tone's integrity without muddying up the low-end or smearing the midrange.

The Special Cranker picks up where the beloved Speaker Cranker left off. It has the same spongy, dynamic, and touch-sensitive character of the original but with more gain, double the output volume (now with a user-friendly Level control), an added Tone control to shape your signal, and a diode selector switch featuring the original asymmetrical Silicon diodes as well as a hot, new Germanium diode option.

The More control goes from nearly clean to a medium gain overdrive when at maximum. This control adjusts the bias of the transistor, so you may hear a little noise as you turn the control. Don't freak out; it's totally fine. The gain characteristics are dependent on which diodes are chosen. When the Germanium diodes are selected, the Special Cranker delivers a softer, more rounded response with tamed highs and lower output, while the Silicon diodes add a brighter, more modern edge and higher output. Both are exceptionally responsive to playing dynamics and have excellent clarity. The Tone control gives the user full command over treble frequencies, cutting the highs when counter-clockwise and adding a slight high-frequency boost when turned clockwise. The Level control adjusts the output from nothing to nearly double at maximum.

Tech Specs:

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 15 mA
Input Impedance: 5M P
Output Impedance: <25 kO

Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power:

This device should be powered a standard 9-volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.

The Special Cranker can be safely operated from 9-18 volts.

Notes: The Four to One Mixer is the final docking station for all of your diverging sonic journeys! A simple and compact 4 channel mixer with independent level controls and selectable phase for each channel. This was primarily designed to be used with the One to Four Splitter to create 4 parallel signal paths, but it can be used just about anywhere you need to mix four different sources into a single output with your unique sound!

This high headroom device features a high 1 M Ohm input impedance and a low 100 ohm output impedance ensuring all signals maintain their sonic integrity throughout their journey, even on long cable runs. The high headroom input impedance of this device allows it to accept a variety of instruments without distortion or clipping. This was built to handle just about anything, including guitars, basses, synthesizers, drum machines, and more!

Phase selector switches for each channel will make sure to correct any issues you might have from mixing multiple different signals with opposing polarities. Sometimes mixes can sound out-of-phase, leaving the resulting signal sounding thin or tinnier. Adjusting the Phase on the Four to One Mixer will help you avoid these issues. When used in conjunction with the Four to One Splitter or the Flexi Loops, you can create wild parallel signal paths at the flip of a switch! Use it to mix 4 instruments into one amp! Run four synths into a single channel! Put the whole band through your wall of amps! The possibilities are still nearly endless.

Phase: Use this to select the output phase of the channel. Sometimes other pedals and various instruments will invert the phase of the signal which causes major problems when mixing with other non-inverted signals. If you have a signal that is inverted, flip the phase switch to "-" and the polarity will be corrected. In most cases this switch should stay in the "+" position.

Level: Adjusts the output volume of the channel.

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

50 mA

Input Impedance

1 MO

Output Impedance

100 O

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. EQD always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Notes: One Small Stomp For Man - One Giant Leap For Chorus, Delays & Reverbs

The Zoom MS-70CDR+: Your New Modulation Station

The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.

A Deep Dive into Chorus, Delays, Reverbs & More

Chorus - 43 different chorus and modulation effects that add depth and motion to your sound including phasing, flanging, tremolo, vibrato, detuning, and pitch shifting.

Delays - Featuring 29 mono and stereo delays, with delay times of up to 4 seconds. Everything from reverse and multi-tap to pitch-shifted and self-oscillating delays.

Reverbs - 33 sophisticated studio-quality effects. From spring and plate reverbs to giant hall and arena reverbs.

Dynamics / Filters - Round out your sound with 44 dynamics and filters such as EQ's, compression, noise reduction, and special effects.

Expanded Controls

The MS-70CDR+ offers expansive parameters for each effect, allowing you to dive deep into tweaking your tone.

Define Your Sound
Use a singular effect or up to 6 simultaneously to create unique tones. Save your creations in one of the 100 patch slots or use the 80 preset patches as inspiration to get you started.

Next Generation Circuitry

Newly designed analogue circuits provide more fidelity for improved sound quality. The flat phase response provides sharp attacks and clean low end.

Everything's Better in Stereo.

The MS-70CDR+ has stereo input jacks that accept signals from passive and active guitars, as well as line-level devices such as synthesizers. Its dual line-level output jacks enable you to record and perform with the MS-70CDR+'s 58 stereo effects.

Soundscapes Are Key

For musicians looking to add lush layers to their synths or keyboards, the MS-70CDR+ provides high-quality effects that are perfect for adding atmosphere and character to your sound.

Change Patches With MIDI

With USB MIDI, you can connect the MS-70CDR+ to other MIDI gear to remotely trigger patch changes.

Enhanced Navigation

Cross Key Switches

The Cross Key switches allow you to instantly switch between effects and patches with a tap of your foot.

Control Knobs

Adjusting and tweaking parameters for each effect can be done with the four encoder knobs.

Colour Coded LCD Screen

The LCD backlight changes colour to make it easier to distinguish each category of effects while scrolling.

Sturdy Build

The MS-70CDR+ is built around a metal frame designed to withstand the rigors of live performances.

Power Options

The MS-70CDR+ runs on 2 AA batteries, USB power or AC power.

Tune-Up

The onboard chromatic tuner uses the colour backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open & drop tunings.

Handy Guitar Lab

With a growing library of patches and effects, guitarists can continue to expand their sound with the Handy Guitar Lab for MS-70CDR+ app for iOS. *Coming Soon to the App Store.

Technical Specifications

Maximum number of simultaneous effects: 6 effects
User patch memories: 100
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kO load)
Display: 160×128 dot-matrix LCD

Inputs L/R
Standard mono phone jacks
Rated input level: -20 dBu
Input impedance (line): 470 kO
Input S/N: 122 dB

Outputs L/R
Standard mono phone jacks
Maximum output level: +7.2 dBu (when output impedance 10 kO or higher)
Noise floor (residual noise) L/R: -100 dBu

Power
AC adapter: 9V DC 500mA centre negative (ZOOM AD-16 optional)
2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated operation time using batteries
These values are approximate. Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Alkaline batteries: about 7 hours (about 5 hours using stereo input)
NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input)
Lithium batteries: about 14 hours (about 10 hours using stereo input)

USB Port:
USB 2.0 Type-C / Supported cable type: Type-C
Handy Guitar Lab: USB 1.1 Full Speed
Use a USB cable that supports data transfer. USB bus power is supported.

Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
Weight: 368 g (excluding batteries) / 415 g (including batteries)
Note: 0 dBu = 0.775 V

Notes: Based on technology from the award-winning LVX and MercuryX pedals, the Enzo X is a superbly powerful six-voice modular synth, with polyphonic pitch detection and no special pickup needed on your guitar.

Supplier's Notes:
Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals.

In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types.

To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Notes: Way Back Machine

Step on Zelzah, play one chord, and you're instantly taken back to a world of classic phaser tones as they were always meant to sound, perfectly voiced, with tons of vibe. Vintage 4-stage and 6-stage phasing with controls that allow seamless transitions to vibrato, gorgeous flanging and chorus, and new sounds never heard before-all instantly musical with great tone all the way across every dial.

Two Effects At Once.

Zelzah is actually two different phasers, side by side in one pedal. Zelzah's 4-stage side gives you a wide array of classic tones ranging from phasing to vibrato and more, while the 6-stage side provides phasing, flanging, chorus, and all points in between. Dial in a chorus on one side and barber pole phaser on other, or a phaser on one side and tremolo on the other. Use the two sides independently or together in a variety of configurations. Zelzah may become the only modulation pedal you keep on your board.

Choose Your 4-Stage Phaser Sweep

Classic Sweep

The first Sweep mode is labelled "Classic" because this is the classic four stage phaser sweep we all know. In this Sweep mode, a single LFO with a warped triangle shape creates that familiar vintage sound.

Barber Sweep

Similar to the visual effect of a barber pole, the Barber sweep is a continuously rising or falling effect that is traditionally done with frequency shifters. In Zelzah, Strymon have used an arrangement of synchronized four stage phasers to produce the effect while maintaining the four stage sound.

Envelope Phaser

Set the Sweep switch to Env and you've got a whole new pedal under your feet. Now the phaser responds to your picking like an envelope filter/auto-wah would, with the phaser sweep being dynamically controlled by your input signal, creating harmonically complex and very funky sounds.

Six Stage Voice: Groundbreaking New Phaser Algorithm

The Voice knob on the six stage side simultaneously controls over 30 different parameters, all working in harmony for an inspiring musical experience.

Not only do you get thick, juicy, phasing with pure vintage vibe, but as you turn the Voice knob clockwise, the groundbreaking new modified all-pass structure expands the time response of the cascading all-pass filters seamlessly and continuously, adding spaciousness and airiness to the sound.

Explore a range of fresh musical tones that are not a mix of phasing and flanging, but actually something entirely new. Turn the Voice knob to the right for luxurious true flanger effects, and continue to the far end of the range for lush vintage chorus sounds. There are inspiring musical sounds at every point along the dial, and so many ways to make a sound that is truly yours.

Notes: Phonkify X

Envelope Filter and Octave

Maximise your funk with the Tsakalis Audioworks Phonkify X pedal. A potent pairing of fabulous filters and outstanding octaves. Expanding on the esteemed original Phonkify, the Phonkify X turns up the funk-o-meter with three selectable flavours of envelope filter and three types of octave voicings. This makes the pedal not only perfect for juicing up your jams and dripping your tone in cosmic gravy, but also delivers filters and octave tones that go way beyond and into the spaces between. Featuring flexible momentary or latching operation for each effect, plus a dedicated toggle switch for selecting the order of the filter and octave, the Phonkify X is ready to pour on the funk gravy and turn up the stank factor!

Phonkify X's Filter section warps and wiggles your tone into a kaleidoscope of grooves.

Flip the dedicated toggle switch to find your filter flavour: Low Pass for warm, buttery tones, Band Pass for that snappy, in-your-face attitude or a cosmic combo of Low Pass-to-High Pass for sweeping, interstellar effects. Got an expression pedal? Slide it in and ride the funk wave with hands-free control over your freaky frequencies.

While the Octave section can make the floor rumble and shake! No matter if you're feeling that high-flying octave-up, a deep-diving octave-down or a spaced-out blend of both, hit that footswitch and squeeze out every last funky drop.

Need more juice? Crank the master volume to fine-tune your output, while the pedal's internal voltage doubling gives your tone headroom for days. True Bypass keeps your original signal pure when you step off the funk train.

The Phonkify X isn't just a pedal. It's a total vibe machine, a groove generator and a tone tailor for the funky-hearted. Whether you're laying down tight pocket grooves or blasting off into experimental soundscapes, the Phonkify X has the tools to elevate your sounds right into the stratosphere.

Notes: A typically unique take on multi-effects from Soma, designed to induce meditative states. Hybrid analogue-digital delay/reverb/granular processing gives a range of creative approaches.

Supplier's Notes:
COSMOS is a drifting memory station designed to work with meditative states through music. The design of the controls, functions and generated soundscapes are intended to evoke, in both performer and listener, states and experiences inherent in meditation, such as limitless space, fluidity, spontaneous development, presence, the ability to hear, tranquility, the experience of subtle harmony and happiness enveloping the whole world.

From a functional point of view, COSMOS is a large array of sound memory, in which recorded sounds undergo constant recombinations, spontaneously generating an ever-changing soundscape. This is achieved in three ways - by a mathematical shift based on the relationships between large prime numbers (the size of all delay lines are different primes), an asynchronous operation of the LFO, and modulation with a slowly changing chaotic signal. As a result, it allows the endless layering and processing of various sounds, as in a looper, but without an intrusive, repetitive loop.

COSMOS generates rich, fluid and evolving soundscapes perfect for ambient music. Using COSMOS, you can play an entire meditative solo concert while being in a spontaneous flow and without using studio-prepared sequences, backing tracks and other things that can't be a reflection of the "here and now".

Specifications

Minimum input voltage: 0.35 V peak-to-peak
Maximum output voltage at line outputs: 11.3 V peak-to-peak
The maximum output voltage at the headphones output: 10.4 V peak-to-peak
Frequency response: 10-22000 Hz
Sound memory: 44.7 sec
Supply voltage: 12 V *
Power connector polarity: centre plus
Current consumption: 0.25 A
Dimensions: 342 x 153 x 68 mm
Weight: 2.2 kg

* Use only the power supply supplied with the device! In case of failure, it can be replaced with a high-quality modern switched-mode power supply with an output voltage of DC 12 volts, the center is plus and an output current of at least 0.5 amperes (more is fine). The power supply must have a wide AC input voltage range of 100-240 volts. Such power supplies have excellent output voltage stabilization required for the device. It is forbidden to use COSMOS with nonstabilized voltage from transformer power supplies. It can lead to damage to the device, which is not covered by the warranty repair!

Notes: Harvezi Hazze is a versatile and unique distortion pedal with a wide tonal palette.

The heart of Harvezi Hazze is a waveshaper designed around a unijunction transistor, a relic from the early days of the semiconductor industry unearthed from the e-waste bins of flea markets in Tbilisi, Georgia.

The unique properties of the unijunction transistor allow one simple component to replace a number of very complex devices: depending on the operating mode, we can get a distortion, a limiter, a waveshaper and a generator - with a smooth transition between them. Experiments have shown that this transistor is an excellent basis for a distortion stompbox.

The name translates from Georgian as "a fault on the transmission line" or "signal jamming", and both the semantic and phonetic natures of it unequivocally imply what to expect - an impediment to the input signal, ranging from pleasant harmonic distortions to complete obliteration. The signal chain of the unit consists of an optical compressor with fixed parameters; a dual-mode distorting amplifier with either softer or harsher clipping; a waveshaper built around a unijunction transistor; and a tone stack section trying to tame all this mess.

Signal Chain:

Input -> Compressor -> Distorting amplifier -> Waveshaper -> Tone stack -> Output

Controls:

Gain - controls the output amplitude of the signal in the distorting amplifier section. Depending on the position of the switch, the distortion introduced by this section is soft (switch in the left position) or more aggressive with an abundance of high harmonics (middle position).

Spoil and Spread - control the operation of the unijunction transistor (waveshaper section). Spoil sets the point on the amplitude axis at which the wave will fold, and Spread sets the amplitude of the folding. The sonic meaning of these knobs can be described as follows: the higher the Spread value, the more severe the distortion will be, and Spoil changes timbre and response threshold. By adjusting Spoil you can achieve various gating and cutoff effects. At low Spread values, distortion sounds are mixed into the clean sound.

Tone - adjusts the brightness of the sound; the higher the value, the more high harmonics are present in the signal.

The switch regulates either the distortion mode in the amplifier section (left and center positions), or it turns on the total feedback mode (right position), when the values of all knobs begin to influence each other and effects occur such as resonance at certain frequencies and self-oscillation.

Level - controls the output volume of the signal.

The footswitch routes the signal through the effect circuitry or from input to output directly (true bypass).

The array of switches on the side of the unit gives a few more tonal options:

TONE STACK - routes the signal through the tone stack section (Tone knob).

BASS BOOST - enhances bass frequencies.

TONE MODE - changes the behaviour of the Tone knob (tilt or lowpass).

NOTCH FREQ - changes the central frequency of the filter.

HIGH CUT - attenuates high frequencies.

COMPRESSOR - routes the signal through the compressor.

The lower position of the switch enables the function.

Examples:

Compression:

Switch in the central position, Spoil, Spread, Gain - min, Tone - 12 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Soft clipping:

Switch in the left position, Spoil, Spread - min, Tone - 12 o'clock, Gain - 2 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - on, HIGH CUT - off, COMPRESSOR - on.

Distortion:

Switch in the middle, Spoil, Spread - min, Tone - 1 o'clock, Gain - max.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Fuzz:

Switch in the left position, Spoil - 1 o'clock, Spread - max, Tone - 11 o'clock, Gain - 10 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - on, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Black:

Switch in the left position, Spoil - 12 o'clock, Spread - 1 o'clock, Tone - 3 o'clock, Gain - 3 o'clock.

TONE STACK - on. BASS BOOST - off, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Feedback:

Switch in the right position, Spoil - 11 o'clock, Spread - 4 o'clock, Tone - 2 o'clock, Gain - 9 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Technical specifications:

Input - 1/4-inch/6,35mm mono jack.

Input impedance - 750 kOhm.

Output - 1/4-inch/6,35mm mono jack.

Output impedance - 100 Ohm

True bypass.

Power - DC 9V, 50mA, DC jack 2.1mm, centre negative.

Notes: Analogue delay with extensive controls and tap tempo all in an affordable package!

The EHX Deluxe Memory Boy Analog Delay's Quality ICs deliver warm and organic analog tones while "tap tempo" allows you to always be in sync with the groove. Choose five note divisions for metronomic variances. Sweet modulations can add lush ambience while the expression pedal input gives you external control. The Deluxe Memory Boy is the most flexible, affordable analog delay ever designed.

Tap Tempo
Tap Divide timing subdivisions
Expression pedal input for flexible control
Triangle and square wave modulation with adjustable rate and depth for superior chorus, vibratos and sweeps
Total analogue bucket brigade design
Built in EFX loop
Total Analog bucket brigade design
Power adapter included

Specifications

Circuit
Analogue: Analogue w/ Digital Control
Bypass: True Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 100mA
Year Released: 2010

Notes: A modern fuzz with old school roots and pays homage to one of the ways that early, distorted guitar and bass sounds were made!

The Ripped Speaker is a modern fuzz with old school roots and pays homage to one of the ways that early, distorted guitar and bass sounds were made. At low fuzz settings the pedal emulates the lo-fi distortion sounds of yesteryear, the kinds of sounds created by a razor blade applied to a speaker cone, a loose tube or a faulty channel on a recording console. When you crank the fuzz up the sound is transformed. It's modern and monumental with a searing, fully saturated, fuzz tone.

The Ripped Speaker's RIP knob is a bias control which sets the amount of clipping at the top and bottom of the signal wave form. It adds a lot of versatility and lets you tailor the character of the fuzz. Noon is neutral, a position where the fuzz is perfectly biased... fat, with a great low end and top end bite without being harsh. As you turn the knob clockwise the pedal produces a hard gating effect and the signal sputters and chokes. It's great for creating a dying battery effect. Turning the knob CCW produces yet a different style of fuzz with a smoother gating effect where the signal fades out quickly.

The Ripped Speaker's TONE control is active and delivers a tilt-shift type EQ. That means at noon the EQ is flat. As you turn the knob counter-clockwise the frequency response gets darker with more pronounced lows and less highs. Going clockwise yields a brighter tone with more highs and rolled back lows.

The Ripped Speaker features true bypass switching, comes equipped with a 9 Volt battery and accepts a standard EHX 9 Volt power supply.

Versatile pedal delivers fuzz that goes from old school to modern
Bias control
Active tone control
True bypass switching
Pedalboard-friendly size
9V battery included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 10mA
Year Released: 2021

Notes: Legendary fuzz with added features like a Bass Boost, Noise Gate, and adjustable Mids section for the most versatile Muff ever!

Long revered for its sweet singing tone and violin-like sustain, the classic three-knob Big Muff Pi has helped define the sound of rock guitar for over 50 years. Now, we've added some extras for those who crave more sound shaping control. The EHX Deluxe Big Muff Pi delivers all the classic sounds of the original NYC Big Muff Pi, plus more.

Added footswitchable Mids sections boosts or cuts an adjustable mids frequency for added definition or massive scooped tones. Add an optional expression pedal and turn the Deluxe Big Muff into an extreme fuzzed out wah!

The Attack control preserves pick attack with an enhanced version of your dry signal while the Bass Boost adds rumble at higher tone settings. The Gate removes unwanted hiss for a more dynamic performance.

This is the most versatile Big Muff ever!

Specifications:

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 22mA
Year Released: 2014

Notes: The Oceans Abyss expands on Electro-Harmonix's highly acclaimed reverb technology to deliver a truly immersive effects workstation. The pedal is centered around dual reverb engines that are independently programmable with full-stereo algorithms including Hall, Spring, Shimmer and more. Place these reverbs into a customizable signal path with additional FX blocks like Delay, Chorus, Tremolo, or Bit Crusher for a completely unique soundscape building experience.

Electro-Harmonix has paved the way for powerful, accessible reverbs since the release of the original Holy Grail and now we've pushed the envelope deeper with the fully-equipped Oceans Abyss. Featuring a customizable signal path with up to 8 effects blocks, the Oceans Abyss can be configured as individual reverb, modulation, EQ, delay, bit crusher, saturation or volume effects, or as countless combinations for incredibly creative effect shaping. From a simple Spring reverb to a lush stereo field featuring stereo hall and shimmer reverbs, chorus, delay, overdrive, and tremolo, you can go from surf to shoegaze instantly, without breaking a sweat.

Deep parameter editing is accessible via the high-visibility OLED display with multiple graphical views and easy-to-read designs. Expression/CV control over nearly every parameter gives artful control of your effects and dynamics. Fully-stereo I/O plus an FX Loop allows for use with any instrument, recording set up, or live rig. 128 programmable presets via onboard footswitching or MIDI ensure perfect recall in all performance situations. MIDI IN/OUT ports with MIDI IN support of PC, CC, and Tempo Clock expand the already immense talents of the Oceans Abyss. Connect with UBS-C to Windows or Mac for effects editing, preset management, and more with the free EHXport app.

Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo In & Out
Power Supply: 9.6VDC-500mA power adapter included
Dimensions (in): 7.125 x 5.75 x 2.25
Current Draw: 500mA

Notes: Expanded Freeze in a lowball-sized package!

Meeting between the original Freeze and Superego pedals is the Pico Deep Freeze Sound Retainer. With the ability to freeze a moment in sound, the Deep Freeze can act as a sustain pedal for holding chords and notes as backing for your playing or as a platform to manipulate your tone into new sounds impossible with a normal guitar. In addition to the original Freeze's abilities, the Deep Freeze features layering, adjustable attack/decay speeds, glissando, dedicated volume controls, and 3 modes: Latch, Moment, and Auto, making it powerful pedal punching well above its weight.

The Deep Freeze allows for instant sound freezing in three modes of operation. Latch freezes sound each time the footswitch is pressed until the effect is bypassed, while Moment mode freezes sound only while the footswitch is held down. Auto mode captured sound automatically each time it senses signal above its threshold for virtually foot-free freezes. These three modes make it easy to operate the Deep Freeze in a way that fits any playing style.

Controls on the Deep Freeze let you further tailor the operation of the effect. Separate DRY and EFFECT volume controls let you blend signals from subtle backing to 100% effect experimentation. GLISS adjusts the morph time between freeze sounds creating otherworldly soundscapes. The SPEED/LAYER knob adjusts either the attack/decay time of the effect in Moment and Auto modes, or the amount of layering possible in Latch mode which makes playing impossible chords possible!

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 100mA
Year Released: 2023

Notes: An ultra-compact workhorse that's perfect as part of a portable guitar rig, or as an emergency backup should your main amp break down.

The 15Watt Howitzer guitar amp/preamp is an ultra-compact workhorse that's perfect as part of a portable guitar rig, or as an emergency backup and gig saver should your main amp break down. It's super flexible, like a musical chameleon, and depending on the gear you use and your style, will fit in the broadest range of genres.

The 15Watt Howitzer's Volume and Gain controls let you go as clean or as crunchy as you want while the Bass, Mid and Treble knobs provide plentiful tone shaping. Its FX Loop gives you the option of putting effects like reverb and delay after the preamp. Of course you can still run your guitar straight into pedals and then right into the 15Watt Howitzer's input jack.

EHX's Founder, Mike Matthews, said: Dig it! The sandwich-sized 15Watt Howitzer is perfect as part of a compact guitar rig or backup. But the thing I dig the most, is the tone that emanates from the Howitzer. It's super versatile and depending on what kind of setup you're running fits into any style that's your bag!

15 watts of power, but small enough to fit on a pedalboard or pack in a gig bag
A full set of sound shaping controls: Volume, Gain, Bass, Mid and Treble
Bright/Norm switch: choose between a subtle top boost with more presence or a slightly darker top end
Solid-state class D amp design for maximum output efficiency and minimal space requirements.
FX loop with Send/Return jacks lets you place effects between the 15Watt Howitzer's preamp section and Volume knob
Power adapter included

Specifications:
Circuit: Analogue
Audio: Mono
Power Supply: 24VDC/1000mA power adapter included
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 100mA
Year Released: 2021

Notes: The polyphonic STRING9 String Ensemble transforms a guitar into nine different string ensembles and string synthesizers while requiring zero modifications, special pickups, or MIDI implementation. It relies on the same technology powering all EHX 9 Series pedals. In a 9 Series first, the STRING9 includes the signature EHX Freeze effect on 3 of the presets to sample and hold notes and chords with infinite sustain.

A rotary switch on the STRING9 allows the player to select the sound of their choice, as follows:

SYMPHONIC: Re-creates the sound of a large symphony orchestra and features an octave down effect on the lower range of the guitar for a full sound
JUNE-O: Emulates the Junor analogue string synthesizer sound
PCM: Sound of a small string section sampled by a vintage PCM keyboard producing a warm vintage string sound
FLOPPY: Emulates the sound of an Orchestronr optical disc playback sampler, warble included
AARP: Emulates the classic ARP Solinar string synthesizer
CREWMAN: Emulates the Crumar Performerr analogue string and brass synthesizer; Floyd in a box
ORCH FREEZE: Orchestral sound with EHX Freeze effect
SYNTH FREEZE: String synthesizer sound with EHX Freeze effect
VOX FREEZE: Mellotronr choir and strings sound from the EHX MEL9 with EHX Freeze effect
The pedal is equipped with independent Effect and Dry volume controls so players can precisely tune their mix at the Effects output jack, plus a Dry output jack that always outputs the input signal at unity gain.

Controls 1 and 2 have been designed to adjust specific parameters for each of the nine programs adding usability and flexibility to each sound.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 100mA

Notes: Expression/CV Sequencer with 8 steps to control devices with parameters like oscillators, filters, and delay parameters!

The EHX 8-Step Program Analog Expression/CV Sequencer connects to another device and delivers sequencer control over parameters that respond to expression pedals or CV generators like oscillators, filters, delay parameters, you name it. Set your tempo with the Rate slider or Tap Tempo footswitch, or sync to a drum machine or DAW via MIDI clock. Six Tap Tempo Divide modes provide rhythmic diversity. This thing is a tweaker's delight!

You can add the optional 8 Step Program Foot Controller expands that to 100 presets!

NOTE: Compatible expression inputs must accept a voltage source as the controlling signal. The expression input should also allow for an expression pedal TRS plug with the following connections: Sleeve = Heel, Ring = Toe, Tip = Wiper. The expression voltage present on the Ring of the TRS plug sets the maximum range of the controlling signal; this Ring voltage must be between 2VDC and 9VDC.

Four sequence direction modes: Forward, Reverse, Bounce and Random
Rotary encoder gives you control over glide rate, direction, sequencer length and depth
Save, store and recall 10 presets. The optional 8 Step Program Foot Controller expands that to 100 presets!
Power adapter included

Specifications:

Circuit: Digital
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 100mA
Year Released: 2013

Notes: Pedal version of the excellent Golden Master module, featuring multi-band end-of-chain processing with EQ, compression and mid/side stereo widening effects. Ideal for bass or guitar.

Supplier's Notes:
On-stage mastering

Based on Endorphin.es' Golden Master eurorack module and our experience in electronic live music performances, Endorphin.es developed Golden Master - a multiband processor pedal to deliver high pressure audio for live concerts and venues: sound loud without overloading the master limiter.

Multiband processor consists of EQ, compressor and mid-side

24 bit 96 kHz audio I/O with 32 bit internal processing

Stereo enhancer for each of the 3 bands

High impedance inputs, pseudo-balanced outputs: works also as a DI-box on stage

One knob compressor per band along with global threshold allows you to intuitively achieve results

Dedicated expression pedal for master volume control

Two footswitches let you select presets and bypass with your feet

Notes: Amp Academy Pedal

The Amp Academy is a complete valve amp modelling rig in a compact stomp box format. 3 storable scenes with 2 channels, selectable from 6 separate classic amplifier models. Each patch has Gain, Master and Boost for overdriven tones and 3-band EQ + Presence control. As with a real professional tube amp, there is an effects loop and internal rever effect. The addition of a noise gate helps to keep everything silent when no notes are played. Balanced or unbalanced outputs give flexible options for live performances via FRFR speakers, mixing console, or even for direct recording. All settings are fully editable via USB using the proprietary Amp Academy software and even self-made or third party IRs can be loaded for custom amp modelling. Next time you are carrying your heavy valve amplifier around, consider this incredibly flexible and pocket-sized alternative.

Power supply: 9Vdc, 100mA (min) pin-negative (not included)
Controls: Gain, Master, Boost, NR, Bass, Middle, Treble, Presence
Connections: Guitar in/out (6.3mm), Loop (6.3mm TRS), Aux (3.5mm), DI (XLR)
Dimensions: 115 x 105 x 58mm
Weight: 440g

Notes: The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsFeedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion24-bit
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power Adapter (Sold Separately)PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output Type1/4" Unbalanced TS (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input Type1/4" Unbalanced TS (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Notes: The DigiTechr Mosaic Polyphonic 12-String effect pedal sets you upon the path of creating lush 12-string sounds with either 6-string electric or amplified acoustic guitars. Immediately identifiable 12-string tones are now yours with octave low strings and doubled high strings. Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you. The Mosaic's balanced low-end response with crisp octave shimmer produces a tone that's lush and articulate, just as with a 12-string guitar.

Tailor the Mosaic's sound with the independent Level and Tone controls. Level will control the 12-string effect intensity while Tone shapes the overall brightness of the effect. The Mosaic will give you a richer, more resonant and full tone than a standard six-string guitar. It is true bypass and uses a 9V DC power supply to easily integrate into your existing pedalboard.


General Specifications
SAMPLE RATE

44.1 kHz
FREQUENCY RESPONSE

20 Hz-11 kHz (Effect Enabled)
SIGNAL TO NOISE RATIO

> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A CONVERSION

24-bit
INPUT

1/4" Unbalanced (Tip-Sleeve)
OUTPUT

1/4" Unbalanced (Tip-Sleeve)
CONTROLS

Level, Tone
TRUE BYPASS

Yes. True bypass circuitry preserves your tone when the pedal is not in use.
Dimensions
LENGTH

4.75" (120mm)
HEIGHT

1.75" (44mm)
WIDTH

2.875" (73mm)
WEIGHT

0.36 lb. (163g)

Notes: The Qi Etherealizer (pronounced "chee ethereal-izer"), a collaborative creation with Yvette Young, is a multi-effects pedal that combines Chorus, Delay, Granular effects, and, of course, Reverb, into a creative playground for atmospheric exploration.

Known for her innovative and explorative fingerstyle playing technique, love of guitar pedals, and leadership of the math rock band Covet, the Qi reflects her approach to creating lush, evolving soundscapes. Named after the vital life energy that flows through all living things, the Qi is designed to deliver rich textures, expansive atmospheres, and dynamic layers. By blending Yvette's artistic vision with cutting-edge design, the Qi opens the door to immersive, otherworldly sounds.

The Qi allows you to mix and match the chorus, delay, and grain and run in series or parallel to create your own inspiring universe of possibility in a stereo field. With the ability to save presets and bypass the chorus, delay, and grain controls, you can quickly and instantly change settings by simultaneously pressing the Bypass and Freeze stomp switches. Go from a traditional chorus with a little bit of delay, or go all in and let the Qi take over with unexplainable washes of glitchy and lush ambiance. Whatever your style is, the Qi will give it a new life.

The Qi is the first creation to emerge from Walrus' groundbreaking proprietary digital processing platform, MDSP. Designed in-house by their talented engineering team, MDSP sets a new benchmark for high-fidelity audio and innovative design, delivering decades of inspiration to creators seeking practical yet forward-thinking gear.

At the core of MDSP is the powerful ARM-based Cortex M7 processor, renowned as the highest-performing processor in its class. With a proven history in high-level electronics, the Cortex M7 has been meticulously tailored for advanced audio algorithm processing in the MDSP platform. This unique system integrates a microcontroller and a DSP into a single compact unit, enabling a smaller, modular design that can seamlessly adapt to a wide range of pedal formats.

This modular and "mini" approach empowers Walrus Audio to push the boundaries of audio processing. The enhanced capabilities of Walrus's MDSP allow for the development and execution of more sophisticated algorithms than ever before, delivering unparalleled creative possibilities for musicians and audio professionals alike.

The MDSP platform also boasts a superior audio codec, supporting faster sample rates, increased bit depth, greater headroom, and an exceptional signal-to-noise ratio. These enhancements ensure outstanding audio performance, setting a new standard in digital signal processing for the music industry.

The introduction of MDSP reflects Walrus Audio's commitment to providing creators with cutting-edge tools that inspire innovation and creativity.

Global Controls


Space Knob: Space adds a delightfully charming reverb to your affected signal. Use this knob to modify the mix and decay of the reverb. Go from smaller room sounds to a huge, diffused ambient reverb at maximum settings. It's lush and complimentary, and adding it in with the other effects will put you squarely in dreamscape territory.


Tone Knob: The Tone parameter controls the cutoff of a synth-style resonant low pass filter, allowing you to shape the tone of the effect output.


Series and Parallel: In series, effects will feed into each other in the order of Chorus > Delay > Grain > Output.


In parallel, all of the effect outputs on Chorus, Delay, and Grain are summed together and do not feed into each other. The top row of knobs will act as level controls, and the user can control the level of each effect.


The Mix/Dry parameter controls the mix of wet and dry signal in series mode and dry level in parallel mode.

Grain Controls


The featured Grain effect features two 'flavours' of operation:


Grain Cloud: This mode triggers small samples (grains) randomly from your playing, which gives you unpredictable, yet charming glitchy texture for your sound. The X knob controls the length of time between grains, so you can go from dense clusters to sparse accents.


Phrase Sample: This mode triggers grains rhythmically from your playing. Initial peaks in your playing are detected and grains are played back starting at these peaks, creating a rhythmic and intentional effect. The X knob controls the tempo at which the samples will be played back. Turning the X knob to the minimum position will sync the Phrase Sample time to the Delay time so that repeated grains are in time with the Delay repeats.


The Grain effect also features 5 playback modes that dictate different ways the grain samples are projected.


x1: Normal
x2: Double-speed and +1 octave
x.5: Half-speed and -1 octave
REV: Reverse playback
RNDM: Randomized combination of the previous four modes.


Delay Controls

The delay effect is a full, clean digital delay that offers repeats for up to two seconds. Use the time knob to control the time between delays as well as the feedback knob to control the amount of delays. The TAP/OSC switch on the bottom right of the pedal can also be used to control the delay effect via tap tempo, or when held down will ramp up the feedback and cause the delay to oscillate.

Subdivisions

Delay trails can be projected in three subdivision modes:

Quarter Note
Dotted Eighth Note
Eighth Note

Chorus Controls

The Chorus effect offers two modes:
Tri Chorus: A multi-dimensional chorus favourite. Lush, complex, modulated sounds combining three voices for a full, vibrant sound.

Stereo Chorus: This mode is a classic chorus effect but with the modulation of the chorus being offset 180 degrees to the right channel to achieve the stereo width effect.


Other Features

Three on-board presets (red, green, blue) plus a live mode (white).
TRS MIDI 1/8" in and thru ports for MIDI control.
USB-C port included for future firmware updates.
Momentary Grain Freeze
Momentary Grain + Max Reverb Freeze

Notes: Make your music Hypersonic

Send your tone soaring with the HyperSonic 3-octave pitch rise.

New octaver blend modes

Create never-before-heard sonic textures with new octaver blend modes.

MIDI-capable

Ready to integrate with advanced performance rigs with support for 5-pin MIDI control.

Artist-inspired design

Unique artwork and signature style make the MonoNeon Signature Whammy a bold addition to your pedalboard.

The DigiTech MonoNeon Whammy pedal goes where no whammy pedal has gone before, with new octave blend modes and up to 3 octaves of HyperSonic pitch shifting. Developed in collaboration with trailblazing bassist MonoNeon, the MonoNeon Whammy delivers mind-blowing pitch manipulation for guitar and bass alike.

Included in the box:
MonoNeon Whammy Pedal
Power Supply
User's Manual
2 Guitar Case Stickers
Warranty Registration Information Card
Special MonoNeon Customizing Kit

> Gaffer's Tape - Neon Yellow & Neon Orange
> Mini Permanent Marker

Specifications

Input / Output
Instrument Input Type: Unbalanced 1/4" TS phone jack
Max Input Level: +5 dBu
Input Impedance: 1 MO
MIDI Input: 5-Pin DIN
Output Type: Unbalanced 1/4" TS phone jack
Max Output Level: +10 dBu
Output Impedance: 1 kO

Electronics

Frequency Response: 20 Hz to 20 kHz
Signal to Noise Ratio: >105 dB (A-weighted): ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1 kHz; ref =1 dBu w/ unity gain
Sample Rate: 44.1 kHz
A/D Conversion: 24-bit
D/A Conversion: 24-bit

Physical

Dimensions: 6.5" (16.51cm) x 7.75" (19.68cm) x 2.5" (6.35cm) (WxDxH)
Shipping Weight: 3.8 lbs. (1720g)

Power
Power Consumption: 2.4 W (265 mA @ 9VDC)
Power Requirements: 9 VDC External Adapter (center negative)
Included Power Adapter: PS0913DC (9V DC @ 1.3 A) center negative

Notes: A fresh, original take on pitch shifting, the HammerOn generates hammer-on pitch shifts which alternate between two different intervals. Seven modes provide a range of effects, from simple hammer-ons to automatic techno guitar sequencing with trills.

Supplier's Notes:
Hands-free Hammer-Ons

Hammer-on notes in conjunction with your hands to create never-before-heard licks and riffs - the only limit is your imagination.

7 pedals in 1

Seven modes range from pitch jumps and harmony effects to pitch sequences and drop/capo tunings - HammerOn is like seven pedals in one.

Play the Impossible

Impossible Mode allows you to hammer-on pitch shifts that alternate between two selectable pitch amounts.

The DigiTech HammerOn is a versatile effects pedal with an amazing amount of flexibility and options to create and channel your musical ideas. Take the time to get to know the many options and see if it sparks new creative ideas.

The PITCH 1 footswitch is dedicated to always be a hammer-on selectable momentary pitch shift above or below what you are playing. PITCH 2 footswitch has 3 different modes of operation selectable using the MODE button. There is a button called DRY+ that can turn on the dry signal and a button called TRILL that can mimic rapid presses of the footswitches.

With all these options it's like having 7 pedals in one:

1. HAMMER-ON: An instantaneous momentary pitch shifter pedal
2. HAMMER-ON with TRILL: A rapid fire hammer-on action pedal
3. HARMONY-ON: An instantaneous harmony creation pedal
4. The IMPOSSIBLE Pedal: A dual alternating momentary pitch shift pedal
5. DROP/CAPO SEQUENCE: A multi-setting pitch transposition pedal
6. SEQUENCE with TRILL: An automatic guitar riff sequencer
7. SEQUENCE with DRY and TRILL: An automatic techno guitar sequencer

Specifications

Electronics
Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response: 20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1kHz; ref= 1 dBu w/ unity gain
A/D/A Conversion: 24-bit

Input / Output
Input Type: 1/4" Unbalanced TS
Max Input Level: +5 dBu
Input Impedance: 1MO
Output Type: 1/4" Unbalanced TS
Max Output Level: +10 dBu
Output Impedance: 1kO (Effect enabled or effect bypassed), True Bypass

Physical

Dimensions: 5.12"(13.00cm) x 3.57"(9.06cm) x 1.84"(4.67cm) (L x W x H)
Weight: 1.12 lbs. (508g)

Power

Power Consumption: 2.3 Watts (258 mA @ 9VDC) typical
Power Requirements: External Adapter (included), 9 VDC 1300 mA

Notes: Sync all your time-based devices, seamlessly move through preset setlists, and simplify tempo matching with the Canvas Clock! Designed for any kind of rig you throw at it and deeply customizable, users can put their full trust in the Clock to be an all-in-one tempo solution for their board.

The Canvas Clock can interface to any device in your rig that accepts clock signal, whether MIDI, (via the 1/8 in or 5-pin MIDI ports) or analogue (via the 1/4 in jacks). Clock will send time signals for both MIDI and analogue devices, and will continue to do so as you move through your song list or manually adjust the tempo. As you edit, save, and recall songs in real-time or via the online editor at walrusaudio.io, Clock will send your specific settings for whichever song you are currently on out to all of the time-based devices you are connected to.

Customize your Clock

The four 1/4" in jacks aren't just for sending tempo. They can each be assigned one of four functions:

Tempo Out - Connect to any pedal or device that accepts external tap inputs or analogue time controls (ex: Walrus' Arp-87 Delay or Monument Tremolo). Canvas Clock can send analogue clock and MIDI clock at the same time. No more relying on your feet to keep perfect time.

CV (Control Voltage) Out - Control any device that accepts CV. Good for Analog Synths, Drum Machines, or similar devices.

Switch Input - Each jack can be configured to receive input from two external footswitch controls. The switches are connected to the Tip (left) and Ring (right) of the associated 1/4 in jack. These can be assigned to many functions available on the pedal with the ability to add more options via a software update.
Expression In - Connect an expression pedal, and use it to send a MIDI CC message out to a pedal connected to the Clock. The "Toe Down" and "Heel Down" values can be adjusted to fine-tune the controlled parameter range. Use this to adjust the mix of a reverb or the depth of a tremolo (via MIDI out).

Footswitches

Footswitches for the Clock are customizable. Eliminate the "bending over between songs to make adjustments portion of a set" by assigning one of the onboard functions to the A and/or B switches:

-Advance to the next song
-Go back to the previous song
-Advance to the next setlist
-Go back to the previous setlist
-Toggle the metronome start and stop
-Global tap tempo

Sync

The "Sync" jack found on top of the pedal can be set in two ways:
-Input - Great for accepting BPM from an external source.
-Output - Great for syncing external devices, such as a Eurorack device, a Roland Volca Synth, and many other devices.
Some external devices send/receive clock signals that are "double" the standard timing signals, so Walrus included the option to send/receive a 1x or 2x signal, depending on the specific device's needs. Users can also determine the subdivision of the BPM to send out.

Metronome


If active, the Clock metronome can be heard via the MET OUT port at the top of the pedal. This signal can be sent to a front of house console for live gigs or a monitor for practicing. Metronome type, volume, and accent note controls can all be edited in the Metronome Menu.

Songs

There are 128 "Song" slots available to users in the Canvas Clock. You can think of each song as an editable preset where you can adjust the song name, meter, BPM, MIDI Macros, and metronome start or stop. Once your song is edited to your liking, every time it is recalled it will operate just the way you set it!

Setlists

Keeping your songs organized is crucial for live sets, which is why with the Clock, songs can be grouped together and navigated through easily using the Setlist feature. Once you access setlist settings, you can select songs from your master song list to curate and reorder in the way you'd want them for a gig or practice. Once your setlist is saved and active, going through the setlist in real-time will recall these songs and all their settings in the order you curated them for that setlist.

MIDI Macros

For the MIDI-minded players who may want further control over their rig, there are standard MIDI commands that can be triggered when you recall songs with the Clock. MIDI Macros allow users to create one or a series of MIDI CC or PC messages that get sent out of the Canvas Clock when a specific song is recalled. Users have 128 adjustable Macros with 15 messages per MIDI Macro, which can be useful in further dictating how you want your MIDI devices to behave during certain songs, (ex: bypassing some pedals but engaging others).

Walrusaudio.io

While you can edit and customize your Canvas Clock settings using the menu on the pedal, users can also connect the pedal to a computer via the USB-C port and customize their Clock with the Canvas Clock Editor web-app. Quickly and easily set up songs, edit your Setlists, edit MIDI Macros, and more. Firmware updates will also be available via this site as well.

Specs

Power:
9VDC, 300mA,
Center-Negative, 2.1mm center pin OR Powered via USB-C
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended. Power supply not included.
Computer Connectivity: Requires Chrome web browser on either Windows or Mac OS. Visit walrusaudio.io to use the Canvas editor and get firmware updates when available.
Enclosure: 2.3" x 2.96" x 4.84" including jacks & knobs

Hardware

Preset/Menu Encoder and Switch
Tempo/Save Encoder and Switch
Footswitch A
Footswitch B
1/4" Jack 1 (TS or TRS)
1/4" Jack 2 (TS or TRS)
1/4" Jack 3 (TS or TRS)
1/4" Jack 4 (TS or TRS)
MIDI In/Out (5-pin DIN)
MIDI In/Out (1/8th" TRS cable)
Sync (1/8th" TRS cable)
Met Out (1/8th" TRS cable - not intended to drive headphones, please plug into high impedance input)
USB-C

Notes: Timeless Inspiration
The SDE-3 fuses vintage digital character and wide-ranging versatility into one unique and inspiring BOSS compact pedal. Experience the genuine sound and core features of the Roland SDE-3000, an iconic '80s-era rackmount delay favoured by some of the most influential guitarists of all time. Flow into any creative setup with a slate of modern features. And twist the powerful Offset control to explore an array of colourful dual-delay textures.

Compact Legend
Introduced in 1983 by our parent company Roland, the SDE-3000 is revered for its beautifully rich sound and distinctive modulation. The coveted SDE tone was realized through a finely tuned digital engine and the non-linear behaviours of the supporting analogue circuitry, including magnetic saturation in the anti-alias filter, evolving modulation produced by the components of the time, and an altered triangle LFO shape. The SDE-3 brings the authentic vibe of this classic delay to a pedalboard-friendly BOSS compact, enhanced with innovative creative features for every musical style.

Vintage Colour and Character
Dripping with warmth and musicality, the SDE-3 elevates your tone with endlessly evocative delay sounds. The efficient panel provides the primary controls of its vintage benchmark-including delay time, feedback, and independent rate and depth knobs for the modulation-plus additional knobs that expand your sonic potential. Explore retro single delays and '80s-style mod/delay combos. Or tweak the mod and high-cut controls to conjure moody, atmospheric tonalities for ambient, chill, and lo-fi music.

Offset Magic
Along with reproducing the SDE-3000's famous mono sound, the SDE-3 includes a powerful Offset feature to create interesting tones with two simultaneous delays. With one simple control, you can instantly add a second delay to the primary delay for a wealth of mono and stereo colours.

Doubled Delays-Turning the Offset knob up to its centre position introduces a second delay that's 1-100ms longer than the primary delay. For example, if the primary delay is 400ms and the Offset is 10ms, the second delay's time is 410ms. Coupled with the SDE-3's time, feedback, and highly adjustable modulation controls, you can craft deep delay tones unavailable with typical delay pedals.

Timed Dual Delays-In the second half of its range, the Offset knob produces a shorter second delay that's based on the primary delay time. Use the pedal's tap tempo function to determine the quarter-note value for the primary delay. Next, turn the knob to sweep the second delay's time between eighth-note and dotted-eighth subdivisions. This lets you introduce a variety of rhythmic effects that sync with your music.

Multiple Output Modes
The versatile SDE-3 provides output configurations for any stage or studio scenario. Run it in mono for basic setups. Play in true stereo with discrete left/right delays or a panning mode for ultra-wide sounds that move across the stereo field. Send dry and direct feeds to two amps for wet/dry setups. Or mute the direct sound entirely for studio mixing and parallel effect rigs.

Modern Workflow
The SDE-3 offers numerous control options to enhance your performances. Press and hold the pedal switch to enable the tap tempo function. Or use the TRS MIDI input to receive clock sync signals from DAWs, pedals, and drum machines. Connect external footswitches for on-demand access to tap tempo and a hold function for on-the-fly looping. Alternately, an expression pedal can be used to control the Level, Feedback, and Time knobs for delay mix adjustment, wild pitch effects, and dramatic self-oscillation.

Notes: The Benchmark in Guitar Distortion

The DS-1 Distortion is a true icon in the world of guitar effects. Introduced in 1978, BOSS's first distortion pedal defined a bold new sound, delivering hard-edged attack and smooth sustain that's been a staple of players for generations. The DS-1 is the top-selling BOSS compact pedal ever, and its original, unchanged design continues to inspire the creation of great music everywhere. The classic DS-1 tone is behind the signature sounds of numerous rock legends, and is ready to fuel your own signature sound today.

Genre-Defining Distortion

Before the DS-1, most distortion pedals produced harsh, buzzy tones and muddy sound at high gain settings. In 1978, BOSS engineers changed all that by developing a unique distortion circuit for the DS-1 that produces tight, hard-edged gain with rich harmonics while retaining the unique characteristics of different guitars and playing techniques. Hard rock, metal, and punk styles began to flourish in the '70s and '80s, and the DS-1's tone had a defining influence on these genres. That trend has endured through multiple generations, and players around the world continue to seek out the classic DS-1 sound.

Gain from Mild to Heavy

From its modest three-knob interface, many different sound colours can be coaxed from the DS-1. Its pioneering two-stage circuit incorporates both transistor and op-amp gain stages. This approach is critical to the DS-1's characteristic low-frequency fullness, which is loved by guitarists that play heavy music genres. The distortion knob offers an extremely wide range, from a mild boost for driving amps and pedals to full-throttle gain for monster rock riffs.

Powerful Tone Shaping

Unlike typical tone controls that only cut highs, the DS-1's tone circuit features an innovative design that offers far more range. Turning the knob clockwise increases highs and decreases lows, while going counter-clockwise has the opposite effect. This lets you dial in everything from tight, cutting rhythm sounds to smooth, fat lead voices. The tone control is particularly effective for maintaining low-end definition when using the DS-1 as a booster with vintage-style amps, which often sound muddy when driven with other distortion pedals.

Nominal Input Level-20 dBu
Input Impedance: 1 M ohm
Nominal Output Level-20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Controls: Pedal switch, TONE knob, LEVEL knob, DIST knob
Indicator: CHECK indicator (Used for indication of check battery)
Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply:
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw10 mA

Expected battery life under continuous use:
Carbon: Approx. 50 hours
Alkaline: Approx. 80 hours
* These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Carbon-zinc battery (9 V, 6F22)
Option (sold separately)AC adaptor (PSA series)

Size & weight (incl. battery)
Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height59 mm / 2-3/8 inches
Weight: 360 g / 13 oz

Notes: Based on the legendary Roland Space Echo, the RE-202 brings tape-style delay effects into the future. Classic vintage sound in a modern, user-friendly package.

Supplier's Notes:
A Masterpiece Returns in the Modern Era

Introduced in 1974, the Roland RE-201 Space Echo stands among the most legendary and sought-after effect units ever produced. This tape-based classic remained in production for over 14 straight years, and its distinctive rhythmic echo sounds, warm character, and highly playable sonic quirks still inspire musicians, producers, and audio mixers over four decades on.

Backed by intensive R&D and Boss' latest innovations, the RE-202 faithfully delivers the authentic sound and behaviour of the Space Echo like never before. Built by the company that designed the original, this advanced pedal captures the RE-201's magic in flawless detail, from the magnetic tape and motor properties to the vibrant spring reverb and colourful preamp circuit. And to take things even further, Boss have expanded the vintage Space Echo experience with lots of new features tuned for today's music.

Tape Echo Magic

Tape echo was the first delay effect and one of the first effect processors available for electronic musicians. In contrast with today's CPU-based digital units, a tape echo is a simple machine that uses a motor to pull magnetic tape across one or more record/playback heads. Warm, full, and dynamic, the tape echo sound is influenced by many factors. The ever-changing input level colours the sound with varying amounts of tape saturation and compression. In addition, motor speed fluctuations, friction, wow and flutter, and other elements introduce an appealing modulated character that's subtle and continually evolving.

RE-201 Space Echo: Simply Legendary

The RE-201 was a benchmark Roland product and one of the leading tape echo units of its era. It featured three evenly spaced heads that produced a wider range of echo effects than typical single-head designs, plus an innovative free-running tape system that provided superior performance with minimal tape wear. Grab-and-go controls enabled quick access to clean, single delays or various head combinations for dense, rhythmic echoes. A spring reverb tank was included too, making the RE-201 a one-stop shop for quality ambience effects. Last but not least, analogue preamp circuitry was another key ingredient in the Space Echo's rich sonic recipe.

A Masterpiece Reborn

Realized through the latest technologies and exhaustive analysis of several vintage RE-201s-including a pristine original unit from the BOSS and Roland factory archive-the RE-202 brings the complete Space Echo experience to life in a versatile modern pedal.

While previous BOSS designs captured the true sonic flavour and essential characteristics of the Space Echo, new advancements have allowed us to go much deeper than ever before. With the RE-202, Boss' engineers have fully reproduced all the complex, non-linear behaviours that contribute to the RE-201's immortal character. Everything that influences the sound was carefully examined and recreated with all-new algorithms, including the tape path, record/playback mechanism, motor variations, preamp coloration, tape age, spring reverb character, and more.

Retro Sound at Your Fingertips

The RE-202 delivers the full vintage vibe of the RE-201-without the need for regular tape replacement and hardware maintenance. All the core controls of the original are here, including the iconic 12-position mode selector. Every behaviour is replicated with complete accuracy, such as the gradual pitch change that occurs when the Repeat Rate knob is tweaked, or the cool runaway feedback that happens when the Intensity knob is maxed.

With selectable tape age and variable controls, you can dial in everything from a brand-new Space Echo to the worn character and quirks of a well-loved vintage piece. The Saturation control has been carefully calibrated based on the actual magnetic tape and preamp behaviours of the RE-201, with the sound becoming warmer and more compressed as you turn up the knob.

Sampling Frequency: 48 kHz

AD Conversion: 24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converter.

DA Conversion: 32 bits
Processing: 32-bit floating point
Modes: 12 modes
Memory127 + Manual
Nominal Input Level: INPUT A/MONO, INPUT B: -10 dBu
Maximum Input Level: INPUT A/MONO, INPUT B: +7 dBu
Input Impedance: INPUT A/MONO, INPUT B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, OUTPUT B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, OUTPUT B: +7 dBu
Output Impedance: OUTPUT A/MONO, OUTPUT B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: ON/OFF switch, MEMORY switch, TAP switch, SATURATION knob, WOW & FLUTTER knob, MODE SELECTOR knob, BASS knob, TREBLE knob, REVERB VOL knob, REPEAT RATE knob, INTENSITY knob, ECHO VOL knob, MEMORY button, INPUT button, TAPE button

Connectors: INPUT A/MONO jack, INTPUT B jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
Power Supply: AC adapter
Current Draw: 140 mA
Accessories: AC adapter, Owner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Rubber foot

Options (sold separately)
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 192 mm / 7-9/16 inches
Depth: 133 mm / 5-15/64 inches
Height: 52 mm / 2-3/64 inches
Height (including rubber foot): 53 mm / 2-3/32 inches
Weight: 860 g / 1 lb 15 oz

Notes: The Voyager MKII is a mid-focused overdrive/preamp that contains all the mythical magic from the original Voyager and adds a wealth of features not seen before in a Klon-style pedal.

From its lowest to highest settings, the Voyager provides a uniquely superb amount of clarity to any playing style. At lower gain settings, it brightens the signal and adds clarity to each note. With the gain turned up, the Voyager transforms into a thick overdrive, providing depth to chorded playing while retaining the clarity needed to break through solos.

The Voyager MKII breaks out of the traditional Centaur three-knob topography by adding a foot-switchable parametric mid-frequency EQ with a boost/cut range of +/-12dB. The Freq (Frequency) knob then controls the centre frequency of where the Mid knob is set, giving a range of 250Hz-2kHz. Great for accommodating any guitar and pickup combination and tailoring your tone to your own style of playing.

Further customize the Voyager's sound with the five-way rotary switch:
1. Classic 1N34A Germanium Diodes (most compressed). This is the original Voyager sound.
2. Classic 1N34A Germanium Diodes with bass boost (trust us).
3. Symmetric Silicon Diodes (more open and dynamic).
4. Asymmetric Silicon Diodes (least compressed, open & driven).
5. Asymmetric Silicon Diodes with bass boost (least compressed, open & driven with a bass boost.)

Think of each position as a different "flavour" of the pedal. Fine-tune each of these modes with the Mid/Freq EQ for a near-infinite supply of gain options.

Notes: The DigiTechr Drop is a dedicated polyphonic drop tune pedal that allows you to drop your tuning from one semitone all the way down to a full octave. Get down-tuned chunk without having to change guitars! The Drop also features a momentary/latching switch. With the switch set to momentary, you can turn the Drop into a true performance pedal. Fast trills and roller-coaster pitch dips are at the tip of your toes.

General Specifications
Input1/4" Unbalanced (Tip-Sleeve)
Output1/4" Unbalanced (Tip-Sleeve)
ControlsAmount, Momentary On/Off
A/D/A Converter24-bit
Sampling Rate44.1 kHz
Power SupplyPS0913DC-01 (US, JA); PS0913DC-02 (EU, AU, UK)
Drop Tune Range1-7 Semitones Down, Octave Down, Octave Down + Dry
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.36 lbs.
