Effects pedals

Notes: The EHX 5MM Guitar Power Amplifier is a pocket-sized power amp that’s a great alternative to a traditional guitar amplifier. It’s super portable and perfect in playing situations where a high-powered amp is not required… like when you’re mic’d on stage, in the studio or as a backup. It produces 2.5 watts so one of the cool things about it is that it doesn’t take much to start getting some nice drive and saturation. Plus, it can be connected directly to any 8 O – 16 O speaker cabinet.

The 5MM is complete simplicity. It features a Volume control and a Bright switch which, when engaged, adds presence to the signal. Since it is a power amp, a preamp, overdrive pedal and, or an EQ in front of it will really let you dial in your tone, but it can be used by itself. The 5MM Power Amplifier also comes equipped with its own power supply.

Notes: The ZOIA 10k is a celebration of Empress' milestone of 10,000 ZOIA units sold, marking the occasion with a special limited-edition beige finish and a striking blue OLED screen. The ZOIA is more than a pedal-it's an entire modular effects environment, letting you create custom sounds, from effects to synthesizers and utilities, in a compact and powerful stompbox.

Modular Synthesis Meets Multi-Effects

The Empress ZOIA 10k blends modular synthesis with multi-effects, putting limitless sound design possibilities at your feet. With over 80 modules, including oscillators, filters, and LFOs, you can craft anything from classic delays and reverbs to complex synth patches-perfect for live performances or studio sessions.

Creative Freedom on Your Pedalboard

At the core of ZOIA's design is an intuitive, customizable interface that invites musicians to explore and create unique sounds without ever needing a computer. With its illuminated grid and high-definition OLED screen, the ZOIA 10k makes it easy to see and shape every aspect of your patches in real time.

Exclusive Colourway

The ZOIA 10k limited edition celebrates ZOIA's impact on sound design with a special beige finish and blue OLED screen, making it a must-have for collectors and ZOIA fans. This exclusive colourway is available only in 500 units worldwide.

Specifications
Input Impedance: >= 1MO
Output Impedance: 100O
Frequency Response (-3dB): 10Hz - 23.4kHz
Total Harmonic Distortion: 0.22%
Dynamic Range: 105.5 dBA
Input Headroom (no pad): +0.5 dBu
Input Headroom (6dB pad): +5.7 dBu
Input Headroom (12dB pad): +10.8 dBu
Output Headroom: +16.2dBu
Power Input Connector: 2.1mm Barrel Connector
Power Input Voltage: 9V DC (center negative)
Required Current: 300mA
Length: 5.7"
Width: 3.75"
Weight: 1.5lbs

Notes: Full-range overdrive for a wide, sculptable tone!

The EHX Crayon Full-Range Overdrive is a versatile overdrive with independent Bass and Treble controls and an open frequency range that provides players with a musical alternative to customary mid-focused overdrive pedals. It delivers a range of sounds going from a suggestion of dirt to full-on distortion and is equally impressive all by itself or when driving another overdrive pedal.

Full-range overdrive with a lush, rich, warm tone
Independent Bass and Treble controls
True Bypass for maximum signal path integrity
Compact pedalboard-ready pedal
9V battery included

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply:9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 10mA
Year Released: 2015

Notes: Create mind-blowing sounds ranging from deep kicks to high toms to sci-fi drums!

A faithful reissue of the cult-classic released in 1979, the EHX Super Space Drum uses analogue synthesis techniques to create mind-blowing sounds ranging from deep kicks to high toms to sci-fi drums. Trigger it from the built-in pushbutton or an external (non-MIDI) electronic drum pad. Pass external sounds through the gated amplifier via the aux input. The Super Space Drum lets you create, control and manipulate a stunning array of synthesised sounds.

Analogue drum synthesiser dripping with vintage sound and vibe
Creates an awesome array of percussive sounds ranging from really deep kicks to high toms to sci-fi drums
Triggers via the on-board pushbutton, an external (non-MIDI) drum pad and most clock generators
Process external sounds thru its Aux In
Rugged die-cast chassis, includes EHX9.6DC-200mA PSU, also accepts a 9V battery
Works great with the EHX Clockworks Rhythm Generator/Synthesizer, 8 Step Program Ananlog Expression/CV Sequencer and other similar devices
Power adapter included

Specifications

Circuit: Analogue
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 25mA
Year Released: 2016

Notes: Originally designed by Josh Scott of JHS Pedals and graphic designer, Daniel Danger as a homage to Electro-Harmonix in what Josh and Daniel consider the company's design heyday of the 1970s, the EHX Lizard Queen Octave Fuzz is a nano-sized version of the pedal brought to life by the engineers at Electro-Harmonix that has all of the tones and vibes of the original circuit design by Josh. The tone is inspired by EHX's fuzz pedigree with a unique analog octave up circuit that has all the vibe of the original design first featured on the JHS Show in 2022. This creates a completely new and unique EHX fuzz sound we've never heard before. To further tell the tale, the pedal is adorned with vintage EHX-inspired graphics designed by Daniel.

Housed in EHX's Nano-sized chassis, the EHX Lizard Queen is a fixed gain fuzz pedal which features Volume, Octave, and Balance knobs. Volume controls the overall output volume level. The Octave control adjusts the level of the octave-up signal from zero to full octave chaos. Perfect for dialing in a crushing rhythm sound or a chimey, clanging lead sound. The Balance knob sets the tone balance between the smoother Shadow setting and the raspy, biting Sun setting. The effect of the Balance control is especially apparent with the octave set high.

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 5mA

Notes: Classic fuzz reimagined and redefined!

Expanding on Electro Harmonix's first homage to the tone that launched a thousand riffs, the EHX Satisfaction Plus delivers a wide palette of tones from classic '60s snarl to creamy lead tone to thick, earth-shaking sludge!

Where the original Satisfaction Fuzz circuit was a focused tribute, the Satisfaction Plus Fuzz treats the classic tone to a modern control set that includes a FAT/NORM mode switch, Bias control, and Tone knob. The added FAT mode features a tone that is bigger and warmer than the NORM mode for woolly leads and giant wall-of-thunder riffs. The Tone control is an active tilt-shift EQ that inversely controls both the treble and bass of the fuzz for broad tonal shifting. Set the Bias control to dial in the fuzz character from balanced and open to gated and snarly.

Fuzz circuit inspired by early '60s fuzz pedals
FAT mode adds bigger, warmer tones
BIAS adjusts from sweet spot smooth to voltage-sag snarl
TONE is a tilt-shift EQ adjusts treble and bass
ATTACK and VOLUME control gain and output
True Bypass
9V battery included (9V adapter optional)

Specifications
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (inches): 4.5 x 2.75 x 2.1
Current Draw: 5mA
Year Released: 2023

Notes: EHX's rich history was marked by many revolutionary pedals but one of our most distinctive lines was a group of analog drum synthesizers that included the Crash Pad.

Like the original from 1980, the EHX Crash Pad Electric Crash Drum can create an array of drum sounds and other-worldly oscillation sweeps, as well as process external sounds thru its resonant filter. Plus, it's been updated to respond to expression pedal/CV input for external control over the filter in real-time.

Creates a range of percussive sounds from cymbals, snares and hi hats to oscillation sweeps
Triggers via the on-board pushbutton, an external (non-MIDI) drum pad and most clock generators
Process external sounds thru the resonant filter + EXP/CV input for real-time filter control
Rugged, die-cast chassis
Works great with the EHX Clockworks Rhythm Generator/Synthesizer, 8 Step Program Analog Expression/CV Sequencer and other similar devices
Power adapter included

Circuit: Analogue
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 22mA
Year Released: 2015

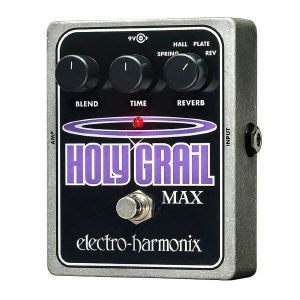

Notes: Your quest for the perfect reverb pedal is answered!

The EHX Holy Grail Max, an easy to use, stellar sounding reverb pedal. The Holy Grail Max delivers four types of studio quality reverb: SPRING, HALL, PLATE and REVERSE all designed for the discerning guitarist but also great with other instruments on stage or in the studio. Included is an analogue wet/dry control that provides a constant volume curve as you turn the BLEND knob from fully dry to fully wet while also keeping your dry signal analogue through the pedal.

Specifications:

Circuit: Digital
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 80mA
Year Released: 2014

Notes: Damp is the name given to this miniature digital reverb pedal to describe the immersive sound image provided by its 3 inbuilt reverb models. A choice of Spring, Plate or Hall reverberation types can be selected by the illuminated push button at the top of the pedal. Holding this button down during power-up selects between mono output or stereo output, which requires a stereo jack lead. Three rotary controls adjust Decay, Level and Tone settings as required. Pressing the footswitch activates or deactivates the effect, whilst holding this pedal enables a secondary effect - Shimmer in Plate mode or Freeze in Spring or Hall modes. The Damp pedal is versatile enough to cover a wide range of reverb styles with a minimal footprint on guitarists' pedalboards or for patching into an effects loop for other instruments or even vocals.

Power supply: 9Vdc (DC5521 connector, negative centre, adaptor not supplied)
Controls: Decay, Level, Tone and 3 reverb modes switch
Dimensions: 94 x 53 x 51mm
Weight: 175g

In the box

The box for this item contains :

Damp digital reverb pedal

Notes: The genuine BOSS and Roland Dimension effect is back, and it's now more versatile than ever! Designed in the premium Waza Craft analogue tradition, the DC-2W offers not just a perfect sonic recreation of the original DC-2 Dimension C pedal, but also the legendary SDD-320 Dimension D studio rack effect it was based on. The DC-2W features the same intuitive four-button preset interface as the original '80s-era effects, now evolved with electronic switching that unlocks a multitude of sonic variations not available on the vintage units.

Highly sought-after by musicians and audio engineers, the Dimension's unique spatial processing magically enhances the width and depth of any sound, from electric and acoustic guitars to keyboards, vocals, and other sources. Built from the original circuit designs and updated with modern refinements, the DC-2W is the only pedal available that delivers the classic Dimension experience with complete sonic authenticity.

Enhance Your Sound with Natural Width and Depth

The vintage Dimension effect is famous for its innovative 3D spatial processing that just makes everything sound a little better. It's often mistakenly called a chorus effect, but it's actually not. Though time-based like a chorus, the Dimension's circuit is quite unique and sophisticated, subtly enhancing the width and depth of the source audio without any prominent modulated movement. The resulting sound is more open and natural, gently enriching any instrument or mix without making it sound overly processed.

Four Switches, Expanded Sonic Possibilities

Just like the original Dimension effects, the DC-2W offers a simple and direct interface with four preset switches that provide sonic variations with increasing width and depth. While the originals had mechanical switches, the DC-2W is equipped with modern electronic switches and status LEDs for more solid performance. The new switches also allow you to press two at once to access a variety of additional sounds. Across the DC-2W's two effect modes (S and SDD-320), 20 different Dimension variations are possible with just four switches.

Authentic Tones with Modern Refinements

In the Waza Craft tradition, the DC-2W delivers vintage analogue tones with modern design refinements for enhanced performance and versatility. Along with the new electronic mode switches, the pedal features a newly designed internal bypass circuit that greatly improves on that found in the original DC-2. In addition, versatile I/O enables the pedal to blend in with any mono or stereo rig, from regular guitar setups to audio interfaces and studio mixing consoles. And like all Waza Craft pedal models, the DC-2W includes a premium buffer circuit for ultra-transparent tone when the pedal is switched off.

The Roland SDD-320 Dimension D: A Studio Legend

Very quickly after its debut in 1979, the Roland SDD-320 Dimension D became a go-to secret weapon for audio engineers and music producers around the world. It can be heard on countless classic records in all genres, and is still regularly used today. From guitars, electric pianos, and synths to strings, backing vocals, and more, the Dimension D injects instant spatial mojo and sonic glue without creating an obvious "effect" sound.

The DC-2W's SDD-320 mode fully captures the original Dimension D vibe in every way. Many engineers like to press multiple buttons on the Dimension D rack for new and different sounds. But in truth, only two actual sound variations are technically possible with this undocumented feature. With its modern switching, the DC-2W's SDD-320 mode enables six sound variations when two buttons are pressed, including four "in-between" sounds and two all-new voices.

The BOSS DC-2 Dimension C: 3D Sound in a Compact Pedal

Introduced in 1985, the DC-2 Dimension C pedal brought the Dimension D's distinctive spatial effect to the BOSS compact pedal format. While the Dimension D was designed as a studio effect that supported either mono or stereo input sources, the DC-2 was specifically created for mono sources like guitar, and features a modified circuit that produces a Dimension effect with a slightly different tonal flavour.

Specifications

Modes: S (Standard), SDD-320
Nominal Input Level-20 dBu
Input Impedance: 2.2 M ohms
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance:10 k ohms or greater
Bypass: Buffered bypass
Controls: Pedal switch, S/SDD-320 switch, MODE SELECTOR [1]--[4] buttons
Indicators: CHECK indicator (Serves also as battery check indicator), MODE SELECTOR [1]--[4] indicators
Connectors: INPUT A (MONO) jack: 1/4-inch phone type, INPUT B jack: 1/4-inch phone type, OUTPUT A (MONO) jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61), AC adapter (PSA series: sold separately)
Current Draw: 65 mA
Expected battery life under continuous use: Alkaline: Approx. 6 hours *These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)
Options (sold separately)AC adaptor: PSA series

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 1 lb

* 0 dBu = 0.775 Vrms

Notes: Harvezi Hazze is a versatile and unique distortion pedal with a wide tonal palette.

The heart of Harvezi Hazze is a waveshaper designed around a unijunction transistor, a relic from the early days of the semiconductor industry unearthed from the e-waste bins of flea markets in Tbilisi, Georgia.

The unique properties of the unijunction transistor allow one simple component to replace a number of very complex devices: depending on the operating mode, we can get a distortion, a limiter, a waveshaper and a generator - with a smooth transition between them. Experiments have shown that this transistor is an excellent basis for a distortion stompbox.

The name translates from Georgian as "a fault on the transmission line" or "signal jamming", and both the semantic and phonetic natures of it unequivocally imply what to expect - an impediment to the input signal, ranging from pleasant harmonic distortions to complete obliteration. The signal chain of the unit consists of an optical compressor with fixed parameters; a dual-mode distorting amplifier with either softer or harsher clipping; a waveshaper built around a unijunction transistor; and a tone stack section trying to tame all this mess.

Signal Chain:

Input -> Compressor -> Distorting amplifier -> Waveshaper -> Tone stack -> Output

Controls:

Gain - controls the output amplitude of the signal in the distorting amplifier section. Depending on the position of the switch, the distortion introduced by this section is soft (switch in the left position) or more aggressive with an abundance of high harmonics (middle position).

Spoil and Spread - control the operation of the unijunction transistor (waveshaper section). Spoil sets the point on the amplitude axis at which the wave will fold, and Spread sets the amplitude of the folding. The sonic meaning of these knobs can be described as follows: the higher the Spread value, the more severe the distortion will be, and Spoil changes timbre and response threshold. By adjusting Spoil you can achieve various gating and cutoff effects. At low Spread values, distortion sounds are mixed into the clean sound.

Tone - adjusts the brightness of the sound; the higher the value, the more high harmonics are present in the signal.

The switch regulates either the distortion mode in the amplifier section (left and center positions), or it turns on the total feedback mode (right position), when the values of all knobs begin to influence each other and effects occur such as resonance at certain frequencies and self-oscillation.

Level - controls the output volume of the signal.

The footswitch routes the signal through the effect circuitry or from input to output directly (true bypass).

The array of switches on the side of the unit gives a few more tonal options:

TONE STACK - routes the signal through the tone stack section (Tone knob).

BASS BOOST - enhances bass frequencies.

TONE MODE - changes the behaviour of the Tone knob (tilt or lowpass).

NOTCH FREQ - changes the central frequency of the filter.

HIGH CUT - attenuates high frequencies.

COMPRESSOR - routes the signal through the compressor.

The lower position of the switch enables the function.

Examples:

Compression:

Switch in the central position, Spoil, Spread, Gain - min, Tone - 12 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Soft clipping:

Switch in the left position, Spoil, Spread - min, Tone - 12 o'clock, Gain - 2 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - on, HIGH CUT - off, COMPRESSOR - on.

Distortion:

Switch in the middle, Spoil, Spread - min, Tone - 1 o'clock, Gain - max.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Fuzz:

Switch in the left position, Spoil - 1 o'clock, Spread - max, Tone - 11 o'clock, Gain - 10 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - on, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Black:

Switch in the left position, Spoil - 12 o'clock, Spread - 1 o'clock, Tone - 3 o'clock, Gain - 3 o'clock.

TONE STACK - on. BASS BOOST - off, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Feedback:

Switch in the right position, Spoil - 11 o'clock, Spread - 4 o'clock, Tone - 2 o'clock, Gain - 9 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Technical specifications:

Input - 1/4-inch/6,35mm mono jack.

Input impedance - 750 kOhm.

Output - 1/4-inch/6,35mm mono jack.

Output impedance - 100 Ohm

True bypass.

Power - DC 9V, 50mA, DC jack 2.1mm, centre negative.

Notes: Zoar is a highly interactive medium-high gain discrete distortion (using only transistors; no opamps or diodes in here!) that has that highly sought after touch sensitive amp-like quality.

It has been finely tuned to create a highly tweakable hi-fi and modern sounding distortion, but with the ghosts of old school circuitry to deliver a grind that is both instantly familiar and delightfully unique.

From defined sparkle and tightness of an overdrive to low-medium gain fuzz that's perfect for drop tuned guitars and basses, Zoar can do it all. Zoar lets you dial in and control every nuance of your tone from jangly on-the-verge of break up to blowing the walls out heavy saturation.

While having its roots in a very familiar past, the passive 3-band EQ has been finely tuned for modern tones. While this style of tone shaping seems simple on the surface, it is deceptively complex and highly interactive - yet surprisingly easy to instantly dial in dozens of mind blowing sounds.

Want to elevate your sonic spirit to a higher level? Try running Zoar at higher voltage! Zoar can handle power up to 18v DC. Higher voltages will yield a different frequency response with more defined dynamics and a faster response. When powered at 18v, the range of clean tones are widened, dirty tones become punchier with better note articulation, low frequencies are tightened, higher frequencies will cover a broader spectrum without becoming harsh and the output volume nearly doubles! The experience is not unlike plugging into a wall of high wattage tube amplifiers!

This meticulously crafted box has six knobs that allow you to truly customize your sound with the Level, Weight, Gain, Bass, Middle, and Treble controls.

The Gain control on Zoar goes from the edge of break up all the way over the cliff into the crunchy, grinding abyss. The character of the distortion is heavily dependent on the setting of the Weight control as well as the pickup type and further fine-tuned by the EQ section.

Zoar's 3-Band EQ and Gain controls give you nearly unlimited options with great focus and sensitive precision, but the real powerhouse of Zoar is the Weight control. This control dictates the amount of low end that is passed into the circuit, thus controlling the entire character of the pedal. Simply dial in the 3-Band EQ to 12 o'clock and adjust the Weight to see how drastically it dictates your sound. From a mere clean boost to a high gain distortion to overdrive to the crispy Hi-Fi fuzz territory, this function gives you everything.

The Level control hits unity around noon, but this is dependent on where the other controls are set. In addition to controlling the output volume, it also plays a small part in controlling the voice of Zoar. By adjusting the Level control with any combination of EQ (boosting the frequency bands and cutting the output volume), you can achieve drastically different curves that have the feel of the more traditional low pass filter type tone control.

Notes: Voodoo Vibe is a mini guitar effect pedal that is recreates the rotating speaker effects produced by the classic uni vibe pedals used by famous guitarists from the 60's to the present day. Controls for Speed, Intensity and Volume give a wide range of adjustment to home in on the perfect vibe effect. An illuminated mini push button above the rotary controls can switch between a classic psychedelic vibe effect or a more chorus-type effect. Holding this button down during power-up selects between mono output or stereo output, which requires a stereo jack lead. Pressing the footswitch engages or disengages the effect. The smart tap tempo feature means that the pedal recognises pressing the footswitch twice or in a short space of time and responds to the timing as a tap tempo function. Perfect for trippy arpeggios and ethereal chord work.

Power supply: 9Vdc (DC5521 connector, negative centre, adaptor not supplied)
Controls: Speed, Intensity, Volume and Vibe/Chorus switch
Dimensions: 94 x 53 x 51mm
Weight: 175g

In the box

The box for this item contains :

Voodoo Vibe pedal

Notes: 1978 rarity reissued with modern updates and a tiny pico footprint!

The late 1970s rarity Electro-Harmonix Slap-Back Echo pedal is reissued with modern updates and a Pico footprint!

The 50s era gave birth to an iconic sound in which a single, short delay was utilized to add depth and rhythmic effect on countless recordings. The newly reissued all-analog design of the EHX Slap-Back Echo delivers this beloved classic sound and more in a Pico-sized pedalboard-friendly package. With three delay time settings and up to +20dB of boost, the Slap-Back Echo can achieve subtle doubling effects to intense bathroom reflections all with the distinct flavor of bucket-brigade (BBD) circuitry.

Housed in EHX's Pico-sized chassis, the Slap-Back Echo features Gain and Blend knobs as well as a Time switch. The Gain knob controls the input signal before the echo circuit and also adjusts the overall volume at the output with a boost of up to +20dB. The Blend knob mixes the dry signal and the echo signal from 100% dry to 100% echo. The Time switch selects between three different delay times: 45ms, 65ms, and 100ms.

Independent gain and blend knobs
Time switch with 45ms, 65ms, and 100ms delay times
Up to 20dB of boost
True-Bypass
Small, pico-sized chassis
9V power supply included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 15mA
Year Released: 2023

Notes: The J Mascis Ram's Head Big Muff Pi fuzz pedal pays homage to the sonic centre of the alt-rock legend's iconic tone of equal parts thickness and clarity in a special edition white and violet finish.

"That's my sound. The Muff is always on," J says. "All distorted sounds begin with the Muff. That's what I grew up playing so it's kind of amazing to have my own signature one."

Based on the highly coveted 1973 Electro-Harmonix V2 Violet Ram's Head Big Muff, J's signature Big Muff produces the indulgent fuzz and exceptional sustain used as his sonic centre for decades.

The fuzz is sonically more articulate than other Big Muffs with excellent string separation and dynamics, which make it one of the most versatile Big Muffs. The pedal's response feels smooth and aggressive making your leads scream and chords thunder.

Feel the fuzz of a guitar giant: the J Mascis Ram's Head Big Muff Pi fuzz pedal from Electro-Harmonix.

Authentic V2 Violet Ram's Head Big Muff in a nano-sized chassis
Special-edition artist graphics
True bypass
9V battery included

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 2mA
Year Released: 2022

Notes: Proudly billed as the first fully programmable drum machine in a pedal format, the Step is designed to accompany other instruments. Four-track, 16-step sequencer with 300 Beat presets and 500 kits.

Supplier's Notes:
Step Modern Drum Machine

Step is the first fully programmable drum machine in pedal format. It's an instrument, a co-writer, an accompaniment at a live performance, or a bandmate in an empty studio. Designed with the flexibility to instantly start a unique song but with deep customization options to quickly create fresh beats. Step is for everyone - everyone that isn't afraid to experiment, take chances, try something new, and create original music.

4 Customizable Drum Tracks

Step is a 4 track drum machine with a complete interface. Easily control all parameters for each of the 16 steps on the face of the pedal, no computer editor needed.

Mix & Match

How about an electronic snare with a jazzy kick? With Step, with a twist of a knob, you can create your sound pack by combining sounds from different Kits.

Instant Drum Beat Generator

Tap in the tempo, turn the Beat and Kit knobs to find your groove and play! There are 300 rhythms and 500 kits - it gives tons of combinations.

Modern Sound

With over 2000 samples, from the sounds of classic analogue machines to acoustic drums, anyone can find the sound they want. And, if you're going to create your kits, you can easily do it, too.

Per-Step Control
Customize over 15 parameters for each track's drum sound on a per-step basis. Switch up hi-hat velocity, add reverb to a final crash or throw in a 10% chance for a drum roll.

A Thousand Songs

Create and play complete 16-part songs, easily put together by quick-copying patterns, selecting new beats or making your own. Then make a playlist and go live!

Stomp-In FX

Use the FX stomp-switch to punch in customized effects from delays, reverbs, loopers, rearrangers and more. Every pattern in your song can have a different stomp-in effect.

Expansive Connectivity

Step has all the connectivity you need, stereo input and output, MIDI in and out, expression pedal input, and micro SD card storage with USB-C connectivity.

Nerdy on Demand

Need polymetric or polyrhythmic beats? Or maybe some generative drums? Step offers per-track swing, speed and length, step probability, randomized note playback, and more. You don't have to get nerdy with Step, but you can!

Instant Inspiration

From musicians wanting to quickly play along with a drum kit to deep divers looking to create more than traditional drum beats, Step is for everyone. Either create songs instantly by selecting from 500 preset rhythms and 200 drum kits or use the interface to create completely customized beats anywhere. Loop 16 steps and jam or combine patterns into a 16 pattern song.
A Complete Instrument

Step is a fully customizable drum machine, with features designed to make original drum tracks you want to play along with. All Step's parameters can be controlled directly on the pedal with a straightforward, intuitive user interface. Create complex and evolving patterns using probability, a dynamic drummer by switching up the velocity on eat hit, a sloppy drummer with the humanize, chance and micro-move features, or a perfect robotic machine.

Performance Ready

As a live companion Step can't be beat. With the ability to stomp-in effects and change songs or patterns via the dedicated stomp-switches, Step is a one stomp solution for all your performance needs.

Smash the FX stomp-switch and create interesting transitions or emphasize a solo. Freely assign over 50 effects in 8 different categories to the FX stompswitch, from repeaters and rearrangers to delays and reverbs.

For even more live control, assign the expression pedal to parameters including tempo or volume.

In Sync

Step is the perfect bandmate, keeping everything in sync. Use Step's MIDI input and output to stay in time with your delay, start playback at the same time as a looper, and more.

Keep your devices in sync too. Step's sequences are also compatible with Play and Play+. Create and exchange patterns between grooveboxes and the pedal, in both directions.

Tech specs

Ins & Outs

Stereo/Mono In: jack 6.3 mm
L-Out/MONO: jack 6.3 mm
R-Out: jack 6.3 mm
Expression Pedal
MIDI In: mini-jack 3.5 mm
MIDI Out: mini-jack 3.5 mm
USB-C
Power: 9-18 V DC / min. 500 mA (power adapter not included)

Physical Dimensions

Height: 2.24 inches (5.7 cm) - with knobs
Width: 7.09 inches (18.0 cm)
Depth: 4.72 inches (12.0 cm)
Weight: 2.05 pounds (0.930 kg)

Notes: The latest EarthQuaker Device actually is the same as the latest Death By Audio device - the TIME SHADOWS II - Subharmonic Multi-Delay Resonator. This new pedal is a joint collaboration that brings their sonic soundscape trips to your melted mind.

With the switch to the left Time Shadow's controls are completely the brainchild of EarthQuaker Devices resident genius Jamie Stillman. Flip the switch to the right, and you enter the head of the madman Oliver Ackermann from Death By Audio barely clutching to reality. Place the switch in the middle and enter a whole new realm of pitch warping delays brought to you by a telepathic mind-meld with a 5th dimensional dream being.

All three sounds are wildly different from each other and yet share a perfectly designed harmony to be completely complementary and suitable for every style and genre of music.

The EarthQuaker Devices side transforms whatever you play into the sound of a jazz space bazooka! It's a pitch morphed fuzz delay filter with so much attitude that you are actually intimidated. It takes the input signal, blows it out with power of digital distortion, blends it with a polyphonic sub octave, feeds it into a delay, then spits it out into a highly resonant envelope controlled lowpass filter.

The Death By Audio side is a multi-delay filter remorphinator that goes from icy shimmers to cosmic space caves of bouncing repeats.

The middle position is an energy beam that brings your earthly transmissions repetitively closer to the heavens while simultaneously diving deep into the hells.

In addition to all this madness we also bring you a user assignable expression jack and 6 preset slots to save and recall your favourite settings!

With these three unearthly delights, you should have everything you need to break brains and destroy monotony!

Notes: SolidGoldFX EM-III- Compact Delay Powerhouse

Welcome to the new SolidGoldFX EM-III Multi-Head Octave Echo; the smallest, most powerful and by far the most versatile SolidGoldFX delay pedal to date.

Building on SGFX's Electroman Delay legacy, the EM-III manages to both echo the past, present and future. With EM-III's wide-ranging yet ultra-intuitive control set, warm analogue-voiced echoes, precise and modern delay, as well as experimental and futuristic sound designs, are all just a single stomp away.

At your feet (or fingers) you have a multi-head tape style echo, with the ability to add in a signal an octave lower to the primary delay head. This can result in dancing, rhythmic delays with body and gravitas, as well as bold washy soundscapes. These two core features are controlled via a single mini-toggle. Flick it left to select between 1, 2 or 3 delay heads or flick it right to toggle the octave effect on and off. From there, just set your Delay Level, Repeats and Time via the knobs or tap in your preferred tempo via the soft-click tap tempo switch and let the good echo times roll.

The EM-III also sports delay modulation introduced via the Flutter control. Keep it at centre position for no modulation. Dial it left for a slow and dreamy chorus-like modulation or right for a faster vibrato, letting you create lush oceanic movement, tape-style crinkles, eerie tension and beautiful dissonance.

The colour knob allows you to engage both high-pass and low-pass filtering. Dead-centre you have a pristine full-frequency digital delay.

Dial it to the left and you cut the highs, creating warm, murky analogue-esque repeats. Dial it to the right and you suck out the lows for crisp and bright tape-style repeats or super thin lo-fi delays.

EM-III also brings interactive warp and glitch features to the tonal table by pressing and holding either Tap, Bypass or both at the same time. Hold Tap to increase the repeats until self-oscillation, creating a swelling wall of sound. Hold Bypass to replicate the sound of a tape motor on the fritz and a tape reel snapping, or hold both for glorious noise seances that will act as the perfect song/set closer.

Additional features include soft-touch, relay based, true bypass switching with the option of buffered trails, top jacks and up to a full second of delay time.

Designed to inspire and evoke emotion, EM-III can sound as pretty and cheerful or as dark and macabre as you wish.

Tune up, plug in and immerse yourself in the EM-III experience.

Notes: Compact multi-effect pedal combining the award-winning Soul Food Overdrive and Holy Grail Max Reverb!

The EHX Turnip Greens is a multi-effect pedal that combines the Soul Food Overdrive and Holy Grail Max Reverb.

The Soul Food delivers transparent sounds starting with clean boost and progressing all the way to intense overdrive. It's equally adept at adding punch to a player's tone, pushing an amp into saturation or in front of other dirt pedals driving them into new worlds of distortion.

The Holy Grail Max provides four carefully crafted reverbs: Spring, Hall, Plate and Reverse. A newly designed analog wet/dry control yields a constant volume curve as the Blend knob is turned from fully dry to fully wet, while also keeping the dry signal analog through the pedal.

A toggle effect-order switch, located in the middle of the Turnip Greens, selects whether the overdrive or reverb is first in the effects chain. Send and Return jacks let the player insert effects into the signal path between the two.

The Turnip Greens features an internal switch that lets the player select between true bypass or buffered bypass for the Soul Food section.

Soul Food goes from clean boost to classic distortion and can easily drive a guitar amp into saturation
Holy Grail Max delivers four studio quality reverbs: Spring, Hall, Plate and Reverse
An Effects Loop lets you put a single pedal or your entire pedalboard in between the Soul Food and Holy Grail Max
An Effect Order toggle switch lets you put either the Soul Food or Holy Grail Max first in the chain
Power supply included

Specifications

Circuit: Analogue / Digital
Bypass: Selectable True Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 125mA
Year Released: 2014

Notes: Pulse is a miniature IR (impulse response) loader pedal, that can apply a specific tonal profile to the input signal. Speaker cabinets typically change the tone of a guitar or bass guitar in a musical way, which is often collected using a microphone for sending to a mixing console for recording or sound reinforcement. Connecting the signal to a mixer before the speaker usually produces a sterile and harsh sound, which is where the Pulse pedal comes in. This pedal can mimic the speaker cabinet and microphone, meaning that the guitar signal can be taken straight from the preamp section and injected into a channel on the mixer. Another use for IR loaders is to mimic the response of an acoustic guitar, making an electric guitar sound more like an acoustic or an electro-acoustic guitar sound more natural. Pulse has modes for guitar cab, bass cab or acoustic guitar with 8 selectable types of each, adjusted by Level and Space controls. A 3.5mm headphone output means that this pedal can also be used for silent practice and an inbuilt audio to USB interface means that it can be used as the front end for a PC or Mac computer recording setup. Pulse is an invaluable guitarists and bass players multi-tool for practice, live and recording duties.

Power supply: 9Vdc (DC5521 connector, negative centre, adaptor not supplied)
Controls: Level, Space, 8-model selector and 3 IR modes switch
Dimensions: 94 x 53 x 51mm
Weight: 175g

In the box

The box for this item contains :

Pulse IR loader pedal

Notes: MOOER, a leading music gear company, is proud to announce the release of Micro Looper II, a powerful and compact loop pedal that provides an impressive 480 minutes of recording time spread across three saving banks.

Featuring three saving banks and 16 slots per bank, the Multi-Saving-Slot Micro Looper Pedal offers users up to 480 minutes of recording time, with each slot providing up to 10 minutes. The pedal also includes unlimited recording layers, allowing musicians to easily create complex and layered loops.

With its AUTO REC function, the Micro Looper II automatically starts recording as soon as an input signal is detected, making it easy to capture spontaneous musical ideas without having to press any buttons.

Specifications:

Number of saving slots: 48
Maximum recording capacity of each slot:10 minutes
Sample rate/sample depth: 44.1kHz/24bit
Input: 1/4'' mono audio jack (impedance value: 470k ohm)
Output: 1/4'' mono audio jack (impedance value: 100 ohm)
Power requirements: 9V 120mA, centre negative (it is recommended to use the isolated power supply to avoid unexpected noise)
Dimensions: 93.5(D) × 42 (W) × 52mm (H)
Weight: 157g
Accessories: Owner's manual

Notes: The NU-X MG-400 builds on the success of the ground-breaking MG-300 compact multi-FX pedal, adding dual processors and delivering high-definition models and increased flexibility. Integrated effects sections include Drive, Amp Simulation, I.R cabinet simulation, Modulation, Delays & Reverbs with a host of options within each category. Audio modelling is based on the NU-X TSAC-HD algorithm, which delivers high-definition analogue circuit simulation for pro quality guitar tones. An expression pedal covers wah and swell effects amongst other possibilities. All settings can be edited onboard or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations. For live or rehearsal backing, the built-in Jam function has a fully featured drum machine and phrase looper. To integrate with a DAW studio suite, the USB also functions as a high-quality audio interface, completing the studio-ready guitar rig. The main output can be stereo or mono for guitar amplifiers or D.I to studio equipment. There is an additional 3.5mm output for stereo headphones. Expanding the control surface has provided space for additional control footswitches for a smoother and more accessible live playing experience.

Specifications

Power supply: 9Vdc, 280mA pin-negative (adaptor included)
Inputs: 6.3mm jack (guitar), 3.5mm jack (aux input)
USB port: USB type-C for audio interface and PC/Mac editing
Sampling format: 48kHz, 32-bit
Frequency response: 20Hz - 20kHz (+/-1dB)
Outputs: L/Mono + R 6.3mm jack, stereo 3.5mm headphones
Latency: 1.1ms
Dynamic range: 108dB
THD: +N<0.03%
Input impedance: 470k ohms (Aux 10k ohms)
Output impedance: 1k ohm (Headphones 47 ohms)
Dimensions: 289 x 160 x 71mm
Weight: 920g

In the box

The box for this item contains:
MG-400 multi-FX pedal
9Vdc UK power adapter

Notes: Based on technology from the award-winning LVX and MercuryX pedals, the Enzo X is a superbly powerful six-voice modular synth, with polyphonic pitch detection and no special pickup needed on your guitar.

Supplier's Notes:
Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals.

In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types.

To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Notes: Killer wah and cocked wah sounds!

The EHX Wailer Wah features the great sound and tone of the award winning Crying Tone Wah in a rugged, lightweight pedal and with a traditional rack and pinion style operating mechanism. It's also extremely affordable.

Traditional rack and pinion style operating mechanism
Super affordable
Rugged yet lightweight, at just over 1.5 pounds it's lighter than most popular wah pedals and a real weight saver for your pedalboard
9V battery included

SPECIFICATIONS
Circuit
Analog
Bypass
True Bypass
Audio
Mono
Power Supply
9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in)
9.92 x 3.4 x 3.0
Current Draw
6mA
Year Released
2016

Notes: Delivers overdrive and distortion with impact, and the modern player in mind!

The EHX OD Glove provides a rich, overtone laden sound that doesn't get muddy. Responsive controls that take you from sparkling, clean boost through brown crunch and all the way to thick, saturated hi-gain. Advanced features like Tone Shift and selectable 9 or 18V internal voltage for surgical sound sculpting.

Versatile MOSFET overdrive/distortion
Tone Shift switch
Selectable 9V or 18V internal voltage
True bypass
Tough, compact die-cast chassis
9V battery included

SPECIFICATIONS
Circuit
Analog
Bypass
True Bypass
Audio
Mono
Power Supply
9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in)
4.5 x 2.75 x 2.1
Current Draw
12mA
Year Released
2013

Notes: Designed in collaboration with JHS, the Lizard King is an octave fuzz pedal for bass which builds on the success of the guitar-focussed Lizard Queen. Dynamically responsive fixed gain fuzz can be blended from fully wet to dry, while octave tone can be blended separately.

Supplier's Notes:
Octave Fuzz for bass and beyond!

Make way for the new heir to the octave fuzz throne, the Lizard King from Electro-Harmonix. Directly inspired by the EHX x JHS collaboration released in 2023, the Lizard King takes the gnarly and responsive octave fuzz circuit from the Lizard Queen and optimizes it for bass and beyond. With updated tone controls and a new Blend knob, the bass's fundamental tone and low-end is preserved while the top-end of the fuzz tone is shaped to fit or dominate any mix!

The EHX Lizard King is a fixed-gain fuzz that is dynamically responsive. Adjustments to your instruments volume affects the amount of fuzz. Lower instrument volumes create a clear, fuzzy overdrive, while full instrument volume sends the gain over the top for ripping riff and searing solo tones. The familiar VOLUME and OCTAVE knobs control overall output and octave blend volume respectively. New to the Lizard King, the BLEND knob sets the mix between your clean and fuzz tones to create the perfect balance of fuzz while retaining your bass's attack and low-end. The TONE knob is a low pass filter that rolls off the highs, while the SUN/SHADOW switch further enhances the tone of the octave fuzz and clean tones. SUN boosts the octave fuzz with a more driving midrange, and the clean tone accessed by the BLEND knob has more treble and bass frequencies. When the switch is set to SHADOW, the clean tone is unchanged, and fuzz tone is tighter.

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply:9V battery included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 8mA
Year Released: 2024

Notes: The Looper X2 is the culmination of over a decade of experience developing easy-to-use standalone and combination pedals. The Looper X2 supercharges practice sessions as well as live performances by empowering the player to start jamming as soon as possible.

The Looper X2 is a dual-footswitch operated looper pedal aimed at providing fast loop creation with no shortage of space to save your favorite tracks and samples. With 11 song banks, each bank featuring 7 save slots, the Looper X2 provides a total of 300 minutes recording time (2.5 mins per slot in bank 1-9, 10 min each in bank 10, 11). Each slot also corresponds to common song structures as to make organizing sections and tracks easier, as indicated on the front of the pedal. Save slots and recorded tracks can also be managed using the specialized editor software that can be downloaded for free, and compatible with Mac and Windows PCs.

Additional features of the Looper X2 include a FADE knob for controlling and toggling the Fade out function for each loop. Users can also toggle an Auto Rec function to start recording a loop every time a guitar signal input is detected by employing the THRESHOLD knob. Additional knobs include separate volume level controls for Recording and Playback, as well as an 11-option knob for scrolling through the song banks. The dual footswitch setup offers familiar Looper controls and for users desiring more control, the Looper X2 also supports an external footswitch that can perform a variety of operations like cycling through different parts of the current selected song bank. See the manual for more information on compatibility.

The Looper X2, like with other X2 devices, includes Stereo I/O and a 14" External Control out for connecting a footswitch as well as True Bypass to stay quiet when not in use.

Specifications:

Input: 2*1/4" mono audio input jack (impedance value 1Mohm)
Output: 2*1/4" mono audio output jack (impedance value 510ohm)
Num. of saving slot: 77
Recording capacity: Approximate 300 minutes (stereo)
Sample rate/sample depth: 44.1kHz/24bit
Import audio file format: MP3/WAV/FLAC/APE
Export audio file format: WAV
Power requirements: 9V 300mA, center negative (Original power supply is recommended, to avoid unexpected noise)
Dimension: 75mm(D) * 115mm(W) * 33mm(H)
Accessories: Power supply, USB-C to USB-A cable, Quick Guide, LOGO Sticker

Notes: EarthQuaker Devices White Light

Limited Edition Reissue Overdrive - limited to 2,000 units worldwide.

The White Light is a hard clipping, vintage-voiced overdrive that takes its cues from the vintage dirt pedals that defined the sounds of heavy rock. Think OD250 or Distortion+ without being overly derivative, a new voice to an olde sound if you will. The White Light gives you total control over the feel and voice of the dirt along with a modern presence that is highly responsive to your playing. You'll find that it is much more dynamic, open and harmonically rich than these classic overdrives it shares its lineage with. This classic EQD overdrive has been updated with a new enclosure, top-mounted jacks and Flexi-Switchr Technology.

Gain: Controls the amount of distortion.

Weight: A multi-functional control, allows the level of saturation, low end response and the overall feel of the device to be altered.

Level: Controls the output.

Compression Switch:

Minus (-): open with more high-mids and bite.
Plus (+): crunchy and compressed with a bit less bite and a flatter mid response.
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.
Since the switching is relay based, it requires power to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Earthquaker Devices always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.

Do not run at higher voltages!

Tech Specs

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 10 mA
Input Impedance: 500 kO

Notes: The Dreadbox PSYCLOP is the ultimate modern utility device. It's an Effects Chain Loop with Dry/Wet mix control, Signal Attenuator and Boost as well as Expression to CV (Control Voltage) converter, all in one easy to use package suitable for string instruments or synthesizers and is also Eurorack compatible.

PSYCLOP is not your average Effects Loop Mixer. Capable of managing any type of signal from instruments or effects pedals, PSYCLOP seamlessly blends them with its parallel effects loop.

Its features include Input Attenuation of up to -20 dB and an Output Gain Boost of up to +20 dB in order to match any signals. For unity gain, simply set the Input Attenuation Amount to 100% with the IN control and using the OUT knob, adjust the Output Gain Level to 0%.

To avoid phase cancellation issues between the dry and wet signal paths, the PSYCLOP also features a simple but effective Effects Loop Phase switch, which is easily accessible on the pedal's side.

Additionally, PSYCLOP is capable of converting TRS Expression signals to CV and makes them usable with most Eurorack gear, making it a perfect device for synth fans and sound design enthusiasts. The pedal's EXP knob attenuates the CV output. When nothing is connected to its CV IN jack, the CV OUT jack will output 0-5V depending on this knobs' setting and a connected EXP pedal's position.

So all you have to do is plug in and embark on your next thrilling sound design adventure.

Notes: Instantly switch to a different preset volume, with a fully-passive and colour-free circuit!

The EHX Signal Pad is a passive attenuator that allows you to instantly switch to a different preset volume. It's like your guitar's volume knob, with a fully-passive and colour-free circuit. Leave your amp's volume set high for overdrive, and use the Signal Pad to lower your level for a clean sound - then switch it off to kick in your amp's natural overdrive. You can also experiment with the Signal Pad anywhere in your effects chain - you'll bring out new tonal combinations from your favourite old pedals.

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: Optional 9V battery or 9.6VDC-200mA power adapter not included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 3mA
Year Released: 2008

Notes: Lush, analogue chorus designed to re-create our legendary Small Clone!

Using a high quality bucket brigade chip and the same classic Small Clone circuit, this true analog design has been massaged and tweaked for accuracy and superior sonic qualities. The EHX Neo Clone delivers the Classic Small Clone sound at a price that sweeps the competition away.

Same amazing chorus as the legendary Small Clone
Pedal board friendly foot print
Total analog design
Sultry sonic texture with depth control
9V battery included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 12mA
Year Released: 2010

Notes: The most powerful POG ever, EHX's iconic Polyphonic Octave Generator gets more effects and more advanced expression features. Same precise polyphonic tracking and versatile sound, from 12-string effects to organ tones and much more.

Supplier's Notes:
The most powerful POG ever!

The world's best octave effect just got better! The POG3 is the most powerful pedal in Electro-Harmonix's revered line of polyphonic octave generators that continues to inspire and captivate musicians of all styles. At its core, the POG3 delivers lightning-fast tracking and perfect polyphony over 4 octaves with smoother tone and performance than ever before. From 12-string jangle to 6-voice drawbar organ sounds, the POG3 delivers an endless possibility of tone creation. The pedal has received many updates that further expand its tone shaping possibilities to enhance your performance on stage and in the studio.

Featuring 6 voices including DRY, -2, -1, +5th, +1, & +2, you can mix each with individual sliders and create enveloping stereo effects with dedicated pan knobs and selectable LEFT/RIGHT/DIRECT outputs. The effects section has been expanded to offer envelope control and adjustable Q for the new multi-mode FILTER, enhanced DETUNE section with SPREAD, and individual DRY effect selection, plus the famous ATTACK slider for subtle or dramatic swell effects. All voices, effects, and additional features are now controllable via expression and MIDI for even more creative control. Unlock new expression effects including Freeze, Glissando, Volume, Filter, X-Fade, and Warp with advanced programming and performance controls. The INPUT GAIN slider is an old friend from the original POG that can add girth and dirt to your tone mix.

With all of this fresh tone creation power on tap, additional storage and editing options simply workflow and sound saving capabilities. 100 onboard presets can be saved and rearranged easily thanks to the POG3's high-visibility OLED display and NAVCODER knob. The EHXport desktop app also allows for easy preset storage and organization as well as streamlined preset editing on your PC or MAC.

Discover your most creative self with the POG3!

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono In & Stereo Out
Power Supply: 9.6VDC-500mA power adapter included
Dimensions (in): 7.125 x 5.75 x 2.25
Current Draw: 300mA
Year Released: 2024

Notes: How It Works

Chaining up an EQ, compressor and overdrive pedal will never give you the same result as SkarBassOne achieves, not by a long shot! The precise filters in SkarBassOne is what gives you the extremely surgical tone and the wide range of possibilities without breaking a sweat!

No matter the settings you will always keep the clean powerful low end with this multiband overdrive and that is a must for bass. Controlling the mids of a bass sound has never been easier! You will get out of the way from other instruments masking frequencies and take up all the space that is ment for you and ONLY you!

It might look simple on the outside, but I assure you the inside is a matrix of years with development. The flexible multiband drive is smooth all the way thru it's range and I promise you it will never ever mess with your low end!

Details

Compression:

One knob FET compressor with fast attack and release. It handles dynamics with ease and creates a solid wall of tone.

Compression LED:

Visual indication of how hard the compressor is working.

Mid:

Mid filter to achieve the surgical studio tone! Create a defined, in the pocket frequency response for the bass to sound massive and to make it sit with other instruments. Your band mates will never beg you to turn down your bass again!

Mix:

Quickly set the tonal balance between low frequencies and high frequencies. Find the sweet spot in any situation.

Footswitch:

On/Off switch for Drive and Tone.
Red channel =Drive and Tone active.
Blue channel = Drive and Tone off.
Compression, Mid and Mix is active on both channels.

Drive:

Set the amount of multiband drive, from gentle push to full on bark!

Tone:

Hi-cut filter to control the high frequencies of the output.

Notes: MOOER has unveiled its latest effect pedal innovation, the MVP1 AUTUNER vocal processor. Unlike most of MOOER's products, this pedal is designed primarily for use with vocals, offering precise pitch correction and exceptional vocal enhancement features. However, MOOER hasn't forgotten about its primary audience, so AUTUNER still provides features that will interest guitarists.

Due to the pedal's primary focus on vocals, the device includes several features specifically designed for microphone usage. This includes XLR input and output, in addition to support for 48V phantom power, ensuring that the pedal supports both dynamic and condenser microphones. However, AUTUNER also includes standard 1/4" guitar inputs and outputs, along with convenient footswitch control to switch between mixed or individual signals.

The pitch correction features behind AUTUNER are highly versatile. With an LED button, users can choose between flat, warm, and bright vocal tones, each indicated by a different colour. Once a tone has been chosen, the 'correction' dial can be used to define the sensitivity of the pitch correction. Users can also press and hold the left footswitch to trigger the pitch correction's vocal synthesizer mode.

AUTUNER's versatility shines particularly brightly thanks to its built-in effects modules. The first of these is delay; the delay module can be can controlled with its dedicated dial, with users having the option to choose between tape delay, digital delay, slapback delay, or bypass. The pedal's left footswitch serves as a tap switch, which allows the user to determine the speed of the delay module.

A reverb module is also featured within AUTUNER. This too has its own dedicated dial, which can be used to morph between room delay, hall delay, and plate delay. Whilst the pitch correction features of the pedal are limited only to vocals, these delay and reverb modules ensure that the pedal has plenty of dedicated features to offer MOOER's guitarist fanbase.

As is common with MOOER products, AUTUNER features a wide range of control mechanisms. In addition to the left footswitch's dual functionality, the right footswitch also acts as a bypass for the pitch correction and effects, whilst still ensuring the tone processing remains active. The pedal's tonal enhancements can then be fully bypassed with the 'flat' tone option.

In addition to its core features, the MVP1 AUTUNER also includes a gain dial, a 48V phantom power switch for internal microphone amplification, a grounding switch, and a DC 9V 500mA power input. Overall, the features of this pedal ensure that musicians have everything they need for impressive pitch correction, vocal synthesis, and special processing, whilst ensuring that they never have to rely on external batteries.
Vocal pitch correction feature with a controllable sensitivity dial
Footswitch-controllable vocal synthesizer mode
Three vocal tone modes: flat, warm, and bright
Four delay modes: tape, digital, slapback, and OFF
Four reverb modes: room, hall, plate, and OFF
Tap tempo footswitch for delay speed
Bypass footswitch functionality for isolating the tone from effects
Multifunctional footswitches for 'hidden mode'
LED button for tonal control
Two output modes: mixed and individual
XLR input and output
1/4" input and output
Internal 48V Phantom Power amplification
48V Phantom Power toggle switch for condenser microphones
Line in toggle switch for instruments and dynamic microphone
Gain dial
Ground/Lift toggle switch
DC IN 9V 500mA power input

Notes: Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.

Featuring best-in-class 32-bit AD/DA and 32-bit floating-point processing, the RC-5 captures your personal sound with full fidelity and keeps loops crystal clear, even with multiple overdubs. And with 13 hours of stereo recording time, there's plenty of space for extended creative journeys.

The RC-5 features the most advanced interface available in any compact looper pedal. The LCD lets you keep an eye on loop status as you perform, with a backlight that changes colour to indicate recording, overdub, and playback states. And coupled with the multi-function parameter knob, it's quick and easy to navigate rhythms, kits, system settings, and more in the heat of the moment.

The RC-5's versatile pedal switch controls all looping functions-record, overdub, play, stop, and undo/redo. But deeper control is also supported if you need it. Connect up to two external footswitches for direct control of many assignable functions, or an expression pedal for continuous adjustments. Players with advanced systems will love the TRS MIDI I/O, which saves space and enables remote operation from MIDI switchers and foot controllers, plus MIDI sync with drum machines and DAWs.

With 57 preset rhythms and seven different drum kits, the RC-5 is ready to elevate loop and practice sessions with inspiring grooves for any style. For each rhythm, A/B variations can be selected from the panel or controlled via MIDI while performing. The RC-5's looper engine also includes a cool reverse function that's great for infusing your music with fresh sonic colours.

The RC-5 provides 99 phrase memories, letting you store loops as fast as you create them. In addition to audio, a phrase memory includes the selected rhythm and kit, so it's ready to go when you call it up. Loop audio can be backed up to a computer via USB. And with WAV import via BOSS Tone Studio, the RC-5 becomes a pedalboard playback hub for lesson material, jam tracks, or backing music for your next gig.

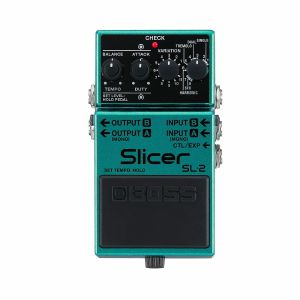

Notes: Fresh-Sliced Inspiration

Envelop your music in vibrant rhythmic energy with the SL-2 Slicer, an inspiring creative tool filled with colourful sonic grooves. This BOSS original chops your sound into unique percussive patterns-including many processed with internal filters and effects-and provides multiple output options that bring grooves to life across the stereo field.

Evolved from the legacy SL-20 Slicer, the SL-2 offers expanded capabilities while shrinking the size to the pedalboard-friendly BOSS compact format. Instantly elevate performances with 88 onboard patterns and tap into more via the BOSS Tone Studio app. Grab the knobs to tweak audio slices on the fly and sync to songs with tap tempo and MIDI. Fun and easy to use, the SL-2 brings fresh musical power to all types of creators, from guitarists and keyboardists to loop performers, DJs, beatmakers, and beyond.

Compact Audio Adrenaline

The SL-2 brings massive sonic groove muscle to the compact pedal format. Modern DSP takes the BOSS Slicer engine further than ever before, delivering rich, animated sounds via single and dual paths chained with multiple internal effects. Eight pattern types-each with 11 variations-will keep you armed with creative firepower for a long time. When you're ready for more, connect to BOSS Tone Studio over USB to audition and load alternate patterns into the pedal and organize memory setups for different songs.


Pre-Loaded Pattern Types:

Single (1 and 2)-Rhythmic patterns that use a single Slicer effect.
Dual (3 and 4)-Rhythmic patterns that use two Slicer effects.
Tremolo (5)-Patterns with a traditional tremolo effect.
Harmonic (6)-Rhythmic patterns with pitch-shifting effects.
SFX (7 and 8)-Rhythmic patterns with different effects applied.

Shape Your Groove

With the SL-2's efficient interface, you can dial in sophisticated textures in seconds. Use the Attack control to shape the edge of the waveform for everything from hard-chopped slices to soft, fluttering movements. Then tweak the waveform's length with the Duty control, going from sharp, percussive transients to longer, fuller audio blocks. Adjust the tempo with the dedicated knob or hold the pedal switch to engage tap tempo mode for hands-free control. And with the Balance knob and +/-12 dB of output level adjustment, you always have complete control of the mix.


Set the Stage

The SL-2 dishes up loads of impressive sounds with a standard mono setup. But things get even better when using the two outputs and seven different output modes. Send direct and effect sounds to different destinations for recording and performance. Or surround yourself and listeners in animated movement using a variety of stereo and 3D processing options. You can also feed the SL-2 with your favourite stereo pedals to bring further magic to your grooves.


Stereo Output Modes:

Fixed (Default)-Sends the same direct/effect mix to both outputs.
EFX/Direct-Sends the effect sound to Output A and the direct sound to Output B.
Random-A stereo effect that randomly outputs the Slicer sound to the left, right, or center.
Ping-Pong-A stereo effect that alternately sends the Slicer sound to Output A or Output B.
Auto-A stereo effect that smoothly pans the Slicer sound between Output A and Output B.
3D Cross-Advanced spatial processing moves the Slicer sound in left/right and forward/back patterns in 3D space.
3D Rotation-Advanced spatial processing rotates the Slicer sound in 3D space.


Expand Your Creative Flow

With its generous external control options, the SL-2 flows with your creative needs. Plug in an external footswitch to instantly tap in the tempo or engage the effect with momentary presses. Or connect an expression pedal to control knob parameters or the overall level as you perform. With the TRS MIDI input, you can sync your SL-2 grooves to a drum machine, DAW, or any other device that sends MIDI clock. It's also possible to control expression, tempo, and bypass functions via MIDI CC messages.


Specifications
Sample Rate: 48 kHz

AD Conversion
24 bits + AF method
AF method (Adaptive Focus method)
This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion: 32 bits
Patterns: 88
Nominal Input Level: INPUT A (MONO), INPUT B: -20 dBu
Maximum Input Level: INPUT A (MONO), INPUT B: +7 dBu
Input Impedance: INPUT A (MONO), INPUT B: 1 MO
Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20 dBu
Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7 dBu
Output Impedance: OUTPUT A (MONO), OUTPUT B: 1 kO
Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10 kO or greater
Bypass: Buffered bypass
Controls: TYPE knob, VARIATION knob, ATTACK knob, DUTY knob, TEMPO knob, BALANCE knob, Pedal switch
Indicator: CHECK indicator (Used for indication of Tempo and check battery)

Connectors:
INPUT A (MONO) jack
INPUT B jack
OUTPUT A (MONO) jack
OUTPUT B jack: 1/4-inch phone type
CTL/EXP jack: 1/4-inch TRS phone type
DC IN jack
MIDI IN jack: Stereo miniature phone type
USB port: USB B
Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22, commercially available), AC adaptor (PSA series: sold separately)
Current Draw95 mA

Expected battery life under continuous use: Alkaline: Approx. 2.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery (9 V, 6LR61 or 6LF22)

Options (sold separately):
AC adaptor: PSA series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 1 lb

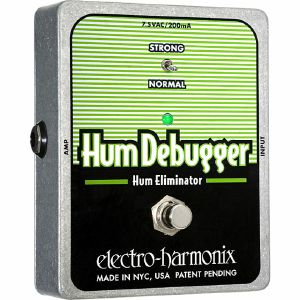

Notes: Not a noise gate, and not a noise suppressor -- but a real hum extractor!

Every musician battles hum in their signal chain. The EHX Hum Debugger turns it into dead silence, courtesy of a little Electro-Harmonix magic.

No matter what type of pickups you use or how loud you play, the Hum Debugger will clean up your signal chain so that hum will no longer overtake your guitar signal. Simply connect the Hum Debugger to your guitar like you would any other effects pedal and you are ready to eliminate hum from your sound forever!

True bypass
Absolutely eliminates hum from any audio source
Tough and compact die-cast chassis
Power adapter included

SPECIFICATIONS
Circuit
Digital
Bypass
True Bypass
Audio
Mono
Power Supply
7.5VAC-400mA power adapter included
Dimensions (in)
4.75 x 4 x 2.25
Current Draw
125mA(AC)
Year Released
2007

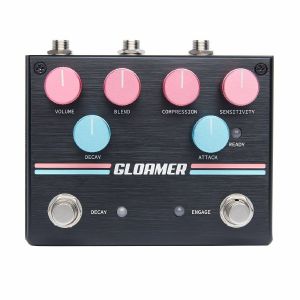

Notes: Dusky drama

Gloamer is an all-analogue, polyphonic amplitude synthesizer that alters the attack and decay time of any sound source without sacrificing the fidelity of the original tone. Its attack function provides a pick-triggered volume swell: a cinematic "slow gear" effect that is smooth and controllable with variable timing from extremely fast to very slow. The volume swell cycle can be reset at any moment by muting, allowing players to craft bowed string-like lines and chords with ease. Gloamer also features a powerful optical compressor that can add subtle punch or extreme sustain, helping to maintain a smooth volume swell effect even with very long attack times. A Volume knob controls loudness at the peak of the attack cycle, while a master Blend control allows players to layer an uncompressed clean sound in with the volume swell effect. Additionally, when activated, the Decay function causes notes to fade out once the attack cycle is complete. When the decay cycle is completed, an auto-reset function causes the attack to begin again immediately, as long as there is audio input. This allows you to create a wide range of undulating, asymmetrical tremolos at slower settings as well as pulsating stutter effects when using faster attack and decay times.

Knob-by-knob

Volume: Sets the master output volume of the effect when engaged.
Compression: Determines the balance of clean and compressed signal.
Blend: Determines the balance of clean signal and effect.
Attack: Determines the duration of time it takes for a note to swell in from silent to full volume.
Decay: Determines the duration of time it takes for a note to fade out from full volume to silence.
Sensitivity: Determines how much input signal is needed to reset the attack and decay cycle.
Ready (LED): Signals when the pedal is armed and ready to begin the attack and/or decay cycle.

A hi-fi attack and decay master
Gloamer was designed to allow players to change the nature of their attack and decay while maintaining pristine, hi-fidelity audio. Easily swell blooming single note lines or full, lush chords and become the string section you've always wanted to hire but can't afford.

Model name: Gloamer
SKU: ATS
Function: Volume Swell with Compressor
Category 1: Modulation
Category 2: Compression

Bypass: True Bypass

Electronics

Voltage: 9VDC
Current draw: 100mA
Input impedance: 470K
Output impedance: 150 ohms

Body:

Length (in): 3.5
Width (in): 4.75
Height (in): 2.5
Weight (lbs): 1

Notes: Seeking to unapologetically tear apart the definition of a chorus pedal, Old Blood Noise Endeavors have created the BL-82 Chorus. An ode to delay time, this is a device with a variable clock control to shift between recognizable shimmering chorus and chaotic modulated delays.

Two delay lines, modulated by opposite synchronized LFOs, are combined in parallel and the timing of the delay lines, as well as the speed and depth of the LFOs, are all determined by one tactile slider. This allows you to instantly open up the modulated floodgates on the fly and go from well-known waves, to deeply unknown oceans of sound.

BL-82 is a chorus pedal, technically. It creates a swirling shimmery sound somewhere between chorus and flanger from a mono instrument signal. Its two delay lines are stretchable, and that's where the pedal's genre blurs from chorus into modulated delay into trailing pitch bending uncertainty.

The control set for BL-82 is dead simple. A Clock slider sets the timing of the entire system. The sample rate that determines signal fidelity, the centre delay time and the speed of the delay modulation are all affected as the slider slides. The interface is rounded out with feedback, volume, and mix add to an immediate experience that breaks open the boundaries of what it means to be a chorus and allows you to further craft the undulations of this mesmerizing device.

Notes: Distortion and reverb meet in this unique pedal, sporting a joystick to tweak the sound and the option to flip the order of the two effects in the signal chain. Simple, quirky and effective.

Supplier's Notes:
Walrus Audio give you the two most quintessential effects that yield unruly amounts of power and influence to an instrumentalist: reverb and distortion. They have been harnessed and woven together for an eternity of ethereal power with The Melee: Wall of Noise. The Melee unapologetically uses a joystick to meld reverb and distortion into one massive blaze of sound. With the flip of the order switch, run the distortion into the reverb or reverb into distortion; signal chain is your call now. For the explorer, the Melee can run one of three different reverb programs Ambient, Octave, and Reverse.

In a less is more approach, Walrus Audio have intentionally decided on controls that are fun to use and will inspire a wealth of creative output. Use the joystick to control the amount of distortion by moving it up and down. Moving the joystick left and right will adjust your reverb mix. The tone and decay toggles have low, medium, and high settings. Modulation can be added to the wet signal by holding down the bypass switch and moving the decay toggle. The left position is no modulation, the middle is a slight modulation, and the right is a high modulation.

Algorithms

The Melee is equipped with three different reverb programs, which can be changed by simultaneously pressing the bypass and sustain stomp switches. Experiment with the order toggle switch to hear how differently these all react in front and after the distortion!

Ambient Reverb (Pink LED) - Huge reverb capable of massive trails and engulfing your chords into an angry wash of sound. Great for soaring melodic lines or shoegaze-driven chord progressions.
Octave Down Reverb (Yellow LED) - Similar to the Dark mode in the Slo, you'll find an eerie lower octave hovering in the reverb trail for a nice and dark atmospheric touch.
Reverse Reverb with Feedback (Blue LED) - Add reversed reverb trails back into your signal, create gentle melodies or push into reverse feedback overload. Big, slow, and sad chords love to hang out here.

Momentary

Press and hold the sustain switch to ramp up the reverb trails. Release and the trails will ramp back down to where the decay switch is currently set. The sustain switch can also latch in all three programs. Press and release the Sustain switch to capture and sustain the current reverb decay for long pad-like sounds in your wet mix. Press again to release the latch, and the reverb trail will taper off based on the position of the decay knob.

Specs

The Melee comes coated in a glossy neon pink enclosure with white, yellow, and green inks with art by
David Huttner.
The die-cast enclosure's exact size is 3.62" x 4.79" x 3.14" (including joystick height).
Three bypass modes, DSP, DSP + True, True Bypass
Power requirements are 9VDC, centre negative (200mA minimum).
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.
Daisy chain power supplies are not recommended.
Power supply not included.

Notes: The Qi Etherealizer (pronounced "chee ethereal-izer"), a collaborative creation with Yvette Young, is a multi-effects pedal that combines Chorus, Delay, Granular effects, and, of course, Reverb, into a creative playground for atmospheric exploration.

Known for her innovative and explorative fingerstyle playing technique, love of guitar pedals, and leadership of the math rock band Covet, the Qi reflects her approach to creating lush, evolving soundscapes. Named after the vital life energy that flows through all living things, the Qi is designed to deliver rich textures, expansive atmospheres, and dynamic layers. By blending Yvette's artistic vision with cutting-edge design, the Qi opens the door to immersive, otherworldly sounds.

The Qi allows you to mix and match the chorus, delay, and grain and run in series or parallel to create your own inspiring universe of possibility in a stereo field. With the ability to save presets and bypass the chorus, delay, and grain controls, you can quickly and instantly change settings by simultaneously pressing the Bypass and Freeze stomp switches. Go from a traditional chorus with a little bit of delay, or go all in and let the Qi take over with unexplainable washes of glitchy and lush ambiance. Whatever your style is, the Qi will give it a new life.

The Qi is the first creation to emerge from Walrus' groundbreaking proprietary digital processing platform, MDSP. Designed in-house by their talented engineering team, MDSP sets a new benchmark for high-fidelity audio and innovative design, delivering decades of inspiration to creators seeking practical yet forward-thinking gear.

At the core of MDSP is the powerful ARM-based Cortex M7 processor, renowned as the highest-performing processor in its class. With a proven history in high-level electronics, the Cortex M7 has been meticulously tailored for advanced audio algorithm processing in the MDSP platform. This unique system integrates a microcontroller and a DSP into a single compact unit, enabling a smaller, modular design that can seamlessly adapt to a wide range of pedal formats.

This modular and "mini" approach empowers Walrus Audio to push the boundaries of audio processing. The enhanced capabilities of Walrus's MDSP allow for the development and execution of more sophisticated algorithms than ever before, delivering unparalleled creative possibilities for musicians and audio professionals alike.

The MDSP platform also boasts a superior audio codec, supporting faster sample rates, increased bit depth, greater headroom, and an exceptional signal-to-noise ratio. These enhancements ensure outstanding audio performance, setting a new standard in digital signal processing for the music industry.

The introduction of MDSP reflects Walrus Audio's commitment to providing creators with cutting-edge tools that inspire innovation and creativity.

Global Controls


Space Knob: Space adds a delightfully charming reverb to your affected signal. Use this knob to modify the mix and decay of the reverb. Go from smaller room sounds to a huge, diffused ambient reverb at maximum settings. It's lush and complimentary, and adding it in with the other effects will put you squarely in dreamscape territory.


Tone Knob: The Tone parameter controls the cutoff of a synth-style resonant low pass filter, allowing you to shape the tone of the effect output.


Series and Parallel: In series, effects will feed into each other in the order of Chorus > Delay > Grain > Output.


In parallel, all of the effect outputs on Chorus, Delay, and Grain are summed together and do not feed into each other. The top row of knobs will act as level controls, and the user can control the level of each effect.


The Mix/Dry parameter controls the mix of wet and dry signal in series mode and dry level in parallel mode.

Grain Controls


The featured Grain effect features two 'flavours' of operation:


Grain Cloud: This mode triggers small samples (grains) randomly from your playing, which gives you unpredictable, yet charming glitchy texture for your sound. The X knob controls the length of time between grains, so you can go from dense clusters to sparse accents.


Phrase Sample: This mode triggers grains rhythmically from your playing. Initial peaks in your playing are detected and grains are played back starting at these peaks, creating a rhythmic and intentional effect. The X knob controls the tempo at which the samples will be played back. Turning the X knob to the minimum position will sync the Phrase Sample time to the Delay time so that repeated grains are in time with the Delay repeats.


The Grain effect also features 5 playback modes that dictate different ways the grain samples are projected.


x1: Normal
x2: Double-speed and +1 octave
x.5: Half-speed and -1 octave
REV: Reverse playback
RNDM: Randomized combination of the previous four modes.


Delay Controls

The delay effect is a full, clean digital delay that offers repeats for up to two seconds. Use the time knob to control the time between delays as well as the feedback knob to control the amount of delays. The TAP/OSC switch on the bottom right of the pedal can also be used to control the delay effect via tap tempo, or when held down will ramp up the feedback and cause the delay to oscillate.

Subdivisions

Delay trails can be projected in three subdivision modes:

Quarter Note
Dotted Eighth Note
Eighth Note

Chorus Controls

The Chorus effect offers two modes:
Tri Chorus: A multi-dimensional chorus favourite. Lush, complex, modulated sounds combining three voices for a full, vibrant sound.

Stereo Chorus: This mode is a classic chorus effect but with the modulation of the chorus being offset 180 degrees to the right channel to achieve the stereo width effect.


Other Features

Three on-board presets (red, green, blue) plus a live mode (white).
TRS MIDI 1/8" in and thru ports for MIDI control.
USB-C port included for future firmware updates.
Momentary Grain Freeze
Momentary Grain + Max Reverb Freeze

Notes: The BOSS RC-1 is Boss' simplest and most user-friendly Loop Station ever, and it's a ton of fun! Since the RC-20 Loop Station was first released in 2001, BOSS has led the way by continually releasing new looping products. Though they've been used and enjoyed by various looping artists and performers, BOSS still pursued an easier and more affordable solution. The RC-1 is a straightforward looper that is easy to operate. Experience the fun of looping when you record, playback, overdub, and undo or redo loops using this compact BOSS stompbox. And of course, the RC-1 retains the BOSS quality and performance that musicians around the world have come to expect and rely on.

On the top panel, there is a new and innovative loop indicator, which consists of a 24-segment LED laid out in a circular pattern. You can quickly and easily determine the current status of the Rec/Overdub/Play modes. With a maximum 12 minutes of stereo recording time, the RC-1 is capable of capturing any extended performance that you can create or imagine! The stereo in/out jacks can be used with stereo effects and amplifiers. Additionally, they allow you to connect stereo instruments, such as synthesizers. Other convenient features include battery and AC power, as well as flexible external footswitching capabilities. The RC-1 is an especially great partner to start enjoying looping!

Specifications

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Maximum Recording Time: Approximately 12 minutes

Controls: Pedal switch, LEVEL knob
Indicators: CHECK indicator, LOOP indicator

Connectors:
INPUT A (MONO) jack: 1/4-inch phone type, INPUT B jack: 1/4-inch phone type, OUTPUT A (MONO) jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, STOP/UNDO jack: 1/4-inch TRS phone type, DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 95 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 3 hours

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)

Options (sold separately) AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight: 430 g / 1 lb

Notes: BOSS's iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we've updated the classic stomp with enhanced functionality while fully retaining the original's sound and control layout. It's now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups.

In continuous production for over three decades, the DD-3 has been the go-to delay stomp for countless players. Based on the DD-2-the world's first digital delay pedal from 1983-the DD-3 is revered for its warm, round delay tone and simple controls that let you dial in sounds fast. The DD-3T's sound circuitry and controls are identical to the DD-3, delivering every drop of that classic vibe you know and love.

A key addition the DD-3T brings is tap tempo, an essential feature for creating the rhythmic delay effects at the heart of many guitar styles. In delay mode, hold the pedal switch for two seconds to toggle between bypass and tap operation. And for on-demand tap control, simply connect an external footswitch. When the DD-3T receives tap input, up to 800 ms of delay time is available, and the Mode knob sets the tap subdivision (quarter-note triplet, dotted-eighth note, or quarter note).

The DD-3T features a direct output jack like the DD-3, but it's been moved next to the main output jack to make connections easier. Plugging a cable into the direct out converts the main out to delay only, allowing you to send wet and dry signals to different amps for wide, immersive sounds. And if your amp or switcher has a parallel effects loop, just connect a dummy plug to the direct out to mute the dry sound for effect-only blending.

The original DD-3 (and DD-2 before) included a forward-thinking Hold function, which allowed you to capture a sound up to 800 ms long, play it continuously, and jam over the top. Many years later, BOSS further developed this creative concept with the successful Loop Station products, which helped spawn the new musical style of live looping. The DD-3T includes the same Hold function as the DD-3, but it's been renamed "Short Loop" to reflect today's common usage.

Specifications

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: MODE knob, TIME knob, FEEDBACK knob, E.LEVEL(Effect Level) knob, Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
TEMPO jack: 1/4-inch phone type
DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current Draw: 70 mA

Expected battery life under continuous use: Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use.

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

Alkaline battery (9 V, 6LR61)

Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U, FS-6, FS-7

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 420 g / 15 oz

Notes: Expanding on the concept of our Expression Ramper, Old Blood Noise Endeavors present the Expression Ramper X3, an expression movement shaper capable of manipulating three expression jacks simultaneously with copious control. This utility device brings new sounds out of your old favourites, reinvigorating the sonic possibilities of your collection.

A Ramper is a device that creates motion on your expression-enabled devices. You choose point A, point B, and the way it moves between. It's utilitarian, but opens up a number of sounds from your existing pedals.

The Expression Ramper X3's allows you to set the shape of the LFO (the thing that determines the expression motion). There are three standard shapes (Triangle, Square and One Shot), and three random variations of those shapes. To access the alternative shapes, simply hold down the tap button while switching the Shape toggle.

Triangle, for a linear motion between A and B, starting and ending at A and hitting B at halfway on the LFO cycle.

Alternate shape: repeatedly moves to a random spot between A and B in a linear fashion.

Square, to snap between A and B, spending half of the LFO cycle in each position.

Alternate shape: immediately moves to a new random spot between A and B at the start of each cycle.

1 SHOT, to move linearly either from A to B or B to A (depending on the starting point) and then stop.

Alternate shape: each press of the footswitch snaps to a new random spot between A and B.

The device's Footswitches set things in motion. A stomp of the footswitches will initiate motion according to the shape and LFO speed you've set, and another stomp will stop that motion. By holding a footswitch, you can momentarily stop or start the movement, and then revert to where you were before when that footswitch is let go. Most of the time, when not in motion, a Ramper will be in the A position, unless using one of the 1 Shot modes or currently setting the B position. To know where your Ramper is, use your ears as an auditory guide and the two LEDs as a visual guide.

Expression Ramper X3 is more than three Rampers in one box, there are a plethora of additional controls to tempo sync multiple Rampers.

The SYNC toggles on Rampers II and III determine whether they are synced to Ramper I. ALL syncs everything about the Ramper: the output of the completely synced Ramper will match Ramper I's output exactly. RATE syncs only the rate of the Ramper: A, B, Shape, and motion settings stay independent, but the rate is tempo synced. In this setting, changing the Rate knob assigns subdivisions: 1/4, 1/2, 1x, 2x, 3x, and 4x speeds are all available. OFF deactivates any syncing, so the Ramper can act fully independently.

Ramper I (the green one) has a TAP button. This can be used to tap in the desired LFO speed. It begins syncing at two taps, but multiple taps in a row at similar BPMs will average out to increase accuracy. Note: the slowest possible tap tempo is 30 BPM, so taps outside of this range will be disregarded.

Ramper I also has external control via the jack. It can be used in three different ways, configurable via the internal dipswitch. It can be configured for TRS Expression input, External Tap Tempo with a footswitch, like our 'Scooch' Tap Tempo device using a TS cable and tap away. Or for External Tap Tempo using a pulse, turn 1 off, 2 off, 3 off. This is optimized to sync tempo across two ERX3s by plugging into the second ERX3's Tap Out jack, but will also work with other external pulse sources.

There is also a TAP OUT jack on the side of Triple Ramper. This continually outputs 3.3V pulses based on Ramper 1's tempo. In this way, you can sync external units (like another Expression Ramper X3) to Ramper 1.

Happy Ramping!

Notes: A mini chorus effect pedal with 3 switchable modes for Chorus, Flanger and Pitch Modulation. Chorus thickens the sound by modulating a short delay effect, producing a swirling ethereal tone. The Flanger effect tightens this by shortening to a very fine delay and regenerating it for rotating and tubular jet sounds. Pitch Modulation provides a lighter chorus effect by slightly varying the pitch and mixing back with the dry signal. All 3 are selected by an illuminated push button above the controls. Holding this button down during power-up selects between mono output or stereo output, which requires a stereo jack lead. Controls include Speed, Width and Intensity to adjust each effect as required, Pressing the footswitch engages or disengages the effect. The smart tap tempo feature means that the pedal recognises pressing the footswitch twice or in a short space of time and responds to the timing as a tap tempo function to adjust the speed setting. An extremely versatile modulation effect to give space and motion to chords and picked passages alike.

Power supply: 9Vdc (DC5521 connector, negative centre, adaptor not supplied)
Controls: Speed, Width, Intensity and Chorus/Flanger/Pitch Mod switch
Dimensions: 94 x 53 x 51mm
Weight: 175g

In the box

The box for this item contains :

Mini Super Chorus/Flanger/Pitch pedal

Notes: Flexible bass preamp and DI delivers powerful tone shaping capabilities in a rugged pedalboard-friendly package!

The EHX Battalion Bass Preamp and DI is packed with a four-band equalizer, fully-featured MOSFET distortion section with three signal path options, a compressor, a noise gate and a comprehensive I/O. An all-in-one tone tank for your bass guitar.

Four-band EQ tailored specifically for bass guitar. Includes controls for Bass (below 200Hz), Lo Mid (boost/cut at 280Hz Mid (boost/cut at 750Hz) and Treble (boost/cut above 2kHz)
The Battalion's distortion section delivers an awesome array of distorted bass sounds
Distortion section features Level, Blend, Drive and Tone controls plus a dedicated footswitch
Three signal flow modes yield unique tonal variations. Pre EQ, distortion comes before EQ. Post EQ, distortion comes after EQ and Dry EQ, only the dry signal mixed in with the Blend control is affected by the EQ
Compressor with dedicated pushbutton, amount control and LED adds thump and sustain to your bass sound
Noise Gate with adjustable threshold control eliminates noise and hum while preserving your attack and original tone
Flexible I/O allows the Battalion to fit perfectly in any bass rig or application
14 input jack includes switchable 10dB pad
Power adapter included

Specifications:
Circuit: Analogue
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 100mA
Year Released: 2017

Notes: The BETA-V from SolidGoldFX is a Bass Preamp pedal that kicks! This latest incarnation of SGFX's top selling Beta Series is designed to capture the warmth and grit of favorite vintage tube amps. You know, that distinctive drive and tone that seems to be lacking from much of today's modern bass amplification.

Yes, we all know the convenience of a lightweight "sub 10 lbs" bass head that pumps out 500 watts and a neo cab that doesn't require a roadie crew or chiropractor is great, but there is something extremely satisfying in the way that big, old Ampeg-style tube setups compress, clip and round out your signal. However, with the BETA-V you can finally have the best of both worlds - bone-shaking mojo-packed dirt, all wrapped up in modern and easy to use convenience.

Solid Gold FX's classic Beta bass architecture has been reworked and expanded, delivering a wider range of tones. The low-pass filter now has 2 settings for bumped or scooped-mids as well as a centre bypass setting for a more transparent experience. Plus, the Drive control has been reworked for lower gain applications or hotter basses.

Most importantly, the BETA-V sports an active 2-band post gain EQ allowing you to boost or cut your highs and lows with a flat response in the centre. Dialling in anything from punchy overdriven Lemmy tones to the fattest, deepest soul shaking dub is only a few knob twists away. Complete with top-mounted jacks, soft touch true bypass switching and 9-18 V DC operations, the BETA-V is a true thump machine, ready to rock your world.

Notes: Classic boost from Boss. Inspired by the CE-1 Chorus Ensemble and RE-201 Space Echo, this premium pedal sweetens your tone with the added option of a 'natural' clean boost.

Supplier's Notes:
The vintage BOSS CE-1 Chorus Ensemble and RE-201 Space Echo are legendary for their inspiring and influential effect sounds. But they're also loved for their variable analogue preamp circuitry, which instantly infuses any guitar tone with character, body, and richness. With the BP-1W, you can now access these two classic preamp tones in a premium Waza Craft pedal, along with a natural, clear voice that functions as a standard clean boost.

Magical Enhancement

For generations, savvy guitarists have relied on key pieces of analogue gear to enhance their core tone. Though discontinued over 30 years ago, the CE-1 and RE-201 remain widely used by many players for their characterful preamps as much as their famous analogue effect sounds. These "secret weapons" make the sound richer, fuller, and more satisfying to play, even when their effect processing is bypassed. The BP-1W lets you integrate the magical tone-shaping properties of these legends into your own rig-without having to seek out rare and expensive vintage originals.

Versatile Analog Sound Shaping

The BP-1W is one of the most flexible boost pedals available, offering three unique operation modes in a single compact stomp. Along with CE and RE vintage modes, a third mode provides a pristine clean boost when you want to pump the volume without added colour. The Gain knob allows you to dial in a range of saturation and drive tones unique to each mode, while the Level knob lets you balance the effect/bypass sound or push downstream pedal and amp inputs for further tonal enhancement.

Choose Your Tone Colour

CE-This mode reproduces the CE-1 preamp tone, known for its bright, bell-like character and tight low-end response. Tweak the Gain knob to conjure an array of pleasing tones, from mild to aggressive.

RE-This mode reproduces the unique colour and response of the RE-201 preamp circuitry. It adds fatness and warmth even at the lowest Gain settings, with increasing saturation as the knob is turned up. You can achieve powerful driven sounds with rich analogue compression characteristics, providing foundational vintage colour to feed pedals and amps.

NAT-Produces a punchy, natural voice with minimal coloration. The modern analogue Waza Craft circuitry provides a wide boost range, delivering top performance for any standard clean boost application.

Two Premium Buffers

The BP-1W features high-quality buffer circuitry with two selectable types. Slide the rear panel switch to choose between the pure signal of a standard buffer or a vintage buffer with lower input impedance. The vintage type produces a warmer tone and a smooth dynamic response, with maximum benefits achieved by connecting a guitar with passive pickups directly to the BP-1W's input. The standard buffer is always engaged for signal conditioning when the pedal is bypassed, regardless of the buffer switch setting.

Waza Craft: The Art of Superior Tone

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analogue circuits to high-tech DSP. This enthusiastic spirit continues with the Waza Craft series, bringing you exceptional tone and touch response through carefully selected analogue components, refined circuitry, and meticulous attention to detail. In Japan, "Waza" is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship.

Specifications

Nominal Input Level: -20 dBu
Input Impedance: : 1 M ohms, , 1 M ohms (BUFFER switch: STD), 100 k ohms (BUFFER switch: VTG)
Nominal Output Level: -20 dBu
Output Impedance: 1 kO
Recommended Load Impedance: 10 kO or greater
Bypass: Buffered bypass
Controls: GAIN knob, LEVEL knob, BUFFER switch (STD/VTG SW), MODE switch, Pedal switch
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw: 60 mA
Expected battery life under continuous use: Alkaline: Approx. 4.5 hours
* These figures will vary depending on the actual conditions of use.
Accessories: Leaflet "USING THE UNIT SAFELY", Dry battery (9 V, 6LR61)
Options (sold separately): AC adaptor: PSA series

Size & weight
Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 430 g / 1 lb

Notes: The Qi Etherealizer (pronounced "chee ethereal-izer"), a collaborative creation with Yvette Young, is a multi-effects pedal that combines Chorus, Delay, Granular effects, and, of course, Reverb, into a creative playground for atmospheric exploration.

Known for her innovative and explorative fingerstyle playing technique, love of guitar pedals, and leadership of the math rock band Covet, the Qi reflects her approach to creating lush, evolving soundscapes. Named after the vital life energy that flows through all living things, the Qi is designed to deliver rich textures, expansive atmospheres, and dynamic layers. By blending Yvette's artistic vision with cutting-edge design, the Qi opens the door to immersive, otherworldly sounds.

The Qi allows you to mix and match the chorus, delay, and grain and run in series or parallel to create your own inspiring universe of possibility in a stereo field. With the ability to save presets and bypass the chorus, delay, and grain controls, you can quickly and instantly change settings by simultaneously pressing the Bypass and Freeze stomp switches. Go from a traditional chorus with a little bit of delay, or go all in and let the Qi take over with unexplainable washes of glitchy and lush ambiance. Whatever your style is, the Qi will give it a new life.

The Qi is the first creation to emerge from Walrus' groundbreaking proprietary digital processing platform, MDSP. Designed in-house by their talented engineering team, MDSP sets a new benchmark for high-fidelity audio and innovative design, delivering decades of inspiration to creators seeking practical yet forward-thinking gear.

At the core of MDSP is the powerful ARM-based Cortex M7 processor, renowned as the highest-performing processor in its class. With a proven history in high-level electronics, the Cortex M7 has been meticulously tailored for advanced audio algorithm processing in the MDSP platform. This unique system integrates a microcontroller and a DSP into a single compact unit, enabling a smaller, modular design that can seamlessly adapt to a wide range of pedal formats.

This modular and "mini" approach empowers Walrus Audio to push the boundaries of audio processing. The enhanced capabilities of Walrus's MDSP allow for the development and execution of more sophisticated algorithms than ever before, delivering unparalleled creative possibilities for musicians and audio professionals alike.

The MDSP platform also boasts a superior audio codec, supporting faster sample rates, increased bit depth, greater headroom, and an exceptional signal-to-noise ratio. These enhancements ensure outstanding audio performance, setting a new standard in digital signal processing for the music industry.

The introduction of MDSP reflects Walrus Audio's commitment to providing creators with cutting-edge tools that inspire innovation and creativity.

Global Controls


Space Knob: Space adds a delightfully charming reverb to your affected signal. Use this knob to modify the mix and decay of the reverb. Go from smaller room sounds to a huge, diffused ambient reverb at maximum settings. It's lush and complimentary, and adding it in with the other effects will put you squarely in dreamscape territory.


Tone Knob: The Tone parameter controls the cutoff of a synth-style resonant low pass filter, allowing you to shape the tone of the effect output.


Series and Parallel: In series, effects will feed into each other in the order of Chorus > Delay > Grain > Output.


In parallel, all of the effect outputs on Chorus, Delay, and Grain are summed together and do not feed into each other. The top row of knobs will act as level controls, and the user can control the level of each effect.


The Mix/Dry parameter controls the mix of wet and dry signal in series mode and dry level in parallel mode.

Grain Controls


The featured Grain effect features two 'flavours' of operation:


Grain Cloud: This mode triggers small samples (grains) randomly from your playing, which gives you unpredictable, yet charming glitchy texture for your sound. The X knob controls the length of time between grains, so you can go from dense clusters to sparse accents.


Phrase Sample: This mode triggers grains rhythmically from your playing. Initial peaks in your playing are detected and grains are played back starting at these peaks, creating a rhythmic and intentional effect. The X knob controls the tempo at which the samples will be played back. Turning the X knob to the minimum position will sync the Phrase Sample time to the Delay time so that repeated grains are in time with the Delay repeats.


The Grain effect also features 5 playback modes that dictate different ways the grain samples are projected.


x1: Normal
x2: Double-speed and +1 octave
x.5: Half-speed and -1 octave
REV: Reverse playback
RNDM: Randomized combination of the previous four modes.


Delay Controls

The delay effect is a full, clean digital delay that offers repeats for up to two seconds. Use the time knob to control the time between delays as well as the feedback knob to control the amount of delays. The TAP/OSC switch on the bottom right of the pedal can also be used to control the delay effect via tap tempo, or when held down will ramp up the feedback and cause the delay to oscillate.

Subdivisions

Delay trails can be projected in three subdivision modes:

Quarter Note
Dotted Eighth Note
Eighth Note

Chorus Controls

The Chorus effect offers two modes:
Tri Chorus: A multi-dimensional chorus favourite. Lush, complex, modulated sounds combining three voices for a full, vibrant sound.

Stereo Chorus: This mode is a classic chorus effect but with the modulation of the chorus being offset 180 degrees to the right channel to achieve the stereo width effect.


Other Features

Three on-board presets (red, green, blue) plus a live mode (white).
TRS MIDI 1/8" in and thru ports for MIDI control.
USB-C port included for future firmware updates.
Momentary Grain Freeze
Momentary Grain + Max Reverb Freeze

Notes: Expression/CV Sequencer with 8 steps to control devices with parameters like oscillators, filters, and delay parameters!

The EHX 8-Step Program Analog Expression/CV Sequencer connects to another device and delivers sequencer control over parameters that respond to expression pedals or CV generators like oscillators, filters, delay parameters, you name it. Set your tempo with the Rate slider or Tap Tempo footswitch, or sync to a drum machine or DAW via MIDI clock. Six Tap Tempo Divide modes provide rhythmic diversity. This thing is a tweaker's delight!

You can add the optional 8 Step Program Foot Controller expands that to 100 presets!

NOTE: Compatible expression inputs must accept a voltage source as the controlling signal. The expression input should also allow for an expression pedal TRS plug with the following connections: Sleeve = Heel, Ring = Toe, Tip = Wiper. The expression voltage present on the Ring of the TRS plug sets the maximum range of the controlling signal; this Ring voltage must be between 2VDC and 9VDC.

Four sequence direction modes: Forward, Reverse, Bounce and Random
Rotary encoder gives you control over glide rate, direction, sequencer length and depth
Save, store and recall 10 presets. The optional 8 Step Program Foot Controller expands that to 100 presets!
Power adapter included

Specifications:

Circuit: Digital
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 100mA
Year Released: 2013
