Notes: The 3-Tier Mantis Studio Brackets pair lets you connect three Mantis together in a robust and elegant solution. This setup is fixed and is recommended mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray colour. They come with twenty screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

Notes: ***B-STOCK: Box opened, product in perfect working order***


With Mantis, Tiptop took their years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis is beautiful and the color contrast between legs and body gives it its identity. Legs are offered in 4 different colors so anyone can find the right look.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

***UPDATE - MAY 2021 ***
As of May 2021, all Mantis cases shipped have a small update to the design. The connector for SyncBus is no longer included. This connector was never used as Tiptop didn't develop the cable for it, and the connector is no longer in production by the manufacturer so it was removed. The Mantis still has the same power supply and functions as before.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analog audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: ***B-STOCK: Without original box, product has light surface marks but otherwise in perfect working condition.***

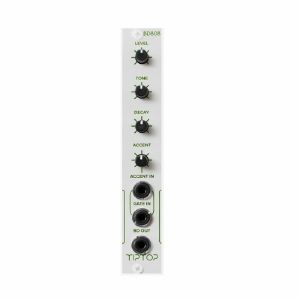

Introducing the BD808, part of our new series of drum modules that brings analog percussion into the modular synth world, instantly turning your system into a self-contained music machine. Its small size, minimalist design, and modern production methods have allowed us to bring the world's most famous bass drum sound generator back at a very low cost. The real thing is here again.

The BD808 is the Roland TR-808's Bass Drum circuit adapted for use in Eurorack format and tuned to sound like a machine that comes fresh off the original 80's assembly line. The adaptation to modular format has allowed us to add some special features like independent Accent levels, a high-powered gain stage, dual-input pulse-shaper, and extended decay - all without compromising the signature sound of the TR-808.

A widely used technique with TR-808 machines is to run the drum sounds through outboard amplifiers to add gain and then pass the sound through just about anything to generate additional harmonics caused by clipping and distortion. In the BD808, we have already included this high-powered output gain stage capable of producing signals up to 20Vpp, extending from the original palette of sounds and allowing you to get an assorted array of harmonized bass drums ranging from sharp attacks to crushed tones using this simple yet effective technique! On the inputs, we have also designed a dual pulse-shaper circuit so you can trigger your BD808 with Trigger/Gate signals from step sequencers, clock dividers, or any other pulse/clock sources. This saves you the need to shape the pulses sent to the module and ensuring the same stable sound at its peak power, regardless of differences in your pulse source.

All these little, but unique, features make integrating this legendary sound generator into your modular easy, unleashing the power of real analog drums and making those speaker cones shake.

Notes: Introducing the BD808, part of TipTop's new drum module series that brings the iconic analogue percussion of the Roland TR-808 into the modular synth world. This compact, minimalist module is cost-effective due to modern production methods, reviving the renowned bass drum sound.

The BD808 adapts the TR-808's Bass Drum circuit for Eurorack format, retaining the classic 80's sound while adding new features. These include an independent Accent level, a high-powered gain stage, dual input pulse-shaper, and extended decay. The integrated high-powered gain stage can produce signals up to 20Vpp, allowing for a range of harmonized bass drum sounds from sharp attacks to distorted tones. The dual pulse-shaper circuit ensures stable sound from various pulse sources, making integration into your modular setup seamless. These enhancements unleash the power of true analog drums, delivering impactful bass sounds.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 13ma / -12V 6ma

Notes: Reverse-engineered from the original machine, the BD909 is an identical recreation of the original all-analogue drum circuit of the TR-909. Tiptop have added additional controls and synthesis features that turn this classic circuit into a chest-pounding analog bass drum laboratory - all tightly packed into an 8HP module. The BD909 sound differs from the BD808 in that the main sonic energy is centered in the mid to low frequency range (as opposed to the low frequency range of the BD808). This frequency range gives the needed headroom allowing your bass lines to deeply fill up the low end while the kick drum rides on top - creating a clear and punchy mix.

The BD909 includes all the controls found in the original: Attack, Decay, Tune Decay, Accent, and Level. Tiptop have gone beyond that and added controls that further increase the palette of sound this circuit is capable of. First off, a tuning control knob has been added for the oscillator and included its own CV input and attenuator that let you tune the 909 kick with your bass lines. Next, control knobs have been added for the tuning attack and extending tuning decay. Each one affects the other, allowing for intuitive and interactive sound shaping, opening Z8000 up numerous "sweet spots" and provides the ability to center the energy peak at different parts of the sound. Finally, Tiptop have offered additional punch and distortion by giving complete control over the internal waveshaper, which allows you to overload the waveform manually or with voltage control.

Beginning with the classic and pure sound of the 909 kick, these additional functions greatly expand the BD909's flexibility and let it create powerful analogue bass drums that range from soft and smooth to punchy and aggressive - and everything in between.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 36mm
Power: +12V 34ma / -12V 21ma

Notes: The CP909 is the TR-909's analogue clap sound generator in Eurorack format. This is yet another low-cost analogue drum generator from a legendary drum machine in your modular synthesizer, expanding your Tiptop Audio modular drum machine even further.

The CP909 is an exact reproduction of the original analogue circuit and with the addition of just one extra knob, "trashing" the frequency of the internal noise generator, Tiptop have added greatly to the spectrum of sounds that can be generated. All that without compromising the signature sound of the TR-909.

The CP909 clap effect is made by a special triple-saw envelope generator that controls the gain of a VCA. The sound source feeding into the VCA is made by a quasi-random logic- based noise generator. Some might call it "digital noise", though this term might be misleading in today's world of microcontrollers and sound samples. What really makes the noise generator is a ring of logic gates, so primitive, so 80s, and so much the sound of the 909 Clap!

The CP909 includes a high-powered output gain stage capable of producing hot signals. On the inputs, Tiptop have designed a pulse-shaper circuit so you can trigger the CP909 with trigger/gate signals from step sequencers, clocks, dividers, or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power, regardless of your pulse source. Based on the architecture of the 909, the Accent input is versatile and able to take in both CV and Gate signals for continuously changing dynamics. All these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analogue drums.

TR-909 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 36mm
Power: +12V 6ma / -12V 10ma

Notes: Introducing the CYMBL909, part of Tiptop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

CYMBL909 is a dual voice module containing the TR-909's original Crash and Ride circuits adapted for use in Eurorack modular synthesizer format and was designed to sound like a fresh machine coming out of the assembly line back in the 80's. On top of the original, Tiptop have added some great new features that expand the sound palette of what can be produced with these two voice circuits.

The original circuits use a combination of low-fi 6-bit sound samples that pass through a series of analogue elements that provide envelope and filtering to the source sound. The CYMBL909 module adds manual and voltage control of the sample's analogue tuning section creating tones which range from heavy industrial at the low end, to the original crash/ride sound at the mid range, and bright hats-like sounds at the top end. Modulating the tune with an envelope, CV sequencer, or LFO makes interesting sound bending effects, which can be applied either in or out of sync with the triggering of the sounds.

Just like the other drums in this series, the CYMBL909 high-powered output gain stage allows you to further enhance the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your CYMBL909 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 60ma / -12V 40ma

Notes: Introducing the HATS808, a drum module that brings the classic TR-808 closed and open hi-hat sounds to the Eurorack modular synth format. This module includes features like independent accent levels, a high-powered gain stage, dual input pulse-shaper, and adjustable Filter Q and VC-Q knobs for additional tuning.
The HATS808 uses six analogue square wave oscillators to create its signature sizzling sound, maintaining the unique metallic character of the original. The original "choke" circuitry is fully implemented but can be disabled if needed. The high-powered gain stage allows for further sound harmonization through distortion and clipping. The dual pulse-shaper circuit ensures consistent sound quality from any pulse source, making the HATS808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 14mm
Power: +12V 30ma / -12V 25ma

Notes: ***B-STOCK: Without original box, old panel design, shows some signs of wear***

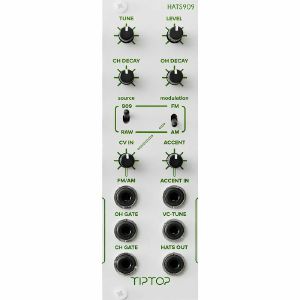

Introducing the HATS909, part of our new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS909 is the TR-909's original Closed and Open Hi-Hats circuits adapted for use in Eurorack modular synthesizer format and was tested to sound like a machine coming fresh off the assembly line back in the 80's Improving on the original, we have added some great new features that expand the sound palette of hats that can be produced with this small, powerful module.

The original TR-909 circuit is made with a combination of low-fi 6-bit sound samples that pass through a series of analog elements to provide envelope and filtering to the source sound. The HATS909 module allows for manual and voltage control of the sample's tuning, which provides anything from crushed hats and short ticks to the original sound and anything in between. A modulation switch allows you to tap a voltage control to either the tune input or the internal VCA for modulation with external control signals or for adding AM or FM synthesis in the audio range from external oscillators, other drum sounds, or just about any sound source. HATS909 also offers a switch for a direct tap to the output of the original sample, bypassing all other internal analog processing, giving you the pure source sound for synthesis any way you want with your own modules.

Just like the other drums in this series, the HATS909 high-powered output gain stage allows you to further harmonize the sound through distortion and clipping. On each gate input, we have designed a dual pulse-shaper circuit so you can trigger your HATS909 with trigger/gate signals from step sequencers, clock dividers, or any other pulse/clock sources.

Notes: ***B-STOCK: Slight surface marks ***


Introducing the HATS909, part of our new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS909 is the TR-909's original Closed and Open Hi-Hats circuits adapted for use in Eurorack modular synthesizer format and was tested to sound like a machine coming fresh off the assembly line back in the 80's Improving on the original, we have added some great new features that expand the sound palette of hats that can be produced with this small, powerful module.

The original TR-909 circuit is made with a combination of low-fi 6-bit sound samples that pass through a series of analog elements to provide envelope and filtering to the source sound. The HATS909 module allows for manual and voltage control of the sample's tuning, which provides anything from crushed hats and short ticks to the original sound and anything in between. A modulation switch allows you to tap a voltage control to either the tune input or the internal VCA for modulation with external control signals or for adding AM or FM synthesis in the audio range from external oscillators, other drum sounds, or just about any sound source. HATS909 also offers a switch for a direct tap to the output of the original sample, bypassing all other internal analog processing, giving you the pure source sound for synthesis any way you want with your own modules.

Just like the other drums in this series, the HATS909 high-powered output gain stage allows you to further harmonize the sound through distortion and clipping. On each gate input, we have designed a dual pulse-shaper circuit so you can trigger your HATS909 with trigger/gate signals from step sequencers, clock dividers, or any other pulse/clock sources.

Notes: Introducing the HATS909, part of TipTop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS909 is the TR-909's original Closed and Open Hi-Hats circuits adapted for use in Eurorack modular synthesizer format and was designed to sound like a machine coming fresh off the assembly line back in the 80's. Improving on the original, TipTop have added some great new features that expand the sound palette that can be produced with this small, powerful module.

The original TR-909 circuit is made with a combination of low-fi sound samples that pass through a series of analogue elements to provide envelope and filtering to the source sound. The HATS909 module allows for manual and voltage control of the sample's tuning, which provides anything from crushed hats and short ticks to the original sound and anything between. Additional controls allow you to send a voltage control signal to either the tune input or the internal VCA for modulation with external control signals and, using a modulation switch, add AM or FM synthesis in the audio range from external oscillators, other drum sounds, or just about any other sound source. Lastly, HATS909 also offers a switch that allows you to tap directly into the raw output of the module for a unique sound source that can used throughout your system.

Just like the other drums in this series, the HATS909 high-powered output gain stage allows you to further harmonize the sound through distortion and clipping. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your HATS909 with trigger/gate signals from step sequencers, clock dividers, or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 36mm
Power: +12V 33ma / -12V 22ma

Notes: The M module is a 5-way Polytip signal multiplier. It takes a single polyphonic audio, CV, or gate signal set and routes it to up to five multiple outputs. The module is completely passive and requires no power. Like all Polytip jacks on Tiptop Audio modules, the jacks on the M module are top-quality components made in Japan.

Size: 4HP - Depth: 15mm

Power: no power required

Notes: The MA808 is a Eurorack module that recreates the TR-808's analogue Maracas drum voice and white noise generator at a low cost, expanding your Tiptop Audio modular drum machine. It features a fluffy, harmonically rich sound that enhances Hi-Hats dynamics. The Attack control knob allows adjustments from sharp Hi-Hat to slow-rise Maracas, with a marker for the original 808 setting.

The MA808 also includes the 808's continuous analogue white noise generator, ideal for creating custom drum sounds or general white noise use. It faithfully reproduces the original 1980s circuit and includes a high-powered gain stage for hot, distortable signals. The dual input pulse-shaper ensures stable triggering from various pulse sources, making the MA808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 16ma / -12V 14ma

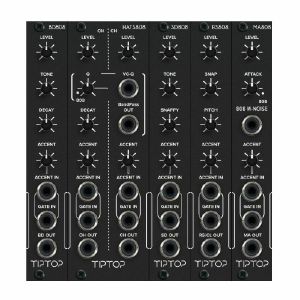

Notes: Great value from this bundle of TipTop's 808 drum modules. Bass drum, hi-hats, snare, rimshot and maraca modules combine to give you full modular control of classic 808 sounds.

Supplier's Notes:
The MA808 is the TR-808's original analogue Maracas drum voice and a white noise generator in Eurorack format. It's a low-cost module that brings back that classic sound, continuing to expand your Tiptop Audio modular drum machine.

The MA808 is a must have sound with its fluffy, harmonically rich presence that greatly enhances the dynamics of Hi-Hats sounds in the groove. The Attack control knob can turn the sound from a sharp edged Hi-Hat and up to a slow rise exponential attack Maracas sound; a dot on the scale indicates the original 808 set position. The MA808 also provides the continuous analogue white noise generator of the 808 machine: a full spectrum of harmonics ideal for use as a starting point for patching your own drum sound or for general use of white noise. The MA808 is an exact reproduction of the original circuit which sound like a fresh machine coming off the assembly line back in the 80's.

Size: 4HP - Depth: 14mm - Power: +12V 16ma / -12V 14ma

Introducing the BD808, part of Tiptop's new series of drum modules that brings analogue percussion into the modular synth world, instantly turning your system into a self-contained music machine. Its small size, minimalist design and modern production methods have allowed Tiptop to bring the world's most famous bass drum sound generator back at a very low cost. The real thing is here again.

The BD808 is the Roland TR-808's Bass Drum circuit adapted for use in Eurorack format and tuned to sound like a machine that come fresh off the original 80's assembly line. The adaption to modular format has allowed Tiptop to add some special features like independent Accent level, a high-powered gain stage, dual input pulse-shaper and extended decay; all without compromising the signature sound of the TR-808.

All these little, but unique, features make integrating this legendary sound generator into your modular easy, unleashing the power of real analogue drums and making those speaker cone shake.

Size: 4HP - Depth: 14mm - Power: +12V 13ma / -12V 6ma

Introducing the SD808, part series of drum modules that brings analogue percussion to the modular synth world, instantly turning your system into a self-contained music machine.

The SD808 is the TR-808's analogue snare drum circuit adapted for use in Eurorack modular synthesizer format and was designed to sound like a fresh-out.of-the-box, 1980s TR-808 snare. Adapting the circuit to the modular format has allowed Tiptop to add special features like independent accent levels, a high-powered gain stage, a dual input pulse-shaper and an adjustable noise source, all without compromising the signature sound of the TR-808 snare drum.

The SD808 sounds tight and extremely snappy because it's analogue, the real thing, not samples. The sound is made with three analogue sound generators mixed together: two oscillating sine waves and a noise source. The SD808's front panel controls have a lot of sweet spots with sounds that are not just limited to snare drum sounds; it can also create other electronic percussive elements.

Size: 4HP - Depth: 14mm - Power: +12V 18ma / -12V 16ma

Introducing the HATS808, part of Tiptop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS808 is the TR-808's real, analogue closed and open hi-hat circuits adapted for use in Eurorack modular synthesizer format and teste to sound just like it did back in the 80's. Adapting to modular format has allowed Tiptop to add some special features for each voice like independent accent levels, a high-powered gain stage and dual input pluse-shaper. Filter Q and VC-Q knobs were added to the main band-pass filter for additional tuning and to allow you to generate crushed tones and self-oscillation at the knob's max position, all without compromising the signature sound of the TR-808 hi-hat.

The HATS808 sizzling sound is made using six analogue square wave oscillators mixed and processed by band-pass filters. This multi-oscillator design is what gives the 808 hi-hat sounds their unique metallic character and makes each HATS808 sound slightly different from one another. The original "choke" circuitry that makes it sound so dynamic and tight is fully implemented, just like the original, but can also be disabled if needed by disconnecting the internal connection between the two hats.

Size: 8HP - Depth: 14mm - Power: +12V 30ma / -12V 25ma

The RS808 is the TR-808's analogue Rimshot and Claves sound generator in Eurorack format. It's a low-cost module that brings back the classic sound, but with even more variation and control, continuing to expand your Tiptop Audio modular drum machine.

The RS808 come with two switches that give a total of 4 different position: two are the classic Rimshot and Claves sounds as found on the original, and two are unique to the RS808 module adding a range of snappy "click" sounds the circuit is capable of producing. Two control knobs were added, each have different effect for the selected sound. In general, these controls can be categorized ad Pitch and Snap as they control the frequency of the oscillator and decay of the envelope generator. The RS808 is an exact reproduction of the original circuit which sounds like a fresh machine analogue coming off the assembly line back in the 80's.

Size: 4HP - Depth: 14mm - Power: +12V 14ma / -12V 13ma

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***

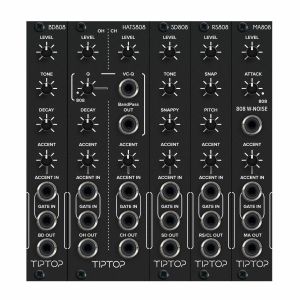

Great value from this bundle of TipTop's 808 drum modules. Bass drum, hi-hats, snare, rimshot and maraca modules combine to give you full modular control of classic 808 sounds.

Supplier's Notes:
The MA808 is the TR-808's original analogue Maracas drum voice and a white noise generator in Eurorack format. It's a low-cost module that brings back that classic sound, continuing to expand your Tiptop Audio modular drum machine.

The MA808 is a must have sound with its fluffy, harmonically rich presence that greatly enhances the dynamics of Hi-Hats sounds in the groove. The Attack control knob can turn the sound from a sharp edged Hi-Hat and up to a slow rise exponential attack Maracas sound; a dot on the scale indicates the original 808 set position. The MA808 also provides the continuous analogue white noise generator of the 808 machine: a full spectrum of harmonics ideal for use as a starting point for patching your own drum sound or for general use of white noise. The MA808 is an exact reproduction of the original circuit which sound like a fresh machine coming off the assembly line back in the 80's.

Size: 4HP - Depth: 14mm - Power: +12V 16ma / -12V 14ma

Introducing the BD808, part of Tiptop's new series of drum modules that brings analogue percussion into the modular synth world, instantly turning your system into a self-contained music machine. Its small size, minimalist design and modern production methods have allowed Tiptop to bring the world's most famous bass drum sound generator back at a very low cost. The real thing is here again.

The BD808 is the Roland TR-808's Bass Drum circuit adapted for use in Eurorack format and tuned to sound like a machine that come fresh off the original 80's assembly line. The adaption to modular format has allowed Tiptop to add some special features like independent Accent level, a high-powered gain stage, dual input pulse-shaper and extended decay; all without compromising the signature sound of the TR-808.

All these little, but unique, features make integrating this legendary sound generator into your modular easy, unleashing the power of real analogue drums and making those speaker cone shake.

Size: 4HP - Depth: 14mm - Power: +12V 13ma / -12V 6ma

Introducing the SD808, part series of drum modules that brings analogue percussion to the modular synth world, instantly turning your system into a self-contained music machine.

The SD808 is the TR-808's analogue snare drum circuit adapted for use in Eurorack modular synthesizer format and was designed to sound like a fresh-out.of-the-box, 1980s TR-808 snare. Adapting the circuit to the modular format has allowed Tiptop to add special features like independent accent levels, a high-powered gain stage, a dual input pulse-shaper and an adjustable noise source, all without compromising the signature sound of the TR-808 snare drum.

The SD808 sounds tight and extremely snappy because it's analogue, the real thing, not samples. The sound is made with three analogue sound generators mixed together: two oscillating sine waves and a noise source. The SD808's front panel controls have a lot of sweet spots with sounds that are not just limited to snare drum sounds; it can also create other electronic percussive elements.

Size: 4HP - Depth: 14mm - Power: +12V 18ma / -12V 16ma

Introducing the HATS808, part of Tiptop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS808 is the TR-808's real, analogue closed and open hi-hat circuits adapted for use in Eurorack modular synthesizer format and teste to sound just like it did back in the 80's. Adapting to modular format has allowed Tiptop to add some special features for each voice like independent accent levels, a high-powered gain stage and dual input pluse-shaper. Filter Q and VC-Q knobs were added to the main band-pass filter for additional tuning and to allow you to generate crushed tones and self-oscillation at the knob's max position, all without compromising the signature sound of the TR-808 hi-hat.

The HATS808 sizzling sound is made using six analogue square wave oscillators mixed and processed by band-pass filters. This multi-oscillator design is what gives the 808 hi-hat sounds their unique metallic character and makes each HATS808 sound slightly different from one another. The original "choke" circuitry that makes it sound so dynamic and tight is fully implemented, just like the original, but can also be disabled if needed by disconnecting the internal connection between the two hats.

Size: 8HP - Depth: 14mm - Power: +12V 30ma / -12V 25ma

The RS808 is the TR-808's analogue Rimshot and Claves sound generator in Eurorack format. It's a low-cost module that brings back the classic sound, but with even more variation and control, continuing to expand your Tiptop Audio modular drum machine.

The RS808 come with two switches that give a total of 4 different position: two are the classic Rimshot and Claves sounds as found on the original, and two are unique to the RS808 module adding a range of snappy "click" sounds the circuit is capable of producing. Two control knobs were added, each have different effect for the selected sound. In general, these controls can be categorized ad Pitch and Snap as they control the frequency of the oscillator and decay of the envelope generator. The RS808 is an exact reproduction of the original circuit which sounds like a fresh machine analogue coming off the assembly line back in the 80's.

Size: 4HP - Depth: 14mm - Power: +12V 14ma / -12V 13ma

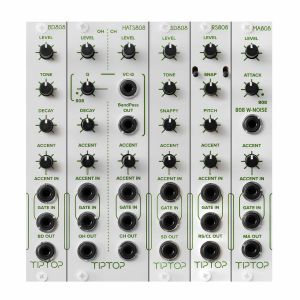

Notes: White version of TipTop's 808 drum bundle. Bass drum, hi-hats, snare, rimshot and maraca modules combine to give you full modular control of classic 808 sounds.

Supplier's Notes:
The MA808 is the TR-808's original analogue Maracas drum voice and a white noise generator in Eurorack format. It's a low-cost module that brings back that classic sound, continuing to expand your Tiptop Audio modular drum machine.

The MA808 is a must have sound with its fluffy, harmonically rich presence that greatly enhances the dynamics of Hi-Hats sounds in the groove. The Attack control knob can turn the sound from a sharp edged Hi-Hat and up to a slow rise exponential attack Maracas sound; a dot on the scale indicates the original 808 set position. The MA808 also provides the continuous analogue white noise generator of the 808 machine: a full spectrum of harmonics ideal for use as a starting point for patching your own drum sound or for general use of white noise. The MA808 is an exact reproduction of the original circuit which sound like a fresh machine coming off the assembly line back in the 80's.

Size: 4HP - Depth: 14mm - Power: +12V 16ma / -12V 14ma

Introducing the BD808, part of Tiptop's new series of drum modules that brings analogue percussion into the modular synth world, instantly turning your system into a self-contained music machine. Its small size, minimalist design and modern production methods have allowed Tiptop to bring the world's most famous bass drum sound generator back at a very low cost. The real thing is here again.

A widely used technique with TR-808 machines is to run the drum sounds through outboard amplifiers to add gain and then pass the sound through just about anything to generate additional harmonics caused by clipping a distortion. In the BD808, Tiptop have already included this high-powered output gain stage capable of producing signals up to 20Vpp, extending from the original palette of sounds and allowing you to get an assorted array of harmonized bass drums ranging from sharp attacks to crushed tones using this simple yet effective technique. On the inputs, Tiptop have also designed a dual pulse-shaper circuit so you can trigger your BD808 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock sources. This saves you the need to shape the pulses sent to the module and ensuring the same stable sound at its peak power, regardless of differences in your pulse source.

All these little, but unique, features make integrating this legendary sound generator into your modular easy, unleashing the power of real analogue drums and making those speaker cone shake.

Size: 4HP - Depth: 14mm - Power: +12V 13ma / -12V 6ma

Introducing the SD808, part series of drum modules that brings analogue percussion to the modular synth world, instantly turning your system into a self-contained music machine.

The SD808 is the TR-808's analogue snare drum circuit adapted for use in Eurorack modular synthesizer format and was designed to sound like a fresh-out.of-the-box, 1980s TR-808 snare. Adapting the circuit to the modular format has allowed Tiptop to add special features like independent accent levels, a high-powered gain stage, a dual input pulse-shaper and an adjustable noise source, all without compromising the signature sound of the TR-808 snare drum.

The SD808 sounds tight and extremely snappy because it's analogue, the real thing, not samples. The sound is made with three analogue sound generators mixed together: two oscillating sine waves and a noise source. The SD808's front panel controls have a lot of sweet spots with sounds that are not just limited to snare drum sounds; it can also create other electronic percussive elements.

Size: 4HP - Depth: 14mm - Power: +12V 18ma / -12V 16ma

Introducing the HATS808, part of Tiptop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS808 is the TR-808's real, analogue closed and open hi-hat circuits adapted for use in Eurorack modular synthesizer format and teste to sound just like it did back in the 80's. Adapting to modular format has allowed Tiptop to add some special features for each voice like independent accent levels, a high-powered gain stage and dual input pluse-shaper. Filter Q and VC-Q knobs were added to the main band-pass filter for additional tuning and to allow you to generate crushed tones and self-oscillation at the knob's max position, all without compromising the signature sound of the TR-808 hi-hat.

The HATS808 sizzling sound is made using six analogue square wave oscillators mixed and processed by band-pass filters. This multi-oscillator design is what gives the 808 hi-hat sounds their unique metallic character and makes each HATS808 sound slightly different from one another. The original "choke" circuitry that makes it sound so dynamic and tight is fully implemented, just like the original, but can also be disabled if needed by disconnecting the internal connection between the two hats.

Size: 8HP - Depth: 14mm - Power: +12V 30ma / -12V 25ma

The RS808 is the TR-808's analogue Rimshot and Claves sound generator in Eurorack format. It's a low-cost module that brings back the classic sound, but with even more variation and control, continuing to expand your Tiptop Audio modular drum machine.

The RS808 come with two switches that give a total of 4 different position: two are the classic Rimshot and Claves sounds as found on the original, and two are unique to the RS808 module adding a range of snappy "click" sounds the circuit is capable of producing. Two control knobs were added, each have different effect for the selected sound. In general, these controls can be categorized ad Pitch and Snap as they control the frequency of the oscillator and decay of the envelope generator. The RS808 is an exact reproduction of the original circuit which sounds like a fresh machine analogue coming off the assembly line back in the 80's.

Size: 4HP - Depth: 14mm - Power: +12V 14ma / -12V 13ma

Notes: Octo I/O is a bi-directional passive Polytip to 3.5mm expander and a Polytip Mult. The expander section lets you break out to each individual voice from a polyphonic module. The mult section lets you mult Polytip polyphonic signals from one source to multiple destinations. For example patching the OCTOSTAGES envelopes to control both your OCTOPASS filters and HEXAGAIN VCAs.

Dimensions:

6HP - Depth: 15mm

Current Draw:

Module does not draw current

Notes: Octogain is a eight voice polyphonic analogue audio VCA plus a eight voice mixer with master level control and odd/even (Right and Left) channels for a stereo output and clipping indicator. All eight VCA ins and outs are simultaneously available through Polytip jacks and 3.5mm jacks so the module can be used in a variety of ways both polyphonic or multi-voice monophonic. The fully analogue audio path has exponential CV control. CV inputs are 0-5V, typical audio input is 10Vp.p. A global Offset knob allow to open all VCAs manually or apply positive offset to incoming CV. The design uses very low power consumption with excellent audio quality.

Size: 16HP - Depth: 40mm
Power: +12V 42mA / -12V 35mA

Notes: OCTOPASS is an eight voice 24db/octave low pass filter based on the classic 2044 filter. All eight filters are fully analogue with gain compensation of resonance and the lovely lush sound of classic synths. A global frequency modulation CV using a 3.5mm jack can be used to modulate all eight incoming CVs of the Polytip jack. The typical use is to patch polyphonic synthesisers with the use of only a few Polytip patch cables for its audio ins and outs and its cut-off frequency controls. To tap each filter I/O or CV using discrete modules the OCTO I/O module can be used as an expander. As there are eight filters in the module special attention has been given to power consumption efficiency.

Size: 20HP

Notes: Part of TipTop's polyphonic range, the Octostages is based on the envelope circuits from the legendary Oberheim OB-X. Eight fully analogue envelopes with shared ADSR controls.

Supplier's Notes:
Octostages is an eight voice fully analogue envelope generator made with the original envelopes of the 1979 OBX. Each of the eight envelopes feature a Gate in, Envelope OUT, Velocity CV in and Attack CV in control as well as an output led indicator. A master output level knob and CV using standard mono jack are provided to control or modulate all envelope output levels globally. As there are eight EGs in the module special attention has been given for power consumption efficiency.

Size: 20HP - Depth: 40mm
Power: +12V 185mA / -12V 165mA

Notes: The Octovert is a CV processor capable of scaling, inverting, and offsetting up to eight polyphonic signals. It can also be externally controlled via CV! Its most obvious applications include inverting envelopes, reversing the direction of CV, and scaling plus offsetting any CV source to precisely fine-tune the modulation sweet spot of the target module. With the added feature of external control, it takes things even further by modulating the modulation signal itself for even deeper modulation motion.

Size: 6HP - Depth: 40mm

Power: +12V 18mA / -12V 15mA

Notes: The RS808 is a Eurorack module that brings the TR-808's analogue Rimshot and Claves sounds to your modular drum machine at a low cost. It offers the classic sounds plus two unique snappy "click" variations. Two control knobs, labeled Pitch and Snap, adjust the oscillator frequency and envelope decay, providing greater sound variation and control.

The RS808 faithfully reproduces the original 1980s TR-808 circuit and includes a high-powered gain stage for hot, distortable signals. It features a dual input pulse-shaper for stable triggering from various pulse sources. These enhancements make the RS808 an easy and powerful addition to any modular synth setup, delivering authentic analogue drum sounds.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 14ma / -12V 13ma

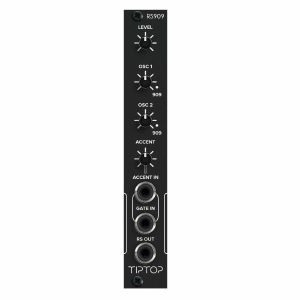

Notes: The RS909 is the TR-909's analogue rimshot sound generator in a Eurorack format; adding yet another low-cost analogue drum generator from a legendary drum machine to your modular synthesizer and expanding your Tiptop Audio modular drum machine even further.

Tiptop use an exact reproduction of the original analogue circuit for the RS909. Its sound is generated by a clever set of three T-bridge oscillators, each producing a damped sine wave at a different frequency. The mix of those oscillators goes through a VCA whose gain is controlled by an envelope generator providing the well-known attack that gives the sound its unique "feel".

In the RS909, Tiptop bring frequency control of the two internal oscillators, OSC1 and OSC2, to the front panel, allowing for adjustment of their pitch, and thereby extending the sounds this circuit is capable of and allowing fine adjustment of the classic sound.

The RS909 includes a high-powered output gain stage capable of producing hot signals. On the inputs, Tiptop have designed a pulse-shaper circuit so you can trigger the RS909 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power, regardless of your pulse source. Based on the architecture of the 909, the Accent input is versatile and able to take in both CV and Gate signals for continuously changing dynamics. All of these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analogue drums.

TR-909 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 36mm
Power: +12V 12ma / -12V 10ma

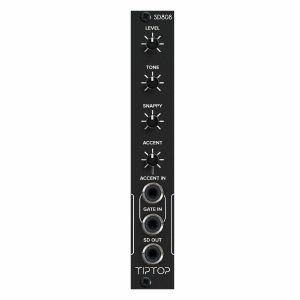

Notes: Introducing the SD808, a drum module that brings the TR-808's analogue snare drum sound to the Eurorack modular synth format. This module includes special features like independent accent levels, a high-powered gain stage, dual input pulse-shaper, and an adjustable noise source, all while retaining the classic 1980s TR-808 sound.

The SD808's analogue design ensures tight, snappy sounds, using two sine waves and a noise source. It also offers versatile front panel controls for creating various electronic percussion sounds. The noise source is based on a later TR-808 circuit, producing a slightly darker and more realistic snare. The high-powered gain stage and dual pulse-shaper circuit ensure consistent, high-quality sound from any pulse source, making the SD808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 18ma / -12V 16ma

Notes: The SD909 adapts the iconic TR-909 snare drum and noise generator for use in the Eurorack modular synthesizer format. Tiptop painstakingly tested the module in their lab to sound like a fresh machine coming off of the assembly line back in the 80s. On top of the original circuit, Tiptop have added new features that expand the palette of what can be produced with this analogue circuit.

The sound of the SD909 consists of two main sections: the binary noise generator and two modulated triangle oscillators. The oscillators provide the low end punch while the noise makes up the upper sonic spectrum, resulting in a combination that makes the 909 snare sound so rich. In the SD909 module, the noise generator and oscillators are variable and voltage-controllable, pushing the circuit beyond its original boundaries, offering new sounds and many variations of the original tone. The panel also has markings to guide setting the knobs to reproduce the vintage snare sound of the original machine.

Just like the other drums in this series, the SD909's high-powered output gain stage allows further enhancement of the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your SD909 with Trigger/Gate signals from step sequencers, clock dividers, or any other pulse/clock sources. Also, the SD909 is equipped with access to the MIXZ MixBus, matching the rest of the Tiptop line of percussive modules.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 35ma / -12V 30ma

Notes: Introducing the TOMS909, the warmth of the classic, all-analogue, punchy tom-toms from the TR-909 drum machine. The TOMS909 contains all three of the TR-909's original LOW, MID and HIGH tom-tom circuits adapted for use in the modular format. The module was designed to sound like a fresh machine coming off the assembly line back in the 80's. To add flavour to the beast, Tiptop have extended each tom's tuning range so it's easier to dial soft bass drums on the low end and high-pitched toms on the other.

The toms circuitry is made up of 9 triangle oscillators and a stack of filters, VCAs, and envelopes which, in total, took about half of the space on the original 909's circuit board. Utilizing the latest in electronic design technology, Tiptop have managed to squeeze this enormous circuit, consisting of more than 450 components, into an area only 16HP wide. It is a beautiful board with hundreds of tiny, shiny components: it's a little analogue jewel.

Each tom includes a trigger and accent input with accent level control, manual tune, voltage-control tune input with attenuator and independent audio out. In addition, a MIX out is available that sums all three toms together as well as access to the MIXZ MixBus on the back. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your TOMS909 with trigger/gate signals from sequencers or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 16HP
Depth: 51mm
Power: +12V 120ma / -12V 100ma

Notes: Vortex 6 us a polyphonic 6-voice wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2, and it is the only oscillator of this type that uses true 8-bit vintage audio converters from the '80s. Dozens of wavetables are provided internally, and user tables can be loaded via an SD card. VORTEX6 has built-in vibrato, glide, and six wavetable-scrolling envelopes, all with CV. The ART-in jack and a built-in voice manager take care of incoming notes and distribute them to audio, gate, and velocity outsieither through per-voice 3.5mm jacks or the Polytip jacks. Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS, and OCTOGAIN, along with a few Polytip patch cables, it forms the world's first complete six-voice polyphonic modular synth. Alternatively, VORTEX6 can be patched to discrete mono modules or use its voice mix-out for paraphonic soundscapes with up to 12 oscillators in detune mode.

Size: 20HP - Depth: 40mm

Power: +12V 190mA / -12V 50mA
