Notes: Simple to look at but deceptively powerful, Dreadbox's Telepathy is a full analogue synth in a small module, featuring VCO, low-pass and high-pass filters, LFO, envelopes and VCA.

Supplier's Notes:
Telepathy is a full voice analogue synthesizer module with deep modulation options due to its multi-destination LFO and Envelope. From Bass to Lead sounds, to drums and drones, Telepathy has broad and versatile sound design capabilities. It has a Full Analogue path (Typhon VCO, 4-pole low pass / 2-pole high pass filters, analogue VCA) that is digitally controlled for more precision over its parameters, resulting in a warm, present and distinct Dreadbox sound.

With lots of useful and musical features integrated into a compact size (10hp), and its skiff friendly design, Telepathy is a great addition to small or large Eurorack systems.

Features:

1x Analogue Oscillator with saw, square, -1 oct square sub and noise, plus PW control for square, level for noise and waveshape
Automatic tuning for the oscillator and fine tune
Analogue 24db Resonant Low pass filter with Oscillator FM and Noise FM and 6db High pass filter
Analogue VCA
1x LFO with Free/Key/Track/BPM/BPM Key modes, Fade in, Triangle/Saw/Ramp/Square/Random waveforms, that is mapped to various parameters
2x Envelopes, one dedicated to the VCA with Velocity control and one loopable for Low pass Filter, Pitch and PW
CV in patch that can be mapped to all the basic parameters in parallel with dedicated amount for each parameter
MIDI in/out+through
CC in/out, Program Change in/out
Multitimbral Chaining functionality via MIDI up to 8 modules 16 presets
10HP

Notes: Simple to look at but deceptively powerful, Dreadbox's Telepathy is a full analogue synth in a small module, featuring VCO, low-pass and high-pass filters, LFO, envelopes and VCA.

Supplier's Notes:
Telepathy is a full voice analogue synthesizer module with deep modulation options due to its multi-destination LFO and Envelope. From Bass to Lead sounds, to drums and drones, Telepathy has broad and versatile sound design capabilities. It has a Full Analogue path (Typhon VCO, 4-pole low pass / 2-pole high pass filters, analogue VCA) that is digitally controlled for more precision over its parameters, resulting in a warm, present and distinct Dreadbox sound.

With lots of useful and musical features integrated into a compact size (10hp), and its skiff friendly design, Telepathy is a great addition to small or large Eurorack systems.

Features:

1x Analogue Oscillator with saw, square, -1 oct square sub and noise, plus PW control for square, level for noise and waveshape
Automatic tuning for the oscillator and fine tune
Analogue 24db Resonant Low pass filter with Oscillator FM and Noise FM and 6db High pass filter
Analogue VCA
1x LFO with Free/Key/Track/BPM/BPM Key modes, Fade in, Triangle/Saw/Ramp/Square/Random waveforms, that is mapped to various parameters
2x Envelopes, one dedicated to the VCA with Velocity control and one loopable for Low pass Filter, Pitch and PW
CV in patch that can be mapped to all the basic parameters in parallel with dedicated amount for each parameter
MIDI in/out+through
CC in/out, Program Change in/out
Multitimbral Chaining functionality via MIDI up to 8 modules 16 presets
10HP

Notes: The Endorphin.es 1U Cockpit X Black is a newly designed 6-channel stereo mixer with transparent VCAs, featuring four inputs on the front and two auxiliary inputs on the rear. Sidechain ducking makes it easy to get a great balanced sound, just input the trigger of your sound and you are good to go.

The perfect mixer for summing signals in your system while patching, or even as an end-of-chain mixer to go into your interface, mixer... whatever you fancy.

Power consumption: 55mA at +12V and 35mA at -12V

Depth: 30 mm

24 HP

Notes: 1U version of the excellent Golden Master, a surprisingly creative little output module which combines radio-style multi-band compression with brickwall limiting and mid-side stereo processing.

Supplier's Notes:
Golden Master is a multiband processor module in Eurorack format. Inspired from the studio mastering and radio loudness units from the 90's, this tool is a game changer for everyone who performs live with a Eurorack synthesizer.

The whole magic of Eurorack lies in its raw sound and simple analog mixes - processing through the Golden Master brings instant punch and sound pressure, as well as controlling the overall volume.

Features:

instantly improve your raw Eurorack mixes to sound balanced and powerful on stage or wherever you are
96 kHz 16 bit digital audio stereo processing
3-band compressor with intuitive adjustment and brickwall limiter
mid/side stereo field processing
Power consumption: 125mA at +12 V and 12mA at -12 V

Depth: 42mm

HP : 22

Notes: Unusual output and mastering module, inspired by studio and radio mastering tools but fitting into just 6hp. Includes multi-band compression, mid/side stereo processing and brickwall limiting.

Supplier's Notes:
Golden Master is a multiband processor module in Eurorack format. Inspired from the studio mastering and radio loudness units from the 90's, this tool is a game changer for everyone who performs live with a Eurorack synthesizer.

The whole magic of Eurorack lies in its raw sound and simple analog mixes - processing through the Golden Master brings instant punch and sound pressure, as well as controlling the overall volume.

Power consumption: 135mA at +12V and 25mA at -12V
Depth: 30 mm (with ribbon cable connected)
HP : 6

Notes: The Golden Master from Endorphin.es is a multi-band processor that takes inspiration from studio mastering and radio loudness units from the 1990s. It gives control over the EQ, compression, and mid/side processing of incoming audio.

Thanks to the 16-bit/96kHz audio fidelity, you'll get incredible processing power. It features three bands - low, medium, and high - each handling a distinct portion of the audio spectrum. These controls feature a single knob that both boosts and cuts signals. Set the overall loudness limit of your sounds, and the brickwall limiter ensures all your sounds stay in check. This multi-band effect is the perfect end-of-chain module, ensuring that anything you throw at it sounds dynamic and full.

Multi-band processor inspired by mastering tools from the 1990s: adds punch and dynamics to your sound

Compression, EQ, and mid/side processing

Three frequency bands with +7 db boost and -20 db cut

Brickwall limiter sets upper limit of signals

16-bit/96kHz audio I/O with 32 bits internal processing

Enhance/mute buttons

Available in 1U / 22HP version

Power consumptions:

135 mA +12V
25 mA -12V
0 mA 5V

Dimensions:
6 HP
30 mm deep

Notes: Milky Way is a multi effects module with stereo signal flow. Its algorithms are already known from the Blck_Noir and the Grand Terminal.

- Simple and effective 6hp stereo* FX module
- Comes with "T.F.D" firmware installed: 16 types of effects are available, sorted in two banks
- Meta CV effects scanning
- Volume control with VCA

*depending on the effect type

Notes: Now available in Intellijel's 1U format, the Milky Way is Endorphin.es's stereo effect module, featuring 16 programs: reverbs, delays, chorus, flanger, compressor and more. Versatile.

Supplier's Notes:
Tasty multi-effects module in Intellijel's 1U format. Eight stereo effect programs include meta CV scanning along with Airways and Darkwaves banks borrowed from the Blck_Noir and Grand Terminal modules.

Supplier's Notes:
Milky Way is a stereo FX module already know from the Blck_Noir and the Grand Terminal. It offers 8 types of effects.


simple and effective 6hp stereo FX module
8 types of effects available with meta CV scanning, 2 famous Airways and Darkwaves banks (more banks coming soon)
volume control with VCA
Airways:

Hall Reverb
Shimmer Reverb
Stereo Room Reverb
Plate Reverb
Spring Reverb
Ping-Pong Delay
Tape Echo Delay
Chorus
Darkwaves:

Gated Reverb
Spring Reverb
Ping-Pong Delay
Flanger
Ring Modulator
Overdrive
Compressor
Freezer
Power consumption: 117mA at +12 V and 12mA at -12 V

Depth: 42mm

HP : 22

Notes: Peak performance auto-tuning thru-zero VCO

Revolutionary, literally instant auto-tuning to the nearest C, G or A notes
Pitch knob lock - go on hard performance without the risk of accidentally break the tune
MIDI IN and MIDI THRU with selectable A or B TRS-MIDI standard
Thru-zero linear FM with CV-controlled FM index with internal modulator creates compact 2-operator FM voice
Sine/fold output features famous westcoast Furthrrrr Generator folder
Odd/even output has a pre-patched -1/-2/-3 octaves sub-oscillator and a noise for essential east coast monosynth voice

Power consumption:
65 mA +12V
40 mA -12V
0 mA 5V

Dimensions:
6 HP
30 mm deep

Notes: 2-track trigger sequencer/euclidean generator module - 6HP

Running Order is a two track trigger sequencer. It can be a precise master clock or manipulate incoming clock signal and works great in use as a sub-sequencer/divider in your Eurorack environment.

Zero-jitter clock generation: less than 50 microseconds internal clock jitter
101 style 1/16th note input mode (step/rest) with manual or CV controllable amount of triggers repeats when the active trigger step happens
Euclidean mode enabled for each track where we set Euclidean total steps amount in the circle and then amount of triggers happening in that circle.
Per step trigger probability in 101 mode and global probability in Euclidean mode.
Separate synchronization (reset) inputs, sync for track 1 is normalled to sync track 2
Clock divider for incoming external clock allows to quickly obtain various musical divisions on the fly incl. triplets of course, but more importantly tuplets mode allows you to stretch desired amount of triggers happening into a single bar
Separate mute buttons for each track
8 patterns of triggers sequences stored in the module and recalled on the next power up
also available in 1U / 22HP version

Power consumption:
30 mA +12V
10 mA -12V
0 mA 5V

Dimensions
6 HP
30 mm deep

Notes: Versatile stereo digital filter based on Endorphin's Grand Terminal module. CV-controlled cutoff, resonance and separate high-pass filter. Simple but effective.

Supplier notes:
The Squawk Dirty To Me is a stereo filter with voltage controlled resonance. It features eight filter modes and zero-delay feedback.

- Simple and effective 6hp stereo VCF
- 8 filter modes available with meta CV scanning, famous zero-delay feedback Grand Terminal filters
- Additional hi-pass filter in series quickly cuts the boomy low end

Notes: Great value from this versatile percussion module, built around a noise generator and four linked envelope generators, each with its own VCA. Generate hi-hats, envelopes, shape drums or create modulation sequences.

Supplier's Notes:
Ricochet is a compact, fully analogue module featuring four interconnected decay envelopes, each with its own VCA and an integrated noise generator.

The module's design is inspired by the way skipping stones bounce on the water, creating a versatile tool for crafting percussive sounds.

The exponential envelopes are specifically designed to generate dynamic percussive tones. The unique linking function connects the end of one envelope's decay to the trigger of the next, enabling the subsequent envelope to activate once the previous one ends. This innovative feature allows you to create ratcheted envelope.

A front-panel trimmer lets you adjust the threshold for triggering subsequent envelopes, while a rear header enables connecting two Ricochet modules together, or linking the last envelope to the first. This feature transform the Ricochet to a weird sequencer where the steps length depend of the decay times.

Since Ricochet is fully analogic, trig inputs are velocity-sensitive, responding to a standard gates but also allowing attenuation to modify the envelope's velocity (you can play with the dynamic of your sound by attenuating the trigg input. Ricochet is also perfect to play with drum pads).

Each VCA features a gain control that can be pushed to achieve subtle saturation.

All envelopes and VCAs have separate outputs, but there are also mixed audio and envelope outputs. When an individual output is connected, it is removed from the mix. The decay modulation inputs are normalized between each other.

Last but not least, an analogue noise generator is normalised to the first input, so you can use ricochet on it's own to create hi hat kind of sounds

Main features:

- Fully analogue design so everything is responsive to the amplitude
- Unique linked envelopes feature
- Compact 4 envelopes 4 VCAs module
- Linkable to a second ricochet or looping back the last envelope to the first one

Some applications:

- Envelope generator
- Drum shaper
- Hi-hat
- Clap envelope shaper( with short ratcheted envelopes)
- Envelope sequencer
- Trigg delay
- Burst generator

Technical details:

- Fully Analogue design
- 14hp
- Skiff friendly
- Reverse power protection

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Erica Synths Bass Drum is developed in collaboration with the French company e-licktronick and it's our take on analogue bass drum circuits adapted for modular systems. Massive, punchy sound, Accent & CV control over key parameters of the module make it distinctively expressive in live performances.

Features
Pitch
Tune
Tune Depth controls
CV control with attenuators over Pitch, Decay and Drive
Manual trigger
Accent for better expression

Dimensions
14 HP
30 mm deep

Current Draw
60 mA +12V
30 mA -12V

Notes: The Erica Synths Black DADSR (Delay-Attack-Decay-Sustain-Release) is a fully analogue envelope generator that gives you extended control over events in your modular synth. It's a looping exponential envelope generator that has voltage control over each stage of the envelope. An independent Gate Delay section adds extra functionality to design advanced soundscapes, like delayed modulation e ects, wave morphing, etc.

SPECS:
Attack time (with max CV) 0...2,5" (4,4")
Decay time (with max CV) 0...5" (12")
Sustain level 0...10V
Release time (with max CV) 0...4,5" (10")
Gate delay time 0,7"
CV level (full sweep) -5V - +5V
Panel width 10HP
Module depth 30mm
Power consumption 42mA@+12V, 58mA@-12V


ATTACK
Set the attack time of the envelope

GATE
Patch the gate signal here to start the envelope. If nothing is patched here, the gate input is normalled to the gate

DELAY OUT
CV ATTENUATORS
These are CV attenuators for attack, sustain and release stages

SUSTAIN
Set the sustain level of the envelope

GATE DEL
Set the gate delay time

TRIGG
You can retrigger the envelope at any stage by applying trigger signal here. The trigger alone initiates an AD envelope instead of ADSR

DELAY OUT
This is the gate delay output. The gate delay section can be used independently to control other modules in your modular setup

D GATE
If you wish to use gate delay functionality, patch the gate signal here

BP OUT
This is the bipolar output - the CV here is centered against 0V and this output serves as an LFO

EG OUT
This is the envelope generator output

M. GATE
This is the manual gate button. A built in LED gives a visual reference of the output voltage

RELEASE
Set the release time of the envelope

DECAY
Set the decay time of the envelope

LOOP
This is a LOOP switch. When it's ON, the envelope generator outputs a signal for which the rise time is defined by the Attack setting and the fall time is defined by the Release knob setting.

Notes: The Erica Synths Black Low Pass VCF is designed for analogue purists, who take sound design seriously. It's highly stable, 24dB/oct resonant low pass VCF with voltage control over cutoff (two CV inputs, one is with an attenuverter) and resonance. Bonus features are built in post-filter overdrive circuit with user adjustable drive amount and the Black Filter Coupler connector.

When used in combination with the Black High Pass VCF and the Black Filter Coupler, you get a Holy Trinity of VCFs for an ultimate analogue modular system.

Cutoff

This is the main control of the module - manual cutoff frequency adjustment. The incoming CV is added to the cutoff knob position.

Drive

For extreme results, flip the drive switch on! This will apply post-filter drive. You can preset drive level to your taste by adjusting a trimpot close to the switch on the back side of the module.

Reso CV In

This is the resonance CV input.

In Level

Adjust the audio signal level.

Resonance

Adjust the resonance level manually. On settings over 1PM the filter will start to self-oscillate. The incoming CV is added to the resonance knob position.

CV1 Level

This is cutoff CV attenuverter. Adjust the CV level to your taste!

ResoCV Level

Adjust the resonance CV level to your taste.

CV1; CV2
These are the cutoff CV inputs. The CV1 level is adjustable by CV1 LEVEL attenuverter knob, CV2 is applied to the cutoff without attenuation.

Input

Patch your audio signals here.

Out
This is the audio output of the module.

SPECS:
Audio level 10Vptp
CV level -10V - +10V
Filter slope 24dB/oct
Power consumption +25mA, -29mA
Module width 10HP
Module depth 35mm

The Black Low Pass VCF has a hidden feature - the Black Filter Coupler connector. The Erica Synths Black Filter Coupler is a satellite module for the Black High Pass and the Black Low Pass VCFs, and it adds versatile Bandpass and Band Reject filter functionality to your modular system.

Please note, that the Black Filter Coupler works only with Erica Synths modules and you need both Black High Pass and Low Pass VCFs.

Remove the jumper and connect the Erica Synths Black Filter Coupler. 2x5pin ribbon cable is supplied with the Black Filter Coupler module. Use this trimpot to adjust post-filter overdrive to your taste.

Notes: One of the most authentic sounding emulations of the famous Russian synth the Formanta Radio Factory Polivoks in 10HP

Erica Synths Black Polivoks VCF is one of the most authentic sounding emulations of the famous Russian synth the Formanta Radio Factory Polivoks.

The original Russian ICs K140UD12 are used in the sound circuit. Several updates were added to adapt the VCF for contemporary modular synth demands, it has independently buffered inputs, extended Cutoff knob, eliminated clicks when switching filter modes and output stage added to eliminate signal inversion. The result is a much punchier bass sound and very smooth controls.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, design and usability was prioritised over module width. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Input level: up to 20Vptp
CV input level: 10V - +10V
Filter modes: BP(6dB/oct)/LP(12dB/oct)
Power consumption: +11mA, -11mA
Module width: 10 HP
Module depth: 25mm

Notes: The Erica Synths Black Ring-Xfade is an extremely versatile module for sound shaping. It consists of two unconventional ringmodulators/waveshapers, a crossfader that works both for audio and CV and a VCA. Unlike conventional ringmodulator that works only with a signal present on both signal and carrier inputs, the Black Ring-Xfade passes through the signal without alteration, if no carrier is present, but low level signals on the carrier input result in unique waveshaping. Add the crossfader between two ringmodulators (or as a separate unit) topped up with the VCA, and you have an amplitude modulation powerplant in 10HP!

Ring1 CV; Ring2 CV
These are the ringmodulator carrier (CV level) level controls. Unlike conventional ringmodulator, this one passes signal unaltered, if RING CV is turned down. With increasing Ring CV level a slight waveshaping turns into proper ringmodulation.

Xfade
This is a manual Crossfade control. This fades smoothly between signals patched into XFADE IN1 and XFADE IN2. The XFADE CV is added to the knob position.

Coupling
Set the Crossfader mode - AC is optimized for use with the audio signals, DC - for control voltages (but it will work fine with audio, as well).

Ring 1; Ring 2
The green LEDs give visual feedback on signal levels, applied to XFADE IN1 and XFADE IN2 respectively.

Vol CV
Select the VCA CV response. A 0-10V setting is intended for use with the envelope generator, a -5V - +5V setting - for nice tremolos with a LFO.

Xfade IN1; Xfade IN2
These are the Crossfader inputs. They are normalled to the Ringmodulator ouputs, so, if nothing is patched here, you can crossfade between two ringmodulated signals.

Xfade CV
This is the Crossfader CV input. The CV is added to the XFADE knob setting.

VOL CV
This is the VCA CV input. The VCA is post-crossfade - it controls the amplitude of a resulting signal after the crossfader. It will also work with low frequency control voltages applied to the XFADE Ins - nice for designing unconventional modulations.

Ring1 Out; Ring2 Out
These are the ringmodulator outputs.

Xfade Out
This is the Crossfader output and the main output of the module.

Ring2 In; Ring2 CV
These are the second Ringmoduator signal and carrier inputs respectively. These two are normalled to the RING1 inputs, and if no signal is patched here, the duplicate the first Ringmodulator. Interesting trick is to set RING CVs at different levels and crossfade between two ringmodulator signals.

Ring1 IN; Ring1 CV
These are the first Ringmoduator signal and carrier inputs respectively.

Fade L; Fade R
The red LEDs indicate the crossfader position.

Xfade CV LVL
This is a crossfade CV level attenuator. By adjusting it you can control a span of fading between inputs.

Specs:
Audio level 10Vptp
CV level (full span) -5V - +5V
Power consumption +38mA, -32mA
Module width 10HP
Module depth 35mm

Notes: Black Stereo Mixer is just what you need, if your setup has several nowadays gaining popularity modules with stereo inputs or outputs, like Black Hole DSP, Erica Fusion Delay, MI Clouds or some other. In order to save rack space, we designed compact mixer with lot of cool, performance oriented features.

In order to save rack space, we designed a compact mixer with a lot of cool, performance oriented features.

Check out also the Black Pre-fade Listen Expander that is a satellite module to Erica Synths Black Stereo Mixer!

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Notes: Everything sounds better with compression - whether you need a bit of extra pressure for your drum sounds or just that extra touch to make your modular mix more nimble and tight, the Erica Synths Stereo Compressor will make your live performances a joy. The module is optimized for percussion sounds and will be a great addition to any Erica Synths Drum module rig. The Stereo sidechain can be used to animate melodic layers on the beat and to truly bring your Basslines to life.

Features

THAT chip-based stereo compressor
DC coupled sidechain
Gain, Threshold and Compression Amount (Ratio) settings
Stereo Link for level detectors
Bypass switch
8 segment output level VU meter

Specs

Audio input level -5...+5V
Threshold -40dB to +10dB
Makeup gain -12dB to +12dB
Ratio 1:1 to 8
Power consumption +60mA, -22mA
Module width 10HP
Module depth 35mm

INPUT LVL; Adjust the input signal level to your taste
GAIN; This knob adjusts the makeup gain of the compressor
THRESHOLD; Set the compressor threshold
COMP. AMT;This knob adjusts the compression ratio
STEREO LINK; Sending hard-panned or significantly different audio levels on the left and right channels into the audio inputs may result in undesired left-right panning on the output of the compressor, because the level detectors on each channel will ensure a different amount of compression. With the STEREO LINK switch on, the level detectors on both channels are merged and the min/max function is engaged. This ensures equal compression on both channels.
PROCESS; The bypass switch allows for turning off the compressor instantly
8 SEGMENT VU METER; 8 segment VU meter gives a visual reference of the output signal
IN L / IN R; These are the L and R audio inputs
OUT L / OUT R; These are the L and R outputs of the module
SIDE IN L / SIDE IN R; These are L and R sidechain inputs. You can process each channel individually
SIDE OUT L / SIDEOUT R; These are the sidechain signal outputs - they are buffered copies of the sidechain inputs

Notes: The "uMM" combines a MIDI merger and two independent THRU distributors in a module that is only 4 HP wide. All sockets on the module are in MIDI TRS-B format.

At the heart of the two-input MIDI merger is a small, powerful ARM processor with plenty of buffer memory. Two MIDI streams are mixed to one output and can also be tapped via an additional second output. Two LEDs signal the operation of the merger: one LED indicates MIDI activity at the inputs, and a second LED warns of too much data at the inputs.

The second group of functions consists of two independent, separate MIDI THRU distributors. The MIDI data at the respective MIDI input can be picked up and distributed at the three THRU outputs. If required, a 1-to-5 distributor can be created from the two units by connecting an output of the left group to the input of the right group.

Features:

4x MIDI IN (TRS-B)
2x MIDI-OUT (TRS-B)
6x MIDI-THRU (TRS-B)
Powered via Doepfer connector

4 HP

Notes: Gemini has developed the TT-900BB turntable system for all music lovers - a combination of a turntable and sound system offers uncomplicated music enjoyment in your own living room. No matter if you want to listen to your favorite records quickly and easily or if you want to stream your music from your mobile phone or TV directly to the TT-900 via Bluetooth.

The TT-900BB can do both and also cuts a fine figure visually. Everything is included to get started right away. Simply mount the pickup, connect the cables and the device is ready for use. The volume of the system can be adjusted with dedicated volume control. Pitch control can be used to change the playback speed. The RPM can be switched between 33/45 and 78.

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analogue Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long .wav file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 2000 Hz or brought up to 48 kHz.

Dimensions

24 HP
40 mm deep
Module is a 1U tile in Intellijel format

Current Draw

80 mA +12V
30 mA -12V

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other user selected Happy Nerding effects in any order. Also the possibility to run freely available third party effects will be added too.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz.

80 mA +12V
30 mA -12V
45 mm deep

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz.

80 mA +12V
30 mA -12V
45 mm deep

Notes: TriTone is a three section EQ plus saturator. Inner knobs control frequency and outer knobs control +- gain. All these sections Hi Shelf, Band Pass and Low Shelf are having + 20 db of gain and 30 db of reduction. Each section can work independently or they can be serially connected by the switches. Middle input in each section accepts CV for its frequency, so all three sections can be individually FMed by the external CVs.

If the inputs are fed with the modular level signals (+- 5V), then there is little room for "plus" EQ gains before saturation starts. In this case the input level should be attenuated first, if saturation is not desired and much "plus" gain is needed. Otherwise saturation drastically enriches the tone and the module works like very flexible overdrive FX.

When the switches are set to upper positions, then all three sections work independently. With the maximum gain reduction (CCW position) of the upper section (Hi Shelf) it becomes a useful kind of Low Pass filter. On the contrary - maximum gain reductions of the lower section (Low Shelf) makes it a High Pass filter.

Please note the internal routing done by the switches: the output of the uppers section is added to the input of the subsequent lower section. If nothing is connection to this lower sections' input, then only the upper section's output is processed. This makes it a 3 band EQ with the switches set to lower position. Having separated inputs opens up more possibilities over ordinary EQs.

6 HP, 45 mm deep
55 mA +12V
65 mA -12V

Notes: Introducing the Cortisol Legend: a spiritual successor to one of my early designs, the Steroid Legend, it presents as 4hp of white hot saturation and hairy distortion, and features manual control over two op-amp driven gain stages, with a diode saturation control in the middle, giving you precise control over distortion ranging from smoldering saturation all the way into utter rail-to-rail fuzzification.

As for the diodes, the Cortisol Legend has two flavors on tap: Steroid Legend-inspired diodes and genuine, Cold War-era USSR-made Germanium diodes from the far reaches of Europe. These diodes are getting increasingly hard to find, but have been known for their warm and fuzzy characteristics by guitar pedal enthusiasts for years. Here, you get the genuine article, for as long as they can be reliably sourced.

In addition to having control over the saturation depth, the Cortisol Legend offers an additional control parameter: Eustress and Distress. Roll off the edge and noise a bit with a Styroflex-capacitor filter which varies with saturation depth, or leave no edge unjagged with this setting.

Speaking of noise, this thing is LOUD, so you may want to have an attenuator such as the psATT on hand, unless of course the loudness is exactly what you want. Hand in hand with the overdrive and distortion comes, of course, beautiful new harmonics added to anything from single waveforms to samples, sounds and entire mixes.

Various diodes will be available at different times, but all variants are ultimately limited - all Germanium diodes used in these are new old stock from the Cold War, and one day they will run out.. Expect individual modules to have a bit of their own character.

Notes: What's that I hear? You want grit and filth for your system? Tired of not having enough harmonics in your signal? Maybe all your sounds are a bit too cold and sterile?

Why not a light inside your system with the Optika VCA - two independent optical VCAs with drunken muscles and a chip on their shoulder, they can go nice and easy on your signal, or they can inject it with a hot dose of raw power that'll give you guitar-face in no time.

The vactrols? Hand made in my workshop, of course, guaranteed cruelty-free, no dolphins harmed and zero palm oil. The sound? You'll get that slewy, chewy, turn-your-triggers-into-envelopes mess that you love vactrols for, but with the utmost care taken to minimize bleed and all the other things we don't always love about vactrols.

Yes, great, you've got lots of VCAs with "clean gain on tap" and "exemplary responsiveness" and all that other stuff - please excuse me if I'm yawning with utter boredom and rolling my eyes- now, get yourself a fully analog optical VCA that'll make your hairs stand on end when you push the gain into distortion and press the vactrol into saturation.

Use it for stereo, use it for two signals, use both channels in sequence, but please let your signals go towards the light and put it to use! Don't make me beg

Notes: *** Updated to v3 in February 2024 with improved hardware and circuitry ***

The Omen is a dual LPG with a bit more than you might be used to. This module was born out of the realisation that it was possible to make far more interesting LPG designs than the standard we've become so accustomed to.

In a convergence of old-school LPG design and more modern components, the Omen boasts two -6dB resonant filters, custom built vactrols, built in CV attenuation and no less than three cutoff modes per filter. Filter 1 is soft and light, imparting a gentle, naturally gated touch of filtering on your sound, while Filter 2 is darker and more resonant, and can turn downright growly and distorted when left wide open.

Designed to give you as many creative options as possible, the Omen has the unique ability to function as either two discrete LPG, or as one 4-pole resonant LPG. When plugging a signal in to Input 1, and with no signal plugged into Input 2, the output will be present at both Output 1 and Output 2, with Output 2 producing the signal as it passes through both filters. Tweaking both filters independently will generate a wide array of soft and sometimes harsh tones, ranging from Buchla bongos to early synthesis brass and organ sounds. There is much to love here.

CV is similarly handled, by plugging in only one CV source, it will act on both channels - this is useful for creating musically similar outputs as well as when using the dual filter operation. However, the dual filter mode greatly benefits from having two CV inputs: use an envelope in CV1 to act as a VCA, and an LFO in CV2 to create tremolo, for instance.

Using custom designed, hand built vactrols, care has been taken to mitigate the less desirable aspects of passive LPGs - in most modules, the user can expect zero bleed through on the LPG channels, and signal attenuation is minimal even with the 4-pole filter settings engaged. Of course, many of the natural features of vactrols remain, such as subtle memory effect when engaging the vactrol for long periods.

Finally, you receive maximum blinkenlights as LED's on the front panel simulate the action of the vactrols, so you'll always know what's going on under the hood. No collection of fancy LPG's is complete without the Omen.

Dimensions
4 HP
36 mm deep

Current Draw
Module does not draw current

Notes: What do you get when you combine voltage controlled distortion and one of the most infamous bassdrums? Hexinverter took one of the most revered bassdrum synthesis designs of all time - the TR-808 and completely redesigned it for use in a modular analogue synthesiser.

13HP
30mm deep
+55mA, -45mA
Eurorack format module

Notes: The Mutant Brain is the central nervous system connecting your modular analogue eurorack system to MIDI gear, especially for percussion, polyphonic notes and sync duties! It packs 16 eurorack compatible outputs into a tiny, super affordable 8HP package.

The 4 CV outputs and 12 Gate/Trig outputs are all universally reconfigurable. Triggers, gates, clock divisions and sync signals, polyphonic keyboard playing, velocity, sequencer transport, LFOs - you name it!

Configuring your patch is easy - just assign each output as you like in the Mutant Brain Surgery configuration utility, then send the MIDI SysEx file to the module and forget about it - the Mutant Brain remembers it all for you.

Hexinverter supply a convenient download pack of pre-configured, ready to use Mutant Brain patches for some select sequencing and drum machine devices on the market today, easily turning those sequencers and drum machines into a modular control powerhouse!

Designed with live and studio performance in mind, the Mutant Brain does away with wasted panel space and complex menu-diving interfaces, while freeing you from the limited "auto-learn" type MIDI interface. An auto-learn interface sometimes doesn't play well with the limitless combinations of different gear setups which today's modular performers play live with.

4 CV Outputs (0V to 8V) can be

Notes (Mono or Polyphonic, V/Oct or V/Hz)
Pitch Bend, Velocity or Aftertouch
MIDI CC values (LFOs, modulation, etc.)
Fixed Voltage Values
12 GATE Outputs (0 to 5V) can be

Note Gates and Triggers
Drum Triggers, Retriggers
MIDI Transport (Start, Stop, Run, Resets)
MIDI Clock Ticks (Divisions)
CC Value Above/Below Threshold
Each GATE output has an adjustable trigger length between 1 and 120ms

Dimensions
8 HP
38 mm deep

Current Draw
19 mA +12V
4 mA -12V

Notes: The iconic clap sound of the TR-909, but with all the features we all wished the original had. Hexinverter's take on this design adds some much-needed range and depth. The clap is a highly versatile module - it is a voltage-controlled LFSR noise oscillator as well as a powerful percussion synthesis engine.

13HP
30mm deep
+75mA, -45mA
Eurorack format module

Notes: The Mutant Rimshot is a fully analogue rimshot and clave generator inspired by the rimshot found in the legendary 909 drum machine; a triple bridged-T oscillator coupled with a state variable filter. The clave sound (not a feature of the original 909 rimshot) is achieved by using just one of the oscillators.

Features

Three oscillator modes

Rimshot HI mode brings classic rimshot sounds
Rimshot LO gives a lower pitch range; try playing with the filter on this setting to get low tom and kickdrum sounds.
CLV (Clave) mode uses just one of the oscillators to give you a brighter, higher percussive sound.
A switch on the back lets you select between original and extended pitch modes. Original mode can give you rimshots exactly modelling that of classic machines (in Hi mode), whereas extended mode gives a wider range of pitch, at the expense of classic accuracy.

Three filter modes

Use the lowpass or highpass filter modes for classic sounding rimshots
Highpass and bandpass can give a wider range of clave and rimshot sounds, as well as completely different percussive elements (especially when turning the resonance up!)
VCF IN lets you blend the clave or rimshot with other sounds. Try adding some filtered noise for a more acoustic sounding rimshot, or for pseudo-snare type sounds.

Novel decay and filter mod controls

The MOD DECAY envelope controls the decay of the VCA envelope
The VCF MOD attenuverter allows you to modulate the filter cutoff with the MOD DECAY envelope
Alternatively, a switch on the back lets you modulate the filter cutoff with the pitch-controlled internal VCO, for filter FM style percussive hits.

Technical specifications

Width: 8HP | Depth: 30mm
Current draw: +45mA, -50mA @ 12V

Notes: ***B-STOCK: Product with some signs of usage but in perfect working order***


The Mutant Rimshot is a fully analogue rimshot and clave generator inspired by the rimshot found in the legendary 909 drum machine; a triple bridged-T oscillator coupled with a state variable filter. The clave sound (not a feature of the original 909 rimshot) is achieved by using just one of the oscillators.

Features

Three oscillator modes

Rimshot HI mode brings classic rimshot sounds
Rimshot LO gives a lower pitch range; try playing with the filter on this setting to get low tom and kickdrum sounds.
CLV (Clave) mode uses just one of the oscillators to give you a brighter, higher percussive sound.
A switch on the back lets you select between original and extended pitch modes. Original mode can give you rimshots exactly modelling that of classic machines (in Hi mode), whereas extended mode gives a wider range of pitch, at the expense of classic accuracy.

Three filter modes

Use the lowpass or highpass filter modes for classic sounding rimshots
Highpass and bandpass can give a wider range of clave and rimshot sounds, as well as completely different percussive elements (especially when turning the resonance up!)
VCF IN lets you blend the clave or rimshot with other sounds. Try adding some filtered noise for a more acoustic sounding rimshot, or for pseudo-snare type sounds.

Novel decay and filter mod controls

The MOD DECAY envelope controls the decay of the VCA envelope
The VCF MOD attenuverter allows you to modulate the filter cutoff with the MOD DECAY envelope
Alternatively, a switch on the back lets you modulate the filter cutoff with the pitch-controlled internal VCO, for filter FM style percussive hits.

Technical specifications

Width: 8HP | Depth: 30mm
Current draw: +45mA, -50mA @ 12V

Notes: Designed by Hexinverter, from classic electro snares to warping, alien percussion, the Mutant Snare is a radical departure from the static sounds of the TR-808.

13HP
30mm deep
+50mA, -50mA
Eurorack format module

Notes: The aux mix 1U is a 3-channel stereo mixer module with a stereo auxiliary send bus. The routing options on this mixer module make using aux mix 1U for send FX, parallel processing, feedback mixing, and more possible. It is designed for audio signals only (not for mixing CV). It is AC-coupled, and uses audio-grade, logarithmic attenuators for a smooth, even response across the entire volume range.

Each channel has a dedicated pair of inputs for stereo audio sources. The left channel inputs are normalled to the right for mono audio sources. All three channels feature a precise level attenuator, a mute switch, and an LED input activity level indicator. The three stereo channels are mixed and summed to the main outputs, where they can be patched out to a wider Eurorack system or external pro-audio equipment. The output stage features soft-clipping diodes for smoother saturation when signal levels are very high.

In addition to the main mix controls, channels 1 & 2 also feature an aux level attenuator with a pre/post switch. These can be used to create an independent aux mix which is routed to another pair of outputs, separate from the main mix. The aux output stage also features the same soft-clipping diodes as the main output. aux mix 1U has four 3-pin connectors on the rear side for directly routing audio between other Intellijel cases & modules - without the need for patching cables. Connections include aux in, aux out, chain in & chain out. This also allows you to chain multiple aux mix 1U modules together to form even bigger mix chains.

Notes: The CVx 1U expander module has eight user-configurable outputs and connects to the MIDI 1U module. Using the Intellijel Config app, you can assign each of the eight jacks to generate just about any type of voltage that can be derived from a MIDI signal; pitch, gates, triggers, clocks, velocity ... you name it! You can chain up to four CVx modules to a single MIDI 1U to add a whopping 32 additional channels of midi control to your modular.

Each CVx module can also allow you to generate 2 or 4 voice polyphonic controls with selectable voice allocation modes. The connectivity, feature set, expandability, and compact size make the MIDI 1U + CVx system ideal for integrating your modular gear with the rest of your rig.

Intellijel's MIDI 1U system comprises several elements, which work together to provide flexible, programmable MIDI-to-CV conversion to your Eurorack modules: The system comprises two mandatory components, and one optional component:

MIDI 1U module - This 14HP 1U module receives MIDI from an attached, external MIDI input connector (7U case, Palette case, or MIDI IN Jacks 1U module), and extracts (by default) Pitch, Velocity, Mod, CC, Gate, Trig, Clock and Reset messages - sending the proportional voltages to individual 3.5mm jacks for patching.If desired, the CC and MOD jacks may be configured to respond to either Channel Aftertouch or High Resolution CC, and the Reset jacks can be configured as a Run jack, instead. Additionally, MIDI 1U features an alternate Dual Mode, which maintains the Clock & Reset functionality, but uses the other six jacks to transmit Pitch, Velocity and Gate messages derived from two separate MIDI channels.

MIDI input connector - the MIDI 1U module does not have its own MIDI input jack. This enables you to use the MIDI/USB inputs built-in to your Intellijel 7U Performance Case or Palette Case. If you don't own one of these cases, you can purchase the MIDI IN Jacks 1U module to connect an external MIDI device.

CVx 1U module - This optional 14HP 1U module connects to the MIDI 1U module and adds an additional eight 3.5mm CV outputs. These outputs are fully programmable using the Intellijel Config app, and greatly expand MIDI 1U's ability to control your entire Eurorack system.

Width: 14HP
Depth: 32mm
Power: 55mA @ +12V
6mA @ -12V

Notes: The Quad VCA is a compact and feature packed module that is sure to find its way it almost all of your patches. In addition to being used for standard VCA duties it can also be used as a mixer and signal booster.

Features:

- Manual LEVEL control per VCA which is convenient when using the module as a mixer or for biasing when CV modulating the VCA with a bipolar LFO.
- Dedicated CV attenuators with dual colour LEDs for monitoring bipolar CV signals.
- Continuously adjustable response from linear to exponential per VCA.
- Each CV input is normalled to the adjacent one for cascaded control.
- Each output is normalled to the mix input of the adjacent one which allows you to use adjacent sets as submixes or the fourth output can be used as a master mix output when none of the other outputs are patched.
- Each VCA has a boost switch that increases the output level by approximately +6dB (double).

Notes: The Shifty is essentially a combination of four sample and hold stages, a sequential gate and sequencer controller. This collection of functions allows for some specific and useful utility application.

One of the primary uses for Shifty is to take a monophonic sequence source and route each new note of the sequence to up to four different synthesizer voices in a specific pattern. In this way you can create pseudo polyphonic sequences since each voice can be triggered to play and sustain while the next voice int the sequence gets triggered. Another term for this is hocketing.

The other main application of the Shifty is to function as an Analog Shift Register. In this mode each new gate input received causes the current set of pitches to be shifted to new output locations as a new one is added and the oldest one is replaced. This can be an interesting way to create chords that are up to four stacked notes when used with a pitch sequence source that has a harmonious series of notes (e.g. a pentatonic scale works really well). Even just using two of the outputs will yield very interesting melodic interplay and is an excellent way to make a simple sequence much more complex and interesting.

In a more basic way the Shifty could be used as a simple Sample/Track and Hold module or as a sequential gate.

Notes: XFADE 1U is a classic DJ-style stereo crossfader, with a few extra tricks up its sleeve. The 'A' and 'B' sides both have L+R inputs. The crossfader blends two stereo input signals together - crossfading one into the other depending on the position of the slider and the selected XFADE Shape. The blended output appears at the MIX L and MIX R output jacks.

In addition, XFADE 1U can be used as a modulation source for controlling other modules, since the crossfader also outputs control voltages from the CV A and CV B jacks. A switch determines whether these voltages are unipolar (crossfading from 0V to 5V; and 5V to 0V), or bipolar (crossfading from -5V to +5V; and +5V to -5V). The two LEDs indicate the polarity and relative levels of the CV A and CV B signals.

XFADE 1U uses a precision Innofader crossfader submodule, with moving capacitance technology for smooth and precise control. This is the same part found on many high-end DJ mixers.

Features:

Smooth and ultra-low friction Innofader Mini-Innofader module with moving capacitance technology
Stereo or Mono operation
DC coupled inputs and outputs
Three crossfade shapes: DJ cut, Constant Power and Linear
Unipolar or Bipolar CV outputs

Width: 26HP
Depth: 38mm
Power: 48mA @ +12V / 41mA @ -12

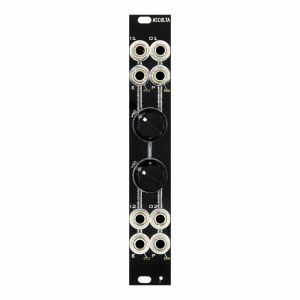

Notes: ASCOLTA is a dual high fidelity input preamp with envelope follower and peak detector output for each channel.

Ascolta consist of two individual high quality preamp connected to an envelope follower and a peak detector output.

On the back of the module you can select the behaviour of its internal normalization when no cable is plugged into I2:

S: the first input I1 will accept stereo 3.5mm standard cables from any source and split L and R to output O1 and O2 respectively. This way you can directly amplify stereo signals without the need of external splitters and regulate the gain of each channel individually.

G: the second amplifier will double the amplification of the first totalling a gain range of 80dB - 10.000x.

Envelope E and peak P outputs are strictly related to the gain level of their corresponding amplifier and will follow the dynamic of any input plugged.

Features

Two high quality 40dB amplifiers.
Customizable internal normalization.
Envelope and Peak output following the input signal
Audio graded potentiometers.
"Whatever" power connector a.k.a. don't mind the polarity.

Technical Specs

Width: 4HP
Depth: 25mm
50mA +12V
30mA -12V

Notes: For decades, the voltage controlled slew limiter has been a staple of modular synthesisers. With its extreme versatility, it can be used to slew control voltages (CVs), create envelopes, as a low-frequency or audio oscillator and much more.

Today, Contour 1 brings a fresh approach to this classic circuit. It delivers much improved performance and control by incorporating modern design techniques.

At its most basic, a slew limiter slows down the rate of voltage change in a signal. On Contour 1, the rising and falling rates can be individually set using sliders and CV modulation.

The gate and trigger inputs allow the module to be used as a function generator: create snappy attack-release (AR) and attack-decay (AD) envelopes, with slope times ranging from 500 us to 30 seconds. The dedicated gate input makes it easy to generate +10 V envelopes from any signal source. Using the large tactile push button, AD envelopes can be manually triggered. A trigger will also reset the output voltage.

When set to loop mode, Contour 1 will continually re-trigger itself. In this mode, it fulfils the role of a variable-shape low-frequency oscillator (LFO) or temperature-stable voltage controlled oscillator (VCO) in the audio range.

Both the rising and falling slopes can be individually bent, from concave through linear to convex. While doing so, the deviation in slope time, and thus oscillation frequency, is kept to a minimum. Since the bend parameters are separately voltage controllable, boundless modulation possibilities present themselves.

Explore anything from shape-shifting envelopes to rich VCO timbres: Contour 1 will make you re-think what a slew limiter can do.

Dimensions
8 HP
30 mm deep

Current Draw
90 mA +12V
85 mA -12V

Notes: A rock-solid all-rounder of a VCO, the Cycle 5 is a triangle-core oscillator with morphable wave shapes as well as conventional sine, triangle, saw and pulse outputs. Switchable octaves and 5th transposition make the module even more user friendly.

Supplier's Notes:
A small Eurorack oscillator that packs a punch: that's the best way to summarise Cycle 5.

At its heart lies a refined high-stability triangle core voltage controlled oscillator (VCO), with performance matching or exceeding that of much bigger and costly oscillator modules.

Instead of a coarse frequency knob, a 7-position octave switch is provided. This in combination with a perfect fifth transposition switch and factory pitch tuning, makes Cycle 5 an exceptionally straightforward and musical VCO to use: simply centre the fine tune knob, and the module will be instantly tuned to reference C.

Meanwhile, its dual precision volt per octave inputs add a great deal of versatility. For example, one could be used for pitch sequencing and the other as a generic exponential FM input, or both sequenced together for transposition effectsithe dual inputs serving as a built-in precision adder.

Sporting all the classic waveforms, ranging from sine wave, triangle, saw and square/saw, as well as a hard sync input and low frequency oscillator (LFO) mode, Cycle 5 makes for a real workhorse VCO. The novel trigonometric waveshaper results in a very clean sine wave, ideal for sub bass duty.

Cycle 5's highlight however, is its vari-wave feature. By adjusting the vari-wave knob, the waveform on the matching output will smoothly morph from sine, to triangle, saw, square and finally a very narrow pulse. The vari-wave parameter can be CV controlled, up to audio frequencies for some intense timbres.

Equally at home as a modest modulation companion to big VCOs, as being in the spotlight in miniature or polyphonic systems, Cycle 5 might just be the most multi-talented tiny analogue oscillator yet.

6 HP | +12: 75 mA, -12: 70 mA

Notes: For anyone who has ever struggled with finding their way around a Eurorack synthesiser on a dark stage or a dimly lit studio, Dim 2 presents an illuminating experience. In just 4 HP, it provides a complete solution to upgrade your modular system with a pair of dimmable console lights.

The high-efficiency PWM dimmers run at high frequency, ensuring flicker-free and noise-free operation. Additionally, extensive line filtering keeps your Eurorack power supply happy and clean.

Not limited to just manual control, both dimmers also feature control voltage (CV) inputs, turning the connected lamps from simple light sources to voltage controlled audio-visual spectacles.

While the use of the included BNC LED lamps is recommended in order to keep power consumption low, halogen lamps may be used as well. Provided your power supply is beefy enough, up to 6 W of power may be drawn from each output. This even makes it possible to drive 12 V LED strips, truly making your patches shine bright.

4 HP | +12: 150 mA, -12: 5 mA | JORD2

Notes: A comprehensive solution for stereo signals in Eurorack, the Enhance 2 offers stereo and mid/side processing with tons of CV control. Balance, widen and sculpt frequency bands.

Supplier's Notes:
Moving from mono to stereo sound: a logical progression for any synthesist looking to expand their sonic palette. Making use of two audio channels, rather than just one, quite literally adds another dimension to the capabilities of a synthesiser.

Unfortunately, controlling stereo signals can be a challenge within a modular system. This realisation led to the development of Enhance 2: a convenient yet high-fidelity tool for stereo enhancement. It can be used to adjust balance, width and spectral content, while also opening up a world of mid/side processing; all under voltage control and in just 8 HP.

The primary stereo parameters are balance (moving the sound left or right) and width (making it narrower or wider). The balance circuit uses a true constant-power gain law, while the width stage allows for seamless transitions from pure mono to extra-wide stereo.

In addition, tone control is provided by a pair of unique, wide-ranging mid/side voltage controlled tilt filters with selectable corner frequency. These make 'cleaning up' a muddy-sounding mix straightforward, but also provide unique binaural effects when modulated.

Mid/side processing encodes the stereo signals into one containing only the mono material (mid), and another containing the differences between both channels (side). Apart from the internal tilt filters, mid/side outputs also enable external signal processing such as compression or reverberation. An integrated mid/side decoder returns the results back to standard stereo. And at all times, a LED bar phase meter ensures that phase correlation can be easily maintained.

Stereo field modulation, mid/side equalisation and beyond; Enhance 2 brings true analogue stereo control to the Eurorack world.

8 HP
+12: 70 mA, -12: 70 mA

Notes: Make quick changes to signal routing manually or with CV control. Any audio or CV signal can be routed via two outputs in series, parallel or reverse series. Quick, clever and easy to use.

Supplier's Notes:
Signal flow is an essential concept in modular synthesis: the path taken by audio or control voltages (CVs) may be long or short, branching or linear, intuitive or highly complex.

While the patch programmability of a modular system is its greatest strength, it can also be a weakness: quick experimentation is often hampered by the need to repatch the synthesiser to change the signal flow.

Pivot 2 offers a unique solution: a compact, fully voltage controlled variable signal router. At the turn of a single knob, any signal can be routed through two external modules in series, parallel or reverse series, as well as any combination in between.

Experiment with patching wavefolders before, after or alongside filters, shuffle multiple delay lines, precisely dial in two-stage audio compression or easily control intricate feedback patches.

Looking beyond the basic signal routing application, Pivot 2 will also function as a complementary pair of counter-acting linear voltage controlled amplifiers (VCAs), a voltage controlled crossfader or a voltage controlled panner.

Analogue voltage controlled send/return router.
Seamless transitions from series, through parallel on to reverse series effect routing.
Also functions as a complementary VCA pair, voltage controlled crossfader or panner.
Impedance-compensated outputs with dual-colour LEDs.
Premium mounting hardware: black screws, black nylon washers and matching hex key.
High-quality components and assembly; designed and made in Belgium.

4 HP | +12: 60 mA, -12: 60 mA

Notes: While modular synthesisers are most often used as stand-alone instruments, they also present exciting opportunities for processing external signals. Anything from an electric guitar to an effects send on a studio mixing desk can benefit from the unique sonic capabilities of even a modest Eurorack system.

However, patching in an external source usually requires an adapter cable and plenty of clean gain to bring the signal to Eurorack level. If the signal source is balanced, a balanced input is required as well to provide the best possible interference rejection.

Receive 2 (or RX2 for short) provides a convenient all-in-one solution. It offers two universal external inputs, which accept both balanced or single-ended signals via XLR or 6.35 mm jack connectors.

The circuit incorporates low-impedance design practices, radio-frequency (RF) filtering and premium balanced receivers to provide transformer-like interconnect performance in a compact and affordable module. And thanks to the electrostatic discharge (ESD) protection, it’s rugged enough to survive the rigours of performing on the road.

The very clean integrated pre-amps feature variable gain, ranging from unity to +40 dB on each channel. As a result, Receive 2 can handle just about any signal source you may encounter, including electric instruments, piezoelectric pickups and many dynamic microphones.

Adjusting the gains is a breeze thanks to the dual peak-responding LED meters. A mix output is included as well, so external signals can be easily mixed directly in the module.

Notes: Simple but effective output module, converts stereo instrument-level signal to balanced XLR outs. Ideal for live use but just as good for avoiding unwanted hum in the studio.

Supplier's notes:
Whether it's in the studio or on a live stage, keeping audio interconnections free from unwanted hum and interference can be a challenge. Balanced lines are the proven solution to this problem.

Conventional balanced output solutions often rely on transformers providing galvanic isolation to mitigate the effects of ground loops. Unfortunately, these components are bulky, expensive and colour the sound (often unfavourably, especially in the low end).

Instead, Transmit 2 (or TX2 for short) takes a fully solid-state approach. Offering a stereo pair of XLR balanced outputs, it ensures that the sonic clarity of your carefully planned modular system is not lost in its interface to the outside world.

Engineered to provide massive headroom while retaining extremely low noise and distortion, Transmit 2's circuitry incorporates low-impedance design practices, radio-frequency (RF) filtering and premium balanced drivers to provide transformer-like interconnect performance in a compact and affordable module. And thanks to the electrostatic (ESD) and phantom power discharge protection, it's rugged enough to survive the rigours of performing on the road.

Adjusting the main output level is a breeze thanks to the dual peak-responding LED meters. A high-end headphone amplifier is included as well, controlled by a separate level knob. It can deliver the voltage and current required to power practically any headphones, regardless of the impedance or driver technology. This 3.5 mm stereo socket can function as an auxiliary stereo line output or even drive small passive speakers, making Transmit 2 an all-round flexible answer to all your output needs.

Notes: You must absolutely own Skippy to use this module; it cannot operate independently.

The firmware version 2.21 or higher must be installed on your Skippy.

Additional features:
1 CV gate or trig input for Reset
1 CV gate or trig input for Play/stop
1 Reset button
1 Play/stop button
1 Live mode on/off button
16 function potentiometers distributed over 4 rows: you can freely choose a function (BPM, STEP, BEGIN, END, GAUSS, GATE, PROBA, CHAOS, SWING, WAY) for each row.
1 row of 4 algorithm potentiometers: you can freely choose an algorithm (Euclid, Jazzy, PolyR, Tiles) for each potentiometer.
The Save function takes into account the settings used in Skippy Live.
The selected parameters for Skippy Live are automatically saved.

Technical specifications:
10 HP
Depth: 25 mm
Power consumption:
+12 V 0 mA
-12 V 0 mA
+5 V 15 mA
Comes with a connector to Skippy and Knurlies.
