Notes: The Mod 11 is packed with 11 different modulation effects that range from classic to exotic plus advanced functionality all in a compact pedal. It gives you access to powerful yet intuitive "hidden" parameters accessible through its Secondary Knob Mode which let you take even greater control over its effects.

The Mod 11's modulation effects are:

1. TREM: Tremolo modulates your signal's volume. Selectable modes allow your playing envelope to control modulation rate or depth.
2. HARM: Harmonic tremolo. The signal is split into high and low frequency bands and modulated between the two. Selectable modes allow your playing envelope to control modulation rate or depth.
3. VIBR: Vibrato modulates your instrument's pitch. Selectable modes allow your playing envelope to control modulation rate or depth.
4. UNI: pays homage to the classic Univiber. Includes "Chorus" and "Vibrato" modes plus added overdrive
5. CHORUS: Warbling, doubling, chorus effect like the EHX Small Clone. Extra modes include tri-chorus and bass chorus effects
6. ROTARY: Rotary speaker cabinet simulation. Extra functionality includes overdrive plus envelope control over rotation speed
7. FLANGE: Flanging with modes for both additive and subtractive flanger. Multiple LFO shapes, including envelope follower
8. TZF: Through Zero Flanger. A flanger effect that crosses through the "zero point" of the sweep where the modulated delayed signal meets back with the dry signal. Modes for both additive and subtractive flanger, plus barber-pole flanger
9. PHASE: Choose from 4, 6, or 8 stage phaser. Multiple LFO shapes including envelope follower
10. PITCH: Modulated pitch shifter. Select your main pitch shift and modulate around it. Extra functionality includes a dry blend and stepped pitch modes
11. FILT: Modulated filter effects like those on classic analogue synths. Low Pass, High Pass and Band Pass. Multiple LFO shapes available including a Q-Tron style envelope follower

The Mod 11's Momentary Mode lets you seamlessly switch in and out of effects mode for quick accents. It also features Tap Tempo controllable via the built-in footswitch or an external one. The Mod 11 is modulation with warp drive!
11 modulation types with multiple modes for each
Intuitive "hidden" parameters accessible through its Secondary Knob Mode
Tap Tempo via the built-in footswitch or an external one
Momentary Mode to switch effects in or out
Comes with a standard EHX EHX 9.6DC200mA power supply
Compact and rugged
Power adapter included

Specifications:
Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 150mA
Year Released: 2019

Notes: IsoAcoustics introduce the next evolution of their specialized line of speaker stands for the audio professional, music hobbyist, audiophile, and music lover. The new ISO Series of speaker stands provide superior acoustic isolation and enhance the sound clarity of any speakers including studio monitors, home theatre systems and sound reinforcement.

With a lower profile and new contemporary design, the ISO Series of stands positions your studio closer to the supporting surface or meter bridge, and the new redesigned isolators moves the acoustic performance another step forward.

IsoAcoustics ISO Series speaker stands are built with a unique, patented isolation technology that provides a high degree of isolations and manages the speaker's energy to deliver authentic, uncoloured sound. This next generation of speaker stands effectively eliminates energy transfer into the supporting surfaces. Bass becomes tighter, overall imaging is enhanced and your speakers are enabled to perform to their full potential. Following the same design philosophy as the ISO-L8R Series, these isolation stands provide 14 variations of height and tilt adjustment to optimize the placement and performance of studio monitors by getting the tweeters in the correct alignment with the listening position.

Whether you're a pro mixing in the studio - a musician creating in a home project environment - or an audiophile who appreciates every nuance of music and sound - you'll hear and appreciate the difference with the ISO Series speaker stands. It's simply the best investment you can make for superior audio.

ISO-200:

Designed for larger speakers and studio monitors. These stands provide 14 variations of height and tilt to optimize speaker placement and performance. Isolate your studio monitors from the supporting surface and allow them to breathe so they can deliver the clearest and most accurate sound possible.

7.8"x10"/20×25.4cm Short: 3.5"/12.5cm Tall: 8.75"/22.5cm 60 lbs/27.2kg

Review: Shinichiro Yokota's legendary discography finally arrives on vinyl with The Pitstop Box, featuring 24 essential and exclusive tracks. Originally available only in Japan via Far East Recording, this long-awaited collection highlights Yokota's signature blend of funk, hip-hop, electronic and Japanese influences. It features house classics like 'Right Here Right Now' and 'Night Drive', plus a cover of Haruomi Hosono's 'Simoon' and a collaboration with Soichi Terada that is packed with signature melodic sugariness. Inspired by his love for sports cars, The Pitstop Box is a brilliant overview of one of house music's finest talents..

Notes: The TBD module is a multifunctional DSP (digital signal processing) module that includes more than 30 different synthesis and audio processing plugins. It is a collaboration project between CTAG Kiel (an academic working group of Kiel University of Applied Sciences), instrumentsofthings.com (who produce this module for Eurorack) and tangiblewaves.

The module looks quite simplistic with it's only three knobs and three buttons, but the power lies in the web based user interface for editing and storing the parameters. For editing, the module is connected via USB to your computer and a small software tool running here is the bridge to the editing of the parameters via your web browser. IMPORTANT TO KNOW: When the editing is done, the module runs autonomously, without a computer!

Up to 10 favourites can be stored on the module and be chosen by the CONFIG button.

Dynamic control of the modules' parameters works via the two CV inputs and two trigger inputs (which are linked to two buttons), and two knobs are also available for live tweaking parameters. The assignment of inputs/knobs to actual parameters is done in the web based user interface.

Please note that the TBD module has mono audio input and output (compared to the Eurorack version which is stereo); plugins that do stereo audio work also in the AE TBD, but only on one channel. ("Why only mono?" you might ask; the limitation to mono is due to licensing agreements to keep the module price in the usual AE range.

The contained plugins are:

Talkbox (Vocoder), MSxxNoise (MS20 filter and Stone Phaser), Antique (Old Record / Tape Effect), Subotnik (Huge Modulations), VctrSyn, SpaceFX, Formantor, Bjorklund, Karpuskl, APCpp, Retroactor, Rompler (sample playback), WTOsc (custom wavetable), Claude (ported MI granular audio processor), BBeats, CStrip, CStripM, EveryTrim, MISVF, TBD03, PolyPad, TBDings (ported MI resonator), TBDaits (Ported MI Macro Oscillator), TBDeeps (ported MI Wavetable Oscillator), DustLoop, Dust, SubSynth, Sine Source, Simple VCA, SDelay, Plate Reverb, Pink Noise, MiVerb, MiVerb2, MiPShift, MiEnsemble, MiChorus, HiHat1, G-Verb, Freeverb, FBDlyLine, EChorus, Progen Reverb, CDelay

Notes: A compact attenuverting (attenuator-inverter) joystick controller and Gate Generator. With it, you can generate and process two control voltages using only one hand. Provided controls for CV ranges and offset adjust the boundaries of your control, this way it never gets out of the desired range, ensuring sensibility and playability even with wild performance gestures.

Specifications

Current needs: +12V: 25mA, -12V: 10mA
Width: 12 HP
Depth: 35mm (including power connector)
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Terci Ruina combines three classic distortions in 4 hp. Distortions are reinterpreted in classic NE style and routed through each other for complete sonic annihilation of any sound. Patch in and out anywhere in the signal chain to pick the best sound for your purpose (because modular). Looking for a pretty distortion? This is probably not your module. Unapologetically gross and dirty.

Notes: Lipsk facilitates the inversion of the individual bits produced by Drezno (or any other module connected to its input header at the back), and delivers the resulting code to its output header. Bit inversion can be manually controlled by pressing any of combination of its eight illuminated buttons, or it can be automated by patching gate signals into its gate input sockets. An active (5V) gate flips the state of the respective bit. If the button is active (bit already flipped), then the gate flips the bit again yielding double inversion (no inversion). The corresponding LEDs show the combined effect of both manual and gate actions. The bit processing logic is hardware-based, so there is virtually no latency, allowing the binary signals to be manipulated at extreme rates.

Notes: The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels.

Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal.

The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more.

Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

Birth of the product

The idea of the Flexshaper comes from a feature in the Oberheimr Matrix synthesizers called Tracking Generator.

This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal.

The Flexshaper applies the same concept using the same 5 shaping points. However, it goes beyond Oberheim's implementation on two main aspects:

It goes fast enough to process signals at full audio rate
The 5 points are dynamically adjustable (CV) in real-time
Besides, the Flexshaper can process adequately bipolar and unipolar Eurorack signals, even changing them one another.

Dimensions
6 HP
21 mm deep

Current Draw
6 mA +12V
7 mA -12V
32 mA 5V

Notes: Simple, powerful and high-quality voice recording solution, ideal for interviews, videography and podcasting. Clip on the lavalier microphone and record directly into the tiny battery-powered unit in high-quality 32-bit float resolution.

Supplier's Notes:
Small Appearance, Big Impact.

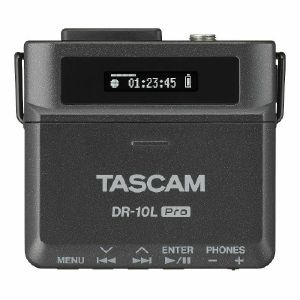

Videographers love the Tascam DR-10L Pro portable recorder with clip-on microphone as an easy and unobtrusive solution for capturing audio for video. Combining the clip-on convenience of a lavalier microphone with an ultra-compact portable recorder, this form factor solves many of the problems content creators often face. It's a superior solution for busy events such as weddings and on-location film shoots.

While traditional wireless microphone systems can pose workflow concerns, the rock-solid performance of a Tascam wired lavalier recorder is proven and assured. Simple plug-and-go operation also makes the DR-10L Pro an easy backup system for your typical voice recording setup.

The DR-10L Pro's 32-bit float recording technology lets you capture a whisper, a scream and everything in between with impeccable fidelity, ultra-low noise and no need to fine-tune gain levels. Support for wireless timecode sync with Atomos products, the ability to wirelessly control up to five recorders from the app*, plus long battery life and generous storage capacity make the DR-10L Pro ideal for professional applications.

*optional AK-BT1 required for app control and wireless timecode sync

Ultra-compact and lightweight, the DR-10L Pro is the perfect solution when stealth is a priority. Fitting in the palm of your hand and weighing just 65 grams, this recorder is easy to hide at film shoots, weddings, stage performances, and other projects where invisibility is crucial.

The included belt clip attaches easily and securely to clothing, allowing you to capture great audio without compromising your talent.

Using the DR-10L Pro's standard 32-bit float recording mode, two analogue-to-digital converters (ADCs) capture sound over an enormous dynamic range without distortion or excessive noise. This means that videographers can avoid having to discard recordings due to poor levels. With 32-bit float resolution, there's no need to adjust input gain levels, so you can set up faster and be confident that you're recording excellent audio in every situation.

The included TM-10L microphone captures clear, detailed audio while handling high sound pressure levels without distortion, making it the perfect lav mic for 32-bit float recording with the the DR-10L Pro.

Whether you're recording people at a wedding reception, a busy convention or a lengthy ceremony, the DR-10L Pro is ready for service as long as you are. There's no need to worry about changing batteries during recording: the DR-10L Pro personal recorder runs on just two AAA batteries for up to 24.5 hours*.

In addition, files are saved on the microSD card approximately every 20 seconds during recording to minimise the risk of data loss due to unexpected power cuts.

*Lithium batteries

With the optional AK-BT1 Bluetooth dongle, up to five DR-10L Pro recorders can be controlled wirelessly from iOS, iPadOS and Android devices using the free DR-10L Pro CONNECT app. The app allows videographers to check device status*, view the recorded waveforms in real time and create up to five presets. A preset can be applied to a single recorder or to all controlled units at once. You can also use the app to name devices for easy identification, for example "Bride", "Groom", and so on.

With the optional AK-BT1 Bluetooth dongle, the DR-10L Pro is ready to wirelessly synchronise timecode with supported Atomos products. Timecode allows videographers to perfectly align audio with video, even when there is no audio on the camera.

Timecode is critical for videographers when dealing with multi-camera video shoots, saving valuable time in post-production.

*Audio monitoring via app is not supported

Whether you're in a dark environment or outdoors in the sun, the DR-10L Pro's highly visible OLED display lets you confirm settings at a glance.

You can check your battery level, recording status, and input levels directly from the display, and all advanced functions are just a few button presses away.

The DR-10L Pro lavalier recorder has a headphones output for easy monitoring. You can listen to the input before or during recording, and also check the quality of your recordings immediately without having to first transfer them to a computer.

The DR-10L Pro comes bundled with a free version of RX Elements, a groundbreaking audio repair and noise reduction tool from iZotope. RX Elements gives videographers powerful audio restoration capabilities that need to be heard to be believed, from seamlessly removing coughs and background noise to reducing wind roar and ambient noise. Live video shoots for weddings, on-location interviews, and documentaries can present countless post-production challenges, and RX Elements gives videographers the tools they need to overcome them.

Specifications

Storage media and file formats

Recording media: microSD card (64 MB - 2 GB), microSDHC card (4-32 GB), microSDXC card (64-512 GB)

Recording and playback formats:
WAV: mono/poly (BWF format), 44.1/48 kHz, 16-bit, 24-bit, 32-bit float
MP3: 44.1/48 kHz, 128/192 kbit/s (recording) 32-320 kbit/s (playback)

Analogue audio inputs and outputs
Microphone input: 3.5-mm mini TRS jack (with screw lock)
Maximum input level: -11 dBu
Gain range: 7.5-38 dB
Input impedance: +/-2 kO
Included microphone: TM-10L
Sensitivity: -42 dBV/Pa
Maximum sound pressure level: 115 dB SPL
Supply voltage: 2.3 V
Analogue output (Headphones jack): 3.5-mm mini stereo jack (dual mono audio output)
Maximum output power: 10 mW + 10 mW (THD =0.1 %, 32 O)

Audio performance
Frequency response (input to recorded data): 20 Hz - 20 kHz, +0/-1 dB
Distortion: 0.01 % (1 kHz, input level -21 dBV)
Dynamic range: +/-105 dB

Power supply and other specifications

Power supply
2 AAA batteries (alkaline, NiMH or lithium rechargeable, sold separately)
USB bus power from a computer

Power consumption (batteries): 0.3 W (maximum)
Current consumption (USB bus power): 0.1 A (maximum)
Dimensions (W × H × D): 53 mm × 51 mm × 21 mm (excluding protrusions)
Weight@ 65 g (with batteries), 43 g (without batteries)
Permissible operating temperature range: 0-40 -C

Battery operation time
Conditions: WAV recording at 48 kHz, 32-bit float, mic connected, headphones not connected, limiter off, mono file, continuous operation, in hours:minutes (JEITA CP-2905)
Alkaline battery (Evolta)
16:30: No Bluetooth connection
16:00: Bluetooth connection

NiMH battery (Eneloop)
11:30: No Bluetooth connection
10:30: Bluetooth connection

Lithium battery (Energizer Ultimate Lithium)

24:30: No Bluetooth connection
23:00: Bluetooth connection

Note: Operation times may vary depending on the recording media being used. Reduced battery life when using headphones.

Notes: The mmMidi is a simple & compact MIDI interface for your Eurorack synthesiser. It translates two independent channels of MIDI note, velocity and gate information to corresponding control voltage signals via either a classic MIDI DIN type connection or as a driverless USB MIDI device.

The mmMidi also converts MIDI Clock to analogue x24 fixed clock and run outputs (i.e DIN Sync). The optional mmT expander provides a third MIDI channel of 8 key mapped gate outputs.

Requiring minimal configuration and a pain free set up, the mmMidi makes it easy to sync Pam's clock to your DAW, control multiple synth voices, and trigger drum or sample modules with the optional mmT expander. The new USB-C connection makes it easy to drive your modular not just from your computer but also via your tablet, phone or any USB MIDI Host.

(Note: New 2025 mkII version adds USB-C functionality.)

Technical Specifications

Power: +12V 50mA / -12V 0mA
Size: 4HP
Depth: 38mm
MIDI response latency: 200-400 uSec
Resolution: Factory calibrated 12 bit 0-8V CV outputs. +5V gates

Review: Famously first released in 1973 and transferred to CD in the 1980s with no significant remastering, the Beatles two colour-coded 'best of' collections have long been in need of an overhaul. Apple has typically gone all-out on this 50th anniversary re-issue, not only remastering everything (or at least those tracks that hadn't already been tweaked by Giles Martin in recent years), but also expanding each collection to three discs via the addition of other fan favourites and tracks that missed out first time round. As for the vinyl itself, it has been half-speed remastered to guarantee superior sound quality. This boxed edition boasts both compilations, plus an insert with fresh liner notes from music journalist-turned-Guardian scribe John Harris.

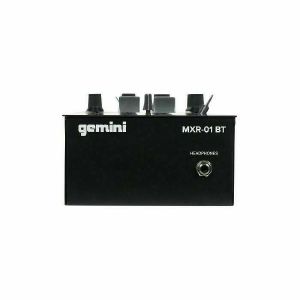

Notes: Compact, affordable DJ mixer that focuses on the basics with minimal fuss. Includes a lot of professional-level features like three-band EQ, balanced outputs, separate booth output and adjustable crossfader.

Supplier's Notes:
Whether you're a beginner or a professional, this Gemini MXR-01BT 2 Channel Professional DJ Mixer with Bluetooth Input will meet your needs. Beginners will find its simple and user-friendly layout easy to understand while professionals will value its all metal construction as a durable and reliable back up mobile DJ mixer. It's packed with the features you want including Bluetooth input, 3-band EQs per channel, crossfader curve and reverse controls, and complete output section.

Notes: Customized to hold the new Denon SC Live 2 controller. Crafted from 9 mm vinyl laminated plywood, sturdy aluminum profiles and heavy duty butterfly latches, this case provides ultimate protection for mobile use on the road.

Fits:

Denon SC Live

Basics:

Heavy duty construction of 9 mm vinyl laminated plywood
Solid aluminium profiles and spring loaded latches
Secure stacking due to stackable ball corners
Full padded interior keeps Controller well-protected
Detachable front cover/panel

Specs:

Outer measures: 74 x 50 x 22,5 cm
Inner measures: 65,2 x 33,5 x 5,6 cm (Controller-compartment)
Weight: 11,1 kg
Color: black/silver

Notes: Mixer & CV/clock-controlled Switcher

Focused versatility seems an oxymoron when describing the features that led to the design of the Mixwitch.

With only a pinch of mixing, inverting and controlled switching, Klavis Electronics brew up a plethora of combinations and uses.

This is voltage processing magic!

The Mixwitch design comes from a frustration with attenuvertors (bipolar attenuators-inverters) whose off (neutral) position is difficult to retrieve, especially in live situations.

Klavis went for a digitally-controlled analogue path where polarity inversion would be at the touch of a button. So, the usefulness of attenuating/inverting can be realized by turning the pot down, swiftly pressing the inversion button and reopening the level. The zero level is where you expect it, with the pot full down.

Once a clean polarity control was established, a mute function was added, offering the benefit of pre-adjusted pot settings ready to be activated at will.

The next step was to bring something extra, useful and creative. There are plenty of analogue switches controlled by a clock; but arbitrarily selecting an input with a voltage is less known. Having both control capabilities combined with Klavis' specific mixer features creates a unique fusion: welcome to the Mixwitch!

Dimensions
8 HP
25 mm deep

Current Draw
39 mA +12V
24 mA -12V
0 mA 5V

Notes: The legendary Kaoss Pad returns as part of Korg's DIY Nu:Tekt range. Simple to build, easy to use and infinitely customisable for those who want to go deep. Great value.

Supplier's Notes:
Build your KAOSS

Discover the Nu:Tekt NTS-3 KAOSS Pad: the iconic KAOSS Pad reimagined in a build-it-yourself format. This compact, customizable DIY effects unit integrates Korg's legendary KAOSS touch interface with up to 4 simultaneous effects. It offers intuitive controls, extensive effect customization via logueSDK, and versatile connectivity. Perfect for dynamic performances, it's designed for musicians and DIY enthusiasts seeking to explore new sonic territories with ease and creativity.

Build-it-yourself creativity

The NTS-3 KAOSS Pad goes beyond the boundaries of conventional effects units. It's a playground for creativity, offering up to four simultaneous effects with extensive editing options. From essential filters and compressors to imaginative delays and reverbs, the NTS-3 KAOSS Pad opens up a universe of creative possibilities. The ability to work with individual effects or combine them seamlessly, along with the freedom to tweak each parameter, makes it a perfect tool for live performances and studio sessions alike.

Embracing the essence of KAOSS products, the NTS-3 KAOSS Pad features user-friendly controls and adaptable connectivity, packaged in a performance-ready design. The XY pad is at the heart of its interface, enabling dynamic control over effects, rhythm, and depth, enhancing your performance with a fresh, tactile approach.

Customise the KAOSS

The NTS-3 KAOSS Pad isn't just about sound; it's about making your mark. With an open development API and logueSDK, you can dive into creating unique effects, while the included Librarian application allows for easy management of your custom creations. The physical customization options, including reversible side panels and 3D schematics, mean you can even add a personal touch to your performance hardware.

Seamless integration and effortless DIY assembly
The Nu:Tekt NTS-3 KAOSS Pad is meticulously designed for straightforward integration into any musical setup, offering advanced connectivity with Sync IN/OUT and MIDI In/Out ports. But what truly sets it apart is its effortless DIY assembly process. Emphasizing the joy of building your own gear, the NTS-3 can be assembled quickly and safely, with no soldering required. This ease of assembly ensures that you can start exploring its vast sonic possibilities in less than 20 minutes, making it a delight for both seasoned musicians and DIY beginners.

Specifications

Effect: 35
Filter: 5
Modulation: 6
Delay: 4
Reverb: 5
Other: 5 (looper, grainshifter, vinyl break)
Mastering: 7
OSC: 3
Performance programs: 200 programs (more than 100 preload, 100 user programs)

Input/output jacks:

Headphone / AUDIO OUT jack (3.5 mm stereo mini-phone jack), AUDIO IN jack (3.5 mm stereo mini-phone jack), SYNC OUT jack (3.5 mm TRS mini-phone jack, 5V output level), SYNC IN jack (3.5 mm TRS mini-phone jack, 20V maximum input level), USB port (Type-C),

Power supply: USB bus power mode
Current consumption: 500 mA or less
Dimensions (W × D × H): 104 × 101 × 39 mm
Weight: 119 g/4.20 oz

Notes: Great value from this compact eight-channel mixer featuring built-in Alesis effects. Bluetooth and USB in/out give added versatility, allowing you to mix just about any sound source.

Supplier's Notes:
Easy-to-Use Analogue Audio Mixing with Built-in Effects from Alesis

The Alto Professional TrueMix 800 FX is a portable audio mixer with built-in DSP effects that delivers all the essential features you need for home recording, livestreaming, podcasting, or performing. The TrueMix 800 FX features 16 effects including chorus, flange and an assortment of high-quality delays and reverbs. There's also a convenient Bluetooth channel for easily streaming from your personal devices. A unique feature to the TrueMix Series, the Bluetooth channel also supports feedback-free phone pairing by utilizing mix-minus technology. There are eight analogue inputs with high-headroom circuitry for minimal noise and clipping in your signal. The four Mic Input Channels offer XLR inputs that are great for connecting dynamic mics or condenser mics with 48v phantom power. These channels also have balanced 14" line inputs for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced 14" TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with colour coded knobs that make it easy to dial in your perfect sound while operating in low-light situations. There are even extra knob caps included so you can fully customize the look of your TrueMix 800 FX. Connecting the TrueMix 800 FX to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 800 FX is a feature-packed compact audio mixer that's perfect for using on-the-go.

Flexible Output Routing

Whether you're recording a podcast, livestreaming online, or making music at home, being able to hear yourself and easily route audio is essential. The TrueMix 800 FX features a variety of output and routing options to handle any scenario. There are four headphone outputs, each with their own volume control knob. If you need to send your audio signals to another destination like an external monitor or effects unit, each channel is equipped with a send knob so you can always dial in the perfect mix. For recording, the USB output sends a copy of the main outputs to your computer, or you can connect the 2-Track in/out to an external recorder which can also be sent directly to the headphones. The TrueMix 800 FX delivers everything you need to take full control of your audio routing in any situation.

Product Features:

TrueMix 800 FX Features
USB I/O for audio playback and stereo recording
Dedicated bluetooth channel with mix-minus return for feedback-free phone pairing
Four headphone outputs with independent volume control
16 built-in Alesis multi-fx with dedicated return channel
1/4" Main, Tape, and AUX outputs
Four mic input channels with phantom power and balanced line inputs
Two stereo input channels with balanced 1/4" TRS jacks
Two-band EQ on all channels
2-track inputs w/ assignable routing: main mix or headphone out
Eight-segment LED VU meter for precise level monitoring
Extra knob caps included in the box for added customization

Technical Specifications

Frequency Response All inputs: 20 Hz - 22 kHz (i1 dB)

THD+N (Total Harmonic Distortion)
All inputs: < 0.005% (@ 4 dBu, 1 kHz)

Gain Range Mic inputs (Channels 1-2): 0 - 50 dB Line inputs (Channels 1-2): 15 dBu - 35 dBu Line inputs (Channels 3-6): -20 dBu - +20 dBu

Max Voltage Gain
70 dB (MIC INPUT to MAIN MIX OUTPUT)
80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT)
60 dB (MIC INPUT to MON SEND)

SNR (Signal-to-Noise ratio)
All inputs: > 110 dBu

Crossover Frequency
Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)

Phantom Power: +45 ~ +49V with switch control

Impedance
Mic inputs: 3.9 kO
All other inputs: > 10 kO
Aux outputs: 1 kO
All outputs: 120 O

Equalization High:
+/-15 dB @ 12 kHz
Low: +/-15 dB @ 80 Hz

Bluetooth
Profile: A2DP
Module: Bluetooth 5.0
Operating Frequency: 2402 MHz - 2480 MHz
Range: 100 ft. / 30.5 m

Connectors
(6) 1/4" (6.35 mm) TRS outputs
(6) 1/4" (6.35 mm) TRS stereo L/R inputs
(4) 1/4" (6.35 mm) TRS headphone outputs
(4) 1/4" (6.35 mm) TRS mono inputs
(1) Standard RCA L/R input
(1) Standard RCA L/R output
(4) XLR inputs
(1) USB type-B input
(1) DC power input

Controls
(1) Power switch
(15) volume control knobs (1 per input, 1 return, 1 EFX return, 1 2-track/USB in, 4 headphone outs, 1 Bluetooth, 1 main)
(6) Stereo pan control knobs (1 per input)

(6) Mon volume control knobs (1 per input)
(6) EQ Low control knobs (1 per input)
(6) EQ Hi control knobs (1 per input)
(6) Gain control knobs (1 per input)
(4) Buttons (1-EFX mute, 1 Bluetooth, 2 Source Select)
(1) Horizontal sliding switch

Indicators
(1) Power LE
(6) Peak LEDs
(1) Phantom LED
(16) Main Out Meter LEDs
(1) Bluetooth LED

Power Connection: DC Voltage: 18V, 1.2A Consumption: 18W

Review: Joni Mitchell's Ladies of the Canyon is one of the great albums that captures the essence of the late '60s counterculture with poetic grace and introspective depth. Released in 1970, the record blends folk, pop, and jazz influences while showcasing Mitchell's unique artistry. Iconic tracks like 'Big Yellow Taxi,' 'Woodstock,' and 'The Circle Game' highlight her sharp lyrical wit and melodic inventiveness. Overall, the music paints vivid portraits of life in Laurel Canyon and celebrates themes of love, loss, and social change. Mitchell's ethereal vocals and intricate guitar work make Ladies of the Canyon an essential listen that cemented her legacy as a pioneering singer-songwriter.

Notes: Another intriguing experimental offering from Soma Labs. ROaT is a digital synth inspired by 80s video games. Four oscillators combine with a sequencer to create drones, soundscapes and glitchy loops.

Supplier's Notes:
Rumble of Ancient Times (RoAT) is an 8-bit noise synthesizer and sequencer inspired by the clever programming of the early PC era when an entire video game would fit on a floppy disk. RoAT is capable of a wide variety of sounds ranging from dense noise scapes to diverse glitching rhythmic patterns. The compact and portable instrument contains many elements that can be combined into surprising musical results.

The "heart" of the synthesizer contains 4 sound oscillators, each with a tunable waveform and an individual LFO, which can modulate the tone or volume of the oscillator. The modulated signal of each oscillator is mixed with other signals using 1,536 variations of complex summing algorithms that contain FM, ring modulation, bitwise logical operations and more.

The synth contains an 8-bit resonant lowpass filter with a distinct Lo-Fi character.
The built-in sequencer can be synced to an external device and also send clock out.
RoAT is battery powered and can work up to 130 hours on one set of AAA batteries.

Rumble of Ancient Times is built on a very simple 8-bit microcontroller similar to the ones used in the "brains" of old refrigerators and other simple electronic devices. Thanks to some very clever programming, it's also able to drive a very capable synth with many features!

In stark contrast to modern consumer electronics, this synth celebrates and emphasizes what can be achieved with efficiency of code and using chips considered obsolete by industry leaders. We live in an age where text editors can be 1GB or more and simple things like checking email require the latest OS and powerful processing, despite the core tasks being no different than 15 years ago with a fraction of the computational power.

So RoAT proposes a new kind of ecological thinking with the innovative use of chips that were developed and produced decades ago, instead of turning them into millions of tons of trash. We can still use technology that the industry forced us to consider obsolete, with the added benefit here of extremely low power consumption. It's an environmentally friendlier approach than galloping in the rush of planned obsolescence that damages our planet and wastes precious resources.

Rumble of Ancient Times was designed and programmed by Kakos Nonos, a new creative mind who joined the SOMA development team. His very unique style of building electronic musical instruments combines quality craftsmanship, advanced programming and a love for medieval acoustic instruments such as gusli, wheeled lyre and bagpipes.

Specifications:

Sync out voltage: 5 V
Minimum syn in voltage: 0.2 V
Current input: 20 mA
Maximum output voltage: 5 V
Audio output:3.5 mm jack
Sync out: 3.5 mm jack
Power Supply: 4*AAA battaries
Size: 122 x 136 x 40 mm
Weight (without batteries): 145 g

Notes: The PDR-369 XLR Patch Bay by Hosa Technology is designed to provide 12 channels of balanced audio throughput for any situation. It is ideal for making rear-panel microphone mixer inputs easier to reach. Features include:

- Rolled-steel chassis for rugged durability and ease of repair
- Gold-plated contacts for corrosion resistance and superior signal transfer
- Shielded, Oxygen-Free Copper conductors for enhanced signal clarity

Connectors: XLR3F to XLR3M

Notes: The DIGI DJ-Stashpack XL Plus is a versatile and lightweight gig bag that and was designed to be flexible in order to accommodate a variety of equipment. It features a practical, height-adjustable Rolltop opening to easily stash a battle-mixer, records, production gear or a DJ-controller. With its durable material, solid processing and a unique design, the new DIGI DJ-Stashpack XL Plus is perhaps the most versatile gear bag in the market.

Fits: Pioneer DDJ-SR2, Pioneer DDJ-RR, Pioneer DJS-1000, Numark NS6II, Numark NV2, Numark Mixtrack Pro 3, NI Kontrol S5, NI Kontrol S4, NI Kontrol S2, Reloop Terminal Mix 4, Roland DJ-202, Pioneer DDJ-SB2, Pioneer DDJ-RB, Numark Mixtrack Pro 2, Denon MC-4000, Vestax VCI-400, Vestax VCI-380, Akai MPK-25, Akai MPC Renaissance, Rane Seventy-Two, Rane Sixty-Two, Rane Sixty-Eigth, Pioneer DJM-S9, Pioneer DJM-900 SRT/NXT, NI Kontrol Z2, Laptop up to 17", 12" Vinyl, Accessories

Notes: Black Stereo Mixer is just what you need, if your setup has several nowadays gaining popularity modules with stereo inputs or outputs, like Black Hole DSP, Erica Fusion Delay, MI Clouds or some other. In order to save rack space, we designed compact mixer with lot of cool, performance oriented features.

In order to save rack space, we designed a compact mixer with a lot of cool, performance oriented features.

Check out also the Black Pre-fade Listen Expander that is a satellite module to Erica Synths Black Stereo Mixer!

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Notes: All Prestige series styli are compatible; any of these styli will work in any Prestige body. All the Styli; Green, Black, Red, Blue & Silver Styli. The performance difference translates into real sonic improvements; as you move up the Prestige line, the sound becomes smoother, more open and more detailed.

Genuine replacement styli for all Grado Prestige cartridges including black, green, blue, red, silver and gold

A worn stylus can cause serious (irreversible) damage to your records, and provide poor sound quality

Notes: The Mini Case offers 40 HP for mounting modules. A power supply is built-in.

208 mm long x 45mm deep.

PLEASE NOTE: Comes with EU 2 pin plug only - UK adapter may be required.

Notes: The Morphor Mixer - 5 Channel Amplifier is a flexible analogue mixer module that can find a home in every type of Eurorack setup.

Each of the five channels feature an attenuator knob and mute switch to allow for instant playability, for example in live settings.

Input signals can be AC or DC-coupled depending on your preferred setting.

The output stage also features an extra attenuation/gain stage that allows you to double the mixed signal. An additional master mute switch, clipping LED are nice-to-haves that complete this intuitive mixer module.

Weight: 102 g
Dimensions: 128.5 × 40.3 × 30 mm
Width: 8 HP

Notes: With its take on the cult-classic, chainsaw distortion pedal, the EHX Hell Melter takes distortion to its extremes. The Hell Melter features expanded controls and tonal capabilities, allowing the already in-your-face sound of the pedal to broaden by switching to more open clipping options and boosting the internal voltage for increased headroom, less compression, and more attack.

Originally designed as the ultimate in high-gain tone, this world-famous distortion circuit is known for the death metal sounds of Sweden's Entombed and the shoegaze wash of My Bloody Valentine. It's even found a home in the rig of David Gilmour!

The EHX Hell Melter's expanded control set includes Gain and Level controls, and a powerful active EQ featuring with parametric mids for improved versatility. The Dry level control allows for blending your input signal for improved low-end when used with a bass or even blending in other distorted tones.

Boost Footswitch engages an input gain boost and volume boost which is internally adjustable. The Normal/Burn switch toggles between the classic chainsaw sound and the more open clipping option.

Classic Heavy Metal circuit with expanded controls
Increased overall output volume
Active EQ controls expansion with parametric MIDS control
Noise gate and dry level control
NORMAL and BURN modes
Footswitchable boost section
Independent distortion and level knobs
9V power supply included

Specifications

Circuit: Analogue
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 140mA
Year Released: 2023

Notes: MOOER burst onto the music products scene in 2010 and has been impressing guitarists ever since. However, the company has expanded it's horizons this year with its VP vocal processing pedal series. The MVP2 Harmonier is a powerful example of this - it's a versatile and innovative vocal processor pedal designed to elevate both vocal and guitar performance, offering tonal precision, creativity, and convenience in one compact pedal.

At its core, the pedal offers a versatile pitch harmonizer effect. The 'Key' dial allows users to choose to harmonize their important with any note in the chromatic scale, with the 'Sharp' LED button being used to select sharp notes. Once chosen, the 'Mode' dial facilitates further customization, offering 11 different harmony modes that control the harmony's interval. This includes all classic intervals such as octaves, fifths, and thirds.

The 'Level' dial adjusts the volume of the harmonizer effect, but Harmonier offers even further tonal flexibility thanks to its reverb function. Users can press and hold the 'Sharp' button while rotating the 'Level' dial, which allows them to adjust the volume of the pedal's internal reverb module. The pedal also offers tone modes: flat, warm, and bright. These can be controlled by activating the pedal's unique 'hidden mode' and using the 'sharp' button.

'Hidden mode' is activated by pressing and holding both of the pedal's footswitches, but this is just one example of Harmonier's unique control system. The left footswitch can be held to save effect presets, and pressed to scroll through 7 preset slots. The right footswitch can be pressed to turn on the pedal's effects, pressed again to isolate the reverb, and held to turn off all effects except for the tone setting.

Unlike most of MOOER's pedal offerings, Harmonier supports both XLR and 1/4" inputs and outputs. These can be used in 'mixed mode' by holding the right footswitch whilst plugging in the power supply or repeating this action again to switch to 'individual mode', which isolates the signals to their given ports.

Alongside its fundamental functionalities, the pedal features a gain dial, a 48V phantom power switch designed for internal microphone amplification, a grounding switch, and a DC 9V 500mA power input. Collectively, the MVP2 Harmonier's features guarantee that both vocalists and guitarists have all the necessary tools to augment their instrument's sounds with stunning harmonies, without ever having to worry about the pedal's batteries running low.
12 pitches with 11 different harmony mode
11 harmony modes that provide different harmonic intervals
High-quality internal reverb module with adjustable volume
3 tone modes: flat, warm, and bright
7 preset slots
Dual-functionality LED button
Two multi-functional footswitches
Customizable effect, tone, and reverb isolation
Two output modes: mixed and individual
XLR input and output
1/4" input and output
Internal 48V Phantom Power amplification
48V Phantom Power toggle switch for condenser microphones
Line in toggle switch for instruments and dynamic microphone
Gain dial
Ground/Lift toggle switch
DC IN 9V 500mA power input

Notes: MOOER has unveiled its latest effect pedal innovation, the MVP1 AUTUNER vocal processor. Unlike most of MOOER's products, this pedal is designed primarily for use with vocals, offering precise pitch correction and exceptional vocal enhancement features. However, MOOER hasn't forgotten about its primary audience, so AUTUNER still provides features that will interest guitarists.

Due to the pedal's primary focus on vocals, the device includes several features specifically designed for microphone usage. This includes XLR input and output, in addition to support for 48V phantom power, ensuring that the pedal supports both dynamic and condenser microphones. However, AUTUNER also includes standard 1/4" guitar inputs and outputs, along with convenient footswitch control to switch between mixed or individual signals.

The pitch correction features behind AUTUNER are highly versatile. With an LED button, users can choose between flat, warm, and bright vocal tones, each indicated by a different colour. Once a tone has been chosen, the 'correction' dial can be used to define the sensitivity of the pitch correction. Users can also press and hold the left footswitch to trigger the pitch correction's vocal synthesizer mode.

AUTUNER's versatility shines particularly brightly thanks to its built-in effects modules. The first of these is delay; the delay module can be can controlled with its dedicated dial, with users having the option to choose between tape delay, digital delay, slapback delay, or bypass. The pedal's left footswitch serves as a tap switch, which allows the user to determine the speed of the delay module.

A reverb module is also featured within AUTUNER. This too has its own dedicated dial, which can be used to morph between room delay, hall delay, and plate delay. Whilst the pitch correction features of the pedal are limited only to vocals, these delay and reverb modules ensure that the pedal has plenty of dedicated features to offer MOOER's guitarist fanbase.

As is common with MOOER products, AUTUNER features a wide range of control mechanisms. In addition to the left footswitch's dual functionality, the right footswitch also acts as a bypass for the pitch correction and effects, whilst still ensuring the tone processing remains active. The pedal's tonal enhancements can then be fully bypassed with the 'flat' tone option.

In addition to its core features, the MVP1 AUTUNER also includes a gain dial, a 48V phantom power switch for internal microphone amplification, a grounding switch, and a DC 9V 500mA power input. Overall, the features of this pedal ensure that musicians have everything they need for impressive pitch correction, vocal synthesis, and special processing, whilst ensuring that they never have to rely on external batteries.
Vocal pitch correction feature with a controllable sensitivity dial
Footswitch-controllable vocal synthesizer mode
Three vocal tone modes: flat, warm, and bright
Four delay modes: tape, digital, slapback, and OFF
Four reverb modes: room, hall, plate, and OFF
Tap tempo footswitch for delay speed
Bypass footswitch functionality for isolating the tone from effects
Multifunctional footswitches for 'hidden mode'
LED button for tonal control
Two output modes: mixed and individual
XLR input and output
1/4" input and output
Internal 48V Phantom Power amplification
48V Phantom Power toggle switch for condenser microphones
Line in toggle switch for instruments and dynamic microphone
Gain dial
Ground/Lift toggle switch
DC IN 9V 500mA power input

Notes: The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsFeedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion24-bit
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power Adapter (Sold Separately)PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output Type1/4" Unbalanced TS (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input Type1/4" Unbalanced TS (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Notes: Elevate your vinyl care with Secret Chord Analogue's Record Restore Box Set. This comprehensive kit provides all you need for pristine LP cleaning and protection. Featuring application and drying tools for Secret Chord's top-rated cleaning fluid, bid farewell to dust, dirt, and grime. Independently tested by industry experts, this advanced formula stands among the world's best. Say goodbye to static electricity and shield your collection from microscopic particles effortlessly. Select the ideal box set size to match your record collection, and replenish anytime with individual items available for separate purchase.

Cleans up to 28x 12" records

Notes: Random rhythm generator

Joey is a Eurorack module that generates random gate sequences. It is the offspring of Skippy (Kaona's polyrhythmic sequencer), without simply copying it: it's a very straightforward module that provides unexpected yet controllable sequences.

It offers three main modes:

Random

For random triggers controlled by an internal speed or an external clock.

Fractal

A unique algorithm sprinkled with 5% chaos, creating evolving and surprising patterns.

Euclid

Generates four different Euclidean patterns for complex and evolving rhythms.

Each mode has three adjustable parameters set via a clickable encoder: speed, a mode-specific parameter (probability, fractal root, or Euclidean pattern), and gate length. An external gate input can take over to synchronize speed. A PLAY/STOP button instantly suspends or restarts the gates.

Specifications

Width: 6 HP

Power Consumption:
+12 V: 50 mA
-12 V: 0 mA
+5 V: 0 mA

Depth: 28 mm

Supplied with power cable and Knurlies

Notes: *** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Plug'n Play Plus:

The ARC USB connects to your computer via USB, and talks to TotalMix FX directly. It has 15 freely assignable and illuminated buttons, one encoder wheel, and a TS jack to connect a foot switch.

The ARC USB is a USB 1.1 MIDI remote control. Thanks to operating as a UAC 1 class device, it is natively compatible to Windows and Mac OS X. As soon as it is present in the operating system, TotaIMix FX will automatically detect the ARC USB, and communicate with it via simple MIDI remote commands.

TotalMix FX:

Since 2001, TotalMix has added unlimited routing and mixing to RME audio interfaces. Its unique capability to create as many independent submixes as output channels available, turned it into the most flexible and powerful mixer of its kind.

With supported hardware, TotalMix FX includes a complete effects system, which not only adds flexibility to the recording chain, but also makes latency saddled software solutions obsolete.

TotalMix FX can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs, incl. main monitors and headphone mixes for musicians.

TotalMix FX for iPad App:

TotalMix FX for iPad adds full control over hardware mixer and DSP effects for Fireface UCX, UFX, 802 and Babyface, Babyface Pro when in Class Compliant Mode, and lets you create, store and load complete mixes directly from the iPad.

Notes: For the 20th anniversary of the legendary Fireface 800, RME introduces an exclusive special edition ARC USB in a sleek all-black design to complement the limited edition Fireface 802 FS AE.

Overview

This wired remote has been designed for direct access to the most frequently used actions and commands of TotalMix FX, being an indispensable tool in the studio's daily applications. Its extremely flexible configuration through TotalMix FX will simplify workflow and greatly increase the usability of the RME interface in most real-world situations.

The ARC USB is a USB 1.1 (UAC1) MIDI remote control, natively compatible to Windows and Mac OS X. As soon as it is present in the operating system TotaIMix FX will detect it and communicate with it, without disturbing other remote controls. Therefore, it is also not necessary to switch the ARC USB on or off within TotalMix FX - it will just work. And because it communicates with TotalMix FX (via USB) it is compatible to all RME audio interfaces that are detected and supported by TotalMix FX. This goes back to RME interfaces released 2001!

As soon as the ARC USB is connected to a computer any button press or wheel turning will cause the respective action performed by TotalMix FX - and therefore also by the RME audio interface.

With the UFX III and UFX II the ARC USB can also be connected directly to these devices, currently the only RME interfaces having an internal USB 1.1 host with matching connector. This way of connecting is handy in stand-alone mode, where the ARC USB is also supported by the UFX III and UFX II.

The ARC USB is bus powered, but draws only little current. Also, it uses USB 1.1 as bus standard, which these days is uncritical due to its lower frequency and speed demands. USB 2 cables with 5 metre to 10-metre length, and cheap USB 2 cable extensions that usually make a bus-powered interface fail will work perfectly for the ARC USB. Still at higher lengths RME recommends using active USB 2 cables (also called extension or repeater cables), which are not expensive and work over lengths of more than 20 meters.

The ARC USB can control several interfaces simultaneously, which happens automatically as the Key Commands dialog in TotalMix FX is specific to the currently selected audio interface. Just assign only the functions that are desired for each respective interface. After that the ARC USB keys and the encoder wheel remote the respective interface where they have been assigned to, without the need to further switch or select anything in normal operation.

The lower three keys have a useful diagnostic functionality
Talkback: is lit dim as soon as the ARC USB is running on 5 V USB bus power.
Speaker B: is lit dim as soon as a USB communication is possible.
DIM: is lit dim as soon as a communication with TotalMix FX is established.
Therefore, in normal operation all three lower keys are lit dim constantly.

The ARC USB comes with a standard set of Key Commands that already cover most usage scenarios, printed directly beneath the keys:
Row 1 and 2: activating Snapshots 1 to 8.
Row 3: Mono, Volume Phones 1, Volume Phones 2, External Input
Lower keys: Talkback, Speaker B, Dim.

A set of stickers with all currently available TotalMix FX commands is included. These can be used to label all keys reflecting the current user configuration.

The rotary encoder wheel is used to change various parameters, like gain and volume. It is programmable in TotalMix FX as well.

Configuration of the ARC USB

The Advanced Remote Control is configured in the Options menu via the Key Commands dialog of TotalMix FX, tab ARC USB Settings. As the ARC does not have any memory, all configuration and storage is done via TotalMix FX. All settings of the ARC USB are stored within a Workspace, and are therefore identical in all Snapshots of that current Workspace.

More than 36 different commands can be assigned to the 15 keys. The behaviour of each individual button can be changed between push, toggle, enable and disable, depending on the base function.

Current list of available functions:

Global Mute
Global Solo
Mute Group 1 to 4
Solo Group 1 to 4
Fader Group 1 to 4
Link Main AB
Speaker B Select
DIM (Main Out)
Mute (Main Out)
Mute FX (Main Out)
Mono (Main Out)
Talkback
External Input
Reverb

Echo
Cue Phones 1 to 4
Snapshot 1 to 8
Layout Preset 1 to 8
Volume Main
Volume Phones 1 to 4
Mic Gain 1, Mic Gain 2, Mic Gain 1+2
Inst. Gain 3, Inst. Gain 4, Inst. Gain 3+4
Mic/Inst. Gain 9, Mic/Inst. Gain 10, Mic/Inst. Gain 9+10
Mic/Inst. Gain 11, Mic/Inst. Gain 12, Mic/Inst. Gain 11+12

Some commands are not available at certain interfaces, or slightly changed due to different functionality. Fireface UFX, UFX II and UFX III have additional commands for DURec: Record, Play and Stop.

Several functions can be activated at the same time. Example: Button 1 is set to Cue Phones 1. That means the phones submix is heard via the Main output (the studio monitors). To be able to also change the volume of the phones submix itself, set button 2 to Volume Phones 1. Activating both will allow you to listen to the phones submix via the main output, and also to change its volume (the fader in the third row) by turning the encoder knob.

A standard footswitch (with switch, sustain pedals with pot are not supported) can be connected to the 1/4" TS jack on the left side. In Key Commands Settings the same options are available for the footswitch as for the 15 keys.

Remote control the RME Fireface UFX III, UFX II, UCX II and 802 FS in Stand-Alone Mode

As mentioned above, the RME Fireface 802 FX, UCX II, UFX II and UFX III interfaces all feature a dedicated connection for the ARC USB, with the remote offering an additional level of control when using either device in Stand-Alone Mode.

When used with any of these interfaces standalone, a fixed set of functions is activated on the keys:
Row 1: Setup 1-4
Row 2: Setup 5-6 x x
Row 3: Mono, Volume Phones 1, Volume Phones 2, DIM
Lower keys: DURec: Rec, Play/Pause, Stop
x = no function

The included stickers also offer the stand-alone layout.

In the 802 FS, UCX II, UFX II and UFX III display's menu the way of operating the ARC USB can be configured for standalone mode. Those options are found under SETUP/REV, Options, Hardware/Diagnosis:

Standalone ARC Volume

Deactivates all keys. Only the encoder wheel works, with a fixed assignment to Main Volume. This option is also a safety function in case the ARC USB is connected to the 802 FS / UCX II / UFX II / UFX III, but operated online (with a computer). When the system goes offline (computer removed, sleep state...) the functions on the keys change, because online mode changed to stand-alone mode. Operating the keys then could activate unintended functionality or changes.

Standalone ARC 1 second operation

Each key has to be pressed for one second to activate the programmed functionality. This safety function prevents unintentional changes. It can be stored within the Setups, activating this mode automatically when such a Setup is loaded. When loading a Setup where this function had not been active this mode is automatically deactivated at the interface.

Notes: Row Power is a clean, regulated, and protected power solution for eurorack systems. Row Power 35 provides 35W of power, suited for any typical eurorack row (84HP to 168HP):

+12V @ 1.4A
-12V @ 1.25A
+5V @ 1.0A

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Daisy-chain multiple Row Powers to use a single power brick for multiple rows (typically 3-5 rows per power brick). Each row will be independently regulated and protected for ultra-low cross-talk between rows. Rows can also be hot-swapped (plugged/unplugged without powering the whole system down).

Notes: The Pod40X is 40HP with 2.00" (51mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod40 includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

Notes: Hat is a hi-hat cymbal with a wild side. Finding something unique is easy with a blend of sounds ranging from robotic to metallic. At its core are three unique sound sources made up of six oscillators, a noise generator, and a number of filters. Sizzle affects each source independently, adjusting oscillator and filter frequencies, allowing for a broad range of sounds. In addition, separate trigger inputs for open and closed allow for a complete hi-hat pattern on a single module. No matter what situation it's in, Hat provides shimmering, metallic timbres for any percussive purpose.

Notes: Classic closed-back headphones in a low-impedance version designed to play nicely with outputs on phones, laptops and interfaces. One of the best all-round options for production.

Supplier's notes:
The Beyerdynamic DT 770 Headphones 80 Ohm are closed back dynamic headphones that use the same comfortable, sound isolating design as the 250 Ohm studio version, but with a lower resistance for general purpose and mobile applications. Because of the lower resistance, the DT 770 Pro 80 Ohm headphones are louder and work on low power devices such as smart phones, MP3 player, laptops and bus powered interfaces. Therefore, if you are working in a loud environment or using a battery operated device, the Beyerdynamic DT 770Pro 80 Ohm headphones make the perfect choice of headphone.

When out and about, you really need to block as much ambient noise out as possible and a lot of headphones do this by clamping the ear-pads as tightly to your ears as possible and using materials that absorb a lot of sound. This produces two unwanted issues; discomfort, after prolonged use; and a loss of audio quality as sound being generated by the driver is absorbed by the cup. The DT 700 Pro series avoids this by using a clever bass reflex system and a large circumaural cup design with velour pads. Of course the real technology is in the transducer itself, which produces a nominal frequency response of 5Hz to 35kHz and a nominal SPL of 96dB, an exceptional performance.

Notes: This new module should not be judged by it's size, at 6hp it's packed with features.

At its core it features a noise source and two precision Sample & Holds with 0.01% of maximum deviation from the Input which allows for quantized signals to be sent through without any noticeable detuning or the typical voltage drops over time.

The Sample & Hold sections can also be used as a Track & Hold meaning it holds the incoming input while the Trigger input is ON and lets the input flow to the output when the Trigger input is OFF.
Each section also features it's own slew processor with a single control over attack and decay and an ON/OFF switch.

The noise signal is normalled to both sections inputs, meaning that without a jack plugged into the Input the sample and hold function will act upon the incoming noise signal generating random CV values.

The [Trigger A Alternate] switch allows to Link both sections so that any trigger input in Trigger A will alternate between triggering the A and B section.

Besides each section outputs there's also 4 extra outputs: Noise, Difference, Average and Sum. The Noise output is coming from the noise source, the Difference output is the subtraction of section A minus section B, the Average output is the sum of both A plus B and then divided by 2 and finally the Sum output is the sum of both A plus B sections.

MECHANICAL:
Format: Eurorack
Width: 6 HP
Depth: 4 cm

ELECTRICAL:
Max current: +50mA/-50mA
Bus Board Cable: 8 × 2 IDC (Doepfer style) connector

Notes: Ultimate DIGI Backpack specially designed for the laptop DJ. Constructed from high quality water resistant Nylon, it contains a cleverly designed side entry compartment for a laptop up to 15.4" without having the hassle of going through the main body of the bag. The bag main compartment can hold an extra laptop and it can also hold a Native Instruments MASCHINE MK2 size MIDI controller. There is a detachable interface pouch and on top of the bag there is a padded, quick access headphone pocket. There are 5 zipped compartments to securely store USB sticks, SD cards, wires and cables, AC power adapters, compact camera's, MP3 player, and other accessories.

Colour: Black Camo/ Orange Inside
Weight: 2,10 kg / 4.62 lbs
Outer Dimensions (W x H x D) cm: 33.5 x 48 x 27 | inch: 13.2 x 18.9 x 10.6
Inner Dimensions (W x H x D) cm: 30 x 42 x 13 | inch: 11.8 x 16.5 x 5.1
Material Water Resistant Nylon 450D
Protection: Various padding used

Extras

Front compartment with organization panel and detachable pouch for audio interface
5 exterior pockets for personal essentials, including one with earbud pass-through for Mp3 players
S-curved shoulder straps for ultimate comfort.

Fits:

up to 15.4" laptop, LP's,
Pioneer DDJ-XP2, DDJ-200, DDJ-XP1, DDJ-SP1, DDJ-WeGO 3/ 4, Toraiz Squid,
NI Maschine MK3/ Jam/ MK2,
Denon DJ MC2000, SC2000,
Akai MPC Live/ II, MPD226, MPD232, MPD32, MPD26, MPK Mini MK II, MPC Element, MPC 500, APC 20, APC Key 25,
Ableton Push/ 2,
Allen & Heath Xone 23/ C, Xone 43C,
Novation Launch Control XL, LaunchPad Pro, Circuit, Twitch,
Numark Scratch, Omni Control, Stealth Control, Party Mix, iDJ Live II, Mixtrack Edge,
Reloop Beatmix, Digital Jockey III/ II, Mixage IE, Neon,
Roland Aira MX-1, TR-707, MC-202, TR-8, TR-8S,
Korg MicroKey 25,
M-Audio Oxygen 25, Trigger Finger Pro,
Arturia Drumbrute,
Gemini FirstMix Pro, Slate2, Slate4, CDJ-700,
Hercules P32 DJ Controller, Universal DJ, DJ Consule 4-MX, DJ Control Air S, DJ Control Wave, DJ Control Instinct,
Livid CNTRL:R,
Stanton DJC.4,
Vestax Spin 2, VCI-300/MK2, VCI-100/MK2,
Audio interface or MP3/MP4 player, books and magazines,
