Synth modules

Notes: The ‘Pip Slope’ (rev II) is a compact envelope and function generator. It supports both Attack/Decay and Attack/Sustain/Decay type envelopes with both direct and voltage control of Attack and Decay times. Envelope shapes can be morphed between exponential, linear and logarithmic type slopes. Envelopes can be made to loop, repeating infinitely or decreasing with time or amplitude for echo and bouncing ball type effects. An ‘End of Cycle’ trigger output further extends the envelopes functionality for both clocking and burst or fill type effects.

The improved Pip Slope adds a number of new features and updates over the original Pip whilst keeping the same size. Improvements include increased output resolution, finer control of fast envelopes, a new morphing shape control, switchable 5v or 8v maximum envelope level, additional loop modes and an additional trigger output.

Features:
Compact envelope and function generator in 4HP.
Trigger and gate inputs.
Voltage and direct control of attack and release times.
Snappy or super long envelope times – ranging approx 1ms to 7 minutes per stage.
Optional self looping ability with 3 different loop modes: Decreasing amplitude, decreasing time, and regular loop.
Shape control that morphs the envelope shape from logarithmic to linear to exponential curves.
End of Slope trigger output that fires a trigger at the end the envelope or loop cycle.
Selectable 5v or 8v max envelope level output.
Reverse polarity protection.
Skiff friendly.
Designed and Made in the UK.

Technical Specifications
Supply: +12V 30mA / -12V 10mA
Size: 4HP
Depth: 38mm

Notes: Pico DSP is a small brother of the popular stereo effects processor Black Hole DSP. It contains eight algorithms, in detail four delays, two types of reverb, Leslie speaker emulation and an Overdrive/Bitcrusher. Each effect is editable in two parameters. One of them can be modulated using the CV input. Pico DSP features clear, high-resolution sound. Alongside the established standards, it is also possible to generate lots of freaky special effects.

Notes: Module A-160-2 is an enhanced version of the standard clock divider A-160. The module is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses. The Clock input will take any digital signal from, eg. LFO, MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you have access to three sets of seven different sub-divided clock signals, from half the clock frequency down to 1/128. The low/high levels of the output signals are 0V and about +10V.

The A-160-2 also has a reset input. Whenever a reset signal is sensed, all outputs are set to certain levels which depend upon the selected mode.

These are the most important features of the module:

Three different sets of dividing factors, selected by a three-position switch at the front panel:
- Power of two: 2, 4, 8, 16, 32, 64, 128
- Prime numbers: 2, 3, 5, 7, 11, 13, 17
- Integer: 2, 3, 4, 5, 6, 7, 8

Two output modes, selected by a two-position switch at the front panel:
- Gate mode: outputs act like the outputs of typical binary dividers
- Trigger mode: in this mode the outputs are AND-wired with the clock signal (i.e. the clock pulsewidth affects the pulsewidth of the outputs)
- Clock edge type selected by a jumper on the pc board:
- Positive: the rising edge of the clock signal triggers the state change of the outputs
- Negative: the falling edge of the clock signal triggers the state change of the outputs

Reset behaviour by two jumpers on the pc board:
- Level triggered: the level at the Reset input triggers the Reset
- Edge triggered: the edge of the signal at the Reset input triggers the Reset
- Positive: a high level (> 2.5V) or the rising edge at the Reset input triggers the Reset
- Negative: a low level (< 1 V) or the falling edge at the Reset input triggers the Reset

Output polarity selected by a jumper on the pc board:
- Positive: non-inverted outputs
- Negative: all seven outputs are inverted

Width: 4HP / 20mm
Depth: 35mm (Measured from the rear side of the front panel)
Current: +12V: +50mA, -12V: -0mA

Notes: The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: A-135-2 is a miniature version of the A-135-1. Behind a front panel with 8 HP only four linear VCAs (voltage controlled amplifiers) and a voltage controlled mixer based on the VCAs are available.

Controls, In/Outputs and Functions of each VCA:

- Level (manual control of the VCA amplification), small rubberized knob (L1...L4)
- Control voltage input with associated attenuator (CV1...CV4), for the full VCA control range about 0...+5V control voltage are required (attenuator fully clockwise), for higher control voltages the attenuator is used, the attenuators are without knobs, just plastic shafts with white marker
- Signal Input
- Signal Output
- All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages (e.g. to control the level of LFOs or envelopes)
- The signal input is not equipped with an attenuator. But the VCAs can process all signals up to 15Vpp / -7.5...+7.5V without clipping. In case of higher levels an external attenuator is required (e.g. A-183-1).
- The available amplification range is 0...1, the maximal amplification is 1 (i.e. it "clips" and remains at 1 even if the control voltage goes beyond the value that corresponds to amplification 1)

Functions of the voltage controlled mixers:

- Two outputs ("Selected" and "All")
- Selected output: the ouput if a VCA is removed from this sum signal when a plug is inserted into the corresponding VCA output.
- All output: sum of all VCA outputs, regardless of inserted plugs into the VCA outputs
- The maximal amplification is about 0.6 to avoid clipping at the mixer outputs (otherwise the outputs may distort with 15Vpp signals at each signal input and full amplifications)

Special functions of the voltage controlled mixers (selectable by internal jumpers):

- Dual Stereo VCA: In this case the control unit of VCA1 (L1 + CV1) affects also VCA3 and the control unit of VCA2 (L2 + CV2) affects also VCA4, the control units of VCA2 and VCA4 are out of operation
- Quad VCA: In this case the control unit of VCA1 (L1 + CV1) affects all four VCAs. The control units of VCA2, VCA3 and VCA4 are out of operation. In this mode the module has the same function as module A-132-2. That's why module A-132-2 will be discontinued.
- Normalling of the signal inputs: by means of internal jumpers signal input 1 can be normalled to signal input 2, signal input 2 to signal input 3 and signal input 3 to signal input In 4. That way the same input signal can be distributed to four different channels by means of control voltages (e.g. quadrophonic distribution of audio signals). Suitable control voltage sources are e.g. A-144 (Morphing Controller) or A-143-9 (Quadrature LFO).

Notes: 'Beast's Chalkboard' is dual channel stepped voltage source and adder for your eurorack modular synthesizer system. It primarily is intended as a dual octave switcher for VCO's but has many other uses including sequence transposition, FM ratio creation, buffered CV distribution and VCO calibration.

Technical Specifications:

Supply: +/-12V (Reverse voltage & polyfuse protection)
Current Draw: ~30ma
Size: 6 HP
Depth: 22mm (including power header)
Offset Error: +/- 10mV

Notes: The Listen IO is a simple module which gets signals in and out of a Eurorack system by converting to and from normal modular levels. The top section converts any external signal to modular levels by providing up to 30x gain (+30dB), allowing you to use table-top synthesizers, keyboards, phones/tablets, computers, toys, microphones, etc. in your patches. The bottom section does the opposite: modular signals are converted to normal line level signals. The bottom two jacks can be used as line outs or as headphone jacks, so you and a friend can listen in stereo at the same time.

Each section has two inputs and outputs for use with a stereo signal or two mono signals. An LED bar graph for each output shows the signal level and clipping.

Notes: The Voltage Controlled Amplifier or "VCA" is one of the most essential and useful building blocks in a synthesis patch. The DUAL VCA 1U packs two high quality, DC coupled, linear VCAs into a very compact 1U package.

The two VCAs can be used completely independently or in tandem via the handy signal normalling. The DC coupling means that the VCA can be used for the amplitude control of both control voltages (CV) and audio signals.

Some application/use examples:

- Dual, independent VCA for dynamic level control of two different audio or cv sources
- Stereo VCA (use the CV normalling where CV A normals to CV B) for processing stereo sources or CV pairs.
- CV/Audio summing (when Out A is not patched, it normals to sum with OUT B, CV A and B control the independent levels)
- Voltage/signal doubling (use input A only and the doubled voltage will appear at OUT B when a CV of +5V applied to CV A)

Notes: Module A-130-8 contains eight linear voltage controlled amplifiers (VCAs). Each VCA features a control voltage input (CV), a signal input (In) and a signal output (Out). In addition three mixers are included: the socket labelled "1-4" outputs the sum of the VCAs 1-4, the socket labelled "5-8" outputs the sum of the VCAs 5-8, the socket labelled "1-8" outputs the sum of all eight VCAs.

The signal inputs are able to process levels up to about 20Vpp without clipping (20Vpp = 20V peak-to-peak or about -10V...+10V) . Each CV input is equipped with a trimming potentiometer that is used to adjust the sensitivity of the CV input in question. In the factory the module is adjusted for the CV range 0...+5V but can be re-adjusted by the user for other control voltage ranges (e.g. 0...+10V).

The amplification range for each single VCA is 0...1. The signals of the sum outputs have a lower amplification to avoid distortion at the sum outputs.

The VCAs and mixers are fully DC coupled, i.e. the module can be used for the processing of both audio and control voltage signals. The control voltage and signal inputs can be normalled by means of small solder pads (e.g. 1 > 2 > 3 > 4 and so on, or 1 > 5, 2 > 6, 3 > 7, 4 > 8 for the stereo application mentioned below).

Typical applications

any kind of VCA application (e.g. voltage controlled attenuation of audio or control voltage signals)
two voltage controlled mixers with four channels each
voltage controlled stereo mixer with four channels each, for this the control voltage inputs have to be correspondingly patched or internally normalled: CV1=CV5 /CV 2=CV6 / CV3=CV7 / CV4=CV8
voltage controlled mixer with eight channels
add-on for the Joystick module A-174-4
Technical notes

The following document shows the positions and functions of the jumpers and trimming potentiometers of the module: A130_8_trimming_potentiometers_and_jumpers.pdf
When the trimming potentiometer in question is moved CCW (counterclockwise) the sensitivity of the CV input in question increases (view to the top edge of the module).
Trimming procedure: apply the max. CV voltage that will occur in your application (e.g. +8V) to the CV input and a constant audio signal to the audio input (e.g. a VCO sawtooth). Then adjust the trimming potentiometer in question until the max. output level is reached and does not become higher even if the trimming potentiometer is turned further. Possible the the trimming potentiometer has to be turned back again a bit to find the correct position.
With the trimming potentiometer adjusted to max. sensitivity the linear amplification starts at about +0.1 control voltage (CV). We introduced this small dead range of about 100 mV to make sure that the VCA fully closes with CV = 0V.
It's possible to change the amplifications of the internal mixers used for the sum outputs (1-4, 1-8, 5-8) also to 1. Pay attention that then clipping/distortion may occur at the sum outputs. For this the 22k resistors R41 (Sum 1-4), R44 (Sum 5-8) und R51 (Sum 1-8) have to be replaced by 47k. As they are smd resistors sufficient experience with soldering/desoldering of smd parts is essential. And we have to point out that warranty is void if such modifications are carried out by the customer. The positions of the resistors are shown in the document A130_8_trimming_potentiometers_and_jumpers.pdf.
If multiple exponential VCAs are required module A-132-4 is recommended.

Width: 6 HP / 30.1 mm
Depth: 40 mm (measured from the rear side of the front panel)
Current: +50 mA (+12V) / -50 mA (-12V)

Notes: Module A-199 is a spring reverb module. The reverb effect is electronically simulated by means of 3 spiral springs. Spring reverb systems have a very characteristic sound that is based on the (insufficient) mechanical properties of the springs like signal delays, audio resonances, limited frequency range, acoustic feedback behaviour, sensitivity to mechanical shocks and others.

The 3-spring system used in the A-199 ensures a "dense" reverb because of the different properties of the three springs.

The A-199 implies some special features that are not self-evident for spring reverb units:

The reverb signal can be fed back to the input using the Feedback control. Even self-oscillation of the springs similar to the self-oscillation of filters is available. The feedback loop can lead even via external modules like VCA, VCF, phaser, frequency shifter, vocoder, distortion/waveshaper, ring modulator and others. In this case the reverb output of the A-199 is connected to the input of the external module(s) and the output of the external module(s) is fed back to the Ext. Feedback In socket of the A-199. This socket contains a switch that interrupts the internal feedback loop as soon as a plug is inserted.

Another feature is the Emphasis control. This enables the adjustment of the accentuation of middle frequencies (around ~ 2kHz).

With the Mix control the relation between original and reverb signal appearing at the mix output is adjusted.

Using all these features very extreme and unusual effects can be generated with the A-199.

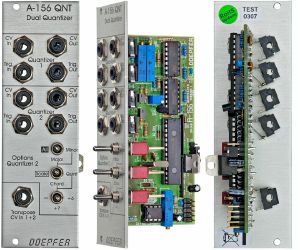

Notes: Module A-156 is a Dual Control Voltage Quantizer. A quantizer converts a continuous control voltage in the range 0...+10V into a stepped output voltage in the same voltage range (i.e. only certain voltages occur). Normally 1/12 V steps are used to obtain semitone steps. Quantizer 2 of the A-156 allows has more sophisticated quantizing modes like major scale (i.e. only voltages corresponding to the major scale), minor scale, major chord, minor chord, fundamental + fifth and addition of seventh or sixth when chords are selected. Only those voltages appear at the CV output which comply with the selection rule (e.g. minor chord with seventh). The mode setting of quantizer 2 is done with 3 switches (1-0-1 type with middle position). From the factory quantizer 1 is working in the semitone mode. But there is a jumper on the pc board that can be changed so that even quantizer 1 uses the same scale as quantizer 2.

For each quantizer the following in/outputs are available:

- Control voltage input (CV In): The input for the continuous voltage to be quantized
- Control voltage output (CV Out): The output of the quantized voltage
- Trigger input (Trig.In): If this jack is left open the quantizer is working permanently. If a rectangle voltage is applied quantisation happens only at the rising edge of the signal (e.g. from an LFO or MIDI-to-Sync interface). Thus the quantizing can be synchronized with other events
- Trigger output (Trig.Out): Whenever a quantisation happens (i.e. a new voltage is generated at the CV Out) a positive pulse occurs at this output. It may be used to trigger an envelope generator (ADSR) or for triggering other modules (sequential switch A-151, trigger divider/sequencer A-160/161, trigger delay A-162, ...). If none of these functions are used the jack is left open

On top of that the A-156 is provided with a common transpose CV input having an additive effect on both quantizers. This input is quantized in semitone steps. A typical application is the transposition of a sequence generated by the A-155 by a second control voltage (e.g. coming from the MIDI-CV interface A-190).

Typical applications:

- Quantizing the CV sequence generated by an A-155 (semitone, only major scale, only minor scale and so on)
- Quantizing the voltage coming from the Trautonium Manual / Ribbon Controller A-198, Theremin A-178 or Light-to-CV module A-179 to get accurate semitones or major/minor scale tones
- Arpeggio-like effects with LFO, random, noise, envelope generators as CV sources (for negative or symmetrical voltages an offset must be added, e.g. with the offset/attenuator module A-129-3, to obtain positive voltages for the A-156 input)

Notes: The 333 is a summing and distribution module for Eurorack modular systems.

It is composed of three identical sections, the red, yellow and green, each of those featuring three inputs summing amplifier with three independently buffered outputs.

Derived directly from the CGM creative mixer series, the sum section is DC coupled, allowing the sum of control voltages as well as audio signals.

With an extremely low tolerance in both sum and output sections, it is suitable also for summing quantized voltages like the ones coming out from the quantized outputs of the SAPEL.

In case CVs or audio signals are particularly hot, the 6dB attenuator might be helpful to reduce exactly by 50% the incoming signals.

Red and yellow output are also normalled to the 1st jack socket of the yellow and green input: in this way this module can also work as a 1 to 9 buffered multiple.

Notes: Triplatt is a three-channel active/buffered attenuverter and summing mixer. Each channel has a knob, which can function as a unipolar attenuator or a bipolar attenuverter, depending on the setting of its corresponding two-position polarity switch.

Each input is normalled to a built-in precision +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch. Outputs A and B are also capable of a range of 0-10 / -10 to +10 when using the special function switches.

Each output is normalled to mix into the output of the channel below, making it possible to do sub mixes in groups of two or three.

In addition, each channel has a "special function" switch to alter its input voltage in a specific way. Channel A has a 2x voltage multiplier switch, allowing you to double the voltage sent into Channel A. Channel B has a +5V switch, allowing you to add 5V to whatever voltage is sent into Channel B. Channel C has a mute switch, allowing you to completely turn off the signal being sent into Channel C.

Notes: The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: PRO Expanders:

Extra Pam Outputs.

ALM034-EX

PPEXP1 & PPEXP2 are two expander modules for Pamela's PRO Workout that both offer additional dedicated fixed clock, Din Sync & MIDI clock outputs.

Extend Pam as a master to clock external gear with super solid dedicated MIDI & Din Sync clock outputs. The Din Sync clock (x24) and Run outputs can also be patched into a 2nd Pam to easily sync it.

Use the extra fixed clocked gate outputs to free up Pam's main outputs for unique sequencing or complex modulation duties.

Connects directly to and is powered by the 'MIDI-EX' expander header on rear of Pamela's PRO Workout.

Only a single output expander is supported at any time but either can be used alongside an AXON-1 CV input expander.

A MIDI adapter cable and a Din Sync adapter cable are both available for connecting to 5 pin 'Din' type connectors. The PPEXP 1 includes a MIDI Din adapter cable.

Technical Specifications

Power: Additional approx +12V 40mA (PPEXP1) / 20mA (PPEXP2)
Size: 4HP & 2HP
Depth: 32mm

Notes: Erica Pico Quant is advanced CV quantizer with some unique features - quarter tone accuracy and the web-based interface for creating user generated scales.

- 8 preset scales
- Web based interface for user generated and extra preset scales
- Microtonal quarter tone scales
- Adjustable tolerance
- Adjustable CV glide between notes
- Clocked and independent quantization

Dimensions
3 HP
35 mm deep

Current Draw
25 mA +12V
6 mA -12V

Notes: Pico Drum2 is compact yet versatile percussion synthesizer in a 3 HP eurorack module. It features 8 drum synthesis algorithms created to deliver distinct sounds to your modular system. Each algorithm offers a lot of flexibility therefore a big sounding bass drum and a squelchy snare can be dialled in within the same algorithm. It also tracks 1V/Oct and all parameters can be mapped to the CV1 input.

Technical specifications:
Output level: 10Vptp
CV level (full span): -5V - +5V
Power consumption: +28mA, -5mA
Module width: 3HP
Module depth: 35mm

Notes: The ZONE B.F. module is an element of the Capsule TITAN. Zone basses frequences stands for low frequency zone. This module is composed of 2 LFOs, both LFOs have 16 sync-able waveforms

Speed : speed of the LFO, range from 0.1 Hz to +/-200 Hz

Wave (LFO 1 & 2) : 16 Syncable waveforms;
- Triangle
- Sine
- Dome
- Ramp down
- Ramp up
- Stepped ramp up
- Square
- Short impulse square'
- Short impulse triangle
- Stepped square ramp down
- Random stepped
- Growing random ramp up (staircase)
- Random impulse size squares
- Random impulse size triangles
- Noise
- Pitched noise

The ZONE B.F. (black edition onwards) now features an additional mode. On the back of the PCB you will find two jumpers, marked as JP1. CV1 is LFO channel 1 and CV2 is LFO channel 2. By moving the jumper so it sits on one leg (rather than 2 as when you have received the module), the Sync input for either LFO channel now becomes LFO speed input, controllable via CV.

2 LFOs
16 waveforms per LFO
sync or speed CV control

5 HP
40 mA +12V
10 mA -12V
0 mA 5V

Notes: Simple but effective four-channel module, allowing you to attenuate or offset CV or audio signals. Normalled 5V source on each channel allows you to generate a standalone CV signal without an input.

Supplier notes:

4TTEN (pronounced either ATTEN or FOUR-TEN) is a four channel attenuator and offset generator.
Use 4TTEN to attenuate any CV or audio signal by running through the ins and outs.
A +5V voltage source is normalled to each input, making it a standalone offset when there is no cable patched into an input.
Each channel is completely independent.
Ever-so-useful in live performance, we designed this module with 4 sliders for easy maneuverability, visual feedback, and enjoyable to play interface. Make your eurorack modular synthesizer system more playable with 4TTEN!
*** 4TTEN's PCB is 113mm (4.45") tall and may be a tight fit in some cases ***

Highlights

- 4 independent attenuators for Control Voltage and Audio signals
- Performance friendly sliders
- Can be used as 0 to +5V Offset
- Comfortable fader caps from the Performance Mixer
- Only 4 hp!

Specs:

Size: 4hp
Depth: 30mm(with cables)
Power: +5mA , -5mA
Virtually no drop on 1V/Oct signals.
VERTICAL PCB LENGTH: 113mm (4.45")
IMPEDANCE = (SOURCE + 100ohm ) / 100kohm
UNBUFFERED

Notes: Erica Pico Voice is amazingly versatile sound source in just 3HP. It features 8 sound generation algorithms: Karplus Strong, Chords, Wavetable, TB303 bassline emulation, PWM, Supersaw, Wavefold and Harmonic saturation, with three adjustable parameters per algorithm and CV control over one user defined parameter. Despite the small size, Pico Voice sounds bigger than it is!

Dimensions
3 HP
35 mm deep

Current Draw
30 mA +12V
20 mA -12V

Notes: Module A-156 is a Dual Control Voltage Quantizer. A quantizer converts a continuous control voltage in the range 0...+10V into a stepped output voltage in the same voltage range (i.e. only certain voltages occur). Normally 1/12 V steps are used to obtain semitone steps. Quantizer 2 of the A-156 allows has more sophisticated quantizing modes like major scale (i.e. only voltages corresponding to the major scale), minor scale, major chord, minor chord, fundamental + fifth and addition of seventh or sixth when chords are selected. Only those voltages appear at the CV output which comply with the selection rule (e.g. minor chord with seventh). The mode setting of quantizer 2 is done with 3 switches (1-0-1 type with middle position). From the factory quantizer 1 is working in the semitone mode. But there is a jumper on the pc board that can be changed so that even quantizer 1 uses the same scale as quantizer 2.

For each quantizer the following in/outputs are available:

- Control voltage input (CV In): The input for the continuous voltage to be quantized
- Control voltage output (CV Out): The output of the quantized voltage
- Trigger input (Trig.In): If this jack is left open the quantizer is working permanently. If a rectangle voltage is applied quantisation happens only at the rising edge of the signal (e.g. from an LFO or MIDI-to-Sync interface). Thus the quantizing can be synchronized with other events
- Trigger output (Trig.Out): Whenever a quantisation happens (i.e. a new voltage is generated at the CV Out) a positive pulse occurs at this output. It may be used to trigger an envelope generator (ADSR) or for triggering other modules (sequential switch A-151, trigger divider/sequencer A-160/161, trigger delay A-162, ...). If none of these functions are used the jack is left open

On top of that the A-156 is provided with a common transpose CV input having an additive effect on both quantizers. This input is quantized in semitone steps. A typical application is the transposition of a sequence generated by the A-155 by a second control voltage (e.g. coming from the MIDI-CV interface A-190).

Typical applications:

- Quantizing the CV sequence generated by an A-155 (semitone, only major scale, only minor scale and so on)
- Quantizing the voltage coming from the Trautonium Manual / Ribbon Controller A-198, Theremin A-178 or Light-to-CV module A-179 to get accurate semitones or major/minor scale tones
- Arpeggio-like effects with LFO, random, noise, envelope generators as CV sources (for negative or symmetrical voltages an offset must be added, e.g. with the offset/attenuator module A-129-3, to obtain positive voltages for the A-156 input)

Width: 8 HP / 40.3 mm
Depth: 55 mm (measured from the rear side of the front panel)
Current: +50mA (+12V) / -10mA (-12V)

Notes: Inamp is a dual pre-amp in just 4 HPs. Featuring 6,3 Jacks inputs as well as Minijacks.

Both inputs are summed so you can use them at the same time as an input mixer.

The unit is designed to amplify up to x20 the input signal, allowing to amplify most of the music machines out there (Domestic line levels) as well as some guitars (Humbucker-like pickups and so).

The first channel is normalled to second one in series, so it's possible to have two stages of amplification or two separate ones.

Notes: This module connects via 3 pin cable to the Intellijel Pedal I/O 1U module.

It provides the 1/4" TS interface for connecting guitar pedals or instruments.

Dimensions: 8 HP
44 mm deep

Module is a 1U tile.

Current Draw: Module does not draw current

Notes: Expander module adds four more assignable CV inputs to Squid Salmple for advanced modulation and sample manipulation. A must for all Squid Salmple owners.

Supplier's Notes:
AXON-1 is a 4HP expander module for the SQUID SALMPLE that provides 4 additional freely assignable CV inputs.

The addition of AXON-1 brings Squid's total number of CV inputs to 7, greatly increasing the possibilities for vast modular sample manipulation.

Each modulation assignment includes digital attenuation and offset and behaves just like Squid's 3 built in CV inputs.

AXON-1 requires firmware 166 or later installed on the Squid Salmple to function!

Notes: A-135-2 is a miniature version of the A-135-1. Behind a front panel with 8 HP only four linear VCAs (voltage controlled amplifiers) and a voltage controlled mixer based on the VCAs are available.

Controls, In/Outputs and Functions of each VCA:

Level (manual control of the VCA amplification), small rubberized knob (L1...L4)

Control voltage input with associated attenuator (CV1...CV4), for the full VCA control range about 0...+5V control voltage are required (attenuator fully clockwise), for higher control voltages the attenuator is used, the attenuators are without knobs, just plastic shafts with white marker

Signal Input

Signal Output

All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages (e.g. to control the level of LFOs or envelopes)

The signal input is not equipped with an attenuator. But the VCAs can process all signals up to 15Vpp / -7.5...+7.5V without clipping. In case of higher levels an external attenuator is required (e.g. A-183-1).

The available amplification range is 0...1, the maximal amplification is 1 (i.e. it "clips" and remains at 1 even if the control voltage goes beyond the value that corresponds to amplification 1)

Functions of the voltage controlled mixers:

two outputs ("Selected" and "All")

Selected output: the ouput if a VCA is removed from this sum signal when a plug is inserted into the corresponding VCA output.

All output: sum of all VCA outputs, regardless of inserted plugs into the VCA outputs

The maximal amplification is about 0.6 to avoid clipping at the mixer outputs (otherwise the outputs may distort with 15Vpp signals at each signal input and full amplifications)

Special functions of the voltage controlled mixer (selectable by internal jumpers)

Dual Stereo VCA: In this case the control unit of VCA1 (L1 + CV1) affects also VCA3 and the control unit of VCA2 (L2 + CV2) affects also VCA4. The control units of VCA3 (L3 + CV3) and VCA4 (L4 +CV4) are out of operation.

Quad VCA: In this case the control unit of VCA1 (L1 + CV1) affects all four VCAs. The control units of VCA2, VCA3 and VCA4 are out of operation. In this mode the module has the same function as module A-132-2. That's why module A-132-2 will be discontinued.

Normalling of the signal inputs: by means of internal jumpers signal input 1 can be normalled to signal input 2, signal input 2 to signal input 3 and signal input 3 to signal input In 4. That way the same input signal can be distributed to four different channels by means of control voltages (e.g. quadrophonic distribution of audio signals). Suitable control voltage sources are e.g. A-144 (Morphing Controller) or A-143-9 (Quadrature LFO).

Additional technical specification for each VCA (based on the specifications of the VCA circuits CEM3360/AS3360 used in the module):

Crosstalk between VCAs: typ. - 80dB

Signal attenuation at 0V CV: typ. -70dB

Total harmonic distortion: typ. 1%

Control voltage feedthrough: max. 15mV

Width: 8 HP / 40.3 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: +40mA (+12V) / -40mA (-12V)

Notes: The Row Power 25 is a clean, regulated, and protected power supply module for Eurorack systems. It requires a barrel-style power brick (15V - 20V DC) and supplies power to modules via flying bus cables, direct connection, and/or bus boards.

The Row Power 25 provides 25W of power for any Eurorack modules (typically 4-10 modules*):

+12V @ 1.4A maximum, 1.0A recommended
-12V @ 0.8A maximum, 0.5A recommended
+5V @ 1.0A maximum, 0.8A recommended

*number of modules can vary depending on each module's power consumption.

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 25 can also be daisy-chained to Pods. Each Row Power and Pod will be independently regulated and protected for ultra-low cross-talk between rows.

Notes: Module A-160-5 is a voltage controlled clock multiplier. The incoming clock signal (socket Clock In) is multiplied by a factor that depends upon the control voltage on socket CV In (0...+5V) and the position of the Mode switch. The multiplied clock signal is available at the socket Clock Out. According to the position of the Mode switch different clock multiplying factors are assigned to the control voltage. With 0V CV no clock output is generated. This state is indicated by "all LEDs off". With increasing CV integer factors (left position of the mode switch), power of two factors (middle position) or a mix of both (right position) are obtained. Nine LEDs are used to show the currently selected multiplying factor. In addition two LEDs are used to display the incoming and outgoing clock signal.

A manual control is used to adjust the clock multiplication factor manually without the need of an external control voltage. The voltage generated by this control ("Manual") is normalled to the CV In socket. As long as no plug is inserted into the CV In socket the clock multiplication factor is adjusted by means of the manual control knob and displayed by the LEDs. For dynamic applications (like the ratcheting function described below) the manually generated CV is overwritten by the external CV which has to be fed into the CV In socket.

The module can be used for all kind of clock multiplying applications. One important example is the generation of so-called ratcheting sequences. The band Tangerine Dream is famous for this kind of sequences. A normal sequencer generates only one gate signal per step. A ratcheting sequence may have also more than one gate pulses per step. This function can be obtained by using the A-160-5: one CV output of the sequencer is used to define the number of gate pulses per step. If the control of the step in question is fully CCW the generated CV is 0V and no gate signal is generated (mute of the step). When the control of the step in question is turned clockwise one, two or more gate pulses are generated depending upon the position of the mode switch and the voltage generated by the CV at this step.

Technical note: Due to the nature of clock multiplying it takes a few input clock pulses until the clock output is stable. One has to average a few input clock pulses to generate the multiplied clock output signal. Even when the input clock frequency changes it will take a few cycles until the output clock signal is correct as the module cannot foresee the future of the clock input signal. The generated clock output signal is derived from the last few cycles of the clock input signal. Consequently the module should be driven only by a clock signal with constant or slowly changing frequency.

Notes: MMF is an analogue, multimode filter with a 12dB per octave slope. Its sonic character swings all the way from classic low pass to squelchy acid lines. Simultaneous outputs of low pass, high pass, and band pass filter types are provided allowing for many variations of the input signal. Whether you're looking for smooth and creamy, or resonant and wild, MMF can go there.

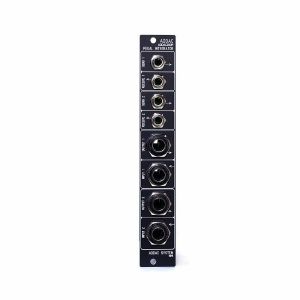

Notes: This small utility is the pedal's lover best friend, it allows 2 diferent chains of pedals to be independently connected to your synth.

The Send channels attenuate the synth level to instrument level.

The Return channels amplify the signal from instrument to synth level.

Specs:
- Width: 4 HP
- Depth: 3 cm
- Max current: 10mA

Notes: Module A-160-2V is an enhanced version of the standard clock divider A-160. The module is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses.

The Clock input will take any digital signal from, eg., an LFO, MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you have access to three sets of seven different sub-divided clock signals, from half the clock frequency down to 1/128. The low/high levels of the output signals are 0V and about +10V.

The A-160-2V also has a reset input. Whenever a reset signal is sensed, all outputs are set to certain levels which depend upon the selected mode.

HP : 4

Notes: Erica Pico VCF1, is a younger brother of Erica Black Polivoks VCF, designed on the similar topology using rare Russian op amps. As result you get a filter great for acid bass lines, screaming resonance sweeps and deep wobbles.

Features:
- Lowpass and bandpass modes
- Self oscillation
- Rare russian opamps used
- Input protection against overvoltage

Dimensions
3 HP
35 mm deep

Current Draw
12 mA +12V
11 mA -12V

Notes: A Low Pass Gate (LPG) can be a low pass filter, a VCA or a combination of both. This means both the harmonic content and volume can be controlled simultaneously which resembles the behaviour of many instruments: the louder, the more harmonics.

The A-101-2's mode of operation is set with a switch: left position is low pass, right is VCA and the combo mode is in the centre. Alternatively, you can activate the modes with gate signals which is the reason for two gate inputs; this is very interesting in combination with clock dividers or trigger sequencers.

- Gate 1 high & gate 2 low = low pass mode
- Gate 1 low & gate 2 high = VCA mode
- Both Gate 1 & 2 high = combo mode

The A-101-2 has an aggressive sound, compared to other LPGs and its resonance goes up to self-oscillation which not many LPGs offer. The oscillation is rather dirty and far from being a sine wave.

3U Eurorack module, 8HP wide, 50mm deep.

Notes: ADSR is a four stage linear envelope with two expressive ranges. Each stage can be modified independently allowing for the creation of complex, multi-segment envelopes. Great for modulating filters, VCAs, and oscillators.

Notes: Terci Ruina combines three classic distortions in 4 hp. Distortions are reinterpreted in classic NE style and routed through each other for complete sonic annihilation of any sound. Patch in and out anywhere in the signal chain to pick the best sound for your purpose (because modular). Looking for a pretty distortion? This is probably not your module. Unapologetically gross and dirty.

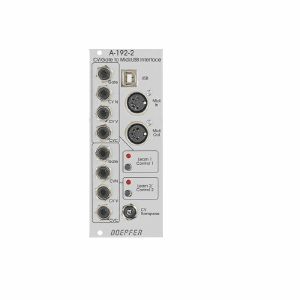

Notes: Module A-192-2 contains two independent CV/Gate-to-Midi/USB interfaces. For each of the two sub-units these inputs are available:

- Gate Input (min. +5V)
- CVN Input (defines the Midi note number), 1V/octave standard, range 0...+10V (i.e. 10 octaves)
- CVV Input (defines the velocity value assigned to the Midi note message), can be used alternatively for Midi volume (CC#7), range 0...+5V
- CVC Input (free assignable to any Midi control change number), range 0...+5V

For both sub-units a common CV Transpose input is available (1V/octave, range 0...+10V). The voltage applied to this input is added internally to CVN before the Midi note number is generated. It can be used e.g. to transpose two sequences simultaneously by one voltage.

How it works:

Whenever the rising edge of the Gate input is recognized a Midi note on message is generated. The note number corresponds to the sum of the voltages applied to the CVN input and the common CV Transpose Input that is present at the rising edge of the gate signal.

Notes: Lipsk facilitates the inversion of the individual bits produced by Drezno (or any other module connected to its input header at the back), and delivers the resulting code to its output header. Bit inversion can be manually controlled by pressing any of combination of its eight illuminated buttons, or it can be automated by patching gate signals into its gate input sockets. An active (5V) gate flips the state of the respective bit. If the button is active (bit already flipped), then the gate flips the bit again yielding double inversion (no inversion). The corresponding LEDs show the combined effect of both manual and gate actions. The bit processing logic is hardware-based, so there is virtually no latency, allowing the binary signals to be manipulated at extreme rates.

Notes: Erica Synths Pico VCO is a great, deep sounding VCO with 32 selected waves: classical, fattened with sub-oscillator, FM synth and others.

Features
2 banks, 16 waves each
VCO/LFO mode
Voltage controlled wavesurfing
Wave morphing in LFO setting
Typically you would need several rather expensive modules to generate similar sounds, besides there's an extra feature: flip a switch, and you have a versatile LFO.

With Pico Series we challenged ourselves - can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.


Technical specification:

VCO frequency range: 30Hz - 5kHz
LFO frequency range: 0,1Hz - 20Hz
1V/Oct input signal amplitude: 0V - +10V;
Output amplitude: 10V ptp
Power consumption: +26 mA, -4 mA
Module width: 3HP
Module depth: 35 mm

Notes: By combining a mixer and four VCAs in a single module, Mix 3 manages to provide a unique combination of compact size and functionality in just 6 HP. High-end signal paths ensure extremely low noise and distortion, wide headroom and precise gain control, despite the small form factor.

Each of the three main channels has an exponential response, which is more natural for audio than linear, as it matches the human hearing. However, all signal paths are DC-coupled, so control voltage (CV) signals can be processed as well.

What truly sets Mix 3 apart from other compact mixing modules are the three CV inputs, providing voltage control over the signal levels. This even allows you to go beyond unity gain and reach up to +20 dB of amplification. Once a CV input is used, the corresponding channel knob becomes a CV attenuator.

When clipping, Mix 3 does so in a clean, symmetrical way. This yields a very pure overdriven sound, only containing odd harmonics, and allows the module to be used as a triple voltage controlled distortion.

Additional features include audio indicator LEDs, a fourth auxiliary input, voltage control over the output level and a line output jumper setting.

Notes: Motion MTR allow you to mix, attenuate and invert signals while having clear visual feedback of their levels.

Each channel can function as:

Audio level control with VU meter
CV attenuator with voltage meter
CV inverter with voltage meter
Each input is normalled to 10v, so you can
use each of them to generate fixed voltages.
Also, the outputs of channels 1 and 2 are summed into Out 3 to be used as a mixer.
Patch it wildly to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination of them all!
This module is our first collaboration with Robin Vincent from Molten modular.

Specs

Current Draw: +12v: 110 mA -12v: 43 mA
Width: 6HP
Depth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.
Idea by Robin Vincent

Notes: Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest quality components are used, all inputs and outputs are protected against undesired overvoltage. When designing Black Series, put Erica Synths prioritised design and usability first Big knobs are assigned to functions that make difference in sound. Erica Black series consist of range of modules that are needed to put together entire synth. Enjoy!

The Erica Synths Black Dual ASR EG is a versatile, full analogue voltage controlled looping envelope generator and low frequency oscillator with manually and voltage controlled shape and rate, designed for use in advanced modular systems.

It has two identical parts, each featuring all typical envelope generator controls and bonus features - the end of the cycle output and bi-polar LFO output. When in loop mode the shortest attack and decay settings turn the module into voltage controlled drone oscillator with adjustable waveform (it will not track 1V/oct, though).

Notes: A compact attenuverting (attenuator-inverter) joystick controller and Gate Generator. With it, you can generate and process two control voltages using only one hand. Provided controls for CV ranges and offset adjust the boundaries of your control, this way it never gets out of the desired range, ensuring sensibility and playability even with wild performance gestures.

Specifications

Current needs: +12V: 25mA, -12V: 10mA
Width: 12 HP
Depth: 35mm (including power connector)
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.
