Back in stock: Studio Equipment

Notes: ***B-STOCK: Box opened, product in perfect working order***


The latest in 1010's innovative range of compact devices, the Bento is a fresh take on sampling and sequencing, offering an alternative to conventional options such as Akai's MPC series. Pure standalone creative flow.

Supplier's notes:
Sample Every Flavour

Bento is a portable, all-in-one sampling production lab that brings together flexible sequencing, expressive performance tools, and pro-level connectivity-perfect as the centrepiece of your desktop or mobile rig. Whether you're looping on the go, launching clips live, or sequencing your entire synth setup, Bento gives you the tools to shape your sound from idea to performance.

With pristine 24-bit sound quality, a bright 7" touchscreen, 16 responsive pads, and deep control over samples, MIDI, and effects, Bento offers a fast, fluid workflow in a compact and portable form. Sequence one-shots, build multi-sample instruments, and chop loops using Bento's flexible tracks, scene-based sequencing, and expansive modulation and FX engine.

Designed to replace laptops, simplify cabling, and integrate seamlessly with your gear, Bento features multiple stereo inputs and outputs, USB-C host and device ports, dual TRS MIDI I/O, and a built-in battery for up to 3 hours of mobile creativity.

Recording Capabilities

Capture loops quickly with the option to synchronize the start and stop times to the clock
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Store recorded samples as WAV files on the micro SD card

What's included

bento - sampling production lab
MicroSD card with over 160 patches and over 200 wav files
USB C power cord
USB C power and data splitter
Type B TRS MIDI To MIDI 5 Pin DIN adapter
QR Code with link to the Quick Start Guide

Technical Specs

8 tracks with multiple patch types-sample banks, multisamples, slicers, granular, loops, and external MIDI
16 pressure- and velocity-sensitive pads
7" diagonal touch screen
8 context-sensitive endless encoders
3 stereo inputs, 3 stereo outputs, 1 stereo headphone out
2 TRS MIDI inputs & 2 TRS MIDI outputs (Type A & B)
USB-C host and device ports
Internal battery with 3 hours in low power mode
Includes 155 Patches and over 5000 sample files
Expandable via microSD card
24-bit ADC/DAC
MIDI sequencing, modulation, and CC control support
Compatible with 100 x 100 VESA mounts
Product dimensions: 8" x 8.5" x 2", 2 lb (20.4 x 21.8 x 5.1 cm, 936 grams)
Package dimensions: 10.25" x 8.5" x 2.75", 2.7 lb. ( 26 x 21.6 x 7 cm, 1.2 kg)

Notes: The Nanobox series kicks off with a tiny wavetable synth. 1010music's Fireball offers eight-voice polyphony, touchscreen control, built-in effects and custom user wavetables. Small but spicy.

Supplier's Notes:
Red Hot Wavetable Synthesis

Bring some heat to your music creation workflow with Nanobox | Fireball, a polyphonic wavetable mini synthesizer with intuitive touchscreen control. Featuring eight voice polyphony, two wavetables and an oscillator, Fireball unlocks a huge array of sounds, from punchy and aggressive leads to atmospheric pads. Touchscreen X/Y control allows you to instantly morph and shape sounds with the swipe of a finger. Choose from hundreds of professionally designed presets and wav files, or quickly create your own patches with deep parameter control via the 2" touchscreen. Integrate fireball seamlessly with your existing tabletop gear or create on-the-go thanks to a compact design that fits in the palm of your hand.

What is included:

Nanobox | Fireball compact polyphonic granular synthesizer with touchscreen control
MicroSD card with presets and wav files
USB power cord
Type B TRS MIDI To MIDI 5 Pin DIN adapter
Quick Start Guide

Technical Specs:

Includes 123 presets and 103 wavetables
Wavetables use 2048 samples per cycle and 256 cycles
Power: USB-C connection 5V, 500mA
3.5mm audio input and output
Maximum input and output level: 2Vrms
DAC and ADC resolution: 24-bit
Internal resolution: 32-bit
Sample rate: Oscillators: 96kHz Rest of Engine: 48kHz
MIDI Input: 3.5mm Type A/B auto sensing
MIDI Output: 3.5mm Type A/B selectable
Clock Input: 4 PPQ
MIDI support: Note On/Off, Mod Wheel, Sustain, Pitch Bend, Mono & poly Aftertouch, assignable CCs, and clock
H x W x D: 1.5" x 3.75" x 3"
Weight: 0.25 lbs.

Notes: 1010's Nanobox range expands with the Razzmatazz, a tiny drum machine with FM synthesis, sampling and a built-in sequencer. Small but powerful, with built-in MIDI and touchscreen control.

Supplier's Notes:
Create the juiciest beats and tastiest rhythms with Nanobox Razzmatazz, a mini drum sequencer that combines powerful FM synthesis and sampling. Featuring advanced voice architecture, razzmatazz puts a huge range of percussive sounds at your fingertips-from deep and gritty kick drums to searing snare hits and crisp hi-hats. Perform using 8 touchscreen pads or your favorite midi controller, and craft up to 16 rhythms using an innovative visual sequencer that allows you to see all pad states and steps simultaneously. Shape the sound of each pad by combining any variation of two FM oscillators and a WAV file-plus two filters, two envelopes, a resonator, a snap generator, and three additional effects.

You can even choose from four unique types of distortion to create incredibly distinct and powerful drum sounds. Enjoy massive analogue drum sounds and an innovative feature set, all in a compact package that goes anywhere.

Technical Specs

Includes 120 presets and 112 wave files
8 pads that can support 2 FM Oscillators and WAV file each
Sample memory per WAV of 30 seconds
Power: USB-C connection 5V, 500mA
3.5mm audio input and output
Maximum input and output level: 2Vrms
DAC and ADC resolution: 24-bit
Internal resolution: 32-bit
Sample rate: 48kHz
MIDI Input: 3.5mm Type A/B auto sensing
MIDI Output: 3.5mm Type B
Clock Input: 1,2, 4, 8, 12 or 24 PPQ selectable
MIDI support: Note On/Off, Velocity, Pressure, Mod Wheel, Aftertouch, assignable CCs, program changes and clock
H x W x D: 1.5" x 3.75" x 3"
Weight: 0.25 lbs.

What is included:

Nanobox | razzmatazz mini drum sequencer with FM synthesis and sampling
MicroSD card with presets and wav files
Color matched USB power cord
Type B TRS MIDI To MIDI 5 Pin DIN adapter
Quick Start Guide

Notes: Great value from 4ms's twist on the Stereo Triggered Sampler module, this time capable of playing and manipulating stereo or mono WAV files from an SD card.

Supplier's Notes:
The Sampler is a variation of the Stereo Triggered Sampler.

Record, play and loop stereo .wav files with an SD Card. Includes the same 2022 Sampler Pack from the Stereo Triggered Sampler.

Features:

The Sampler plays stereo or mono .wav files from an SD Card. Samples are arranged into banks by placing .wav files into folders (each folder is a bank). A maximum of 10 samples can be loaded in a bank. There is a maximum of 60 banks (600 samples maximum total).
Sample files are limited to 4GB each, which is over 6 hours at 44k/16b/stereo.

Hundreds of samples included on microSD card
Extremely quiet, low noise and low jitter design
Stereo or Mono output

A knob and CV jack selects the Sample to play, and the Start Position knob and CV jack control where in the sample playback will begin. The Length knob and CV jack determine how much of the sample is played back: from tiny grains, to percussive hits, to longer loops... or just the entire file.

Pressing Play or firing a trigger into the Play Trig jack will play the sample. Holding the Play button down for a second will toggle looping.

There's also a Reverse button and jack for backwards playback, and an End Out jack for synchronizing loops, or cascading sample playback with other events.

To record samples, hold Play and Reverse for two seconds. Press Play again or fire a trigger into the Play/Rec Trig jack to start and stop recording. Each recording will create a new stereo 48kHz 24bit .wav file in the current bank's folder. Recordings can be as long as your card has the capacity for: a 256GB card is 18 days of continuous recording (432.9 hours). Audio data is split into maximum 4GB wav files on the microSD card.

Play button/trigger jack: Tapping the button or receiving a trigger starts/re-starts the sample
Sample CV/knob: select which sample within the channel's bank
Pitch CV and Pitch knob: playback pitch (-10 to +4 octave range)
Start Pos CV/knob: position in the sample to begin playback (loop start point)
Length CV/knob: playback time (loop end point)
Length knob at max: entire file is played
Length knob 50%-99%: 200ms - 5s of the sample is played (beginning at the Start Position)
Length knob <50%: Percussive decay envelope is applied to the playback (attack-only envelope if playing Reverse)
Length <1%: Tiny grains are played (can be used to sweep through sample file data manually)
Reverse button/jack: toggles forward/backwards
Bank button: selects channel's bank
Reverse + Start Pos button/knob combo allows for setting volume of playback
Maximum file size for playback: 4GB per file (6.7 hours per file at 44.1kHz/16b/stereo)
microSD Card is hot-swappable when Busy light is off: no power-down required to change cards.
Samples that are pre-loaded into memory can continue playing while card is swapped.

File Organization:

Using a computer, the intuitive automatic bank loading features make dragging and dropping your entire sample library a snap. No files need to be renamed. Just create folders and put up to 10 samples in each. If you want a folder to be associated with a particular colour of the Bank button, name the folder a colour name (such as "Blue - Loops").

Ships with a high-speed 16GB microSD card, loaded with hundreds of samples created for 4ms, from musicians such as Richard Devine, Wobbly, Moor Mother, Robert Aiki Aubrey Lowe, Joseph Pailo, Russell E.L. Butler, Hugo Paris & Marc Kate, Paul Barker, Baseck, Animal Collective, Cristian Vogel, Jay E, Marcus Fischer, Chris Carter, Daedelus, Nero Bellum, Anna Sitko, Thomas Fang, Bogdan Raczynski, and more (Sample List)

Intuitive bank/colour organization system; no need to rename your wav files
Record new samples directly to a bank with the Record Input jacks...
... or drag your folders of sound files onto the microSD card, and each folder will become a bank.
Folders starting with a colour name will be loaded into that colour bank
Example "Blue - Frooty Loops" will load into the Blue bank
Sub-folders are ignored, only folders in the root directory are scanned for wav files
Works best with UHS Speed Class 3 cards with |3| symbol printed on the card

Specs:

Electrical and Mechanical Specifications:
Module Size:
16 HP Eurorack format module
10-pin Eurorack power header
1.3" (33mm) maximum depth with power cable
Power consumption:
+12V: 135mA
-12V: 41mA
+5V rail: not used
Connect red stripe of power cable towards the bottom of the module, which is marked with a white stripe and the words -12V and POWER
Audio Inputs:
20Hz to 10kHz (+/-0.1dB); -6dB rolloff @ 20kHz
21V peak-to-peak maximum before clipping
Audio Outputs:
0Hz (DC) to 22kHz with maximum -1.8dB difference between file data and output
+10.5V to -10.5V maximum output
Trigger inputs:
Latency: 0.7us typi

Notes: Rack power bringing 2.5A (2500mA) on both the +12V and -12V rails. There is a 5V rail, but it pulls from the +12V rail, up to 750mA. So only use the +5V rail if you have to.

Comes with 12-position flying bus cable and wall power supply. The wall power supply is the same unit as After Later Audio use on their cases, so there's plenty of headroom and you don't have to worry about memorizing which amperage is for which.

This should be roughly enough for 2 rows of modules in a 104hp case. If you just need power for 1 row, check out our Warp Drive module.

Notes: Soft on-ear memory foam cushions covered with PU leather. The thickness and materials gives high isolation and a punchy sound. Strong bass and low end dynamics.

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Like a greatest hits of recent Analogue Solutions synths, the Ample combines sound elements from the Fusebox with jack patch points, a patch pin matrix, plus sequencer and CV touch pads from the Generator, creating something new and unique.

Supplier's Notes:
Ample combines the best elements of several of Analogue Solutions' recent products.

The sound elements of Fusebox
Jack patch points of Concussor Eurorack
Patch pin matrix of Vostok
Echo from Dr Strangelove
Sequencer and CV touch pads of Generator

It shares all this yet still has its own sound!

Ample can be as complex or as simple as you want it to be

This synth has been given a large and diverse number of controls, that along side the patch sockets, will give even the best and experienced synthesist endless possibilities.

This synth presents the controls in a user friendly and familiar synth layout that, together with this manual and other resources, enable even the new guy to get great sounds.

Synth - Percussion - Audio Processor

Ample is a compact analogue synthesizer. Analogue - as in really analogue. Aside from the MIDI chip (which has to be digital), everything else is totally analogue using real transistors and op-amps. There are no CPU stabilised and quantised circuits, no DCOs, no digital LFOs and no digital EGs, as found on other so called analogue synths. The circuitry is based on designs dating back to the mid-1970s. So Ample has a genuine old sound.

Circuits included

3x Analogue Oscillators

There are three analogue VCOs - each providing a wealth of features and modulation choices. VCO3 can easily be utilised as a LFO.

2x Analogue Low Frequency Oscillator

LFO2(/Sync) has a triangle wave output. VCO3 can be used as an LFO and has Saw, Triangle and Square wave modulation signals.

Analogue Filter

Ample uses a four pole 24bB per octave low pass filter.

Analogue Amplifier

The VCA can be set to THRU so it is always 'open'. This allows Ample to be used as an effects processor.

2x Analogue Envelopes

There are two EGs - each having full control over ATTACK, DECAY, SUSTAIN, and RELEASE.

Modulation

Great thought has been placed into modulation route choices, allowing a wide range of sounds to be produced, including percussion and 'modular' sounds further extended by patching with the jack sockets and pin matrix.

MIDI

MIDI is intentionally kept simple - so you can concentrate on making new sounds and making music - not getting tied up with SYSEX programming.

You get the all important control over filter cut-off using MIDI Velocity.

Patchable External CV Control Sockets

Ample has many input and output audio and CV sockets - to allow the synth to be effectively re-wired to make new sounds.

The sockets also enable it to be easily used with Eurorack and other modular systems. They can be patched together.

Sequencer

Ample has a vintage style 16 step sequencer.

Touch Keys

There are 6 touch keys that each output a set voltage. Use this to play the pitch or as modulation signals. A great tool for inspiration!

Pin Matrix

A neat way to patch the synth.

Echo

Nice lo-fi echo / delay.

Notes: Ultra-portable headphone amp designed to be belt-work. XLR and TRS combo input, 3.5mm output and up to 40 hours' performance from two AA batteries.

Supplier's Notes:
The HP-1 is a belt-worn; battery-powered headphone amplifier that brings excellent performance to portable applications. With a locking 1/4/XLR Combo input jack, sturdy belt clip, and output volume control, it provides reliable performance both on and off the stage. The HP-1 provides a high output level when used with a variety of different headphones and is great for in-ear monitoring applications. Its long battery life will not leave you stranded. The HP-1 is packaged in a rugged extrusion, with heavy-duty jacks for years of reliable operation.

FEATURES

High Output Headphone Amplifier Locking 14/XLR Combo Input Jack Balanced Mono/ Unbalanced Stereo Switch Variable Volume Control Sturdy Belt Clip Over 40hrs from 2 AA Batteries 3.5mm Output Connector Rugged Design

Specifications
Input Connections Locking 14/XLR combo jack
Input Impedance 5K Ohms
Max Input level +6.6dBu
Output Connections 3.5mm Jack (1/8)
Gain +9dB
THD = .02% @1kHz typ.
Max Output 105mW @ 0.1% THD
Typical run time 40 hrs. (Alkaline batteries)
Power Requirements 2-AA batteries Included
Dimensions (HxWxD) 5.4x1.72x1.6 (137×43.x40.6 mm)
Weight 0.51 lbs. / 0.23kg

Notes: The ARTcessories TPatch is a compact 8-point balanced patchbay that organises your cables into a convenient central location on your studio desktop. Designed for maximum flexibility, the TPatch has 1/4" TRS phone connectors user selectable normal and half-normal modes.

The compact black-anodized all aluminum case and it's passive design allow the TPatch to provide years of trouble free service.

The specifications:

Connectors: 1/4" TRS balanced phone jacks
CMRR: > -90 dB (typical)
Isolation: > -80 dB (typical)
Dimensions (mm): 47 H x 117 W x 99 D
Weight: 0.38kg

Connectors: 1/4" TRS balanced phone jacks
CMRR: > -90 dB (typical)
Isolation: > -80 dB (typical)
Dimensions: 47mm x 117mm x 99mm
Weight: 0.38kg.

Notes: Cleanly and conveniently extend the MRCC's MIDI outputs with the Remote 7! Adds five routable 5 Pin DINs, plus two shared 3.5MM TRS MIDI jacks (one MIDI TRS standard type A, and one type B) over a shielded Ethernet cable. A 10-metre (32 ft.) Ethernet cable is included and automatically added to your order.

This requires the MRCC, which is sold separately. Only one Remote 7 can be connected to an MRCC. If you are connecting 2 MRCC together, you will need a custom RJ45 splitter (coming soon) to use the Remote 7. See the forum for details.

Order the MRCC Remote 7 for delivery with MRCC when ordered from Conductivelabs.com shop.

The orders ship from Conductive Labs' Hong Kong based fulfillment warehouse partner.

Included with the Remote 7 is a 10 meter (32') Ethernet cable* to connect Remote 7 to MRCC.

*If you want to use your own Ethernet cable, it must have shielded connectors that are connected to each other via a drain wire in the cable. CAT6a (or better) Ethernet cables with shielded connectors (metal shrouds over the connectors) are typically connected in this way.

The connections from the RJ45 on MRCC to the Remote 7 are MIDI, and those signals are not actively repeated. In theory you should subtract the length of the Ethernet cable from the max length coming out of the Remote 7. That is, if you have a 30' Ethernet cable from MRCC to Remote 7, subtract 30 from 50 for the max cable length from a Remote 7 output. In practice, when using good quality MIDI cables you can probably use a 50' cable to the Remote 7, and 6' MIDI cables from the Remote 7 to your gear. YMMV.

The 2 TRS jacks on the Remote 7 are hard wired to 2 of the 5 pin DINs. When using the shared DIN and TRS output at the same time, the voltage will be lowered, kind of like using a headphone splitter. A maximum 6 foot TRS cable length is advised, though the MIDI.ORG does not specify a TRS to TRS cable, only a TRS to MIDI adapter with a maximum 6" length. There have been no noticeable problems using short (36") dollar store TRS cables.

Like MRCC outputs 7-12, Remote 7 outputs do not currently pass SysEx data.

Additional information
Weight: 0.192 kg
Dimensions: 14 × 9 × 4 cm

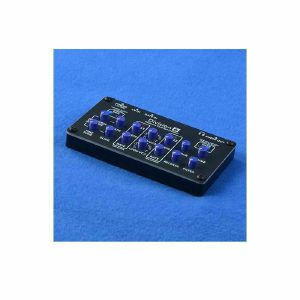

Notes: MRCC XpandR 4×1 - a DIN Expander for MRCC and USB MIDI Interface

A DIN Expander for MRCC
A USB MIDI Interface
A stand-alone MIDI Merger

Need More MIDI Inputs?

When MRCC's 6 routable DIN and TRS inputs just aren't enough, the MRCC XpandR 4×1 adds 4x DIN Inputs (and a shared 3.5mm TRS), and 1x DIN Output (plus 3.5mm TRS thru).

Up to four XpandRs can be attached to the MRCC's USB host ports. Inputs and the Output are routed the same way as MRCC's USB host MIDI virtual ports. So it's quick and easy to route XpandR's ports; it's like they were built-in to MRCC.

The XpandR is also a 4x Input, 1x Output USB class compliant MIDI interface for your PC, Mac, tablet, or what have you.

Or, use the Mode button to switch XpandR to a stand-alone 4 into 1 USB powered MIDI merger. In MIDI merger mode, the USB connector is only used to power the XpandR.

A two-colour indicator shows Power, Merge mode, MIDI Input and MIDI Output activity.

The MRCC XpandR 4×1 comes housed in a robust and beautiful anodized aluminium enclosure with hand-silk screened user interface, like the MRCC. A USB cable and User Guide are included.

Specifications

Requirements

Power:

USB 2.0, 5V DC, 40mA, USB type B connector

USB Power Supply not included. Power from MRCC USB Host port, your PC or other device host port, or for use without a PC, power with a USB charger or USB battery

USB MIDI Interface:
Works with PCs, Mac, Tablets and most other USB hosts that support a USB MIDI Class Compliant device.

Firmware Updates:
Requires a Windows PC, macOS, Linux or other computing device that supports USB mass storage mode.

Limited Warranty

Conductive Labs LLC provides a limited warranty of 1 year (or the minimum required by law in your country) to the original purchaser with proof of date of purchase. In case of failure due to defects in material or workmanship, for the duration of the warranty period, Conductive Labs will repair or replace the device at their discretion. If a replacement is not available, it may be replaced with a device of similar functionality.

MIDI I/O

Ports:

4x 5-Pin DIN, and 1x 3.5mm TRS (Type A) optically isolated Inputs.1
1x 5-Pin DIN, and 1x 3.5mm TRS (Type A) thru Output. Traditional 5V MIDI spec for maximum compatibility with vintage gear.
1x USB 2.0 Type B device port for computer connection with 4x USB MIDI virtual Inputs and 1x Output.
1 First input pair, choose one of the 2 jacks; 5-pin DIN or 3.5mm MIDI TRS Type A.

Remote 7 vs XpandR 4×1

Q: What's the difference in I/O between MRCC Remote 7 and MRCC XpandR 4×1?
A: The MRCC Remote 7 adds 5 additional routable outputs to MRCC. These outputs are already built into MRCC. One Remote 7 per MRCC.
XpandR adds 4x DIN inputs, and one DIN output at the expense of an MRCC USB MIDI host port. Up to four XpandR's per MRCC, using MRCC's available USB host ports.

Q: How far away can Remote 7 and XpandR be from MRCC?
A: The Remote 7 comes with a 10M (33 foot) long Ethernet cable. The maximum cable length is about 50 feet (using short MIDI cables).
The XpandR comes with a 2M (6 foot) USB cable. The max supported USB cable length for USB 2.0 is 5M (16.5) feet.

Q: How is each device routed?
A: Remote 7 is routed with the MRCC "remote routing" button. Hold the remote routing button, then select the outputs to route to.
XpandR is routed using the MRCC USB host routing buttons. Select one of the four inputs, then select outputs.
Remote 7 is great for getting MIDI outputs to where you need them. And XpandR is best when you need more MIDI DIN inputs, with the additional utility of a MIDI interface and MIDI merger. Feel free to use both!

Notes: Aphelion packs a stereo distortion and low/high pass filter into a compact 8HP design, making it ideal for live performance setups. It features three unique stereo distortions in parallel with a continuous crossfade between them, controlled with the character knob or a cv input.

The first circuit is an overdrive that adds a lot of warmth and fattens up the sound without becoming too harsh.
The second one is a saturating wavefolder, that can add interesting extra harmonics depending on the waveform of the material.
The last distortion is inspired by the classic RAT guitar pedal. It adds an aggressive feel and grit to the sound.

A mix knob lets you blend the dry input signal with the distorted signal, before it hits the filter. Setting it fully dry bypasses the distortion effect.

If you need even more dirt, there's a handy +12dB gain switch, to really drive the inputs into overdrive. If you want to keep your low-end undistorted, you can switch on the Low-cut filter.

The non-resonant. This filter is also overdriven, adding some warm distortion and extra harmonics to the stereo filter combines a low pass and high pass stage, and uses an IC based on the classic SSM2040original signal, and limiting the output level. The cutoff knob has no effect in the centre, turning CCW creates a low pass and CW a high pass effect. It's possible to control the low and high pass filter cores independently using CV.

The filter bypass switch can be used for instant reintroduction of all frequencies into the mix upon release-a great tool for live performers.

Lastly the level knob can be used to attenuate the output.

Power: +12v - 100mA, -12v 80mA

Notes: Messor is a stereo compressor with lots of tricks up its sleeves. From gluing a mix together to squashing drums, sidechaining kicks and sculpting transients.

It's a VCA based feed-forward compressor with a high quality low noise signal path. The magic happens in the internal sidechain that shapes the gain reduction envelope.

There are the familiar controls of a compressor, attack, release, threshold, ratio and makeup gain, as well as a switchable high-pass / low-pass sidechain filter.

The ratio can go past limiting and into over-compression, which can completely reshape transients, a great tool for sound design.

Being modular, of course there are CV inputs for Attack, Release and the Filter cutoff.

The Gain CV controls the makeup gain, but also doubles as a Stereo VCA with the Gain knob off.

The gain reduction envelope is also available, for turning filters or other VCA's into compressors for example.

There's a bypass switch, and another Warm/Pure switch, that can bring in a bit of additional saturation and compression in the form of analog tube simulation circuitry.

Lastly there's the possibility to insert an external sidechain, for that classic kick sidechain compression.

Dimensions
8 HP
25 mm deep

Current Draw
45 mA +12V
26 mA -12V

Notes: Mr. Phil Ter is a module that does a whole bunch of analog and digital stuff, in not a lot of HP.

Phil's digital bits are solely comprised of the envelope generator, for your envelopy pleasure.

The analogue bits, developed in partnership with the folks at Pittsburgh Modular Synthesizers, and are comprised of a voltage controlled amplifier circuit (VCA) as well as an extra juicy old-school transistor ladder filter, perfect for those of you who are not afraid of ladders or transistors.

Anyway, pair Mr. Phil Ter up with any oscillato,r or crank up its own filter section's resonance, and self-oscillate, get crazy.

Width = 12hp

Depth = 26mm

Envelope facts

Voltage range: 0-10V

Gate trigger threshold voltage: +5V

Attack, Release, and Decay times 0-10s (slow). 0-5s (fast)

Easter egg mode - quantize itself to 7bit for a steppy sample & hold effect

VCA facts - It's a VCA, not YMCA or YWCA, but made with love. Sound or voltage goes in, and it will come out, or not. Control it with voltage or not. You can never have too many VCA's, and this a good one.

Filter facts - Classic low-pass transistor ladder filter design, also will self-oscillate when resonance is cranked, creating a super clean trackable sine wave

33mA power draw when running +12V rail

22mA power draw when running +5V rail

36mA power draw when running -12V

Notes: Special edition of one of our favourite 303 clones. Fully analogue tribute to the Roland original with incredible sound. Authentic acid at a very nice price.

Supplier's notes:
A full analog synth clone of the famous TB303, coming with a lot of new features and improvements, from the sound point of view as well as the ergonomics of the machine and the sequencer.

A new design, new pots very smooth, new features for Live jam, 2 new sequencer modes for even more creativity, added CV / Gate (and even more) outputs to play your favorite synths !

The design of the analogue circuit (composed of 1 VCO) and the audio engine has been improved compared to the previous version, giving it a warm and groovy sound thanks to the addition of the Shuffle (not present on the original) .

The very intuitive sequencer takes on the original spirit while bringing new and unique features such as Mute and Hammer, which gives it a great flexibility for live jam and more sound variations, as well as 2 new sequencer modes to create New patterns.

Notes: Red version of Cyclone's excellent bass synth, replicating the sound of the iconic Roland TB-303. Fully analogue synth with modernised sequencer and classic acid sound.

Supplier's Notes:
A full analogue synth clone of the famous TB303, coming with a lot of new features and improvements, from the sound point of view as well as the ergonomics of the machine and the sequencer.

A new design, new pots very smooth, new features for Live jam, 2 new sequencer modes for even more creativity, added CV / Gate (and even more) outputs to play your favourite synths!

The design of the analogue circuit (composed of 1 VCO) and the audio engine has been improved compared to the previous version, giving it a warm and groovy sound thanks to the addition of the Shuffle (not present on the original).

The very intuitive sequencer takes on the original spirit while bringing new and unique features such as Mute and Hammer, which gives it a great flexibility for live jam and more sound variations, as well as 2 new sequencer modes to create New patterns.

Specifications

Bass Bot TT-303

VCO

Monophonic
Waveforms: Sawtooth or Square
Frequency Range: 20Hz-850Hz

Main Controls

Tempo Knob
Volume Knob
Track/Pattern Bank Selector Knob
Mode Selector Knob
Power On/Off Switch

Audio Controls

Tuning Knob
Filter Cutoff Frequency Knob
Filter Resonance Knob
Filter Envelope Modulation Amount Knob
Filter Envelope Decay Knob
Accent Amount Knob
Waveform Selector Switch

Data Storage

User Patterns: 432 (9 banks of 48 patterns)
Pattern Lab Patterns: 108 (9 banks of 12 patterns)
Preset Patterns: 108 (9 banks of 12 patterns)
User Tracks: 9

Operating Modes

Pattern Write | Loop Edit |Pattern Lab | Arpeggiator
Pattern Play | Preset | Track Play | Track Write | MIDI

Per-step Modifiers

Down Octave | Up Octave | Accent | Slide
Mute | Hammer | Rest / Tie

Pattern Features

Pattern Length: 1-64 steps
Per-step modifier assignment
Time scales: 16th note, 32nd note, 8th note triplet,
16th note triplet
Assignable pattern LED color
Pattern Copy / Paste functions
Intelligent procedural pattern generator
Pattern-based Arpeggiator
Pattern Mutate function

Track Features

Visual track programming system
Maximum Length: 144 bars | Per-bar transpose option

Global Features

Shuffle Amount | Slide Time | Gate Length |
Illuminated buttons: 26
Tap Tempo Input | Automated VCO calibration |
System LED colour |
MIDI In / Out channels

Outputs

Main Mix (1/4" mono, +15dBu)
Headphone (1/4" stereo, +10dBu)
VCO Waveform (1/8", Sawtooth: 5Vp-p, Square: 3.7Vp-p)
Control Voltage (1/8", 1V/octave, range 1V 5V)
Gate (1/8", 0V 12V)
Accent On (1/8", 0V 5.5V)
Clock (1/8", DIN Sync compatible, 0V 5V)
Start/Stop (1/8", DIN Sync compatible, 0V 5V)
MIDI Out / Thru

Inputs

Filter In (+4dBu nominal, 100kO input impedance)
Power (9VDC, 300mA) | MIDI In

PC Functions

Cyclone Studio application for PC & Mac enables Bass Bot software update and user data backup & restore using MIDI/SysEx transfer.

Physical

Dimensions: L310mm x W130mm x H35mm
Weight: Unit 783g (Boxed with accessories) 1.332kg

Included Accessories: 100-240v Universal Power Adapter | Near Invisible Force Field | Case Transporter | Printed User Manual

Available Accessories: 7 Lines 1/8 to 1/4 output cable snake | Triple 100-240v Universal Power Adapter

Notes: Bass Bot is an intelligent sequencer featuring 21st century transistor technology. An analogue, monophonic synthesizer with classic step entry programming by the user or Bot computer-generated patterns. Seven unique preset personality programs, capable to generate up to 224 read only computer generated presets by the Bass Bot. An additional 224 Write Editable Patterns can compose up to 7 songs of up to 127 bars. All information is saved to on-board flash (permanent) memory and transferable directly to other Bass Bots via 8 DIN cable, (unit cloning) or to PC/MAC (backup) computers for storage with a downloadable transfer application available.

Supplied with Euro two pin to UK three pin adapter

Notes: The FS3X provides increased functionality and convenient Hands-free™ control over UP/DOWN selection of Models, Mode changes, Loop selection, auto START/STOPS and arms auto record where applicable. Compact and portable its small foot-print takes very little space on stage or in your gig bag. Durable 3 button metal chassis construction. A 10' stereo TRS cable is included with each unit. Get the most out of your DigiTech products while performing or practicing.

General Specifications
INPUT

1 x 1/4"
CONSTRUCTION

3-button metal chassis

Notes: The DigiTechr Mosaic Polyphonic 12-String effect pedal sets you upon the path of creating lush 12-string sounds with either 6-string electric or amplified acoustic guitars. Immediately identifiable 12-string tones are now yours with octave low strings and doubled high strings. Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you. The Mosaic's balanced low-end response with crisp octave shimmer produces a tone that's lush and articulate, just as with a 12-string guitar.

Tailor the Mosaic's sound with the independent Level and Tone controls. Level will control the 12-string effect intensity while Tone shapes the overall brightness of the effect. The Mosaic will give you a richer, more resonant and full tone than a standard six-string guitar. It is true bypass and uses a 9V DC power supply to easily integrate into your existing pedalboard.


General Specifications
SAMPLE RATE

44.1 kHz
FREQUENCY RESPONSE

20 Hz-11 kHz (Effect Enabled)
SIGNAL TO NOISE RATIO

> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A CONVERSION

24-bit
INPUT

1/4" Unbalanced (Tip-Sleeve)
OUTPUT

1/4" Unbalanced (Tip-Sleeve)
CONTROLS

Level, Tone
TRUE BYPASS

Yes. True bypass circuitry preserves your tone when the pedal is not in use.
Dimensions
LENGTH

4.75" (120mm)
HEIGHT

1.75" (44mm)
WIDTH

2.875" (73mm)
WEIGHT

0.36 lb. (163g)

Notes: The TRIO+ is a simple-to-use guitar pedal that listens to the way you play and automatically generates bass and drum parts that match your song. Just plug your guitar into the TRIO+, press the Band footswitch to teach the TRIO+ your chords and rhythm, then press the Band footswitch again to start playing with your own personal band! Bass and drum levels can be adjusted for the perfect mix using the TRIO+'s Bass and Drums knobs. The TRIO+ also features a Simple Bass button lets you select between 3 bass line modes for busy or simple bass lines. Pushing the Band Creator™ paradigm further, the TRIO+ also allows you to loop and custom sequence your looped guitar parts to create full songs on the fly. Press the TRIO+'s Looper footswitch to record a loop along with an unlimited number of overdubs. The Loop level can be individually controlled using the TRIO+'s Loop knob. Loops can be recorded by themselves, operating just like a traditional looper, or along with the band. You can also apply built-in effects to your guitar signal by enabling the TRIO+'s Guitar FX button, or connect your favorite effects to the TRIO+'s FX Send and FX Return jacks. The TRIO+ provides 12 music genres to choose from including Blues, R&B, Rock, Alternative Rock, Metal, Pop, Electronic Pop, Hip-Hop, Country, Folk, Latin, and Jazz. 12 song styles are available for each genre and can be selected using the TRIO+'s Style encoder, including selection between 3/4 and 4/4 time signatures. Multi-colored LEDs around the TRIO+'s Style encoder indicate which styles best match your song. The TRIO+ can learn up to 5 different song parts, perfect for creating an intro, verse, chorus, bridge and outro. Song parts can be recalled on-the-fly as the song plays back or pre-programmed as a sequence for automated playback. An optional DigiTech FS3X Footswitch can be connected to the TRIO+'s Control In jack for additional handsfree control with 3 modes of operation to select from. Up to 12 songs along with loops can be stored to the TRIO+'s Micro SD Card (included). Need to create more songs? No problem. Just insert a new SD Card and you're ready to start teaching the band your new songs. To manage all your songs and loops on a computer, download the free Librarian Manager software from digitech.com, available for Windowsr and Macr. The TRIO+ offers independent Tempo, Genre, Style, Loop Level, Bass Level, Drums Level, Headphone Output Level controls; Guitar, FX Return and Control Inputs; Amplifier, Mixer, FX Send and Headphone Outputs; Built-in Guitar Effects (relative to music genre); a Soft Click Footswitch and includes a 9V DC adapter.

General Specifications
ControlsTempo, Genre, Style, Loop, Bass, Drums, Headphone Volume
Backlit ButtonsGuitar FX, Seq, Part 1-5, Alt Time, Song, Simple Bass
FootswitchesLooper, Band
LEDsGenre types, Style 1-12, Audiolastic, Looper, Band
JacksPower, Control In, Guitar In, FX Return, FX Send, Amp Out, Mixer Out, Headphone
OtherMini USB port, microSD card slot
Bit Depth24-bit
Sample Rate44.1 kHz
Signal-To-Noise Ratio110dB, A-weighted
Maximum Recording Time230 seconds per song part i based on a minimum 50 BPM and 48 bars per part
USB TypeMini-B
SD Card TypemicroSDHC, Class 10
SD Min/Max Storage Size8 GB/32 GB
Power Requirements9 VDC external power adapter
Power Consumption7.2 W
Current Draw800 mA
Dimensions
Length5.4"
Width4.25"
Height2.5"
Weight1.46 lbs.
Audio Output
Amp Output TypeUnbalanced, 1/4" TS
Amp Output Impedance1 kO
Mixer Output TypeUnbalanced, 1/4" TS
Mixer Output Impedance1 kO
FX Send Output TypeUnbalanced, 1/4" TS
FX Send Impedance1 kO
Headphone Output Type1/8" (3.5 mm) Stereo Mini Jack
Headphone Output Impedance120 O
Audio Input
Guitar Input TypeUnbalanced, 1/4" TS
Guitar Input Impedance1 MO
FX Return Input TypeUnbalanced, 1/4" TS
FX Return Impedance1 MO
Control Input Type1/4" TRS (compatible with DigiTech FS3X)

Notes: Literally the size of a business card (if a little bit thicker), one of the smallest synths on the market. Simple design with a surprisingly punchy sound, plus CV and gate inputs for control.

Supplier's Notes:
The Business Card Synthesizer is a tiny synth that can be connected to a Business Card Sequencer, other synth gear, or played by itself.

Headphones can be connected directly to the output of the synth, and there are plenty of knobs to play with, so you can easily make noises anywhere. Great for learning about synthesizers!

S&H Button: Enables Sample & Hold, which disables the external CV IN jack and uses LFO1 and LFO2 to determine oscillator pitch. LFO1 sets the sample rate (SHAPE is ignored for this), and LFO2 is the wave that gets sampled.

GATE Button: Manually turns on the gate so sound comes out of the synth. This control is momentary, but you can latch it on by tapping the S&H button while holding the GATE button down.

COARSE TUNE: Adjusts the pitch of the oscillator up or down in large increments

FINE TUNE: Adjusts the pitch of the oscillator up or down in fine increments

SHAPE: Changes the shape of the wave produced by the main oscillator (VCO). Turning this control fully CW gives you a triangle wave. Start turning it CCW takes you through sawtooth/ramp, then at about the 12:00 position you get a square wave. Continue turning it CCW and you get several higher duty cycle square waves
.
GLIDE: Adjusts the rate at which the pitch of the VCO takes to go between pitches (whether changed by the COARSE TUNE knob or CV IN). Fully CCW causes the pitch to react almost instantly, while fully CW makes it take its sweet time.

LFO 1 / LFO 2 SHAPE: Changes the shape of the waves produced by the low-frequency oscillators (LFOs). The shapes are similar to those of the VCO, except that the LFOs have sawtooth/ramp waves that go both up and down (since you can actually hear the difference at LFO rates).

LFO 1 / LFO 2 RATE: Controls how fast the LFOs go.

LFO -> VCO: Routes the two LFOs to control the pitch of the main oscillator. The 12:00 position is basically "off", and the LFOs have no effect on pitch. Start turning the control CCW and LFO1 starts changing the pitch of the VCO. Maximum effect is at about 10:00. Continuing to turn the control starts to bring in LFO2 as well. All the way CCW gives you full effect from both LFO1 and LFO2.

Turning the control CW from 12:00 does essentially the same thing, but brings in LFO2 first, then LFO1.

This might seem like kind of a weird control, but it gives you quite a bit of routing flexibility with one knob. You can have no pitch modulation, LFO1, LFO2, LFO1 with a little LFO2, or LFO2 with a little LFO1.

LFO -> VCA: Routes the two LFOs to control the amplitude of the oscillator. (See LFO -> VCO control description above for more information about how the control works.)

ATTACK: Controls how fast the audio amplitude fades in when the gate is triggered. CCW is fast and CW is slow.

DECAY: Controls how fast the audio amplitude fades out when the gate is released. CCW is fast and CW is slow.

VOLUME: Controls the overall volume of the signal coming from AUDIO OUT.

FILTER: Changes the cutoff frequency of an analog low-pass filter. Turn the knob fully CW and all frequencies (that you can hear) are let through. Start turning it CCW and the high frequencies start getting cut off, until the sound becomes muddy / muffled. Use in conjunction with the SHAPE control to get the tonal quality you are looking for.

Connections:
CV IN: Accepts a 1 volt/octave control voltage to control the pitch of the oscillator. It responds from about 0-5V, but voltages outside of this range won't cause damage. The CV input is quantized, so only valid (western scale) notes are played. This input is ignored when Sample & Hold is enabled.
GATE IN: A voltage greater than about 2.5V will turn on the gate and allow audio to come out the output of the synth.
AUDIO OUT: Connect to an amplifier or another synth. The jack has both the tip and ring connected, so you can even use stereo headphones and hear sound from both ears.
Power: Connect 7.5-15VDC to this 3.5mm TS jack to power the synthesizer. The tip is positive (don't worry, there's a protection diode in case you get it reversed). You can get power from a 9V battery, AC adapter, or you may even be able to find an output on your modular synthesizer that can provide enough current.

Specifications:
Power supply: 7-15VDC (reverse-polarity protected!)
Power connection: 3.5mm phone jack, center-positive
Current draw: 15ma
Dimensions: 3.5" x 2" (the same as a business card!)

Notes: Add a splash of colour to your setup with six colour options.

USB-C 3.2 Gen 2, 10Gbps data rate with up to 100W Power Delivery

Dual ferrite cores help prevent high-frequency noise from outside sources

1.0m/3.2ft length allows for connecting gear while still maintaining full power delivery and data rates

56kO pull-up resistor to protect your devices

Chroma Tie velcro strap included for easy cable management and storage.

DJ Tech Tools have been making great USB data cables for professional performers and artists since 2011. By popular demand, the cable line has been brought to the USB-C universe, adding a much-needed affordable, good looking, and high quality USB 3.2 cable.

Notes: ***B-STOCK: Box opened, product in perfect working order***


An evolution of the monophonic Typhon synth concept, the Artemis applies similar interface design to a six-voice analogue synth module with Sinevibes digital effects. Lots of power and typically classy Dreadbox sound.

Supplier's Notes:
Artemis is a unique analogue polysynth with a UI inspired by Dreadbox's award-winning Typhon synthesizer. It builds on Typhon's innovative concepts, adding six voices of polyphony, powerful modulation capabilities, stereo FX, voice spreading, and much more!

From classic polysynth tones to aggressive modern sounds and everything in between, Artemis has a wealth of raw synthesis and modulation capabilities to explore.

At its core, Artemis features a fully analogue architecture, based on the smart oscillator implementation found in both the Typhon and the Murmux Adept, allowing effortless transitions between multiple waveforms, mix settings, glide, FM, and more.

These VCOs are paired with Dreadbox's signature filter topology, offering classic 12dB or 24dB per octave low-pass modes, as well as a standalone resonant high-pass filter. The low-pass filter includes dedicated filter frequency FM control for dialling in edgier, modern tones.

Two multi-mode LFOs enhance the modulation possibilities: LFO 1 offers a unique fade-in parameter, while LFO 2 includes XMOD (cross-modulation) control for chaotic, brash textures. Each LFO has multiple waveforms and can modulate pitch, filter cutoff, VCO waveform, pulse width, and more.

This analogue powerhouse is complemented by a suite of world-class FX from Sinevibes, who previously collaborated with Dreadbox on Typhon's FX. With reverb, delay, modulation effects, master distortion, and more, Artemis delivers an extra dimension to your sounds.

Notes: Analogue VCO with range from 16Hz up to 32.000Hz.

Variable Voltage Controlled Wave Shaper.

Advanced pitch control with Voltage Controlled Quantizer, so it is always in tune.

Hard Sync Input.

Separate Pulse Output, for use as a clock or to sync other oscillators
.
Power Consumption: 114mA @ +12V , 46mA @ -12V.

35mm depth.

Notes: Aqueduct is a vintage-inspired pitch vibrato with eight modulation modes delivering synth-like sonar pulses, touch-sensitive frequency modulation, gentle rolling pitch-wobbles, steady kosmische pulsations, rapid trills, slimy sonic squiggles, whammy bar wiggles, pitch bends, pseudo-flange, and anything else your pitch-warped brain can picture in your murky mind's eye.

Controls
The controls are simple. Rate (1) adjusts the LFO speed which controls how quickly the pitch rises and falls. Depth (2) controls the LFO amplitude, adjusting the intensity of the vibrato effect. The rotary switch labeled Mode (3) selects between one of eight LFO waveshape and envelope combinations which drastically alter the character of the modulation and make Aqueduct adaptable to nearly any musical situation.

Modes
Sine: The smoothest and most subtle of all waveforms, sine waves are most commonly associated with classic amp-like vibrato. Plug in, turn on, and commence the Chooglin'.

Triangle: Triangle waves have a sharper rise and fall than sine waves with a more pronounced pitch bend at the peak of each LFO cycle.

Ramp: Like a triangle wave with a twist. The Ramp waveform has a sharp sonar pulse followed by a rapid downward slope with a synthesizer-like sustain and release. This is where things start to get a little weird.

Square: Square waves are the most rigid and abrupt of the waveforms. Rather than gliding smoothly between pitches, square waves produce an instant on-or-off transition between notes. Use this mode for trills when you get tired of doing hammer-ons and pull-offs.

Random: This waveform isn't a waveform at all as much as it's a drunken master of modulation who slurs your notes into an unpredictable assortment of greasy pitch-bends before disappearing at last call and leaving you stuck with the tab. It has a "warped record" effect at low Depth settings and becomes sloppier and more randomized as you increase the Depth control.

Env D: This is Envelope-Controlled Depth mode. The waveshape is set to a sine wave, the speed of which may be adjusted using the Rate control. The Depth control sets the sensitivity of the envelope - the point at which the effect kicks in as you play. In this mode, your pick attack sets the intensity of the modulation. The harder you dig in, the more pronounced the effect. Try it during your next motorik jam.

Env R: This is Envelope-Controlled Rate mode. In this mode, the input level (i.e. pick attack) controls the LFO rate. The LFO uses a sine waveshape. Play harder for faster modulation or lay low for slower modulation speeds. The Rate control adjusts the sensitivity of the envelope. Depth selects the LFO intensity.

Env P: This is Envelope-Controlled Pitch mode, which has been lovingly nicknamed "The My Bloody Valentine setting". If your instrument doesn't have a tremolo bar, it does now. In this mode, the LFO is set to a sine waveshape, and frequency modulation is controlled by the dynamics of your pick attack and not the LFO. Do yourself a favor and try this one with Flexi-Switching™.
Depth sets the wet/dry mix. This is the only mode that contains a wet/dry mix and may be set to taste to create touch-sensitive dynamic vibrato, chorus, flanger, or tactile pitch drops. Full counterclockwise is all dry, full clockwise is all wet. With this control set to noon you will get a 50/50 mix with a small amount of phase cancellation.
Rate sets the sensitivity and overall range of the pitch bend.

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw: 68 mA

Input Impedance: 1 MO

Output Impedance: <10 kO

Notes: The Aurelius is not your run of the mill chorus pedal. This compact, beautifully cased wonder is a three mode chorus with six programmable presets and an expression control. Inspired by the 1970s CE-1 Chorus Ensemble pedal, this digital unit has been tirelessly tweaked and fine-tuned to give you an all-encompassing chorus and vibrato experience like nothing else.

Choose from Vibrato, Chorus and Rotary mode and manipulate their Width, Rate and Balance to achieve your ideal sound. Shift seamlessly from one mode to another to cop a blend that is all your own. Just one simple tap of the Preset (Save/Recall) and you can summon up to six settings of your choosing at will.

Welcome, fellow frequency chaser! Kudos to you for referring to the official manual of this majestic Device rather than diving into its powers blindly. Or equally likely, traveling down a YouTube pedal demo rabbit hole where you eventually find yourself watching a tutorial on how to make gnocchi from scratch at 3am. You're about to embark on a magical journey with this mighty Aurelius pedal in front of you.

You see, this is not simply your run of the mill chorus pedal. This compact, beautifully cased wonder is a three-mode chorus with six programmable presets and an expression control. Choose from Vibrato (V) Mode, Chorus (C) Mode, and Rotary (R) Mode and manipulate their Width, Rate, and Balance to achieve your ideal sound. Shift seamlessly from one mode to another to cop a blend that is all your own. Just one simple tap of the Preset ("Save/Recall") switch and you can summon up to six settings of your choosing at will.

Feeling pretty powerful now, aren't you?

Inspired by the 1970s CE-1 Chorus Ensemble pedal, this digital unit has been tirelessly tweaked and fine-tuned to give you an all-encompassing chorus and vibrato experience like nothing else. Inspiration the 1940s and the advent of the Leslie speaker to boldly capture the sound of its rotating baffle system for the Rotary mode. Earthquaker studied the way that the horn and the rotor moved on Leslie speakers and emulated the phasing and speeds of the low frequency oscillator, but they exaggerated the hell out of them to make it sonically suitable for guitar, bass or your instrument of choice.

And by popular demand, like many Earthquaker pedals, this is equipped with an expression control so you can use any TRS expression pedal to manipulate the Width, Rate or Balance. Put it in the Vibrato mode and you'll have a really subtle chorus with a seasick vibrato and alternate quickly between the two seamlessly. And that's only just one mode. The possibilities are endless. Think about it.

This compact world of chorus in a box will fit on any pedalboard and is so intuitive and easy to use that you most likely won't have to refer to this manual ever again.

Each and every Aurelius is hand crafted in Akron, Ohio, USA and is inspected by the spirit of speaker innovator Donald Leslie.

Specs

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 75 mA
Input Impedance: 500 kO
Output Impedance: 100 O
TRS expression pedal wiring:
Tip: Wiper
Ring: +3.3V
Sleeve: Ground

Flexi-Switchr Technology

This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Notes: The Bit Commander is a monophonic analog guitar synthesizer with four octaves of vintage square wave synth tones. Its no-nonsense interface makes it easy to add or subtract octaves to create a wide variety of sounds without having to dial in envelopes or oscillators. Ripping sub-octave thump, pulsing octave down, a lightly squared base tone and a swelling transformer based octave up all join together to make a single guitar sound like an army of olde tyme synths.

Controls:
1. Level: Master volume

2. Filter: Tone control more highs clockwise, more warmth counterclockwise

3. Base: Squared input signal level

4. Sub: Two octaves down level

5. Down 1: One octave down level

6. Up 1: One octave up level

This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 25 mA
Input Impedance: 50 kO
Output Impedance: <500 O

Notes: You hear that EVP? It's the all new, extra spook-tacular, Ghost Echo calling out from beyond the void! The Ghost Echo is Earth Quaker's spooky take on the haunted amp-top spring reverberation units of yesteryear. This creepy analog/digital spring reverb emulation machine boasts a terrifying 30ms - 150ms of pre-delay, controllable via the Attack knob, for everything from a quick rockabilly slapback to viscous pools of ectoplasmic reverberations. When playing staccato, you'll hear the tortured trails of the reverb, resulting in more of a slapback or echo sound. Legato playing will reveal a massive ambient "depth" that fattens up the sound - and look out, it's right behind you!

Phew, that was close. The Dwell control sets the length and thickness of the decay, which is to say that it controls how long the disembodied spirits of notes no longer with us float through the ether. At the maximum setting it will descend into an infinite loop of self-oscillation. The Depth sets the intensity of the reverb, which you probably know as the wet/dry mix.

Controls:
1. Attack: Adjusts the length of the pre-delay, from 30ms at minimum to about 150ms at maximum. When the Dwell is set to self-oscillate, this will change the pitch of the oscillations.

2. Dwell: Adjusts the length of the decay. This will start to self oscillate around 3 O'clock, the pitch of the oscillations can be changed by turning the Attack control.

3. Depth: Mixes in the wet signal with the dry, unity is around noon and everything after is boosted.

Tech Specs:
This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 86 mA
Input Impedance: 10 MO
Output Impedance: 1 kO

Notes: The Hummingbird is a choppy, sawtooth tremolo modeled on the vintage "repeat percussion" unit and similar to those found in old Valco and Vox amplifiers. It is capable of producing everything from classic "50's style" shimmering tremolo to a synthy, delay-like chop that turns your signal into a burst of short pings and on through to near ring modulation speeds. Simply choosing between modes 1 (slow), 2 (mid-tempo) or 3 (fast) and adjusting the rate and depth controls will unlock a whole new world of amplitude modulation at your feet. The Rate is also expression pedal accessible to allow instant changes on the fly. Using an expression pedal opens up the possibility of true random amplitude modulation! In addition to the modulation, the Hummingbird has plenty of clean gain on-tap allowing you to either boost or cut the signal using the level control. If the Depth is turned to zero, the Hummingbird will become a JFET clean boost!

Controls:
1. Depth: This adjusts how much the oscillator affects the signal. All the way clockwise produces a full chop, all the way counterclockwise produces no chop and the Hummingbird can be used as a simple JFET booster.

2. Mode: Three way toggle switch which selects the range of the oscillator. Mode 1 is slow, Mode 2 is mid tempo and Mode 3 is fast.

3. Rate: This adjusts the speed of the oscillator. Faster clockwise, slower counterclockwise.

4. Level: Adjusts the output volume

5. Expression Jack: Use an expression pedal to adjust the rate with your foot! When an expression pedal is in use the Rate control is defeated. We recommend the Moog EP-2 expression pedal.

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 10 mA
Input Impedance: 50 kO
Output Impedance: <10 kO

Notes: The Organizer is a polyphonic organ emulator designed to mimic the organ tones of yesteryear crossed with the highly unique "Guitorgan". It has a warm and very analog feel with a hint of Leslie warble that is unlike other modern octave shifters. It is simple to dial in and tracks chords as well as single notes perfectly all over the neck on both guitar and bass. Not only can the Organizer be used on strings, it has been widely used on everything from vocals and synths to horns and drums. If it makes sound, the Organizer can handle it! The Organizer uses a mix of analog and DSP circuitry with true bypass switching and an all analog dry signal path.

Controls:
1. Up: Level control for the octave up.

2. Down: Level control for the octave down.

3. Choir: This control takes a mix of the octave Up and octave Down setting and regenerates it. The end result is an additional 2 octaves up, 2 octaves down and direct signal with a slight delay that adds a "church organ" like feel. This control only works if the octave Up and octave Down are in use.

4. Lag: Delay control for the wet signal. Full counterclockwise is minimal delay. Delay time increases as it rotates clockwise.

5. Tone: Rolls off the high end as you dial it counterclockwise.

6. Direct: Level control for the analog dry signal.

Tech Specs:
Switching
This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 81 mA
Input Impedance: 1 MO
Output Impedance: 500 O

Notes: The Sea Machine is a chorus pedal with as many modulation possibilities as there are fish in the ocean. That's a lot of fish. And a lot of modulation. From subtle, shimmery chorus sounds, to wobbly, seasick, warbly pitch-bent detuning that rocks the boat, the Sea Machine is the audio bait that'll help you reel in the big one.

The Sea Machine ain't no one-trick seahorse. With a mix of standard and unique controls, everything from subtle warble, classic Leslie, seasick pitch bends, strangled alien sounds, stunted arpeggiations and many more far out sounds are available. Or you could just use it as a chorus. That works, too. Oh, and if you're a bass player who fancies themselves a fan of the classic 80s post-punk bass sound, the Sea Machine is pretty much just like (tone) heaven.

Controls:
1. Animate: How far the pitch shifted signal swings, lower levels equals a tighter and more focused shift a la traditional chorus. As you increase the control a more wild and animated pitch shift begins to emerge.

2. Dimension: Adds a slight slap-back at low levels, reverb-like ambiance at mid levels and an echo-resonance that will lead to self-oscillation at max.

3. Intensity: Adjusts how much modulated signal is blended in with the dry signal. Unity for this control is right around noon, everything above that is boosting the modulated signal.

4. Depth: Adjusts how strongly the LFO modulates the delay time.

5. Shape: Goes from triangle wave to square wave as you turn clockwise.

6. Rate: This sets the speed of the LFO. The miniature LED will blink to the tempo, even in bypass mode.

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 40 mA
Input Impedance: 10 kO
Output Impedance: <1 kO

Notes: The Tentacle is a classic analog octave up effect. It is the very same octave from our beloved Hoof Reaper pedal. We got so many requests to make this a stand-alone unit that we just had to make it a reality. You can now add an excellent, swelling octave up to anything your heart desires! Pair it with your favorite fuzz, strap on a headband and unleash your inner Jammy Hendrix. Put it in front of another octave up and blow your amps mind. Throw it in the effects loop of a delay and marvel at what happens (then tell us, we'd like to know too). What's better? It has no controls! Nothing to worry about at all here, just hit the switch and go for it. The Tentacle is an analog octave up, the effect will become much more pronounced when using your neck pickup and playing above the 12th fret.

Tech Specs:
Flexi-Switch Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedals will make extra noise if there is ripple or unclean power. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.00 in. (121 x 64 x 51 mm) with footswitch
Current Draw: 10 mA
Input Impedance: 100 kO
Output Impedance: <1 kO

Notes: The Depths is Earth Quaker Devices' take on the classic optical vibe circuit. Now you can swab the decks with the same lush, pulsating, three-dimensional swirling sound you know and love, with some modern accouterments for all you land-lubbers out there.

The Depths is optimized for use with all kinds of instruments, pickups, and to play well with dirt, so nobody's left waiting on shore. If it's got a 1/4" output, plug it in and get deep!

Controls:
1. Intensity: This controls how subtle or intense the overall effect is. Counterclockwise from noon are the more subtle, classic sounds. Clockwise from noon are the more drastic and intense sounds.

2. Voice: Dials in the overall sound. Turn it clockwise for a fuller sound with more lows, bring it back for a thinner, more midrange focused tone.

3. Rate: Controls the speed of the effect. Counterclockwise for slow, clockwise for fast.

4. Level: Controls the volume of the effect. Unity is around 1 o'clock, everything above that is boost.

5. Throb: This controls the low end pulse. It may not be immediately evident on the bridge pickup, but switch to the neck or add some dirt and it comes alive. All the way up for more throb, dial it back for less. Works best when the Voice is set to a warmer tone.

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9-18 volt DC power supply with a 2.1mm negative center barrel. Pedals will make extra noise if there is ripple or unclean power. Pedal-specific, transformer-isolated wall-wart power supplies, or multiple isolated-output supplies, are always recommended. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 21 mA
Input Impedance: 1 MO
Output Impedance: <1 kO

Notes: The EHX Tortion JFET Overdrives covers vast tonal real estate and redefines versatility. Like a database of great tone, the EHX TORTION's full complement of features and controls make dialing in inspired guitar sound intuitive.

The JFET circuit is designed to sound and feel like the front end of a tube amplifer with a 3-band EQ and 4-way Pre-Gain to suit any style. The footswitchable Boost section adds a second set of Gain and Volume controls for a real twin channel preamp assault.

Whatever the era, from vintage to modern, your search for the ultimate tone has ended.

Circuit: Analogue
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 30mA
Year Released: 2014

Notes: The Oceans Abyss expands on Electro-Harmonix's highly acclaimed reverb technology to deliver a truly immersive effects workstation. The pedal is centered around dual reverb engines that are independently programmable with full-stereo algorithms including Hall, Spring, Shimmer and more. Place these reverbs into a customizable signal path with additional FX blocks like Delay, Chorus, Tremolo, or Bit Crusher for a completely unique soundscape building experience.

Electro-Harmonix has paved the way for powerful, accessible reverbs since the release of the original Holy Grail and now we've pushed the envelope deeper with the fully-equipped Oceans Abyss. Featuring a customizable signal path with up to 8 effects blocks, the Oceans Abyss can be configured as individual reverb, modulation, EQ, delay, bit crusher, saturation or volume effects, or as countless combinations for incredibly creative effect shaping. From a simple Spring reverb to a lush stereo field featuring stereo hall and shimmer reverbs, chorus, delay, overdrive, and tremolo, you can go from surf to shoegaze instantly, without breaking a sweat.

Deep parameter editing is accessible via the high-visibility OLED display with multiple graphical views and easy-to-read designs. Expression/CV control over nearly every parameter gives artful control of your effects and dynamics. Fully-stereo I/O plus an FX Loop allows for use with any instrument, recording set up, or live rig. 128 programmable presets via onboard footswitching or MIDI ensure perfect recall in all performance situations. MIDI IN/OUT ports with MIDI IN support of PC, CC, and Tempo Clock expand the already immense talents of the Oceans Abyss. Connect with UBS-C to Windows or Mac for effects editing, preset management, and more with the free EHXport app.

Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo In & Out
Power Supply: 9.6VDC-500mA power adapter included
Dimensions (in): 7.125 x 5.75 x 2.25
Current Draw: 500mA

Notes: Combines two sweet pedals - the Soul Food transparent overdrive and Nano POG polyphonic octave generator--in one potent multi-effect. Use them alone or together, put either first in the chain, insert other pedals between them with the FX loop. Also includes a cool Mode switch for a choice of two different octave-up sounds.

The versatile EHX Soul POG delivers award-winning overdrive and flawless polyphonic octaves in any combination!

Specifications

Circuit: Analogue / Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 125mA
Year Released: 2016

Notes: ***B-STOCK: Box damaged, product in perfect working order***


A genuinely unique, inspiring instrument. The successor to the Solar 50 is an experimental dronee machine with a range of sound sources, processing tools and effects. Also avaialble in black.

Supplier's notes:
SOLAR 42 is an analogue microtonal ambient drone machine.

It is an improved model of the SOLAR 50.

On board:

Four drone voices as in SOLAR 50
Two new drone voices, totally different from SOLAR 50. To create space sound
effects
Two white noise generators.
Two Samples and Holds
Two volt octave VCO voices with different waveform variations, including
morphing.
Two LFOs as in SOLAR 50.
5 step analogue sequencer
Preamp for contact mic.
Envelope follower
Stereo mixer with panoramic left and right channels
Dual polyvox stereo filter
Dual cartridge effector combiner with CV control. Now you can load a different
effect on each channel.
Stereo audio output
Dry audio outputs volt octave voices
External audio input.
Joystick
Separate push-button keypad for six drone voices
Touch sensitive keypad controller for volt octave voices.
Power supply unit no longer needs to be reset.
Reduced output noise compared to SOLAR 50.

Size: 49,5 x 32 x 2,9 cm
Weight: 5,5 kg
Designed and engineered by Arseniy Tokarev
Elta Music

TOUCH SENSITIVE CONTROLLER settings

Behaviour:
- single: 12 key mode
- twin*: 2x6 key mode, the parameters are the same for both sides
- split*: 2x6 key mode, but with separate parameters for both sides (e. g.: you can have an arpeggiator on one side, but a basic keyboard controller on the other side)
* in twin and split modes the pressure output acts as the note CV output, therefore pressure parameters (output, rise and fall) have no effect

Arpeggiator state:
- off: the module acts as a keyboard controller
- on: enables arpeggiator

Arpeggiator hold:
- off: the arpeggiator will play only while the keys are held
- on: the arpeggiator will continue to play the last progression after the keys are released

Arpeggiator clock:
- sets the clock multiplication/division ratio for the arpeggiator

Arpeggiator direction:
- forward
- backward
- ping-pong
- random

Arpeggiator variation: when enabled the arpeggiated progression will be played again transposed by the selected interval.
- OFF
- x1
- x2
- x3
Arpeggiator variation interval: 1 - 12 semitones

Arpeggiator rhythm: an eight step trigger sequencer placed between the arpeggiators virtual clock input and clock source, applies a rhythmic pattern to the arpeggio. - turn steps on/off

Arpeggiator rhythm length: sets the length of the rhythm sequencer. 1 - 8 steps

Portamento: creates slew limiting effect on the CV output, sets the speed of gliding (ie: how much time it takes to transition from one pitch to the next). 0 - 255

Legato:
- off: portamento is always on
- on: gliding happens only when two or more note plates are touched simultaneously (this parameter has no effect when arpeggiator is enabled)

Vibrato speed: sets the speed of the LFO that's modulating the note CV output. 0 - 127

Vibrato depth: sets the modulation amount. 0 - 127

Vibrato delay: specifies a time delay before vibrato begins to apply until it reaches the full strength specified by the depth parameter. 0 - 127

Vibrato pressure control: when enabled, the modulation amount is altered by the pressure applied to keys.
- off
- on

Pressure output:
- pressure: voltage on the pressure output will continuously follow the pressure applied to key plates
- ASR: attack/sustain/release envelope generator
- AD: attack/decay envelope generator
- LOOP: looped AD envelope generator
- random: outputs a random voltage

Rise: creates slew limiting effect on rising edge in pressure and random modes, sets attack time in envelope modes. 0 - 255

Fall: creates slew limiting effect on falling edge in pressure and random modes, sets decay/release time in envelope modes. 0 - 255

Scale editor: turn notes on/off of the scale applied by the note quantiser, when all notes are disabled the module works as a microtonal keyboard.

Load scale: select and load a preset scale/mode.
- Semitones
- Ionian
- Dorian
- Phrygian
- Lydian
- Mixolydian
- Aeolian
- Locrian
- Blues major
- Blues minor
- Pentatonic major
- Pentatonic minor
-Folk
-Japanese
-Gamelan
-Gypsy
-Arabian
-Flamenco
-Whole Tone

Root note: sets the root note of the scale applied by the note quantiser. C - H

Notes: Transparent plastic cover made of plexiglass for the Solar 42F.

*** Please note: the Solar 42F is not included, it is shown for demonstration purposes only. ***

Notes: Empress have brought back the most sought after Parametric EQ pedal with groundbreaking updates.

More Control

Whether you're trying to cut through a mix or fix a feedback issue, you need precision! The ParaEq MKII offers the most control of any pedal EQ on the market.

More Power

The ParaEq MKII pedals operates internally at 27V, providing clean headroom without unwanted clipping.

More Purity

We're able to offer the most control without degradation to the tone due to minimal circuit topology0 the opposite of graphic EQs.

Which ParaEq Do You Need?

The original ParaEq has been loved and trusted by musicians on a variety of instruments for over a decade. Both the ParaEq MKII and the ParaEq MKII Deluxe feature a low-noise, transparent signal path that is extremely versatile.

With three fully parametric bands, you can simultaneously achieve broad tonal shaping and precise fine-tuning to sculpt your perfect sound.

The ParaEQ MKII Deluxe will appeal to players who:

Need high-pass and low-pass filters for precision work at the frequency extremes
Want the glorious sound of Baxandall filters for sparkling high end or extra weight in the low end
Want to be prepared for any EQ situation

Why Parametric over Graphic EQ?

Graphic equalizers provide a convenient visual sense of the EQ curve. However, there is a tradeoff in transparency and precision.

The ParaEq MKII Deluxe excels in precision and transparency compared to a standard 7-band graphic EQ pedal. When both are set to provide a boost, the ParaEq MKII Deluxe offers a much more focused adjustment, affecting only the targeted frequencies. In contrast, the graphic EQ alters a broader range of the frequency spectrum. Moreover, while the ParaEq keeps the rest of the signal unchanged, the graphic EQ can unintentionally reduce other parts of the signal. This makes the ParaEq MKII Deluxe a more transparent and accurate tool for shaping your sound.

This combination of transparency and precision is why recording studio control rooms are dominated by parametric equalizers, and why they're a great choice for creative and corrective EQ on your pedalboard.

Specifications

Input Impedance: 1MO
Output Impedance: 100O
Frequency Response (-3dB): 22Hz - 25kHz
Total Harmonic Distortion: < 0.05%
Noise: > 107dB
Headroom: +30dBu
Input Voltage: 9VDC Centre-Negative
Required Current: 300mA
Power Input Connector: 2.1mm Barrel Connector
Height (Enclosure Only): 1.5"
Height (Including Controls): 2.5"
Length: 4.8"
Width: 2.6"
Weight: 1 lb

Notes: The E-OR is a passive 2HP 'selectable gate mixer,' which means that you can choose between two different gate sources, two trigger sources or BOTH using the three way switch per channel. Great for choosing between various rhythms, clocks, gates, etc. Perfect for manual fills and variation in your set! Matte black panel with white ink. The E-OR is diode protected, so combining two trigger or gate sources is what it is meant to do!

Notes: The ever-popular 8020D gets an industrial makeover with this raw aluminium finish. Same clear and revealing sound, same compact design but a striking new look.

Supplier notes:
When it comes to performance versus size, the 8020 has set the benchmark in nearfield monitoring for over 15 years.

Active Crossovers

Directivity Control Waveguide (DCW) Technology

SPL

100 dB

Frequency Response

56 Hz - 25 kHz (-6dB)

Dimensions

H 242 x W 148 x D 142 mm, with Iso-Pod (view in inches)

Classic design
The 8020D is the latest revision of this enduring studio classic, boasting an even higher SPL yet lower energy consumption than previous versions. Designed to adapt to the broadest possible range of listening environments, the 8020D thrives when space is at a premium.

Transparent and truthful
Engineers love the transparent and truthful reproduction of the 8020D, and with its wide uncoloured sweet spot you are always in a position to make accurate, reliable mix decisions. Additionally, our Intelligent Signal Sensing (ISS™) circuitry detects when your monitor is no longer in use, placing it into an environmentally friendly, power-saving standby mode.

Key Technologies

Active Crossovers

Directivity Control Waveguide (DCW) Technology

Intelligent Signal Sensing (ISS) Technology

Iso-Pod Stand

Minimum Diffraction Enclosure (MDE) Technology

Optimized Amplifiers

Protection Circuitry

Reflex Port Design

Room Response Compensation

Versatile Mountings

Package contains:
1 x 8020D monitor
1 x mains cable 1,8m
1 x user manual

Technical Specifications

SPL
100 dB

Amplifier Power
50 W Bass (Class D) + 50 W Treble (Class D)

Frequency Response
56 Hz - 25 kHz ("-6 dB")

Accuracy of Frequency Response
i 2.5 dB (62 Hz - 20 kHz)

Driver Dimensions
105 mm Bass + 19 mm Treble

Dimensions
H 242 x W 148 x D 142 mm, with Iso-Pod

Weight
3.2 kg / 7.1 lb

Connections
1 x XLR Analog Input

Notes: LED Meter is a handy utility module designed to show audio levels. Three colour versions are available:

green colour with yellow-red peak segments.
all blue colour
all yellow colour

There are total 30 led segments, each one roughly corresponds to 1 dB of level, so it is 30 dB of measurement level available with this module.
The module has an input for the signal to be displayed, and its buffered copy is sent to the output for further processing, so no external splitter is needed.
Two trimmers are accessible via holes on the front panel: left trimmer adjusts brightness and right trimmer is used for the level adjustment. So the module can represent full scale signals ranging from 1 V to 12 V.
There is operation mode jumper on the back side. When the jumper is installed - bipolar operation is active, and when the jumper is removed - ordinary audio meter is active.

Dimensions
4 HP
40 mm deep

Current Draw
150 mA +12V
20 mA -12V

Notes: LED Meter is a handy utility module designed to show audio levels. Three color versions are available:

- green colour with yellow-red peak segments.
- all blue colour
- all yellow colour

There are total 30 led segments, each one roughly corresponds to 1 dB of level, so it is 30 dB of measurement level available with this module.
The module has an input for the signal to be displayed, and its buffered copy is sent to the output for further processing, so no external splitter is needed.
Two trimmers are accessible via holes on the front panel: left trimmer adjusts brightness and right trimmer is used for the level adjustment. So the module can represent full scale signals ranging from 1 V to 12 V.
There is operation mode jumper on the back side. When the jumper is installed - bipolar operation is active, and when the jumper is removed - ordinary audio meter is active.

Dimensions
4 HP
40 mm deep

Current Draw
150 mA +12V
20 mA -12V

Notes: The Headliner 3-Tier Desktop Synth Stand was designed to improve your workflow and help you stay organized while fitting more gear on your production desk. It fits three compact devices like synthesizers, controllers, drum machines, and effects modules. The angled design makes it easier to reach knobs and view LCD screens.

The Headliner 3-Tier Desktop Synth Stand is adjustable in width from 7.3" to 11.5" and fits a variety of devices from Roland, Korg, Elektron, and more (partial list below). It is made from solid steel and includes non-slip rubber strips for added stability.

Features
Improve your workflow and stay organized while fitting more gear on your production desk.
Fits three devices such as synthesizers, controllers, drum machines, and effects modules.
Angled stand makes it easier to reach knobs and view LCD screens.
Solid steel construction with non-slip rubber strips keep stand and equipment in place.
Width adjustable from 7.25" to 11.5". Best fits devices from 8" to 14" in width.
The lower tier has a depth of 7". The middle and upper tiers have a depth of 5.25".
Overall dimensions of stand (WxDxH): 7.25"-11.5" x 17" x 17.5".
Includes non-slip rubber strips.

Fits*: Akai Fire, Alesis SR-16, Arturia SparkLE, Behringer Crave, Behringer TD-3, Behringer RD-6, Elektron Digitone, Native Instruments Maschine Mikro MK3, PreSonus ATOM SQ, Akai LPD8, Akai MPX8, Dreadbox Typhon, Korg nanoPAD2, Korg SQ-1, Korg Volca Bass, Korg Volca Beats, Korg Volca Drum, Korg Volca Kick, Korg Volca NuBass, Korg Volca Sample 2, Roland Boutique Series, Roland MC-101, Roland TB-3 Touch Bassline, Roland TR-6S
*Some devices may not fit on all tiers.

Notes: You can connect an Intellijel Gx (or Qx) gate expander module to Metropolix to provide eight additional gate and trigger outputs, which you configure via the MX button on the Metropolix panel.

Width: 4HP
Depth: 22mm
Power: 8mA @ +12V 0mA @ -12V

Notes: The idea is to allow you to turn any cable into a mult. Connect any Eurorack compatible patch cable to the HUB and then leave them hanging off your patch or magnetically attached to strategic points. This makes more room for the user interface of your modules and complex patches are easy to trace through.

Notes: A controller, an app, an instrument.

The Exquis controller gives you immediate access to the rules of harmony to improvise with or without theoretical prerequisites, and offers you dimensions of expressiveness that you can quickly master. In combination with the Exquis app, a unique workflow opens up, allowing you to create an entire song in a few minutes: choose sounds, record loops, play the conductor and structure your songs in complete spontaneity.

Exquis offers an intuitive way to guide you on the right path, while allowing you to get out of it. No hassle: just choose a scale, and follow its luminous path to play in tune. Thanks to our default note layout, it's very easy to make chords; Exquis arranges notes that sound good together next to one another. You will be amazed at how harmony falls under your fingers.

Compared to a piano keyboard, on our note layout the semitones are also arranged horizontally, the harmonious (third) notes are always next to one another, and the intervals starting from any note are always the same. If you prefer, you can change the note layout, and soon even create your own tailored note layout using our editor.

On the default note layout, scales can be simply represented by a pair of light paths; whether you are a beginner, amateur or experienced musician, just follow the colors, with one or two hands, to stay in tune and improvise spontaneously. Explore many scales (major, minor, dorian, oriental...) and soon you will be able to create your own using our editor.

Our default note layout goes back to the basic logic of harmony, putting notes that sound good together (thirds) next to one another vertically. Each type of chord (major, minor, diminished, dominant etc) always forms a single and unique transposable form.

Inspired by the finesse of acoustic instruments, the keys of Exquis are both firm enough to play percussion and short notes with precision, and soft enough to modulate long notes with sensitivity. Tap, press, and tilt multiple keys independently using the MIDI Polyphonic Expression (MPE) protocol. The encoders (clickable, with infinite and smooth rotation and with a slight resistance) allow you to control the effects of a sound being played, as well as certain essential settings in the various menus.

In order to allow musicians to create new rhythms and moods, the application natively includes exclusive features. For example, we were inspired by the workshops of Jacob Collier and will soon allow the use of tuplets (particular divisions of beats such as 1/5 or 1/7), useful for creating grooves with a drunk effect.

The Exquis keyboard is a MIDI controller compatible with all software, MIDI synthesizers and modular synthesizers. The Exquis app, although optimized for the controller, is also compatible with all MIDI controllers, and like all MIDI controllers, the Exquis keyboard is compatible with most DAWs and plug-ins.

Dear users of modular synthesizers, Exquis connects directly to your favorite devices thanks to the CV outputs: GATE, PITCH and MOD. You can also connect Exquis to your MIDI synthesizers using the MIDI IN and OUT ports.

Notes: Two VCOs (oscillators) are input to the VCF (filter) and output through DELAY (can be turned off).

The VCO can be a 4LFO module, which is a mix of 4 LFOs, a noisegenerator, an LFO, and a SUB OSCILLATOR, and the VCF can be an LFO.

With a variety of tones, you can create various sounds even with a subtle knob position.

It can be used with a single 9V battery or a 9V DC center negative adapter.

CV IN can be used with CV input to the filter. (VCO1.2,VCF)

INPUT is capable of audio input. The input sound goes to the filter- delay (can be turned on and off) in parallel with the built-in VCO.

CV IN can be input from +8 volts to -8 volts.

This analogue synth runs on DC9V negativecenter or a 9V battery. 2 VCOs go to VCF and Delay. VCO receives 4 modulations inside. NOISE GENERATOR,4 mixed LFO and SUB OSC. VCF receives CV of LFO.It becomes the wave filter with it. ? Delay section has the on/bypass switch. INPUT goes to VCF and DELAY with internal VCOs.

Notes: The JMT Synth NOISY MIC-1 is a unique vocal instrument that specialises in intense, noisy textures. The simple design consists of an original circuit designed by JMT Synth, that mangles incoming audio into unique timbres unlike that from any other vocal processor. A single volume control and button based on/off switch ensures the NOISY-MIC 1 is ideal for live performance.

Notes: ***B-STOCK: Box opened, product in perfect working order***


A visit to the Hainbach Studio Complex two years ago, led to a collaboration that would result in what is perhaps Joranalogue's finest design yet. United by a common passion for vintage test gear, the Joranalogue team joined forces with artist and YouTube sensation Hainbach.

Collide 4 builds upon on the lock-in amplifier concept, and brings it into the Eurorack world. These atomic age physics research instruments are known for their raw power when used in musical applications. Soon, any synthesist can experience this for themselves, at a fraction of the size and weight of a vintage unit, and with full voltage control.

The result is a wholly new kind of synth voice and audio processor, unlike any other. It's a perfect union of Hainbach's extensive experience in exploring the deepest musical realms contained within vintage test equipment, and profound knowledge of audio design and production.

'Quadrature spectral computer' is how you could describe this new kind of musical generator and processor. The sound? Quite simply: it's smashing!

Specs

Modern, fully analogue re-imagining of the lock-in amplifier concept, expanded to new heights.
Pingable variable bandwidth filter with self-oscillation capability.
Pre- and post-filter gain stages, for a total of up to 130 dB of amplification!
Through-zero sine/cosine quadrature oscillator.
Hilbert transform network for use as a frequency shifter.
Dual ring modulators with output lowpass filters.
Extensive output section, including magnitude and phase analogue computing outputs.
Unique X/Y quadrature topology, ideal for stereo use.
Handsome (and useful) signal level/overload LED indicator.
CV control over everything, with temperature compensation and excellent volt/octave pitch tracking.
20 HP, 30 mm deep. Over 600 components, yet a fraction of the weight and size of a vintage Model 124A lock-in amplifier unit.
